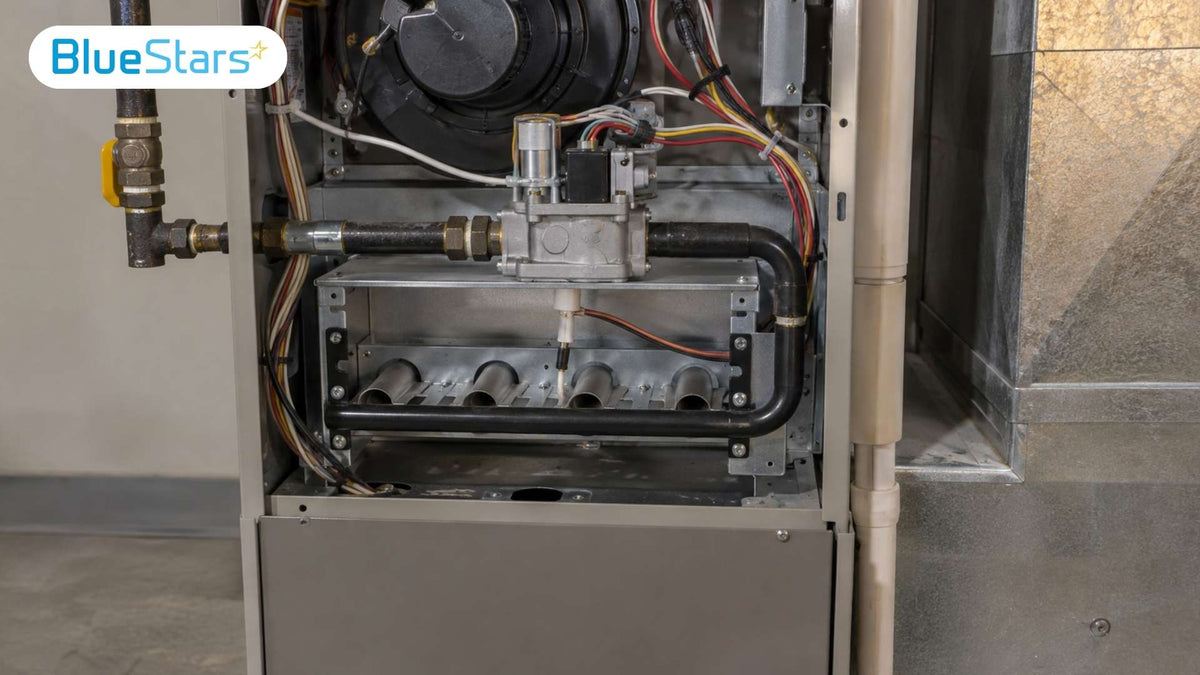

A furnace not igniting can leave your home without heat when you need it most. The problem may come from several common issues, ranging from simple system settings to worn or faulty components. Understanding what to check first can help you identify the cause and determine the right next step. At BlueStars Parts, you can find reliable replacement parts to help keep your furnace operating properly.
Quick Diagnosis: Why Is Your Furnace Not Igniting?
When your furnace is not igniting, the symptom can help narrow down the cause. Use this quick table for an initial check.
| Symptom | Likely Cause | Quick Check |
|---|---|---|
| Nothing happens when thermostat calls for heat | Thermostat or power issue | Check Heat mode, temperature setting, breaker, and furnace switch. |
| Inducer runs but igniter does not glow | Faulty igniter or pressure-switch issue | Check for error codes and visible igniter damage. |
| Igniter glows but burner does not ignite | Gas supply or gas valve issue | Make sure the gas shutoff valve is open. |
| Burner ignites then shuts off after a few seconds | Dirty or faulty flame sensor | Check whether the flame goes out within a few seconds. |
| Furnace repeatedly attempts ignition then locks out | Repeated ignition failure | Note the error code before resetting the furnace. |
| Furnace displays an ignition failure code | Ignition-system fault | Match the code with the furnace manual. |
1. What's Causing Your Furnace Not to Ignite?
A furnace not igniting does not always mean the entire heating system has failed. The problem may start with something simple, such as the thermostat or power supply, or involve an ignition or safety component. Below are the most common causes to check.
1.1. Thermostat or Power Problem
A thermostat with an active display doesn't necessarily mean it's calling for heat. Make sure it's set to Heat and raise the target temperature above the current room temperature. Check for a "Heat On" indicator (if available) to confirm the thermostat is requesting heat. If it uses batteries, replace them if needed. Also check that the furnace power switch is on and the circuit breaker hasn't tripped. Without a proper heat call or power supply, the furnace may never begin its ignition sequence.
1.2. Dirty Air Filter or Restricted Airflow
A dirty air filter doesn't directly cause ignition failure, but restricted airflow can affect the furnace's heating cycle. When airflow is insufficient, the furnace may overheat and trigger a high-limit safety switch, causing it to shut down before completing a heating cycle. Check the air filter for heavy dust or debris and replace it if dirty. Also, keep supply and return vents clear to maintain proper airflow.
A clogged air filter restricts airflow through the furnace (Source: BlueStars Parts)
1.3. Blocked Intake/Exhaust Vent or Pressure Switch Problem
A blocked intake or exhaust vent can disrupt the airflow needed for safe combustion. If the inducer motor runs but the pressure switch condition is not satisfied, the control board may prevent the igniter from energizing. Snow, leaves, or debris blocking outdoor vent openings can cause this issue. Check for visible obstructions and safely clear accessible debris. Never bypass or manually force a pressure switch to close.
1.4. Failed or Damaged Furnace Igniter
If the inducer runs but the hot-surface igniter does not glow, a faulty igniter is one possible cause. However, wiring problems, an unsatisfied pressure switch, an open safety switch, or a faulty control board can also prevent the igniter from receiving power.
Turn off the furnace power before inspecting the igniter for visible cracks or damage, and avoid touching its heating element. Have a qualified technician confirm the cause before replacing it. If replacement is needed, the 632625 Hot Surface Furnace Ignitor from BlueStars Parts is designed for select Nordyne, Intertherm, Broan, and Miller furnaces. Always confirm compatibility before ordering.
The 632625 Furnace Ignitor from BlueStars Parts (Source: BlueStars Parts)
1.5. Gas Supply or Gas Valve Problem
If the igniter glows but the burners do not light, possible causes include an interrupted gas supply, a faulty gas valve, a weak igniter, or an ignition timing or control issue. A glowing igniter alone does not confirm a gas valve failure.
For basic checks, verify the position of the accessible manual gas shutoff valve and see whether other gas appliances are working. If the problem persists, have a qualified HVAC technician test the gas valve, control signals, and ignition system. Never attempt to adjust or repair the gas valve yourself.
1.6. Burners Ignite but Shut Off: Dirty or Faulty Flame Sensor
If the burners ignite and then shut off after a few seconds, the flame sensor may be dirty or faulty. The sensor confirms that a stable flame is present. If it cannot detect the flame, the control board shuts off the gas for safety. Cleaning may solve minor contamination, while a damaged sensor may need replacement.
A dirty or faulty flame sensor can cause the burners to shut off shortly after ignition (Source: BlueStars Parts)
1.7. Ignition Control, Safety Switch, or Control Board Failure
A furnace ignition failure can also result from a faulty safety switch, ignition control, wiring connection, or control board. Any of these problems may interrupt the ignition sequence before or shortly after the burners light. Check the diagnostic LED or display for an error code and compare it with the furnace manual. Control-board and electrical faults are best inspected by a qualified HVAC technician.
2. How to Troubleshoot a Furnace That Won't Ignite?
If your furnace won't ignite, start with simple checks before assuming a major component has failed. Follow the steps below in order to identify where the ignition sequence stops.
Step 1: Check the Thermostat and Furnace Power
Set the thermostat to Heat and raise the temperature above the current room temperature. Replace weak thermostat batteries if needed. Next, make sure the furnace power switch is ON and check the circuit breaker. If the breaker trips again after resetting, stop troubleshooting and call an HVAC technician.
Step 2: Check the Air Filter and Airflow
Inspect the furnace filter and replace it if it is heavily clogged with dust. Also make sure supply registers and return vents are open and not blocked by furniture or other objects. Restricted airflow can cause overheating and trigger a safety shutdown, which may make it seem like the furnace is not igniting properly.
Inspect the furnace filter and replace it if it is clogged with dust (Source: BlueStars Parts)
Step 3: Watch One Complete Furnace Ignition Sequence
One of the most effective ways to troubleshoot a furnace that won't ignite is to identify exactly where the ignition sequence stops. Instead of guessing which part has failed, observe one startup attempt through a safe viewing window, if available. Keep all safety panels in place. A typical hot-surface ignition sequence follows this order:
Thermostat calls for heat → Inducer starts → Pressure switch confirms proper draft → Igniter activates → Gas valve opens → Burners ignite → Flame is confirmed.
Pay attention to what happens:
-
Inducer runs, but the igniter doesn't glow: Possible pressure switch, safety circuit, wiring, igniter, or control board issue.
-
Igniter glows, but the burners don't light: Possible gas supply, weak igniter, gas valve, or ignition control issue.
-
Burners ignite but shut off shortly afterward: Possible flame-sensing or other safety-related issue.
Record where the sequence stops and any displayed fault codes. These observations help narrow down the problem without unnecessarily replacing parts, although professional testing may still be needed to confirm the cause.
Step 4: If the Inducer Runs but the Igniter Does Not Glow
If the inducer starts but the igniter never glows, the problem may involve the igniter, pressure switch, wiring, or control system. Look for an error code and visually inspect the igniter for obvious cracks or damage. Do not touch the igniter element or perform electrical testing unless you are qualified.
Look for an error code and visually inspect the igniter (Source: BlueStars Parts)
Step 5: If the Igniter Glows but the Burner Does Not Ignite
If the igniter glows but the burners do not light, possible causes include a gas supply issue, a weak igniter, or an ignition control problem. A glowing igniter does not necessarily indicate a faulty gas valve.
Limit troubleshooting to basic external checks. Verify that the accessible manual gas shutoff valve is in the correct open position and check whether other gas appliances are working.
If other appliances also have no gas, contact your gas utility. If the furnace still fails to ignite, call a qualified HVAC technician for further diagnosis. Never disassemble, test, or adjust internal gas components yourself. If you smell gas, leave the area immediately and contact your gas utility's emergency line or local emergency services from a safe location.
Step 6: If the Burner Ignites but Shuts Off Quickly
If the burners light but shut off within a few seconds, a dirty or faulty flame sensor is a common suspect, but it is not the only possible cause. Poor grounding, wiring issues, combustion problems, or a faulty control board's flame-sensing circuit can also cause similar symptoms. Avoid assuming the flame sensor is faulty without further diagnosis. The flame sensor must confirm that combustion is present so the control board can keep the gas valve open.
A failed flame signal may cause repeated ignition attempts or eventually place the furnace into lockout. Other wiring, grounding, or combustion problems can produce similar symptoms.
A failed flame signal may cause repeated ignition attempts (Source: BlueStars Parts)
Step 7: Read the Furnace Diagnostic Error Code
Many modern furnaces use a diagnostic LED or display to indicate where a startup problem occurred. Record the code before resetting the furnace. Compare it with the fault-code chart on the furnace panel or in the manual for your exact model. Error-code meanings and lockout behavior vary between manufacturers and models, so avoid diagnosing a component from the code alone.
3. When Should You Call a Professional?
Basic checks can sometimes fix a furnace not igniting, but some problems require professional diagnosis. Contact a qualified HVAC technician if:
- The furnace won't ignite after checking the thermostat, power, filter, and gas supply.
- The furnace repeatedly attempts ignition or enters a hard lockout.
- The circuit breaker trips again after being reset.
- The igniter, gas valve, control board, or safety switch appears faulty.
- The burners light but repeatedly shut off after a few seconds.
- The furnace shows persistent ignition-related error codes.
- You hear unusual noises or notice an abnormal yellow or flickering flame.
- You smell gas or a carbon monoxide alarm sounds. Leave the home immediately and contact the appropriate emergency or utility service.
Note: Avoid disassembling gas or electrical components yourself, as improper repairs can create serious safety risks.
Avoid disassembling gas or electrical components yourself (Source: BlueStars Parts)
4. How to Prevent Your Furnace From Not Igniting
Regular maintenance can reduce the risk of furnace ignition failure and help the heating system operate reliably. Follow these preventive steps:
- Replace the air filter regularly: Check it often and replace it when dirty to maintain proper airflow.
- Keep vents and registers clear: Do not block supply or return vents with furniture or other objects.
- Check intake and exhaust vents: Keep outdoor openings clear of leaves, snow, dirt, and other debris.
- Schedule annual furnace maintenance: Have an HVAC professional inspect the furnace before each heating season.
- Keep the burner and ignition system maintained: Professional servicing can identify a worn igniter, dirty flame sensor, or other developing problems.
- Check thermostat operation: Make sure the thermostat works properly and replace its batteries when needed.
- Address warning signs early: Repeated startup attempts, short cycling, unusual sounds, or error codes should be checked before they lead to a complete furnace ignition failure.
Regular maintenance can reduce the risk of furnace ignition failure (Source: BlueStars Parts)
5. FAQ: Furnace Not Igniting
5.1. Why is my furnace not igniting but the thermostat is working?
A working thermostat does not necessarily mean the furnace is receiving a proper call for heat. Set the thermostat to Heat and raise the target temperature above the room temperature. If the furnace still won't ignite, observe where the ignition sequence stops. For example, an inducer that runs without igniter activation may indicate a pressure switch, safety circuit, or ignition control issue. Identifying the stopping point helps narrow down the cause without guessing which part needs replacement.
5.2. How do I know if my furnace igniter is bad?
A faulty igniter may cause the furnace to start its ignition sequence without lighting the burners. However, an igniter that does not glow is not necessarily defective. If the inducer runs and the system reaches the igniter activation stage but the igniter fails to operate, it becomes a stronger suspect. Wiring, pressure switch, safety circuit, or control board issues can cause similar symptoms. A qualified HVAC technician can test the igniter and confirm whether replacement is necessary.
5.3. Why does my furnace ignite and then shut off?
If the burners ignite but shut off within a few seconds, a dirty or faulty flame sensor is a common suspect. Wiring, grounding, combustion issues, or a faulty flame-sensing circuit can cause similar symptoms. However, if the igniter glows but the burners never light, a weak igniter, interrupted gas supply, or gas valve problem may be responsible. A qualified HVAC technician can identify the cause.
5.4. Why is my furnace burner not igniting even though the igniter glows?
If the igniter glows but the furnace burner is not igniting, the furnace may not be receiving gas properly. Possible causes include a closed gas shutoff valve, interrupted gas supply, faulty gas valve, or an igniter that glows but is too weak to ignite the gas reliably.
5.5. Can I replace a furnace igniter myself?
Replacing a furnace igniter involves electrical and gas-heating equipment, so professional service is generally the safer choice. The igniter is also fragile and must match the furnace model correctly. If you are unsure about the diagnosis or installation, contact a qualified HVAC technician.
A furnace not igniting can result from anything from a simple thermostat or airflow issue to a failed igniter, flame sensor, or control component. Checking the ignition sequence step by step can help you narrow down the cause and know when professional service is needed. For reliable furnace parts and repair solutions, explore BlueStars Parts and find the right component for your heating system.
