Is your furnace starting and then shutting off after only a few seconds, or refusing to stay lit? A dirty flame sensor may be preventing the system from detecting the burner flame correctly. Learning how to clean furnace flame sensor buildup can help restore reliable operation and avoid unnecessary service calls. At BlueStars Parts, you can find dependable replacement parts and practical solutions to keep your heating system working properly.
Quick Summary
| Item | Details |
|---|---|
| Time | About 10–20 minutes |
| Difficulty | Easy to Moderate |
| Typical Symptom Before Cleaning | Burners ignite, then shut off after a few seconds |
| Step 1 | Remove the access panel |
| Step 2 | Disconnect the wire and remove the sensor |
| Step 3 | Polish the metal rod |
| Step 4 | Reinstall the sensor and restore power |
| Replacement Parts | 0130F00010 Furnace Flame Sensor |
If cleaning does not fix the issue or the sensor is damaged, you may need a replacement. Browse compatible options from BlueStars Parts and always check the part number and furnace model before ordering.
1. Before You Start: Tools, Safety, and Prep
Before learning how to clean furnace flame sensor buildup, gather the right tools and shut down the furnace safely.
Check Before Cleaning
Before removing the flame sensor, check the following:
-
Thermostat: Is the thermostat set to heating mode and calling for heat?
-
Furnace power: Was the furnace receiving electrical power during normal operation?
-
Burner ignition: Do the burners ignite, then shut off after a few seconds? This may indicate a flame sensor issue.
-
Gas odor or error code: Do you smell gas or see a furnace error code? If you smell gas, leave the building immediately without operating electrical switches and contact your gas utility from a safe location. If an error code is displayed, check the furnace manual before proceeding.
Note: If the furnace has no power or the burners never ignite, cleaning the flame sensor may not resolve the problem.
1.1. What Tools Do You Need to Clean a Furnace Flame Sensor?
You only need a few basic tools to clean the sensor rod and remove light oxidation or buildup.
| Tool/Material | Purpose |
|---|---|
| 1/4-inch nut driver/ screwdriver | Remove the access panel and sensor mounting screw |
| 0000-grade steel wool/ Scotch-Brite pad (use only if permitted by the furnace manufacturer’s instructions or service guidance). | Gently polish buildup from the metal rod |
| Clean cloth or paper towel | Wipe away loosened residue before reinstalling |
Important: Do not use sand cloth or silicon/silica-based sandpaper. These abrasives can scratch the rod and leave fine particles behind. When exposed to burner heat, the contamination can create an insulating layer and contribute to premature or permanent sensor failure.
1.2 Safety First: Before Cleaning Your Furnace Flame Sensor
For your safety, follow these precautions before starting the DIY cleaning process:
-
Check for any gas odor before doing anything else: If you smell gas, do not continue and do not turn electrical switches on or off. Leave the area immediately and contact your gas utility or a qualified professional from a safe location outside the building.
-
Turn off electrical power to the furnace: Once you have confirmed there is no gas odor, switch off the furnace service switch or circuit breaker before removing any panel or touching internal components.
-
Shut off the gas supply: Close the manual gas shutoff valve so no gas can flow to the burner while you work.
-
Wait for the furnace to cool completely: Burner components and the flame sensor can remain hot after operation, so allow enough time for them to cool before touching them.
-
Confirm the flame sensor location in the furnace manual: Check the manufacturer's instructions to identify the correct component and avoid disturbing nearby parts.
-
Avoid adjusting gas valves, burners, or unrelated wiring: Only work on the flame sensor and its mounting hardware. If the repair requires handling other gas or electrical components, consider having a qualified professional perform the work.
Follow these safety steps in order of importance to reduce the risk
2. How to Locate the Flame Sensor

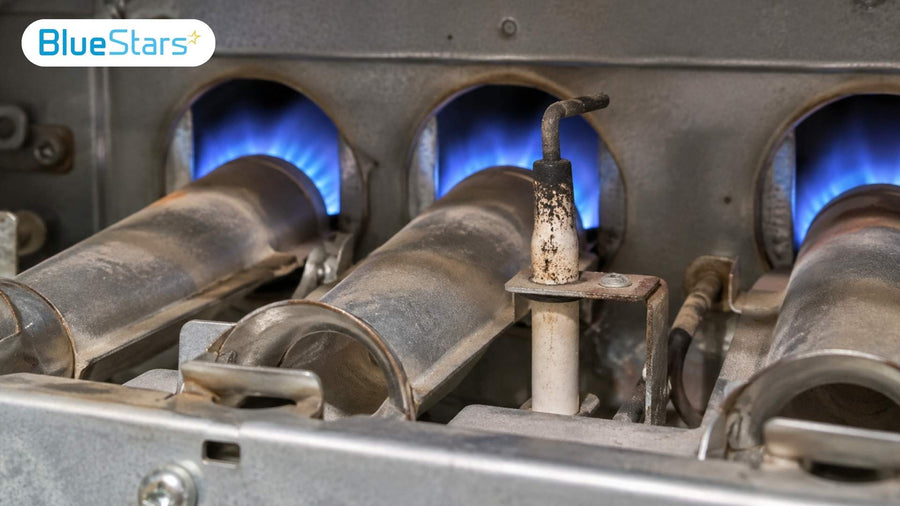

The flame sensor is usually located beside the burner assembly. Look for a small metal rod mounted on a porcelain base and positioned directly in the burner flame path. Do not confuse it with the igniter. The flame sensor detects whether a flame is present, while the igniter produces the heat or spark needed to ignite the gas.
Quick Identification: Flame Sensor vs. Igniter
| Feature | Flame Sensor | Igniter |
|---|---|---|
| Wiring | Typically 1 wire | Often 2 wires |
| Appearance | Small metal rod with a porcelain/ceramic base | Heating element or spark electrode |
| Location | Metal rod sits directly in the burner flame path | Positioned near the burner to ignite the gas |
| Function | Detects the presence of a flame | Ignites the gas |
Important: If you are unsure which component is the flame sensor, consult your furnace manual or a qualified HVAC technician before proceeding. Do not remove or disconnect any component unless you have positively identified the flame sensor.
The flame sensor is usually located beside the burner
3. How to Clean the Furnace Flame Sensor
If you are wondering how do you clean a flame sensor on a furnace, the process is usually straightforward once the furnace is safely shut down. Follow these four steps carefully and check your furnace manual if the sensor is difficult to access.
Step 1: Remove the Access Panel
Make sure the furnace power and gas supply are off. Then remove the access panel to expose the burner assembly and locate the flame sensor. Depending on the furnace, the panel may lift off or be secured with screws.

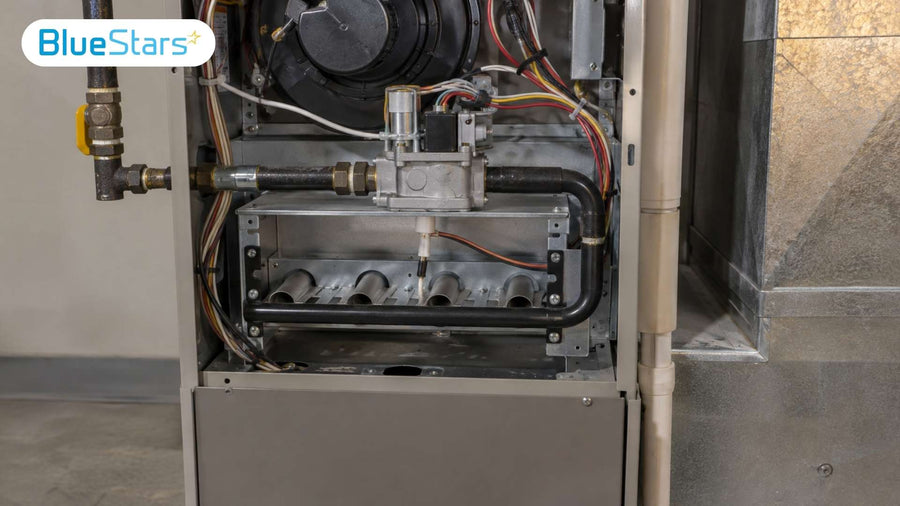

Remove the access panel to expose the burner (Source: Bluestars Parts)
Step 2: Disconnect the Wire and Remove the Sensor
Before disconnecting anything, take a clear photo of the flame sensor's wire connection and mounting position to ensure correct reinstallation. Disconnect the single wire attached to the flame sensor. Remove the mounting screw with a 1/4-inch nut driver or screwdriver, then carefully pull the sensor out without bending the metal rod or damaging the porcelain base.
Step 3: Polish the Metal Rod
Gently rub the metal rod with 0000-grade steel wool, only if permitted by the furnace manufacturer's instructions, to remove light oxidation and surface buildup. The goal is to remove deposits, not to aggressively polish the rod to a shiny finish.
If steel wool is not recommended, use a Scotch-Brite pad only if specifically approved by the manufacturer. Wipe the rod with a clean, dry cloth to remove any loose residue. Avoid excessive scrubbing, sandpaper, or emery cloth, as these can scratch the rod or leave insulating particles behind

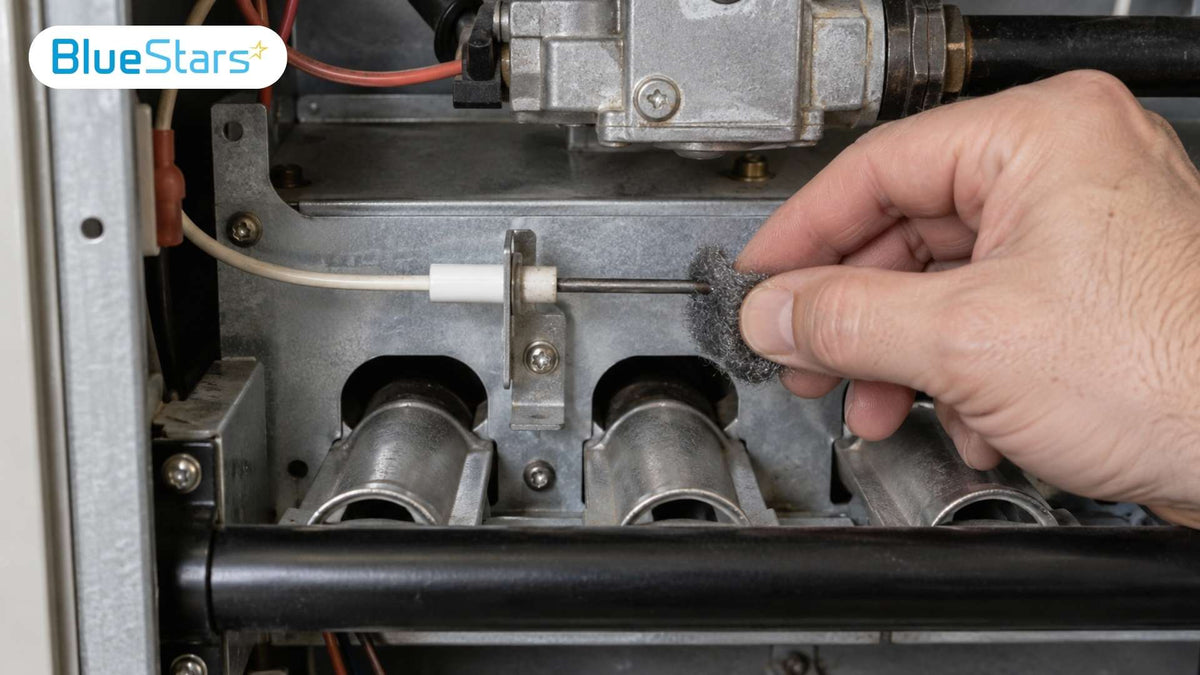

Gently rub the metal rod with 0000-grade steel wool (Source: Bluestars Parts)
Step 4: Reinstall and Restore Power
Place the flame sensor back in its original position, tighten the mounting screw, and reconnect the wire. Refer to the photo taken before removal to ensure everything is correctly positioned.
Post-Reassembly Checklist
Before restoring the gas supply or electrical power, confirm the following:
-
Sensor position: The flame sensor is correctly seated and securely mounted.
-
Wire connection: The sensor wire is firmly reconnected to its original terminal.
-
Access panel: The furnace access panel is properly reinstalled and secured.
-
Tools and debris: No loose tools, screws, or cleaning materials remain inside the furnace.
Once all checks are complete, restore the gas supply and electrical power according to the manufacturer's instructions. Set the thermostat to Heat and observe a full heating cycle.
If the furnace still shuts down shortly after ignition, the sensor may need replacement or the system may require professional diagnosis.
4. When Cleaning Doesn't Work: Replace the Flame Sensor
Cleaning can restore a sensor affected by light carbon buildup or oxidation, but it cannot fix physical damage or an internal failure. Consider replacing the flame sensor when:
-
The furnace still short-cycles after the sensor has been cleaned.
-
The burners ignite but shut off again after a few seconds.
-
The sensor rod is heavily corroded, pitted, or damaged.
-
The porcelain/ceramic insulator is cracked or broken.
-
The furnace displays a flame-sensing or ignition fault code even after cleaning.
-
The sensor repeatedly needs cleaning but the problem quickly returns. Repeated buildup may indicate another underlying furnace issue that should be inspected by a qualified HVAC technician.
Notes: If cleaning does not solve the issue, the sensor or another part of the flame-sensing circuit may need service. A cracked sensor rod or porcelain insulator is also a clear sign that replacement is needed.
If your furnace uses part number 0130F00010, you can check the 0130F00010 Furnace Flame Sensor from BlueStars Parts. For other furnace models, browse the Furnace Flame Sensor collection to find a compatible replacement.
0130F00010 Furnace Flame Sensor from BlueStars Parts (Source: Bluestars Parts)
5. How to Prevent Flame Sensor Buildup
Regular furnace maintenance can help reduce dust, soot, and residue buildup on the flame sensor and lower the risk of repeated ignition problems.
-
Replace or clean the air filter regularly: Follow the manufacturer's recommended schedule to maintain proper airflow and reduce dust accumulation.
-
Keep the burner area free of debris: Remove accessible dust, lint, and dirt around the furnace without disturbing burners, gas components, or internal wiring.
-
Include the flame sensor in annual maintenance: Have a qualified HVAC technician inspect the sensor and clean it if necessary during routine furnace servicing.
-
Avoid touching the sensor rod: Keep bare hands away from the metal rod during cleaning or reinstallation to prevent oil residue from transferring onto its surface.
-
Watch for unusual flame appearance: If the burner flame appears abnormal, have it inspected by a qualified HVAC technician rather than attempting to adjust the burners yourself.
-
Address recurring buildup: If the flame sensor repeatedly needs cleaning, schedule a professional inspection, as frequent buildup may indicate another underlying furnace issue.
If cleaning is no longer enough and the sensor needs replacement, browse the Furnace Heating/Temperature Parts from BlueStars Parts to find a compatible option for your furnace model.
Furnace Flame Sensor collection from BlueStars Parts (Source: Bluestars Parts)
6. FAQ: How to Clean a Furnace Flame Sensor
6.1 How do I tell the flame sensor apart from the igniter inside the furnace?
A flame sensor usually has one wire and a thin metal rod positioned in the burner flame. An igniter typically has two wires and is designed to create the heat or spark that lights the gas.
6.2 How often should I clean my furnace flame sensor?
Inspect the furnace flame sensor at least once a year as part of annual furnace maintenance, ideally before the heating season begins. You should also inspect and clean the sensor sooner if symptoms appear.
6.3 Is it safe to use sandpaper instead of steel wool to clean the sensor?
It is better to avoid ordinary sandpaper unless the manufacturer specifically allows it. Use 0000-grade steel wool or a non-silica abrasive pad to reduce the risk of damaging the sensor surface.
6.4 How many seconds should the furnace stay lit if the sensor is working properly?
If the sensor is working properly, the burners should stay lit for the normal heating cycle. If they shut off after only about 2–5 seconds, the flame sensor or ignition system may have a problem.
6.5 Does a dirty flame sensor trigger an error code on the thermostat or control board?
Yes, a dirty sensor can cause a flame-sensing or ignition fault code on the furnace control board. Whether the same code appears on the thermostat depends on the furnace and thermostat model.
Learning how to clean furnace flame sensor buildup can help prevent short cycling and keep your furnace running more reliably. If cleaning no longer solves the issue, consider replacing the sensor with a compatible part. Visit BlueStars Parts to explore reliable furnace replacement parts for your system.
