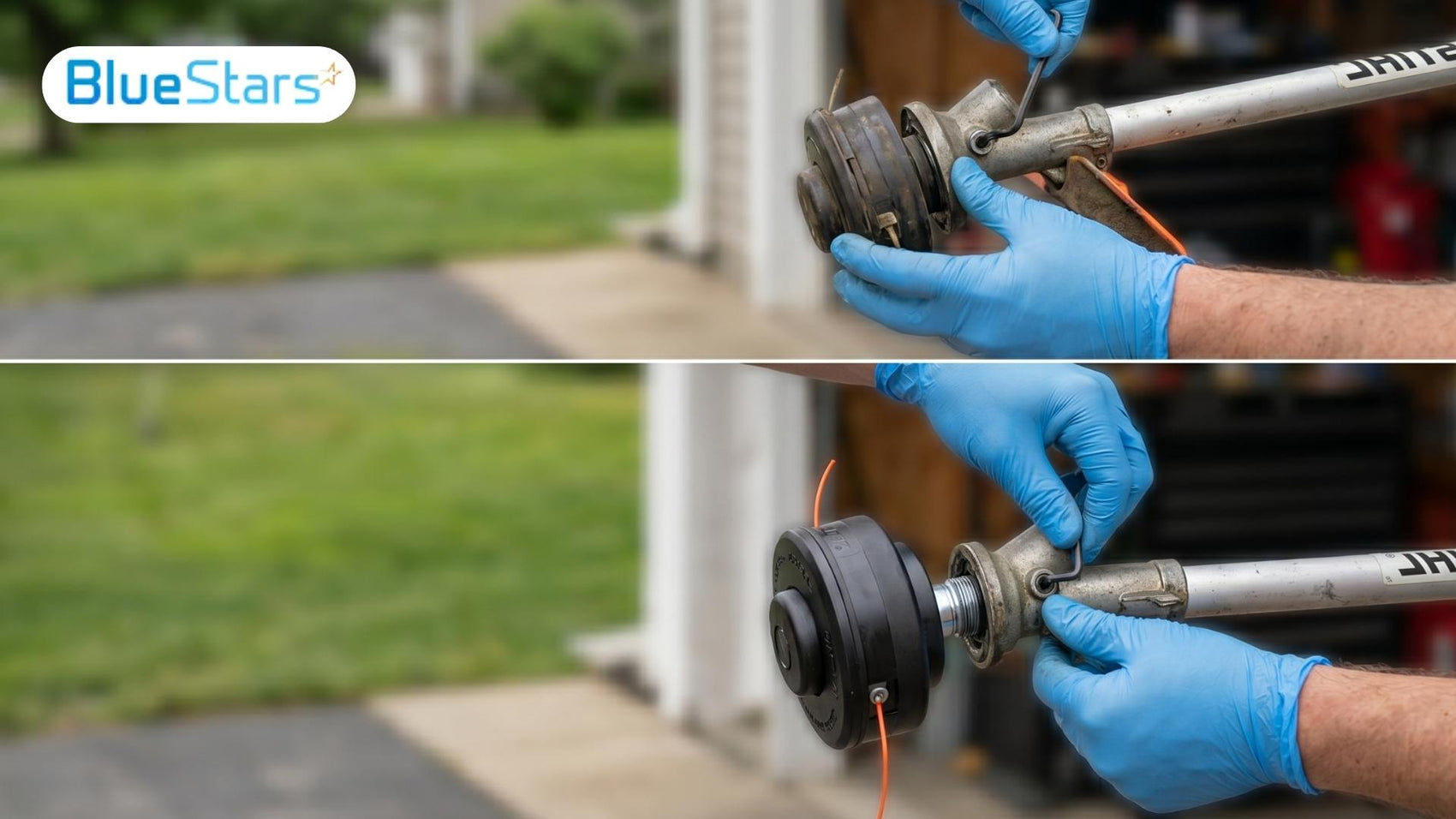

How to Replace String Trimmer Head: Easy Step-by-Step Guide

A worn or damaged trimmer head can make yard work frustrating and reduce cutting performance significantly. When the line stops feeding correctly or the head becomes loose, replacing the trimmer head is often the fastest and most effective solution. In this guide, BlueStars Parts will walk you through how to replace string trimmer head components safely and correctly, even if you are a beginner.

1. When Should You Replace a String Trimmer Head?

A string trimmer head experiences constant impact, vibration, and friction during operation. Over time, internal components wear out, plastic parts weaken, and the line feed system becomes less reliable. Here are some warning signs that you need to recognize early before trimming performance gets worse.

1.1. The trimmer line no longer feeds properly

When the trimmer line stops advancing correctly, the problem often comes from worn internal feed components inside the trimmer head. Users commonly notice problems such as constantly stopping to pull the line manually, uneven line length on one side, or the line disappearing back into the spool too quickly during operation.

Dirt buildup, damaged spools, or worn eyelets can also prevent the line from feeding smoothly, leading to repeated jamming or uneven trimming performance. This issue affects cutting efficiency because the trimmer cannot maintain a consistent line length during use. Over time, poor line feeding may also place extra strain on the engine or motor.

Worn string trimmer head causing poor line feeding and repeated jamming (Source: BlueStars Parts)

1.2. The head is cracked, loose, or physically damaged

A damaged trimmer head is one of the clearest signs that replacement is necessary. Repeated contact with rocks, concrete, fences, and hard surfaces gradually weakens the plastic housing and mounting points. Over time, cracks may form around the cap, spool housing, or threaded connection.

A loose or cracked head can create excessive vibration, unstable rotation, and uneven trimming performance. You should notice that broken trimmer head pieces can separate at high RPM during operation and potentially cause injury or damage nearby objects.

1.3. The bump feed stops working

The bump feed system allows the trimmer line to advance automatically when the bottom of the head taps the ground. When internal springs, spool retainers, or feed mechanisms wear out, the bump feed may stop responding completely. The line may remain stuck inside the spool or feed unevenly during trimming.

This problem forces you to stop frequently and manually pull the line out, making trimming slower and more frustrating. Continued use with a faulty bump feed can also wear down the spool and internal components more quickly.

If you are dealing with severe feed problems or damaged internal components, replacing the entire head is usually more reliable than repairing individual parts.  SRM-225 String Trimmer Head from BlueStars Parts is designed to restore smooth bump-feed operation and improve trimming consistency, which can be your good choice to improve performance.

SRM-225 String Trimmer Head (Source: BlueStars Parts)

1.4. You want faster line loading

Older trimmer heads often require manual winding methods that can be time-consuming and frustrating. Many newer replacement heads are designed with quick-load systems that simplify line installation and reduce maintenance time significantly. When compared to traditional manual winding systems, quick-load trimmer heads allow users to reload lines faster and with less frustration.

If you frequently replace trimmer line, upgrading to a modern replacement head can improve convenience and reduce downtime during yard work. Faster loading systems also help reduce line tangling and uneven winding inside the spool.

2. Tools and Safety Steps Before Replacing the Head

Before learning how to replace a string trimmer head, make sure you have the right tools and follow a few basic safety steps. Although this repair is fairly simple, the trimmer head and cutting line can still cause injuries if handled carelessly.

2.1. Tools

Preparing the right tools in advance will make the replacement process quicker and easier. Below is a detailed breakdown of the essential tools required to complete this trimmer head replacement efficiently:

Using the right, well-fitted tools prevents you from damaging the gear head assembly or marring the drive shaft threads. Keeping these items organized and within arm's reach makes the entire swap out straightforward and hassle-free.

2.2. Safety Steps

Working with outdoor power equipment requires strict attention to preventative safety guidelines to avoid accidental injuries. Follow these simple safety precautions to avoid accidents or damage:

• Turn off the trimmer completely before touching any part of the cutting deck or starting any repair.

• Disconnect the spark plug wire on gas-powered models to completely eliminate the risk of an accidental engine startup.

• Remove the battery pack from cordless electric string trimmers to ensure the motor cannot engage.

• Wear heavy-duty work gloves to protect your hands from sharp, rigid nylon line edges and metallic components.

• Place the trimmer on a stable, flat surface like a workbench or driveway before attempting to remove the head.

• Allow the engine or motor casing to cool fully if the trimmer was recently used to prevent painful contact burns.

Following these safety steps helps reduce injury risks and prevents accidental damage during disassembly. A safe, powered-down workspace gives you the perfect control needed to handle the mechanical components confidently.

3. How to Replace String Trimmer Head Step by Step

Step 1: Turn off and secure the trimmer

Start by powering off the trimmer completely and placing it on a stable work surface. This prevents accidental movement while removing the old head. If you are using a gas trimmer, disconnect the spark plug wire before continuing. Taking a few moments to secure the trimmer properly makes the repair safer and helps prevent damage to the shaft or cutting assembly.

Note: Always work on the trimmer in a clean and stable area to avoid losing small parts during disassembly. Securing the unit properly also reduces the risk of injury while handling sharp or damaged components.

Preparing and securing the string trimmer before head replacement (Source: BlueStars Parts)

Step 2: Remove the old trimmer line and cap

Next, remove any remaining trimmer line and detach the spool cap from the head assembly. Some models use tabs while others require twisting or unscrewing the cap. Clearing the old line helps expose the internal spool and mounting system. This is also a good time to check for hidden debris inside the trimmer head, such as packed grass, dirt buildup, or melted line fragments that may interfere with proper line feeding or head performance.

Notice: If the spool cap feels stuck, avoid forcing it aggressively because plastic tabs can crack easily. Cleaning away grass buildup during this step can also improve the performance of the new head later.

Removing old trimmer line and spool cap before replacement (Source: BlueStars Parts)

Step 3: Lock the shaft or hold the head in place

Many homeowners should pay close attention to this step because it is one of the most common points where mistakes happen during trimmer head replacement. Most string trimmers include a shaft-lock hole or locking mechanism that prevents rotation while removing the head. Insert the locking pin or screwdriver into the shaft hole to keep the assembly steady. Proper shaft locking prevents unnecessary strain on the gearbox and makes unscrewing the old head much easier.

Caution: Never attempt to remove the trimmer head without stabilizing the shaft first. Doing so may damage internal drive components or make the head much harder to loosen safely.

Locking the trimmer shaft before removing the old head (Source: BlueStars Parts)

Step 4: Unscrew the old trimmer head

Carefully rotate the old trimmer head to remove it from the shaft. Many trimmers use reverse-thread systems, meaning the head loosens in the opposite direction from standard screws. If the head feels stuck, avoid excessive force and apply steady pressure while keeping the shaft locked securely.

Note: Pay close attention to the thread direction before turning the head to avoid damaging the shaft threads. Taking your time during removal helps protect the mounting system for the new replacement head.

Removing the old string trimmer head from the shaft assembly (Source: BlueStars Parts)

Step 5: Install the new replacement head

Align the new replacement head carefully with the threaded shaft and tighten it securely according to the manufacturer’s direction. Make sure the head sits evenly without wobbling or cross-threading. Correct installation improves cutting balance and helps reduce vibration during operation.

Caution: Avoid overtightening the new head, as excessive force may damage the threads or make future maintenance difficult. A properly aligned trimmer head will improve cutting stability and reduce wear during heavy use.

If you need compatible replacement options, browse the String Trimmer Parts collection for model-specific components designed for reliable performance and easier installation.



String Trimmer Parts Collection (Source: BlueStars Parts)

Step 6: Load trimmer line and test feed

Finally, load a fresh trimmer line into the new head according to the recommended line size and winding direction. Test the bump feed or automatic feed system before using the trimmer normally. A properly installed head should feed the line smoothly, rotate evenly, and improve trimming performance immediately.

Tips: Using the correct line thickness helps prevent feeding problems and unnecessary strain on the trimmer motor. Testing the feed system before full operation allows you to catch installation issues early and avoid interruptions during yard work.

Testing line feed operation after installing the new trimmer head (Source: BlueStars Parts)

4. Common Mistakes When Replacing a String Trimmer Head

While upgrading or swapping out your trimmer head is a standard maintenance task, small errors during assembly can lead to severe tool vibration or premature wear. To ensure your equipment runs safely and cuts efficiently, avoid these common pitfalls during the installation process:

Installation Mistakes

• Over-tightening the replacement head onto the shaft: Applying excessive force during assembly can crack the plastic housing or bind the gear head bearings.

• Failing to lock the shaft during removal: Neglecting to insert a locking pin or screwdriver into the gear hole makes the shaft spin endlessly, preventing a clean uninstallation.

• Forgetting that some trimmer heads use reverse-thread designs: Turning the head the wrong way can strip the arbor bolt; remember that many models require spinning clockwise to loosen.

Feeding Problems

• Using incorrect trimmer line diameter: Loading line that is too thick forces the engine to overheat, while line that is too thin snaps instantly against weeds.

• Loading the line in the wrong winding direction: Winding the nylon string against the designated directional arrows prevents the auto-feed or bump system from advancing line.

• Reusing severely damaged spool caps or feed springs: Reassembling a new head with cracked caps or crushed internal springs leads to immediate line tangles and structural cracking.

Compatibility Issues

• Installing a trimmer head that is not compatible with the model: Using a non-matching head can cause severe wobble, stripped threads, or operational failure during use.

Steering clear of these frequent assembly errors preserves your equipment's engine and guarantees a balanced, smooth spin. Taking a moment to double-check your alignment will ensure a much safer and longer-lasting trimming performance.

5. FAQs

5.1 Are string trimmer heads universal?

No, most string trimmer heads are not completely universal. Different brands and models use different thread sizes, mounting systems, and rotation directions. Always check your trimmer model number before purchasing a replacement head. Using the wrong head may cause vibration, poor fit, or installation problems.

5.2 How do I know what trimmer head fits my weed eater?

The easiest way is to check the model number printed on the trimmer housing or owner’s manual. You should also verify thread size, shaft type, and rotation direction. Many replacement heads list compatible models directly on the packaging or product page.

5.3 Why won’t my trimmer head come off?

Some trimmer heads use reverse-thread systems, so turning the wrong direction may tighten the head instead of loosening it. Dirt buildup or rust around the threads can also make removal difficult. Locking the shaft properly and applying steady pressure usually helps remove stubborn heads safely.

5.4 Can I replace only the cap instead of the whole head?

Yes, if the damage is limited to the spool cap or cover, replacing only that component may solve the issue. However, if the internal feed system or housing is worn, replacing the entire head is usually more effective and reliable.

5.5 Is replacing a trimmer head different from replacing a trimmer line?

Yes, replacing the trimmer line only involves reloading the fresh line into the existing spool. Replacing the trimmer head means removing the full cutting assembly and installing a completely new unit. Head replacement is typically necessary when the feed mechanism or housing becomes damaged.

Replacing a worn trimmer head can significantly improve cutting performance, reduce frustration, and extend the life of your equipment. By following the steps above, beginners can safely complete the repair and restore smooth trimming performance. When you need reliable replacement components for your repair project, explore BlueStars Parts for trusted trimmer head and outdoor equipment solutions.
