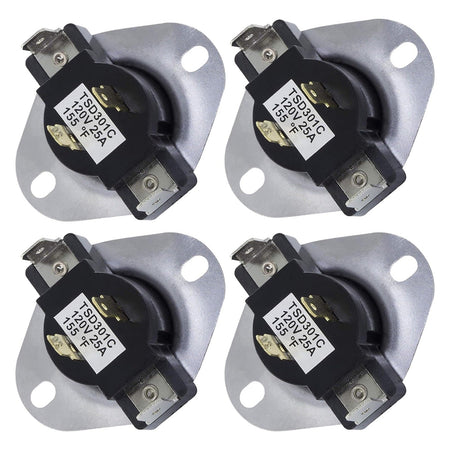

WP3387134 3387134 Dryer Cycling Thermostat for Whirlpool Kenmore Dryers - 4 Pack
0.00
Regular price
$19.19
Regular price
Save 11%
$21.49
Sale price
$19.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
WP3387134 / 3387134 Dryer Cycling Thermostat
Key Features
- Regulates air temperature inside the dryer drum
- Temperature limit: 155°F (68°C)
- Temperature differential: 25°F (14°C)
- 4-terminal electrical connection
Replaces / Cross-Reference Part Numbers
- AP6008270
- PS11741405
- 3387134
- WP3387134VP
- 306910
- 3387135
- 3387139
- 2011
- PD00002313
- ET187
Compatibility & Fitment
- Fits select dryer models from major brands including Whirlpool, Kenmore, Maytag, and KitchenAid.
When to Replace
- Dryer does not heat or overheats
- Drying cycles are excessively long
- Thermal fuse fails repeatedly
Installation Tips
- Disconnect the dryer from its power source before starting the repair.
- Before replacing, test the existing thermostat for continuity when cool.
- For diagnostics, voltage can be checked at the two center terminals while the dryer is operating.
-
PERFECT FIT
BlueStars 3387134 Dryer Cycling Thermostat replaces part numbers: 306910, 3387135, 3387139, WP3387134VP. -
PREMIUM QUALITY
3387134 Dryer Cycling Thermostat is from durable high-quality material that prevents cracking and failing during the installation and use process. -
SAVING SOLUTION
Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
The 3387134 Dryer Cycling Thermostat Kit is very simple that anyone with basic hand tools can do and save plenty of dollars.

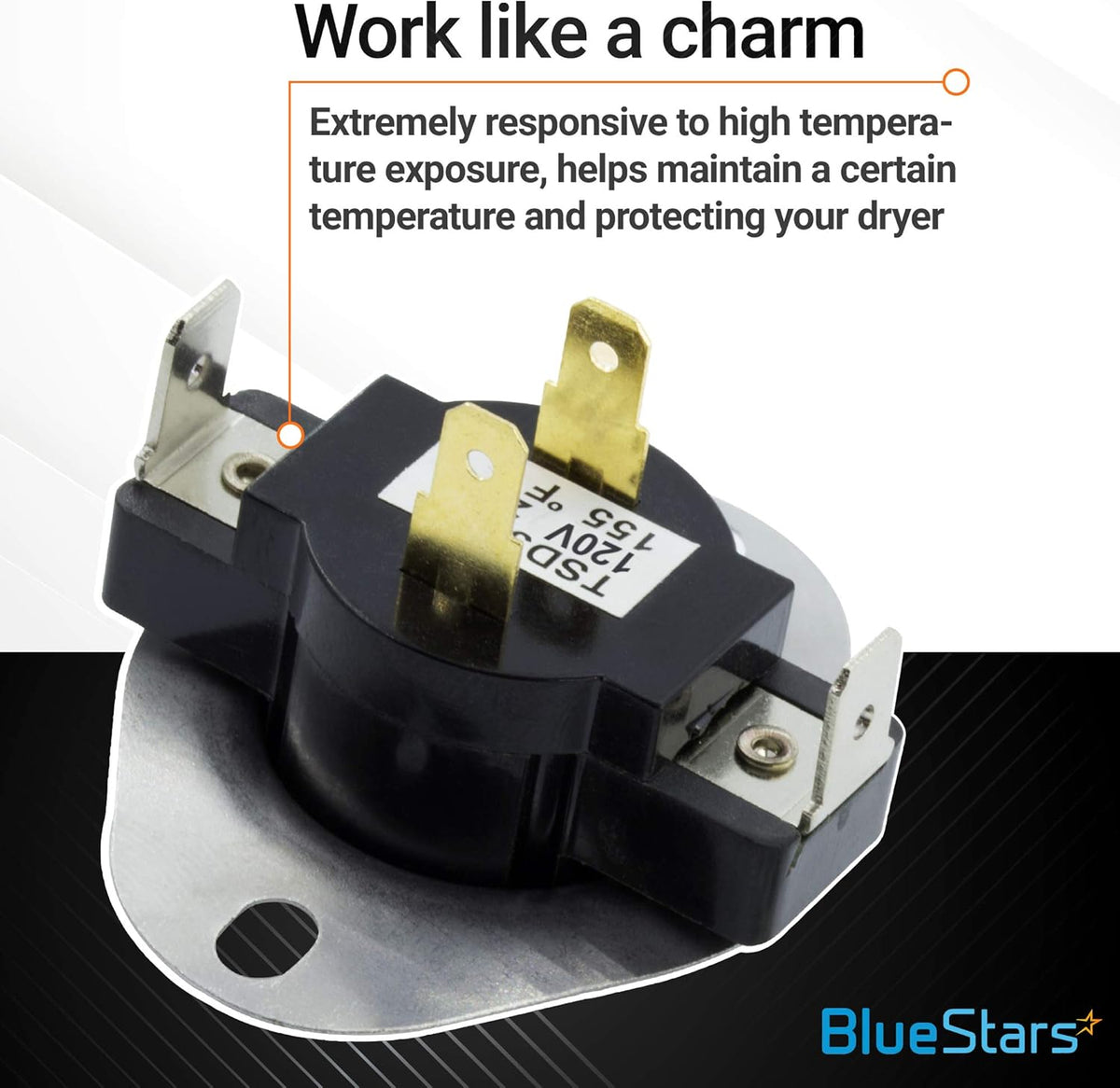

WORK LIKE A CHARM
Extremely responsive to high temperature exposure, helps maintain a certain temperature and protect your dryer.

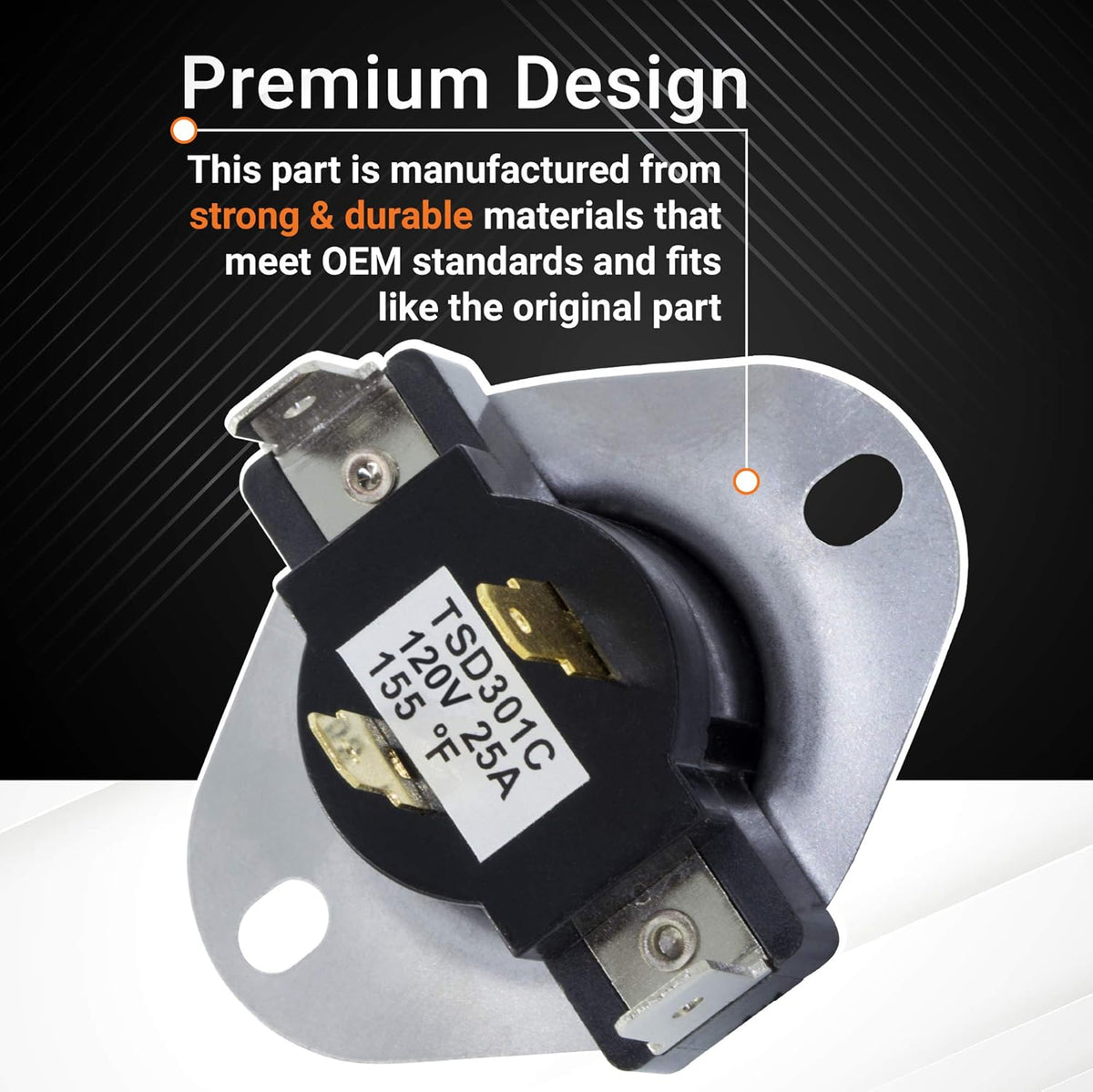

PREMIUM QUALITY
These parts are manufactured from strong and durable materials to ensure long-lasting and effective performance.
ECONOMICAL DIY REPAIR
Enjoy the comfort that our Cycling Thermostat brings into your dryer - BlueStars provides DIY solutions to help you deal with any troubles.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Material
Plastic / Metal
Voltage / Power
120V, 2W
Trip Temperature
Opens 155°F / Closes 130°F

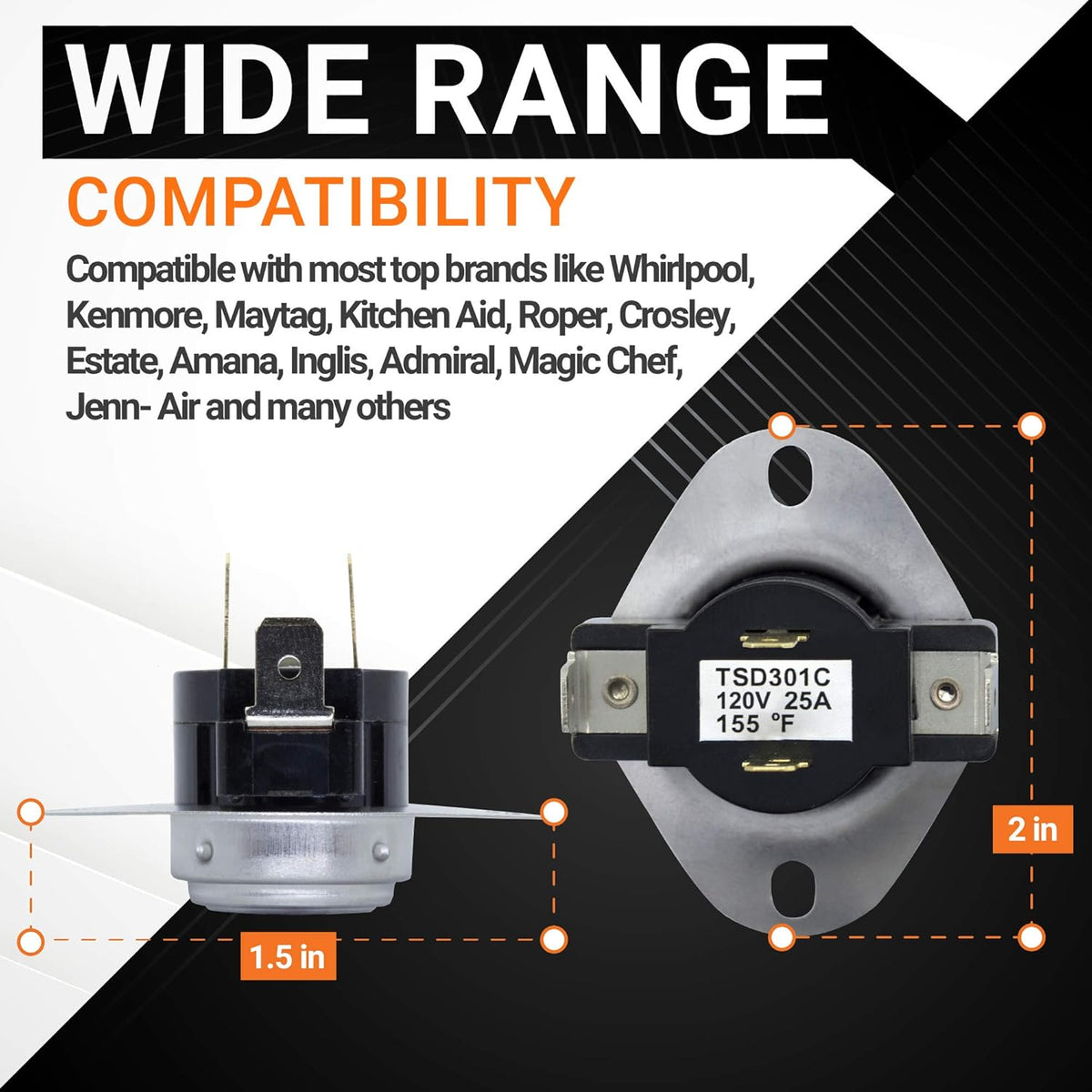

Product Dimensions
2 x 1-3/8 x 1-5/8 inches
Item Weight
0.1 lbs
