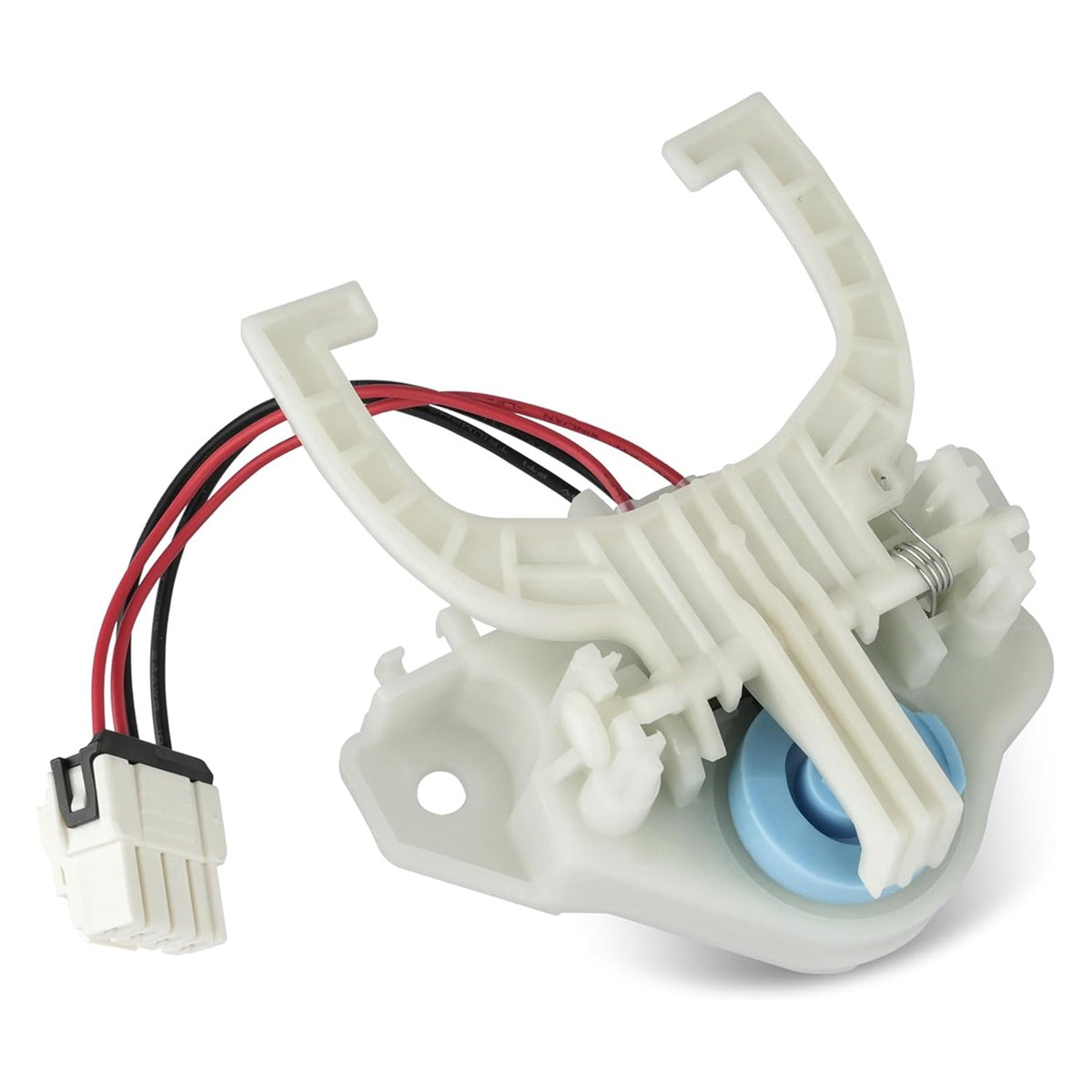

WH03X30517 washer shift actuator with white plastic housing, blue cam, and wiring harness for GE washing machines.

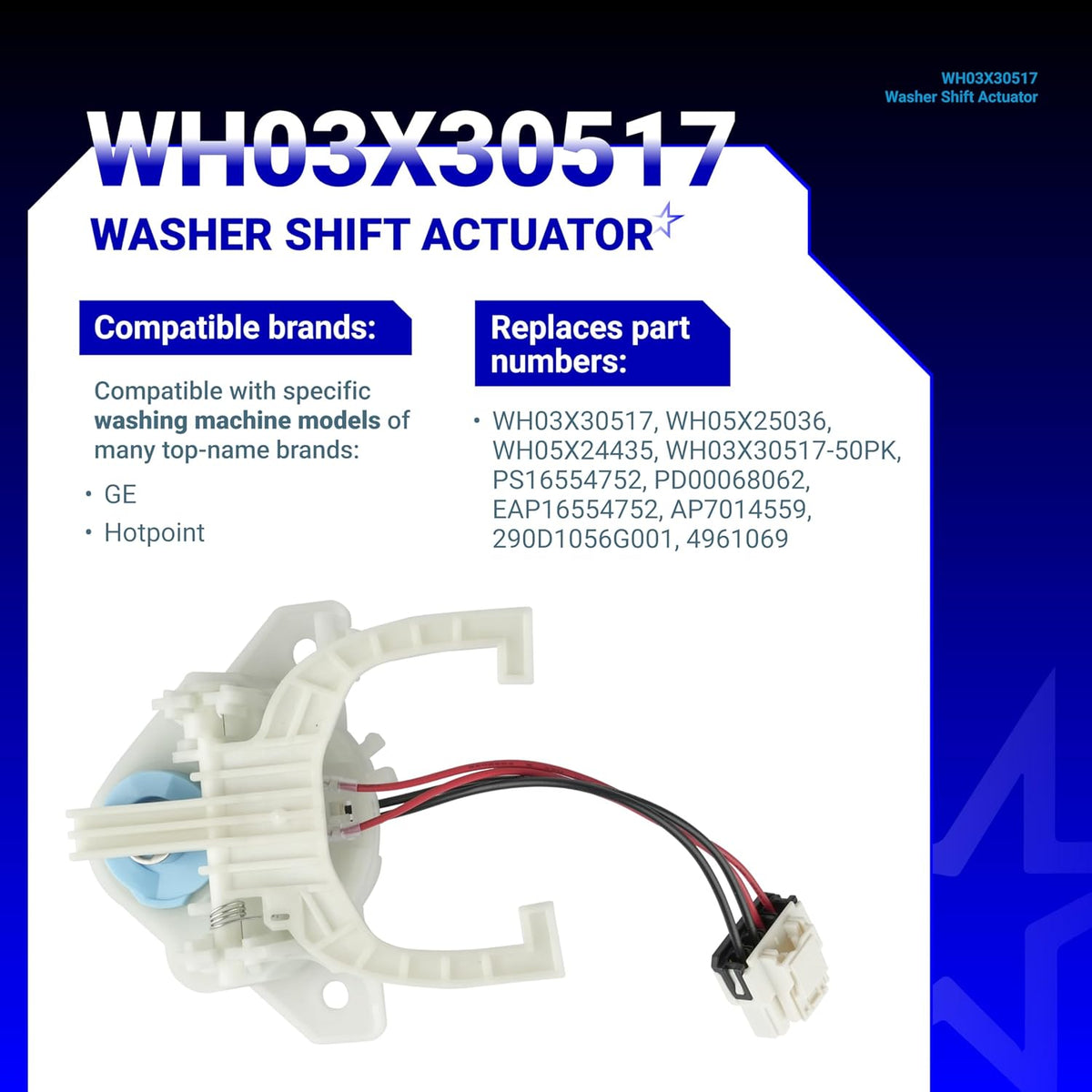

WH03X30517 washer shift actuator for GE and Hotpoint washing machines with compatibility and part number information.

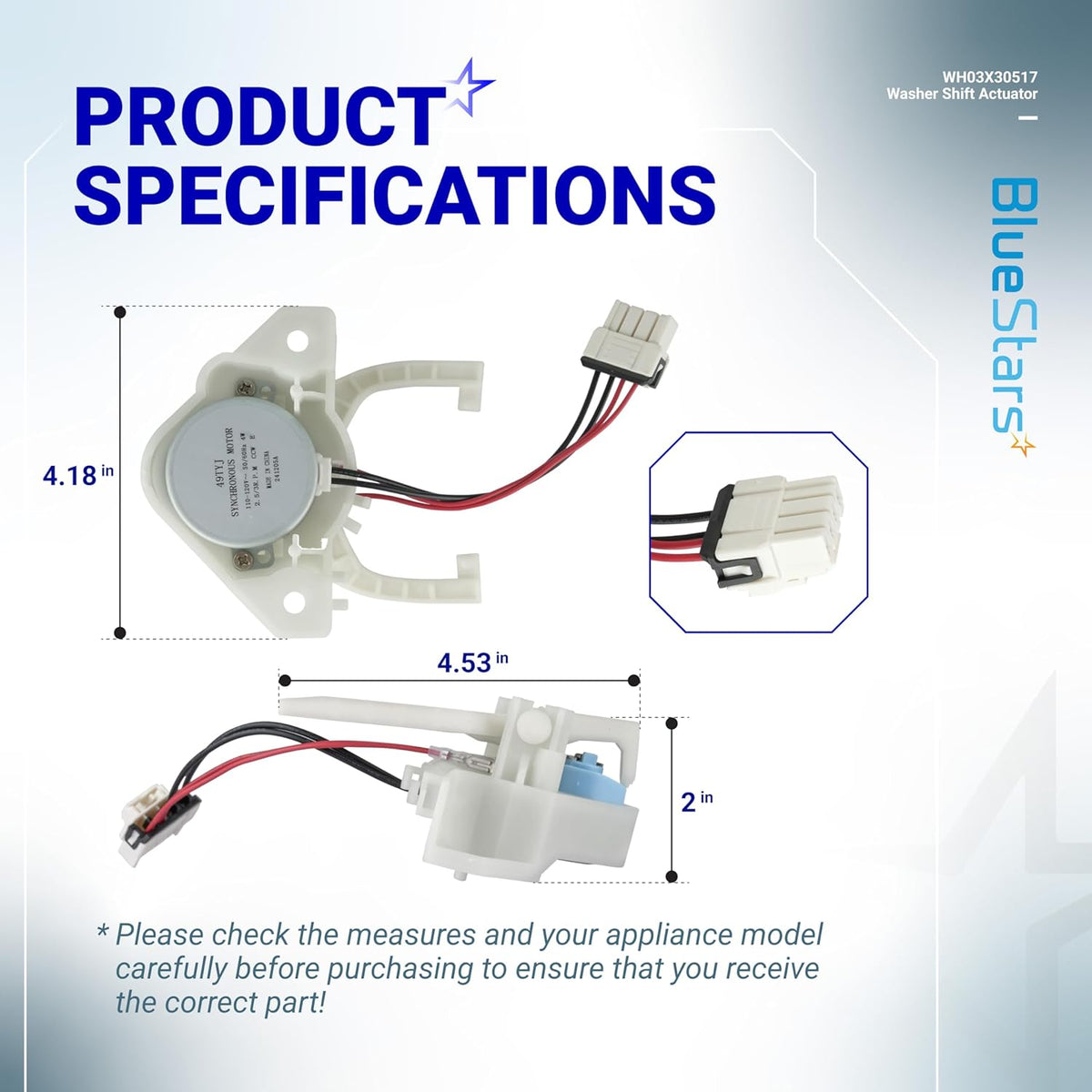

WH03X30517 washer shift actuator specification diagram showing dimensions and connector details for GE washing machines.

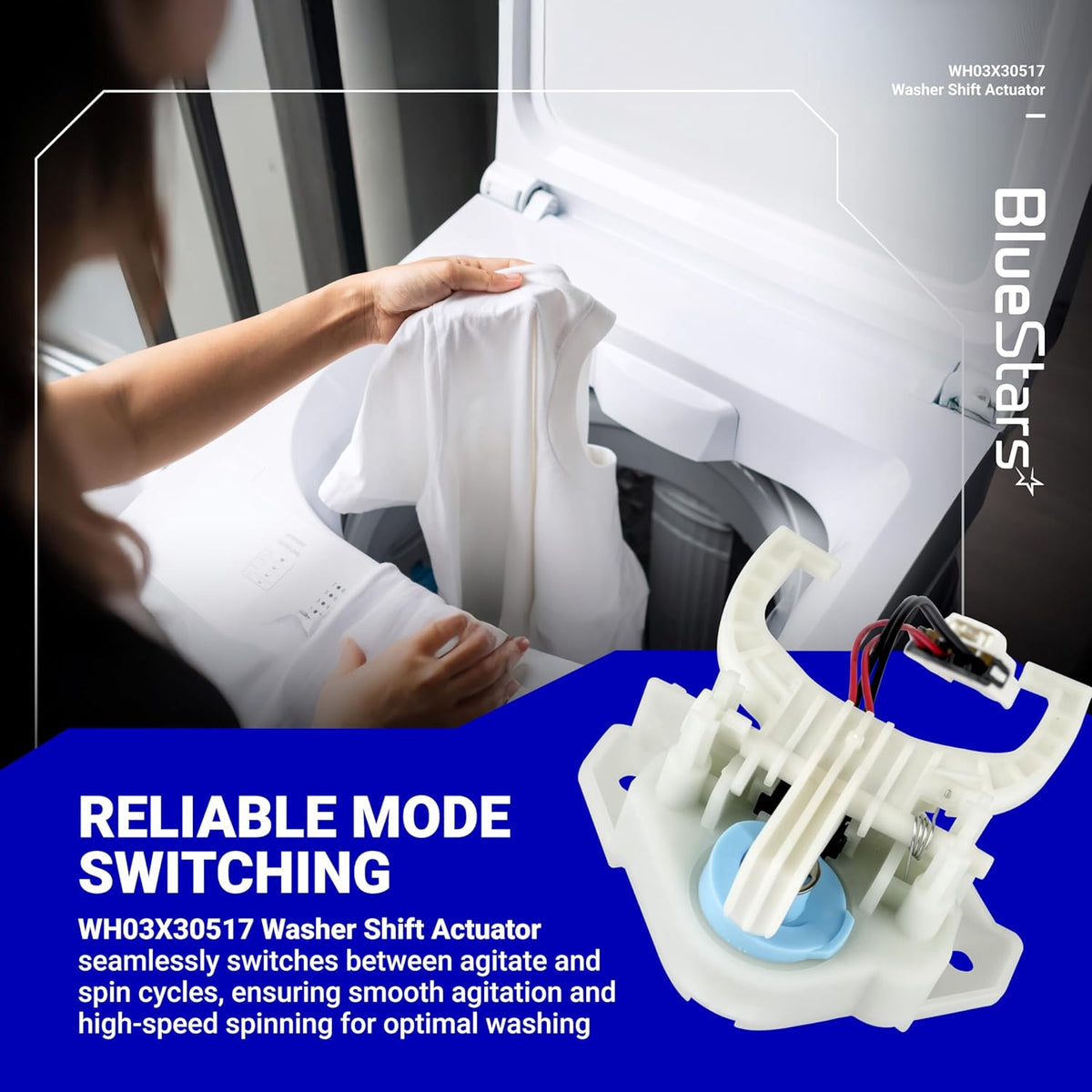

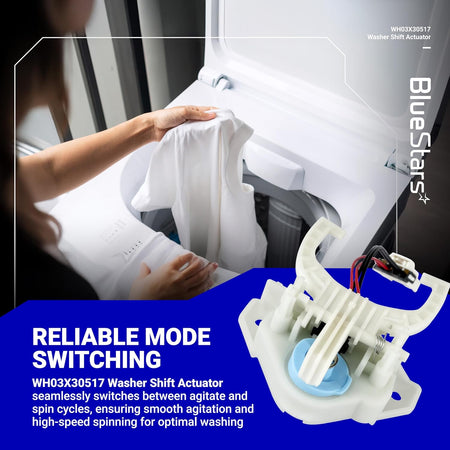

WH03X30517 washer shift actuator replacement part for GE and Hotpoint washing machines.

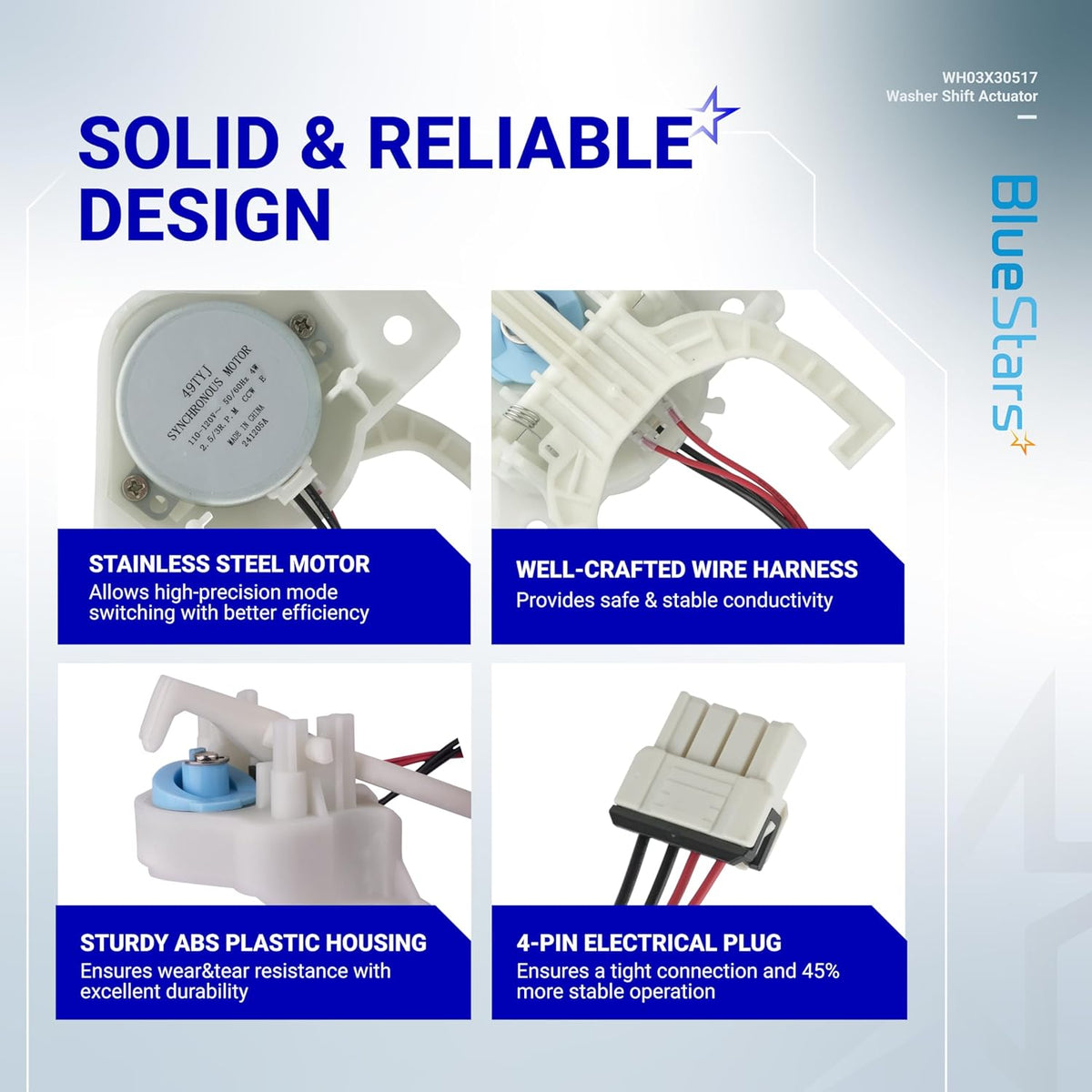

Infographic showing features of the WH03X30517 washer shift actuator, including motor, wire harness, housing, and plug.

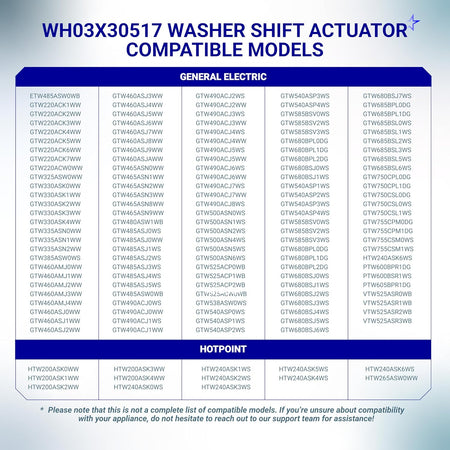

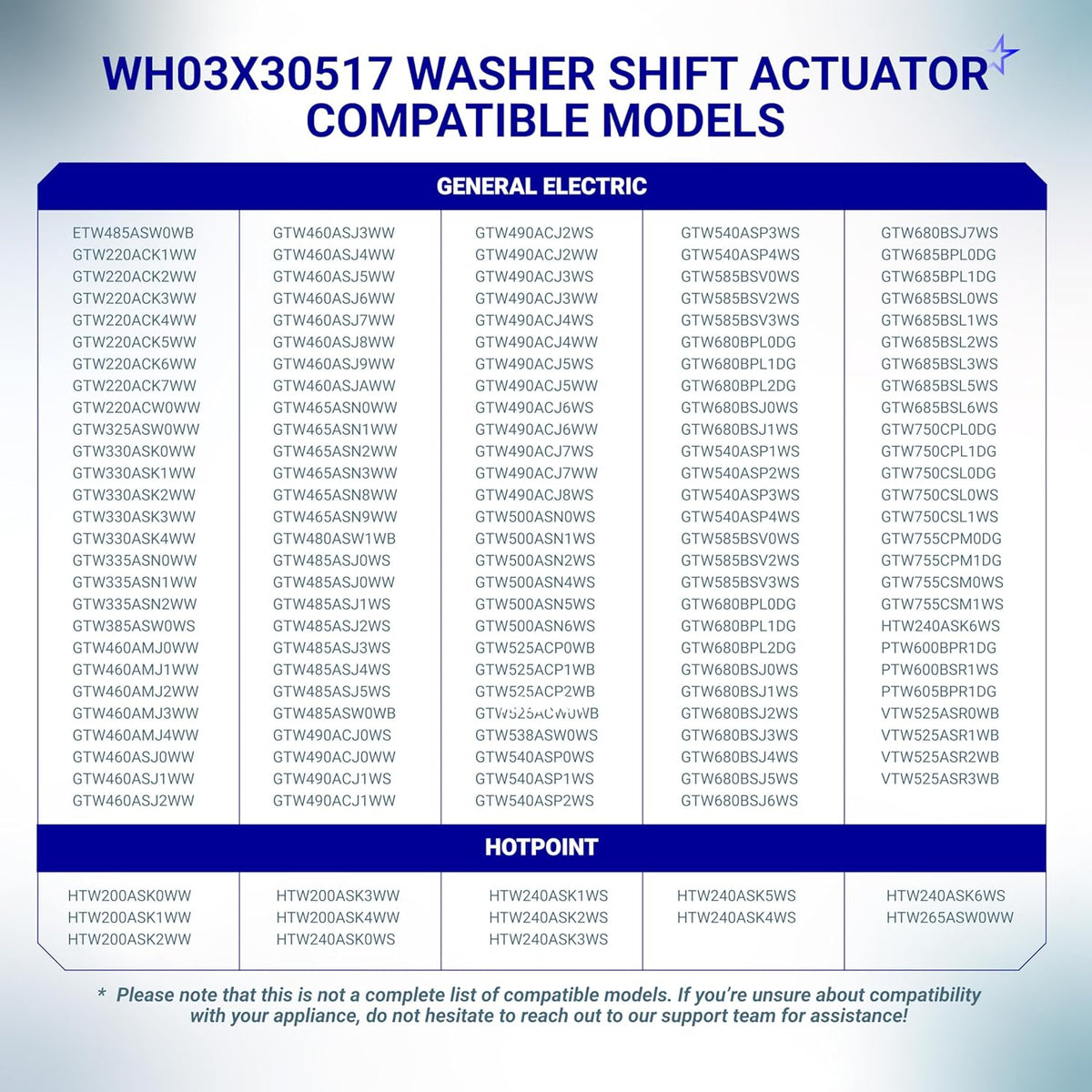

Compatibility chart for WH03X30517 washer shift actuator listing GE and Hotpoint model numbers.

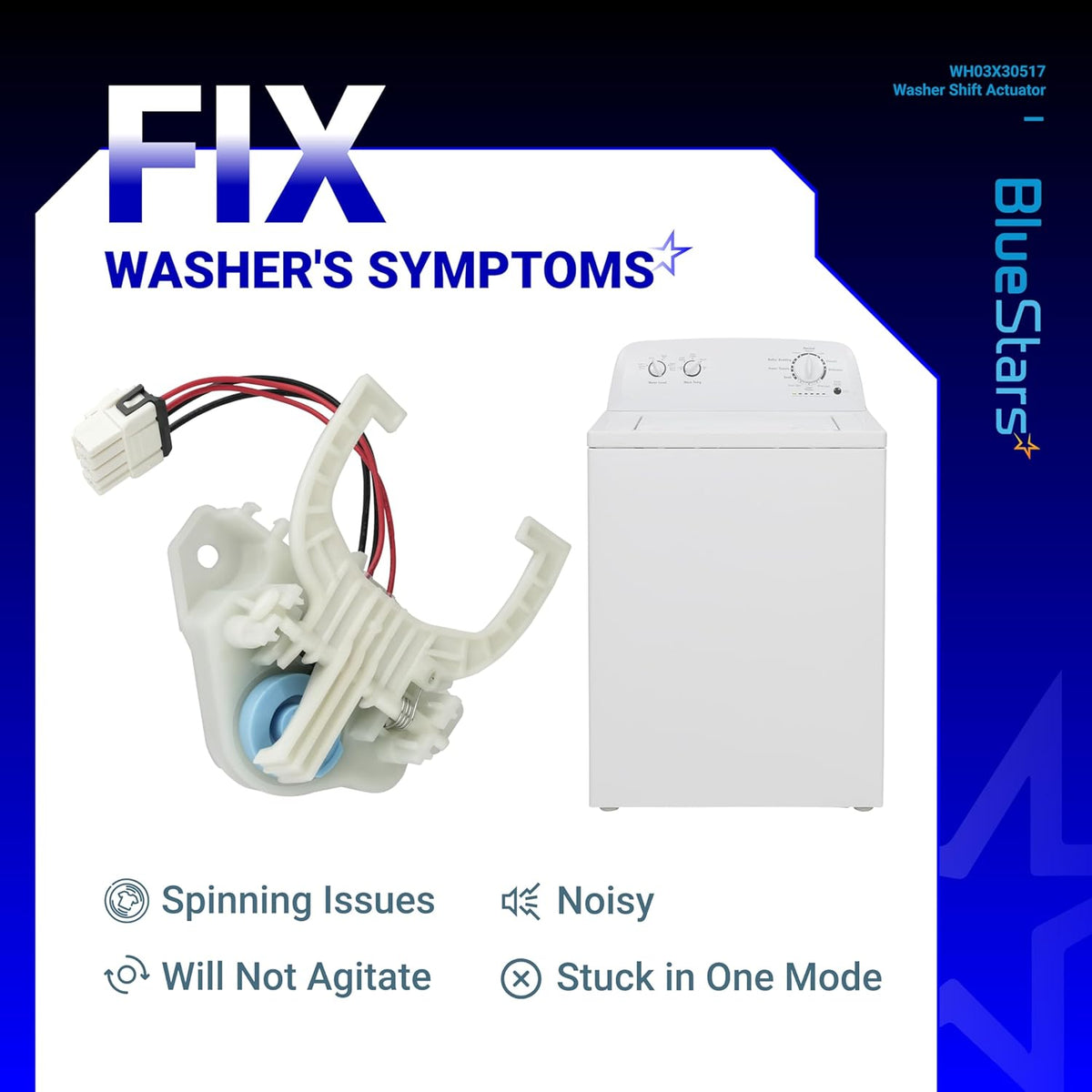

WH03X30517 washer shift actuator shown with a washing machine and common repair symptoms list.
Four-step installation guide for replacing a GE and Hotpoint washing machine shift actuator.
WH03X30517 washer shift actuator with white plastic housing, blue cam, and wiring harness for GE washing machines.
WH03X30517 washer shift actuator for GE and Hotpoint washing machines with compatibility and part number information.
WH03X30517 washer shift actuator specification diagram showing dimensions and connector details for GE washing machines.
WH03X30517 washer shift actuator replacement part for GE and Hotpoint washing machines.
Infographic showing features of the WH03X30517 washer shift actuator, including motor, wire harness, housing, and plug.
Compatibility chart for WH03X30517 washer shift actuator listing GE and Hotpoint model numbers.
WH03X30517 washer shift actuator shown with a washing machine and common repair symptoms list.
Four-step installation guide for replacing a GE and Hotpoint washing machine shift actuator.

WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines

0.00
$17.99
Save 11% $20.15
$17.99
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

WH03X30517 Washer Shift Actuator

Key Features

  • Controls the washer's transmission, shifting between agitate and spin cycles
  • Manages the movement of the inner tub and agitator
  • Direct replacement for specified original equipment part numbers
  • Designed for top-loading washing machine models

Replaces / Cross-Reference Part Numbers

  • WH05X25036
  • WH05X24435
  • WH05X24185
  • AP7014559

Compatibility & Fitment

  • Fits specific GE top-loading washing machines
  • Example compatible models include: GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK4WW, GTW465ASN2WW
  • Verify compatibility with your appliance's model number before ordering

When to Replace

  • Washer fails to agitate or spin
  • Washer stops mid-cycle
  • Loud or unusual noises during cycle transitions
  • Appliance displays error codes related to the mode shifter or transmission

Installation Tips

  • Disconnect the washer from power and water sources before beginning the repair
  • Tilt the washer to access the component from underneath the machine
  • The drive belt and pulley must be removed to access the shift actuator
  • Secure the new actuator with the original mounting screws
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 1
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 2
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 3
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 4
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 5
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 6
WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 7
  • WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 1

    WIDE COMPATIBILITY

    Compatible with top-load washing machines of many top-named brands GE, Hotpoint (detailed list below)
  • WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 2

    PART NUMBERS

    It replaces WH03X30517, WH05X25036, WH05X24435, WH03X30517-50PK, PS16554752, PD00068062, EAP16554752, AP7014559, 290D1056G001, 4961069
  • WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 3

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble
  • WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines 4

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Material
‎ABS Plastic
Brand
‎BlueStars
Color
‎White
Included Components
‎1 x WH03X30517 Washer Shift Actuator
Item Weight
‎0.19 Kilograms
Handle Material
‎Plastic
Unit Count
‎1.0 Count
Manufacturer
‎BlueStars
Part Number
‎WH03X30517
Item Weight
‎6.7 ounces
Product Dimensions
‎1 x 1 x 1 inches
Batteries Included?
‎No
Batteries Required?
‎No

FAQs

If your washing machine is failing to shift into or out of the spin cycle, or if you notice the washer is not agitating correctly, the shift actuator is often the culprit. Other signs include unusual grinding noises during the cycle or the washer failing to drain and spin properly.
This part is a direct replacement for OEM numbers WH03X30517, WH05X25036, WH05X24435, AP7014559, 290D1056G001, 4961069, and PS16554752.
This shift actuator is designed for GE and Hotpoint washing machines. It is compatible with a wide range of models, including the GTW220, GTW330, GTW460, GTW465, GTW485, GTW490, GTW680, YTW451, PTW605, and HTW200 series.
Installation is generally straightforward and can typically be completed in about 30 to 60 minutes. You will need to safely prop up the washer to access the underside, remove the belt cover, and disconnect the drive belt. The actuator itself is secured by two screws and a wire harness connector.
You will primarily need a 3/8-inch ratchet with an extension to remove the mounting screws. Depending on your specific model, you may also need a screwdriver to remove the protective belt cover.
Yes, while you have the washer accessed, it is a good time to inspect the drive belt for any signs of cracking, fraying, or stretching. If the belt looks worn, it is highly recommended to replace it at the same time to ensure optimal performance.
