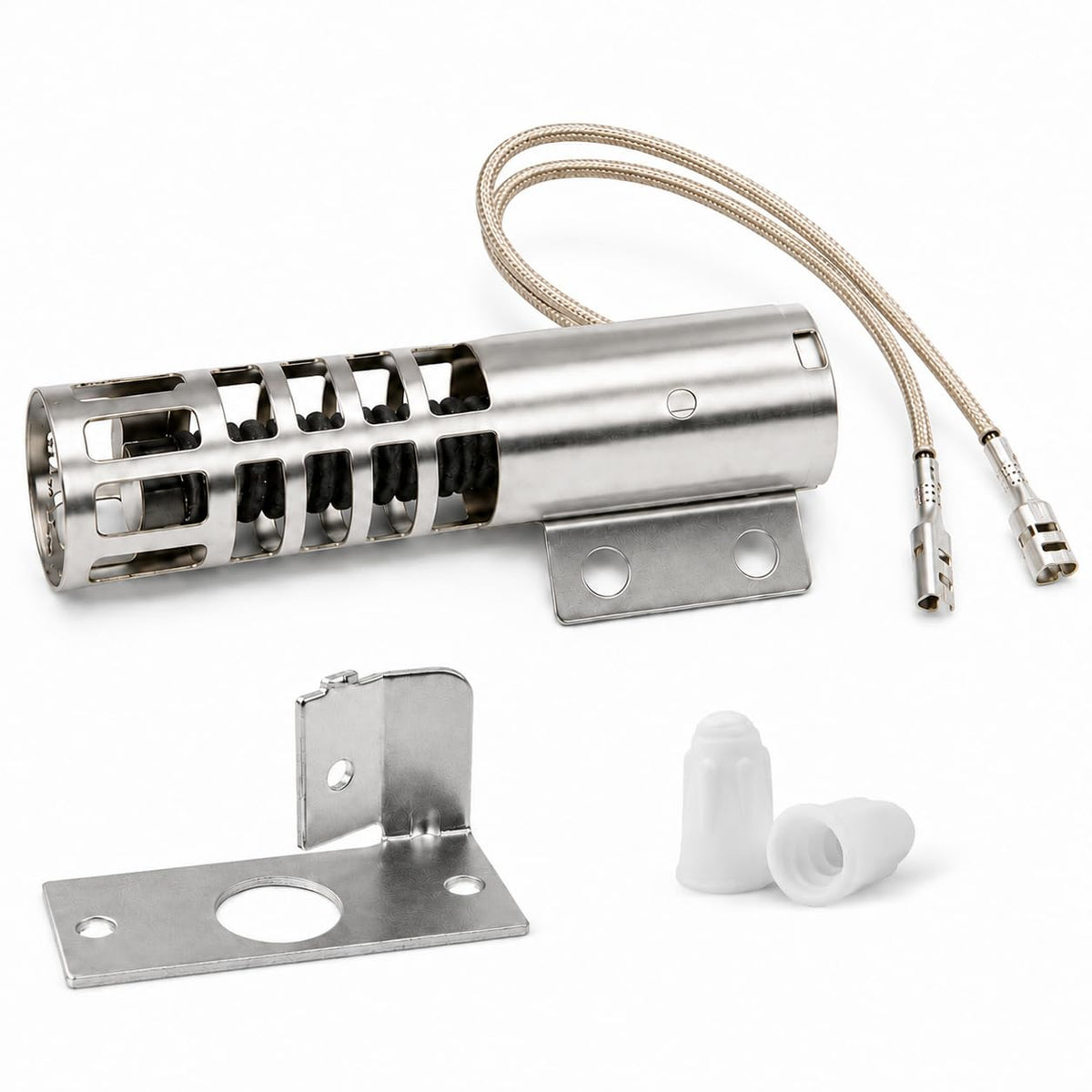

WB2X9154 XL44 round oven igniter replacement with mounting bracket and wire nuts for GE gas ranges.

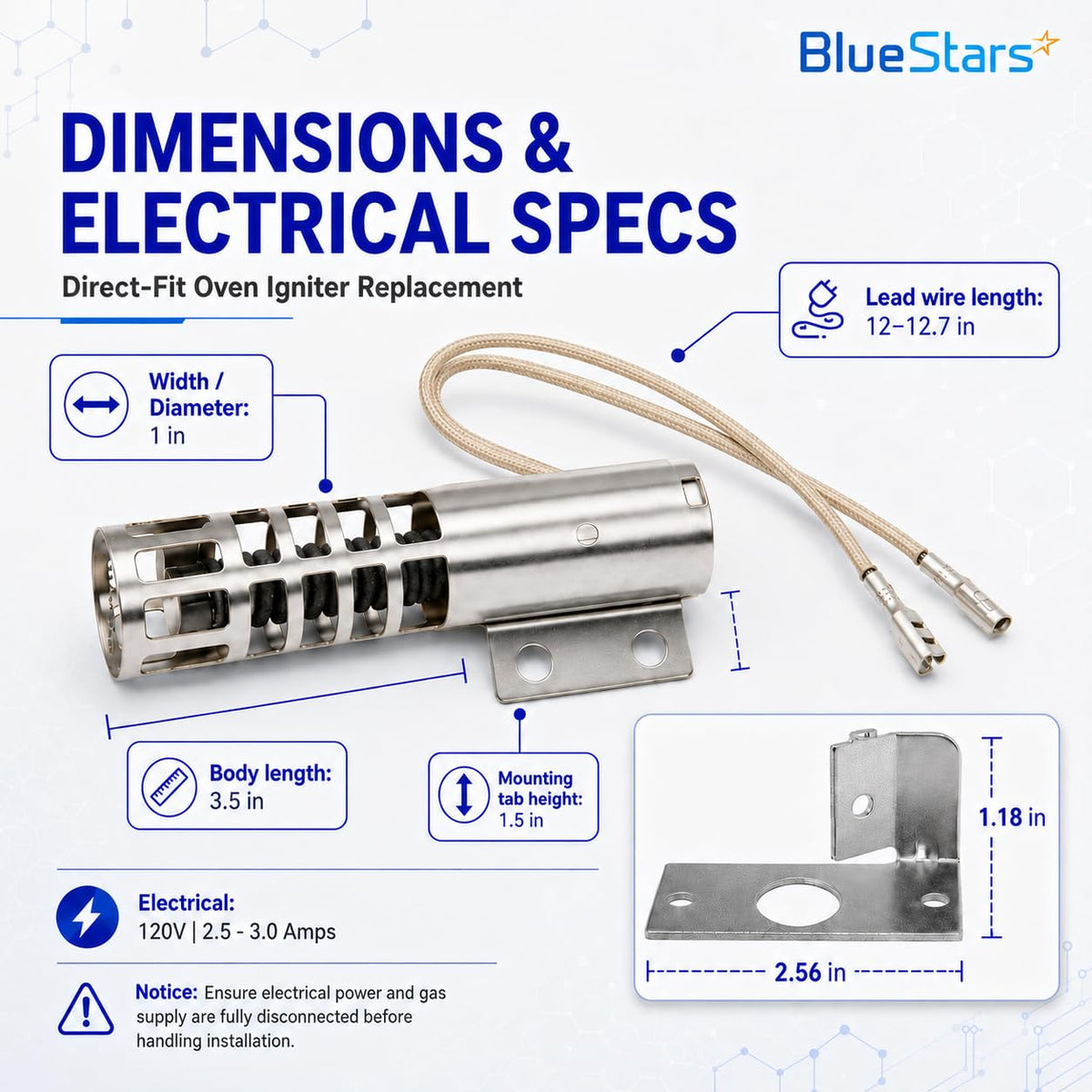

Technical diagram showing dimensions and electrical specifications for a direct-fit oven igniter replacement.

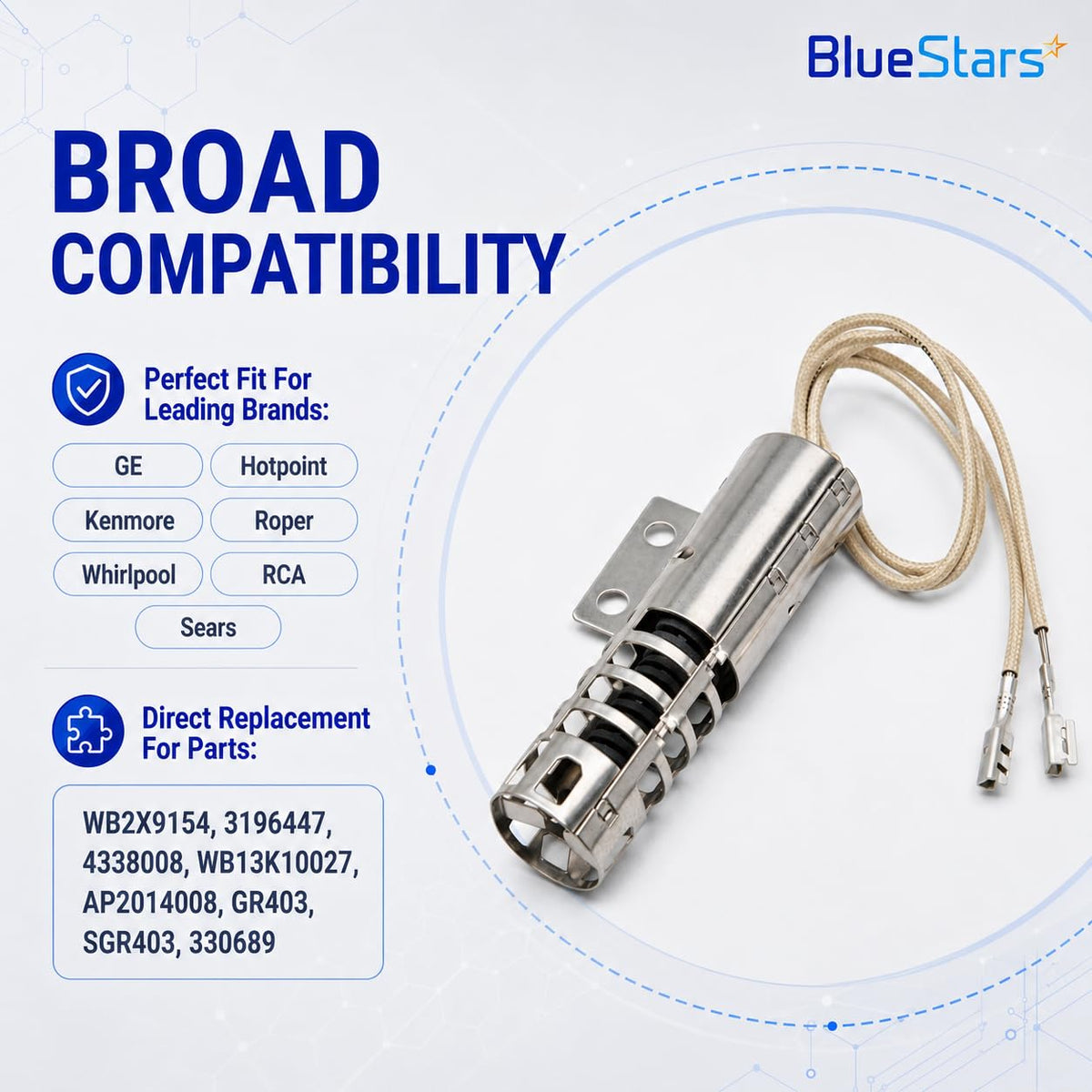

Replacement oven igniter for GE, Whirlpool, and Kenmore appliances with wire leads and mounting bracket.

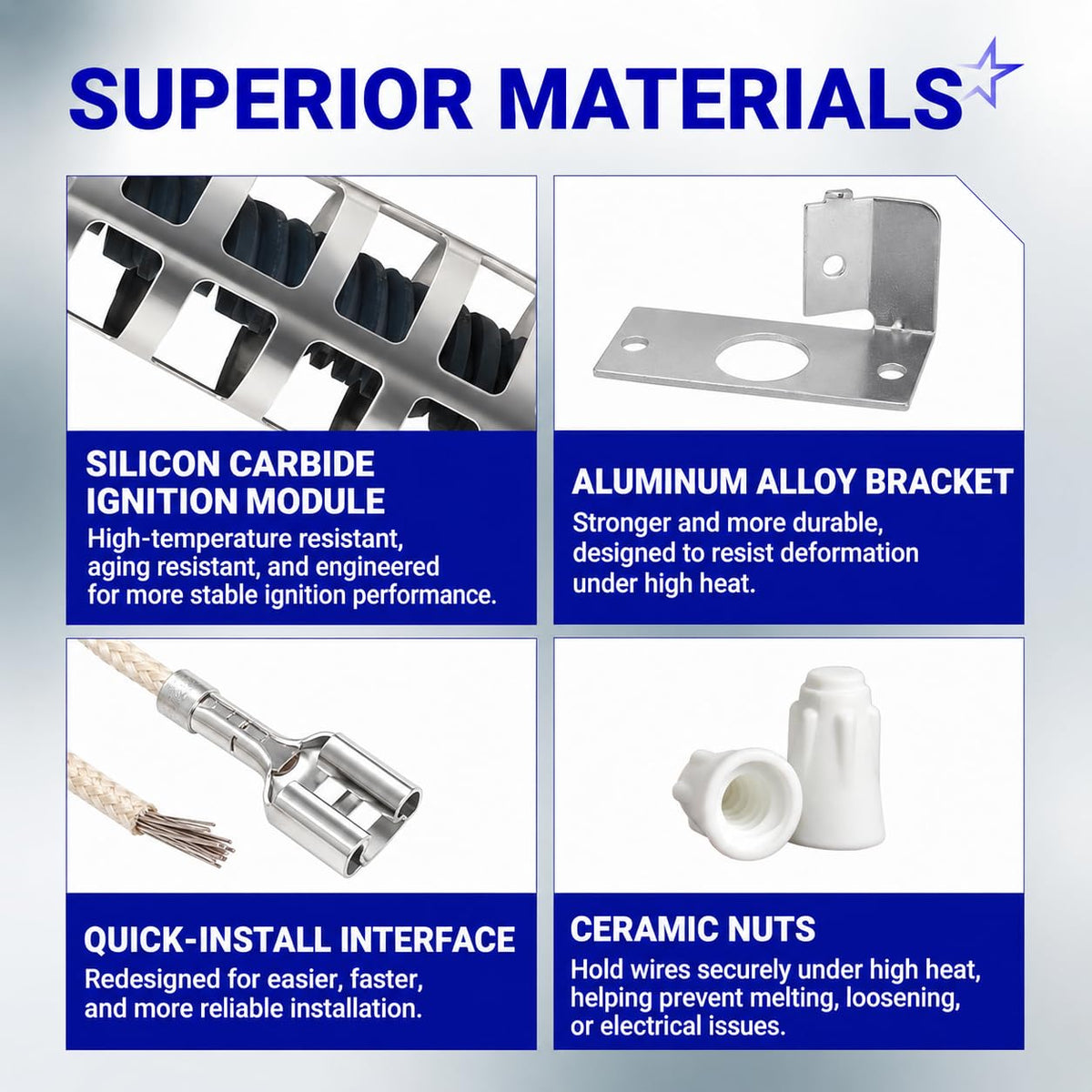

Infographic showing superior materials for ignition module including aluminum bracket, quick-install interface, and ceramic n

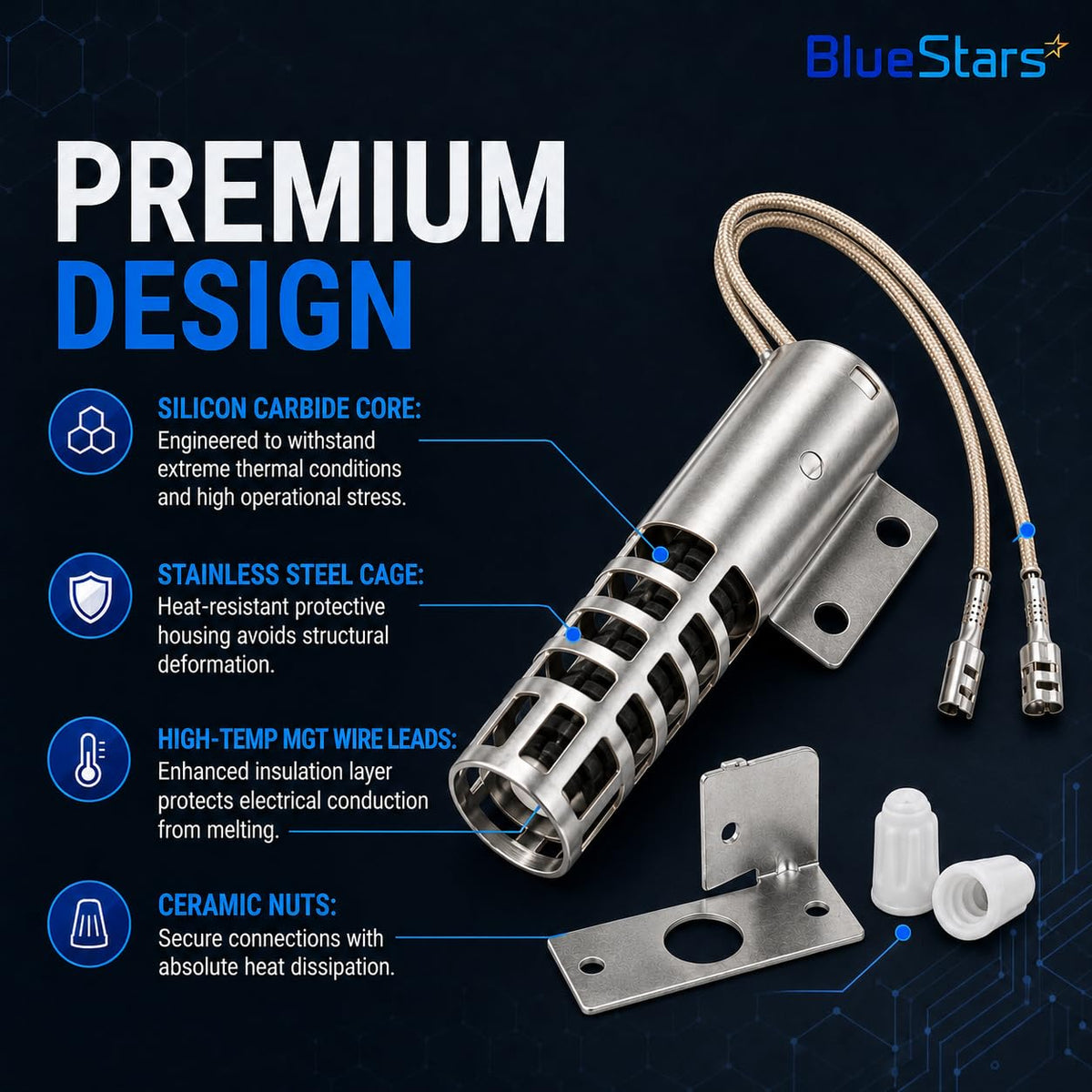

Infographic showing oven igniter components with silicon carbide core, stainless steel cage, wire leads, and ceramic nuts.

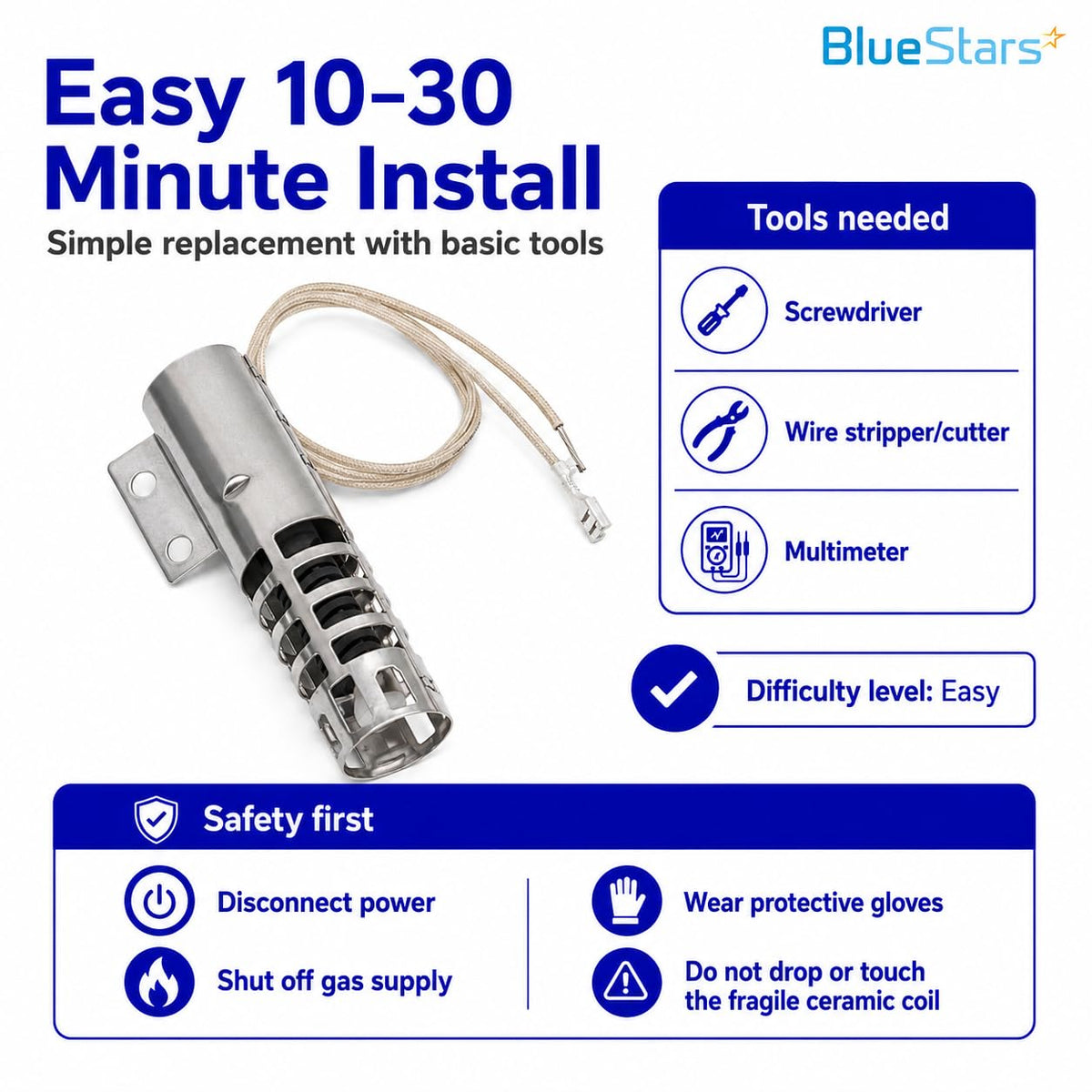

Replacement igniter for gas appliance with installation guide, tools needed, and safety instructions.

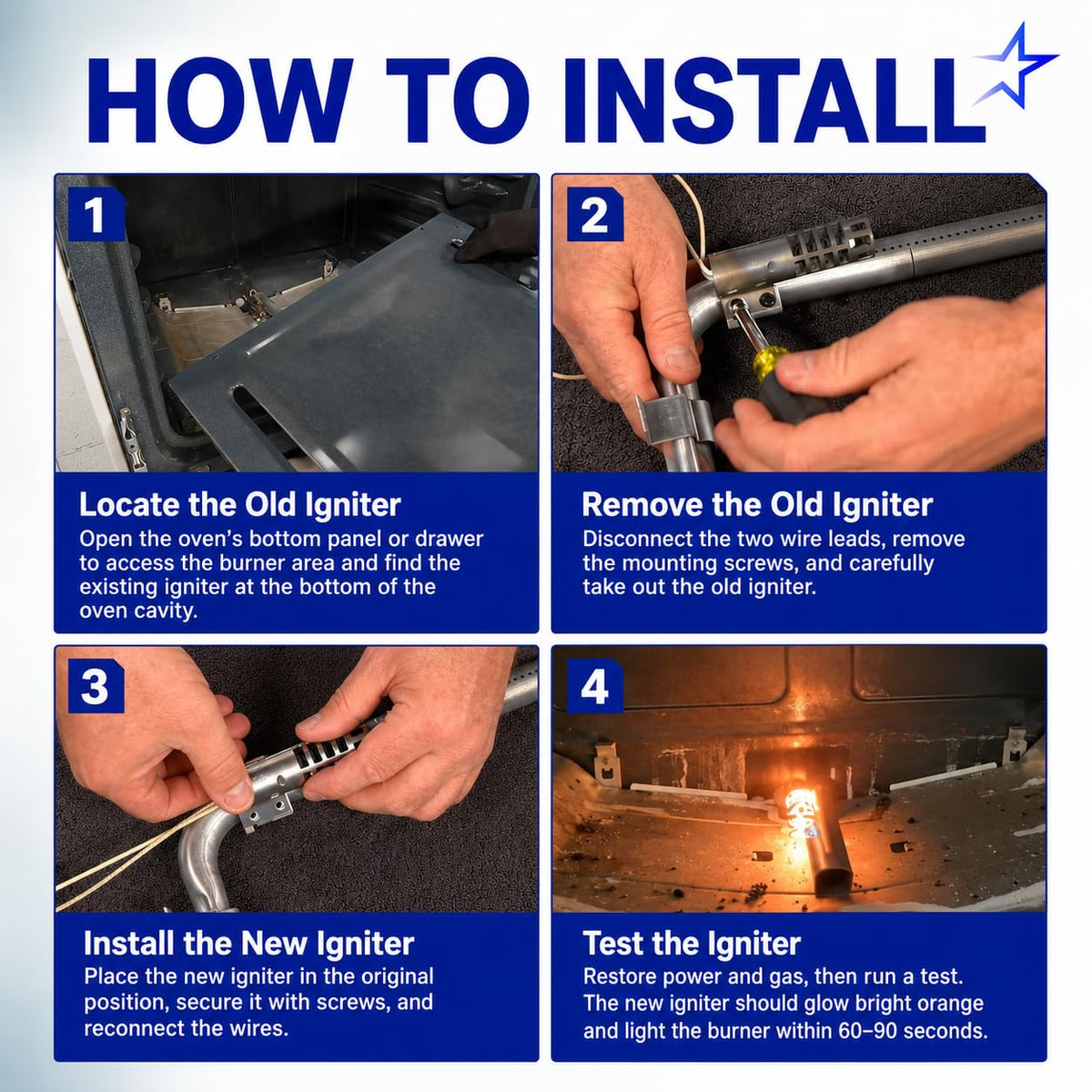

Four-step instructional graphic showing how to install a replacement oven igniter.

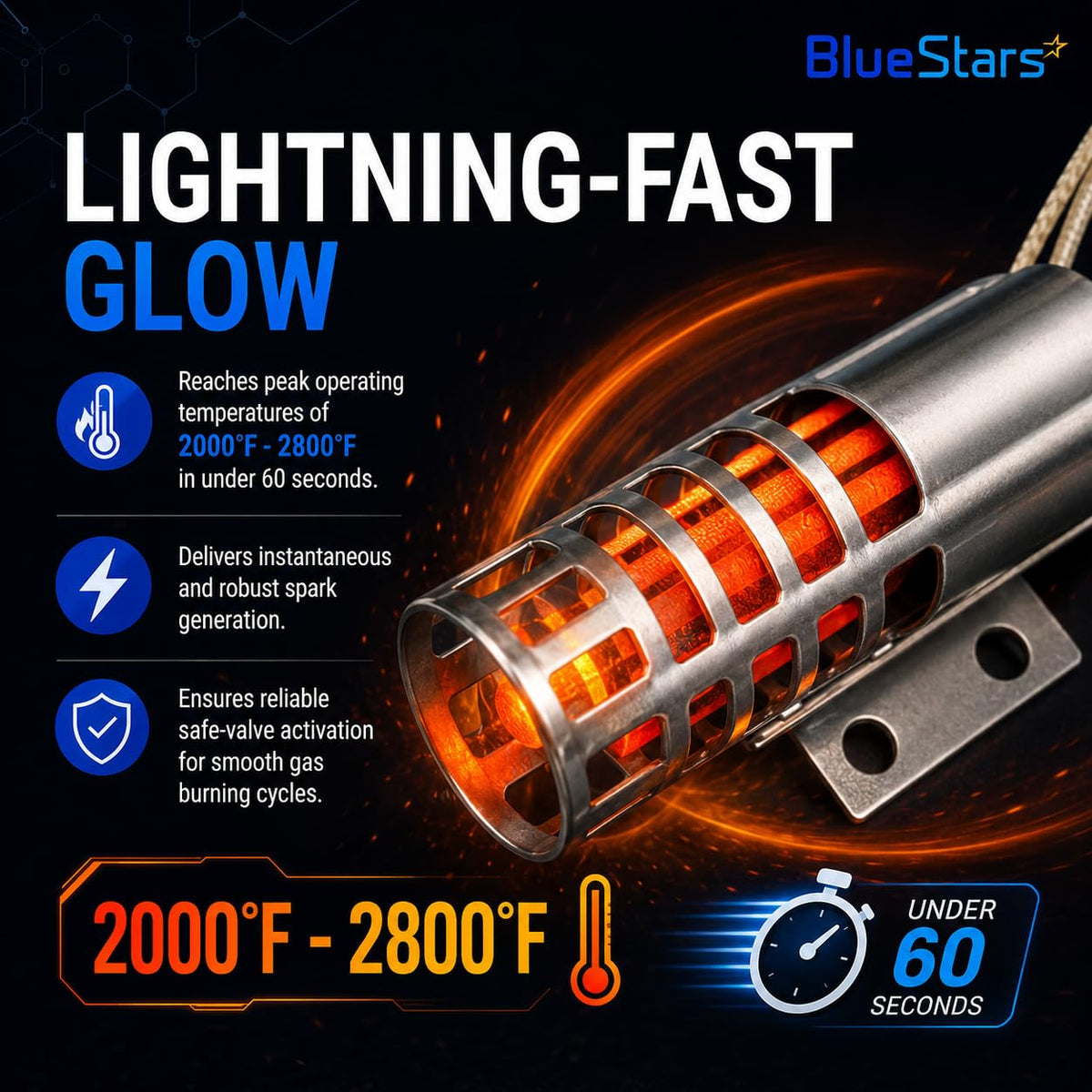

Glowing hot surface igniter reaching 2000Β°F to 2800Β°F in under 60 seconds for gas appliance ignition.

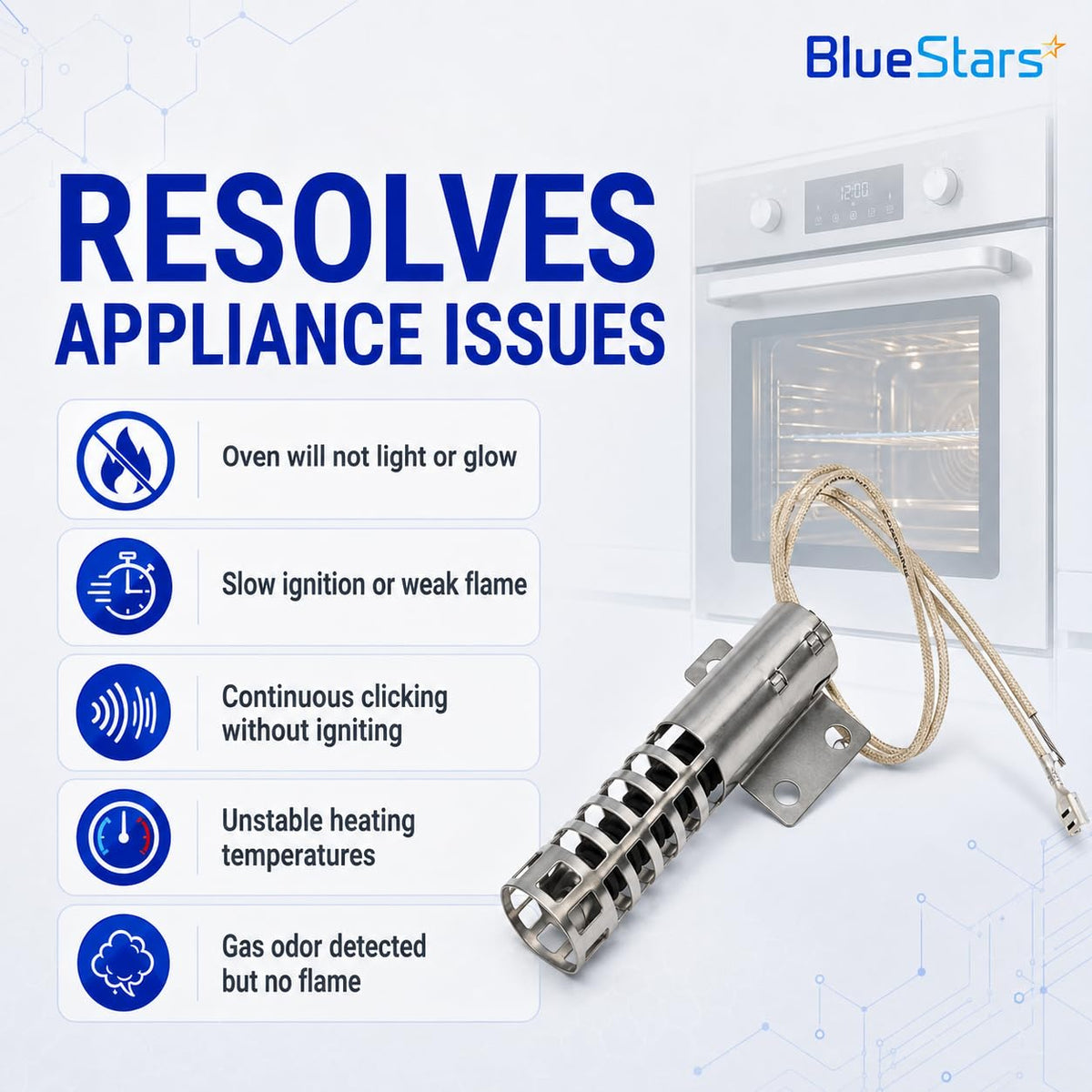

Oven igniter replacement part shown with a list of common appliance issues it resolves.
WB2X9154 XL44 round oven igniter replacement with mounting bracket and wire nuts for GE gas ranges.
Technical diagram showing dimensions and electrical specifications for a direct-fit oven igniter replacement.
Replacement oven igniter for GE, Whirlpool, and Kenmore appliances with wire leads and mounting bracket.
Infographic showing superior materials for ignition module including aluminum bracket, quick-install interface, and ceramic n
Infographic showing oven igniter components with silicon carbide core, stainless steel cage, wire leads, and ceramic nuts.
Replacement igniter for gas appliance with installation guide, tools needed, and safety instructions.
Four-step instructional graphic showing how to install a replacement oven igniter.
Glowing hot surface igniter reaching 2000Β°F to 2800Β°F in under 60 seconds for gas appliance ignition.
Oven igniter replacement part shown with a list of common appliance issues it resolves.
Lifetime Warranty

WB2X9154 XL44 Oven Igniter for GE Gas Range Oven Broiler XL44 Round Style Igniter

Save 19%
0.00
$30.01
$37.04
$30.01
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
πŸ› οΈ
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WB2X9154 XL44 Oven Igniter

Key Features

  • Electrical specifications: 120V, 2.5-3.0 Amps.
  • Element length: 3-1/2 inches.
  • Design: Round style ceramic igniter.
  • Function: Heats to ignition temperature to open the gas safety valve for oven and broiler burners.

Replaces / Cross-Reference Part Numbers

  • WB2X9154, WB02X9154
  • WB13K10027, WB13K3, WB13K
  • AP2014008, PS243425

Compatibility & Fitment

  • Designed for GE, Kenmore, and Hotpoint gas ranges and ovens.
  • Specifically compatible with XL44 series and other models utilizing the round-style igniter configuration.
  • Note: This is not a universal part. Verify the shape and electrical requirements of your existing igniter before installation.

When to Replace

  • Oven fails to heat or reach set temperature.
  • Igniter element does not glow orange when the oven is turned on.
  • Gas safety valve fails to open despite the igniter glowing (often caused by a weak igniter that cannot draw sufficient amperage).
  • Visible damage, such as cracks or breaks, on the ceramic heating element.

Installation Tips

  • Disconnect power and gas supply to the appliance before beginning repairs.
  • Avoid touching the ceramic element of the new igniter with bare hands; oils from skin can cause premature failure.
  • Use ceramic wire nuts to ensure high-heat resistance for the electrical connections.
  • Test the igniter cycle after installation to ensure the gas safety valve opens reliably.

FAQ

The most common sign is that your oven or broiler fails to heat up, or takes an exceptionally long time to reach the set temperature. If you notice the oven burner does not light at all, the igniter is likely no longer drawing the required 2.5 to 3.0 amps needed to open the gas safety valve.
This round-style igniter is compatible with a wide range of gas ranges and ovens manufactured by GE, Hotpoint, and Kenmore.
This part replaces numerous OEM numbers, including 1990, 300259, 319887, 327617, 330689, 337263, 4336387, 4338008, 4342528, AH243425, EA243425, PS243425, WB00X6640, WB02X9154, WB13K0001, WB13K0003, WB13K0004, WB13K01, WB13K04, WB13K1, WB13K10027, WB13K3, and WB13K4.
Installation is a straightforward repair that typically takes 30 to 60 minutes. You will need basic hand tools, such as a screwdriver and potentially wire nuts. Always ensure the range is unplugged or the circuit breaker is shut off before beginning work, and wear work gloves to protect your hands from sharp metal edges inside the oven cavity.
Yes. The igniter element is extremely fragile and can be damaged if dropped or handled roughly. Avoid touching the white ceramic heating element with your bare fingers, as oils from your skin can create hot spots and lead to premature failure. Handle the part by the base or the metal bracket.
