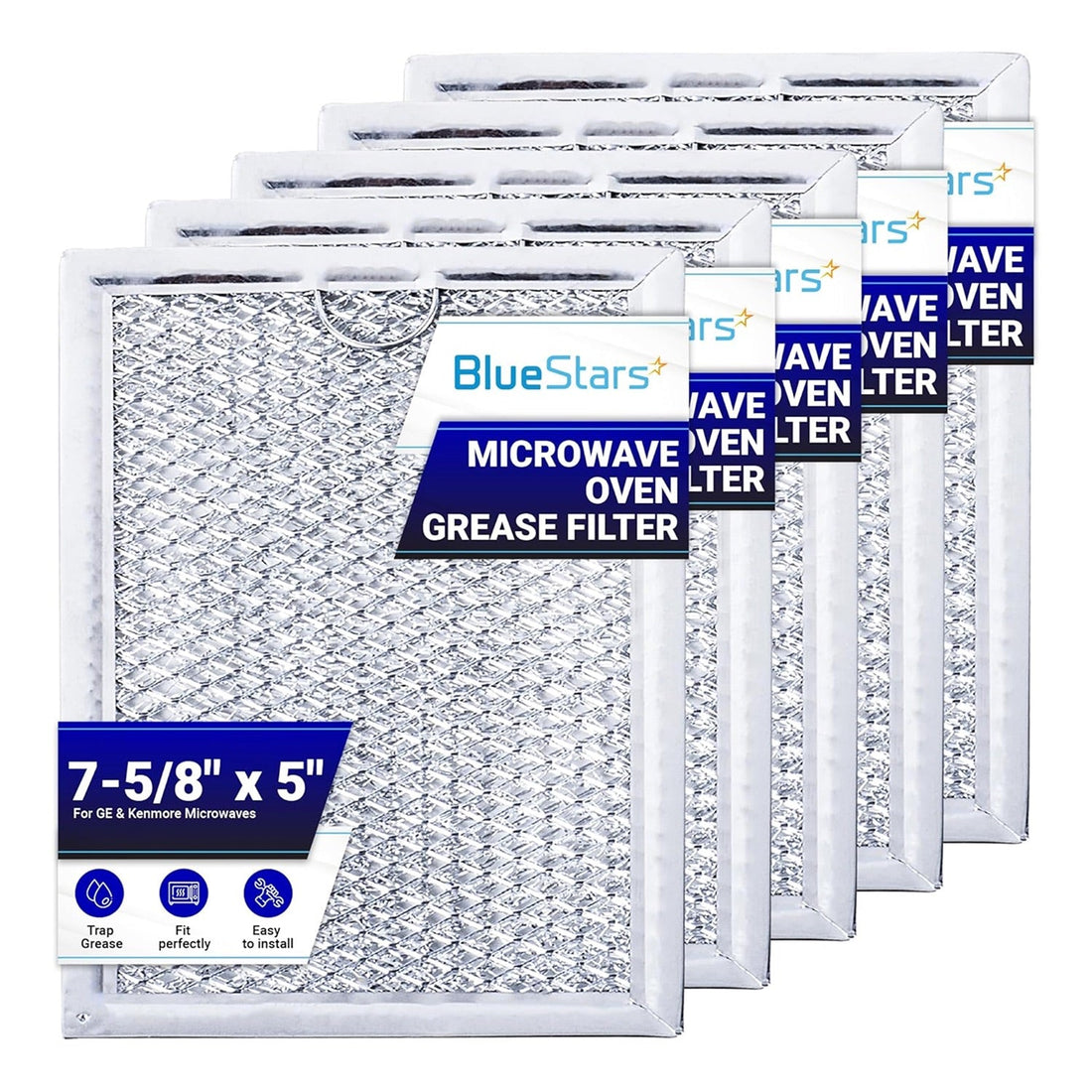

WB06X10309 WB06X10359 Microwave Grease Filters 7.64" x 5.12" for GE LG Kenmore Vent Hood Microwaves - 5 Pack

WB06X10309 / WB06X10359 Over-The-Range Microwave Grease Filters (7.64" x 5.12")

Key Features

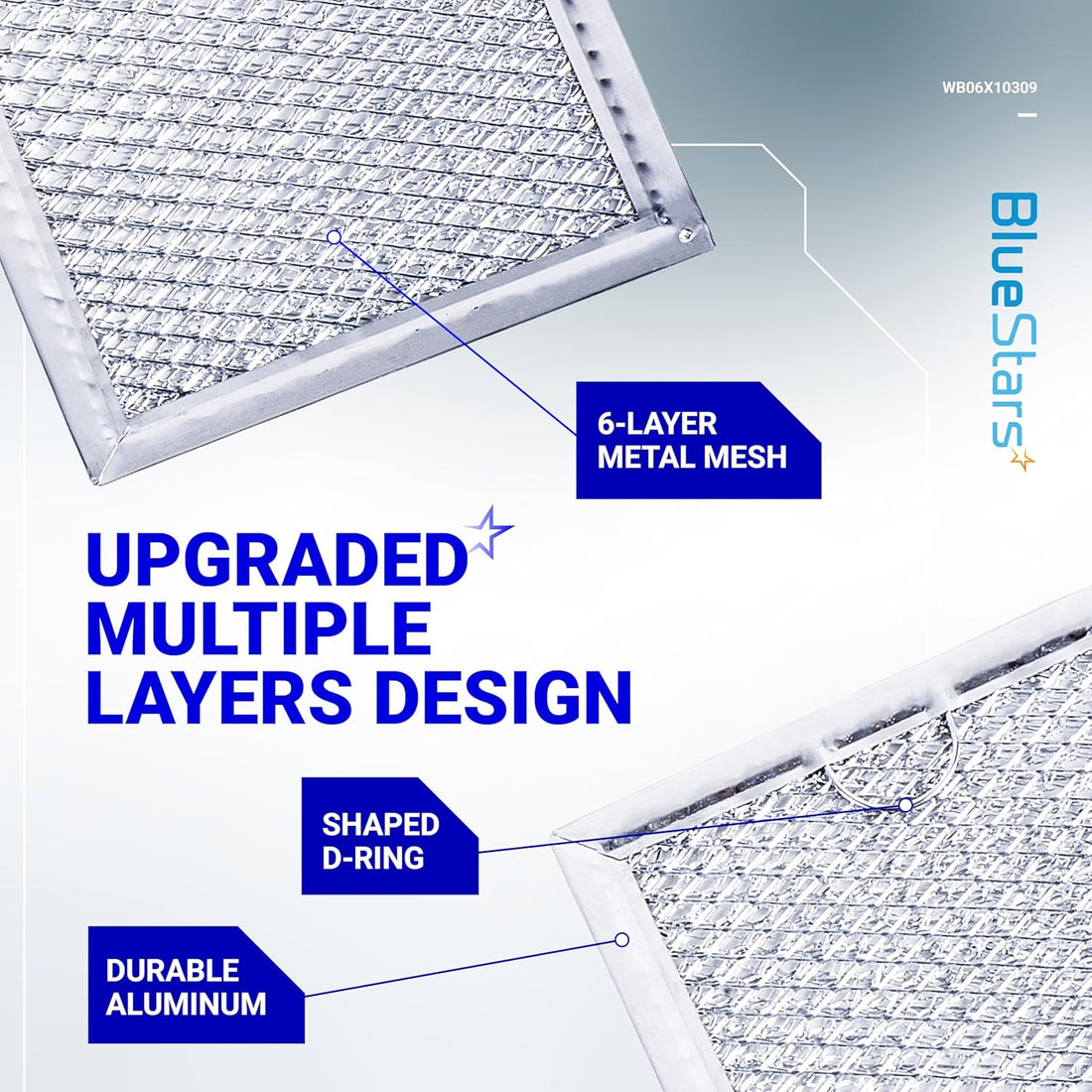

• Multi-Layer Aluminum Mesh: Constructed with several layers of expanded aluminum to maximize surface area, effectively trapping airborne grease, smoke, and odors before they enter the exhaust fan and ductwork.
• Washable and Reusable: The durable aluminum frame and mesh can be cleaned with mild soap and water or placed in a dishwasher, extending the filter's lifespan between full replacements.

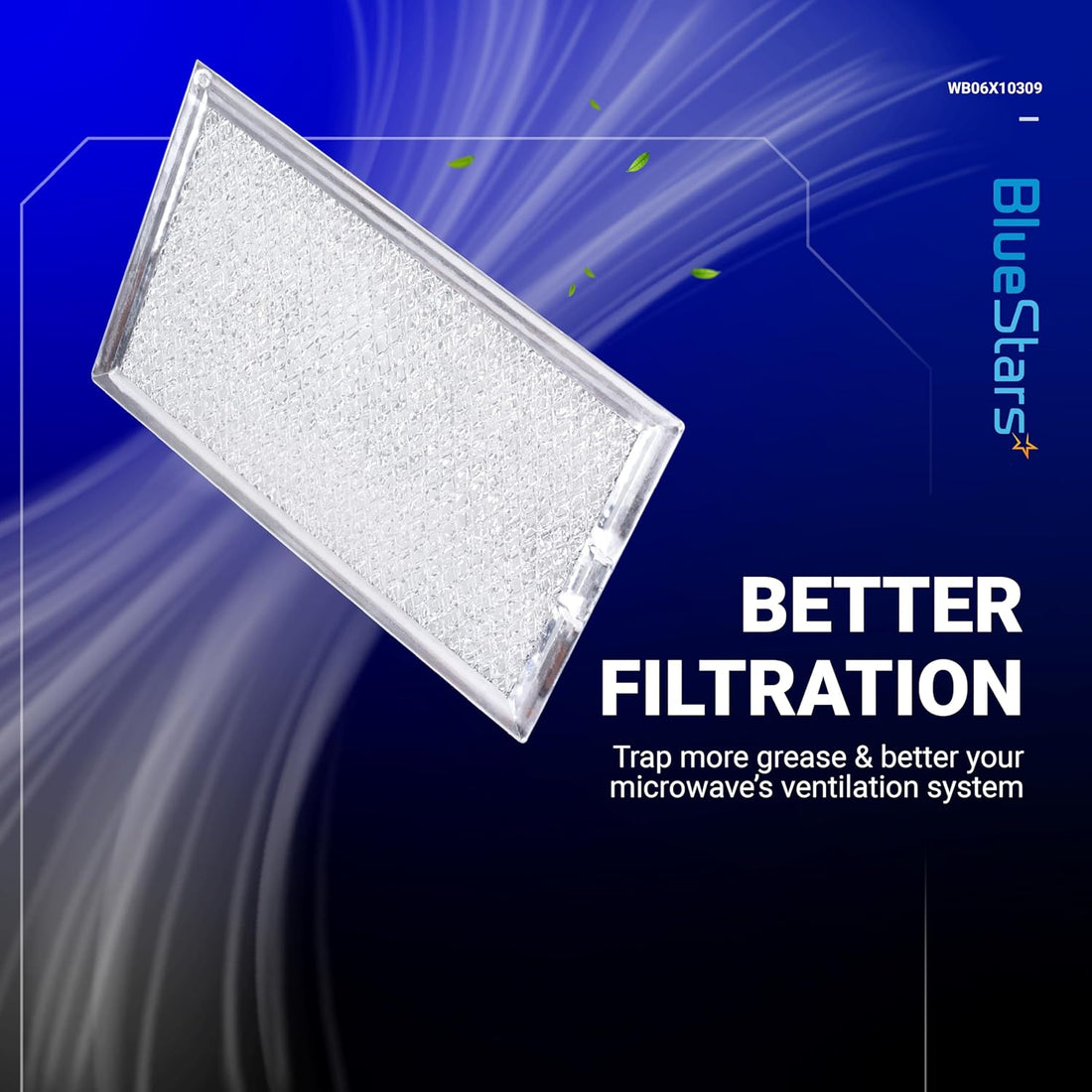

• High-Airflow Design: Engineered to provide minimal resistance to the exhaust fan, ensuring your kitchen stays clear of steam and cooking vapors without straining the microwave’s blower motor.
• Integrated Pull Tab: Features a built-in metal or plastic pull tab for tool-free removal and installation, allowing for quick maintenance even in tight spaces above the range.
• Corrosion-Resistant Material: Made from high-quality aluminum that resists rust and degradation caused by heat and moisture common in high-traffic cooking areas.

Replaces / Cross-Reference Part Numbers

• AP3668752
• PS228019
• WB06X10359
• WB6X10309
• 910457
• AH228019
• EA228019
• EAP228019
• WB06X10654
• RHF0503

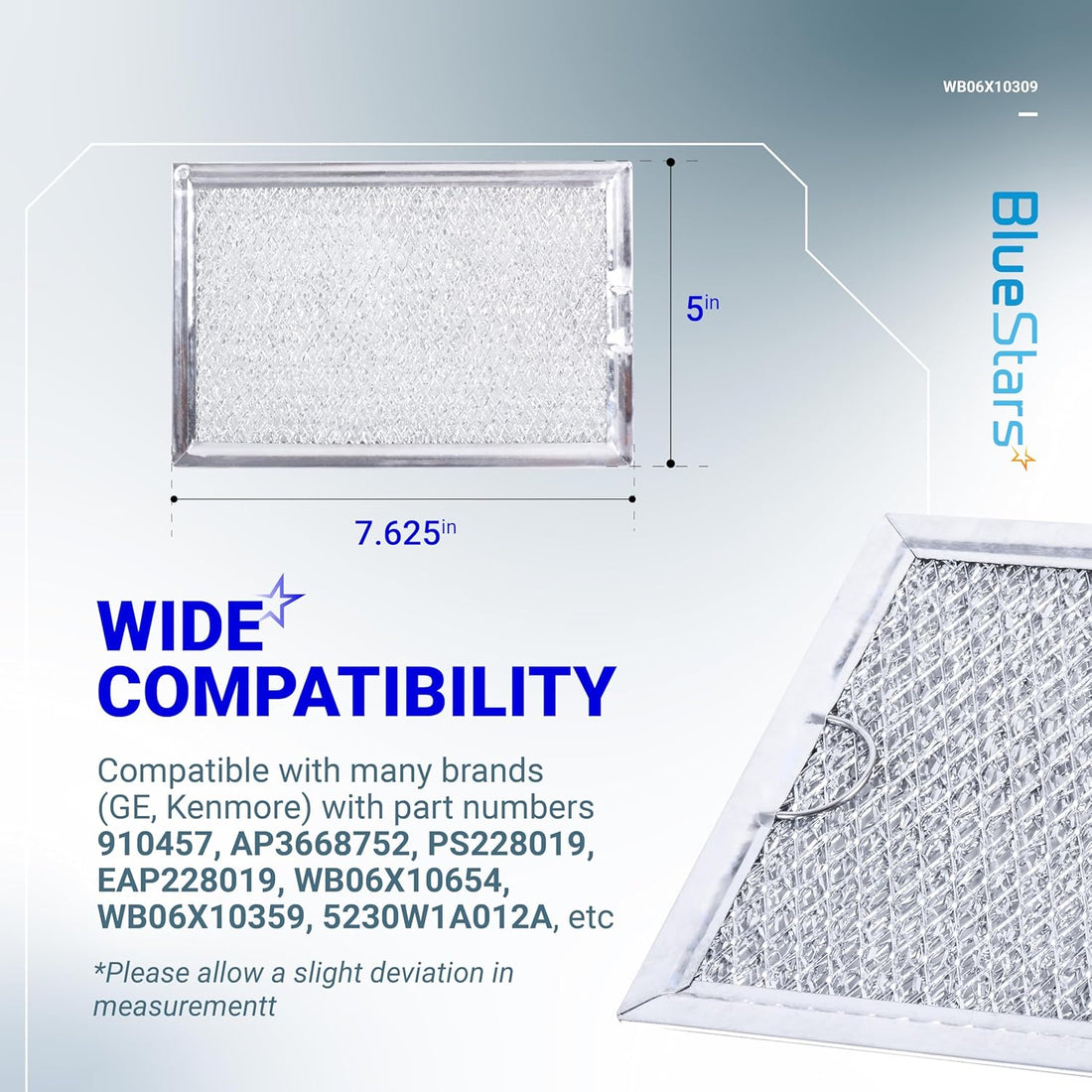

Compatibility & Fitment

These filters are designed for standard Over-The-Range microwaves and vent hoods. Key compatible brands and models include:

• Samsung: Specifically fits the ME17R7021ES/AA series and other ME17R models.
• GE (General Electric): Compatible with a wide range of JVM (Spacemaker) and CVM series microwaves.
• LG & Kenmore: Fits several models utilizing the 7.64" x 5.12" sizing (often found in Kenmore 721-prefix models manufactured by LG).
• Hotpoint: Direct fit for many RVM series over-the-range units.
• Note: Always measure your existing filter before ordering. Even within the same brand, different model years may use slightly different filter dimensions.

When to Replace

• Visible Grease Saturation: If the mesh appears "clogged" or sticky even after washing, the internal layers are likely saturated, significantly reducing airflow.
• Persistent Cooking Odors: When the microwave exhaust no longer effectively removes smells from the kitchen, the filter's ability to trap particles has likely been exhausted.
• Physical Damage: Replace immediately if the aluminum mesh is torn, dented, or starting to separate from the outer frame.
• Discoloration: Severe yellowing or browning that cannot be removed with degreaser often indicates that the aluminum has been heat-damaged or permanently fouled.
• Standard Maintenance: For average household cooking, it is recommended to clean these filters every 1 to 2 months and replace them every 6 to 12 months.

Installation Tips

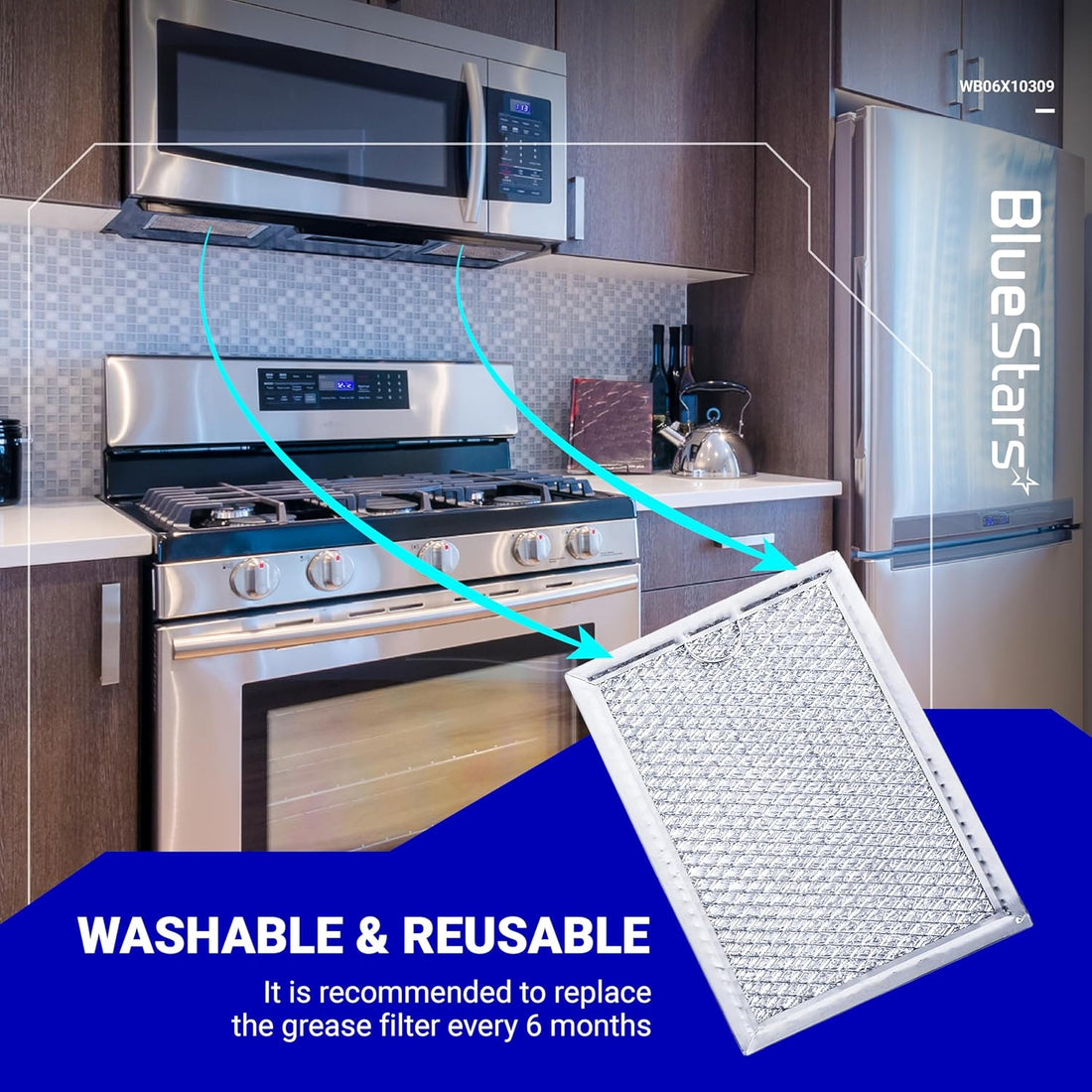

• Safety First: Ensure the microwave fan and cooktop lights are turned off before reaching under the unit.
• Orientation Check: PRO TIP: These filters are usually directional. Ensure the pull tab is facing downward and toward the front of the microwave for easy access during the next cleaning.
• The "Snap" Fit: Slide the rear edge of the filter into the mounting slot first, then pivot the front edge upward. You should feel it "seat" firmly into the recessed area.
• Dishwasher Note: While these are dishwasher safe, some high-alkaline detergents can cause aluminum to discolor. Hand washing with a grease-cutting dish soap (like Dawn) is often the gentlest way to maintain the finish.
• Check the Charcoal Filter: If your microwave recirculates air back into the kitchen (rather than venting outside), remember that there is a separate charcoal filter inside the top vent that also needs periodic replacement.
