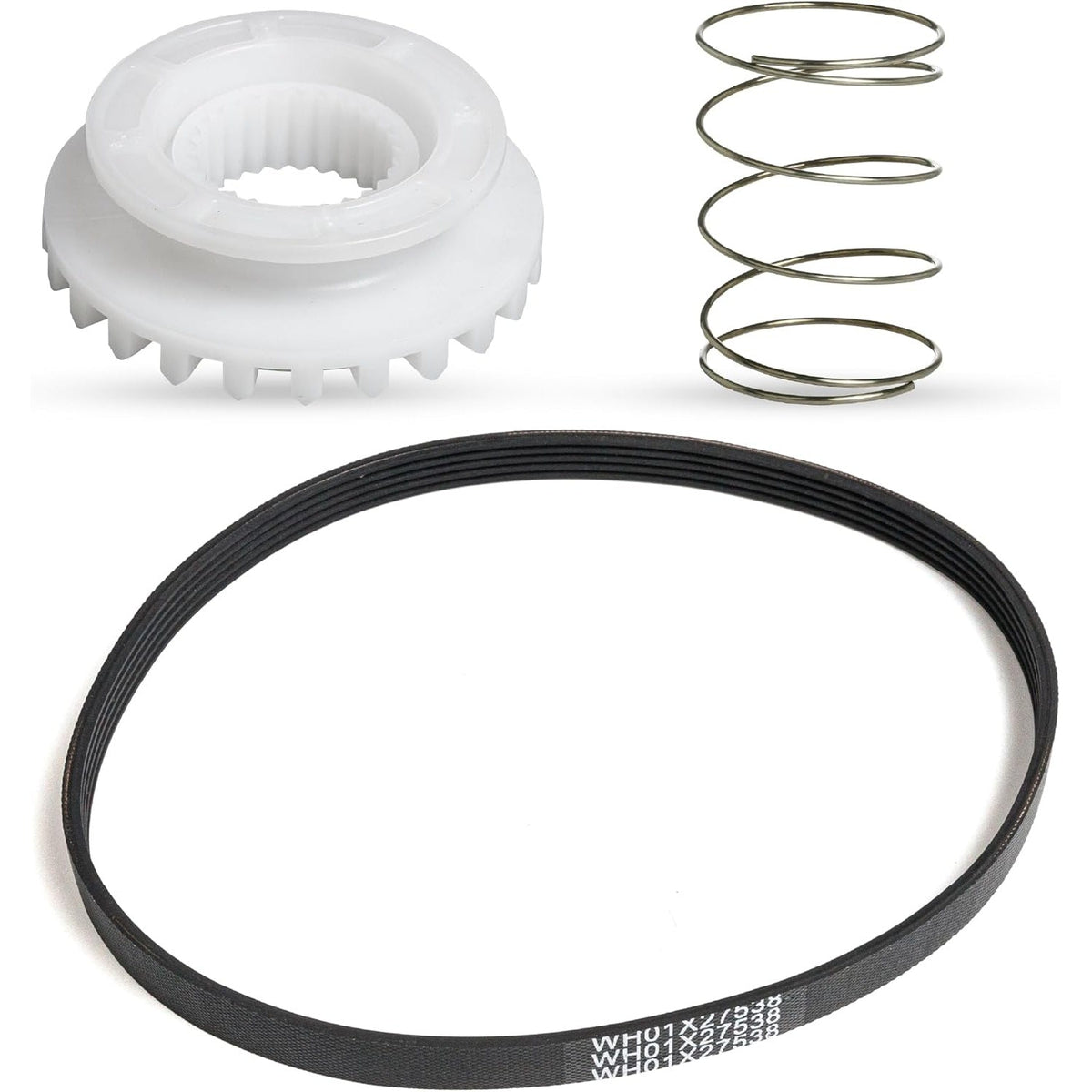

GE washing machine repair kit including drive belt, clutch assembly, and tension spring for Hotpoint clothes washers.

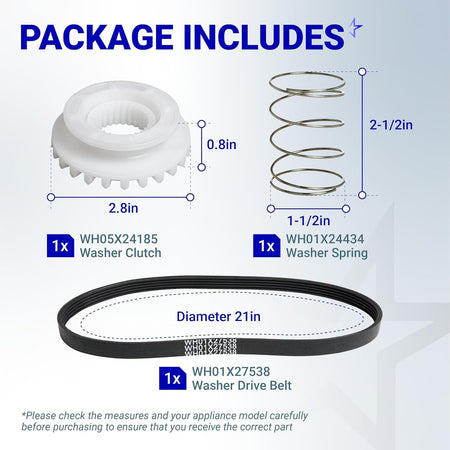

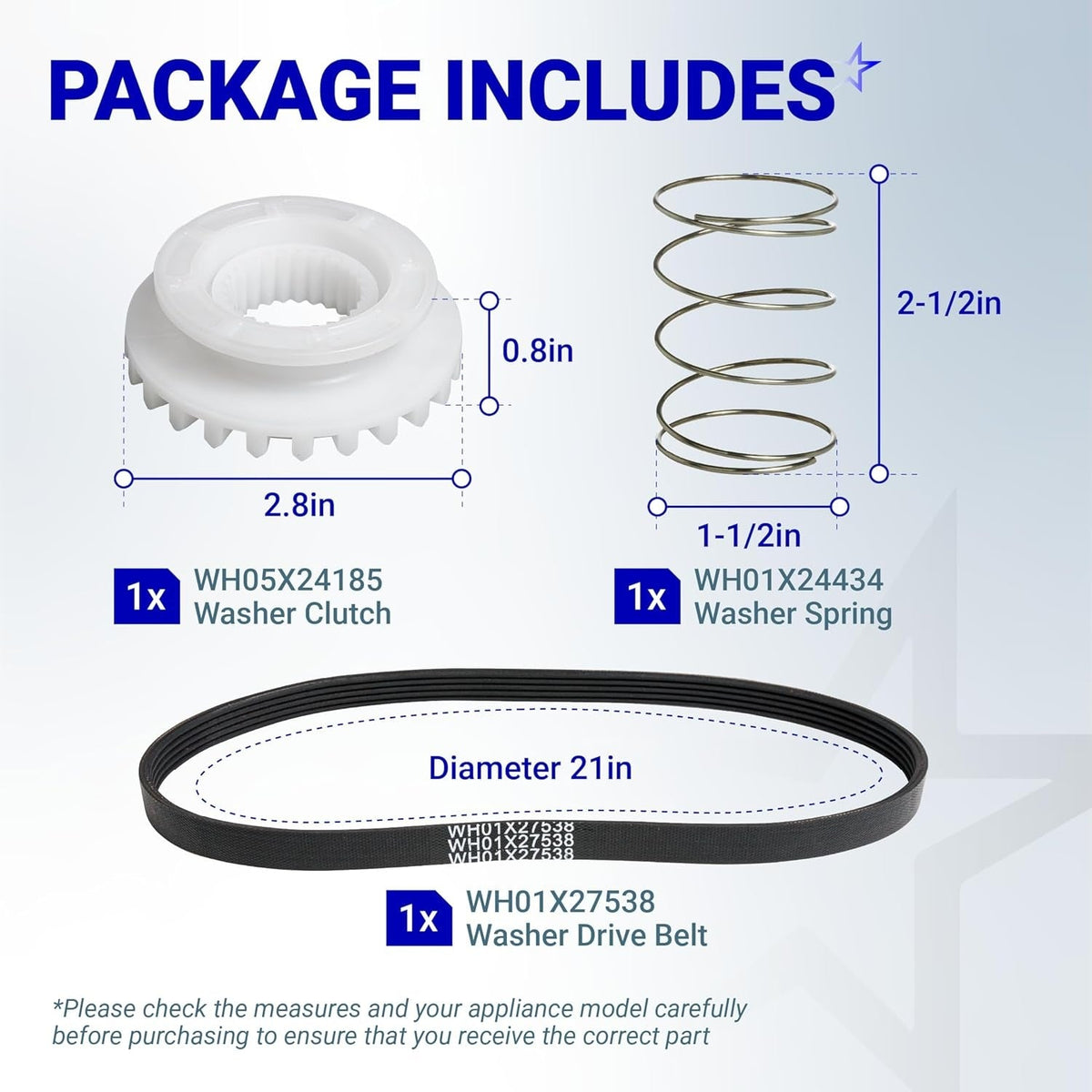

GE washer repair kit including WH05X24185 clutch, WH01X24434 spring, and WH01X27538 drive belt with dimension diagrams.

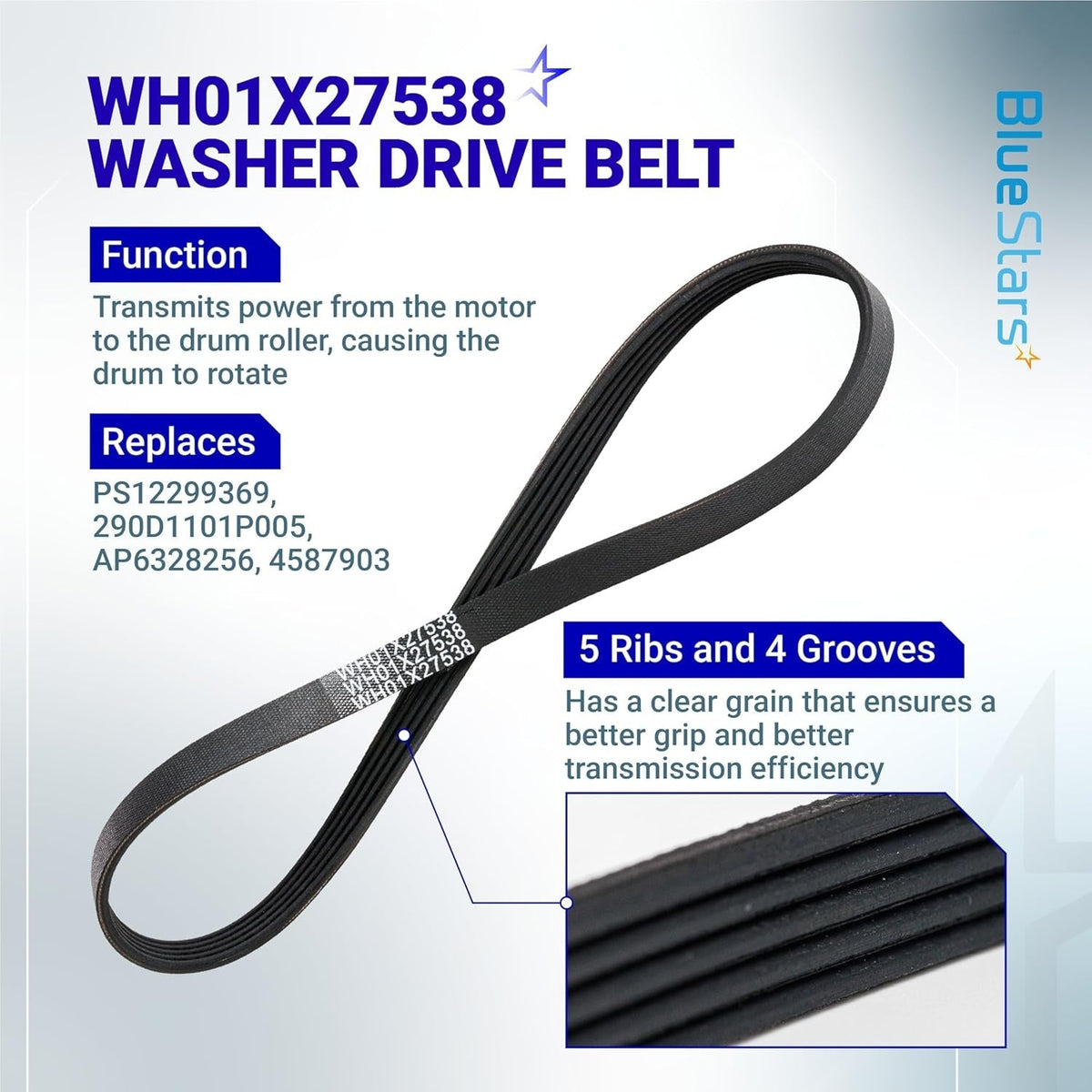

WH01X27538 washer drive belt for GE and Hotpoint clothes washers with 5-rib design for motor power transmission.

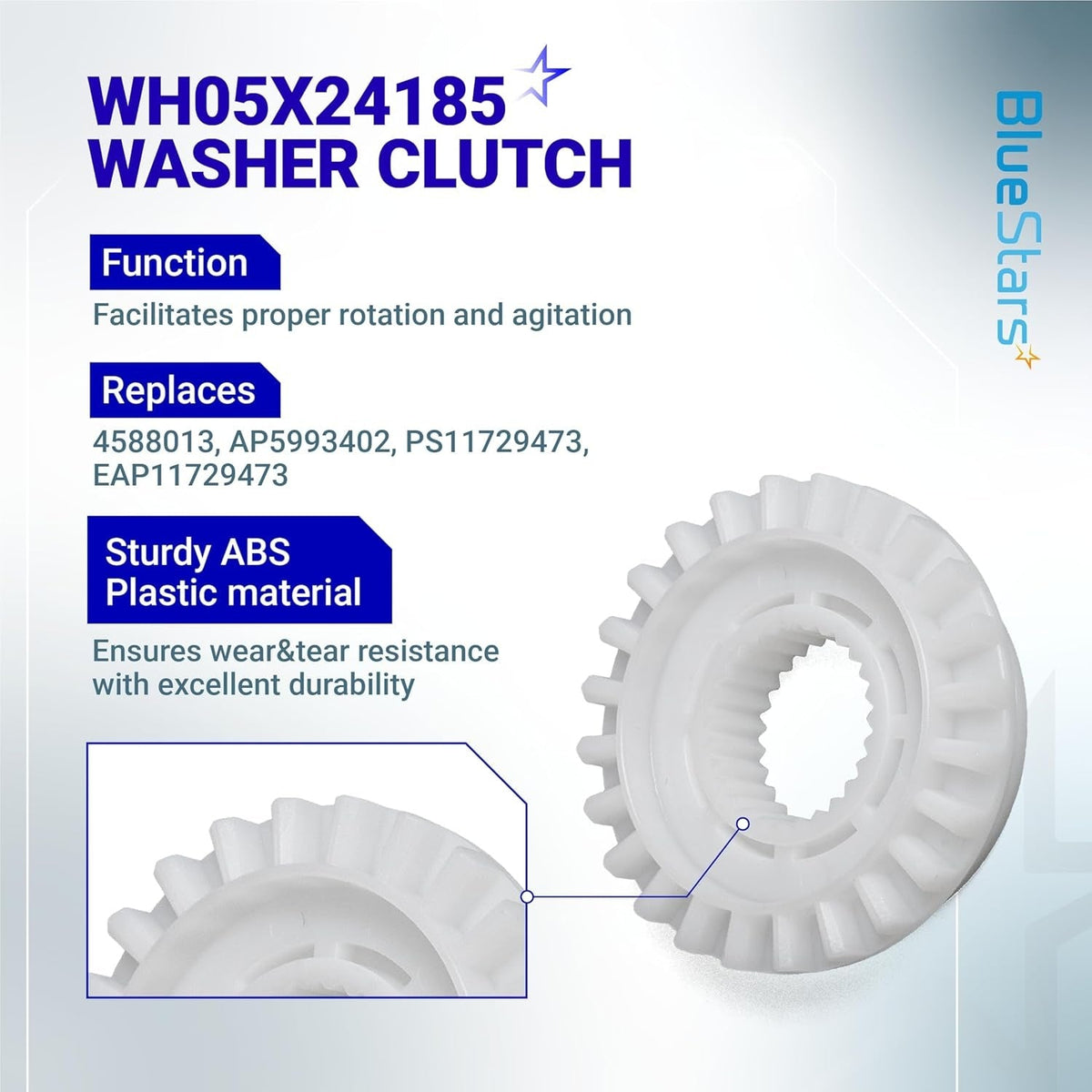

WH05X24185 washing machine clutch replacement part for GE Hotpoint washers with detailed product information graphic.

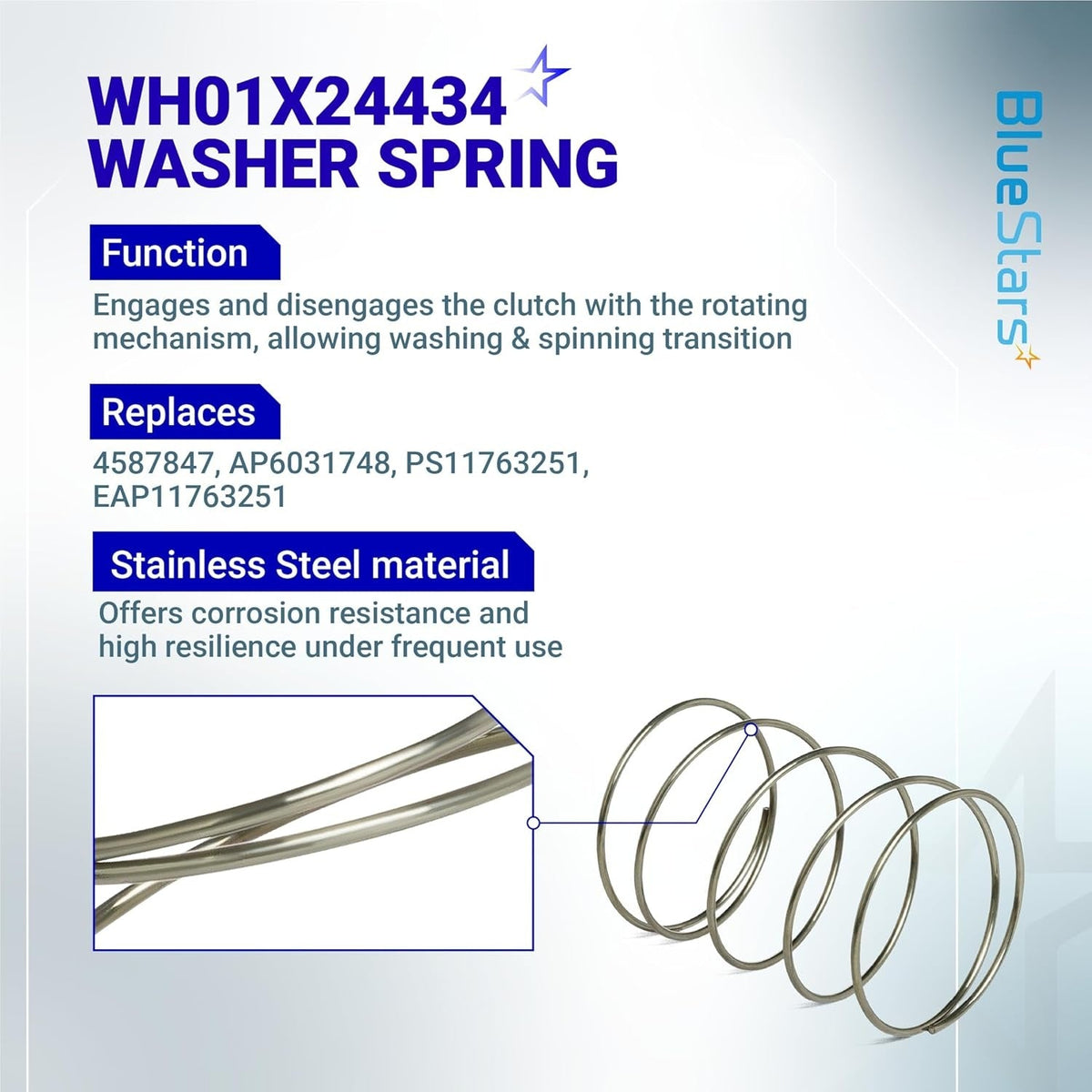

WH01X24434 stainless steel washer spring for GE Hotpoint clothes washers with close-up detail view.
WH01X27538 washer drive belt, WH05X24185 clutch, and WH01X24434 spring for GE Hotpoint washing machine repair.

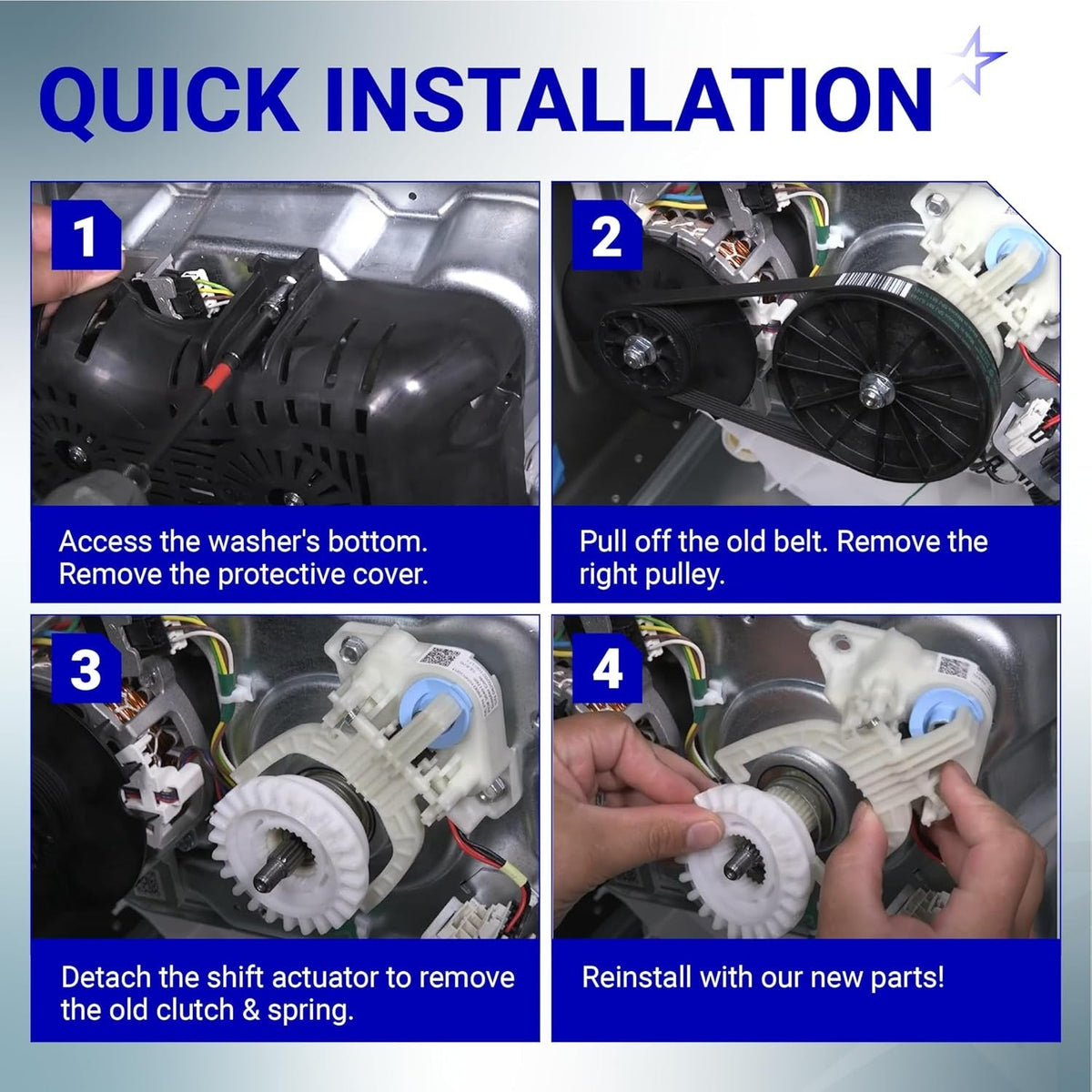

Four-step installation guide for GE Hotpoint washer drive belt, clutch, and spring replacement.

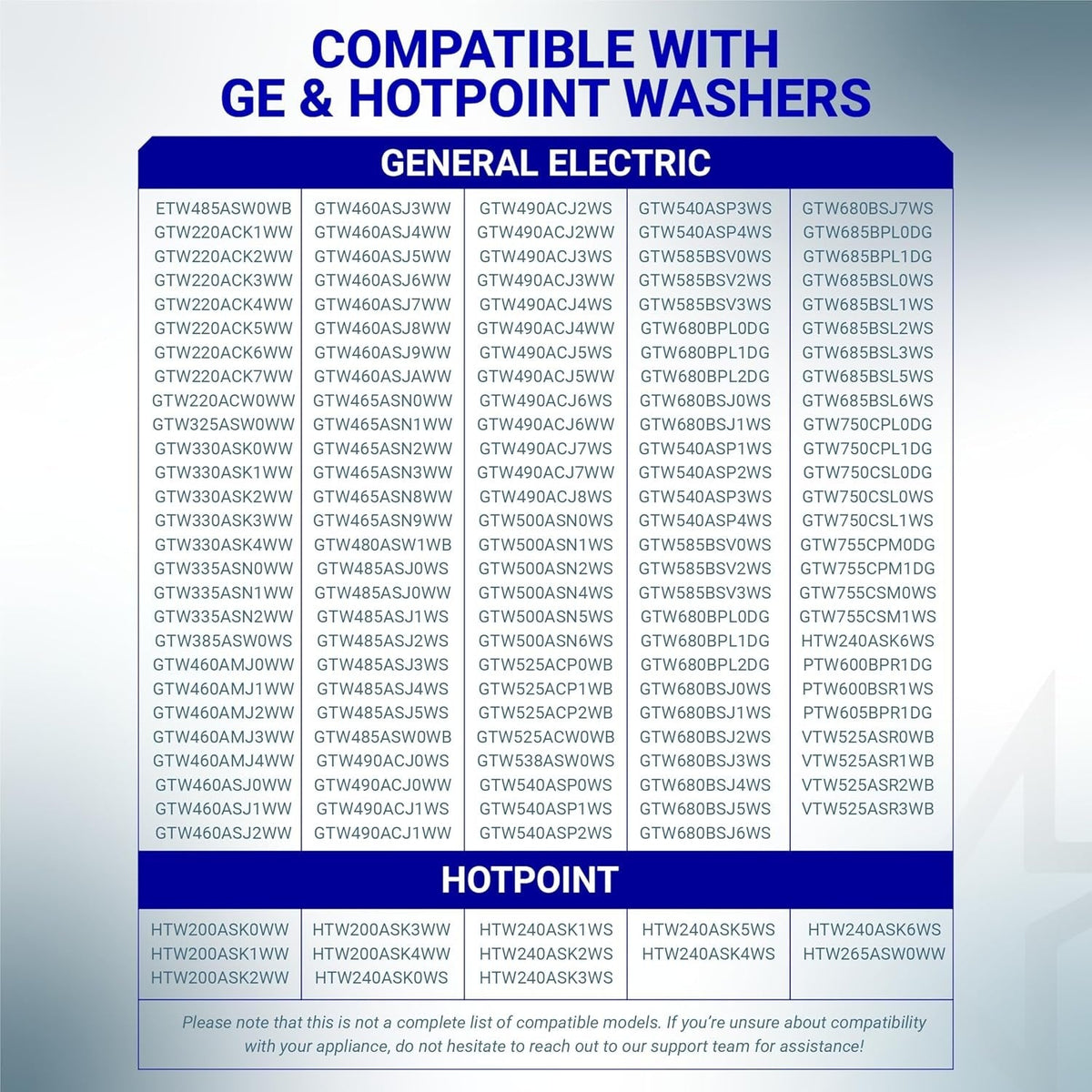

Compatibility chart for GE and Hotpoint washing machine replacement parts.
WH01X27538 washer drive belt, WH05X24185 clutch, and WH01X24434 spring set for GE Hotpoint washing machines.
GE washing machine repair kit including drive belt, clutch assembly, and tension spring for Hotpoint clothes washers.
GE washer repair kit including WH05X24185 clutch, WH01X24434 spring, and WH01X27538 drive belt with dimension diagrams.
WH01X27538 washer drive belt for GE and Hotpoint clothes washers with 5-rib design for motor power transmission.
WH05X24185 washing machine clutch replacement part for GE Hotpoint washers with detailed product information graphic.
WH01X24434 stainless steel washer spring for GE Hotpoint clothes washers with close-up detail view.
WH01X27538 washer drive belt, WH05X24185 clutch, and WH01X24434 spring for GE Hotpoint washing machine repair.
Four-step installation guide for GE Hotpoint washer drive belt, clutch, and spring replacement.
Compatibility chart for GE and Hotpoint washing machine replacement parts.
WH01X27538 washer drive belt, WH05X24185 clutch, and WH01X24434 spring set for GE Hotpoint washing machines.

WH01X27538 Drive Belt & WH05X24185 Clutch & WH01X24434 Spring for GE Hotpoint Washer

0.00
$12.99
Save 16% $15.45
$12.99
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

WH01X27538 Drive Belt & WH05X24185 Clutch & WH01X24434 Spring Set

Key Features

  • Kit includes 1 clutch assembly, 1 clutch spring, and 1 drive belt.
  • Components are constructed from durable plastic and corrosion-resistant steel.
  • Restores proper spin and agitate functions by re-engaging the transmission with the wash basket.

Replaces / Cross-Reference Part Numbers

  • WH01X27538 - Washer Drive Belt: AP6328256, PS12299369, EAP12299369, 4587903, PD00043350, WH01X27538-50PK, 290D1101P005
  • WH05X24185 - Washing Machine Clutch: AP5993402, PS11729473, EAP11729473, 4588013, PD00043605
  • WH01X24434 - Washer Spring: AP6031748, PS11763251, EAP11763251, 4587847, PD00055310

Compatibility & Fitment

  • Engineered for direct replacement in various GE washing machine models.
  • Confirm fitment by cross-referencing part numbers with your appliance's service manual.

When to Replace

  • The machine will not agitate or spin.
  • Loud grinding or whining noises are present during cycles.
  • A burning smell is detected during operation.
  • The drive belt is visibly frayed, cracked, or broken.

Installation Tips

  • Disconnect the appliance from all power and water supplies before service.
  • Consult your washing machine's official service manual for step-by-step instructions.
  • Ensure the new drive belt is correctly routed and tensioned on the pulleys.
  • Inspect pulley surfaces for damage or debris before installing the new belt.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This set is designed for top-load clothes washers manufactured under the GE and Hotpoint brands. The drive belt (WH01X27538) is also compatible with select models from Haier, Monogram, and Café. To ensure a proper fit, please verify your specific washer model number before ordering. Compatible models include, but are not limited to, GTW330ASK0WW, GTW220ACK5WW, GTW220ACK7WW, GTW330ASK2WW, GTW335ASN0WW, and GTW335ASN1WW.
This set includes components WH01X27538, WH05X24185, and WH01X24434. These parts replace and are compatible with 4588013, AP5993402, PS11729473, EAP11729473, AP6328256, 4587903, PS12299369, and 290D1101P005. Always confirm compatibility by matching your washer model number and the specific part numbers currently installed on your machine.
Common symptoms include the washer filling and draining but failing to agitate or spin properly, slow or weak spin speeds, a burning rubber smell, squealing during agitation or spin cycles, clothes remaining unusually wet, or the basket failing to shift correctly between wash and spin functions. A worn belt often slips or squeals, while a worn clutch can cause poor basket movement, hesitation, or incomplete spin engagement.
The clutch facilitates the transfer of motion, allowing the washer to move the inner basket and agitator during different stages of the cycle. When the clutch wears out, the machine may struggle to shift, agitate inconsistently, or fail to reach full spin speed despite the motor running.
This is a moderate repair suitable for those comfortable working on appliances. Essential tools typically include a nut driver or socket set, pliers, and a screwdriver. The process involves unplugging the washer, disconnecting the water supply, safely tipping the unit to access the underside, and replacing the belt, clutch, and spring. Depending on your experience level, this repair generally takes between 45 minutes and 2 hours.
Before installation, inspect the drive pulley, motor pulley, belt path, transmission or mode-shift area, and the spring mounting points for signs of wear or damage. If the previous belt was slipping, clean any rubber dust or glaze from the pulleys. Additionally, check for signs of oil or water leakage, as contamination can cause premature failure of the new belt or clutch.
Drive belts typically wear due to age, heavy loads, pulley misalignment, or contamination from leaks. Clutches generally wear from normal cycle usage, overloading, repeated unbalanced loads, or continued operation after slipping begins. Springs can weaken or deform over time due to constant tension and vibration. Addressing the underlying cause of failure is essential to ensure the longevity of your new parts.
