[NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor

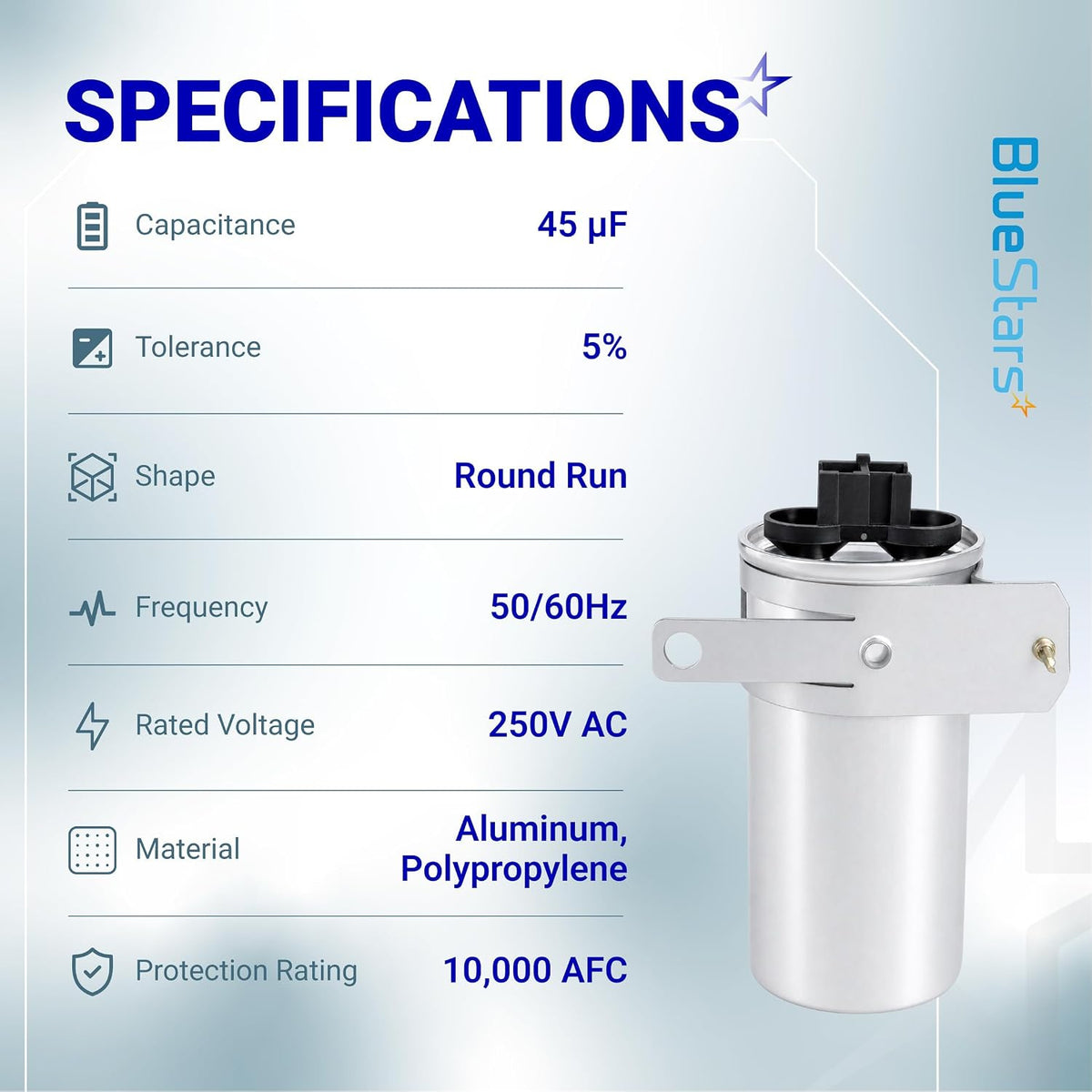

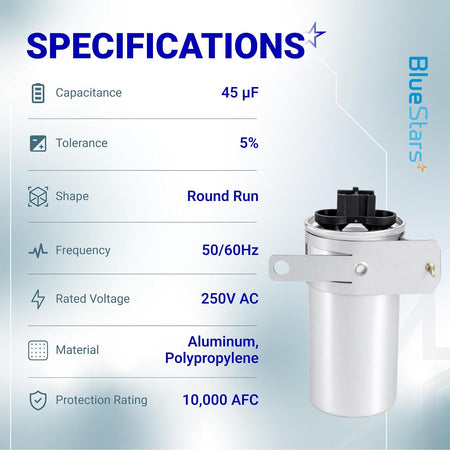

Key Features

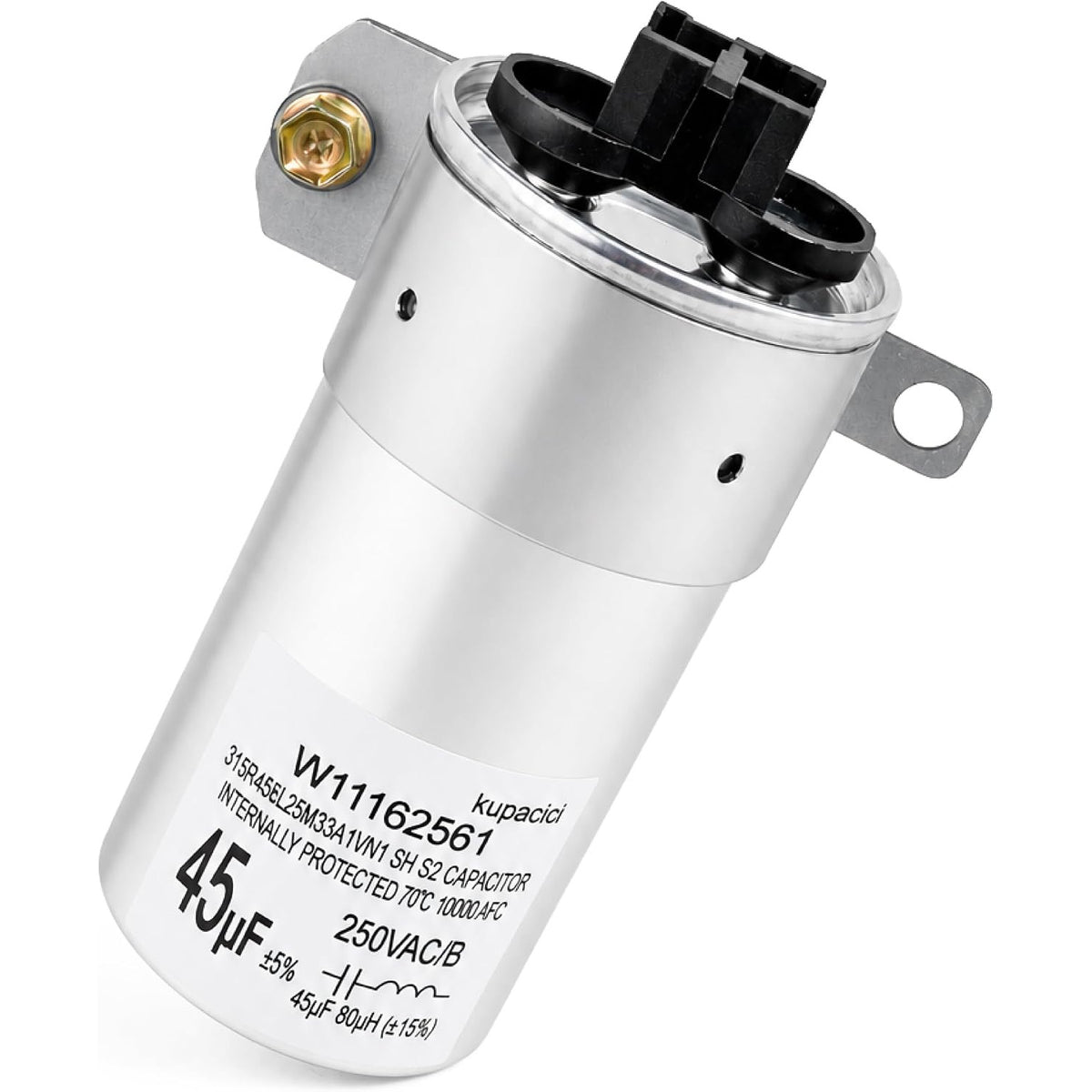

  • Round washer motor-run capacitor with 45µF/MFD capacitance and ±5% tolerance.
  • Rated for 250 VAC and 50/60 Hz operation.
  • Fault current rating: 10,000 AFC.
  • Diameter: 1.76 inches (44.7 mm).
  • Height: 4.13 inches (105 mm), including terminals.
  • Terminal width: 0.69 inches (17.5 mm).

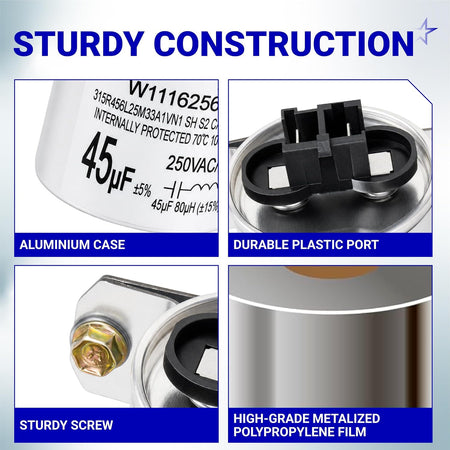

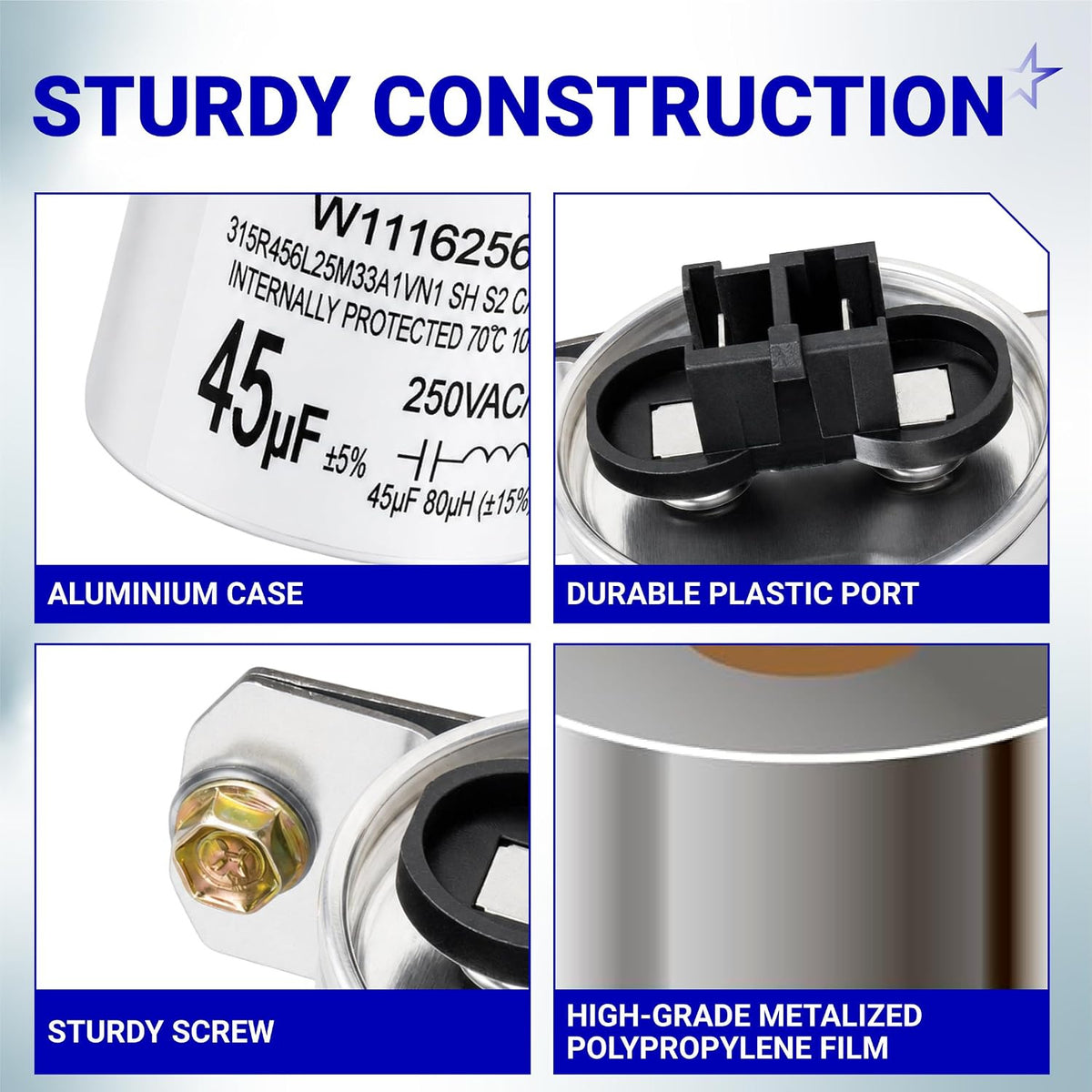

  • Construction includes copper coils, metalized polypropylene MKP film, and an aluminum casing sealed with flame-retardant epoxy resin.
  • Heat- and corrosion-resistant plastic terminals with overvoltage and overcurrent safeguards help withstand moisture, heat, and washer vibration.
  • Lifetime protection covers defects or issues with the product.

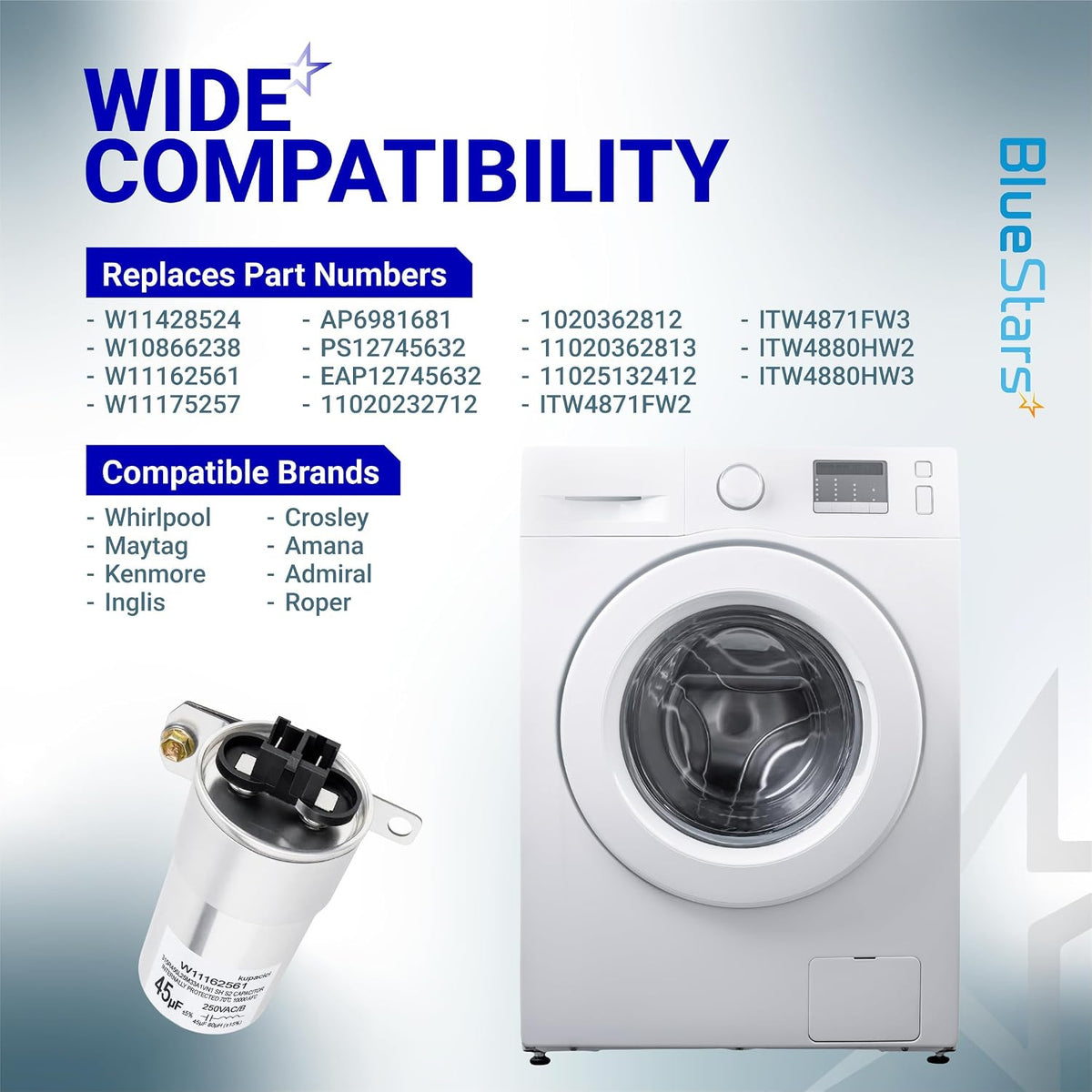

Replaces / Cross-Reference Part Numbers

  • W11428524
  • W10866238
  • W11162561
  • W11175257
  • AP6981681
  • PS12745632
  • EAP12745632

Compatibility & Fitment

This capacitor fits compatible washer models from Whirlpool, Maytag, Kenmore, Inglis, Crosley, Amana, Admiral, and Roper when the original part has the same capacitance, voltage rating, and dimensions.

  • Whirlpool: 8TWTW6000JW0, WTW4616FW2, WTW4655JW1, WTW4850HW2, WTW4950HW2, WTW5000DW3
  • Maytag: MVW4005SW0, MVWC465HW3
  • Amana: NTW4516FW2
  • Inglis: ATW4516HW0
  • Crosley: CAW35114GW1
  • Kenmore: 11020232712
  • Additional compatible model: ITW4871FW2

Verify the capacitance, voltage, terminal configuration, and measurements of the existing capacitor against the replacement before ordering.

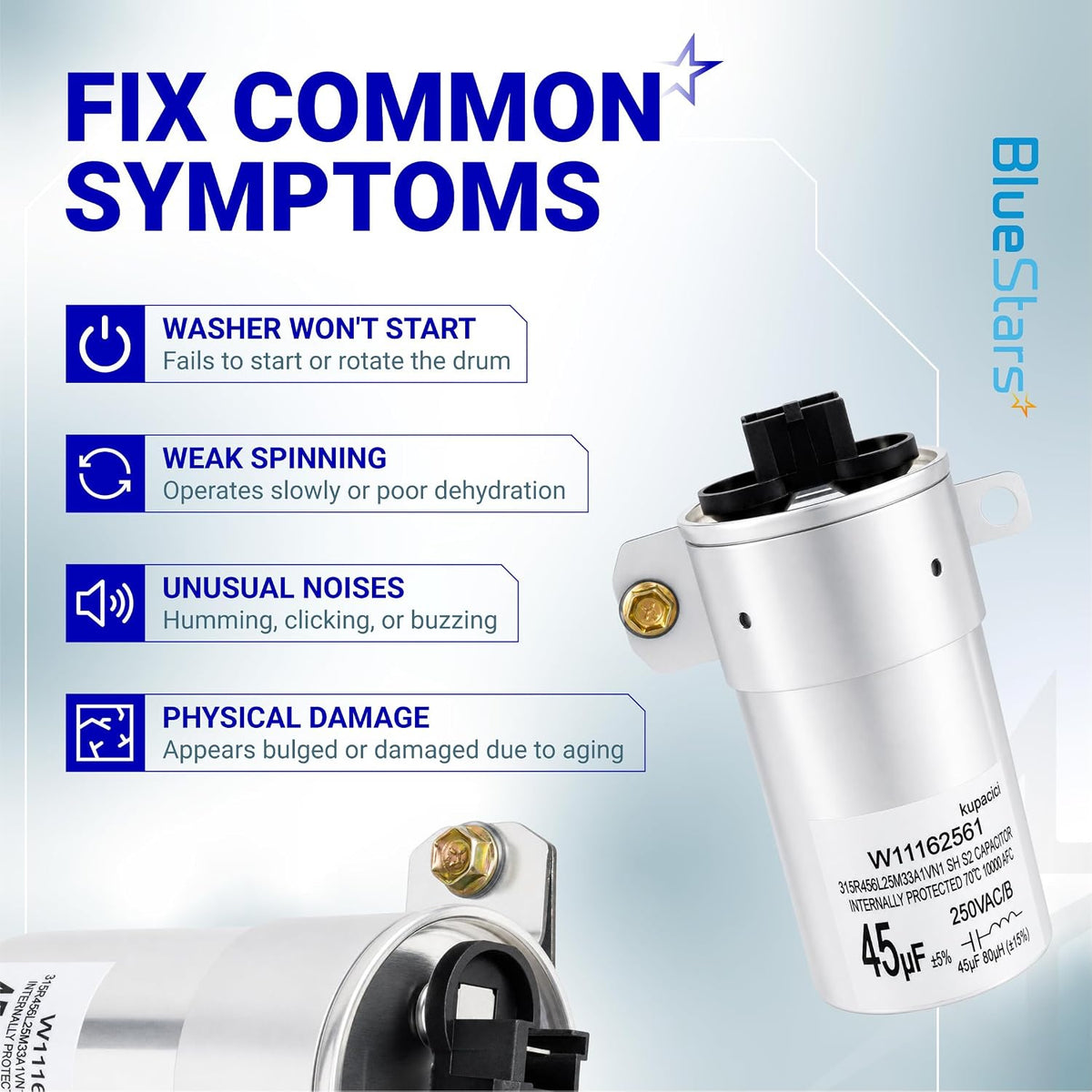

When to Replace

Replace the washer run capacitor when the motor has difficulty starting, hums without turning, runs intermittently, or loses operating performance. A capacitor with visible swelling, leakage, cracking, or terminal damage should also be replaced. Confirm that the replacement matches the original 45µF/MFD capacitance and 250 VAC rating.

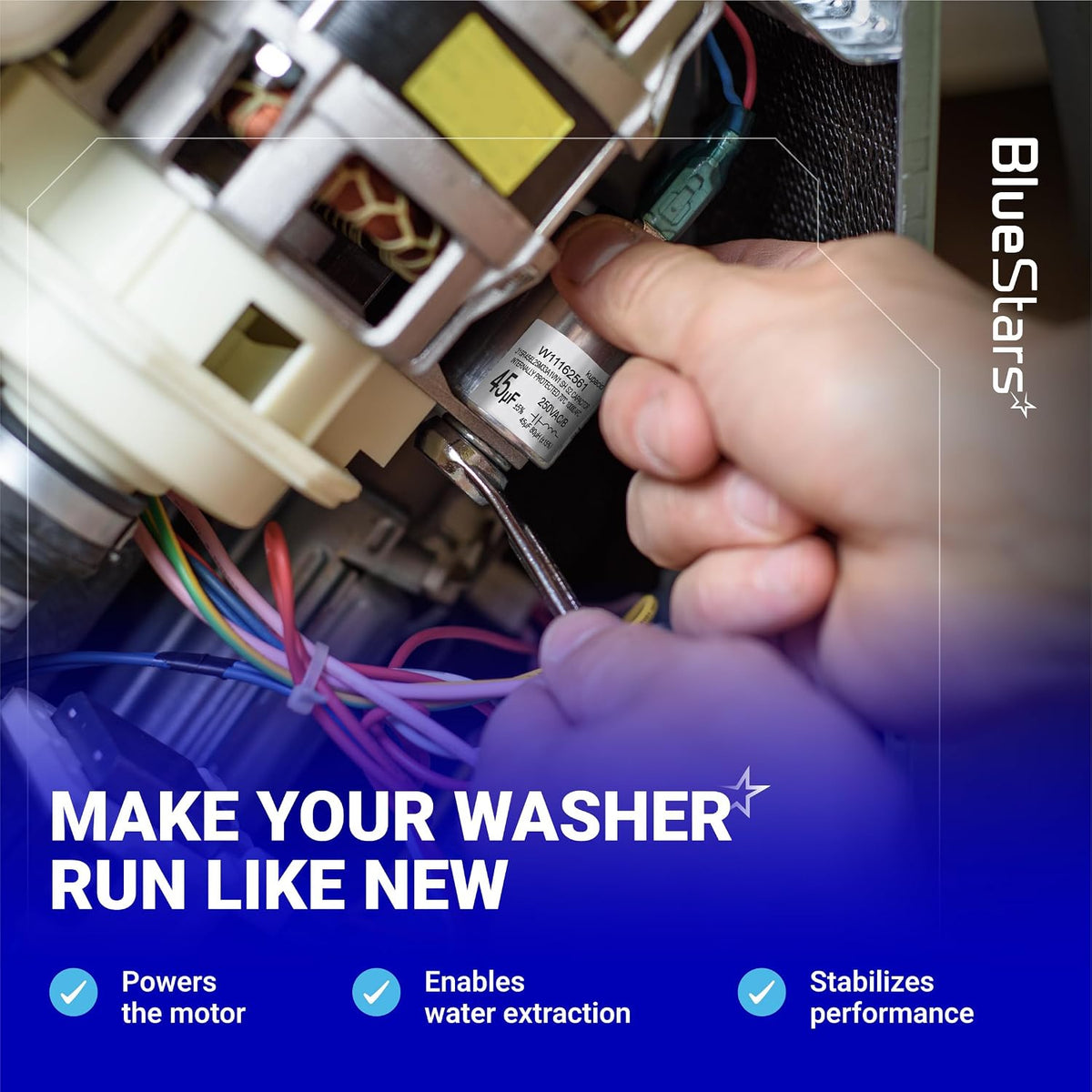

Installation Tips

Installation uses the stock mounting position and existing wire terminals; no rewiring or adapter is required. Recommended tools are a 5/16-inch socket wrench, flathead screwdriver, and work gloves.

  • Disconnect the washer from the power supply.
  • Shut off the water and detach the inlet hose.
  • Tip the washer over and remove the motor cover.
  • Lift out the worn capacitor and install the replacement in the original mounting position.
  • Reconnect the existing wire terminals, reinstall the motor cover, and return the washer to its operating position.

Confirm that the power is disconnected before servicing and discharge the capacitor safely according to applicable service procedures.

W11428524 washer run capacitor powers the motor for strong water extraction and stabilized performance
45 μF round run capacitor, 250V AC, aluminum and polypropylene construction, 5% tolerance, 10,000 AFC rating
W11428524 replacement washer component with listed replacement numbers and compatible Crosley, Maytag, Kenmore, and other bra
[NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 4
[NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 5
[NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 6
[NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 7
  • [NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 1

    Simple Installation

    Take a few minutes to install with basic tools, save your time and simplify your repair.
  • [NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 2

    Wide Compatibility

    Compatible with major washer brands including Whirlpool, Maytag, Kenmore, Amana, and Roper.
  • [NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 3

    Saving Solution

    Revive your washing machine affordably with dependable DIY parts, turning repairs into simple, economical tasks.
  • [NEW] BlueStars W11428524 45µF MFD ±5% 250 Volts 50/60 Hz Run Capacitor 4

    Superior Materials

    Constructed with high capacitance stability and low internal power loss to avoid premature failure over time.

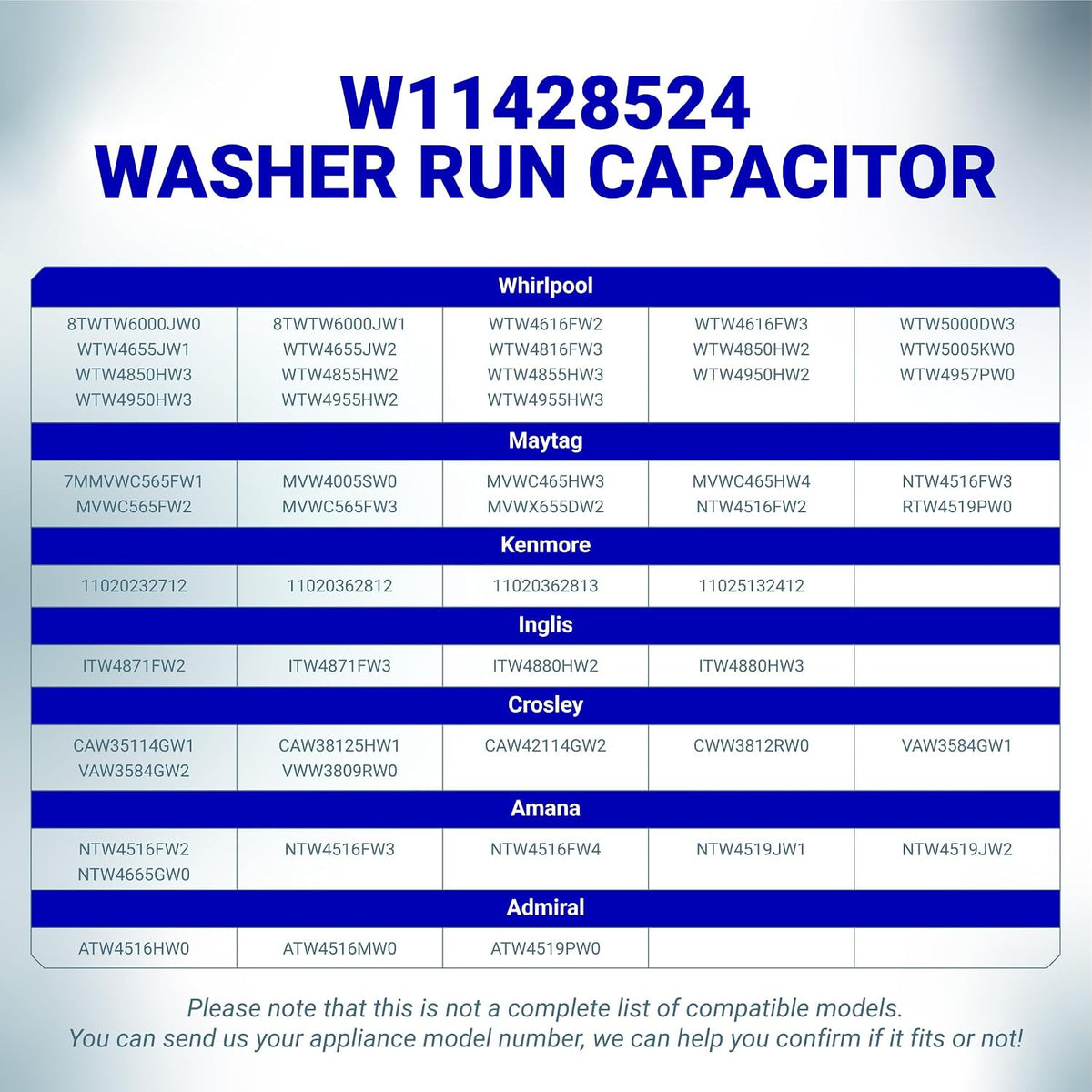

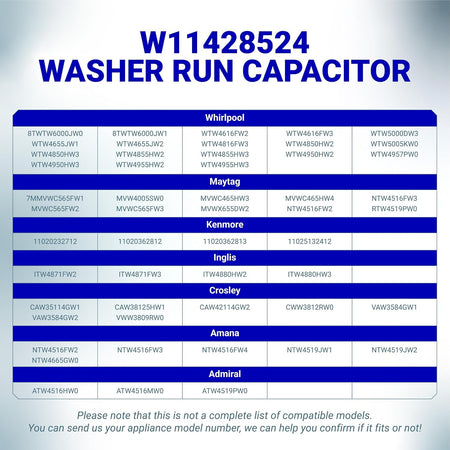

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Whirlpool
8TWTW6000JW0, 8TWTW6000JW1, WTW4616FW2, WTW4616FW3, WTW4655JW1, WTW4655JW2, WTW4816FW3, WTW4850HW2, WTW4850HW3, WTW4855HW2, WTW4855HW3, WTW4950HW2, WTW4950HW3, WTW4955HW2, WTW4955HW3, WTW4957PW0, WTW5000DW3, WTW5005KW0
Maytag
7MMVWC565FW1, MVW4005SW0, MVWC465HW3, MVWC465HW4, MVWC565FW2, MVWC565FW3, MVWX655DW2, NTW4516FW2, NTW4516FW3, RTW4519PW0
Kenmore
11020232712, 11020362812, 11020362813, 11025132412
Inglis
ITW4871FW2, ITW4871FW3, ITW4880HW2, ITW4880HW3
Crosley
CAW35114GW1, CAW38125HW1, CAW42114GW2, CWW3812RW0, VAW3584GW1, VAW3584GW2, VWW3809RW0
Amana
NTW4516FW2, NTW4516FW3, NTW4516FW4, NTW4519JW1, NTW4519JW2, NTW4665GW0
Admiral
ATW4516HW0, ATW4516MW0, ATW4519PW0

FAQs

This run capacitor is identified by part number W11428524. Confirm that your appliance requires a 45 µF capacitor rated for 250 VAC before ordering.
It is a 45 µF (MFD) run capacitor with a ±5% tolerance, rated at 250 volts AC and suitable for 50/60 Hz operation.
Common symptoms include a motor that hums but will not start, slow or weak motor operation, difficulty starting under load, intermittent operation, or a breaker tripping when the motor attempts to run. These symptoms can also result from wiring, motor, or control problems, so testing is recommended.
Match the existing capacitor's capacitance, voltage rating, frequency, terminal arrangement, and physical fit. The required value should be 45 µF, and the replacement voltage rating should be equal to or higher than the original; do not substitute based on appearance alone.
Disconnect the appliance from power and allow the capacitor to be safely discharged by a qualified technician before handling it. Photograph or label the wire connections, inspect the terminals and wiring for heat damage, and check for a seized or overloaded motor that could cause the replacement capacitor to fail.
A screwdriver or nut driver may be needed to access the capacitor, and insulated tools, wire labels, and a multimeter rated for the appliance voltage are useful for testing. Installation is usually straightforward for a qualified repairer, but electrical safety precautions are essential because a capacitor can retain a charge.
