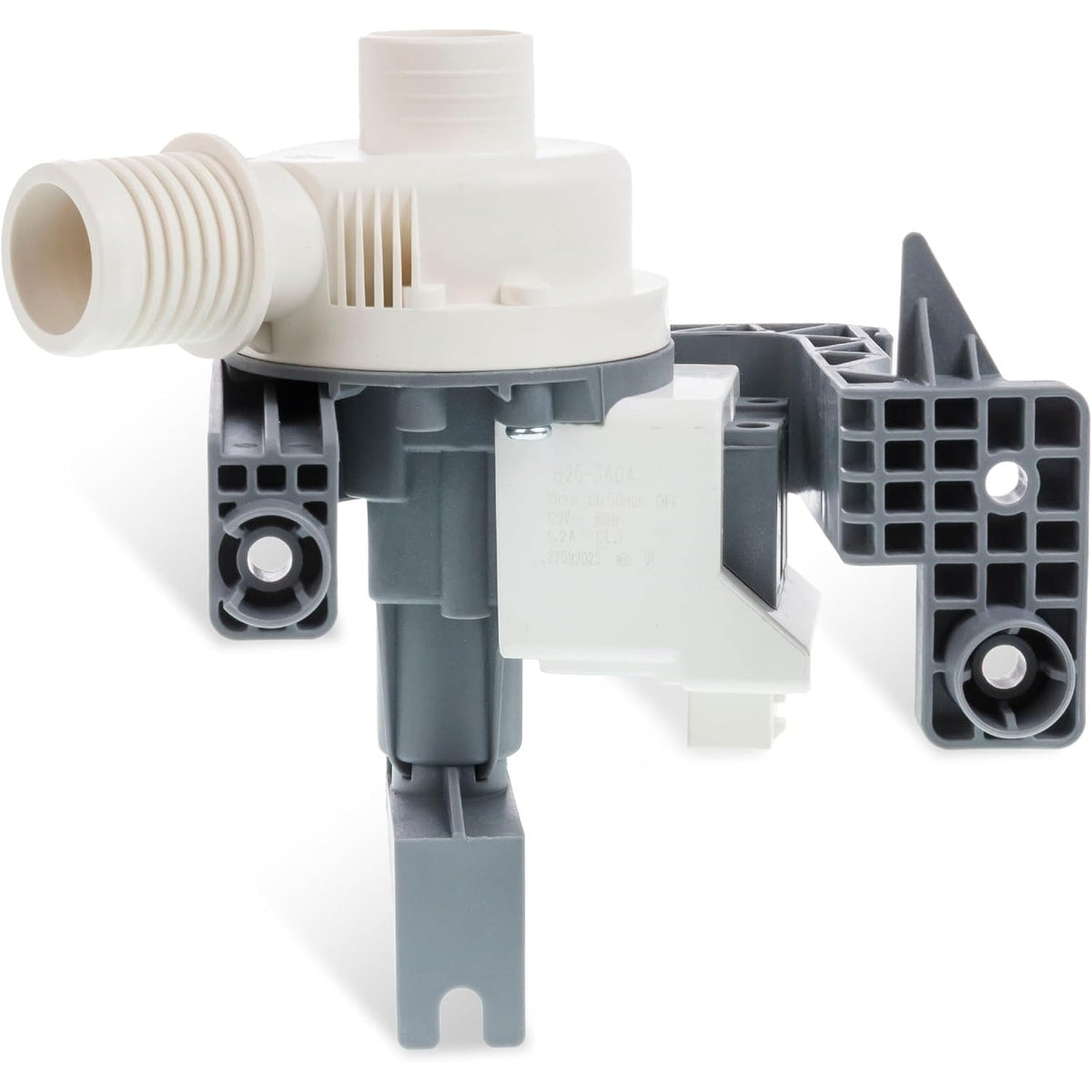

W11396717 replacement washer drain pump with mounting bracket for Whirlpool, Kenmore, and Maytag washing machines.

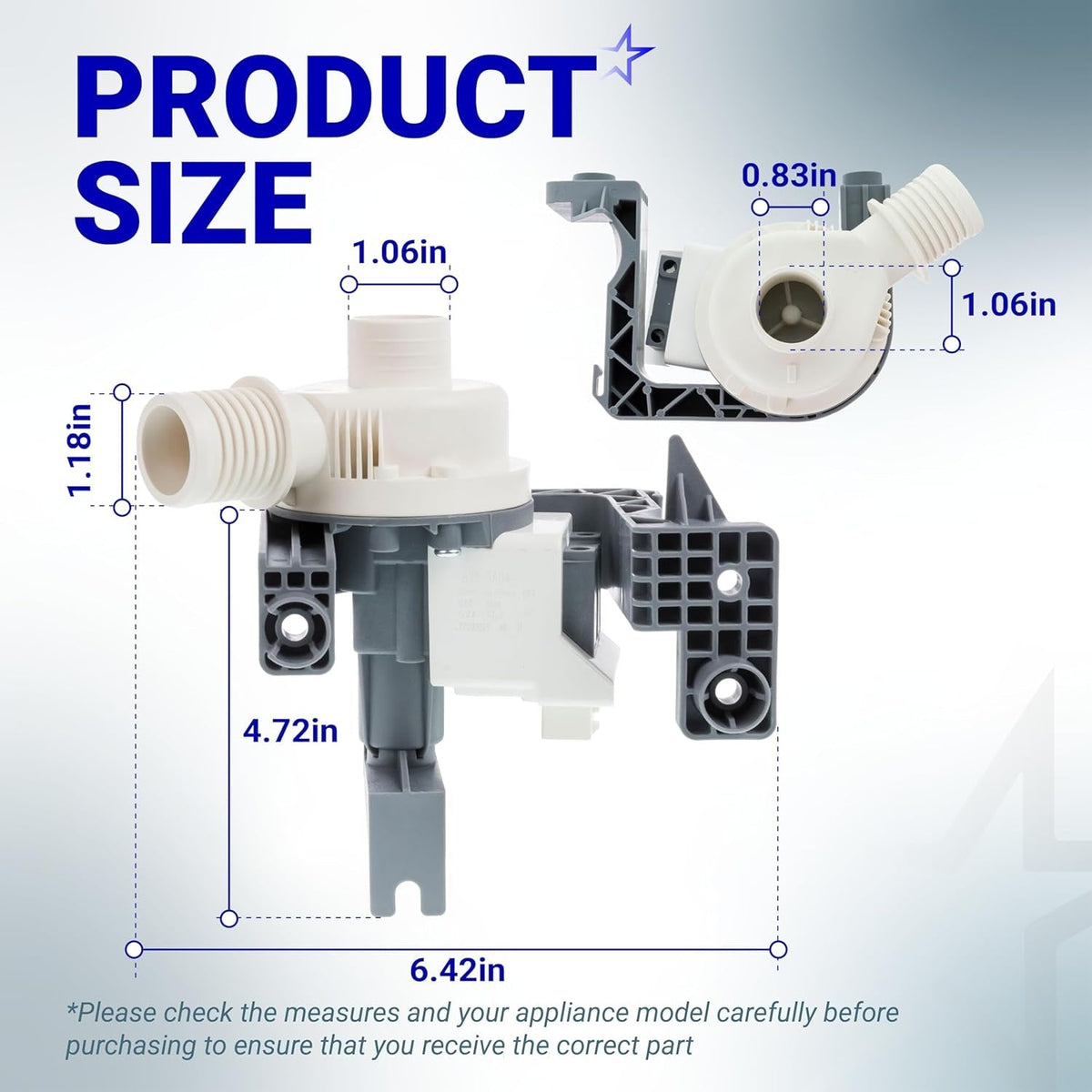

W11396717 washer drain pump dimensions diagram showing multiple angles and measurements for Whirlpool washing machines.

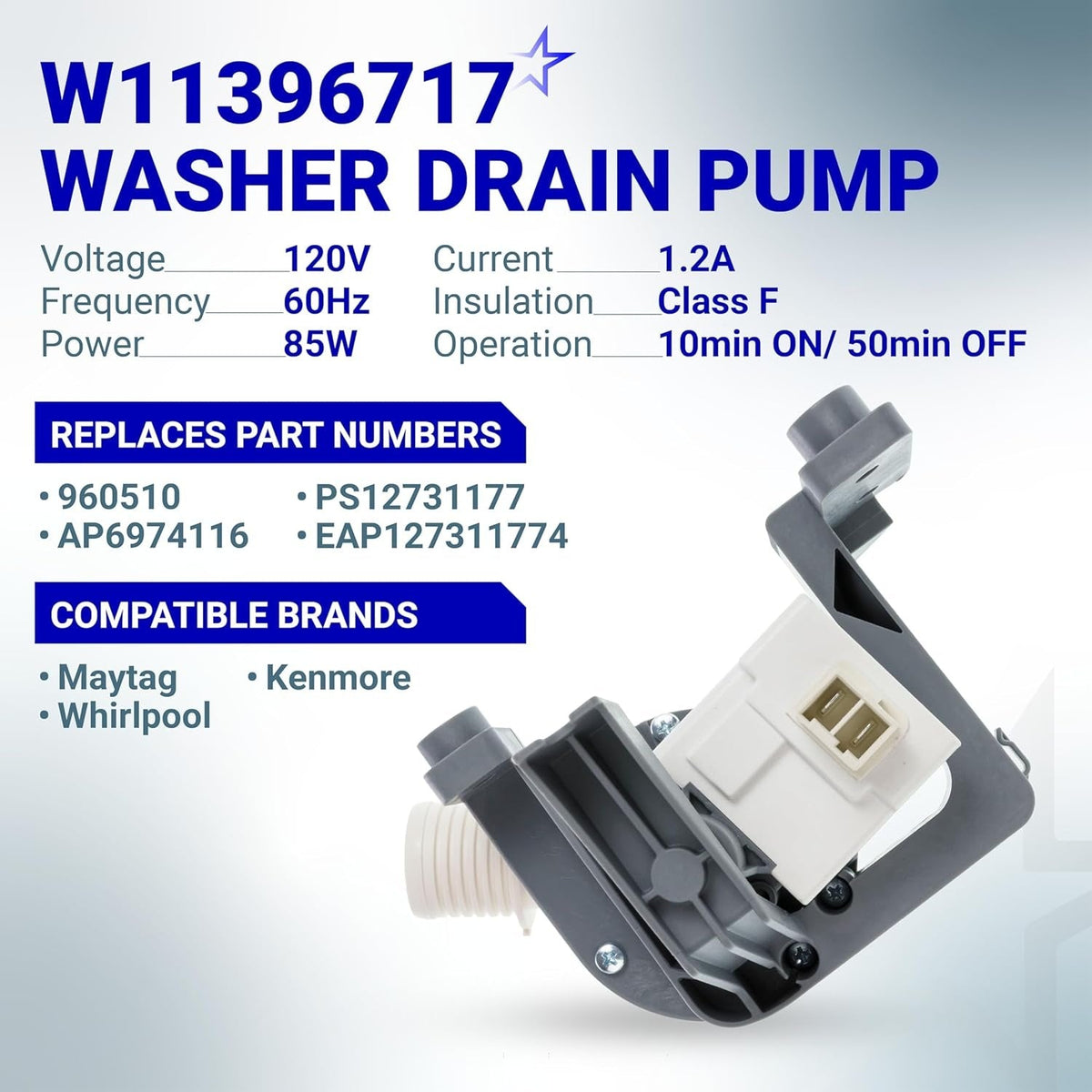

W11396717 washer drain pump for Whirlpool, Kenmore, and Maytag washing machines with technical specifications.

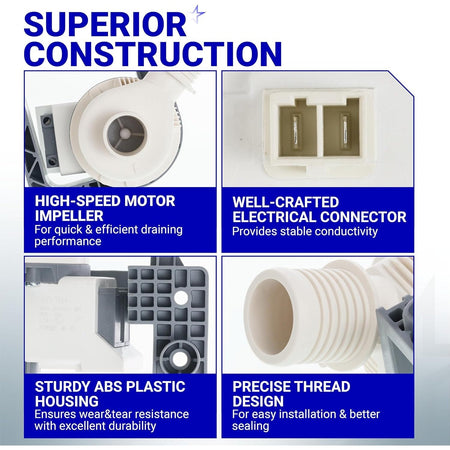

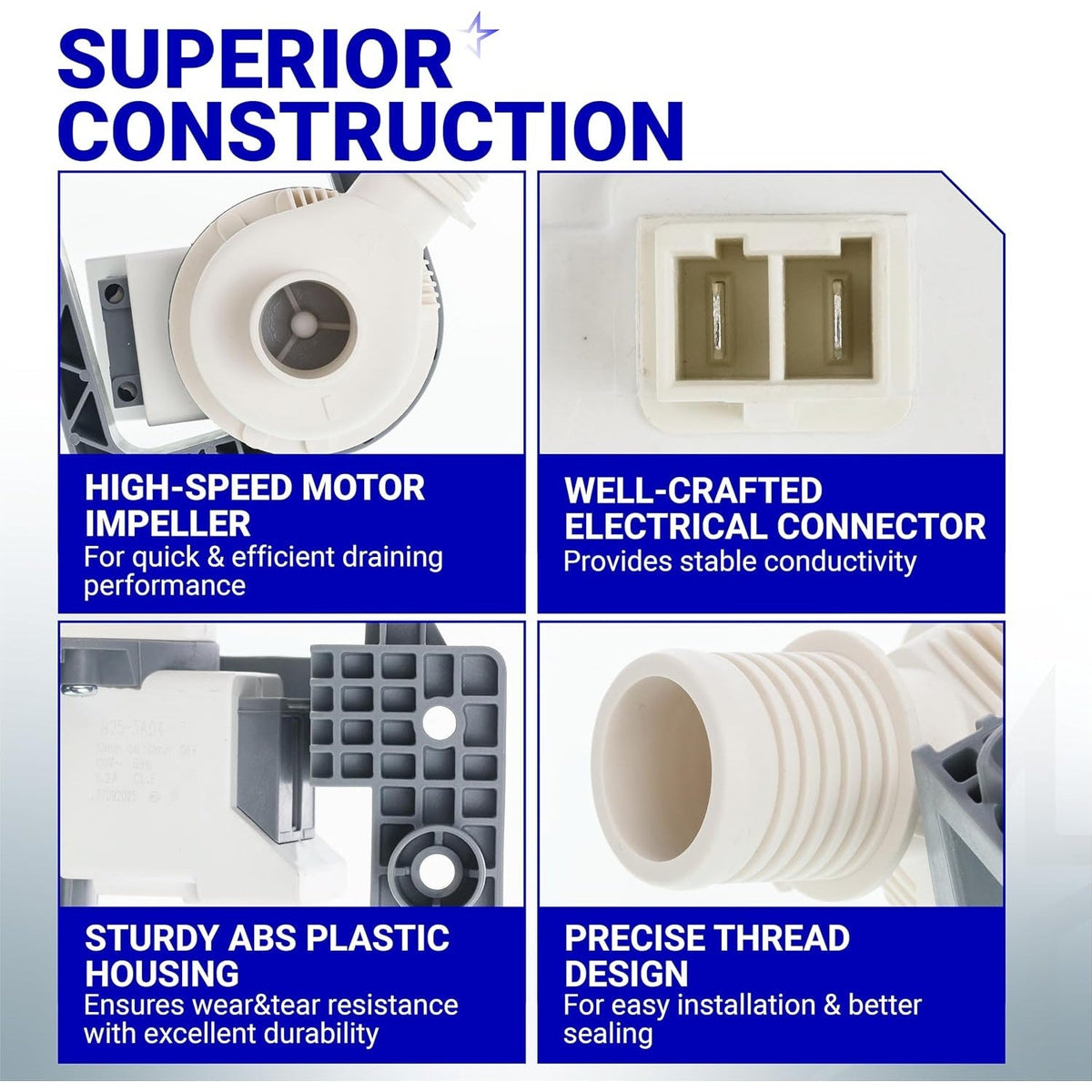

Infographic showing W11396717 washer drain pump construction details including motor, connector, housing, and thread design.

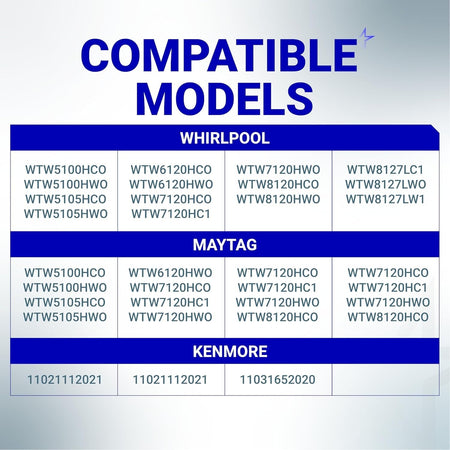

Chart showing compatible washing machine models for W11396717 drain pump replacement.

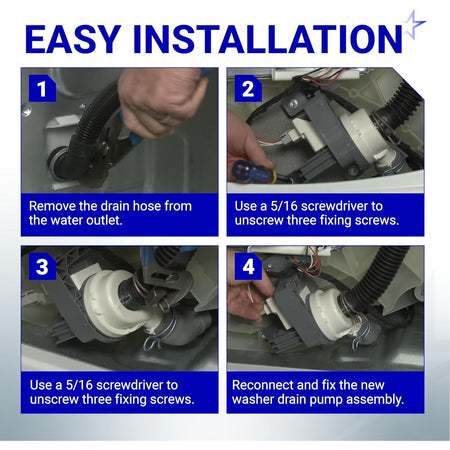

Four-step installation guide for W11396717 washing machine drain pump showing hose removal and screw replacement.
W11396717 washer drain pump replacement shown with a technician repairing a washing machine.
W11396717 washer drain pump replacement for Whirlpool, Kenmore, and Maytag washing machines.
W11396717 replacement washer drain pump with mounting bracket for Whirlpool, Kenmore, and Maytag washing machines.
W11396717 washer drain pump dimensions diagram showing multiple angles and measurements for Whirlpool washing machines.
W11396717 washer drain pump for Whirlpool, Kenmore, and Maytag washing machines with technical specifications.
Infographic showing W11396717 washer drain pump construction details including motor, connector, housing, and thread design.
Chart showing compatible washing machine models for W11396717 drain pump replacement.
Four-step installation guide for W11396717 washing machine drain pump showing hose removal and screw replacement.
W11396717 washer drain pump replacement shown with a technician repairing a washing machine.
W11396717 washer drain pump replacement for Whirlpool, Kenmore, and Maytag washing machines.

W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine

0.00
$46.79
Save 16% $55.68
$46.79
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

W11396717 Washer Drain Pump

Key Features

  • Direct replacement for specified models.
  • Removes water from the washer tub during the drain cycle.
  • Voltage: 120V
  • Current: 1.2A
  • Duty Cycle: 10 minutes on, 50 minutes off

Replaces / Cross-Reference Part Numbers

  • AP6974116
  • PS12731177
  • W11263349
  • EAP12731177
  • PD00065247
  • AWP44690
  • 4960510

Compatibility & Fitment

  • Fits select top-load washing machine models from brands including Whirlpool, Kenmore, and Maytag.
  • Compatible with models such as Whirlpool WTW7120HW0.
  • Verify fitment with your appliance's model number before ordering.

When to Replace

  • Washer fails to drain or drains slowly.
  • Water remains in the tub after the wash cycle completes.
  • Loud humming or grinding noises occur during the drain cycle.
  • Water leaks from the pump area.
  • Drainage-related error codes are displayed.

Installation Tips

  • Disconnect the washer from power and water supplies before beginning installation.
  • Place towels under the pump and hoses to catch residual water.
  • Ensure all hose clamps are tightened securely to prevent leaks.
  • Manually check that the new pump's impeller spins freely before reassembly.
W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 1
W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 2
W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 3
W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 4
  • W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 1

    REPLACE PART NUMBERS

    4960510, AP6974116, PS12731177, EAP12731177
  • W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 2

    FIXES WASHER'S SYMPTOMS

    Damage Drainage Pump | Water Leakage | Unable to Fill Water | Failure to Drain Water | Loud Noise
  • W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 3

    SAVING SOLUTION

    Enjoy the great feeling when your washer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • W11396717 Washer Drain Pump for Whirlpool Kenmore Maytag Washing Machine 4

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This drain pump fits select top-load washing machines from Whirlpool, Kenmore, Maytag, and Crosley. Please confirm compatibility by matching your washer's specific model number and the original pump part number before ordering.
This pump replaces part numbers W11396717, W11263349, B25-3A04, 4960510, AP6974116, PS12731177, EAP12731177, and PD00065247.
Typical symptoms include the washer not draining or draining very slowly, standing water left in the tub after a cycle, unusual grinding or buzzing during the drain cycle, water leakage around the pump area, or a drain-related fault condition. A damaged or seized pump impeller can also cause loud noise with little or no water movement.
Yes, this pump is used on Whirlpool-family top-load washers, including the WTW5100 series such as the WTW5100HW0. It is also compatible with models like WTW5105HC0, WTW5105HW0, and WTW6120HC0. Because model suffixes are important, please verify the full model number found on your washer's identification tag.
For an experienced DIYer, this is a moderate repair. Common tools required include a nut driver or socket set, pliers for hose clamps, towels, and a shallow pan or bucket to catch remaining water. On many top-load washers, access involves disconnecting power, shutting off water, moving the unit, opening the cabinet or rear/bottom access area, removing the hose clamps and electrical connector, and swapping the pump. Plan for 30 to 90 minutes depending on your specific washer design.
Before replacing the pump, check for a clogged drain hose, a blocked standpipe, debris trapped in the pump inlet or impeller area, or wiring and connector damage at the pump. Small items like coins, fabric, lint buildup, or hair pins can jam the impeller and mimic pump failure. If the pump hums but will not move water, or leaks from the pump body, replacement is typically necessary.
Drain pumps often fail due to impeller jams, normal motor wear, running while partially blocked, or damage from foreign objects left in pockets. Repeated heavy lint loads and restricted drain hoses can also overwork the pump. If the old pump failed mechanically, inspect the tub-to-pump hose and outlet hose to ensure the new pump is not damaged by the same blockage.
