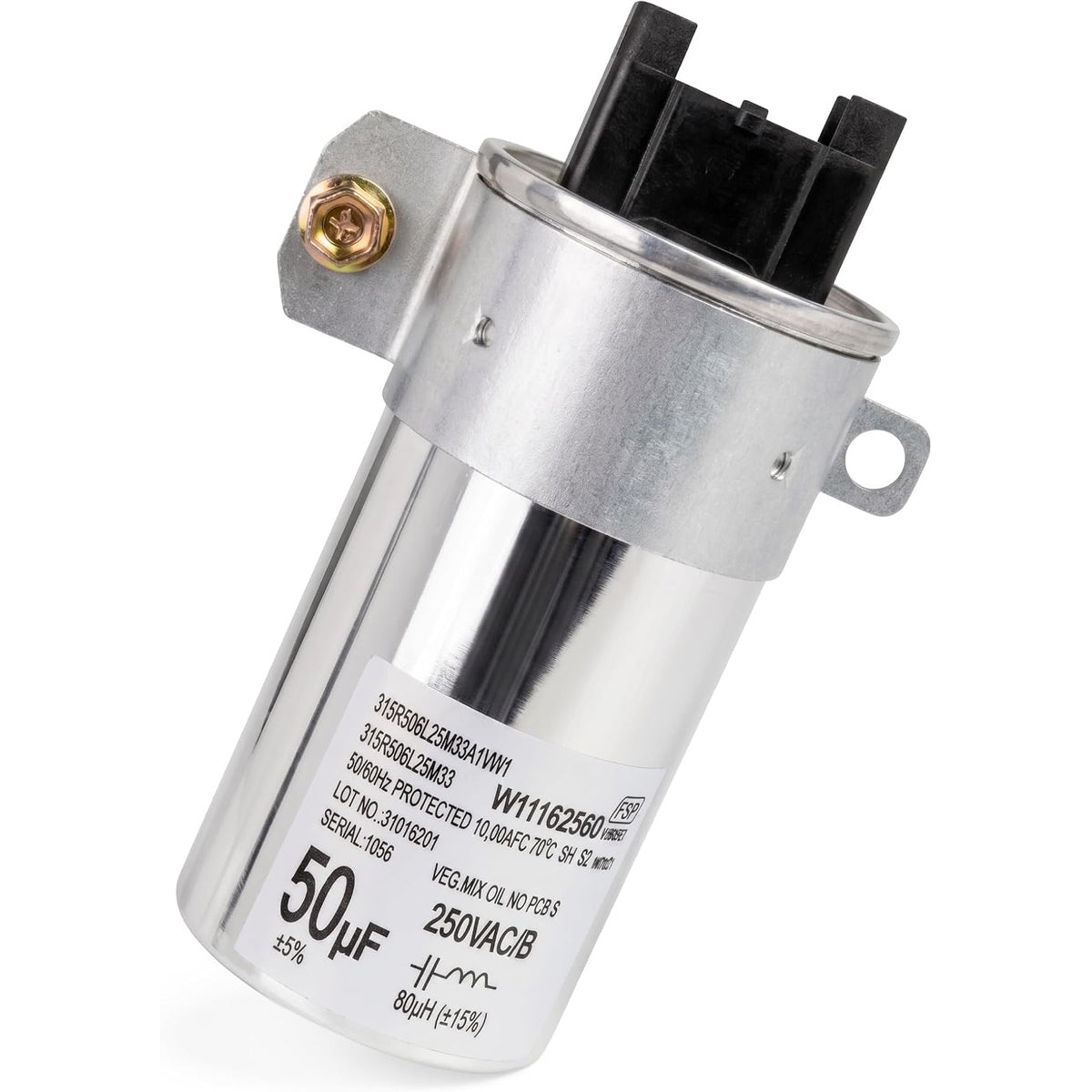

W11395618 Washing Machine Run Capacitor, angled product view showing metal canister, terminals, mounting bracket, and label

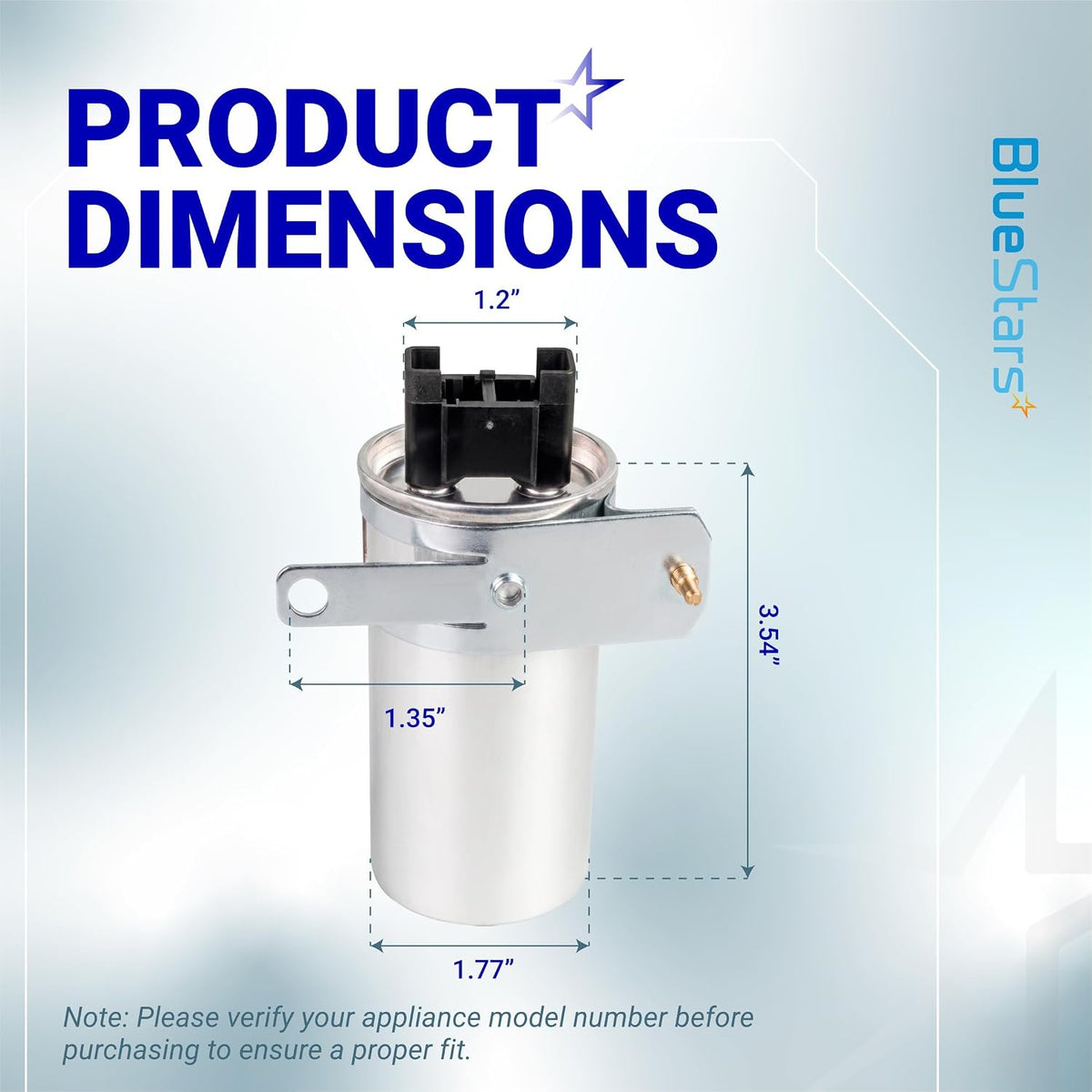

W11395618 washing machine run capacitor dimensions diagram showing 1.2, 1.35, 3.54, and 1.77 inch measurements
W11395618 Washing Machine Run Capacitor graphic showing a washer, capacitor, and W11162327 door lid lock switch text
W11395618 washing machine run capacitor product specifications showing 50 µF, 250 VAC, and 50/60 Hz
W11395618 Washing Machine Run Capacitor shown beside a washer in a graphic listing common washer problems.

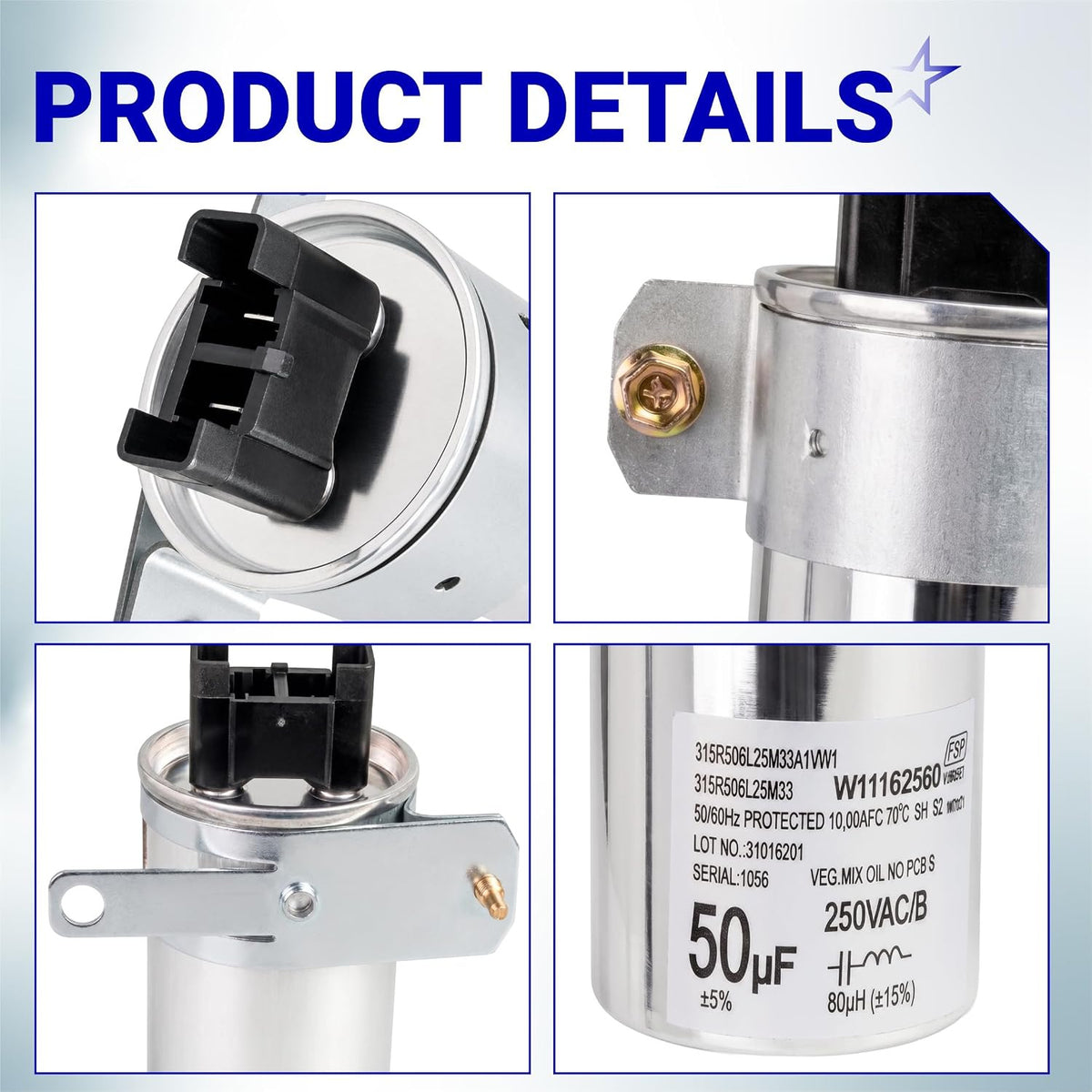

W11395618 Washing Machine Run Capacitor product details showing connector, mounting bracket, and 50µF 250VAC label

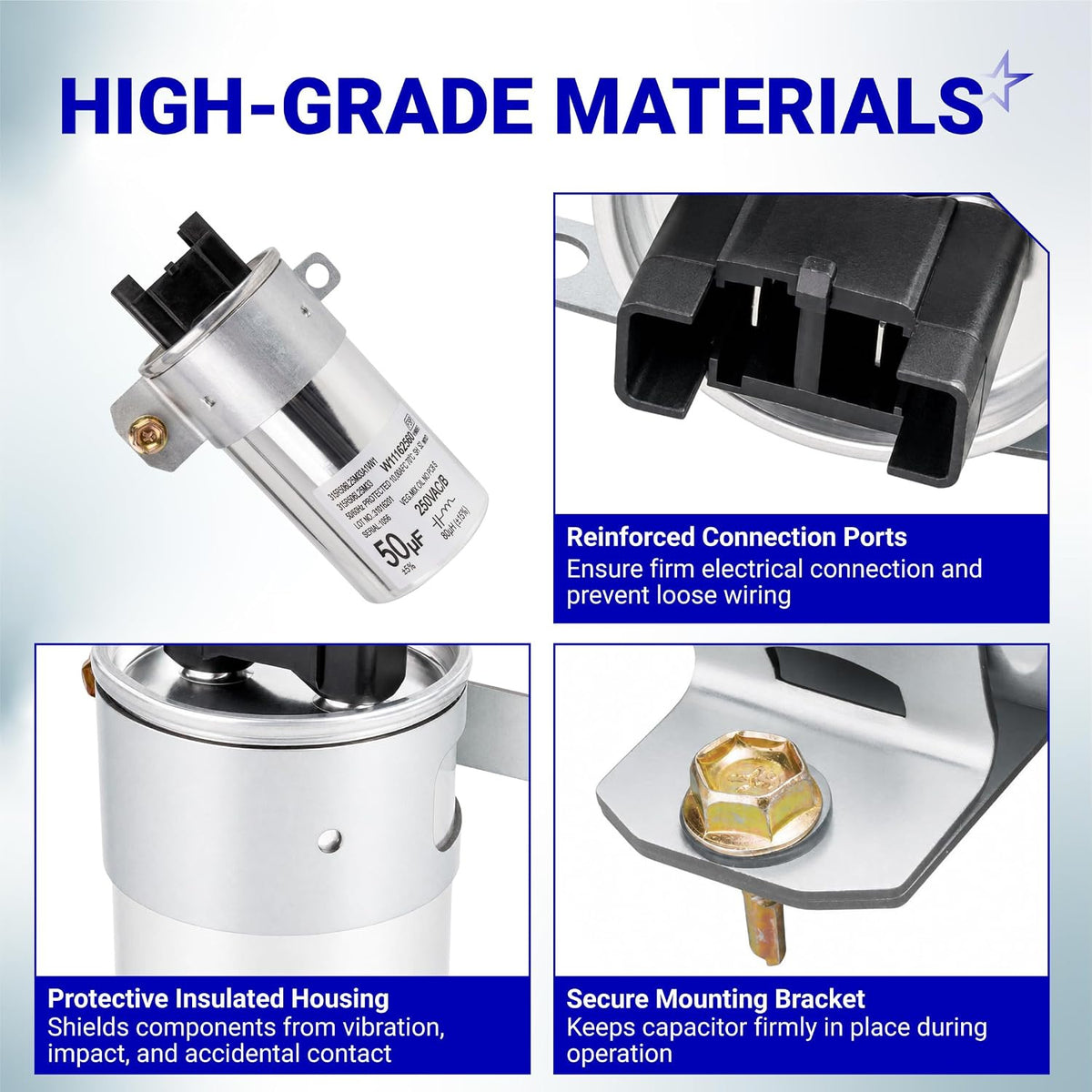

W11395618 Washing Machine Run Capacitor shown with reinforced connection ports, insulated housing, and mounting bracket

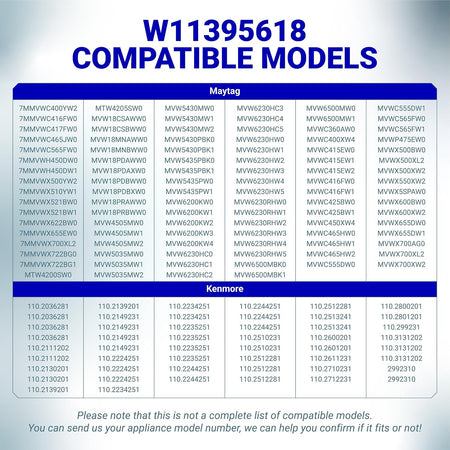

W11395618 Washing Machine Run Capacitor compatibility chart listing Maytag and Kenmore models
W11395618 Washing Machine Run Capacitor compatibility chart for Maytag, Inglis, Crosley, and Amana models

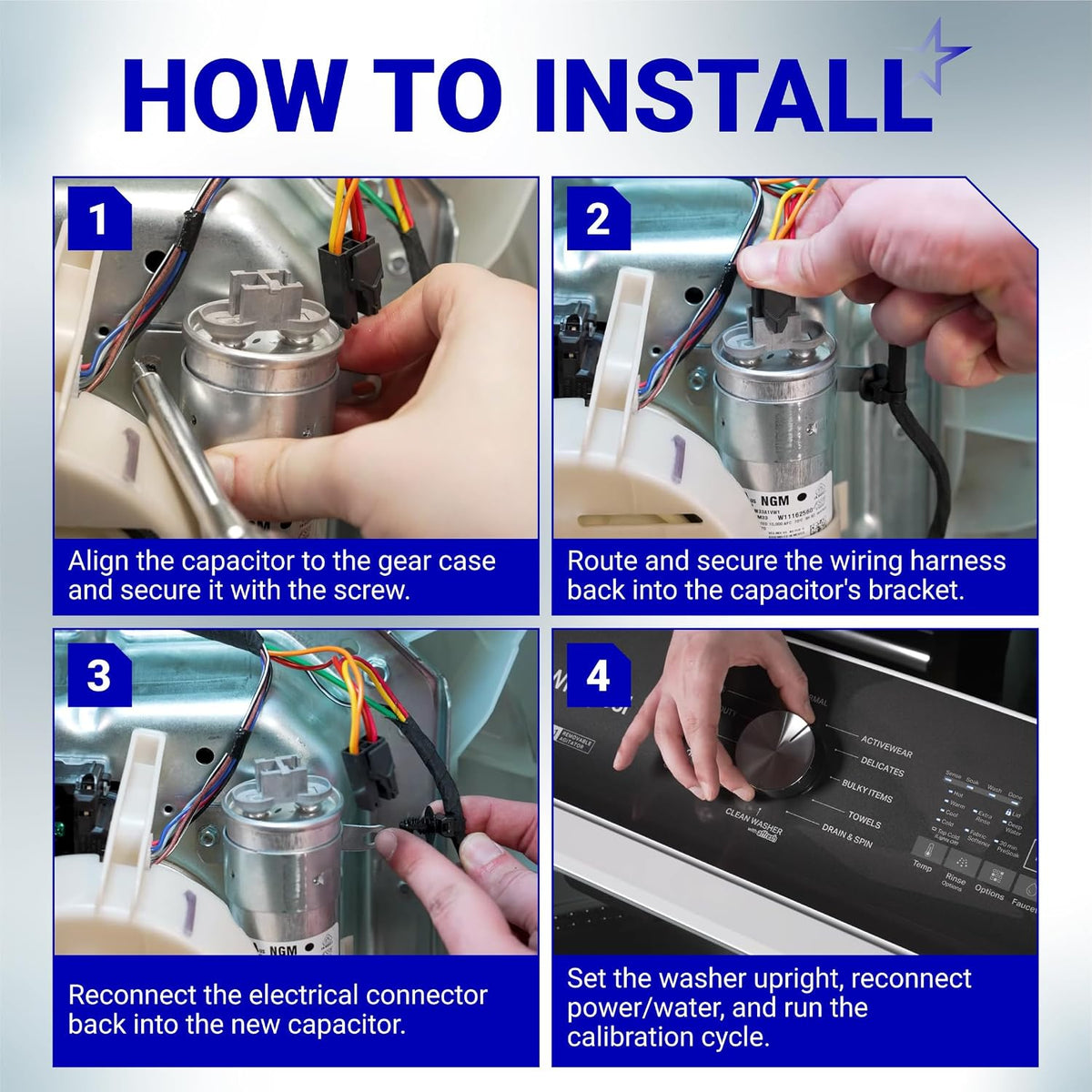

W11395618 Washing Machine Run Capacitor installation guide showing four steps for mounting, wiring, and washer calibration
W11395618 washing machine run capacitor, product graphic showing the cylindrical capacitor and black connector
W11395618 Washing Machine Run Capacitor, angled product view showing metal canister, terminals, mounting bracket, and label
W11395618 washing machine run capacitor dimensions diagram showing 1.2, 1.35, 3.54, and 1.77 inch measurements
W11395618 Washing Machine Run Capacitor graphic showing a washer, capacitor, and W11162327 door lid lock switch text
W11395618 washing machine run capacitor product specifications showing 50 µF, 250 VAC, and 50/60 Hz
W11395618 Washing Machine Run Capacitor shown beside a washer in a graphic listing common washer problems.
W11395618 Washing Machine Run Capacitor product details showing connector, mounting bracket, and 50µF 250VAC label
W11395618 Washing Machine Run Capacitor shown with reinforced connection ports, insulated housing, and mounting bracket
W11395618 Washing Machine Run Capacitor compatibility chart listing Maytag and Kenmore models
W11395618 Washing Machine Run Capacitor compatibility chart for Maytag, Inglis, Crosley, and Amana models
W11395618 Washing Machine Run Capacitor installation guide showing four steps for mounting, wiring, and washer calibration
W11395618 washing machine run capacitor, product graphic showing the cylindrical capacitor and black connector

[NEW] BlueStars W11395618 W11162560 W10625046 Washing Machine Run Capacitor

0.00
$20.52
Save 10% $22.79
$20.52
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

[NEW] BlueStars W11395618 W11162560 W10625046 Washing Machine Run Capacitor

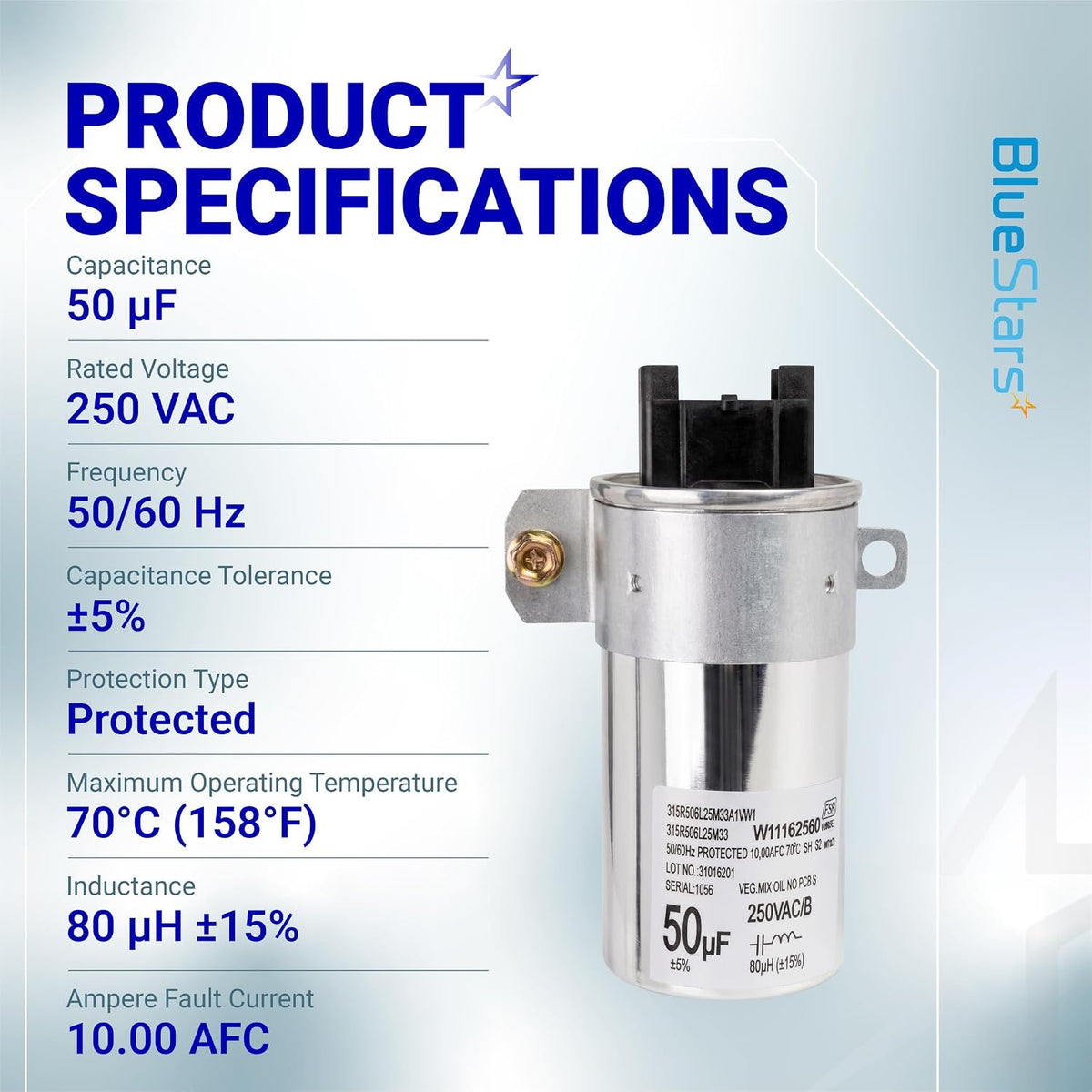

Key Features

  • One washing machine motor run capacitor is included.
  • Capacitance: 50 µF with ±5% capacitance tolerance.
  • Rated operating voltage: 250 VAC; frequency: 50/60 Hz.
  • Inductance: 80 µH ±15%.
  • Maximum operating temperature: 70°C (158°F).
  • Protected design with a 10,000 AFC ampere fault current rating.
  • Pure copper coil supports electrical energy transmission. Heat- and corrosion-resistant connection ports provide a secure electrical connection, while the insulated housing helps protect internal components from vibration and impact.
  • A reinforced mounting bracket helps keep the capacitor positioned during washer operation.

Replaces / Cross-Reference Part Numbers

  • W11395618
  • W11162560
  • W10625046
  • W10866250
  • WPW10625046
  • W10843769
  • W11158831
  • W10390446
  • W11315694

Compatibility & Fitment

This run capacitor fits compatible Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, JennAir, KitchenAid, Admiral, Magic Chef, Norge, Roper, and Sears washing machines. Confirm the existing capacitor specifications and washer model before ordering.

  • Whirlpool models include WTW5057LW0, WTW5010LW0, WTW5105HW2, WTW5100HW1, WTW6120HW0, WTW5100HC2, WTW5015LW0, WTW4850HW1, WTW5105HW1, WTW4950XW3, WTW5000DW1, WTW6120HW1, and WTW5100HW2.

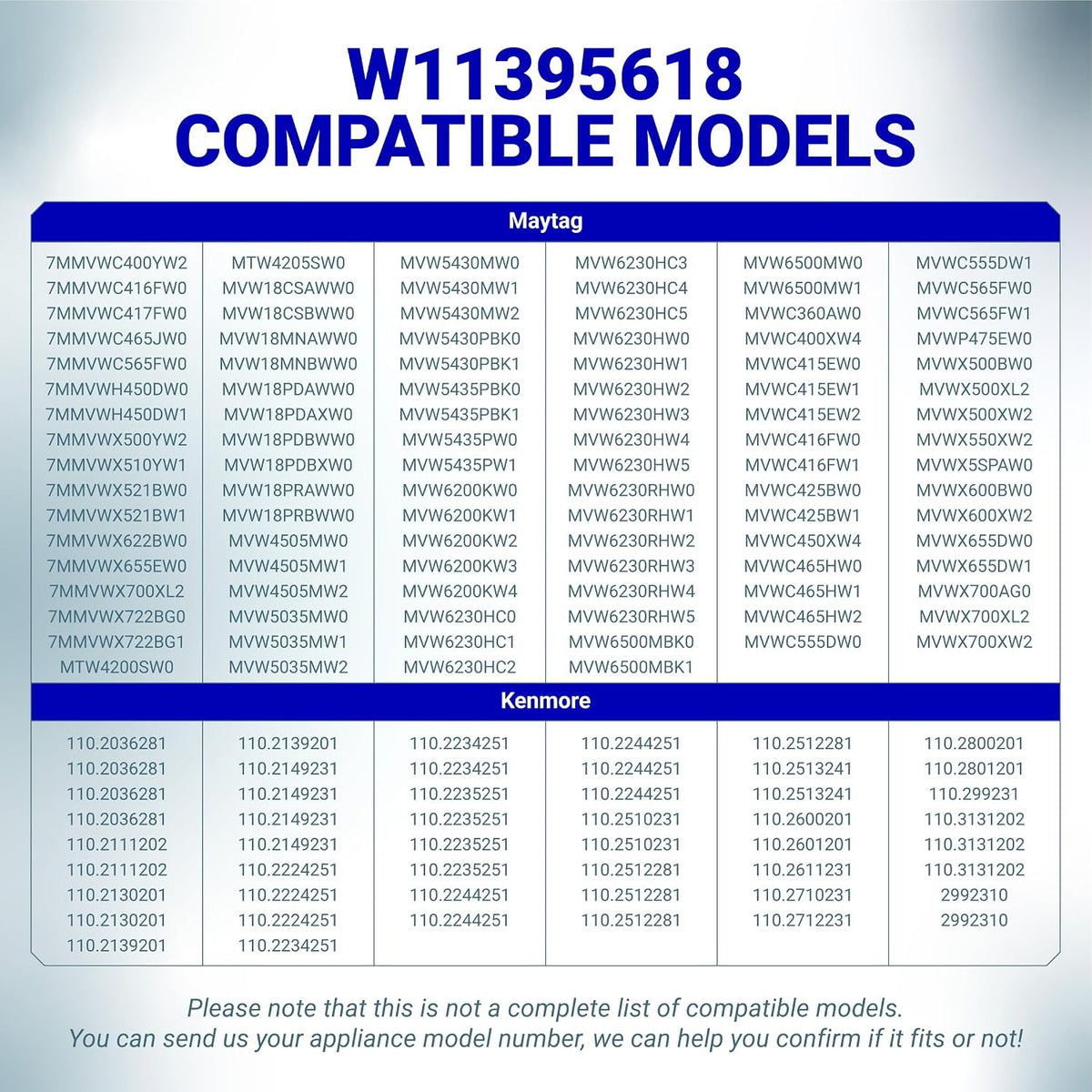

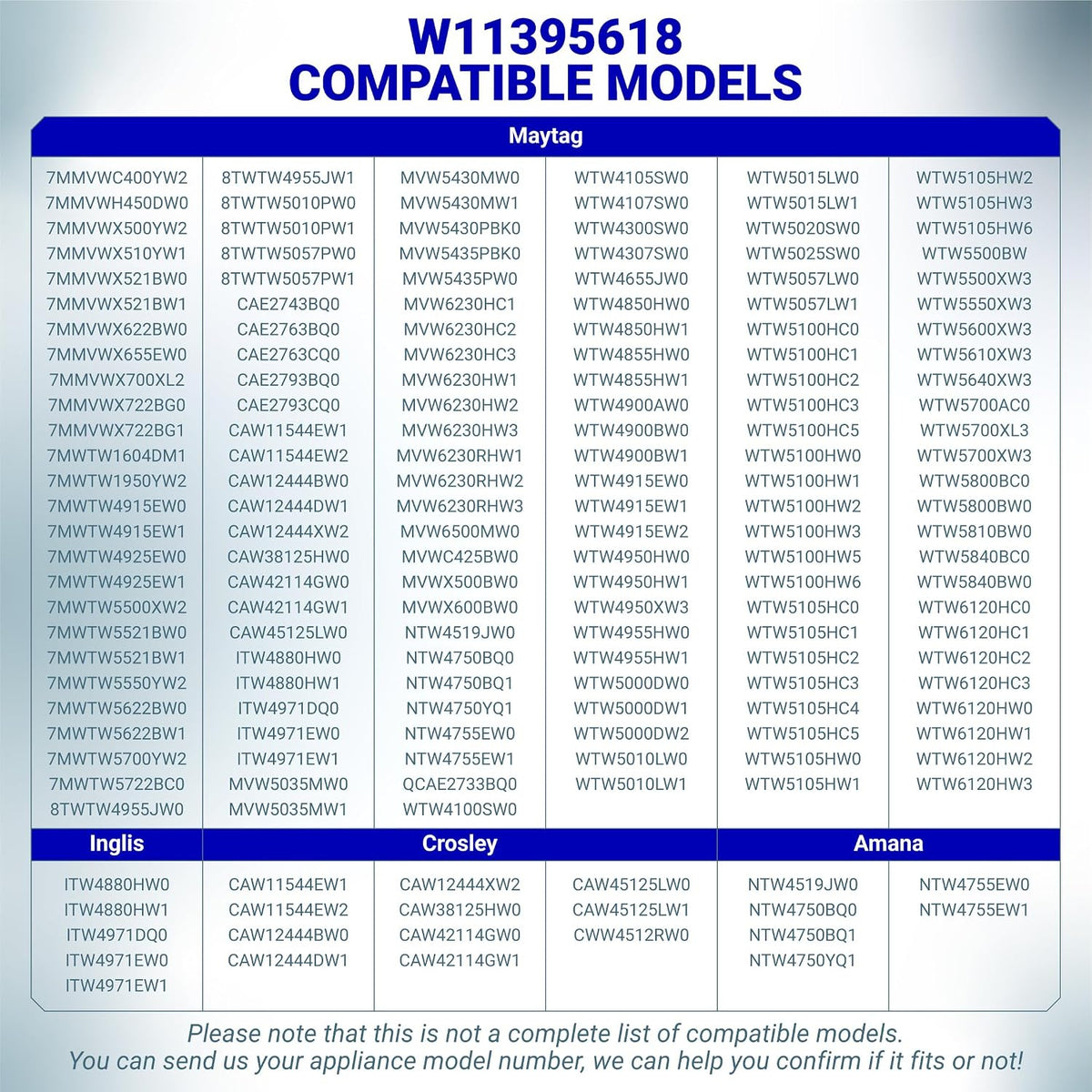

  • Maytag models include MVW5430MW0, MVW4505MW2, MVWX655DW1, MVW4505MW1, MVW6230HW3, MVW6200KW2, MVWC465HW2, 7MMVWC400YW2, 7MMVWC416FW0, 7MMVWC417FW0, 7MMVWC465JW0, 7MMVWC565FW0, 7MMVWH450DW0, 7MMVWH450DW1, 7MMVWX500YW2, 7MMVWX510YW1, 7MMVWX521BW0, 7MMVWX521BW1, and 7MMVWX622BW0.

When to Replace

A weak or failed run capacitor can cause the washer to hum without starting, fill without agitating, fail to spin, or start the motor slowly or intermittently. Replacing the capacitor can restore motor starting and stable operation during wash and spin cycles when the capacitor is the cause of the symptom.

Installation Tips

  • Disconnect the washer from electrical power before servicing.
  • Check the old capacitor's capacitance, voltage rating, terminal arrangement, and mounting position against this part before installation.
  • Transfer the wires to the matching terminals and secure the capacitor in its mounting position.
  • Use the washer model and the specifications of the removed part to confirm fitment before purchase or installation.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This 50 µF, 250-volt run capacitor is designed for compatible Whirlpool, Maytag, and Kenmore washing machines. Confirm the original capacitor’s rating and part number before ordering, since washer compatibility can vary by model.
This capacitor is identified by W11395618 and W11162560, and replaces or cross-references W10625046, W10866250, W10390446, WPW10625046, W10843769, and W11315694.
A failing capacitor can cause the washer motor to hum without starting, start intermittently, struggle to reach speed, stop under load, or trip the circuit breaker. A visibly swollen, cracked, leaking, or burnt capacitor should also be replaced.
The capacitor is rated at 50 microfarads, 250 volts, with an upper temperature rating of 70 °C. Match both the capacitance and voltage rating to the washer’s original component before installation.
Installation is generally a moderate appliance repair requiring basic hand tools, typically taking about 30–60 minutes depending on washer access. Unplug the washer before servicing, and treat the old capacitor as electrically charged until it has been safely discharged. Inspect the terminals, wiring, motor connector, and mounting bracket for heat damage or corrosion before installing the replacement.
