[Lifetime Warranty] W11096268 W11220230 Washer Water Inlet Valve - Compatible with Whirlpool Kenmore Washers - Replaces W10632527 W10758829 W10853296 W11096268 AP6329544 (120V 60Hz)

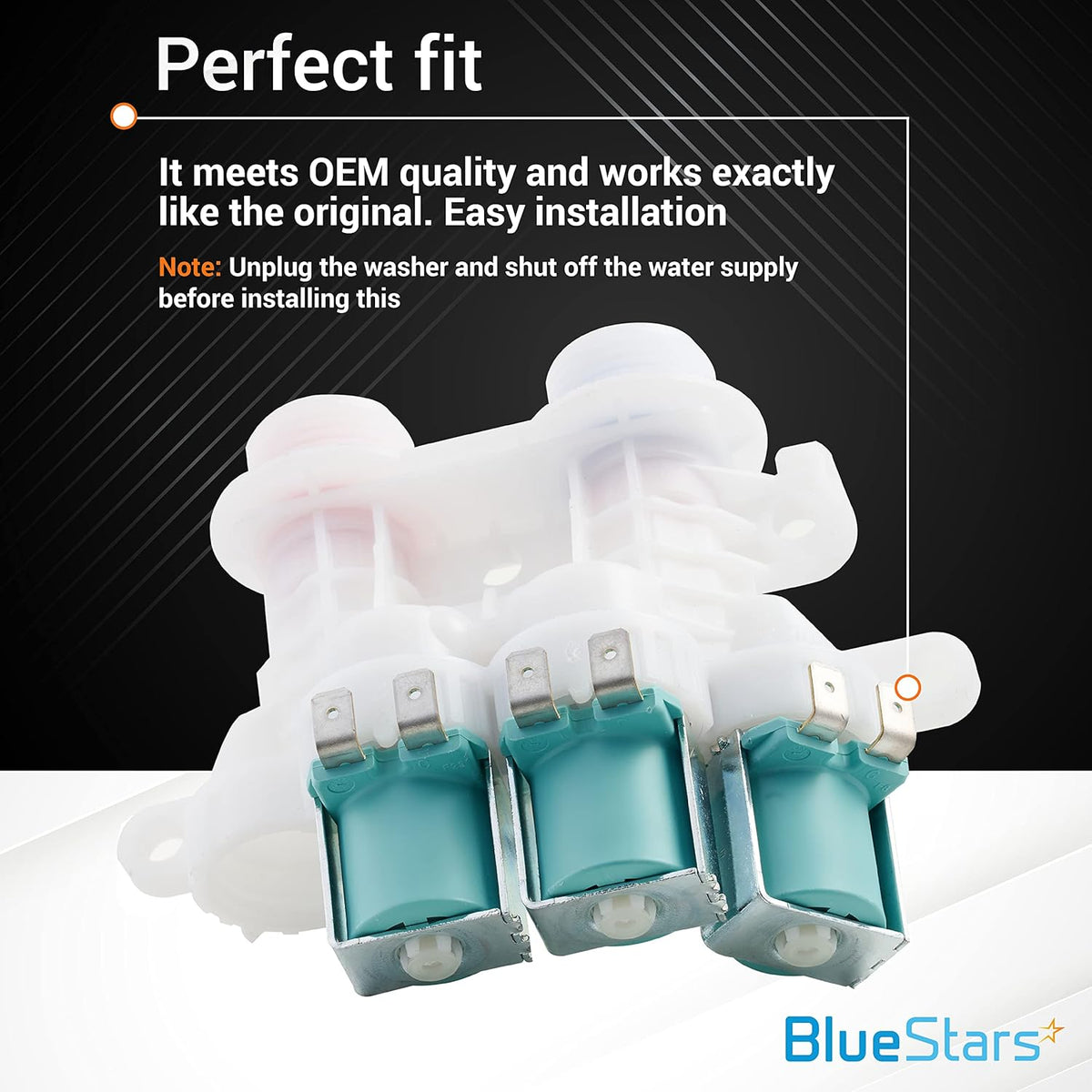

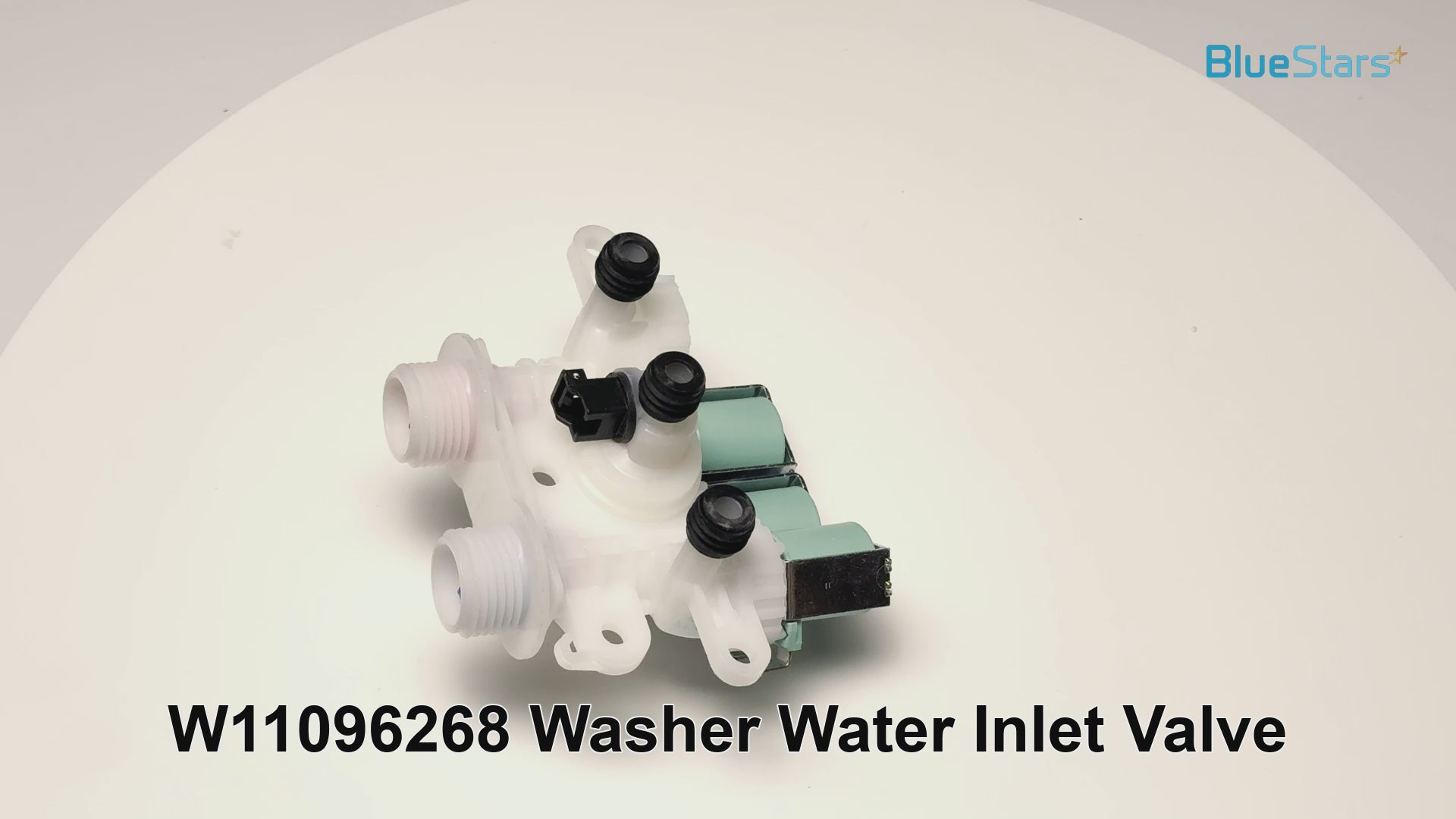

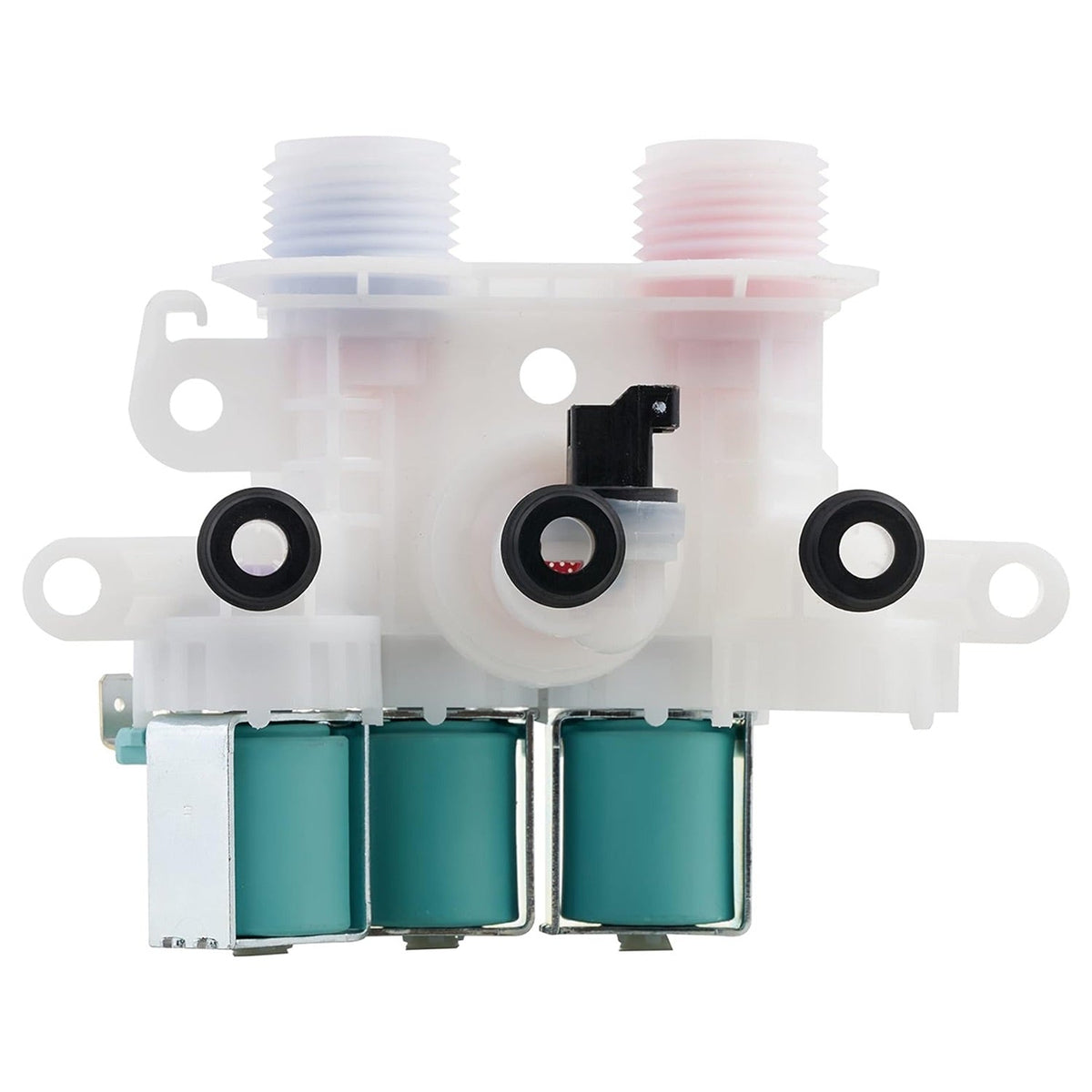

Washer water inlet valve replacement for Whirlpool and Kenmore washing machines with three teal solenoid coils.
W11096268 washer water inlet valve for Whirlpool and Kenmore washing machines shown on an informational product graphic.

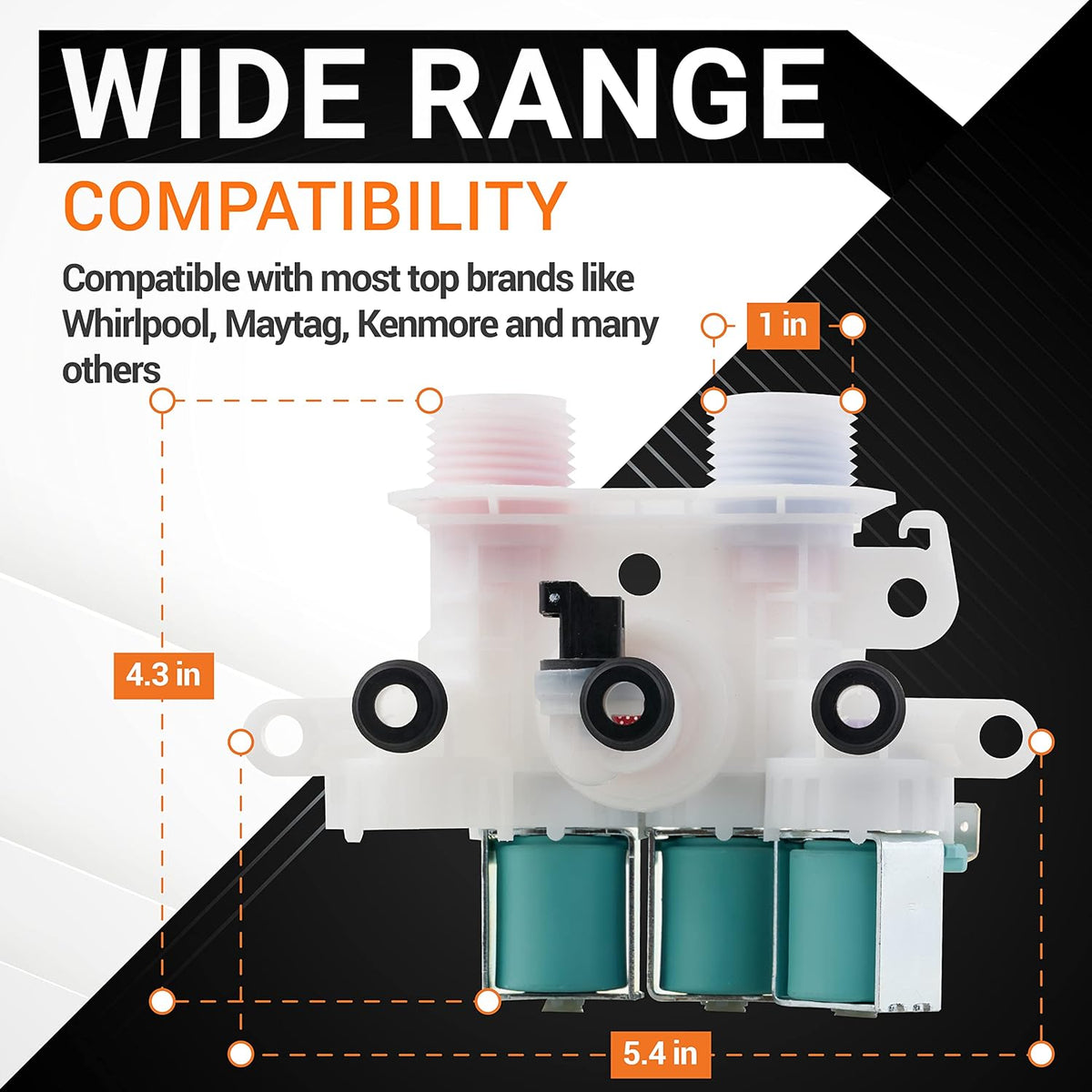

Dimensional diagram of W11096268 washer water inlet valve showing 120V 60Hz specifications and component measurements.
W11096268 washer water inlet valve shown with a top-load washing machine and temperature control description.

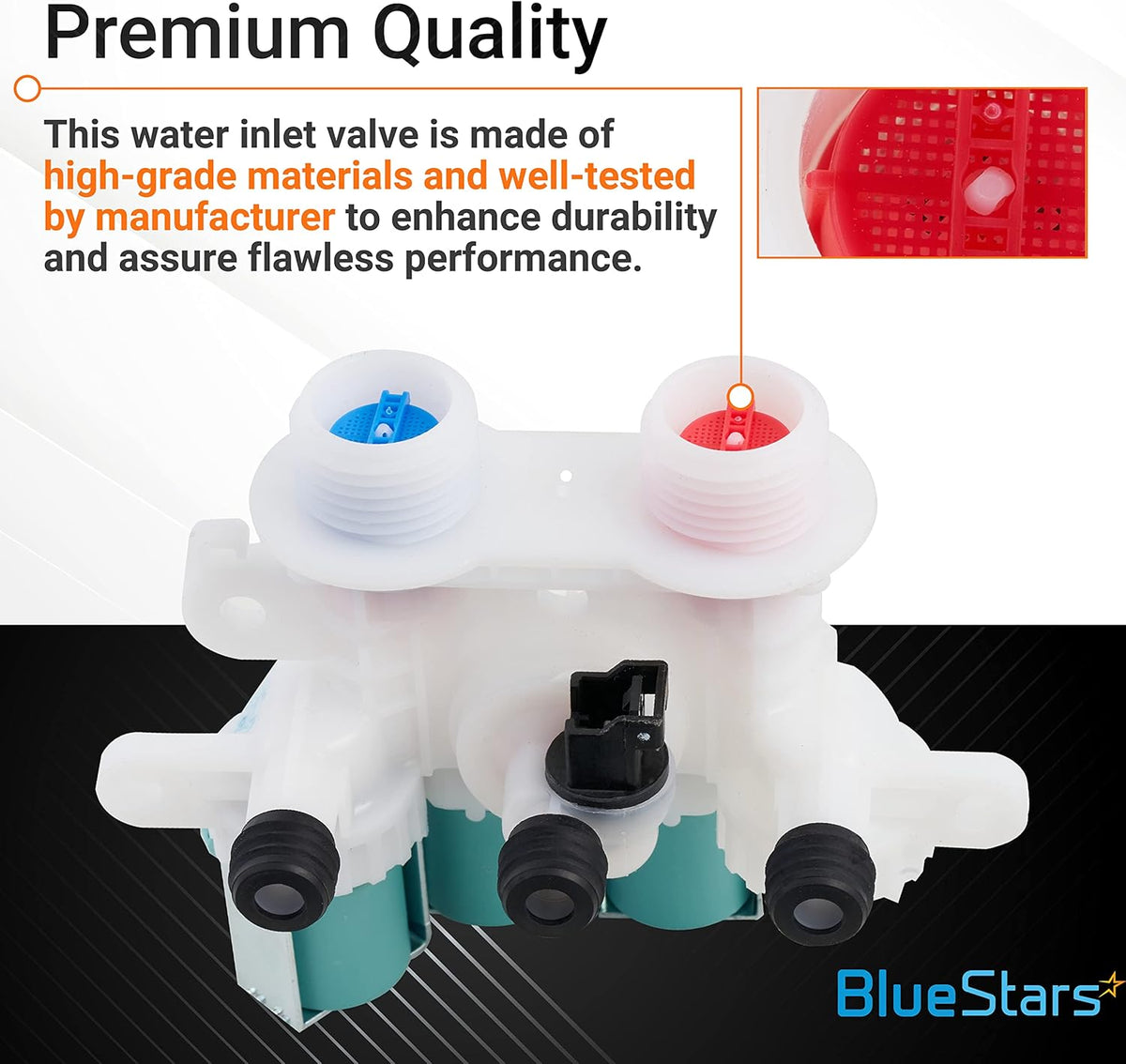

W11096268 washer water inlet valve detail collage showing threaded ports, red and blue inserts, and mounting bracket.

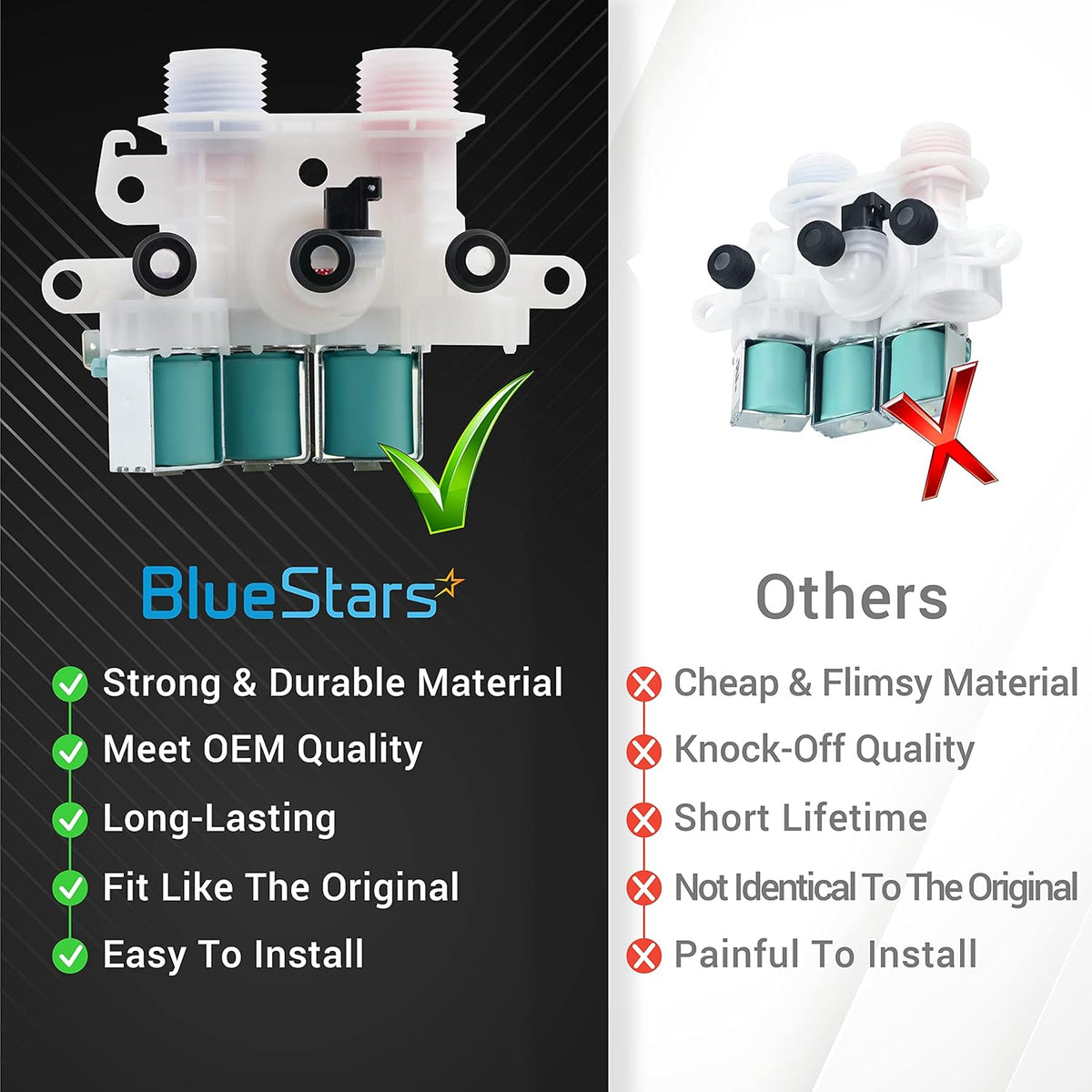

Infographic showing brass, plastic, and rubber materials of the W11096268 washer water inlet valve.
Infographic showing W11096268 washer water inlet valve and common symptoms for Whirlpool and Kenmore washing machines.
Four-step installation guide for Whirlpool and Kenmore washer water inlet valve replacement.
Compatibility chart listing Samsung washer model numbers for W11096268 water inlet valve replacement.
Washer water inlet valve replacement for Whirlpool and Kenmore washing machines with three teal solenoid coils.
W11096268 washer water inlet valve for Whirlpool and Kenmore washing machines shown on an informational product graphic.
Dimensional diagram of W11096268 washer water inlet valve showing 120V 60Hz specifications and component measurements.
W11096268 washer water inlet valve shown with a top-load washing machine and temperature control description.
W11096268 washer water inlet valve detail collage showing threaded ports, red and blue inserts, and mounting bracket.
Infographic showing brass, plastic, and rubber materials of the W11096268 washer water inlet valve.
Infographic showing W11096268 washer water inlet valve and common symptoms for Whirlpool and Kenmore washing machines.
Four-step installation guide for Whirlpool and Kenmore washer water inlet valve replacement.
Compatibility chart listing Samsung washer model numbers for W11096268 water inlet valve replacement.
Lifetime Warranty

[Lifetime Warranty] W11096268 W11220230 Washer Water Inlet Valve - Compatible with Whirlpool Kenmore Washers - Replaces W10632527 W10758829 W10853296 W11096268 AP6329544 (120V 60Hz)

Save 13%
0.00
$36.94
$42.48
$36.94
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

W11096268 / W11220230 Washer Water Inlet Valve

Key Features

  • Controls the flow of hot and cold water into the washing machine.
  • Features three solenoids for precise water temperature management.
  • Electrical Specification: 120V, 60Hz.
  • Approximate Dimensions: 4.28 in Height x 5.43 in Length.

Replaces / Cross-Reference Part Numbers

  • W11220230
  • AP6329544
  • PS12349461
  • W10632527
  • W10758829
  • W10853296
  • 4591408
  • EAP12349461
  • W11220230VP
  • W11096268VP

Compatibility & Fitment

  • Designed for select washing machine models from brands including Whirlpool, Maytag, and Kenmore.
  • Verify compatibility with your specific model number before ordering.

When to Replace

  • Washer does not fill with water, or fills slowly.
  • Water leaks from the valve body or hose connections.
  • Washer fills with the incorrect water temperature.
  • Washer continues to fill with water when powered off.
  • Loud humming or buzzing noise is present during the fill cycle.

Installation Tips

  • Disconnect the washer from both power and water supplies before beginning installation.
  • Place towels under the work area to catch any residual water from hoses.
  • Inspect and clean the filter screens in the water inlet hoses.
  • Ensure all hose connections are hand-tightened, then turned an additional quarter-turn with pliers to prevent leaks.
Product image
Product image
Product image
  • FIX WASHER'S SYMPTOMS:

    FIX WASHER'S SYMPTOMS:

    Error codes (E1, F8, FL, LF, LO) shown, Washer not filling properly, Inlet valve leaks, Incorrect water temperature
  • RELIABLE QUALITY

    RELIABLE QUALITY

    W11096268 Washer Water Inlet Valve is made of strong & durable materials that prevent cracking and failure during installation and use.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
4 SIMPLE STEPS

4 SIMPLE STEPS

1.Connect the harness to the pump motor; 2. Place this three ports into this three openings; 3. Present card to secure it with a couple of quarter inch screws; 4.Connect the wire
Brand Model Number
Replaces 4591408, AP6329544, EAP12349461, PS12349461, W10632527, W10758829, W10853296, W11220230
Crosley ZAW47115GW0
Kenmore 11020372710, 11020372711, 11026132410, 11026132411, 11026132412, 11026132413, 11026134610, 11027132410, 11027132411, 11027132412, 11027132413, 11028132410, 11028132411, 11028132412, 11028132413, 11028133410, 11028133411, 11028133412, 11028133413, 11029132411, 11029132412, 11029132413, 11029133410, 11029133411, 11029133412, 11029133413
Maytag 7MMVWB835EW0, 7MMVWB835EW1, 7MMVWB855EC0, 7MMVWB855EC1, 7MMVWB855EC2, 7MMVWB855EC3, 7MWTW8500EC0, 7MWTW8500EC1, 7MWTW8500EC2
Maytag MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6230HC0, MVW6230HC1, MVW6230RHW1, MVW7230HC0, MVW7230HW0, MVW7232HC0, MVW7232HW0, MVW8230HC0
Maytag MVWB755DW0, MVWB755DW1, MVWB757JW0, MVWB765FC1, MVWB765FC2, MVWB765FC3, MVWB765FC4, MVWB765FW0, MVWB765FW1, MVWB765FW2, MVWB765FW3, MVWB765FW4, MVWB766FW0, MVWB766FW1, MVWB766FW2
Maytag MVWB835DC0, MVWB835DC2, MVWB835DC3, MVWB835DC4, MVWB835DC5, MVWB835DW0, MVWB835DW1, MVWB835DW2, MVWB835DW3, MVWB835DW4, MVWB835DW5
Maytag MVWB855DC0, MVWB855DC1, MVWB855DC2, MVWB855DC3, MVWB855DC4, MVWB855DW0, MVWB855DW1, MVWB855DW2, MVWB855DW3, MVWB865GC0, MVWB865GC1, MVWB865GW0, MVWB865GW1
Whirlpool 7MWTW7000EW0, 7MWTW7000EW1, 7MWTW7300EW0, 7MWTW7300EW1, 7MWTW8500EC0, 7MWTW8500EC1, 7MWTW8500EC2
Whirlpool WTW5100HC0, WTW5100HC1, WTW5100HC2, WTW5100HW0, WTW5100HW1, WTW5100HW2, WTW5105HC0, WTW5105HC1, WTW5105HC2, WTW5105HW0, WTW5105HW1, WTW5105HW2, WTW6120HC0, WTW6120HC1, WTW6120HW0
Whirlpool WTW7000DW0, WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4, WTW7040DW0, WTW7040DW1, WTW7040DW2, WTW7120HC0, WTW7300DC0, WTW7300DW0, WTW7300DW1, WTW7300DW2
Whirlpool WTW7500GC0, WTW7500GC2, WTW7500GC3, WTW7500GW0, WTW7500GW2, WTW7500GW3
Whirlpool WTW8000DW0, WTW8000DW1, WTW8000DW2, WTW8000DW3, WTW8000DW4, WTW8000DW5, WTW8040DW0, WTW8040DW1, WTW8040DW2, WTW8040DW3, WTW8040DW4, WTW8127LC0, WTW8127LW0
Whirlpool WTW8500DC0, WTW8500DC1, WTW8500DC2, WTW8500DC3, WTW8500DC4, WTW8500DC5, WTW8500DC6, WTW8500DR0, WTW8500DR1, WTW8500DR2, WTW8500DR3, WTW8500DR4, WTW8500DR5, WTW8500DW0, WTW8500DW1, WTW8500DW2, WTW8500DW3, WTW8500DW4, WTW8500DW5, WTW8500DW6, WTW8700EC0, WTW8700EC1
Voltage
120V AC
Frequency
60Hz
Solenoid Coils
3
Inlet Ports
2 (Hot / Cold)
Port Diameter
1.06 inches
Port Colors
Red (Hot) + Blue (Cold)

FAQ

This valve is designed for use with Whirlpool, Kenmore, and Maytag washing machines. It is compatible with a wide range of models, including but not limited to WTW7300DC0, WTW7300DW2, WTW8127LW0, WTW8127LC0, WTW8000DW1, WTW7000DW4, WTW8040DW0, and various units requiring the listed OEM part numbers.
This unit serves as a direct replacement for OEM part numbers W11096268, W11220230, W10632527, W10758829, W10853296, and AP6329544. It also cross-references with PS12349461, 4591408, and EAP12349461.
You likely need a new valve if your washer is failing to fill with water, filling very slowly, or if it continues to let water into the tub even when the machine is powered off. Leaking from the back of the machine near the hose connections can also indicate a failure of the internal valve seals.
The installation process is straightforward and typically requires a screwdriver, a pair of pliers, and a wrench to disconnect the water supply lines. Always ensure the washer is unplugged and the water supply valves are completely shut off before beginning the repair.
The valve features two distinct ports—one for hot and one for cold water—which are color-coded to match your supply hoses. When disassembling the back and top panels of your washer, keep track of your screws, as the access points can be slightly tight depending on your specific model configuration.
This water inlet valve is rated for 120V and 60Hz, which is the standard requirement for the compatible Whirlpool, Kenmore, and Maytag washing machine models listed.
