[Lifetime Warranty] W11032770 Dishwasher Circulation Pump Motor Assembly - Compatible with Whirlpool Kenmore KitchenAid Dishwashers - Replaces WPW10529163 W10529163 W10885542 W10864037 W10816492

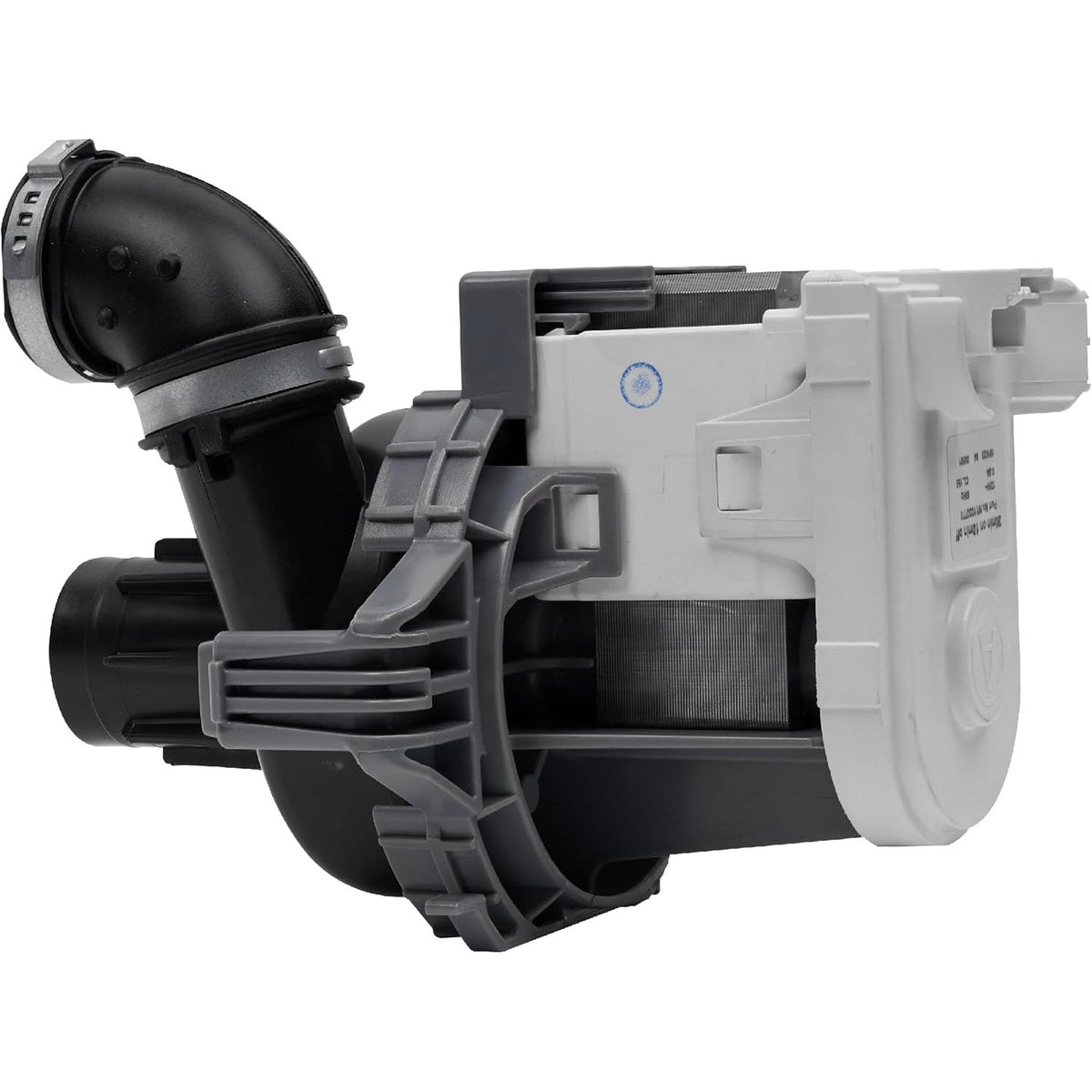

W11032770 dishwasher circulation pump motor assembly with attached black rubber hose and metal clamps.
W11032770 dishwasher circulation pump motor assembly shown with a background of a loaded dishwasher rack.

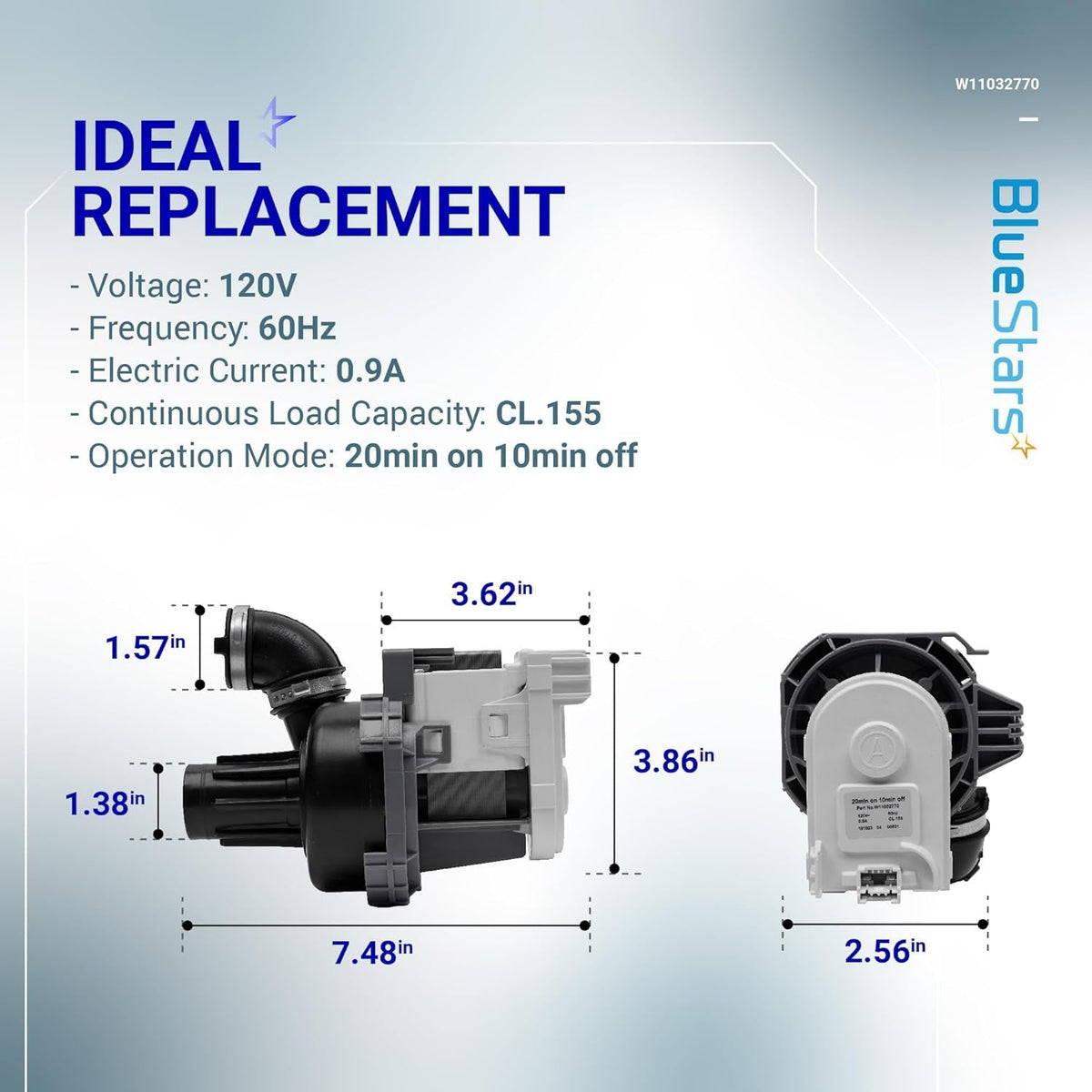

W11032770 dishwasher circulation pump motor assembly showing technical dimensions and electrical specifications.

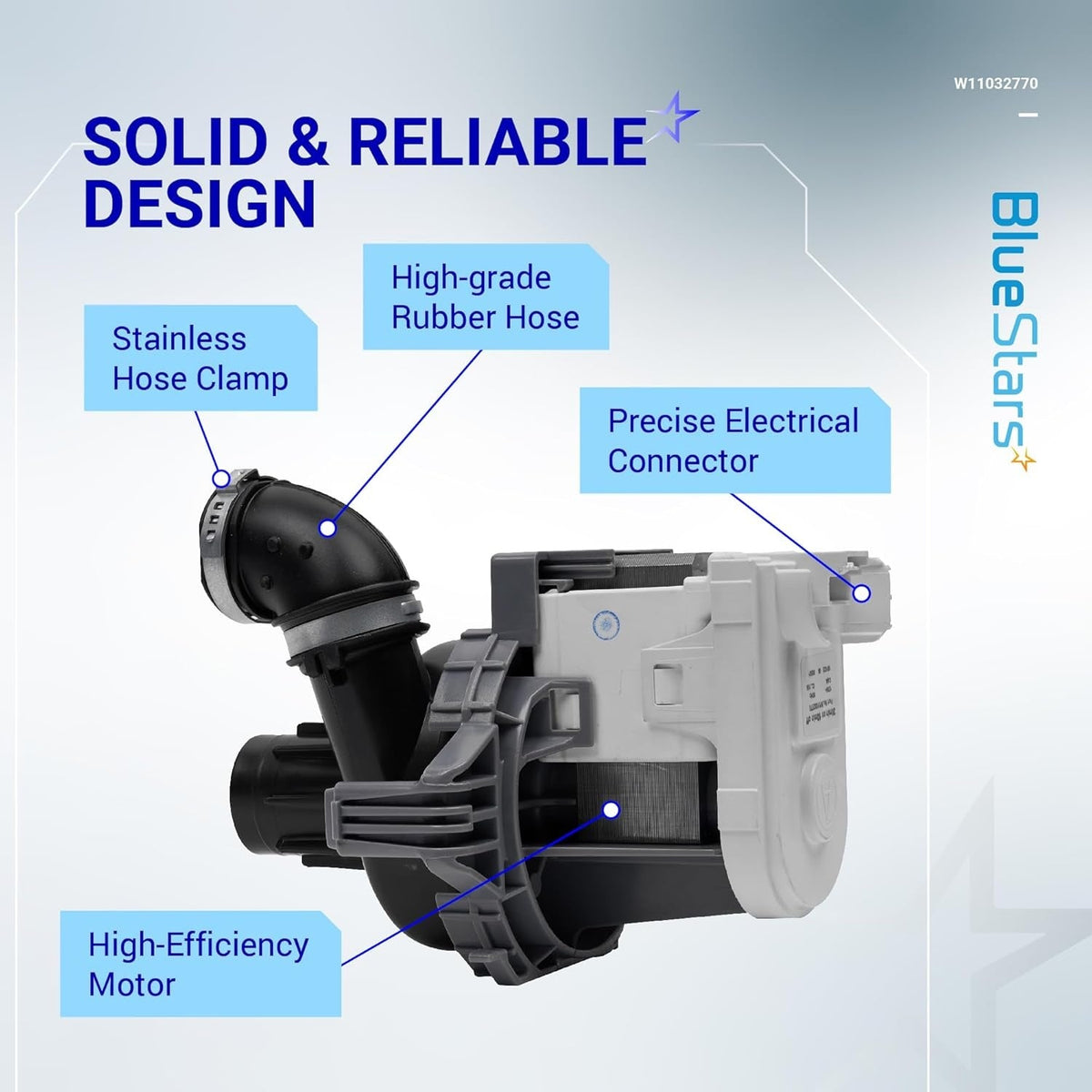

W11032770 dishwasher circulation pump motor assembly with labeled hose, clamp, and electrical connector components.

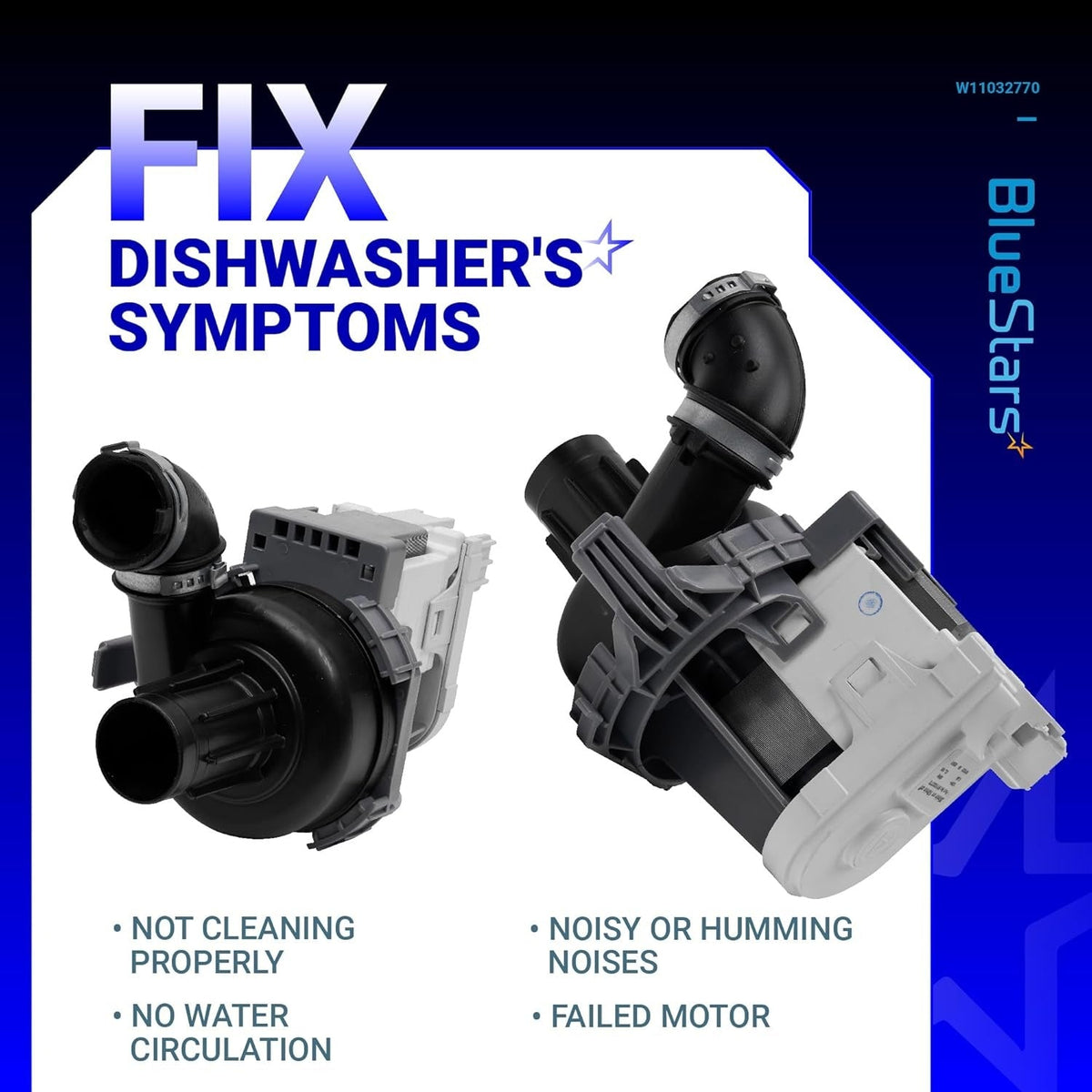

W11032770 dishwasher circulation pump motor assembly showing two angles to troubleshoot common dishwasher symptoms.
Technician using a drill for quick installation of W11032770 dishwasher circulation pump motor assembly.
W11032770 dishwasher circulation pump motor assembly shown in a lifestyle marketing graphic.
W11032770 dishwasher circulation pump motor assembly with attached black rubber hose and metal clamps.
W11032770 dishwasher circulation pump motor assembly shown with a background of a loaded dishwasher rack.
W11032770 dishwasher circulation pump motor assembly showing technical dimensions and electrical specifications.
W11032770 dishwasher circulation pump motor assembly with labeled hose, clamp, and electrical connector components.
W11032770 dishwasher circulation pump motor assembly showing two angles to troubleshoot common dishwasher symptoms.
Technician using a drill for quick installation of W11032770 dishwasher circulation pump motor assembly.
W11032770 dishwasher circulation pump motor assembly shown in a lifestyle marketing graphic.
Lifetime Warranty

[Lifetime Warranty] W11032770 Dishwasher Circulation Pump Motor Assembly - Compatible with Whirlpool Kenmore KitchenAid Dishwashers - Replaces WPW10529163 W10529163 W10885542 W10864037 W10816492

Save 13%
0.00
$62.97
$72.42
$62.97
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

W11032770 Dishwasher Circulation Pump Motor Assembly

Key Features

  • Powers water circulation for the lower spray arm during the wash cycle.
  • Includes both the main circulation pump and motor as a single assembly.
  • Electrical rating: 120V, 0.8A.
  • Duty cycle: 20 minutes on, 10 minutes off.

Replaces / Cross-Reference Part Numbers

  • AP6039091
  • PS11773089
  • W10529163
  • W10510667
  • W10440715
  • W10349483
  • W10816492
  • W10864037
  • W10885542
  • WPW10529163

Compatibility & Fitment

Designed for select models from brands including:

  • Whirlpool
  • KitchenAid
  • Kenmore
  • Jenn Air

Always verify fitment with your specific appliance model number before ordering.

When to Replace

  • Dishes remain dirty or are poorly cleaned after a cycle.
  • The dishwasher makes unusual humming, grinding, or loud noises during operation.
  • Water is not being sprayed from the spray arms.
  • The dishwasher fails to start or stops mid-cycle.
  • Leaks are visible around the pump and motor area under the dishwasher.

Installation Tips

  • Disconnect the dishwasher from both power and water supplies before starting the repair.
  • Access to this part typically requires pulling the dishwasher out and tipping it to reach the underside.
  • Place towels under the unit to absorb residual water from hoses and the sump.
  • Ensure all hose clamps are properly positioned and tightened to prevent leaks after installation.
Product image 1
Product image 2
  • IDEAL REPLACEMENT

    IDEAL REPLACEMENT

    It replaces parts: #W11032770, W10440715, W10349483, W10885542, WPW10529163, W10816492, W10864037, AP6039091, PS11773089, 4455920, etc
  • FIX SYMPTOMS

    FIX SYMPTOMS

    Not cleaning properly Noisy or humming noises No water circulation Failed motor operation
  • SAVING SOLUTION

    SAVING SOLUTION

    Repair your dishwasher in no time by replacing the old part with our superior yet affordable part
  • IMPORTANT NOTE

    IMPORTANT NOTE

    Unplug the dishwasher power & wear gloves before installing Don't hesitate to ask us for help with compatibility & installation
HIGH-GRADE MATERIALS

HIGH-GRADE MATERIALS

BlueStars W11032770 Circulation Pump features a strong motor assembly for enhanced pump effect, and well-crafted Rubber Hose with Clamps for secure attachment
WORK LIKE A CHARM

WORK LIKE A CHARM

It fits and works like a charm under daily frequent use with maximum filtration.
4 INSTALLATION STEPS

4 INSTALLATION STEPS

You will need an adjustable wrench, flat-head screwdriver, 5/16" nut driver, Phillips screwdriver, T15 Torx bit, needle nose pliers.
Brand Model Number
ADT series ADT521PGF0BS, ADT521PGF0WS, ADT521PGF2BS, ADT521PGF2WS, ADT521PGF4BS, ADT521PGF4WS, ADT521PGF6BS, ADT521PGF6WS, ADT521PGJ0BS, ADT521PGJ0WS, ADT521PGJ2BS, ADT521PGJ2WS
CDT series CDT725SSF0SS, CDT725SSF2SS, CDT725SSF4SS, CDT725SSF6SS, CDT725SSF7SS, CDT765SSF0SS, CDT765SSF1SS, CDT765SSF7SS
DDT series DDT575SGF0BB, DDT575SGF0WW, DDT575SGF2BB, DDT575SGF2WW, DDT575SGF4WW, DDT575SGF5WW, DDT575SGF6WW, DDT575SGF7WW, DDT575SGF8BB, DDT575SGF8WW, DDT575SMF0ES, DDT575SMF2ES, DDT575SMF4ES, DDT575SMF5ES, DDT575SMF6ES, DDT575SMF7ES, DDT575SMF8ES, DDT575SSF0SS, DDT575SSF2SS, DDT575SSF4SS, DDT575SSF5SS, DDT575SSF6SS, DDT575SSF7SS, DDT575SSF8SS
GDF series GDF510PGD0BB, GDF510PGD0WW, GDF510PGD1BB, GDF510PGD1WW, GDF510PGD2BB, GDF510PGD2WW, GDF510PGD4BB, GDF510PGD4WW, GDF510PGD6BB, GDF510PGD6WW, GDF510PGJ0BB, GDF510PGJ0WW, GDF510PGJ2BB, GDF510PGJ2WW, GDF510PGJ4BB, GDF510PGJ4WW, GDF510PGJ5BB, GDF510PGJ5WW, GDF510PGJ6BB, GDF510PGJ6WW, GDF510PMD0SA, GDF510PMD1SA, GDF510PMD2MB, GDF510PMD2SA, GDF510PMD4SA, GDF510PMD6SA, GDF510PMJ0SA, GDF510PMJ2SA, GDF510PMJ4SA, GDF510PMJ5SA, GDF510PMJ6SA, GDF510PSD0SS
GDF series GDF520PGD0BB, GDF520PGD0CC, GDF520PGD0WW, GDF520PGD1BB, GDF520PGD1CC, GDF520PGD1WW, GDF520PGD2BB, GDF520PGD2CC, GDF520PGD2WW, GDF520PGD4BB, GDF520PGD4CC, GDF520PGD4WW, GDF520PGD6BB, GDF520PGD6CC, GDF520PGD6WW, GDF520PGJ0BB, GDF520PGJ0CC, GDF520PGJ0WW, GDF520PGJ2BB, GDF520PGJ2CC, GDF520PGJ2WW, GDF520PGJ4BB, GDF520PGJ4CC, GDF520PGJ4WW, GDF520PMJ0ES, GDF520PMJ2ES, GDF520PMJ4ES, GDF520PSD0SS, GDF520PSD1SS, GDF520PSD2SS, GDF520PSF1SS, GDF520PSJ4SS
GDF series GDF540HGD0BB, GDF540HGD0WW, GDF540HGD1BB, GDF540HGD1WW, GDF540HGD2BB, GDF540HGD2WW, GDF540HGD4BB, GDF540HGD4WW, GDF540HGD6BB, GDF540HGD6WW, GDF540HMF0ES, GDF540HMF2ES, GDF540HMF4ES, GDF540HSD0SS, GDF540HSD1SS, GDF540HSD2SS, GDF540HSF1SS, GDF540HSF2SS, GDF540HSF4SS, GDF540HSF6SS, GDF570SGD0BB, GDF570SGF0BB, GDF570SGF0CC, GDF570SGF0WW, GDF570SGF2BB, GDF570SGF2CC, GDF570SGF2WW, GDF570SGF4BB, GDF570SGF4CC, GDF570SGF4WW, GDF570SGF6BB, GDF570SGF6CC, GDF570SGF6WW, GDF570SGF7BB, GDF570SGF7CC, GDF570SGF7WW, GDF570SGF8BB, GDF570SSF8SS
GDF series GDF610PGJ0BB, GDF610PGJ0WW, GDF610PGJ2BB, GDF610PGJ2WW, GDF610PGJ4BB, GDF610PGJ4WW, GDF610PMJ0ES, GDF610PMJ2ES, GDF610PMJ4ES, GDF610PSJ0SS, GDF610PSJ2SS, GDF610PSJ4SS, GDF620HGJ0BB, GDF620HGJ0WW, GDF620HGJ2BB, GDF620HGJ2WW, GDF620HGJ4BB, GDF620HGJ4WW, GDF620HMJ0ES, GDF620HMJ2ES, GDF620HMJ4ES, GDF620HSJ0SS, GDF620HSJ2SS, GDF620HSJ4SS
GDT series GDT530PGD0BB, GDT530PGD0WW, GDT530PGD1BB, GDT530PGD1WW, GDT530PGD2BB, GDT530PGD2WW, GDT530PGD4BB, GDT530PGD4WW, GDT530PGD6BB, GDT530PGD6WW, GDT530PSD0SS, GDT530PSD1SS, GDT530PSD2SS, GDT530PSD4SS, GDT530PSD6SS, GDT535PGJ0BB, GDT535PGJ0WW, GDT535PGJ2BB, GDT535PGJ2WW, GDT535PGJ4BB, GDT535PGJ4WW, GDT535PGJ5BB, GDT535PGJ5WW, GDT535PGJ6BB, GDT535PGJ6WW, GDT535PSJ0SS, GDT535PSJ2SS, GDT535PSJ4SS, GDT535PSJ5SS, GDT535PSJ6SS
GDT series GDT545PGJ0BB, GDT545PGJ0WW, GDT545PGJ2BB, GDT545PGJ2WW, GDT545PGJ4BB, GDT545PGJ4WW, GDT545PSJ0SS, GDT545PSJ2SS, GDT545PSJ4SS, GDT550HGD0BB, GDT550HGD0WW, GDT550HGD1BB, GDT550HGD1WW, GDT550HGD2BB, GDT550HGD2WW, GDT550HGD4BB, GDT550HGD4WW, GDT550HGD6BB, GDT550HGD6WW, GDT550HSD0SS, GDT550HSD1SS, GDT550HSD2SS, GDT550HSD4SS, GDT550HSD6SS
GDT series GDT580SGF0BB, GDT580SGF0WW, GDT580SGF2BB, GDT580SGF2WW, GDT580SGF4BB, GDT580SGF4WW, GDT580SGF5BB, GDT580SGF5WW, GDT580SGF6BB, GDT580SGF6WW, GDT580SGF7BB, GDT580SGF7WW, GDT580SGF8BB, GDT580SGF8WW, GDT580SMF0ES, GDT580SMF2ES, GDT580SMF4ES, GDT580SMF5ES, GDT580SMF6ES, GDT580SMF7ES, GDT580SMF8ES, GDT580SSF0SS, GDT580SSF2SS, GDT580SSF4SS, GDT580SSF5SS, GDT580SSF6SS, GDT580SSF7SS, GDT580SSF8SS, GDT590SGJ7BB, GDT590SGJ7WW, GDT590SMJ7ES, GDT590SSJ7SS
GDT series GDT625PGJ0BB, GDT625PGJ0WW, GDT625PGJ2BB, GDT625PGJ2WW, GDT625PGJ4BB, GDT625PGJ4WW, GDT625PSJ0SS, GDT625PSJ2SS, GDT625PSJ4SS, GDT635HGJ0BB, GDT635HGJ0WW, GDT635HGJ2BB, GDT635HGJ2WW, GDT635HGJ4BB, GDT635HGJ4WW, GDT635HMJ0ES, GDT635HMJ2ES, GDT635HMJ4ES, GDT635HSJ0SS, GDT635HSJ2SS, GDT635HSJ4SS
GDT series GDT680SGH2BB, GDT680SGH2WW, GDT680SGH4BB, GDT680SGH4WW, GDT680SGH6BB, GDT680SGH6WW, GDT680SGH7BB, GDT680SGH7WW, GDT680SGH8BB, GDT680SGH8WW, GDT680SSH2SS, GDT680SSH4SS, GDT680SSH6SS, GDT680SSH7SS, GDT680SSH8SS, GDT720SGF0BB, GDT720SGF0WW, GDT720SGF2BB, GDT720SGF2WW, GDT720SGF4BB, GDT720SGF4WW, GDT720SSF0SS, GDT720SSF2SS, GDT720SSF4SS, GDT740SIF0II, GDT740SIF2II, GDT740SIF4II, GDT740SIF7II, GDT740SIF8II, GDT740SIFAII, GDT740SSF0SS, GDT740SSF2SS
PDT series PDT720SGH5BB, PDT720SGH5WW, PDT720SGH6BB, PDT720SGH6WW, PDT720SGH7BB, PDT720SGH7WW, PDT720SSH5SS, PDT720SSH6SS, PDT720SSH7SS, PDT750SMF1ES, PDT750SMF2ES, PDT750SMF4ES, PDT750SMF5ES, PDT750SMF7ES, PDT750SMF8ES, PDT750SMFAES, PDT750SSF0SS, PDT750SSF1ES, PDT750SSF1SS, PDT750SSF2SS, PDT750SSF4SS, PDT750SSF5SS, PDT750SSF7SS, PDT750SSF8SS, PDT750SSFASS, PDT760SSF0SS, PDT760SSF1SS, PDT760SSF5SS, PDT760SSF7SS, PDT760SSJ7SS
ZDT series ZDT800SIF0II, ZDT800SIF1II, ZDT800SIF5II, ZDT800SIF7II, ZDT800SPF0SS, ZDT800SPF1SS, ZDT800SPF5SS, ZDT800SPF7SS, ZDT800SSF0SS, ZDT800SSF1SS, ZDT800SSF5SS, ZDT800SSF7SS, ZDT870SIF0II, ZDT870SIF1II, ZDT870SIF5II, ZDT870SIF7II, ZDT870SMF5GS, ZDT870SMF7GS, ZDT870SPF0SS, ZDT870SPF1SS, ZDT870SPF5SS, ZDT870SPF7SS, ZDT870SSF0SS, ZDT870SSF1SS, ZDT870SSF5SS, ZDT870SSF7SS
Manufacturer
‎BlueStars
Item Weight
‎2.29 pounds
Package Dimensions
‎7.44 x 5.28 x 4.92 inches
Style
‎Inline
Material
‎ABS Plastic, Rubber
Power Source
‎Corded Electric
Included Components
‎Circulation Pump

FAQ

W11032770 is used on select dishwashers from Whirlpool, Kenmore, Kenmore Elite, KitchenAid, Jenn-Air, and IKEA. Compatibility is model-specific, not universal, so the safest check is to match your dishwasher's full model number and confirm the original pump part number used on your machine.
W11032770 replaces several earlier circulation pump and motor numbers, including WPW10529163, W10529163, W10885542, W10864037, and W10816492. Additional cross-references found for this pump family include W10510667, WPW10510667, and W10440715. Always verify the full model compatibility before ordering, since similar-looking dishwasher pumps are not always interchangeable.
This assembly is the main wash pump motor. It circulates water through the spray arms during the wash cycle so dishes get cleaned properly. If this motor is weak, seized, or electrically failed, the dishwasher may fill and drain normally but still leave dishes dirty because water is not being pushed through the spray system with enough force.
Typical symptoms include dishes coming out dirty, weak or no spray-arm action, a humming sound during the wash portion of the cycle, poor water circulation, or a dishwasher that fills and drains but does not actively wash. In some cases, the unit may also stop mid-cycle if the wash motor cannot start or overheats.
For many DIYers, this is a moderate repair. Commonly needed tools are a towel, Phillips screwdriver, small flat-head screwdriver, and pliers. Basic steps usually include shutting off power, turning off the water supply, pulling the dishwasher out enough to access the underside, disconnecting the pump wiring and hoses, and swapping the assembly. Plan roughly 30 to 90 minutes depending on your dishwasher layout and how easily the unit can be moved.
Before replacing it, confirm the dishwasher is filling with water normally and that the spray arms, filters, and sump area are not clogged with debris. Also inspect the wiring connector to the wash motor and look for signs of leaks around the pump area. A blocked filter or jammed wash system can mimic pump failure, so it is worth checking those items first.
Common causes include normal motor wear, debris entering the pump, hard-water buildup, overheating from restricted water flow, or seal wear that allows moisture to damage the motor. If the dishwasher has been running with clogged filters or obstructed spray components, the pump can be put under extra strain and fail sooner.
