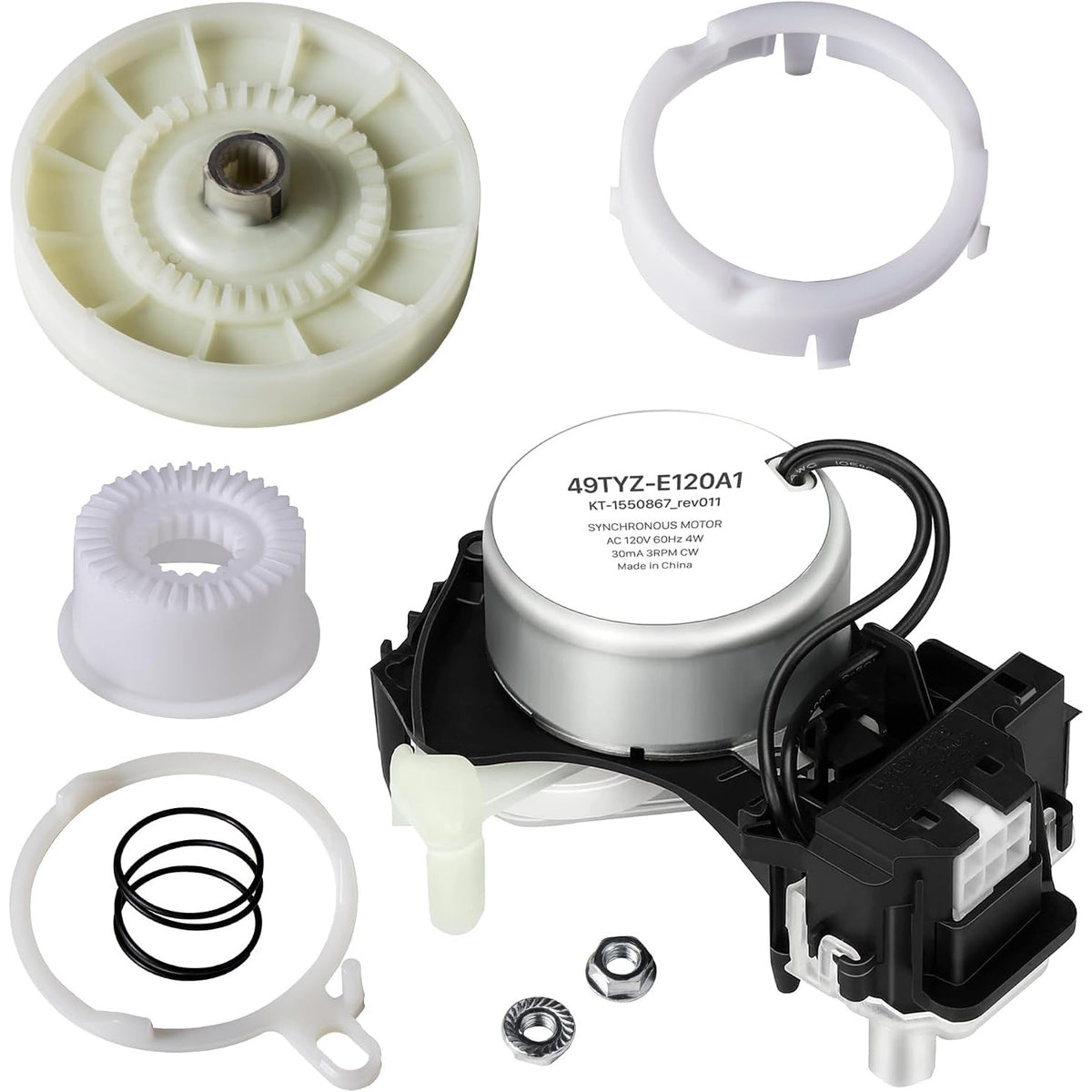

W10913953 Washer Shift Actuator & W10721967 Clutch Kit, actuator, clutch, gears, ring, spring and hardware shown

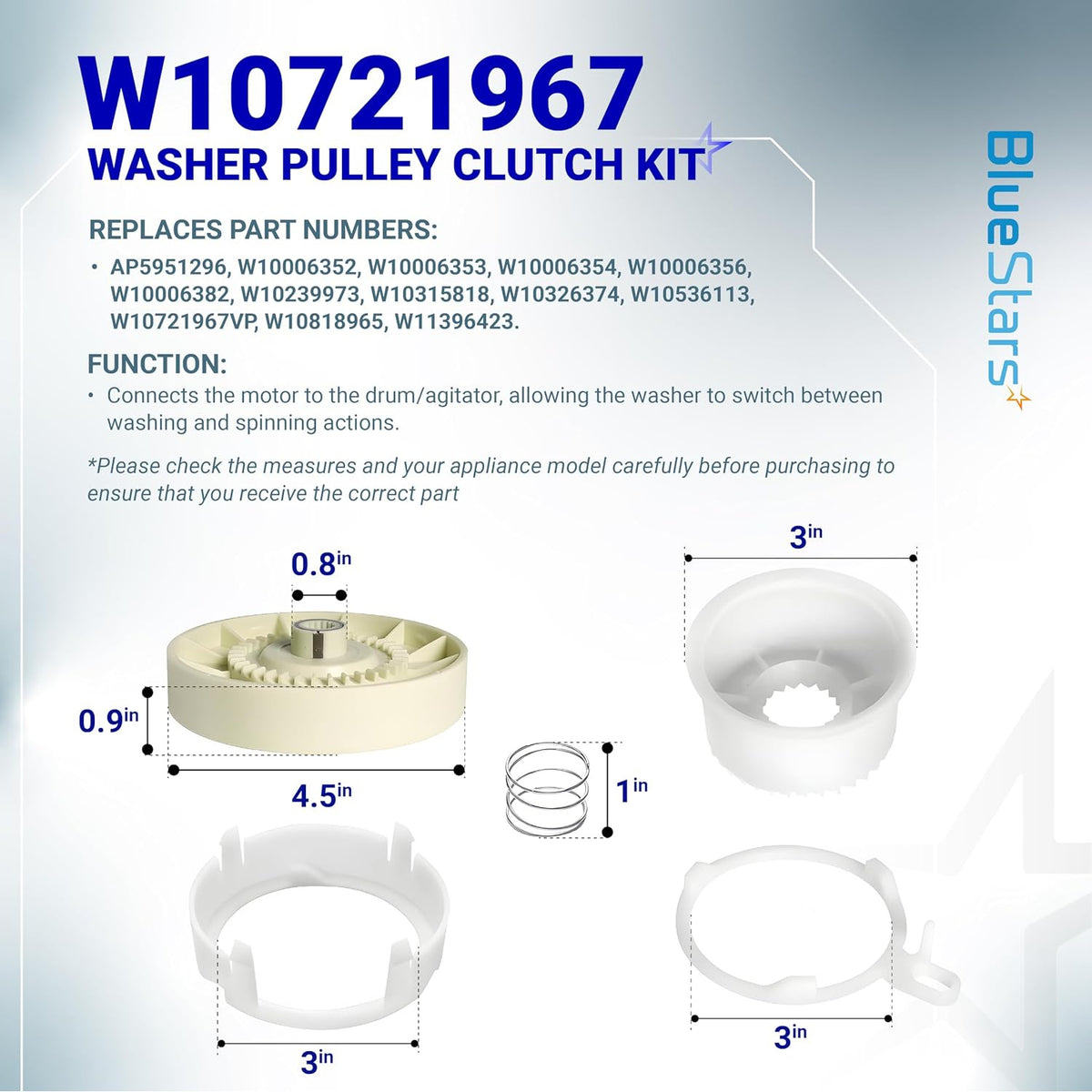

W10721967 Washer Pulley Clutch Kit dimensions diagram showing pulley, cup, ring, and spring

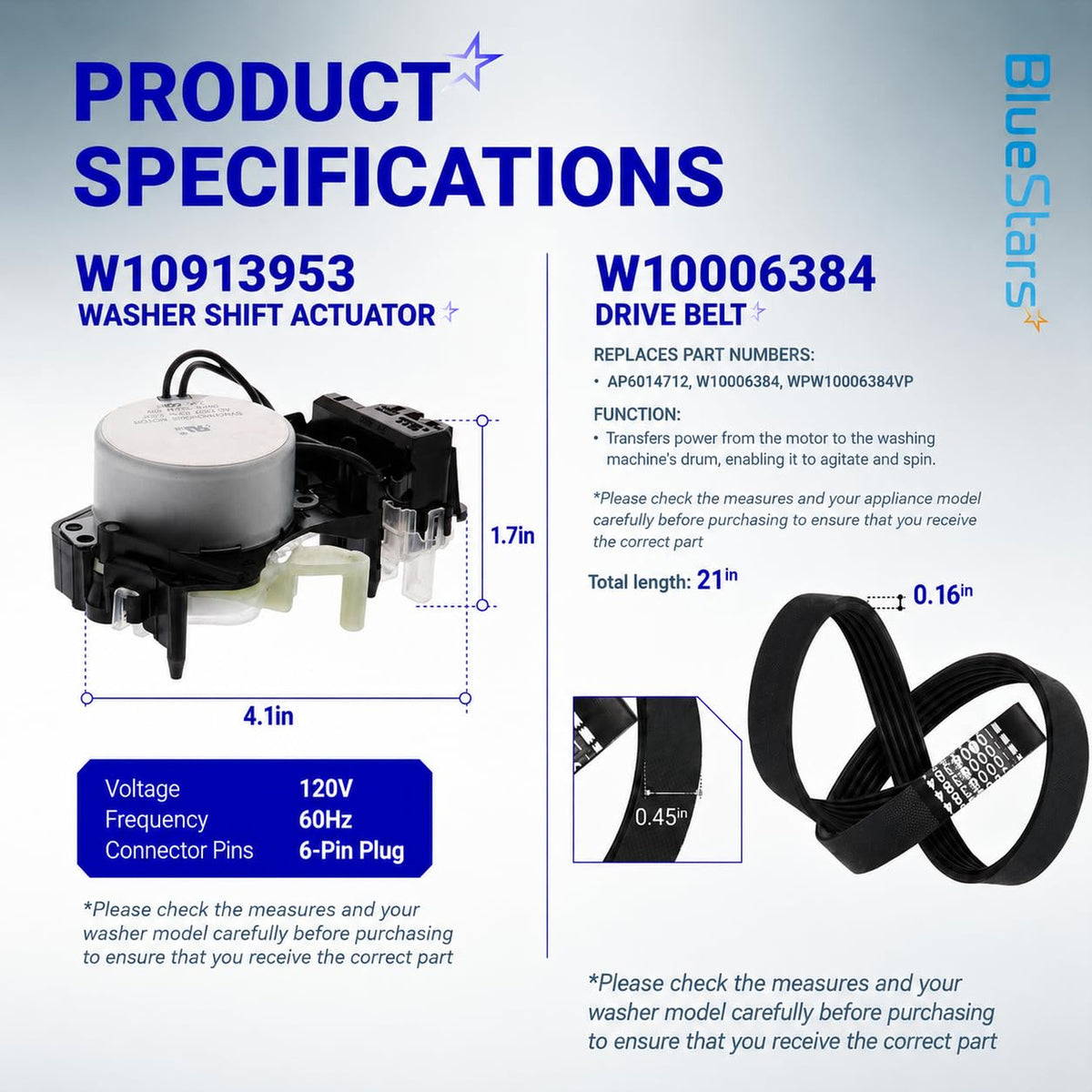

W10913953 Washer Shift Actuator & W10721967 Clutch Kit specs graphic showing actuator and W10006384 drive belt
W10913953 Washer Shift Actuator & W10721967 Clutch Kit showing plastic and metal materials with ribbed grooves

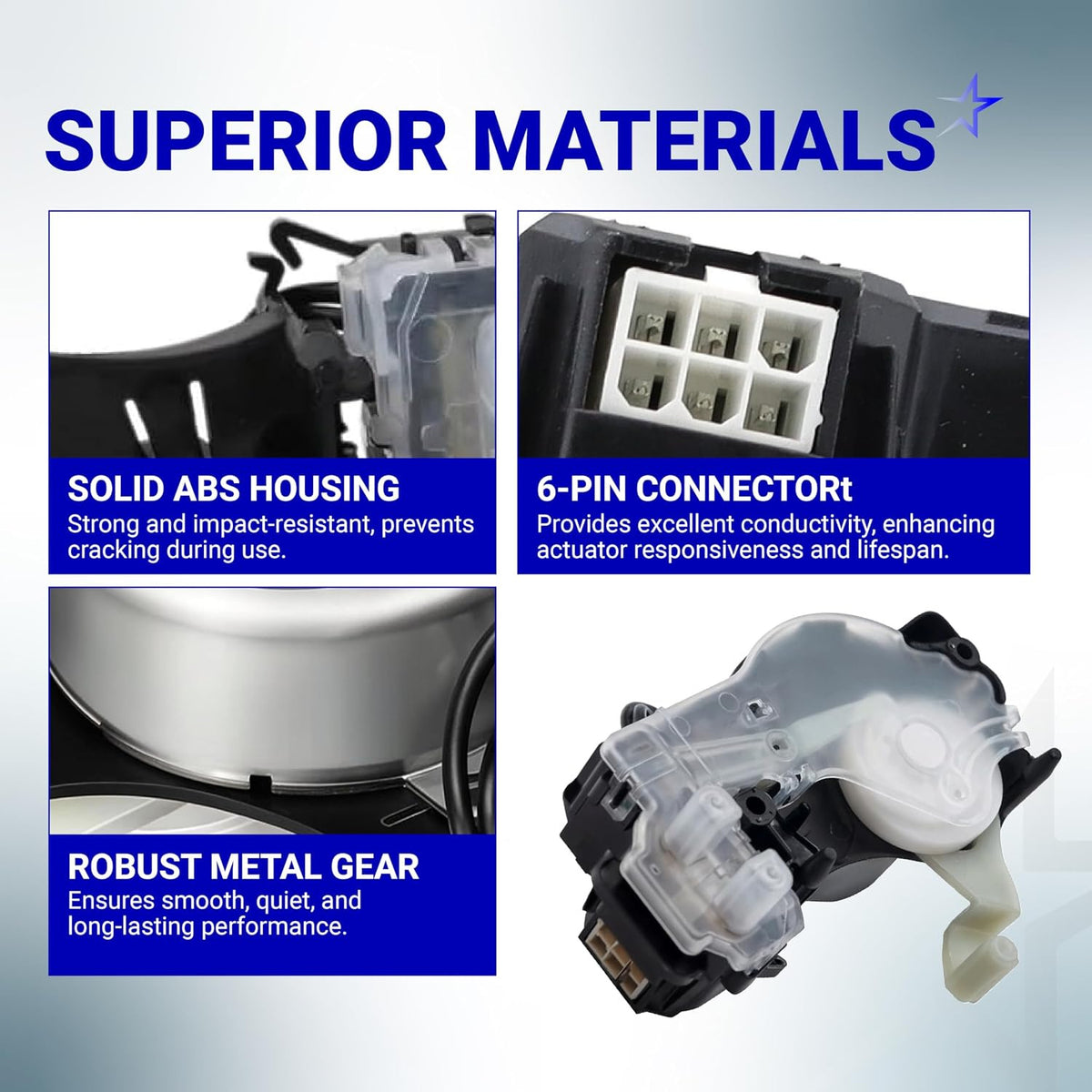

W10913953 Washer Shift Actuator & W10721967 Clutch Kit showing ABS housing, 6-pin connector, and metal gear
W10913953 Washer Shift Actuator & W10721967 Clutch Kit, symptom chart with parts and washer illustration

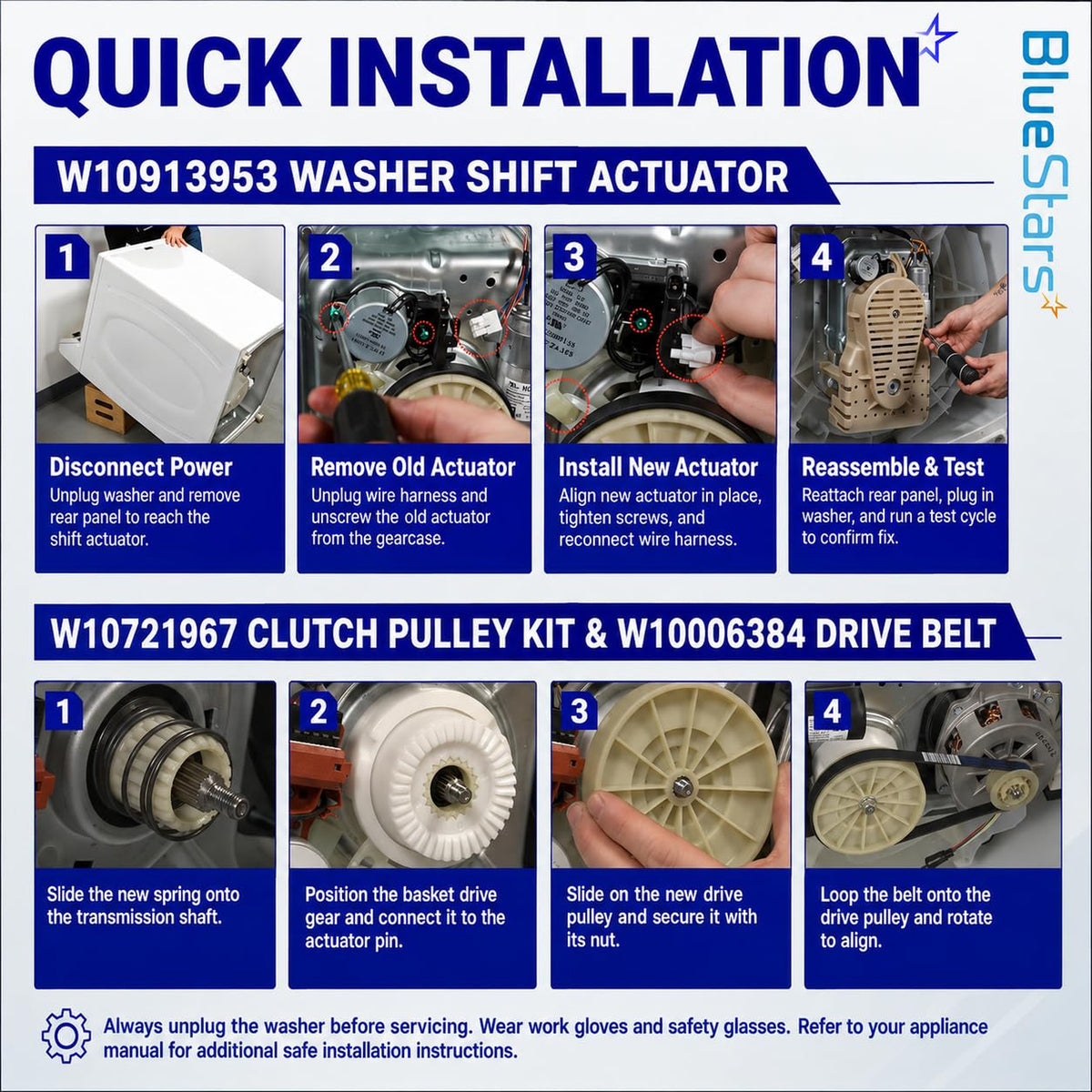

W10913953 Washer Shift Actuator & W10721967 Clutch Kit quick installation instruction diagram
W10913953 Washer Shift Actuator & W10721967 Clutch Kit promotional graphic with washer and kit components

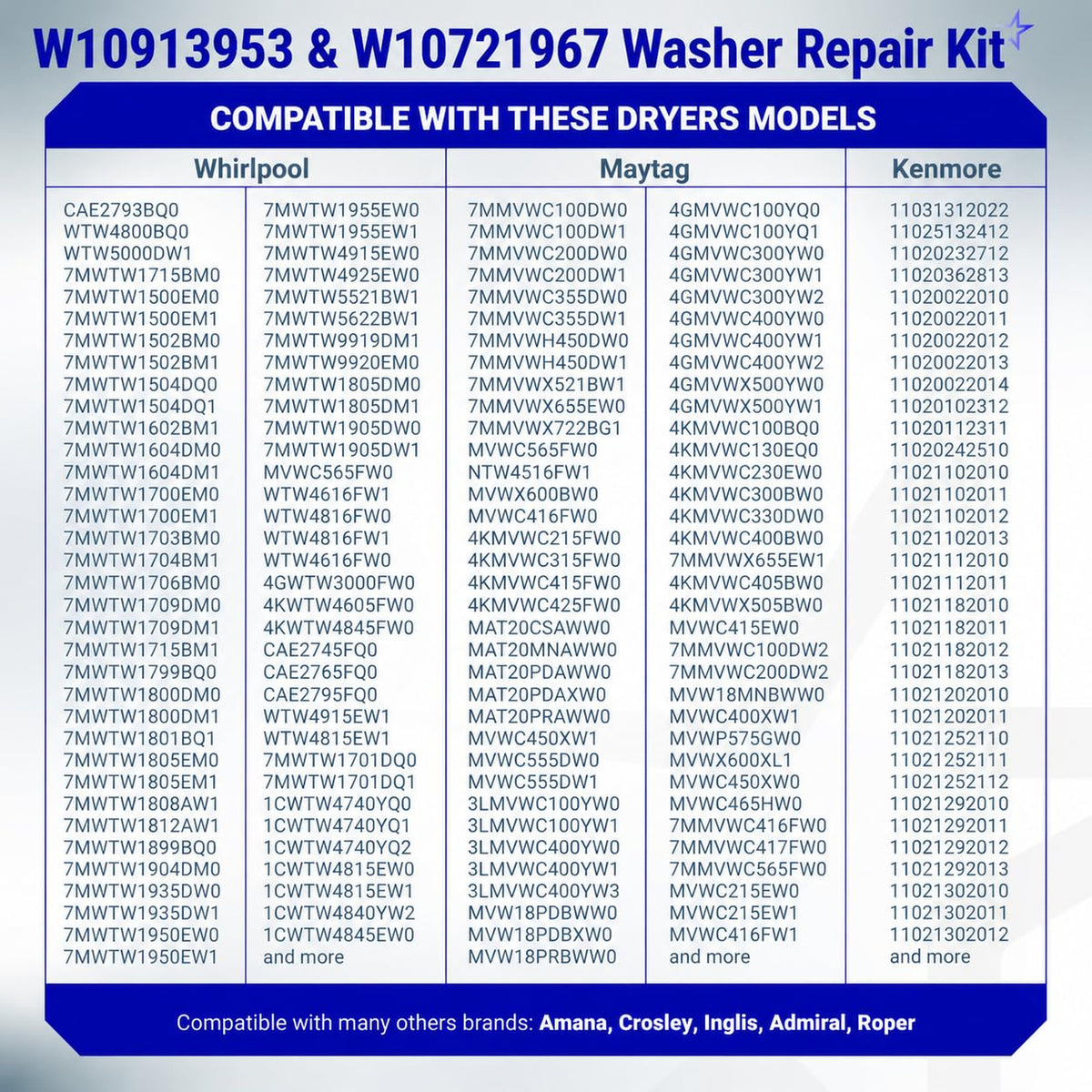

W10913953 Washer Shift Actuator & W10721967 Clutch Kit compatibility chart for Whirlpool, Maytag and Kenmore models
W10913953 Washer Shift Actuator & W10721967 Clutch Kit, actuator, clutch, gears, ring, spring and hardware shown
W10721967 Washer Pulley Clutch Kit dimensions diagram showing pulley, cup, ring, and spring
W10913953 Washer Shift Actuator & W10721967 Clutch Kit specs graphic showing actuator and W10006384 drive belt
W10913953 Washer Shift Actuator & W10721967 Clutch Kit showing plastic and metal materials with ribbed grooves
W10913953 Washer Shift Actuator & W10721967 Clutch Kit showing ABS housing, 6-pin connector, and metal gear
W10913953 Washer Shift Actuator & W10721967 Clutch Kit, symptom chart with parts and washer illustration
W10913953 Washer Shift Actuator & W10721967 Clutch Kit quick installation instruction diagram
W10913953 Washer Shift Actuator & W10721967 Clutch Kit promotional graphic with washer and kit components
W10913953 Washer Shift Actuator & W10721967 Clutch Kit compatibility chart for Whirlpool, Maytag and Kenmore models

W10913953 Washer Shift Actuator & W10721967 Clutch Kit

0.00
$35.10
Save 10% $38.99
$35.10
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

W10913953 Washer Shift Actuator & W10721967 Clutch Kit

Key Features

  • Complete washer drive-system repair kit containing one W10913953 shift actuator, one W10721967 pulley clutch kit and one W10006384 drive belt.
  • The W10913953 shift actuator has a 6-pin connector and is rated AC 120V, 60Hz, 2.8W, 30mA and 3RPM clockwise.
  • Designed to address drive-system symptoms such as failure to agitate, no spin, slow spinning, unusual clicking or grinding noises, clothes remaining soaking wet and burning smells.
  • Use the component part numbers and washer model information to confirm fitment before ordering.

Replaces / Cross-Reference Part Numbers

  • W10913953 shift actuator: W10815026, W10597177, WPW10597177, W10913953VP, AP6037270, PS11769864, EAP11769864 and 49TYZ-E120A1.
  • W10721967 clutch kit: W10006352, W10006353, W10006354, W10006356, W10006382, W10239973, W10315818, W10326374, W10721967VP, W10818965, W11396423, AP5951296, EAP10057144 and PS10057144.
  • W10006384 drive belt: WPW10006384, WPW10006384VP, AP6014712, PS11747978, EAP11747978, 4440023 and 5PJE 556.

Compatibility & Fitment

This kit is designed for select Whirlpool, Maytag, Kenmore, Amana, Crosley, Admiral, Roper and Inglis top-load washing machines. Supported washer examples include WTW5000DW1 and MVWX655DW1, along with other models using the corresponding replacement part numbers. Verify the washer model and original component numbers before installation.

When to Replace

Inspect the actuator, clutch kit and belt when the washer will not agitate or spin, spins slowly, makes clicking or grinding noises, leaves clothing soaking wet, or produces a burning smell. A worn or damaged component in the drive system can prevent normal agitation and spinning. Replace damaged parts together when the symptoms and inspection indicate wear across the drive system.

Installation Tips

  • Disconnect power and unplug the washer before beginning service.
  • Use common hand tools and wear protective work gloves during installation.
  • Compare the replacement parts with the original actuator, clutch kit and belt before fitting them.
  • Check the 6-pin actuator connector and ensure all connections are secure after installation.
  • Confirm that the drive belt is correctly positioned and that the washer model matches the listed fitment information before operating the appliance.
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 1
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 2
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 3
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 4
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 5
W10913953 Washer Shift Actuator & W10721967 Clutch Kit 6
  • W10913953 Washer Shift Actuator & W10721967 Clutch Kit 1

    FIX WASHER'S SYMPTOMS

    Pumps but will not spin | Will not agitate | Noisy | Spins slowly | Burning smell
  • W10913953 Washer Shift Actuator & W10721967 Clutch Kit 2

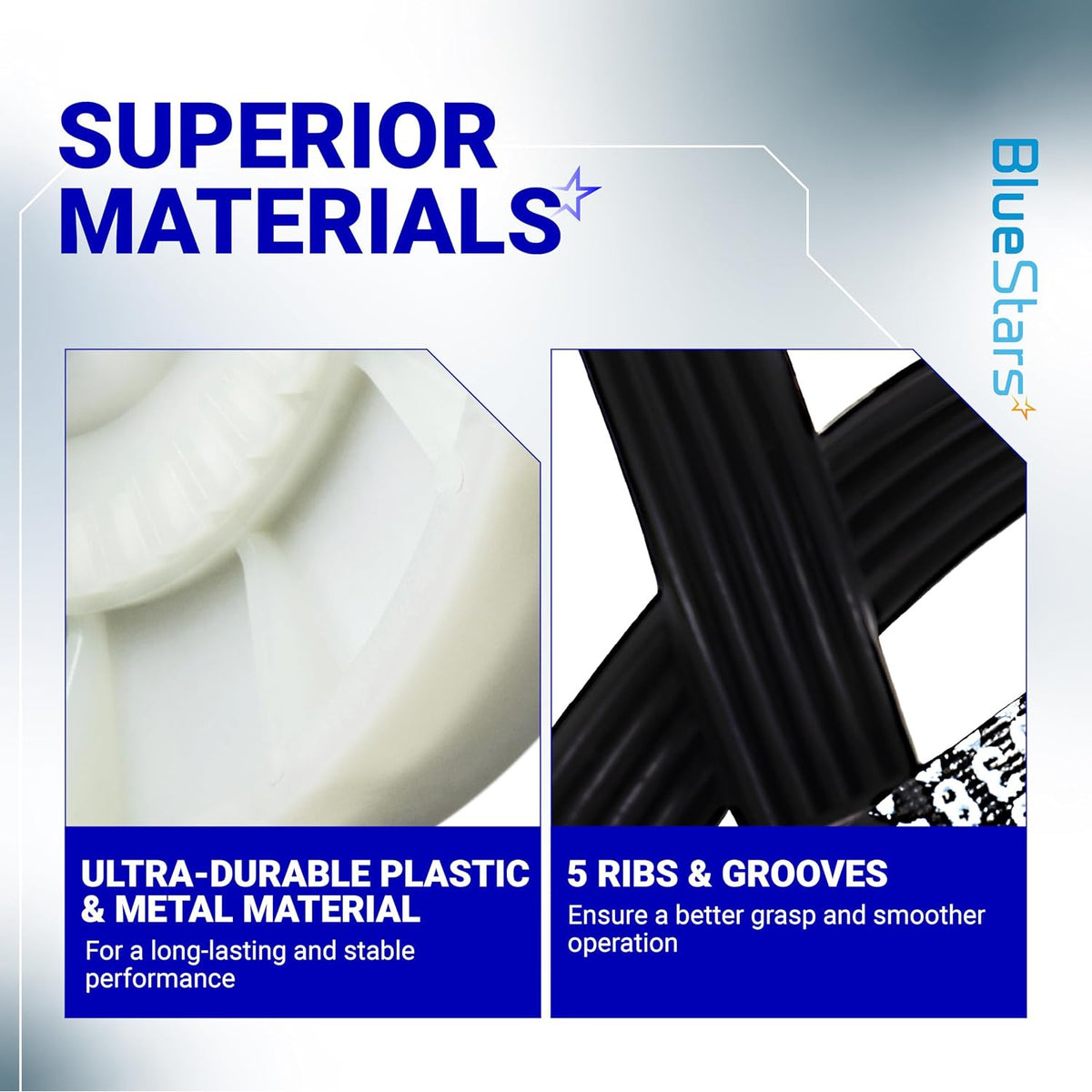

    RELIABLE QUALITY

    Designed with ultra-durable plastic material for a long-lasting and stable drying performance
  • W10913953 Washer Shift Actuator & W10721967 Clutch Kit 3

    SAVING SOLUTION

    Enjoy the great feeling when your washer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • W10913953 Washer Shift Actuator & W10721967 Clutch Kit 4

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

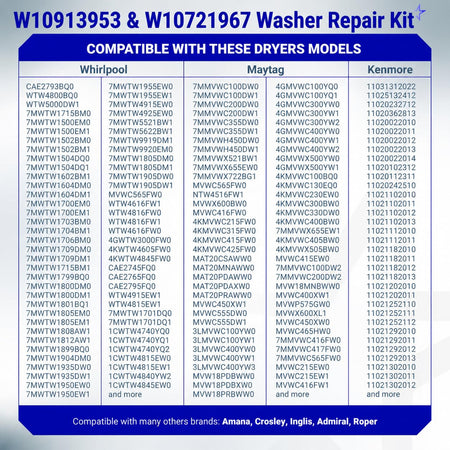

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Whirlpool
CAE2793BQ0 WTW4800BQ0 WTW5000DW1 7MWTW1715BM0 7MWTW1500EM0 7MWTW1500EM1 7MWTW1502BM0 7MWTW1502BM1 7MWTW1504DQ0 7MWTW1504DQ1 7MWTW1602BM1 7MWTW1604DM0 7MWTW1604DM1 7MWTW1700EM0 7MWTW1700EM1 7MWTW1703BM0 7MWTW1704BM1 7MWTW1706BM0 7MWTW1709DM0 7MWTW1709DM1 7MWTW1715BM1 7MWTW1799BQ0 7MWTW1800DM0 7MWTW1800DM1 7MWTW1801BQ1 7MWTW1805EM0 7MWTW1805EM1 7MWTW1808AW1 7MWTW1812AW1 7MWTW1899BQ0 7MWTW1904DM0 7MWTW1935DW0 7MWTW1935DW1 7MWTW1950EW0 7MWTW1950EW1 7MWTW1955EW0 7MWTW1955EW1 7MWTW4915EW0 7MWTW4925EW0
7MWTW5521BW1 7MWTW5622BW1 7MWTW9919DM1 7MWTW9920EM0 7MWTW1805DM0 7MWTW1805DM1 7MWTW1905DW0 7MWTW1905DW1 MVWC565FW0 WTW4616FW1 WTW4816FW0 WTW4816FW1 WTW4616FW0 4GWTW3000FW0 4KWTW4605FW0 4KWTW4845FW0 CAE2745FQ0 CAE2765FQ0 CAE2795FQ0 WTW4915EW1 WTW4815EW1 7MWTW1701DQ0 7MWTW1701DQ1 1CWTW4740YQ0 1CWTW4740YQ1 1CWTW4740YQ2 1CWTW4815EW0 1CWTW4815EW1 1CWTW4840YW2 1CWTW4845EW0 1CWTW4845EW1 7MWTW4925EW1 2DWTW4740YQ0 2DWTW4740YQ1 2DWTW4800YQ1 2DWTW4840YW0 2DWTW5500XW0 2DWTW5500XW1 3DWTW4740YQ0
3DWTW4840YW0 3LWTW4740YQ0 3LWTW4740YQ1 3LWTW4800YQ0 3LWTW4840YW0 3LWTW4840YW1 3LWTW5550YW0 3LWTW5550YW2 3NWTW4800AQ0 3SWTW4800YQ0 3SWTW4800YQ1 4GWTW4740YQ0 4GWTW4740YQ1 4GWTW4740YQ2 4GWTW4740YQ3 4GWTW4800YQ0 4GWTW4800YQ1 4GWTW4800YQ2 4GWTW4800YQ3 4GWTW5550YW0 4GWTW5550YW1 4GWTW5550YW2 4KWTW4730EQ0 4KWTW4830EQ0 4KWTW4930DQ0 6AWTW5550XW0 6AWTW5550XW1 6AWTW5700XW0 6AWTW5700XW1 1CWTW4705GW0 7MWTW4915EW1 7MWTW9919DM2 2DWTW4800YQ0 WTW4915EW2 WTW4880AW1 4GWTW4950YW2 WTW4815EW2 WGT4027HW0 WTW4810EW1
WTW4616FW2 7MWET4027HW0 7MWGT4027HW0 7MWTW1604DM2 WET4027HW0 WETLV27HW0 WGTLV27HW0 WTW4715EW2 WTW4810EW2 WTW4816FW2 WTW4850BW2 WTW4850HW0 WTW4855HW0 WTW4950HW0 WTW4955HW0 YWET4027HW0 QCAE2733BQ0 QCAE2735FQ0 WETLV27HW1 WTW4850HW1 WTW4855HW1 WTW4950HW1 WTW4955HW1 WTW5105HW0 WTW6120HW0 WTW5000DW3 4KWTW5700JW0 WTW4655JW0 WGTLV27HW1 WTW4850HW2 WTW6120HC1 WTW6120HC0 WTW5105HC0 4KWTW5800JW0 WTW4855HW2 WTW5000DW2 WTW4955HW2 WTW5100HW2 WTW4655JW1 WTW6120HW2 WETLV27HW2 WTW6120HW1 WTW5105HW2 WTW5100HC2
WTW5105HC1 WTW6120HC2 WGTLV27HW2 CAE2745FQ1 WTW5105HC2 WTW4950HW2 7MWGT4027HW1 YWET4027HW1 8TWTW6000JW0 4KWTW5800JW1 4KWTW5600JW1 8TWTW4955JW0 4KWTW5900JW0 4KWTW5900JW1 4KWTW5600JW0 4KWTW5700JW1 4GWTW1955LW0 4GWTW1805LW0 WTW4816FW3 WTW4955HW3 WTW4855HW3 1CWTW4705GW1 WTW4655JW2 WTW4950HW3 WTW4850HW3 WTW4616FW3 4GWTW1955LW1 4GWTW1805LW1 4GWTW3000FW1 1CWTW4815EW2 1CWTW4845EW2 WTW5005KW0 WTW5100HW0 8TWTW4955JW1 WET4027HW2 8TWTW6000JW1 WTW5100HC3 WTW6120HW3 WTW6120HC3 WTW5100HW3 WETLV27HW3
YWET4027HW2 WGTLV27HW3 MVW4505MW0 WGT4027HW2 WTW4957PW0 WTW5100HC0 WTW5100HC1 WTW5010LW0 1CWTW4815EW3 WTW5015LW0 1CWTW4845EW3 8TWTW5057PW0 8TWTW5010PW0 WTW5057LW0 1CWTW4800YQ1 1CWTW4800YQ2 1CWTW4840YW0 1CWTW4840YW1 3LWTW4800YQ1 4GWTW4950YW0 4GWTW4950YW1 7EWTW1300YM0 7EWTW1409YM0 7EWTW1509YM0 7EWTW1515YW0 7EWTW1711YM0 7EWTW1715YW0 7MWTW1500AQ0 7MWTW1501AW0 7MWTW1501AW1 7MWTW1501AW2 7MWTW1502AW0 7MWTW1502AW1 7MWTW1502AW2 7MWTW1503AW0 7MWTW1503AW1 7MWTW1601BQ0 7MWTW1602AW0 7MWTW1602AW1
WTW4950XW1 WTW4950XW2 WTW4950XW3 WTW5000DW0 WTW5500BW0 WTW5500XL0 WTW5500XL1 WTW5500XL2 WTW5500XW0 WTW5500XW1 WTW5500XW2 WTW5500XW3 WTW5550XW0 WTW5550XW1 WTW5550XW2 WTW5550XW3 WTW5600XW0 WTW5600XW1 WTW5600XW2 WTW5600XW3 WTW5610XW0 WTW5610XW1 WTW5610XW2 WTW5610XW3 WTW5640XW0 WTW5640XW1 WTW5640XW2 WTW5640XW3 WTW5700AC0 WTW5700XL0 WTW5700XL1 WTW5700XL2 WTW5700XL3 WTW5700XW0 WTW5700XW1 WTW5700XW2 WTW5700XW3 WTW5800BC0 WTW5800BW0 WTW5810BW0 WTW5840BC0 WTW5840BW0
Maytag
7MMVWC100DW0 7MMVWC100DW1 7MMVWC200DW0 7MMVWC200DW1 7MMVWC355DW0 7MMVWC355DW1 7MMVWH450DW0 7MMVWH450DW1 7MMVWX521BW1 7MMVWX655EW0 7MMVWX722BG1 MVWC565FW0 NTW4516FW1 MVWX600BW0 MVWC416FW0 4KMVWC215FW0 4KMVWC315FW0 4KMVWC415FW0 4KMVWC425FW0 MAT20CSAWW0 MAT20MNAWW0 MAT20PDAWW0 MAT20PDAXW0 MAT20PRAWW0 MVWC450XW1 MVWC555DW0 MVWC555DW1 3LMVWC100YW0 3LMVWC100YW1 3LMVWC400YW0 3LMVWC400YW1 3LMVWC400YW3 MVW18PDBWW0 MVW18PDBXW0 MVW18PRBWW0 4GMVWC100YQ0 4GMVWC100YQ1 4GMVWC300YW0 4GMVWC300YW1 4GMVWC300YW2
4GMVWC400YW0 4GMVWC400YW1 4GMVWC400YW2 4GMVWX500YW0 4GMVWX500YW1 4KMVWC100BQ0 4KMVWC130EQ0 4KMVWC230EW0 4KMVWC300BW0 4KMVWC330DW0 4KMVWC400BW0 7MMVWX655EW1 4KMVWC405BW0 4KMVWX505BW0 MVWC415EW0 7MMVWC100DW2 7MMVWC200DW2 MVW18MNBWW0 MVWC400XW1 MVWP575GW0 MVWX600XL1 MVWC450XW0 MVWC465HW0 7MMVWC416FW0 7MMVWC417FW0 7MMVWC565FW0 MVWC215EW0 MVWC215EW1 MVWC416FW1 MVWX5SPAW0 MVWC465HW1 MVWC465HW2 MVW6230HC0 7MMVWC565FW1 7MMVWC465JW0 NTW4516FW3 MVWP576KW1 MVWC465HW3 MVWC565FW1 MVW6230HW1
MVW6200KW1 MVW6230HW2 MVW6230RHW1 MVWP575GW1 4KMVWC430JW0 4KMVWC410JW0 4KMVWC440JW0 4KMVWC410JW1 4KMVWC420JW1 4KMVWC420JW0 4KMVWC430JW1 MVWC465HW4 MVWC565FW3 MVWP576KW0 MVW6230HW0 MVW6230RHW0 MVW6230RHW2 MVW6230HC2 MVW6230HC1 MVWX655DW2 MVW6200KW3 MVW6230RHW3 MVW5035MW0 MVW6500MBK0 MVW5430MW0 MVW6500MW0 MVWC565FW2 MVW4505MW0 MVW6200KW0 MVW4505MW1 MVW5430MW1 MVW5035MW1 MVW5435PW0 4KMVWC430JW2 RTW4519PW0 4KMVWC410JW2 MVW5430PBK0 MVW5435PBK0 3LMVWC315FW0 7MMVWC200YW0 7MMVWC210YW0
MVWC400XW3 MVWC400XW4 MVWC415EW1 MVWC415EW2 MVWC425BW0 MVWC425BW1 MVWC450XW2 MVWC450XW3 MVWC450XW4 MVWP475EW0 MVWX500BW0 MVWX500XL0 MVWX500XL1 MVWX500XL2 MVWX500XW0 MVWX500XW1 MVWX500XW2 MVWX550XW0 MVWX550XW1 MVWX550XW2 MVWX600XL0 MVWX600XW0 MVWX600XW1 MVWX600XW2 MVWX655DW0 MVWX655DW1 MVWX700AG0 MVWX700XL0 MVWX700XL1 MVWX700XL2 MVWX700XW0 MVWX700XW1 MVWX700XW2
Kenmore
11027122310 1102992310 11022442511 11025132411 11020102310 11020102311 11020112310 11021392013 11021492310 7MKTWS300DW0 7MKTWS400DW0 11020222511 11020242511 11022242510 11022332511 11022532511 1105142511 11022342512 11022442512 11022352510 11022532510 2992310 11020232710 11027022710 11020232711 11022242511 11022352511 11022532512 1105072010 1105142512 11022102312 11020362810 11025122810 11020362811 11025122811 1105072011 11020222510 11021112021 11031312021 11027022711 11020362812 11021112020
11031312022 11025132412 11020232712 11020362813 11020022010 11020022011 11020022012 11020022013 11020022014 11020102312 11020112311 11020242510 11021102010 11021102011 11021102012 11021102013 11021112010 11021112011 11021182010 11021182011 11021182012 11021182013 11021202010 11021202011 11021252110 11021252111 11021252112 11021292010 11021292011 11021292012 11021292013 11021302010 11021302011 11021302012 11021302013 11021352110 11021352111 11021352112 11021392010 11021392011 11021392012
11021492311 11022102310 11022102311 11022332510 11022342510 11022342511 11022442510 11023102310 11023102311 11025102310 11025102311 11025132410 11026002010 11026002011 11026002012 11026012010 11026012011 11026012012 11026112310 11027102310 11028002010 11028002011 11028002012 11028012010 11028012011 11028012012 1105072012 1105142510
NTW4516FW1 NTW4516FW0 4KNTW4605FW0 4KNTW4705FW0 4GNTW4400YQ0 4GNTW4600YQ1 4KNTW4530EQ0 4GNTW4400YQ1 NTW4655EW1 NTW4705EW1 NTW4755EW1 NTW4519JW0 NTW4516FW3 4KNTW3300JW0 4KNTW3200JW1 4KNTW3100JW1 4KNTW3200JW0 4KNTW3100JW0 NTW4516FW4 NTW4519JW2 NTW4519JW1 NTW4501XQ0 NTW4600YQ0 NTW4600YQ1 NTW4601BQ0 NTW4601BQ1 NTW4601XQ0 NTW4605EW0 NTW4605EW1 NTW4610YQ0 NTW4611BQ0 NTW4611BQ1 NTW4615EW0 NTW4630YQ0 NTW4631BQ1 NTW4635EW0 NTW4651BQ0 NTW4651BQ1 NTW4655EW0 NTW4700YQ1 NTW4705EW0 NTW4750BQ0 NTW4755EW0
Admiral, Crosley, Inglis
Admiral ATW4676BQ0 4KATW5215FW0 4KATW5415FW0 4GATW4900YW0 4GATW4900YW1 4GATW4900YW2 4KATW4830EW0 ATW4516HW0 ATW4519PW0 ATW4675EW0 ATW4675YQ0 ATW4675YQ1 ATW4676BQ1; Crosley CAW12444XW0 CAW12444XW1 CAW12444XW2 CAW35114GW1 CAW42114GW1 VAW3584GW0 VAW3584GW1 CAW38125HW0 CAW38125HW1 CAW42114GW2 CAW45125LW0 VAW3584GW2 CAW11544EW1 CAW12444DW1 CAW9244DW1 CAW9444XQ0 CAW9444XQ1 CAW9444XQ2 CAW9444XQ4; Inglis ITW4671EW0 ITW4671DQ0 ITW4671EW1 ITW4971DQ0 ITW4971EW1 ITW4871FW2 ITW4771DQ0 ITW4771EW0

FAQs

This set combines the W10913953 washer shift actuator with the W10721967 clutch kit. W10006384 is also included among the associated part numbers. Match your original components and washer service information before ordering.
Common symptoms include failure to shift between wash and spin, a tub that will not spin, poor agitation, grinding or clicking noises, incomplete cycles, and an error code related to shifting or spin operation. Other issues, such as a worn drive belt, pulley, splutch, motor, or control system, can produce similar symptoms.
Confirm that your washer requires W10913953, W10721967, or W10006384. The model number is normally located under the washer lid, around the door opening, or on the rear cabinet. Part-number matching is more reliable than matching by appearance alone.
Unplug the washer and inspect the drive belt, pulley or splutch, motor connections, wiring harness, and mounting points for wear or damage. Remove any clothing or debris that may be restricting the basket, and verify that the washer is level before diagnosing a spin or agitation problem.
Installation is generally a moderate appliance repair because the actuator and clutch are accessed from the lower drive area. Basic hand tools such as a screwdriver or nut driver, pliers, and a socket set are commonly used. Allow roughly 45 to 90 minutes for a first-time repair, depending on the washer design and access.
