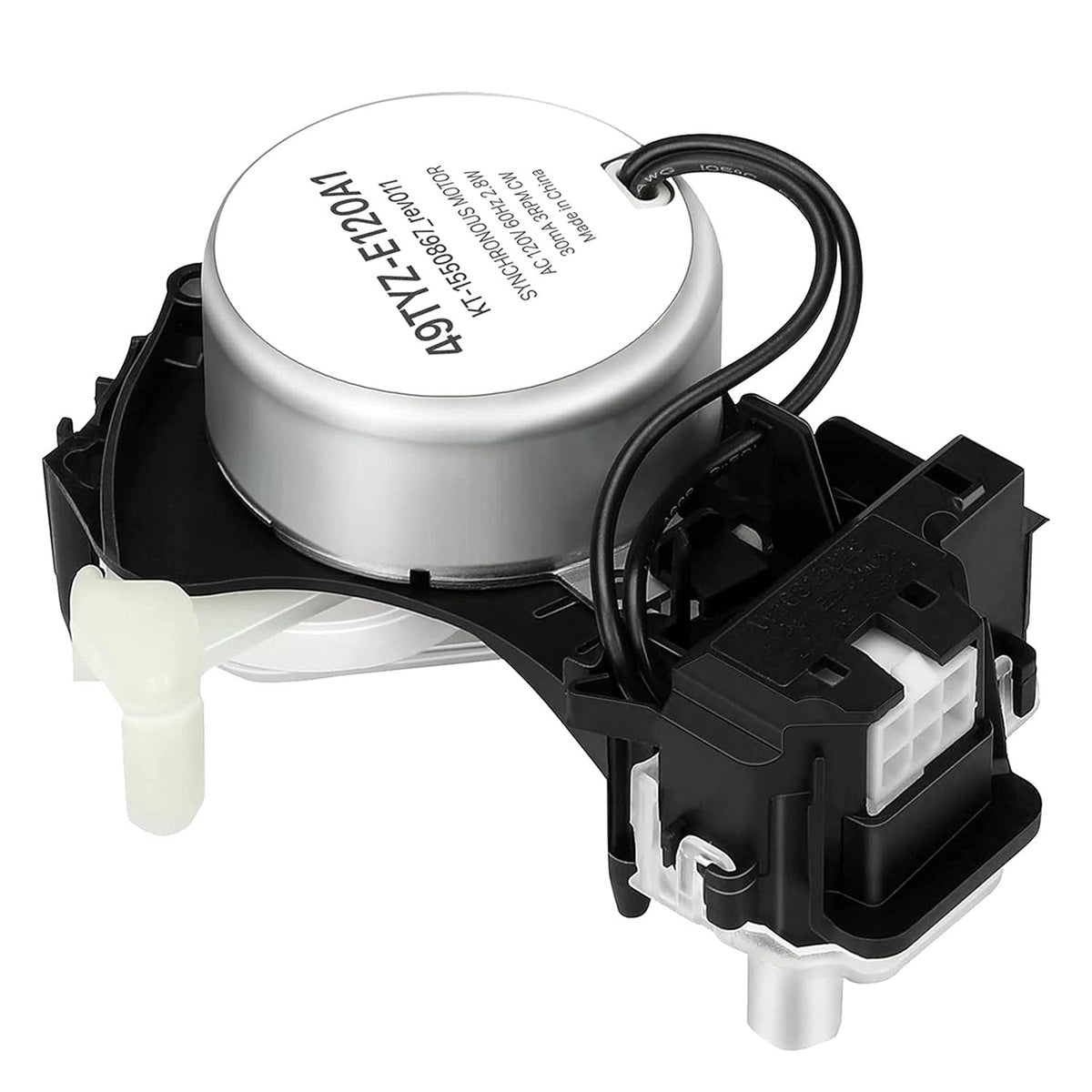

W10913953 49TYZ-E120A1 washer shift actuator replacement motor with electrical connector and mounting bracket.

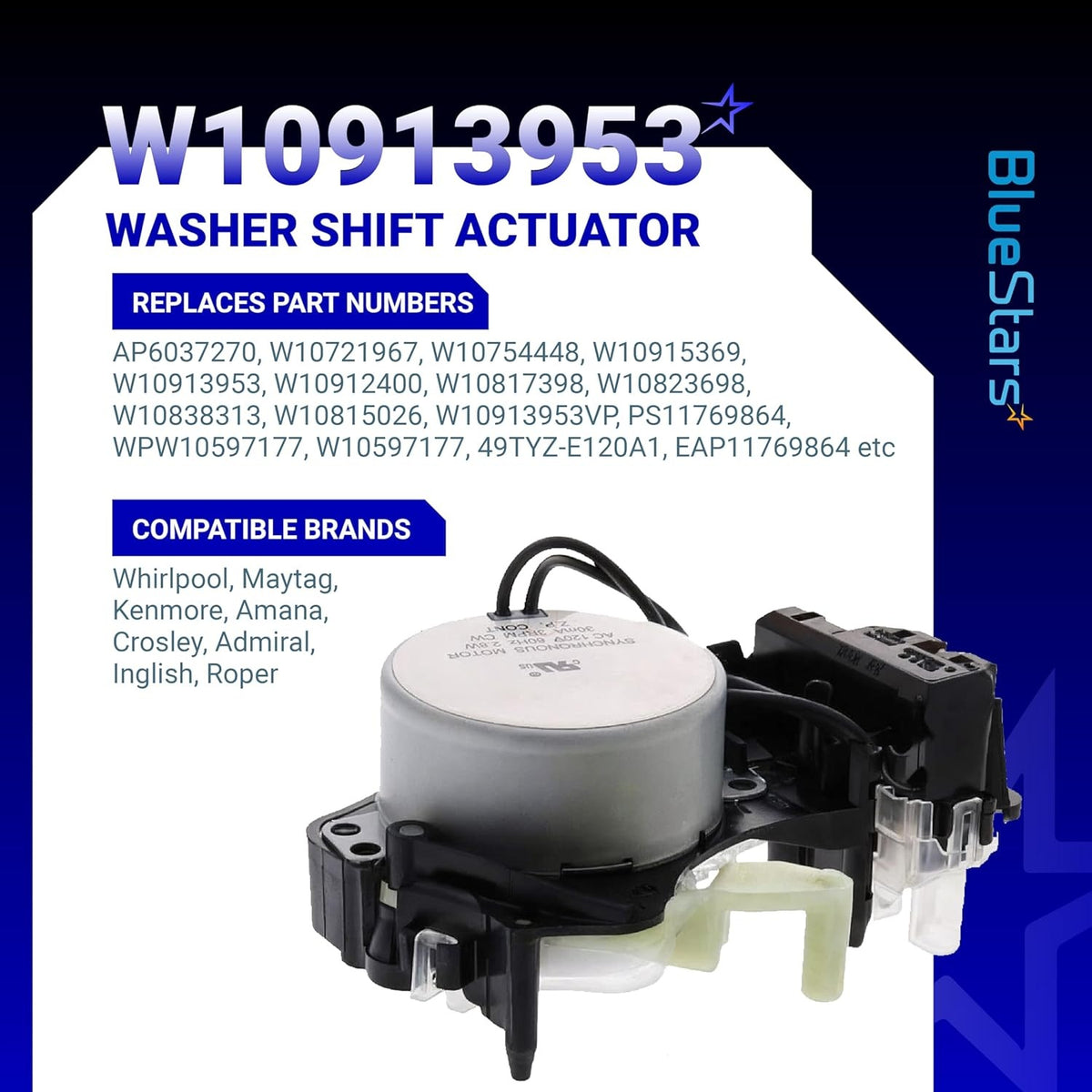

W10913953 washer shift actuator replacement part with compatibility information graphic.

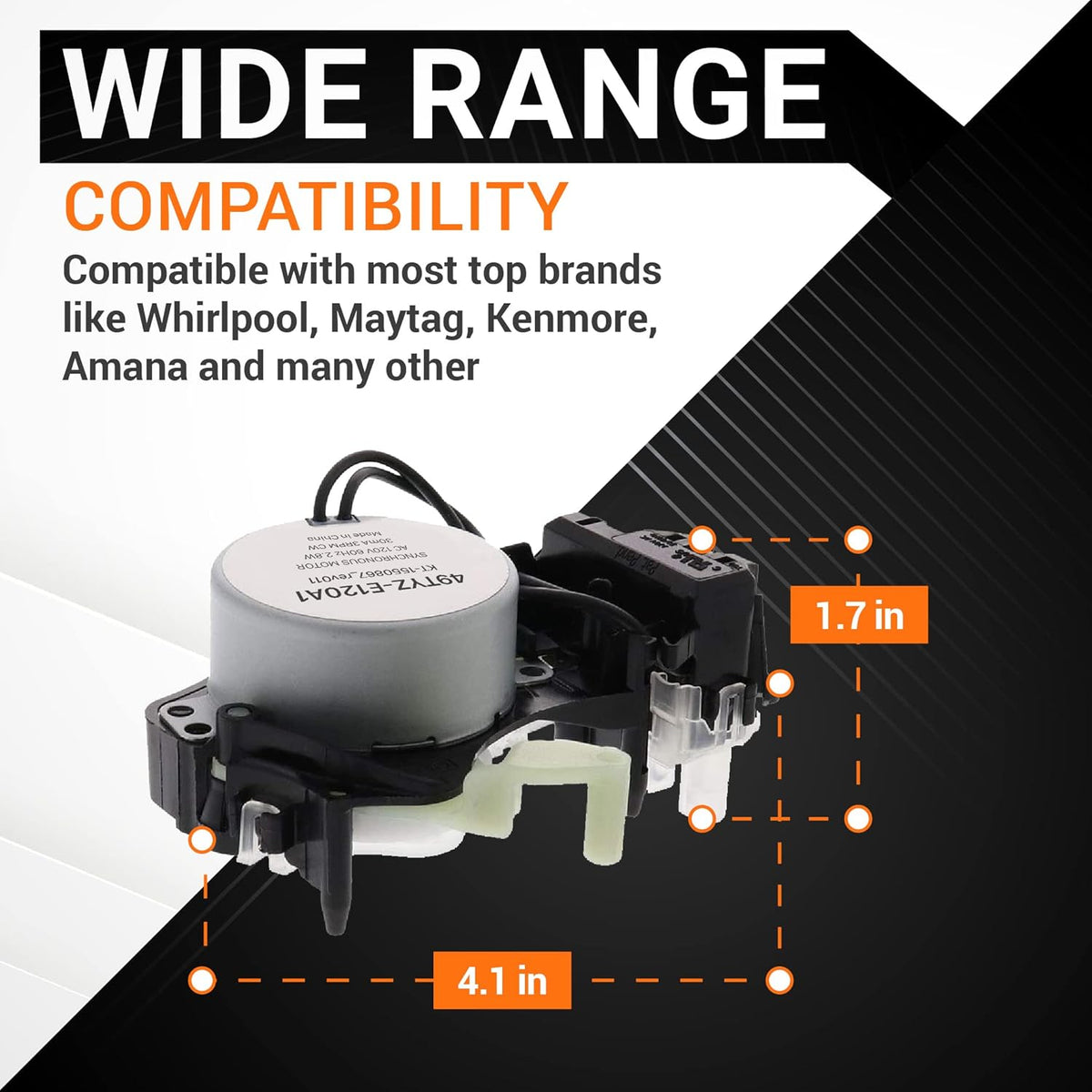

W10913953 washer shift actuator showing dimensions and technical specifications for Whirlpool and Kenmore appliances.
W10913953 49tyz-e120a1 washer shift actuator replacement part shown in a promotional graphic for laundry appliances.
W10913953 washer shift actuator features, highlighting ABS housing, 6-pin connector, and metal gear construction.
W10913953 washer shift actuator showing common appliance failure symptoms and compatibility with top-load washing machines.
Four-step installation guide for W10913953 washer shift actuator showing removal and replacement process.
Compatibility chart for W10913953 washer shift actuator listing Whirlpool, Maytag, and Kenmore model numbers.
Compatibility chart for W10913953 washer shift actuator listing compatible Amana, Crosley, Inglis, Admiral, and Roper models.
W10913953 49TYZ-E120A1 washer shift actuator replacement motor with electrical connector and mounting bracket.
W10913953 washer shift actuator replacement part with compatibility information graphic.
W10913953 washer shift actuator showing dimensions and technical specifications for Whirlpool and Kenmore appliances.
W10913953 49tyz-e120a1 washer shift actuator replacement part shown in a promotional graphic for laundry appliances.

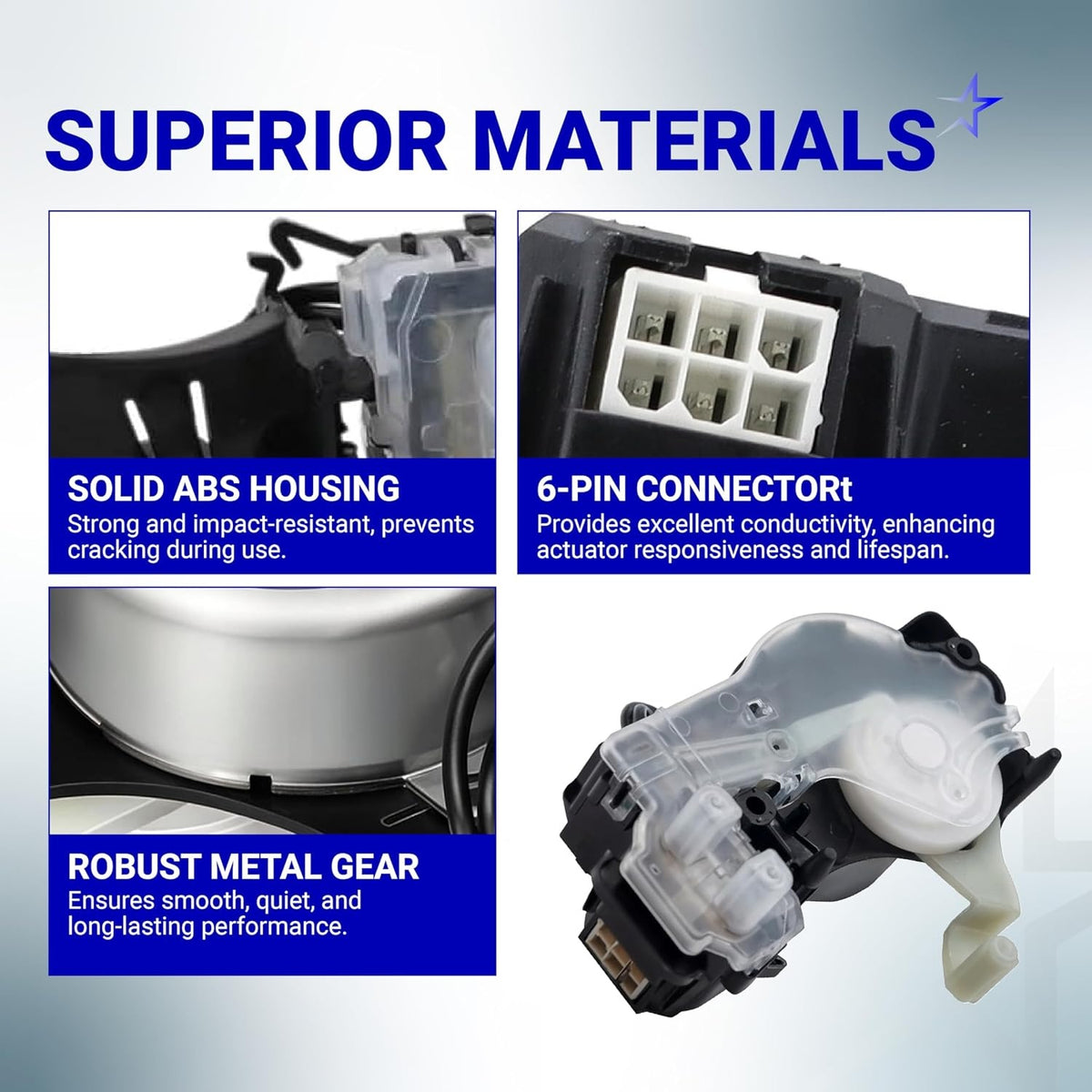

W10913953 washer shift actuator features, highlighting ABS housing, 6-pin connector, and metal gear construction.
W10913953 washer shift actuator showing common appliance failure symptoms and compatibility with top-load washing machines.
Four-step installation guide for W10913953 washer shift actuator showing removal and replacement process.

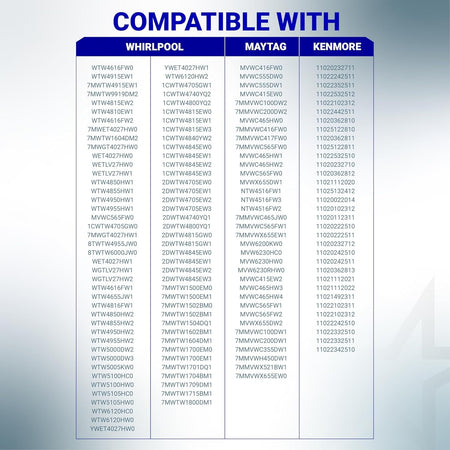

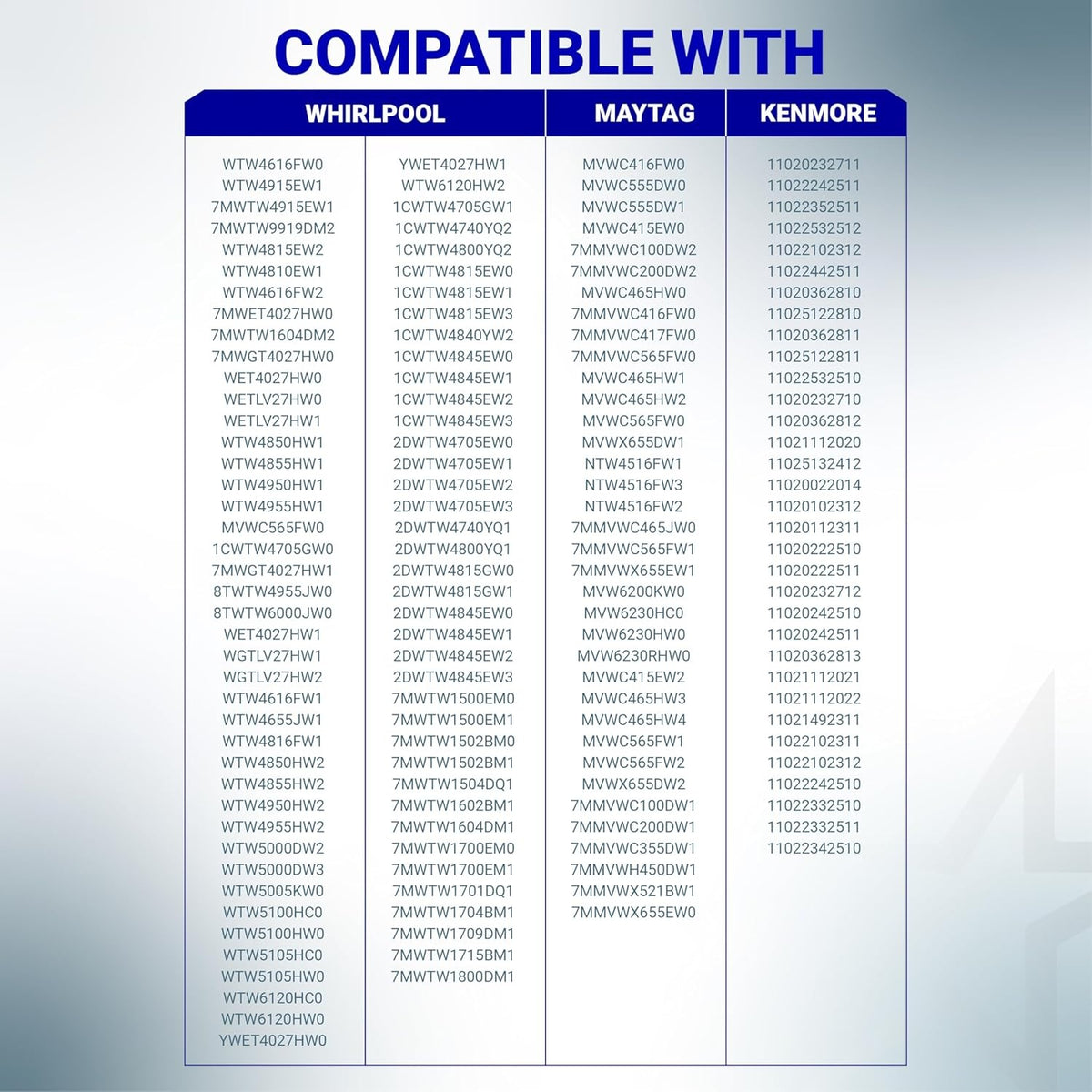

Compatibility chart for W10913953 washer shift actuator listing Whirlpool, Maytag, and Kenmore model numbers.

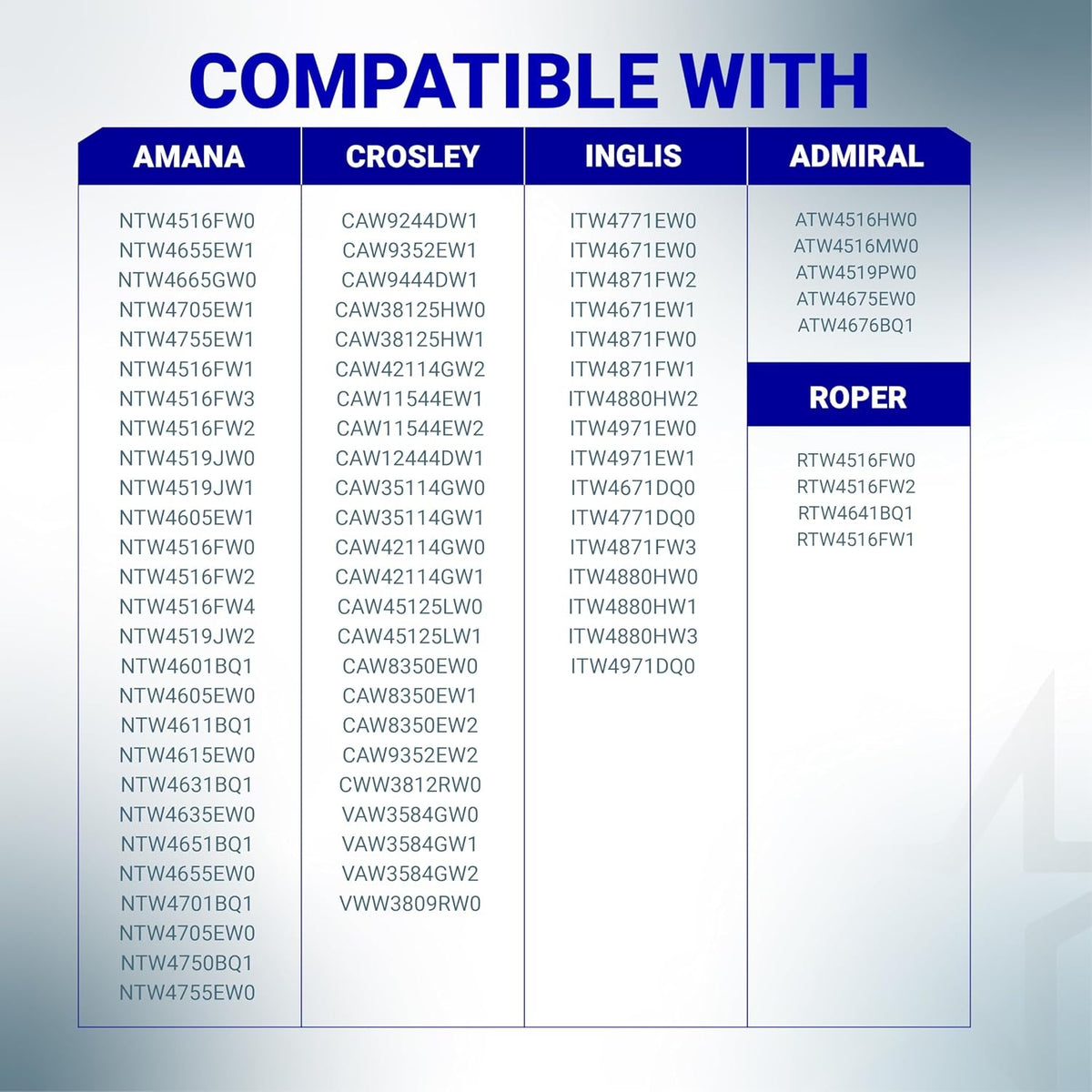

Compatibility chart for W10913953 washer shift actuator listing compatible Amana, Crosley, Inglis, Admiral, and Roper models.
Lifetime Warranty

[Lifetime Warranty] W10913953 49TYZ-E120A1 Washer Shift Actuator Replacement - Compatible with Whirlpool Kenmore - Replaces W10815026 PS11769864 W10597177 WPW10597177 W10913953VP AP6037270

Save 13%
0.00
$38.51
$44.29
$38.51
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
๐Ÿ› ๏ธ
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

W10913953 / 49TYZ-E120A1 Washer Shift Actuator

Key Features

  • Controls the transition between agitate and spin cycles.
  • Synchronizes the motor, transmission, and tub movement.
  • Includes an optical sensor to monitor motor speed and position.

Replaces / Cross-Reference Part Numbers

  • AP6037270
  • PS11769864
  • W10815026
  • W10597177
  • WPW10597177
  • W10913953VP
  • 4455082
  • EAP11769864
  • PD00032232
  • 49TYZ-E120A1

Compatibility & Fitment

  • Fits specific top-load washer models.
  • Compatible with select models from Amana, Crosley, Inglis, Kenmore, Maytag, Roper, and Whirlpool.

When to Replace

  • Washer fails to agitate or spin.
  • Machine stops mid-cycle.
  • Grinding or clicking noises occur during cycle transitions.
  • Actuator-related fault codes are displayed on the control panel.

Installation Tips

  • Disconnect power and water supply to the washer before servicing.
  • The actuator is typically located on the bottom of the gearcase, accessible by tilting the machine.
  • Remove the drive belt and mounting hardware to detach the old unit.
  • After installation, run a system calibration or diagnostic cycle to ensure the control board recognizes the new component.
Product image
Product image
Product image

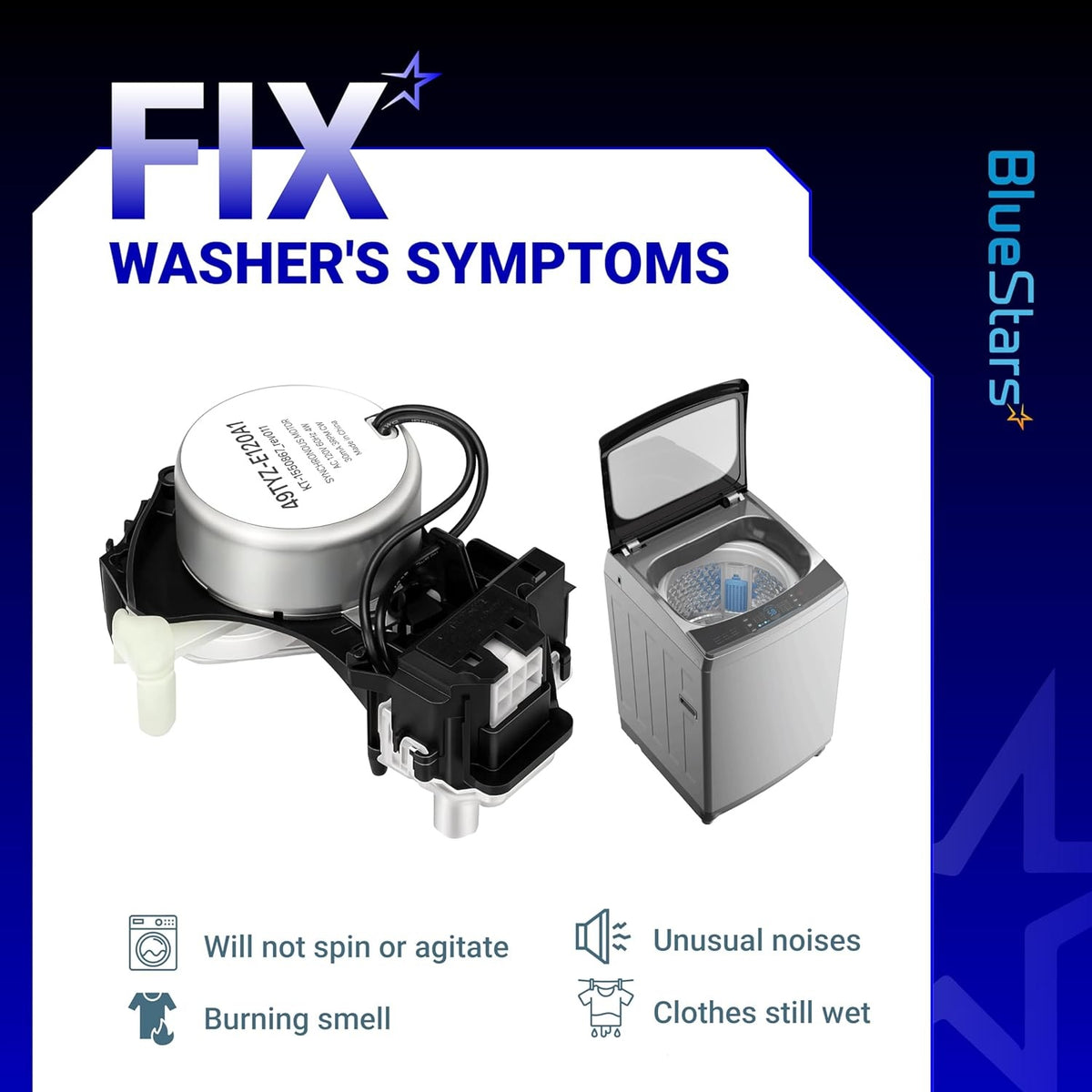

  • FIX WASHER'S SYMPTOMS:

    FIX WASHER'S SYMPTOMS:

    Will not spin or agitate | Burning smell | Unusual noises | Clothes still wet
  • RELIABLE QUALITY

    RELIABLE QUALITY

    W10913953 Shift Actuator is made from high-quality, durable plastic & metal materials for long-lasting reliability and consistent washer performance
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

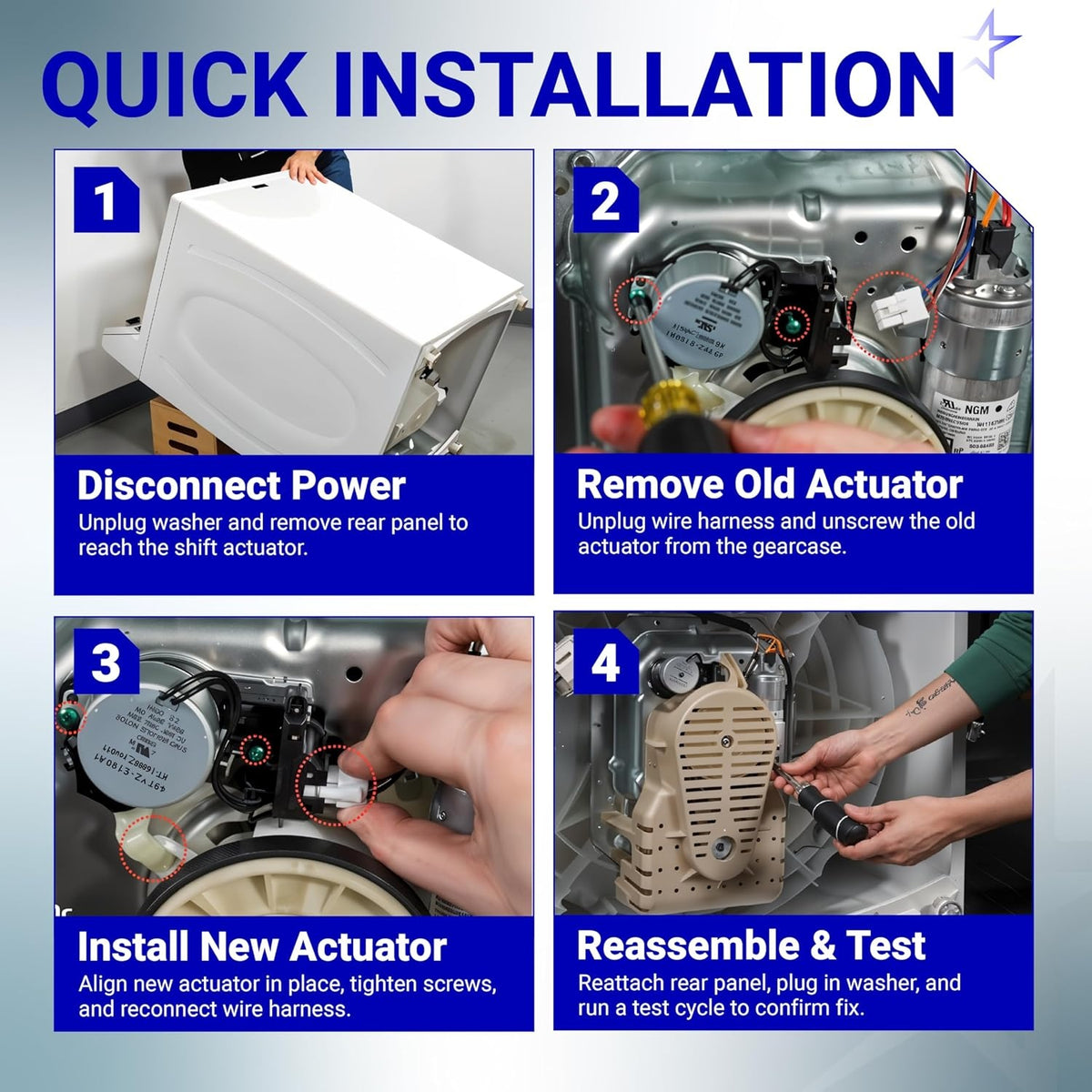

4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug washer and remove rear panel to reach the shift actuator; 2. Unplug wire harness and unscrew the old actuator from the gearcase; 3. Align new actuator in place, tighten screws, and reconnect wire harness; 4. Reattach rear panel, plug in washer, and run a test cycle to confirm fix.
Brand Model Number
Replaces 4455082, 50SM21-1-221B, AP6037270, EAP11769864, KT-155867_rev011, PD00032232, PS11769864, W10597177, W10815026, W10913953VP, WPW10597177
Admiral ATW4516HW0, ATW4516MW0, ATW4519PW0, ATW4675EW0, ATW4676BQ1
Amana NTW4516FW0, NTW4516FW1, NTW4516FW2, NTW4516FW3, NTW4516FW4, NTW4519JW0, NTW4519JW1, NTW4519JW2, NTW4601BQ1, NTW4605EW0, NTW4605EW1, NTW4611BQ1, NTW4615EW0, NTW4631BQ1, NTW4635EW0, NTW4651BQ1, NTW4655EW0, NTW4655EW1, NTW4665GW0, NTW4701BQ1, NTW4705EW0, NTW4705EW1, NTW4750BQ1, NTW4755EW0, NTW4755EW1
Crosley CAW8350EW0, CAW8350EW1, CAW8350EW2, CAW9244DW1, CAW9352EW1, CAW9352EW2, CAW9444DW1, CAW11544EW1, CAW11544EW2, CAW12444DW1, CAW35114GW0, CAW35114GW1, CAW38125HW0, CAW38125HW1, CAW42114GW0, CAW42114GW1, CAW42114GW2, CAW45125LW0, CAW45125LW1, CWW3812RW0, VAW3584GW0, VAW3584GW1, VAW3584GW2, VWW3809RW0
Inglis ITW4671DQ0, ITW4671EW0, ITW4671EW1, ITW4771DQ0, ITW4771EW0, ITW4871FW0, ITW4871FW1, ITW4871FW2, ITW4871FW3, ITW4880HW0, ITW4880HW1, ITW4880HW2, ITW4880HW3, ITW4971DQ0, ITW4971EW0, ITW4971EW1
Kenmore 1105072012, 1105142510, 1105142511, 1105142512, 11020022014, 11020102312, 11020112311, 11020222510, 11020222511, 11020232710, 11020232711, 11020232712, 11020242510, 11020242511, 11020362810, 11020362811, 11020362812, 11020362813, 11021112020, 11021112021, 11021112022, 11021492311, 11022102311, 11022102312, 11022242510, 11022242511, 11022332510, 11022332511, 11022342510, 11022342511, 11022342512, 11022352510, 11022352511, 11022442510, 11022442511, 11022442512, 11022532510, 11022532511, 11022532512, 11023102311, 11025102311, 11025122810, 11025122811, 11025132410, 11025132411, 11025132412, 11031312021, 11031312022
Maytag 7MMVWC100DW1, 7MMVWC100DW2, 7MMVWC200DW1, 7MMVWC200DW2, 7MMVWC355DW1, 7MMVWC415FW0, 7MMVWC416FW0, 7MMVWC417FW0, 7MMVWC465JW0, 7MMVWC565FW0, 7MMVWC565FW1, 7MMVWH450DW1, 7MMVWX521BW1, 7MMVWX655EW0, 7MMVWX655EW1, 7MMVWX722BG1
Maytag MVW4505MW0, MVW4505MW1, MVW4505MW2, MVW5035MW0, MVW5035MW1, MVW5035MW2, MVW5430MW0, MVW5430MW1, MVW5430MW2, MVW5430PBK0, MVW5430PBK1, MVW5435PBK0, MVW5435PBK1, MVW5435PW0, MVW5435PW1, MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6200KW3, MVW6200KW4, MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HC3, MVW6230HW0, MVW6230HW1, MVW6230HW2, MVW6230RHW0, MVW6230RHW1, MVW6230RHW2, MVW6230RHW3, MVW6500MBK0, MVW6500MW0
Maytag MVWC200BW1, MVWC215EW0, MVWC215EW1, MVWC300BW1, MVWC415EW0, MVWC415EW1, MVWC415EW2, MVWC416FW0, MVWC416FW1, MVWC425BW1, MVWC465HW0, MVWC465HW1, MVWC465HW2, MVWC465HW3, MVWC465HW4, MVWC555DW0, MVWC555DW1, MVWC565FW0, MVWC565FW1, MVWC565FW2, MVWC565FW3, MVWP475EW0, MVWX655DW0, MVWX655DW1, MVWX655DW2, NTW4516FW1, NTW4516FW2, NTW4516FW3, RTW4519PW0
Roper RTW4516FW0, RTW4516FW1, RTW4516FW2, RTW4641BQ1
Whirlpool 1CWTW4705GW0, 1CWTW4705GW1, 1CWTW4740YQ2, 1CWTW4800YQ2, 1CWTW4815EW0, 1CWTW4815EW1, 1CWTW4815EW3, 1CWTW4840YW2, 1CWTW4845EW0, 1CWTW4845EW1, 1CWTW4845EW2, 1CWTW4845EW3, 2DWTW4705EW0, 2DWTW4705EW1, 2DWTW4705EW2, 2DWTW4705EW3, 2DWTW4740YQ1, 2DWTW4800YQ1, 2DWTW4815GW0, 2DWTW4815GW1, 2DWTW4845EW0, 2DWTW4845EW1, 2DWTW4845EW2, 2DWTW4845EW3
Whirlpool 7MWET4027HW0, 7MWGT4027HW0, 7MWGT4027HW1, 7MWTW1500EM0, 7MWTW1500EM1, 7MWTW1502BM0, 7MWTW1502BM1, 7MWTW1504DQ1, 7MWTW1602BM1, 7MWTW1604DM1, 7MWTW1604DM2, 7MWTW1700EM0, 7MWTW1700EM1, 7MWTW1701DQ1, 7MWTW1704BM1, 7MWTW1709DM1, 7MWTW1715BM1, 7MWTW1801BQ1, 7MWTW1805DM1, 7MWTW1805EM0, 7MWTW1805EM1, 7MWTW1808AW1, 7MWTW1812AW1, 7MWTW1905DW1, 7MWTW1935DW1, 7MWTW1950EW0, 7MWTW1950EW1, 7MWTW1955EW0, 7MWTW1955EW1, 7MWTW4915EW0, 7MWTW4915EW1, 7MWTW4925EW0, 7MWTW4925EW1, 7MWTW5521BW1, 7MWTW5622BW1, 7MWTW9919DM1, 7MWTW9919DM2, 7MWTW9920EM0
Whirlpool 8TWTW4955JW0, 8TWTW4955JW1, 8TWTW5010PW0, 8TWTW5010PW1, 8TWTW5057PW0, 8TWTW5057PW1, 8TWTW6000JW0, 8TWTW6000JW1, MVW4505MW0, MVWC565FW0, MVWX655DW0, WET4027HW0, WET4027HW1, WET4027HW2, WETLV27HW0, WETLV27HW1, WETLV27HW3, WGT4027HW0, WGT4027HW2, WGTLV27HW0, WGTLV27HW1, WGTLV27HW2
Whirlpool WTW4616FW0, WTW4616FW1, WTW4616FW2, WTW4616FW3, WTW4655JW1, WTW4655JW2, WTW4715EW0, WTW4715EW2, WTW4800BQ1, WTW4810BQ1, WTW4810EW0, WTW4810EW1, WTW4810EW2, WTW4815EW0, WTW4815EW1, WTW4815EW2, WTW4816FW0, WTW4816FW1, WTW4816FW2, WTW4816FW3, WTW4850BW1, WTW4850BW2, WTW4850HW0, WTW4850HW1, WTW4850HW2, WTW4850HW3, WTW4855HW0, WTW4855HW1, WTW4855HW2, WTW4855HW3, WTW4900BW1, WTW4915EW0, WTW4915EW1, WTW4915EW2, WTW4950HW0, WTW4950HW1, WTW4950HW2, WTW4950HW3, WTW4955HW0, WTW4955HW1, WTW4955HW2, WTW4955HW3, WTW4957PW0
Whirlpool WTW5000DW0, WTW5000DW1, WTW5000DW2, WTW5000DW3, WTW5005KW0, WTW5010LW0, WTW5010LW1, WTW5015LW0, WTW5015LW1, WTW5057LW0, WTW5057LW1, WTW5100HC0, WTW5100HC1, WTW5100HC2, WTW5100HC3, WTW5100HW0, WTW5100HW1, WTW5100HW2, WTW5100HW3, WTW5105HC0, WTW5105HC1, WTW5105HC2, WTW5105HW0, WTW5105HW1, WTW5105HW2, WTW6120HC0, WTW6120HC1, WTW6120HC3, WTW6120HW0, WTW6120HW1, WTW6120HW2, WTW6120HW3, YWET4027HW0, YWET4027HW1, YWET4027HW2

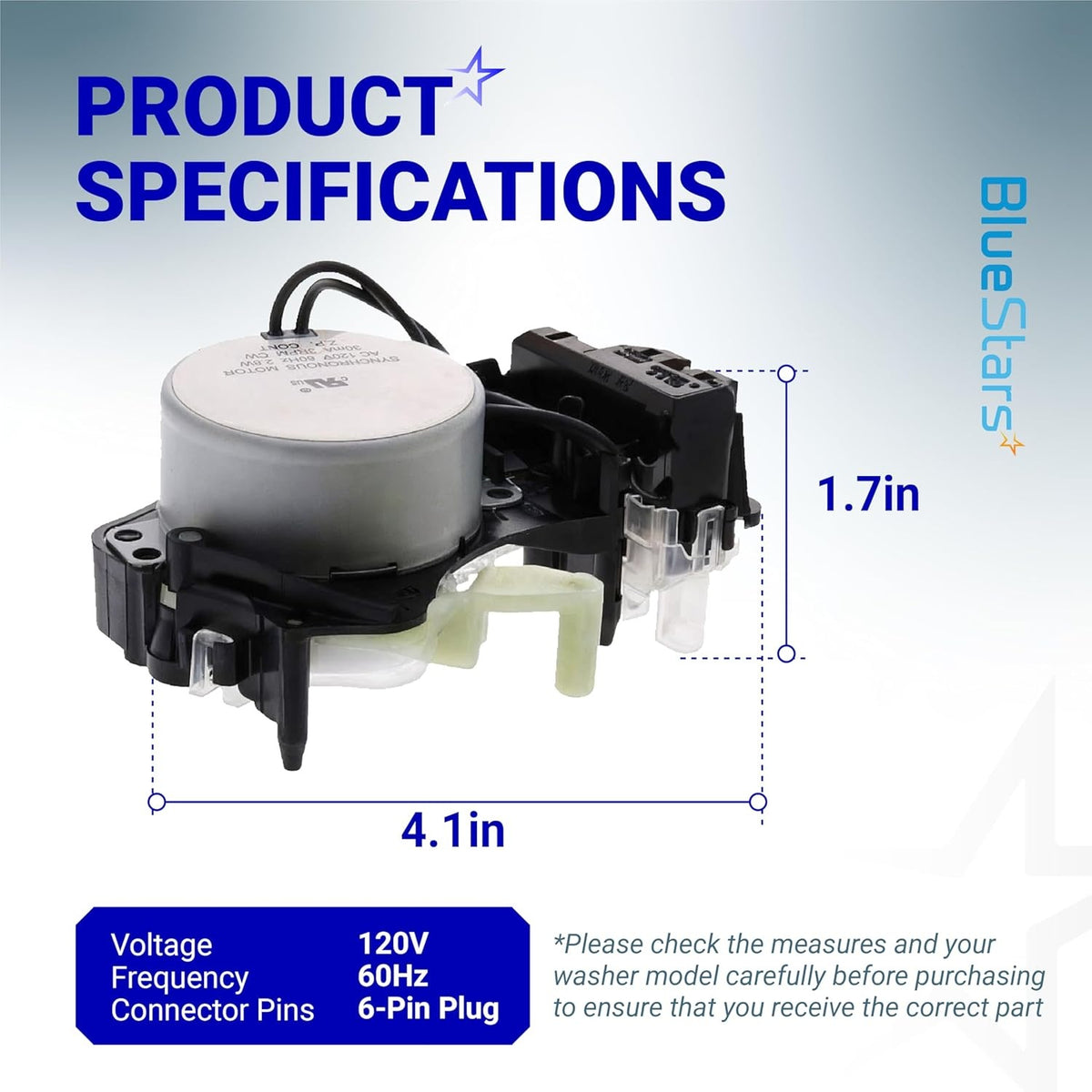

Color
White / Black / Gray
Material
Plastic / Metal
Motor Type
Synchronous Motor
Voltage
120V AC
Frequency
60Hz
Wattage
4W
Speed
3 RPM (CW Rotation)
Connector
6-Pin
Product Dimensions
4-1/4 x 2-3/4 x 1-7/8 inches

FAQ

This shift actuator is compatible with a wide range of top-load washers manufactured by Whirlpool, Kenmore, Maytag, Amana, Admiral, Crosley, Inglis, and Roper. It is designed to work with numerous models, including common units like NTW4516FW, WTW5000DW, MVWC565FW, WTW4816FW, and MVWX655DW.
This part directly replaces OEM numbers W10913953, W10815026, W10597177, WPW10597177, W10913953VP, W11398781, and W11481722. It also cross-references with industry numbers including 49TYZ-E120A1, AP6037270, PS11769864, EAP11769864, 4455082, 50SM21-1-221B, and KT-155867_REV011.
A faulty shift actuator often prevents the washer from transitioning between agitation and spin cycles. Common signs include the washer failing to agitate, refusing to spin, spinning very slowly, or making a clicking sound while attempting to shift modes. In some cases, the machine may cycle from 'sense' to 'done' without actually running the wash cycle.
Replacing the actuator is a manageable repair for most DIYers. You will need to disconnect the power and water supply, then tip the washer (usually onto its front or back, depending on your specific model) to access the bottom panel. After removing the belt guard and belt, you can unscrew the old actuator and slide the new one into place. Always ensure the machine is stable and secure before working underneath it.
The shift actuator is responsible for moving the arm on the cam assembly. This mechanical movement engages and disengages the clutch, allowing the motor to switch the washer between agitation mode (for washing) and spin mode (for water extraction).
