W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter

Key Features

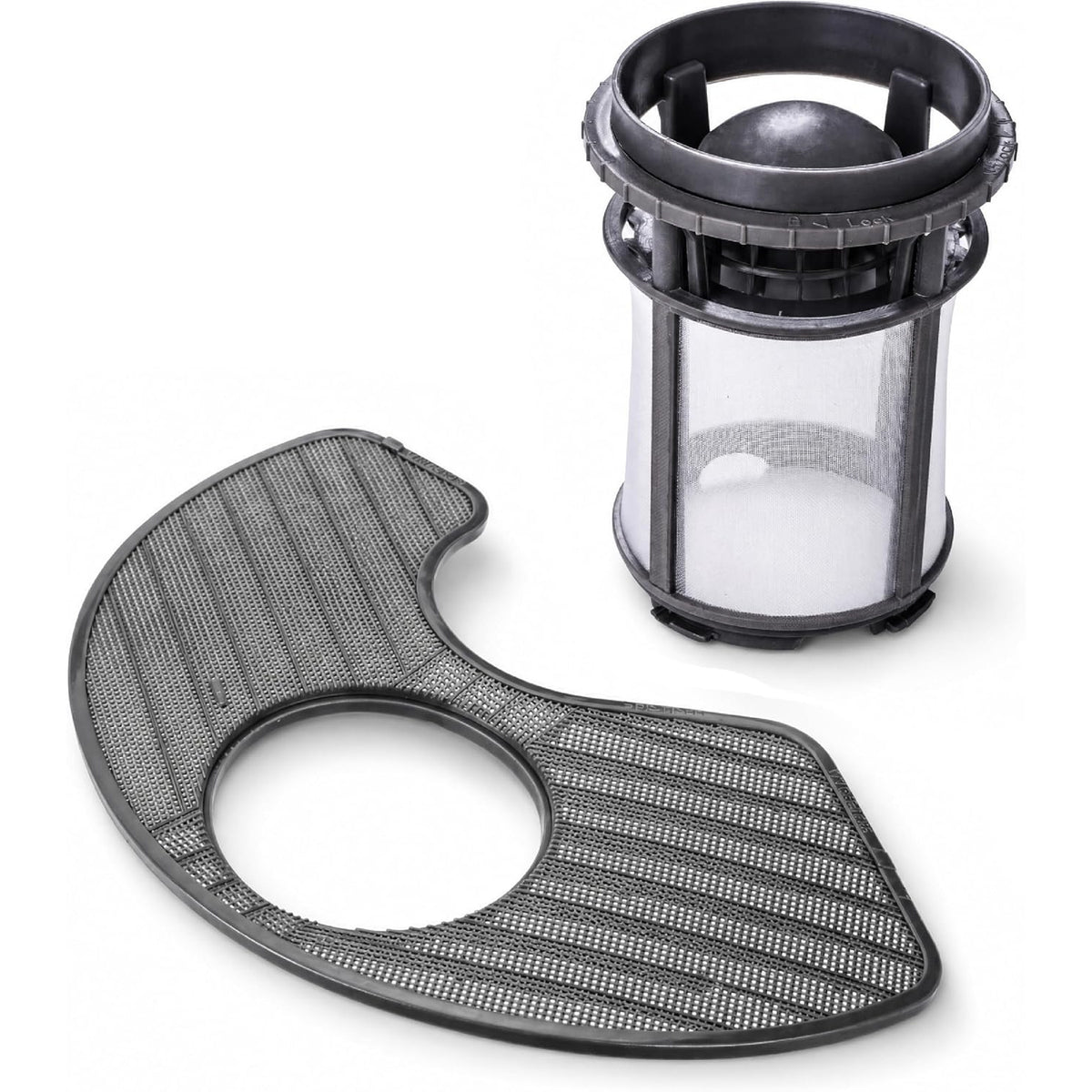

  • Includes one pump filter cup and one screen filter.
  • Color: As pictured.
  • Item model numbers: W10872845 and WPW10463906.
  • Part numbers: W10872845 and WPW10463906.

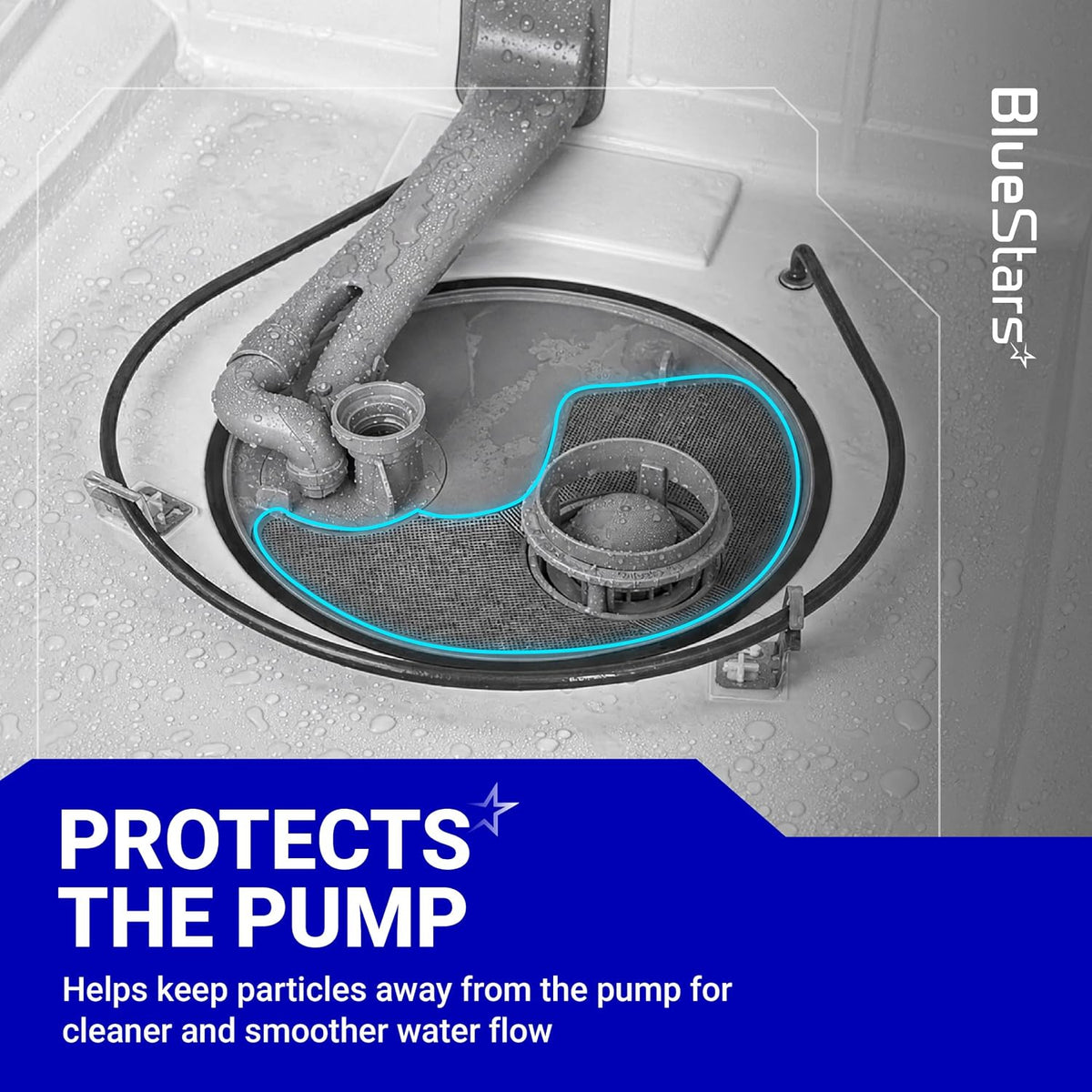

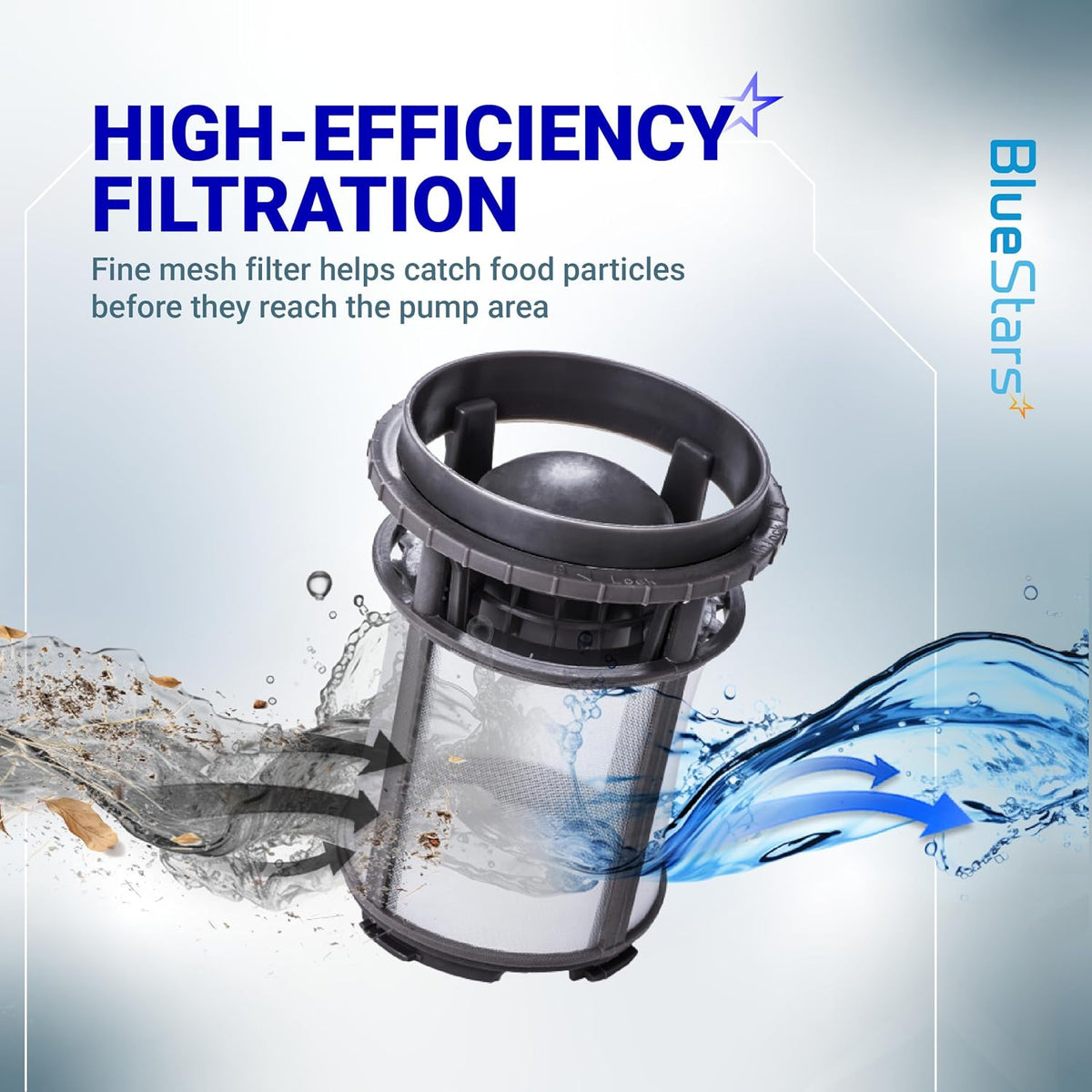

  • The pump filter cup and screen filter collect food particles and debris from wash water before it reaches the dishwasher pump.

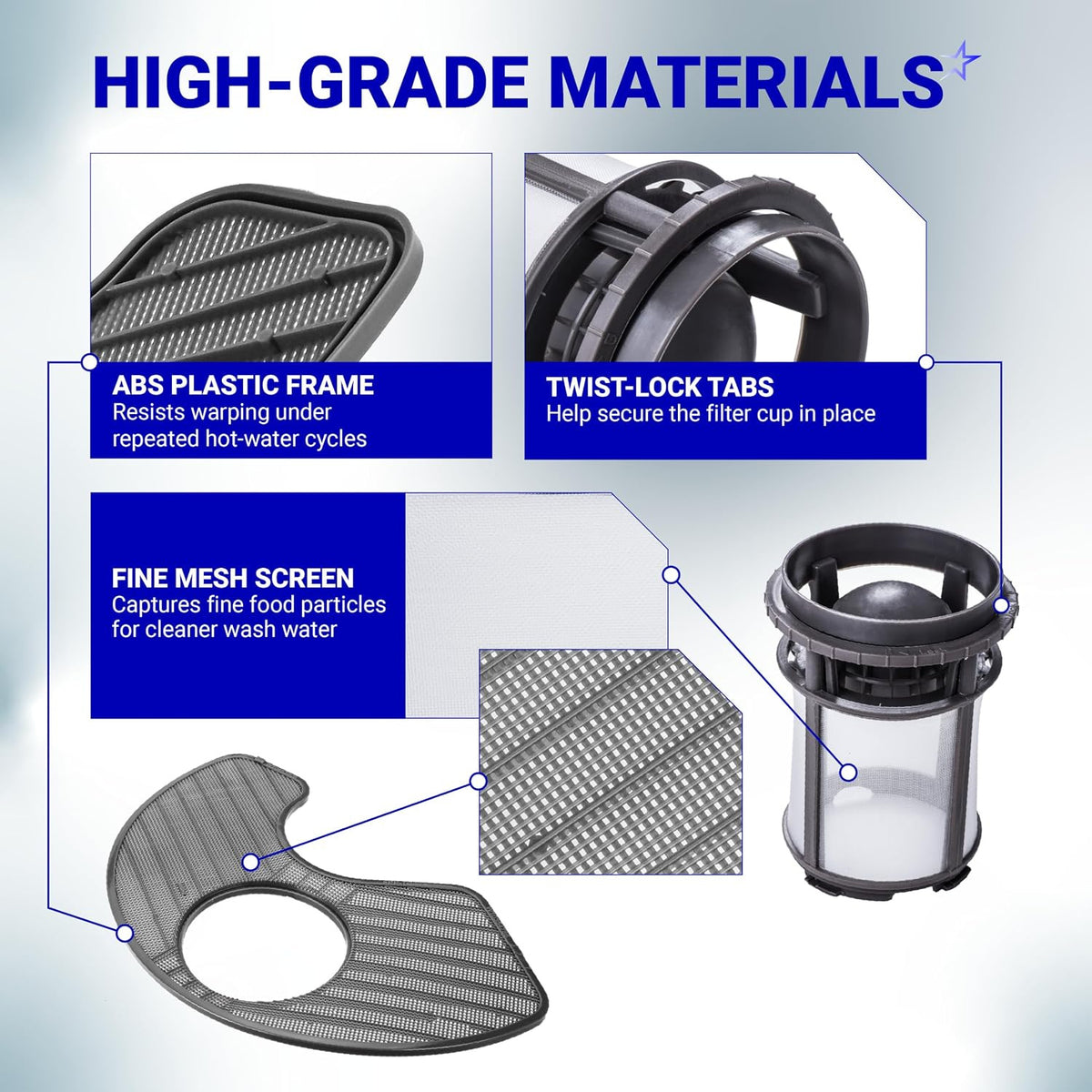

  • The pump filter cup uses a sturdy ABS plastic frame with a fine mesh screen and twist-lock tabs for a secure seat.
  • The screen filter uses perforated mesh to collect fine food particles and support cleaner wash water during each cycle.
  • Both components can be washed with water and a soft brush for routine maintenance.

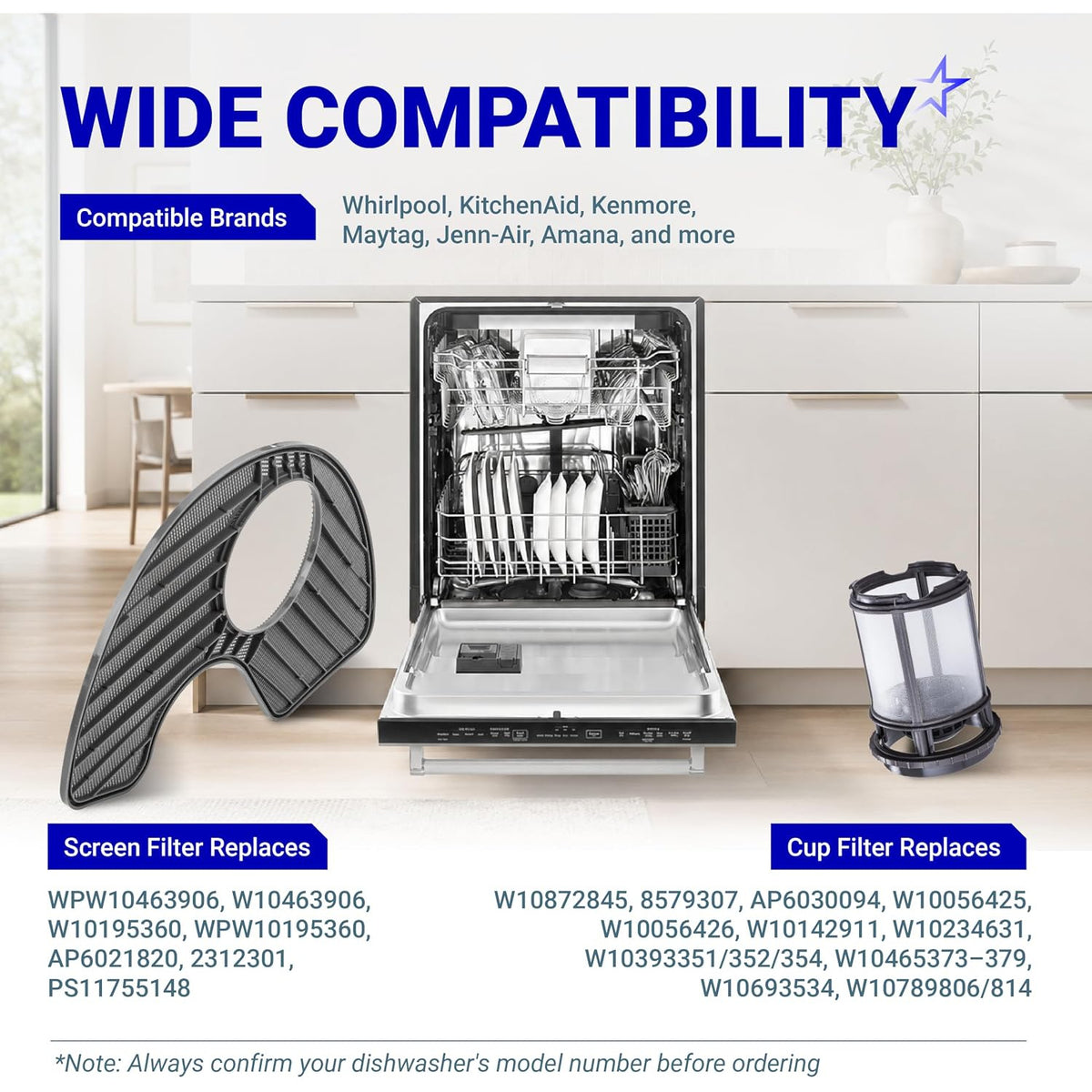

Replaces / Cross-Reference Part Numbers

  • Pump filter cup: W10872845, W10393351, W10393352, W10393354, WPW10693534, W10425171, W10455262, W10455263, W10234631, 8579307, W10465373, W10465374, W10465375, W10465377, W10465378, W10465379, W10056425, W10056426, 4454491, AP6030094, PS11759673, EAP11759673, W10142911, W10300746, W10789806, W10789814.
  • Screen filter: WPW10463906, AP6021820, W10195360, WPW10195360, 2312301, PS11755148, EAP11755148, W10463906.

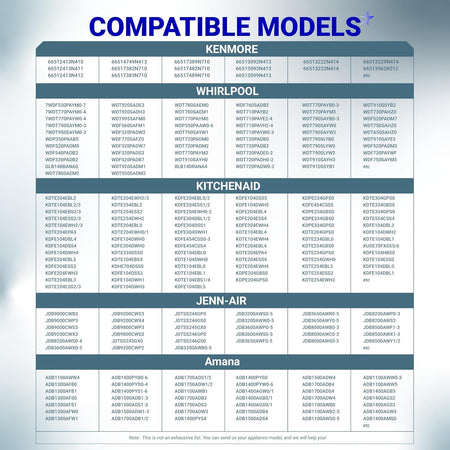

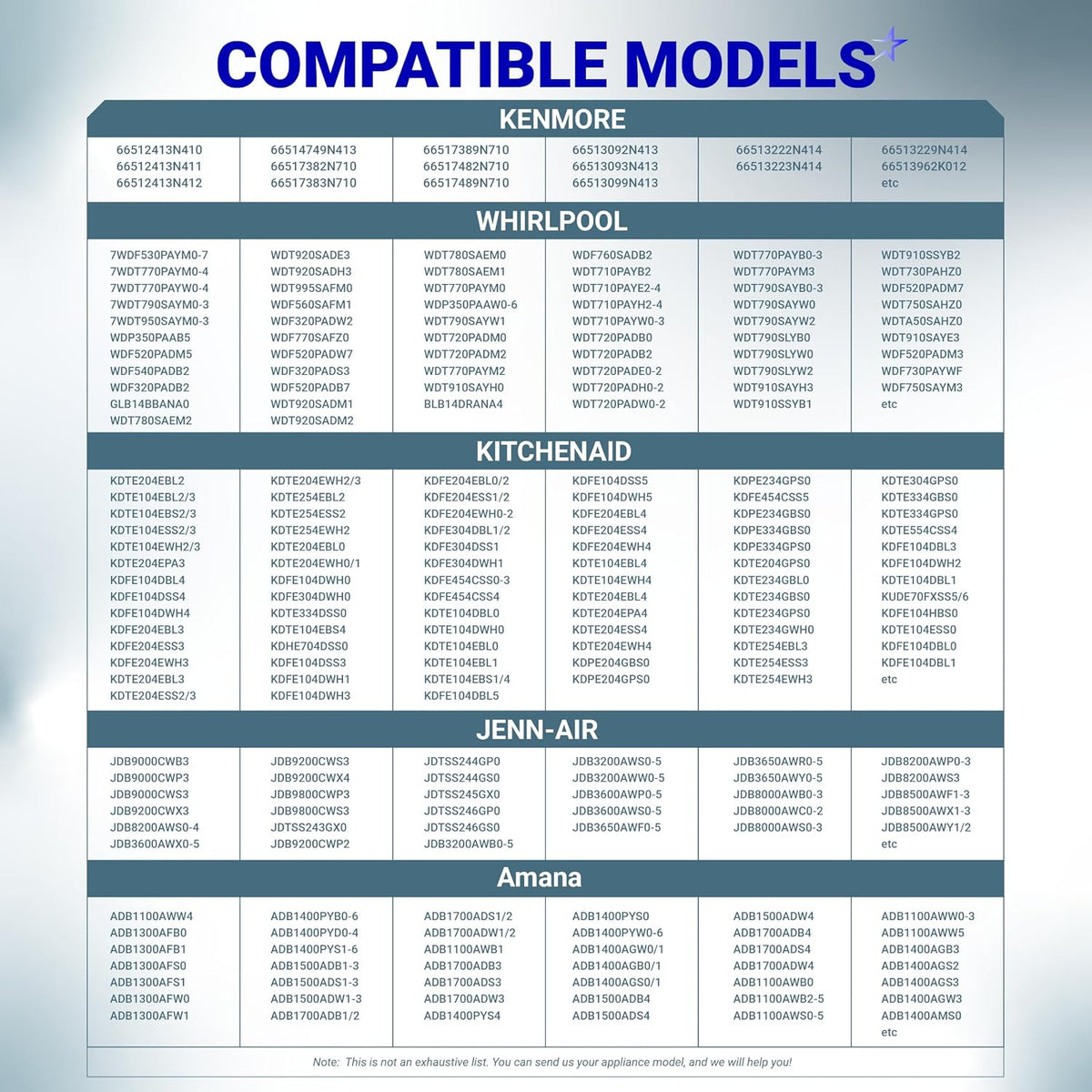

Compatibility & Fitment

Compatible with select dishwashers from Whirlpool, KitchenAid, Kenmore, Maytag, Jenn-Air, Amana, Admiral, and Roper Norge. Confirm the appliance model and existing filter part numbers before ordering, since fitment varies by dishwasher.

When to Replace

  • Dishes are not cleaning properly.
  • Water does not drain fully.
  • Dishes remain wet after a cycle.
  • The filter cup is clogged or difficult to turn.
  • The filter cup or screen is damaged, warped, or no longer seats securely.

Installation Tips

  1. Remove the lower dishwasher rack.
  2. Lift out the old screen filter.
  3. Place the replacement screen filter in position.
  4. Insert the pump filter cup and twist it until the locking tabs secure it.
  5. Clean the filters periodically with water and a soft brush to remove accumulated debris.
W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 1
W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 2
  • W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 1

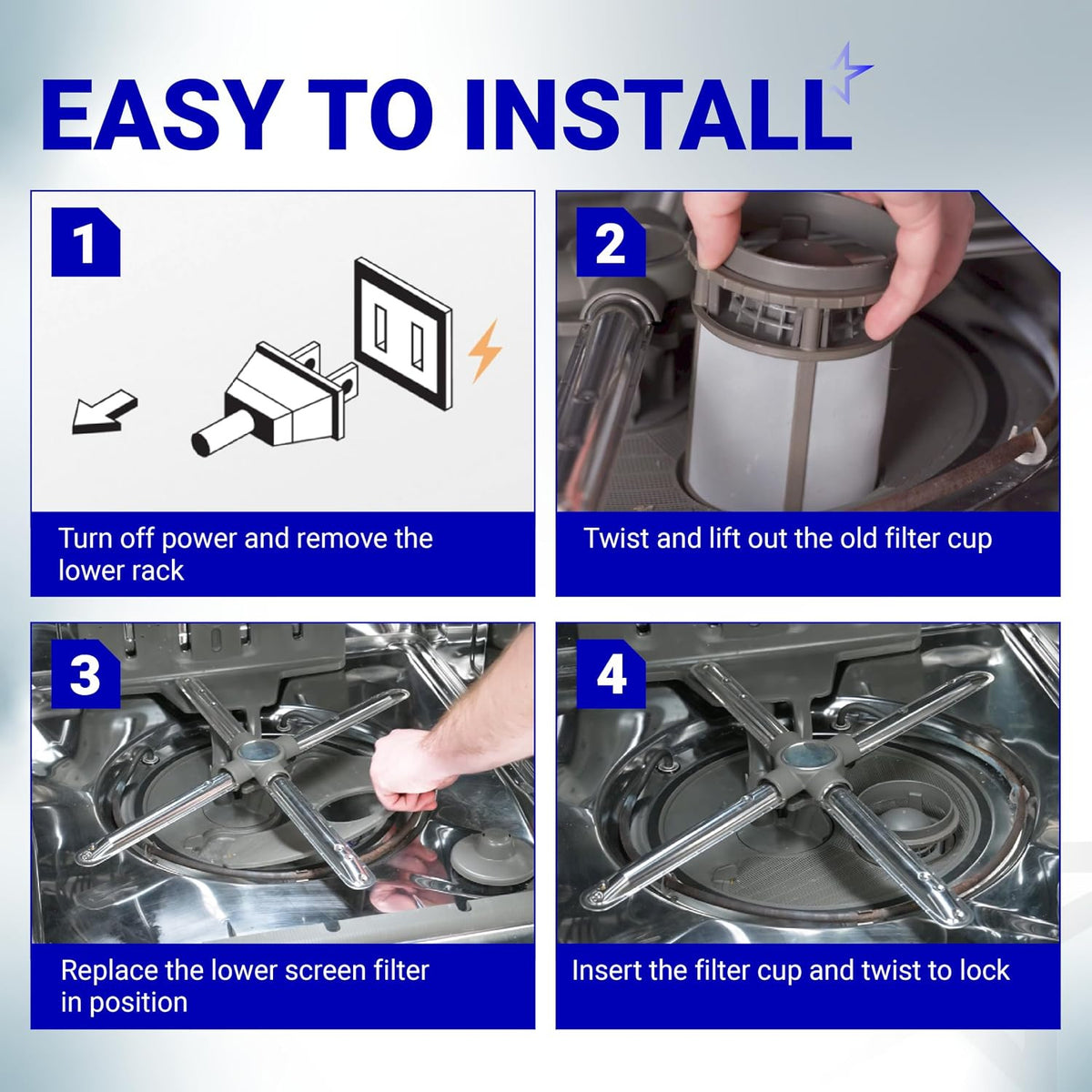

    STEP 1

    Turn off the power and remove the lower rack
  • W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 2

    STEP 2

    Twist and lift out the old filter cup
  • W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 3

    STEP 3

    Replace the lower screen filter in position
  • W10872845 Dishwasher Pump Filter Cup & WPW10463906 Screen Filter 4

    STEP 4

    Insert the filter cup and twist to lock"

A clogged or damaged dishwasher filter can block water flow and allow debris to recirculate. Replace the filter to help restore smoother water flow and cleaner washing performance.

For best performance, rinse the filters regularly with warm water and a soft brush, then reinstall them.
W10872845 PUMP FILTER CUP

W10872845 PUMP FILTER CUP

Replaces: W10393351, W10393352, W10393354, WPW10693534, W10425171, W10455262, W10455263, W10234631, 8579307, W10465373, W10465374, W10465375, W10465377, W10465378, W10465379, W10056425, W10056426, 4454491, AP6030094, PS11759673, EAP11759673, W10142911, W10300746, W10789806, W10789814

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This set replaces dishwasher filter cup W10872845 and screen filter WPW10463906. Confirm that both numbers match the numbers on your existing parts or in your dishwasher’s parts diagram before ordering.
Common signs include standing water, poor cleaning, food particles left on dishes, unpleasant odors, slow draining, or a visibly cracked, warped, or damaged filter. Heavy buildup that does not come off with cleaning is also a reason to replace the filter components.
Installation is generally straightforward and usually requires no special tools. Remove the lower dish rack, take out the existing filter components according to your dishwasher’s service instructions, clean the filter housing, install the replacement cup and screen filter in their correct positions, and confirm they are fully seated before running the dishwasher.
Disconnect power if your dishwasher’s service procedure requires it, remove loose food debris from the sump area, and inspect the filter housing for broken tabs or obstructions. Do not force the filter into place; the cup and screen must sit flat and lock or align correctly for proper filtration.
Food particles, grease, mineral deposits, and detergent residue can accumulate when the filter is not cleaned regularly. Cracks or distortion can result from age, repeated removal, or forcing the filter during cleaning or installation. Rinsing the filter periodically helps reduce buildup and protects the circulation pump.
