[Lifetime Warranty] W10861000 Dishwasher Detergent Dispenser - Compatible with Whirlpool Kitchenaid Dishwasher WDT730PAHZ0 - Replaces W10620296 W10620298 W10620297 PS11731570

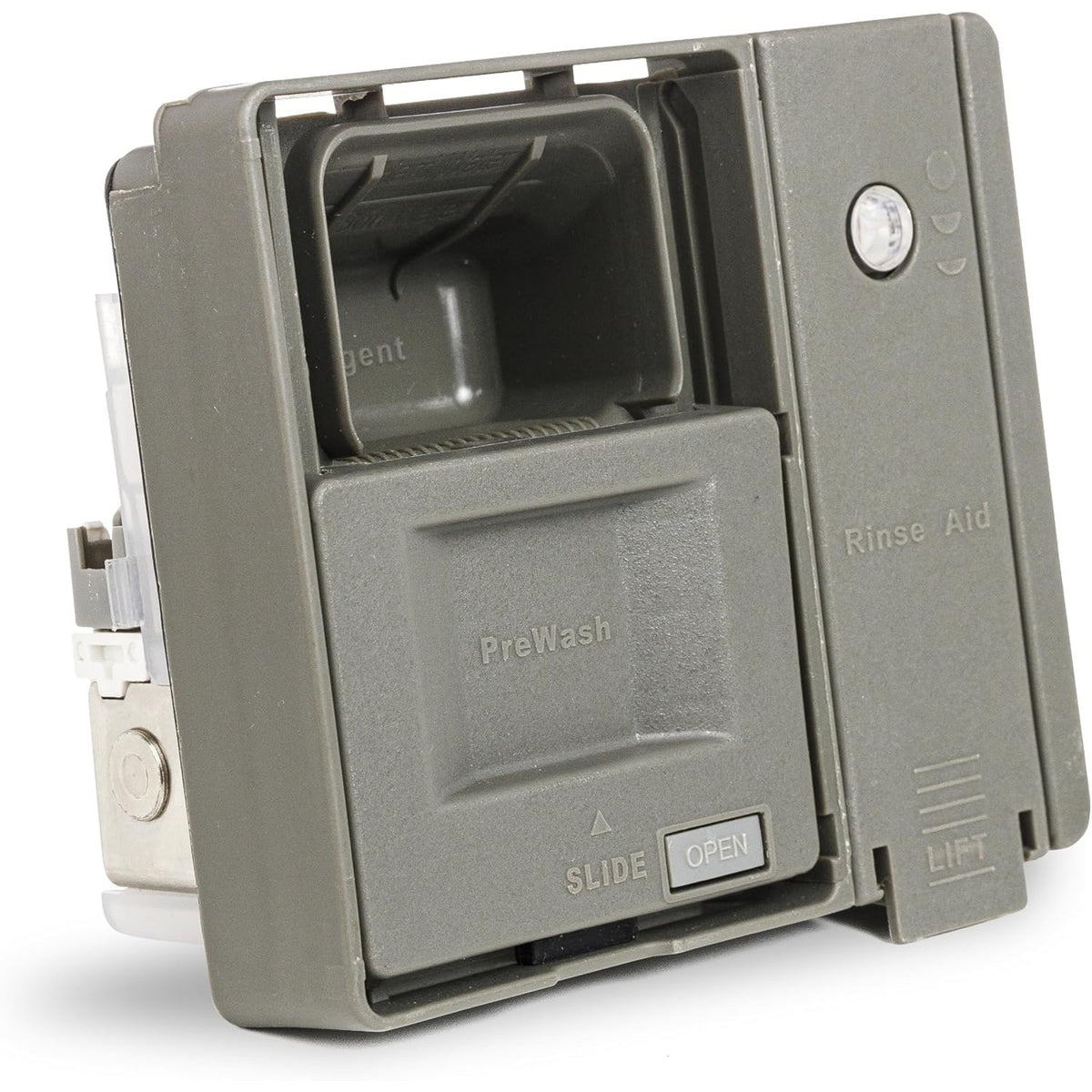

W10861000 Dishwasher Detergent Dispenser

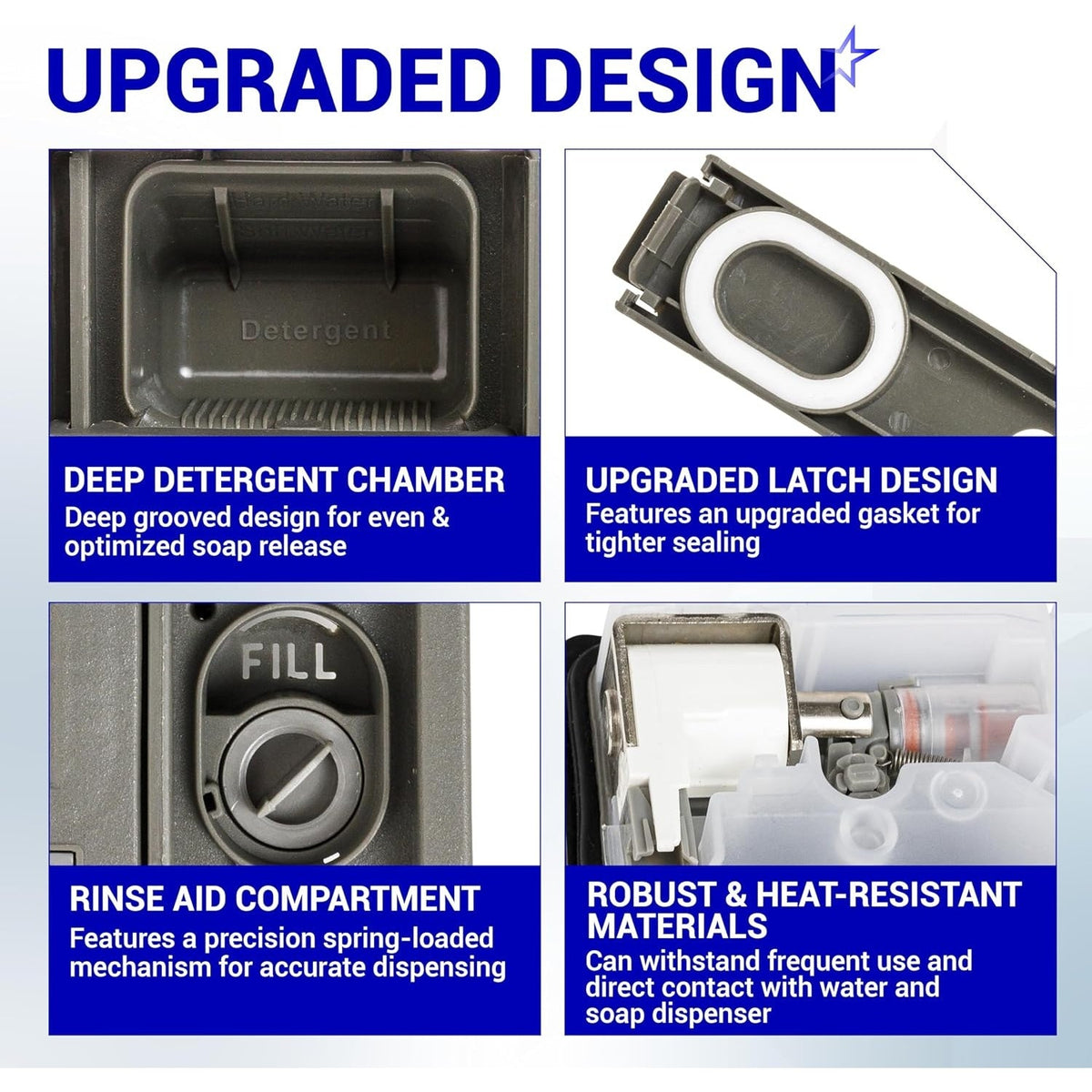

Key Features

• Dual-Function Integrated Design: A single, high-performance module that houses both the main wash detergent compartment and the adjustable rinse aid reservoir for a complete cleaning cycle.

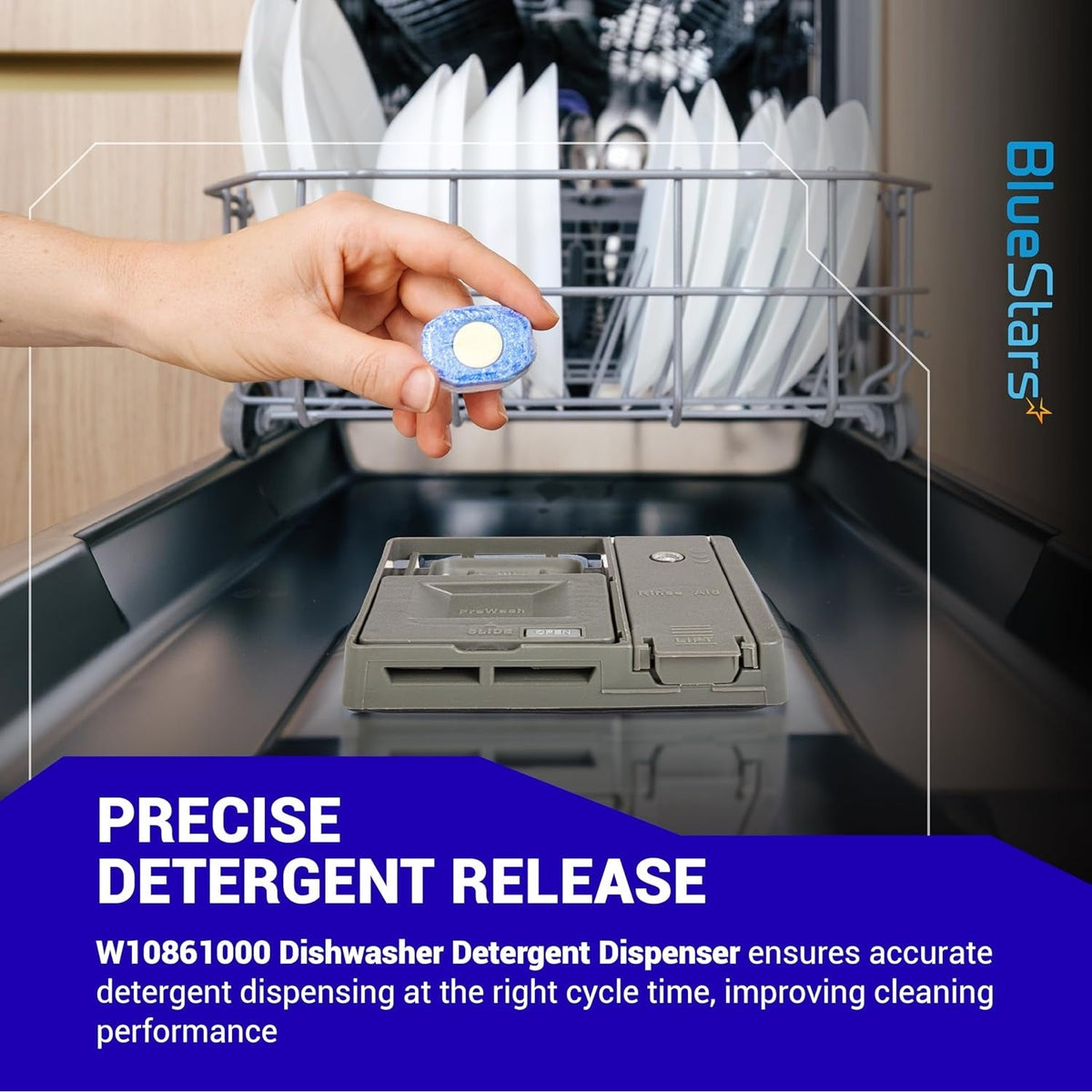

• Precision Sliding Door Mechanism: Features an upgraded internal spring and latch system designed to release the detergent pod or powder at the exact moment required by the wash cycle.
• Adjustable Rinse Aid Dosage: Includes an internal setting dial that allows you to control the amount of rinse aid released per cycle, helping to eliminate spots and film on glassware.
• High-Temperature Seal Integrity: Manufactured with specialized EPDM rubber gaskets that maintain a watertight seal against the inner door panel, even during "High-Temp Wash" and "Sani-Rinse" settings.
• Clear Visual Indicator: Equipped with a transparent optical window that allows you to check rinse aid levels at a glance without opening the reservoir cap.

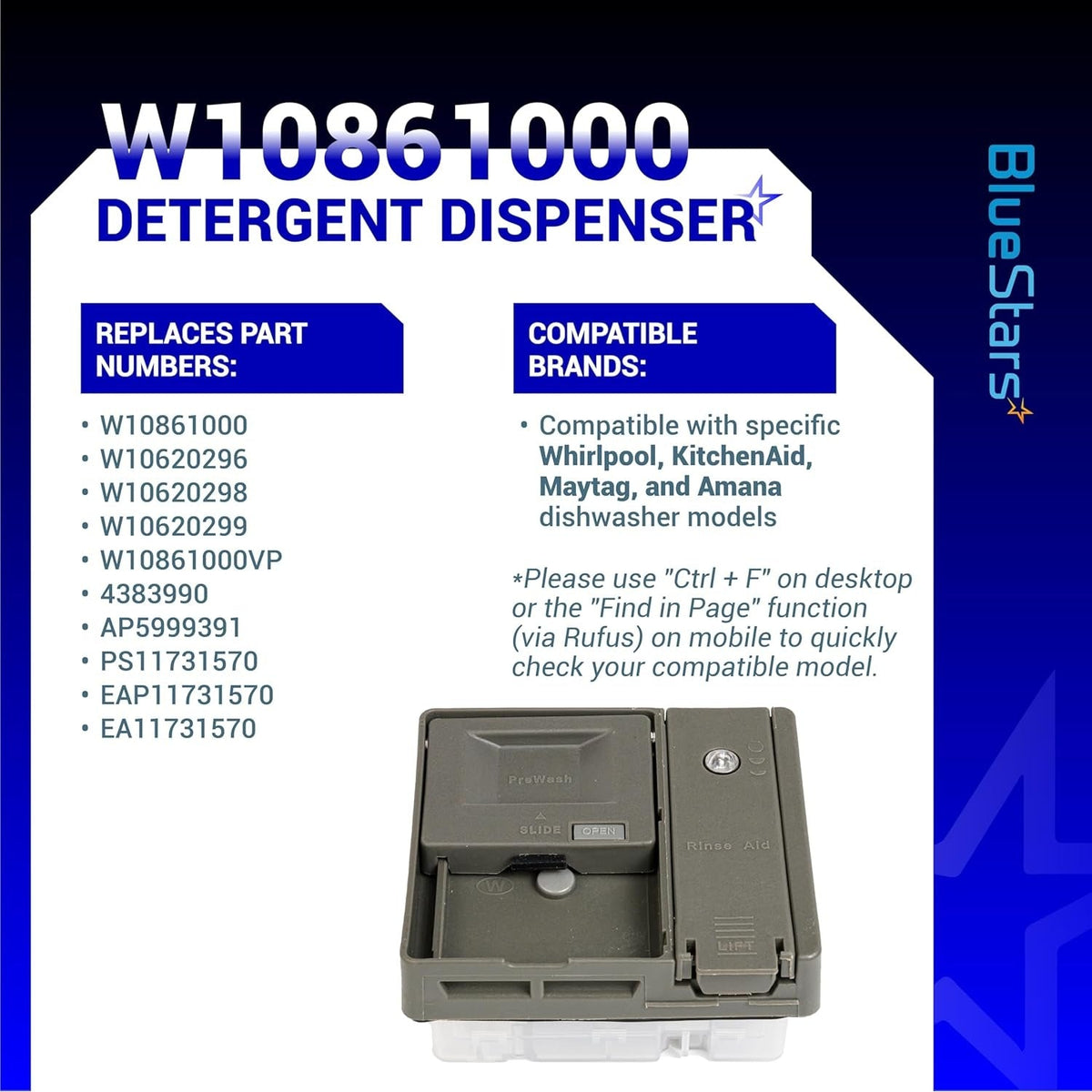

Replaces / Cross-Reference Part Numbers

• Primary Part: W10861000, W10861000VP.
• Legacy Cross-Reference: W10620296, W10620298, W10620297.

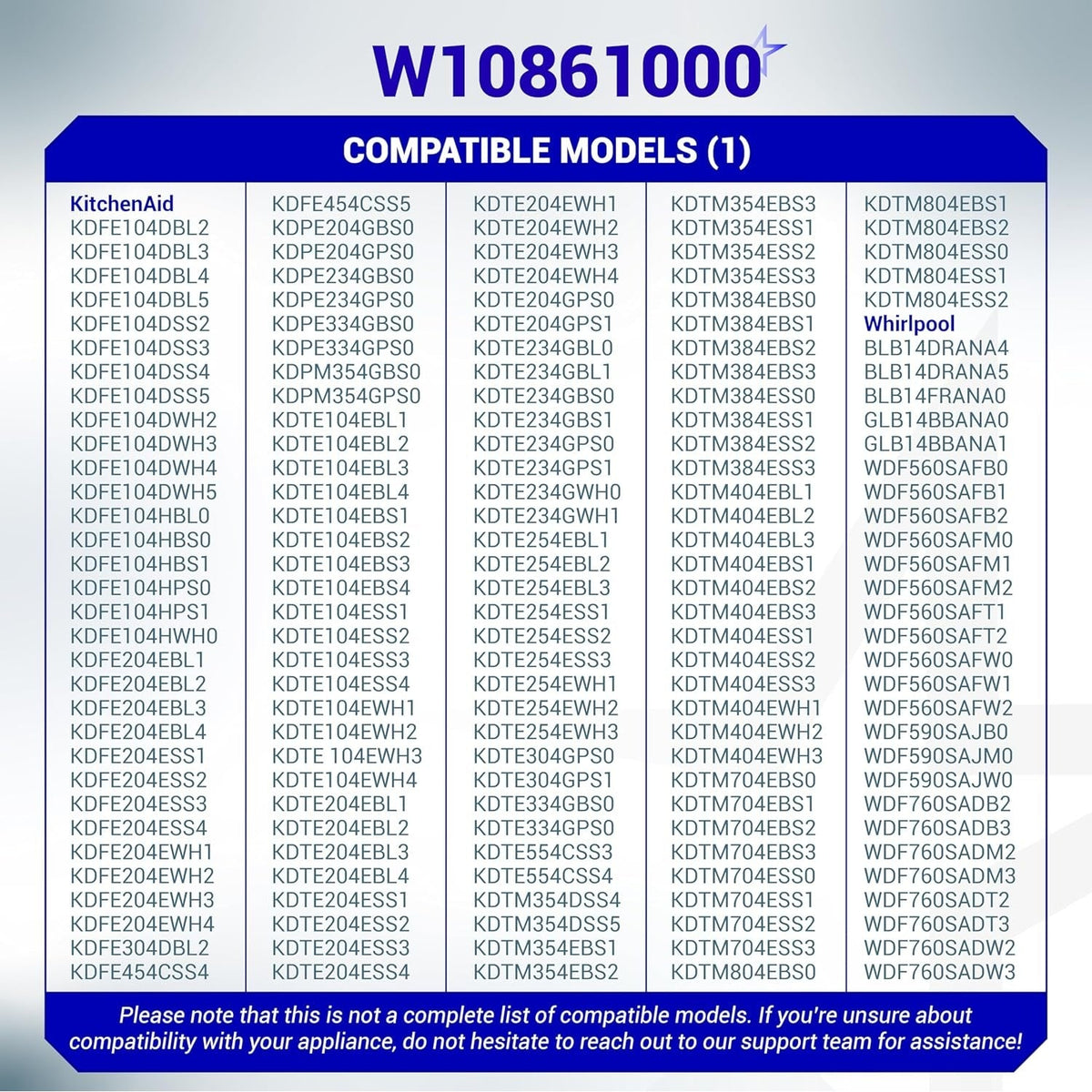

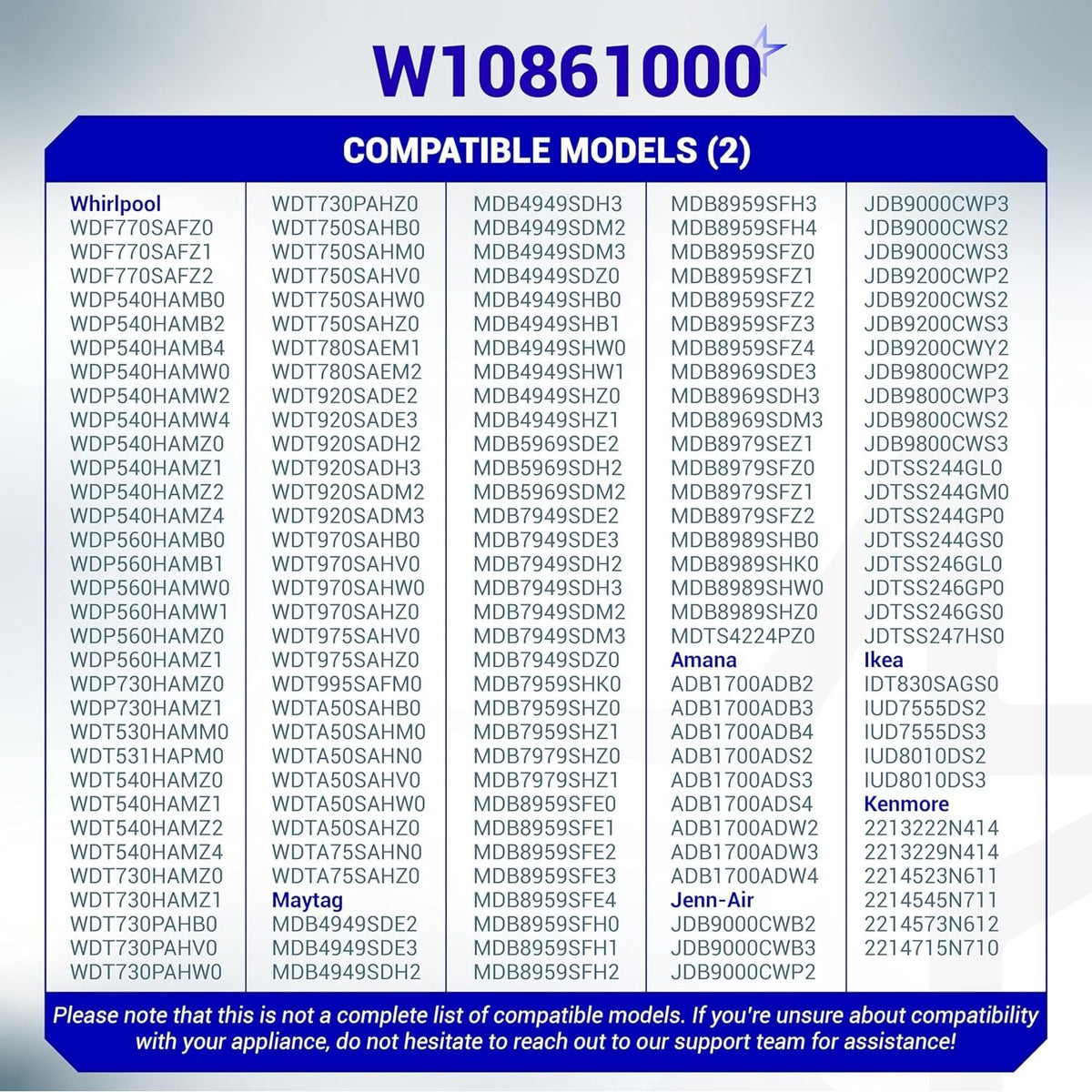

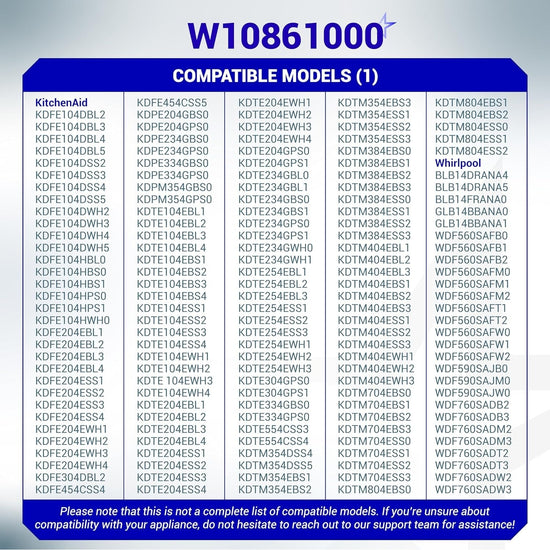

Compatibility & Fitment

This dispenser assembly is the standard replacement for most modern Whirlpool-built tall-tub dishwashers. Key compatible models include:

• Whirlpool: WDT730PAHZ0, WDT750SAKZ0, WDT970SAHZ0, WDF520PADM.
• KitchenAid: KDTM354ESS, KDTE104ESS, KDTM404EWH.
• Maytag: MDB4949SHZ, MDB8959SKZ, MDB7949SDM.
• Kenmore: 665.13263K311, 665.13223K210.
• Note: Specifically for models utilizing the sliding door dispenser style. If your original door flips open like a "mailbox," this part may not be compatible.

When to Replace

• Detergent Door Not Opening: The door stays closed throughout the entire cycle, leaving the detergent pod or powder untouched and the dishes dirty.
• Detergent Door Won't Stay Closed: The latch is broken or the internal spring has snapped, causing the door to slide open as soon as you close the dishwasher.
• Rinse Aid Leaking: You find blue or clear liquid streaking down the inner door, indicating a failed internal seal or a cracked reservoir.
• Broken Latch or Spring: Visible damage to the plastic slider or the small latch tab that prevents the dispenser from engaging.
• "No Rinse Aid" Error: The sensor or float inside the dispenser has failed, causing a persistent warning light on the control panel even when full.

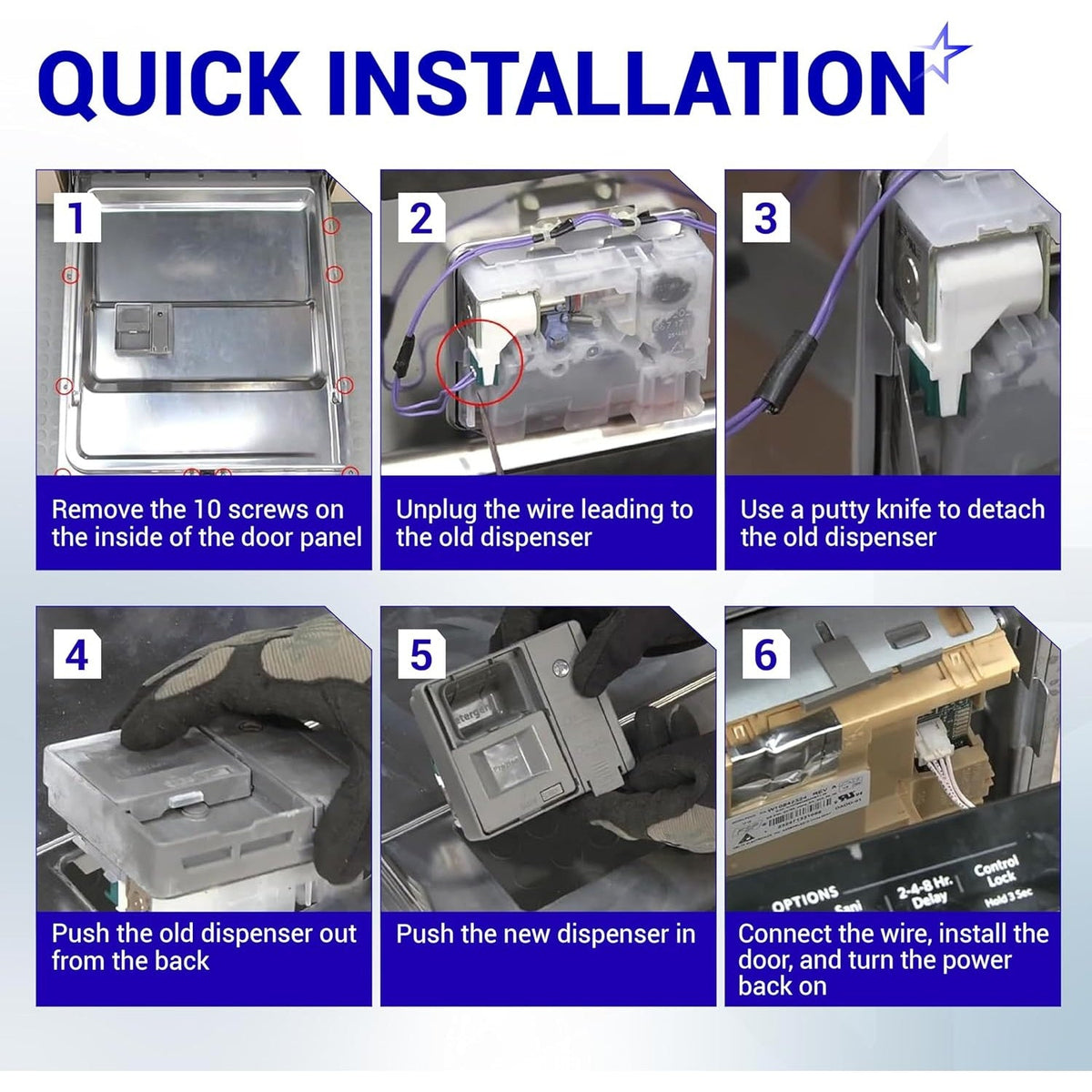

Installation Tips

• Safety First: You MUST unplug the dishwasher or turn off the circuit breaker before beginning. This repair requires removing the outer door panel, which exposes high-voltage wiring.
• Remove the Outer Panel: Open the dishwasher door and remove the Torx or Phillips screws around the perimeter of the inner panel. Hold the outer panel securely so it doesn't fall and scratch your floor.
• Disconnect Wiring: Carefully unplug the electrical wire harness from the old dispenser. Take a photo beforehand to ensure the connectors are returned to the correct terminals.
• Check the Door Seal: When installing the new W10861000, ensure the large rubber gasket is seated perfectly flat against the inner door metal to prevent leaks inside the door.
• Tighten Evenly: Secure the mounting bracket screws in a star pattern. Do not over-tighten, as the plastic housing of the dispenser can crack under excessive pressure.
