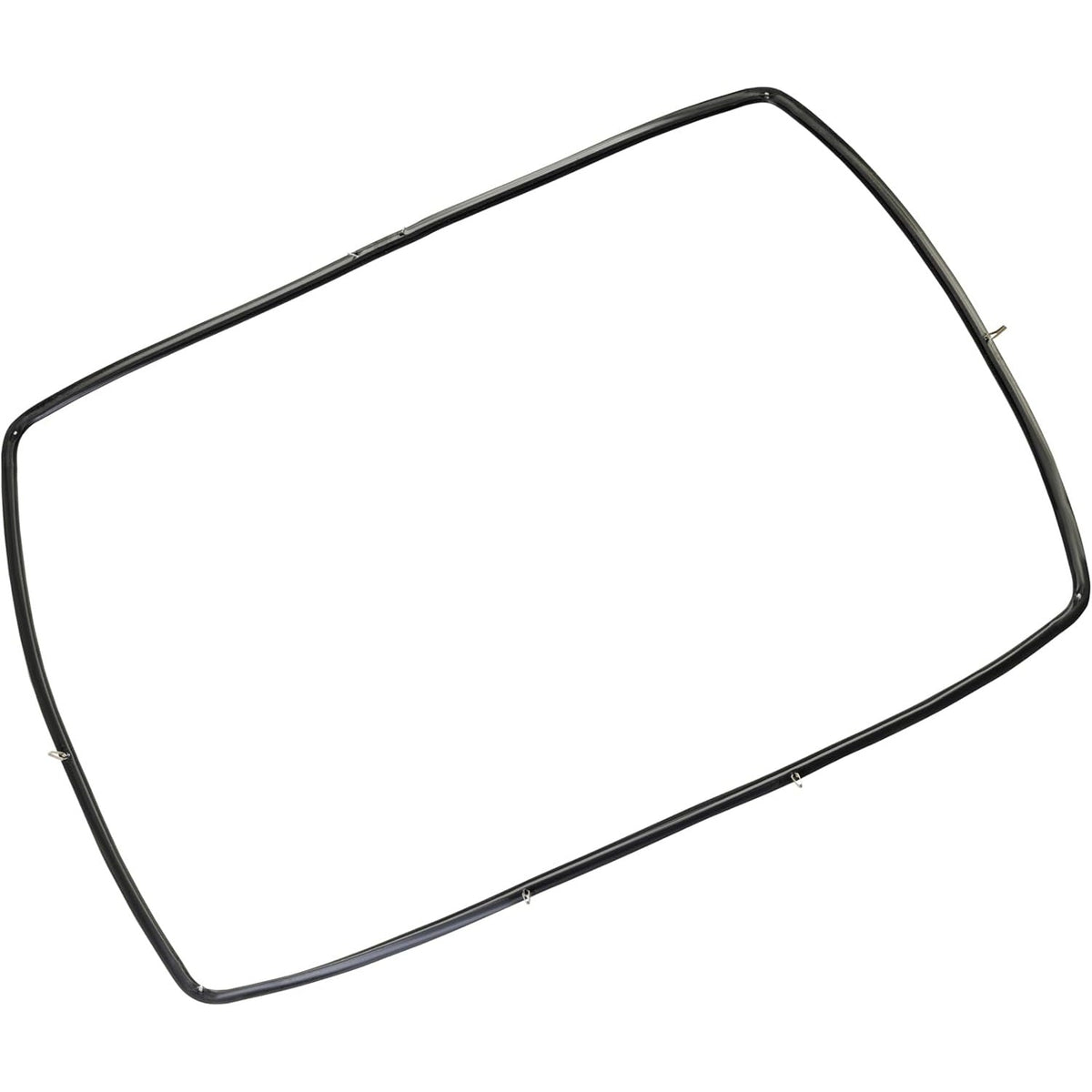

Black rubber W10535778 range oven door seal gasket for Whirlpool, Maytag, Amana, and Ikea stoves.

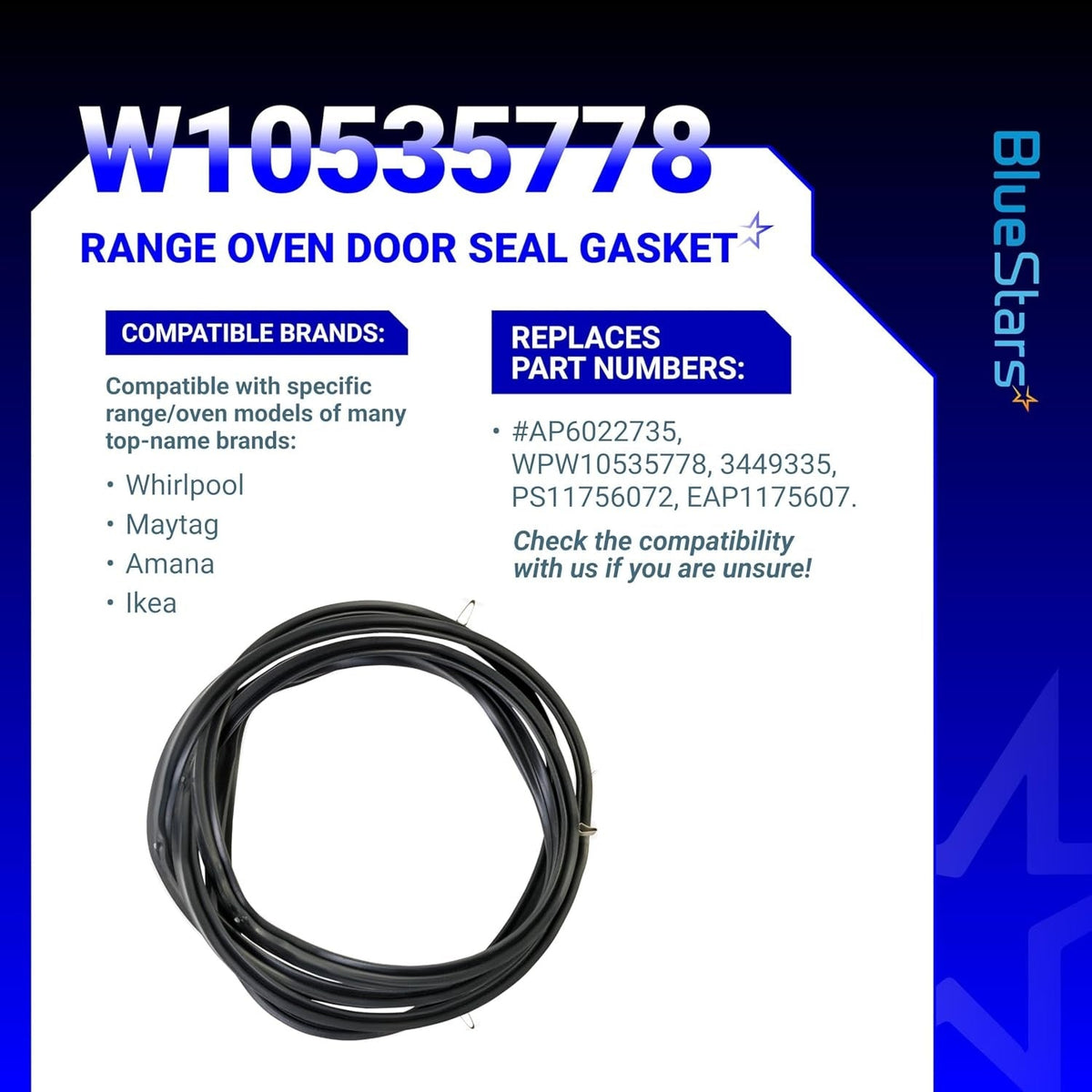

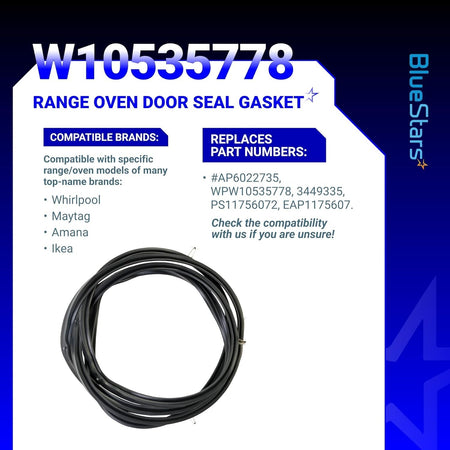

W10535778 range oven door seal gasket coiled with compatibility and replacement part number information graphic.

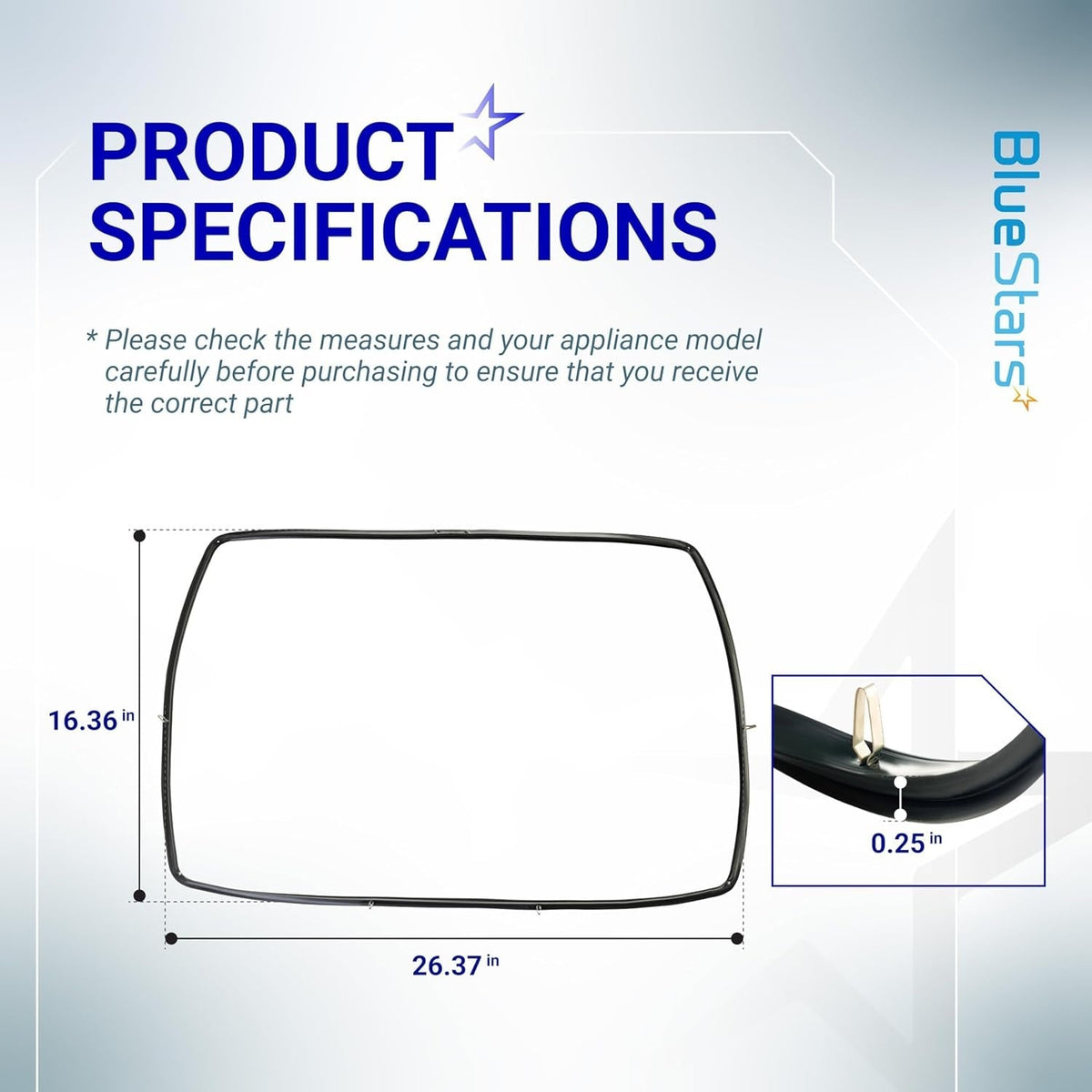

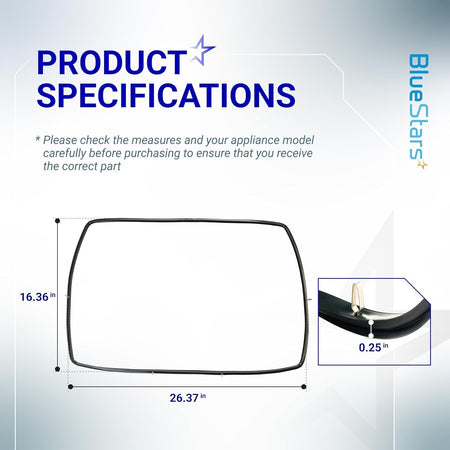

W10535778 range oven door seal gasket dimensions diagram showing 16.36 inch height and 26.37 inch width.

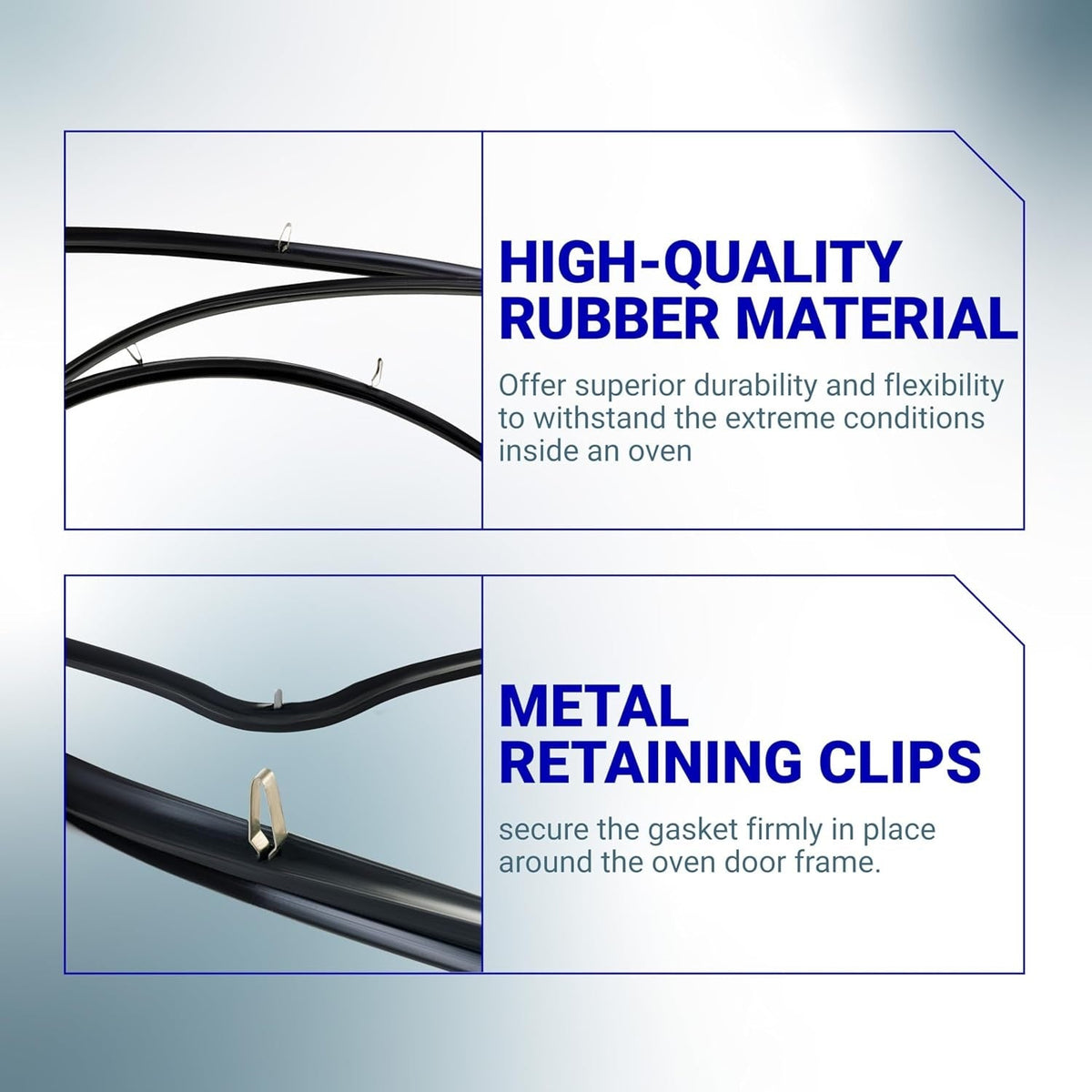

W10535778 oven door seal gasket showing high-quality rubber material and metal retaining clips for secure installation.

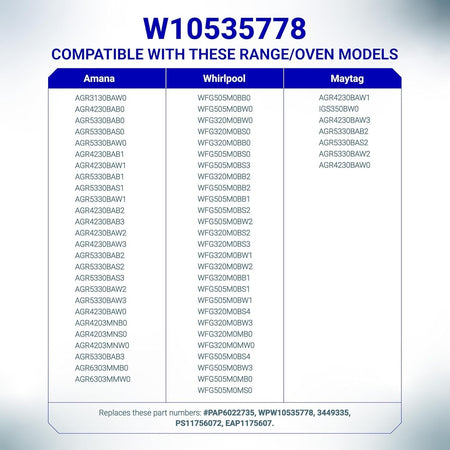

Compatibility chart for W10535778 range oven door seal gasket listing Whirlpool, Maytag, and Amana model numbers.

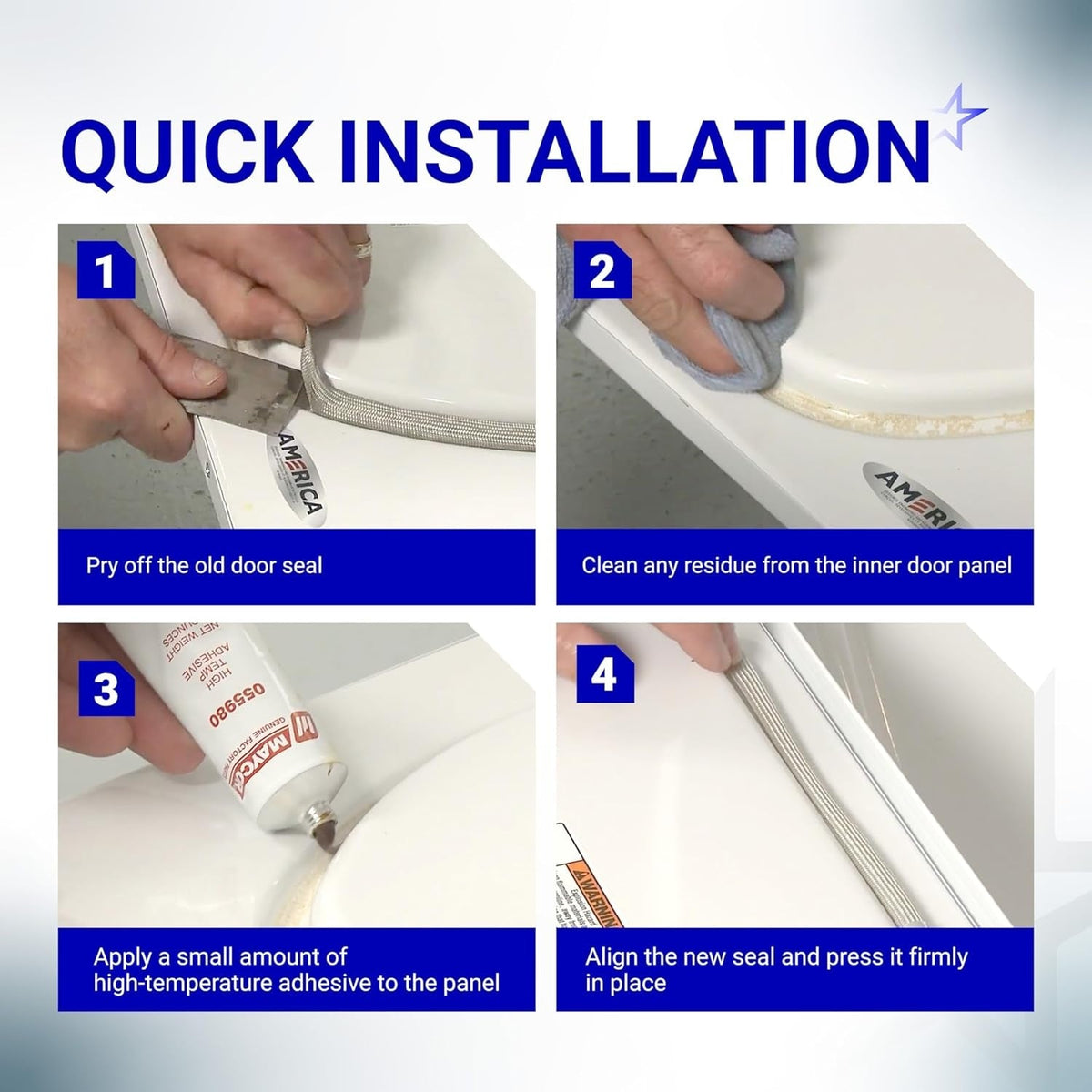

Four-step instructional guide for installing a W10535778 range oven door seal gasket.

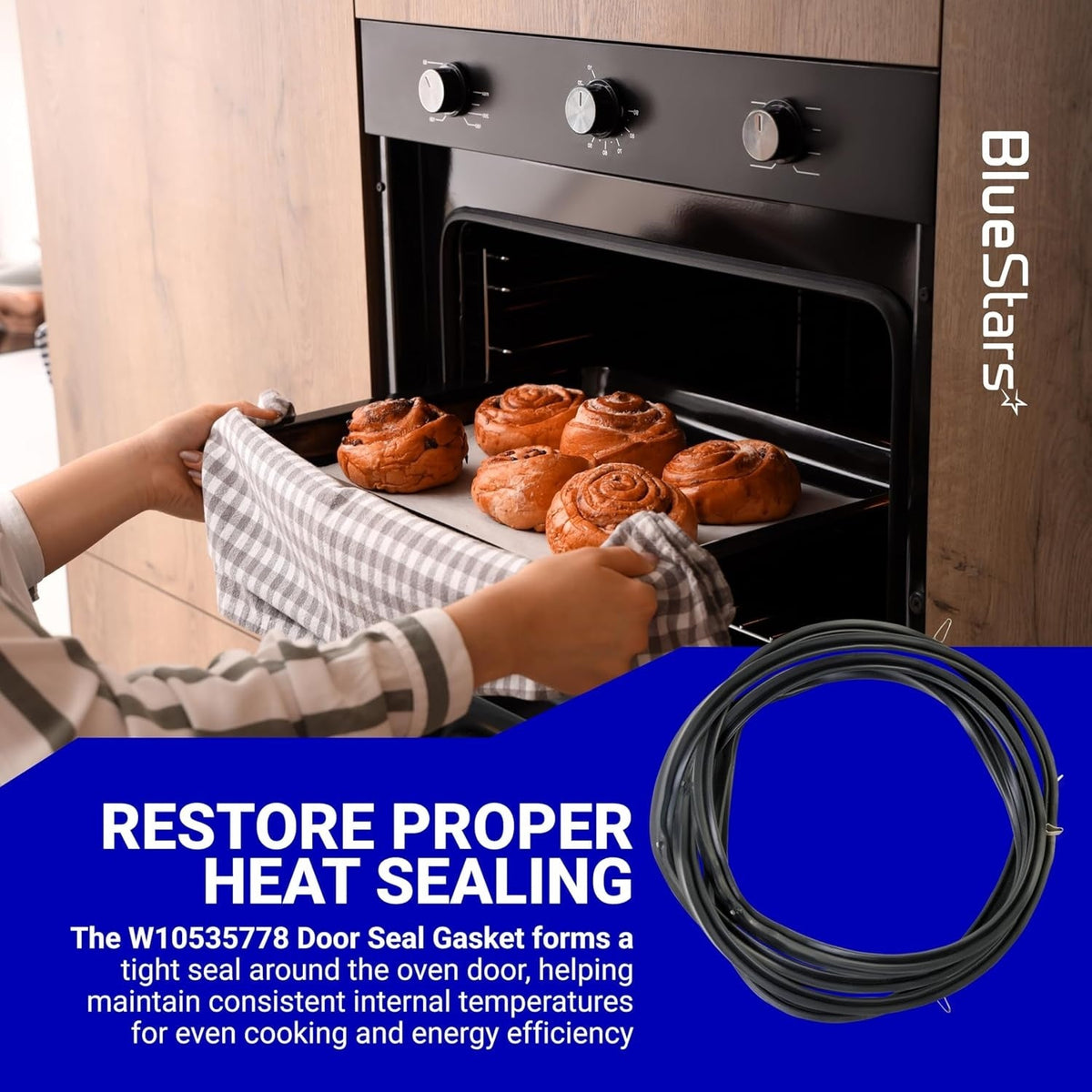

W10535778 oven door seal gasket coiled next to an oven with baked goods, demonstrating heat sealing functionality.

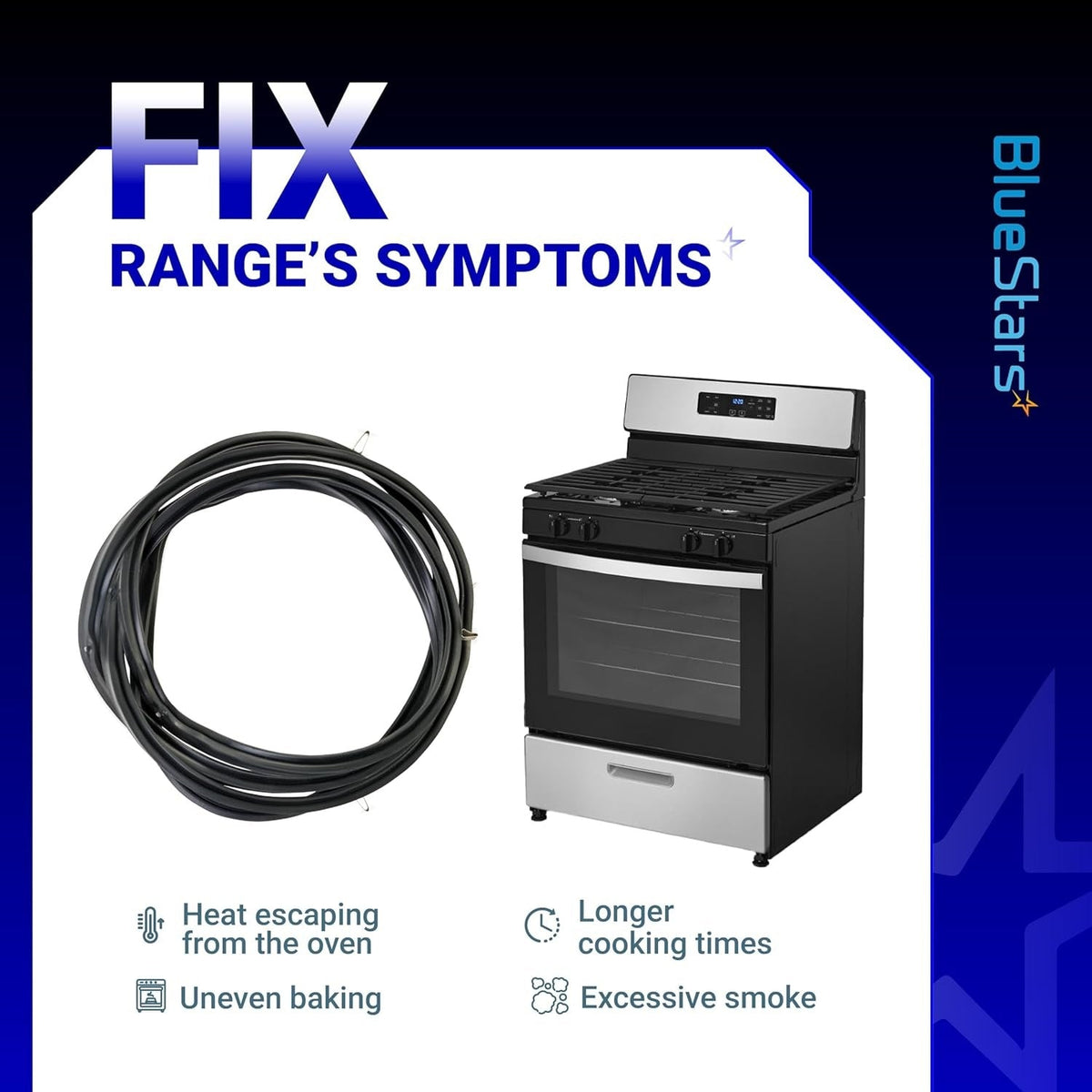

W10535778 oven door seal gasket shown with a range to illustrate common symptoms like heat loss and uneven baking.
Black rubber W10535778 range oven door seal gasket for Whirlpool, Maytag, Amana, and Ikea stoves.
W10535778 range oven door seal gasket coiled with compatibility and replacement part number information graphic.
W10535778 range oven door seal gasket dimensions diagram showing 16.36 inch height and 26.37 inch width.
W10535778 oven door seal gasket showing high-quality rubber material and metal retaining clips for secure installation.
Compatibility chart for W10535778 range oven door seal gasket listing Whirlpool, Maytag, and Amana model numbers.
Four-step instructional guide for installing a W10535778 range oven door seal gasket.
W10535778 oven door seal gasket coiled next to an oven with baked goods, demonstrating heat sealing functionality.
W10535778 oven door seal gasket shown with a range to illustrate common symptoms like heat loss and uneven baking.

W10535778 Range Oven Door Seal Gasket for Whirlpool Maytag Amana Ikea

0.00
$20.39
Sale $22.83
$20.39
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

W10535778 Range Oven Door Seal Gasket

Key Features

  • Forms a complete seal around the oven door opening.
  • Prevents heat loss for improved energy efficiency and consistent cooking temperatures.
  • Constructed from durable, high-temperature resistant material.
  • Includes integrated mounting clips for secure placement.

Replaces / Cross-Reference Part Numbers

  • W10535778
  • WPW10535778
  • AP6022735
  • PS11756072
  • EAP11756072

Compatibility & Fitment

  • Engineered for a precise fit on specific gas and electric ranges.
  • Compatible with select models from brands including Whirlpool, Amana, and Maytag.

When to Replace

  • Visible damage to the gasket, such as cracks, tears, brittleness, or melted sections.
  • The oven door does not seal tightly, allowing heat to escape.
  • Appliance takes longer than usual to preheat or fails to maintain a set temperature.
  • The existing gasket is loose, deformed, or missing sections.

Installation Tips

  • Disconnect the range from its power and/or gas supply before servicing.
  • Remove the old gasket by pulling it out of its channel.
  • Thoroughly clean the channel to remove any food debris or residue.
  • Align the new gasket and press the mounting clips firmly into their corresponding holes until fully seated.
  • Removing the oven door may provide easier access for installation on some models.

Compatible Models

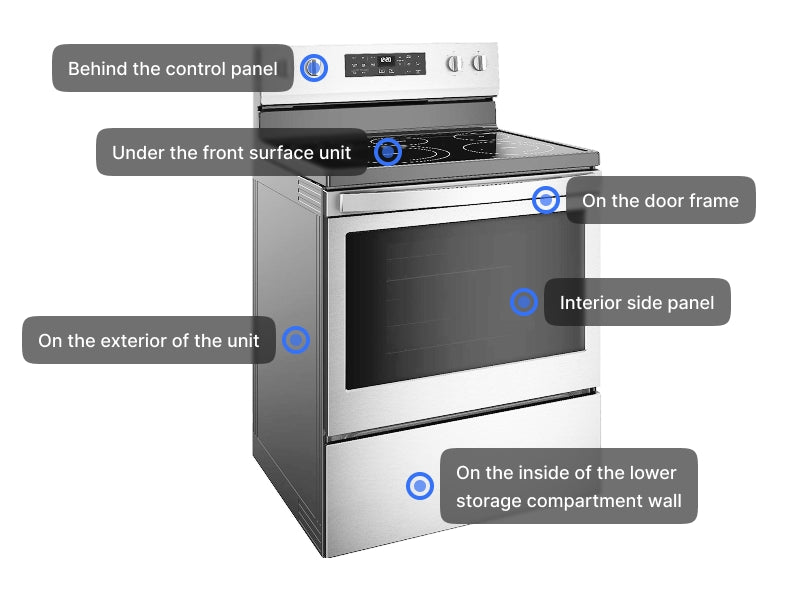

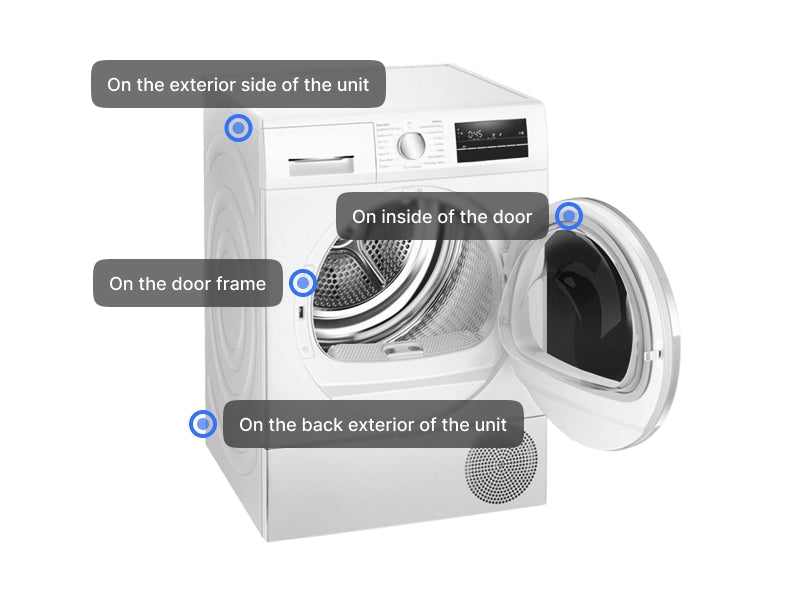

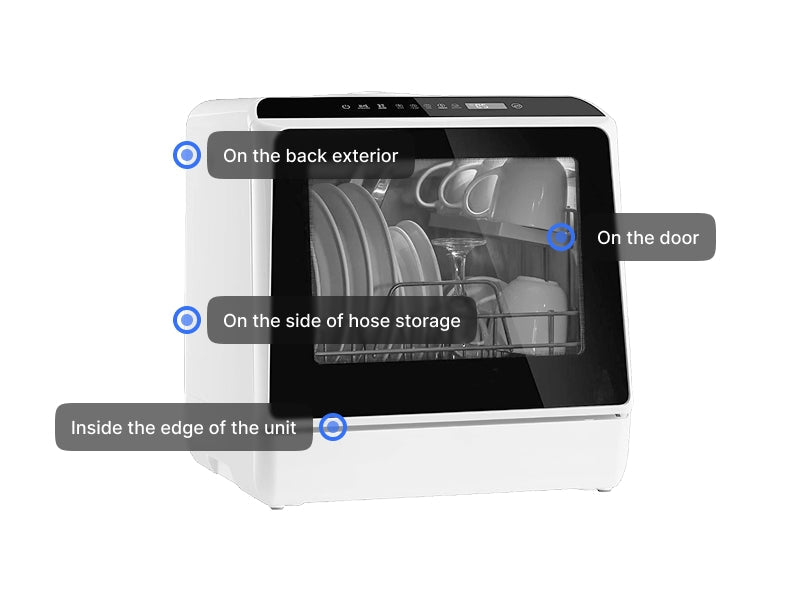

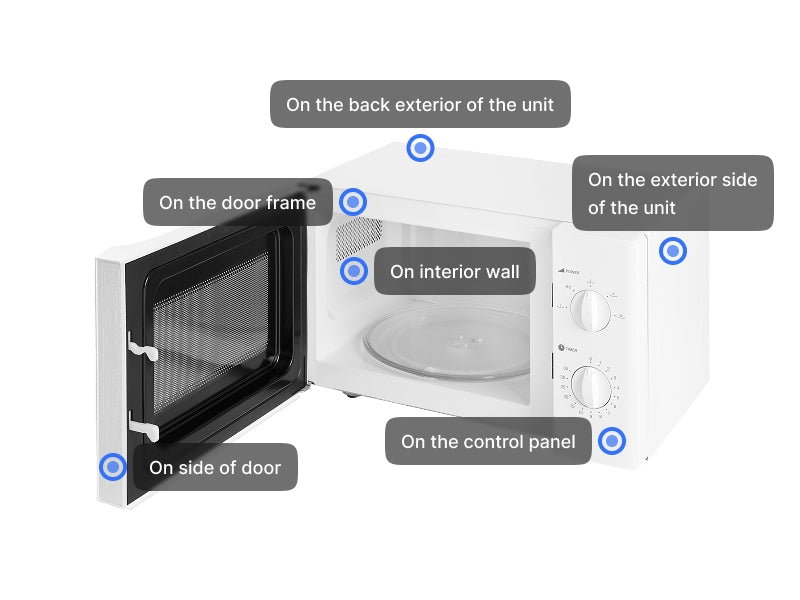

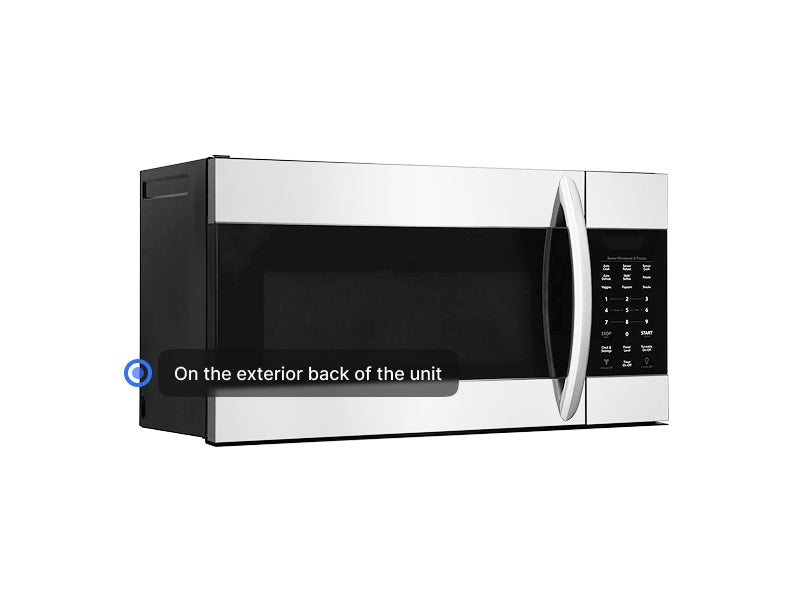

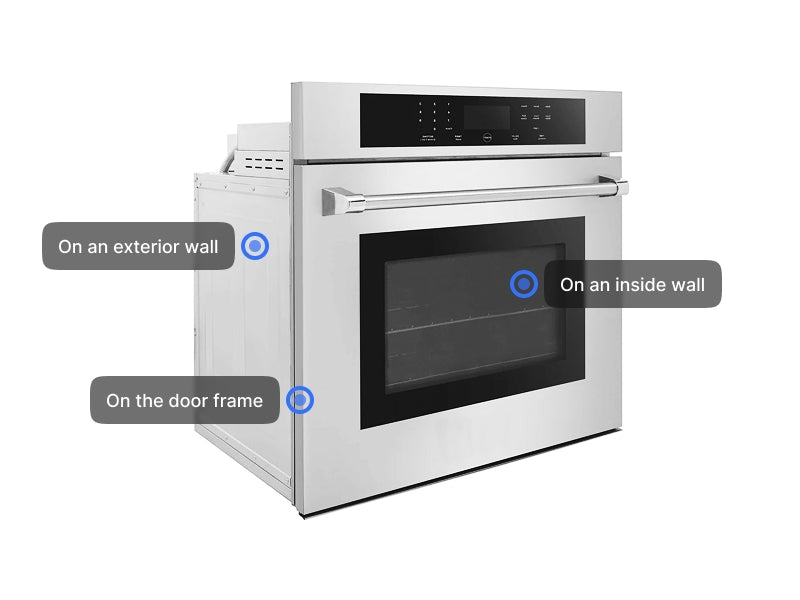

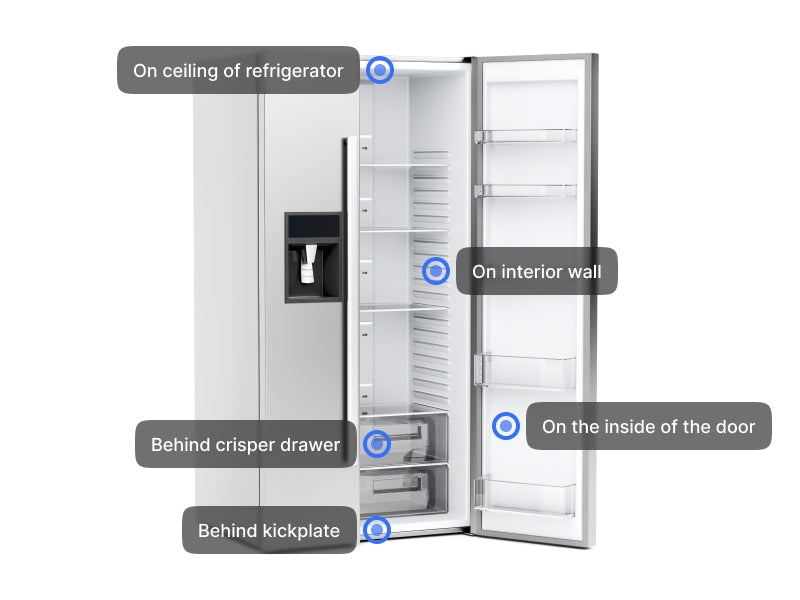

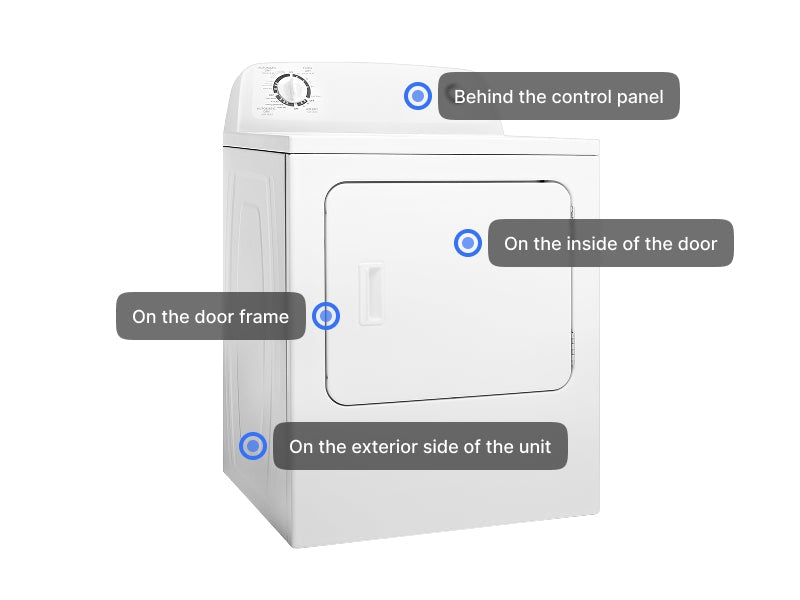

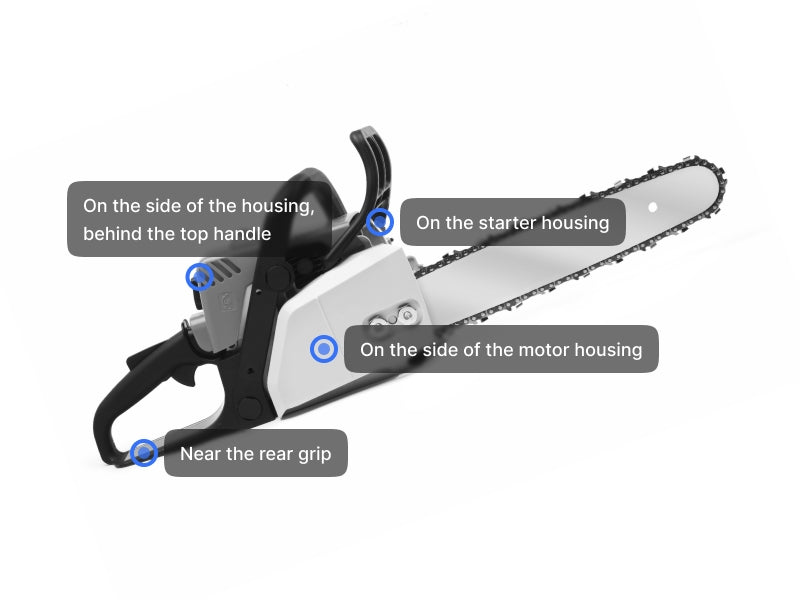

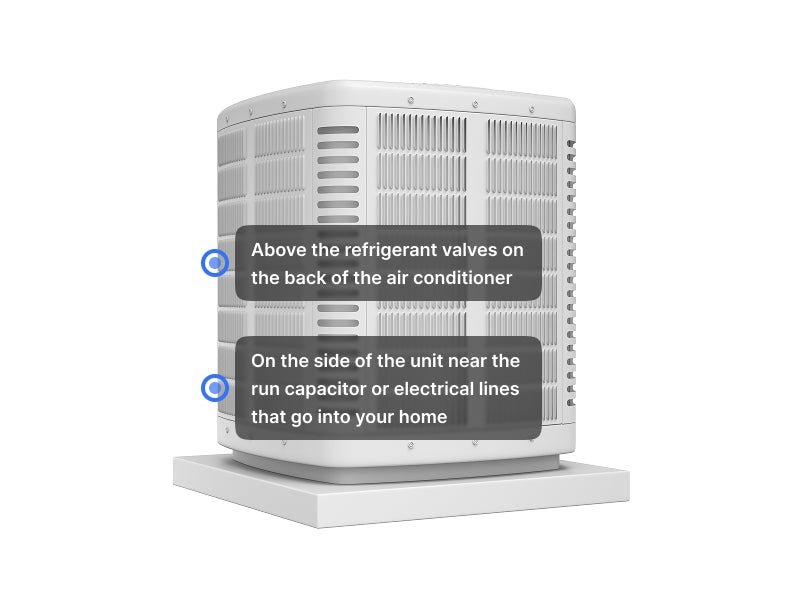

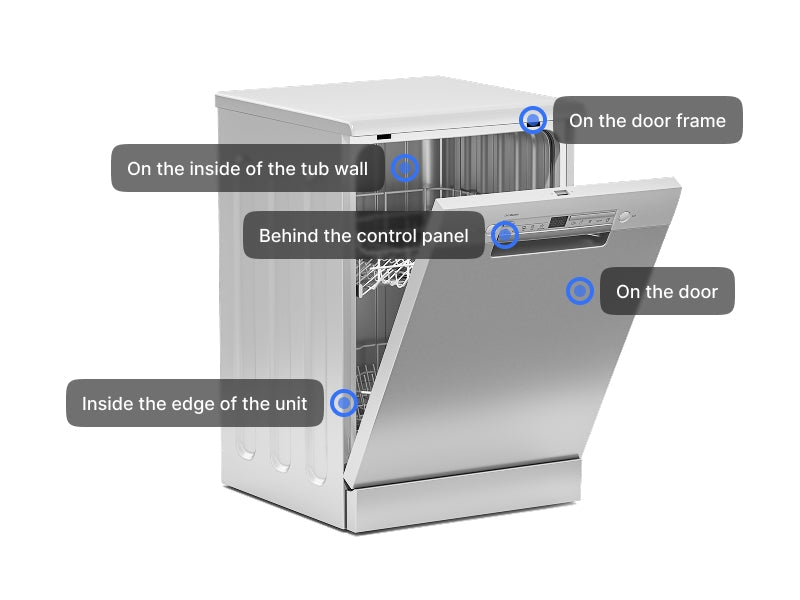

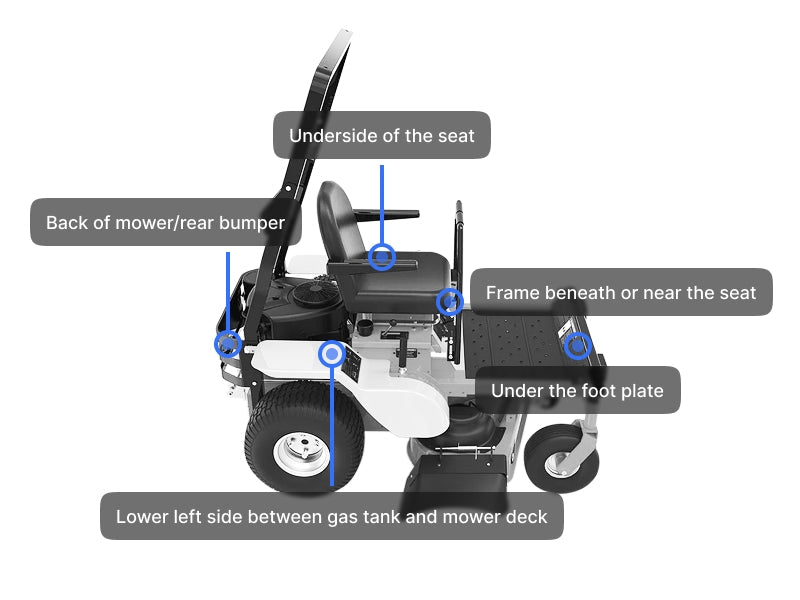

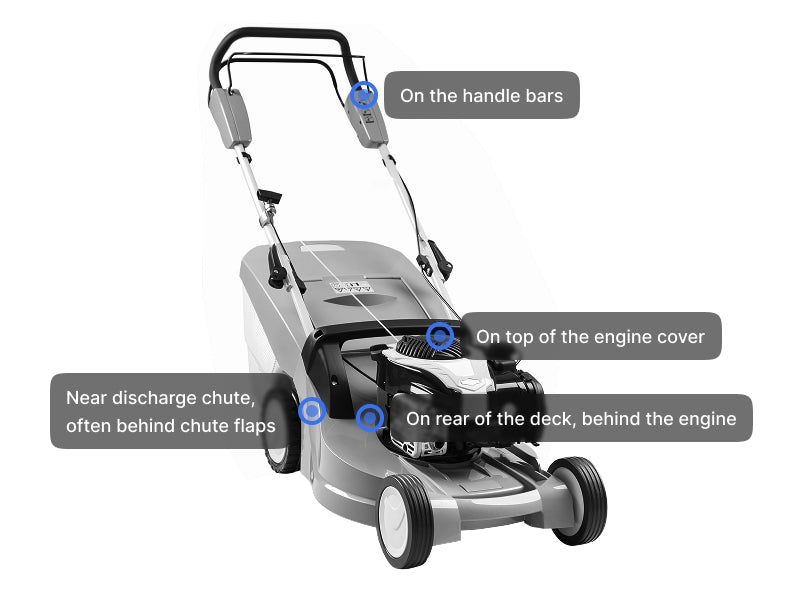

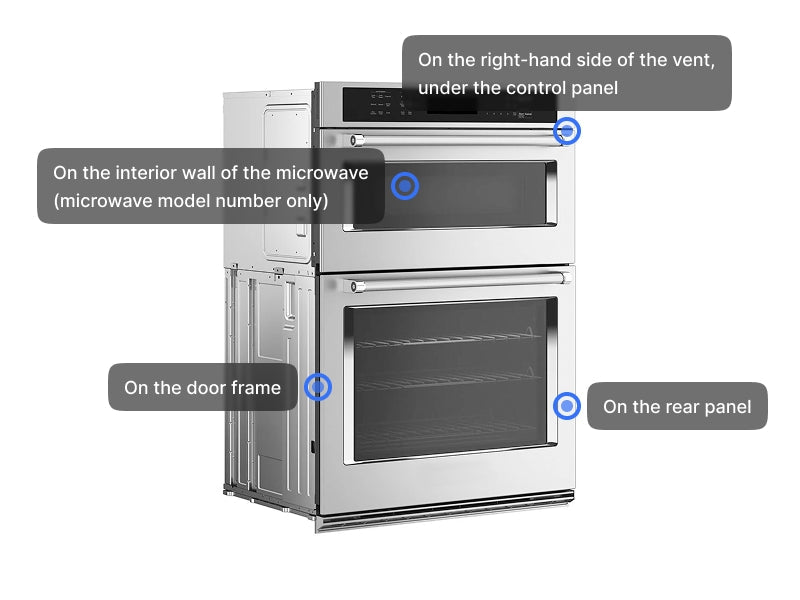

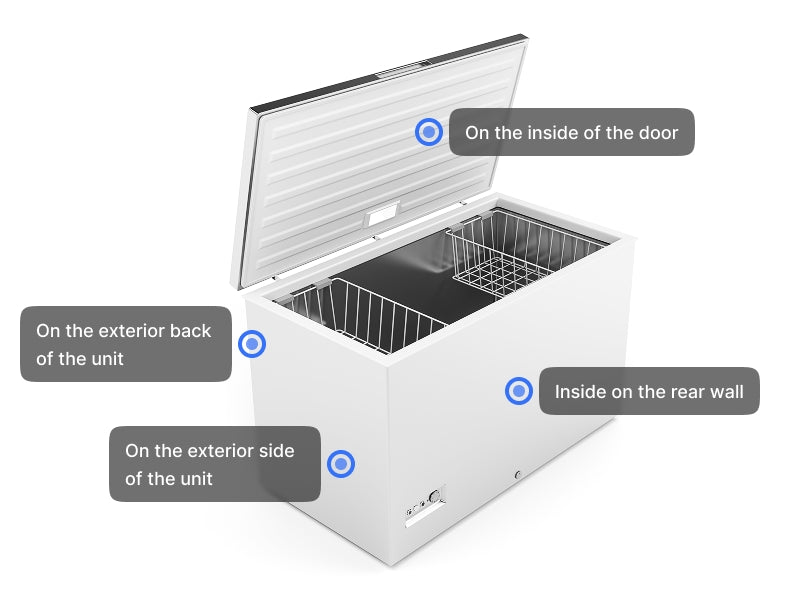

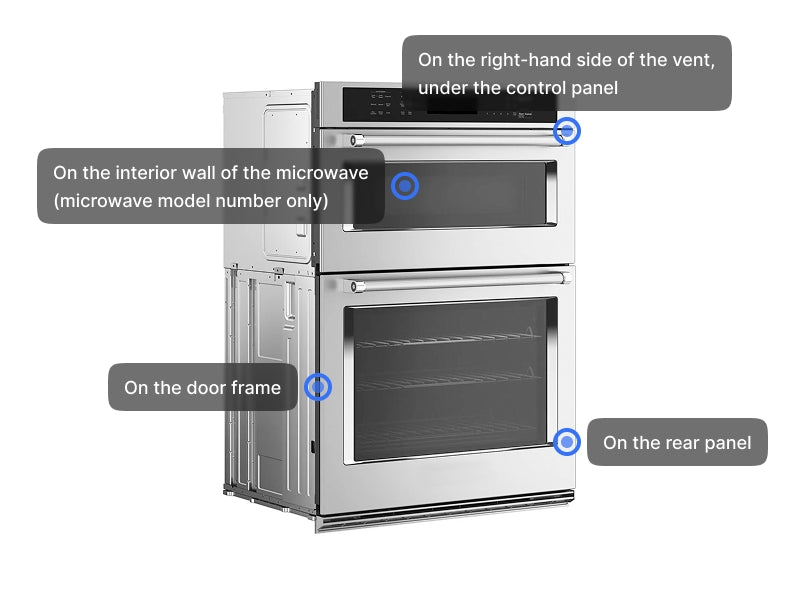

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This oven door seal gasket is used on selected range and oven models from Whirlpool, Maytag, Amana, and Ikea. Fitment is model-specific, so the safest match is to confirm your appliance model number and verify that it uses part W10535778 or WPW10535778.
This part is associated with the following numbers: W10535778, WPW10535778, 3449335, AP6022735, PS11756072, and EAP1175607.
Typical symptoms include heat leaking around the oven door, longer preheat times, uneven baking, the oven struggling to maintain temperature, or visible damage to the gasket such as cracking, flattening, brittleness, tearing, or sections pulling away from the door frame.
Examples shown in compatibility references include Whirlpool models such as WFG505M0BW2, WFG320M0BS2, WFG320M0BS3, WFG320M0BW1, and WFG320M0BW2, as well as Amana models including AGR4230BAW1, IGS350BW0, AGR4230BAW3, AGR5330BAB2, AGR5330BAS2, AGR5330BAW2, and AGR4230BAW0. These are examples only, not a complete list.
On many ranges, this is a manageable repair for a DIYer. The job usually takes about 10 to 30 minutes. In many cases, the gasket installs by attaching its ends or clips into the door or oven frame, though the exact method varies by model. Basic work gloves are helpful, and some models may require a screwdriver if trim or retainers need to be accessed. Always let the oven cool completely before starting.
Door seals commonly wear out from repeated high-heat cycles, grease buildup, spills, and the gasket being compressed every time the door closes. Over time, the material can harden, flatten, shrink, or crack, which allows heat to escape and affects oven performance.
Before replacing the gasket, inspect the door hinges, door alignment, and the gasket channel or mounting points for grease, carbon buildup, or distortion. Clean the sealing surface so the new gasket can sit properly, and make sure the old gasket's attachment points match the new one. If the door is sagging or not closing evenly, hinge wear may also need attention.
