[Lifetime Warranty] W10195839 Dishwasher Rack Adjuster - Compatible with Whirlpool Kenmore KitchenAid Jenn-Air Dishwashers - Replaces WPW10195839 PS11750092 AP6016799 - Pack of 2

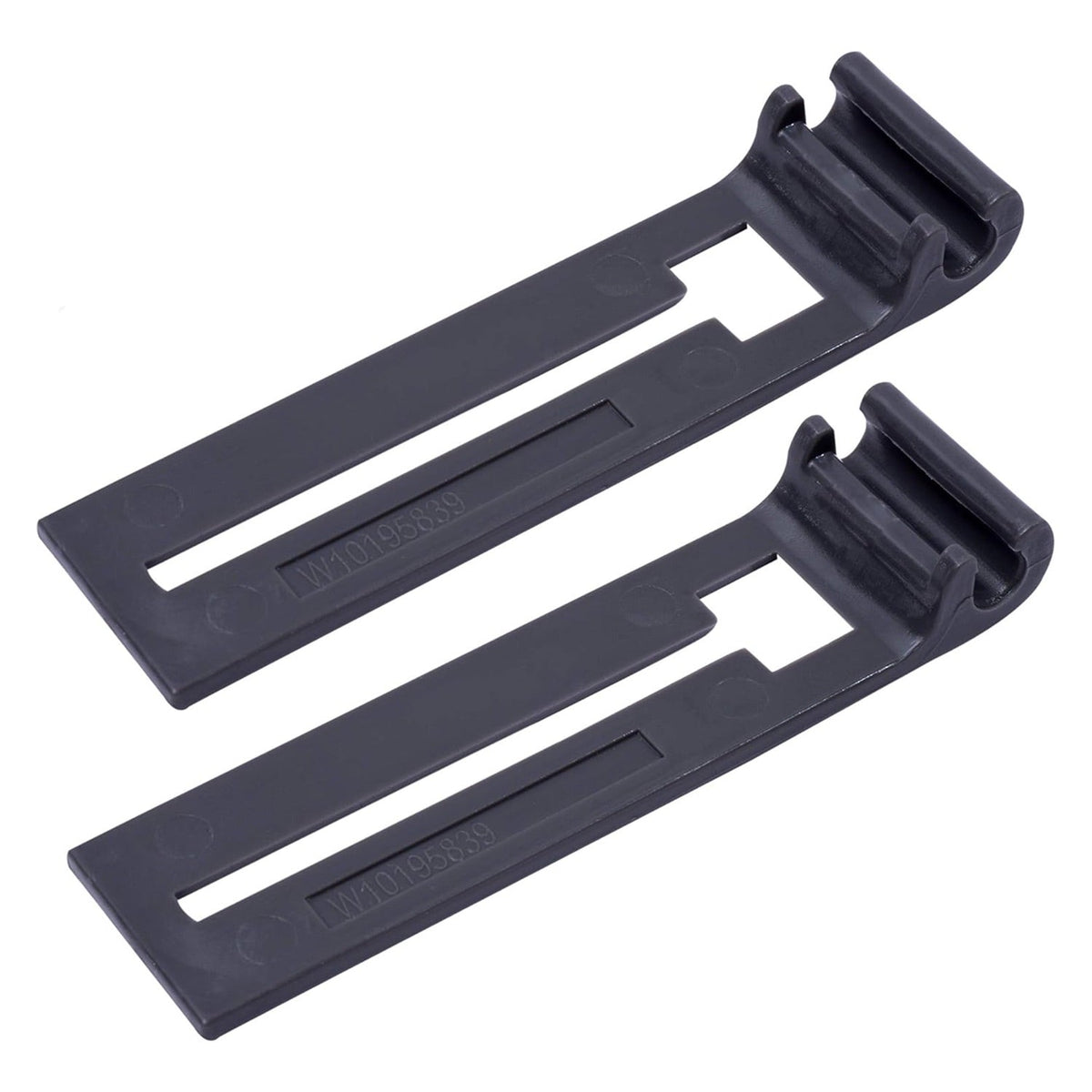

WPW10195839 Dishwasher Rack Adjuster

Key Features

• Height Versatility: Allows for easy raising or lowering of the upper rack to accommodate oversized platters in the bottom rack or tall stemware in the top.

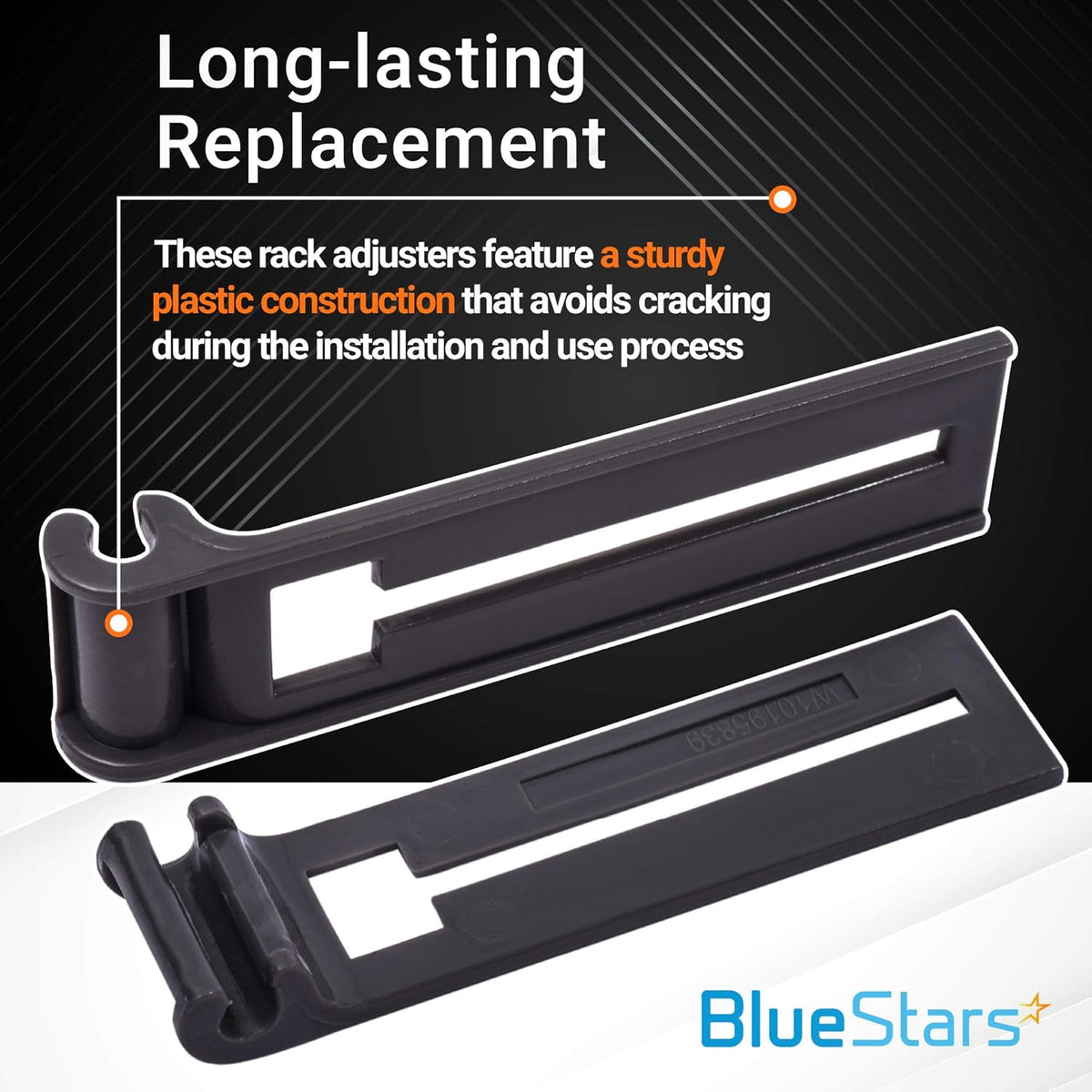

• Reinforced Design: Constructed from high-impact, heat-stabilized plastic designed to handle the weight of a fully loaded rack during high-temperature cycles.
• Smooth Operation: Features a simplified lever mechanism for rapid height adjustments without the need for tools.
• Value Bundle: Includes two adjuster assemblies, allowing for a complete refresh of both the left and right sides of the upper rack.

Replaces / Cross-Reference Part Numbers

• WPW10195839
• AP6016799
• PS11750092
• W10418322
• W11214484
• 1872227
• AP4566229
• PS3407015
• EAP3407015
• W10195839

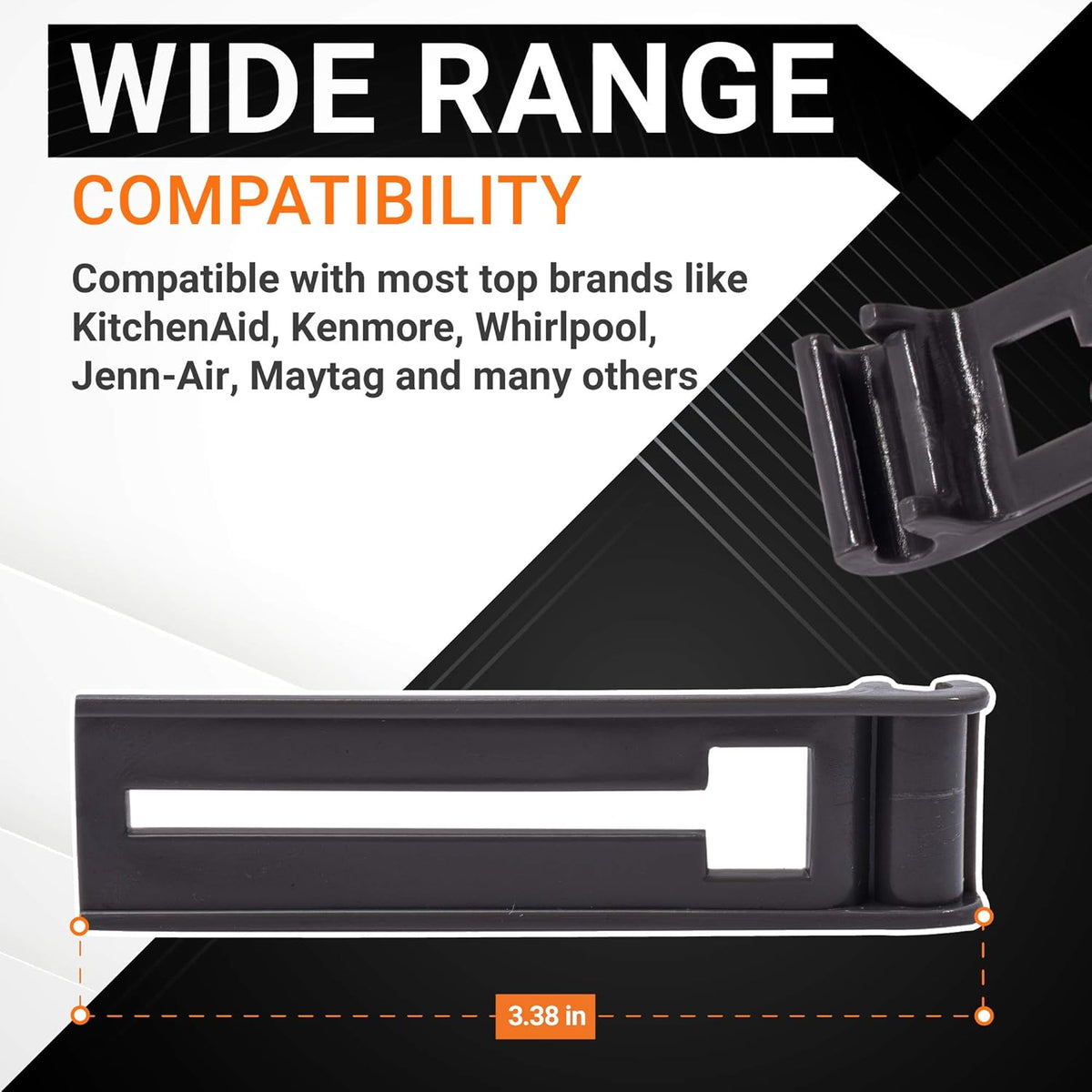

Compatibility & Fitment

This rack adjuster kit is a standard replacement for various Whirlpool-manufactured dishwashers equipped with adjustable upper racks. Key compatible brands include:

• Whirlpool: Fits many Gold series and standard models (e.g., WDT720PADM, WDT970SAHZ, WDF series).
• KitchenAid: Compatible with many KDT, KDF, and KUDE series high-capacity models.
• Kenmore / Sears: Fits various 665-series models (e.g., 665.13263K, 665.13473K).
• Maytag & Jenn-Air: Compatible with select units utilizing the WPW10195839 adjuster style.

When to Replace

• Rack Sagging: One side of the upper rack sits lower than the other, often causing the middle spray arm to strike dishes below.
• Broken Housing: Visible cracks in the plastic frame or snapped mounting clips that hold the adjuster to the wire rack.
• Lever Failure: The adjustment trigger no longer clicks into place or has snapped off, making it impossible to secure the rack height.
• Rack Falling: The rack unexpectedly drops to its lowest position during a cycle due to worn internal locking teeth.
• Brittle Plastic: The components have become chalky or brittle from repeated exposure to high heat and harsh detergents.

Installation Tips

• Safety First: Ensure the dishwasher is off and the upper rack is completely empty. Pull the rack out to its furthest extent.
• Removal: You may need to remove the rack from the tub rails by releasing the end caps on the drawer slides. Use a flat-head screwdriver to gently release the plastic clips securing the old adjuster to the wire.
• Orientation: Note that there is often a distinct "Left" and "Right" side; ensure the adjustment levers face toward the front of the dishwasher for easy access.
• Snap-Fit: Align the new adjuster with the horizontal wires of the rack and press firmly until all clips snap securely into place.
• Verification: Reinsert the rack into the slide rails and test the height adjustment on both sides to ensure it locks smoothly at each level.
