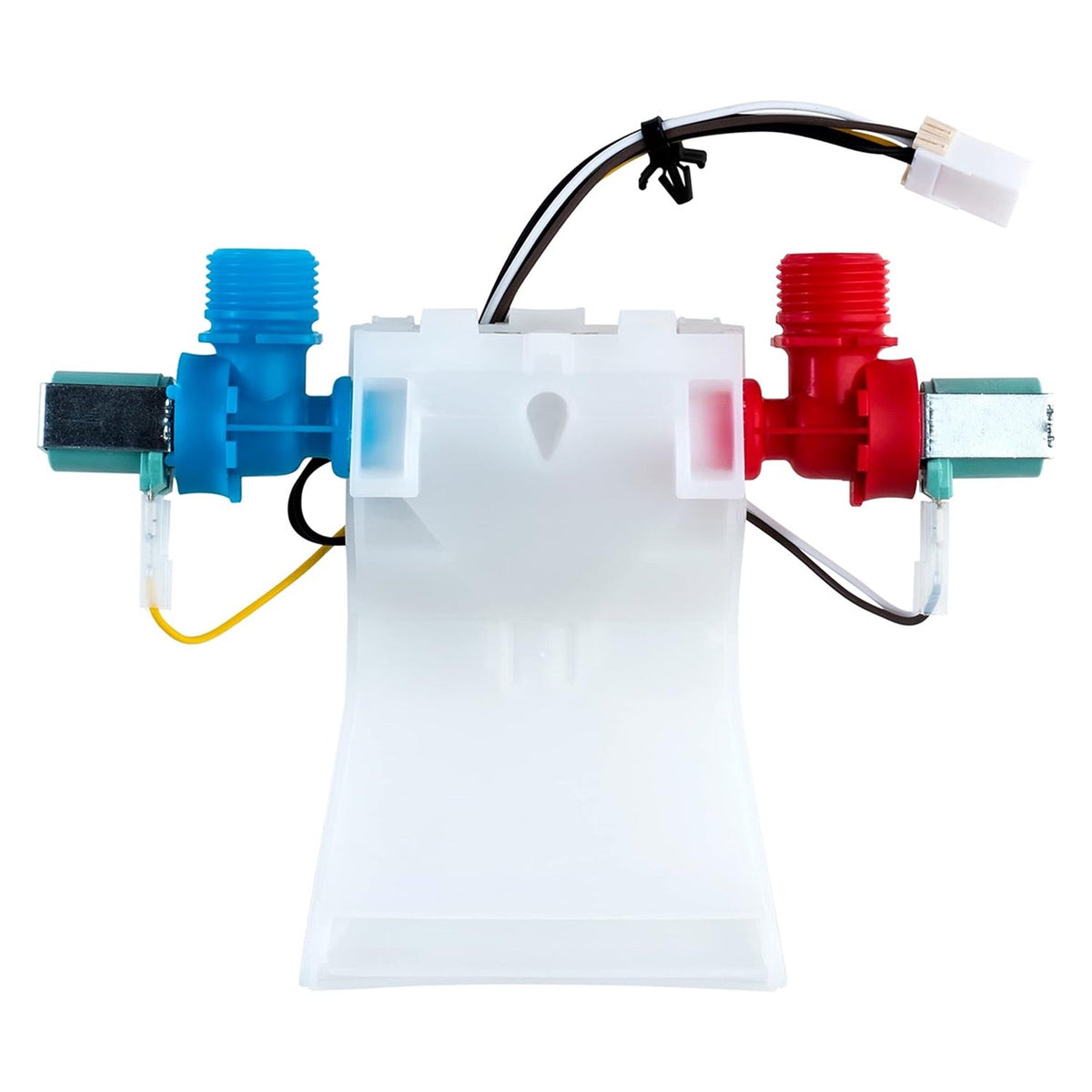

W10144820 washer water inlet valve with blue and red ports for Whirlpool and Kenmore washing machines.
Comparison chart showing W10144820 washer water inlet valve quality versus generic alternatives.

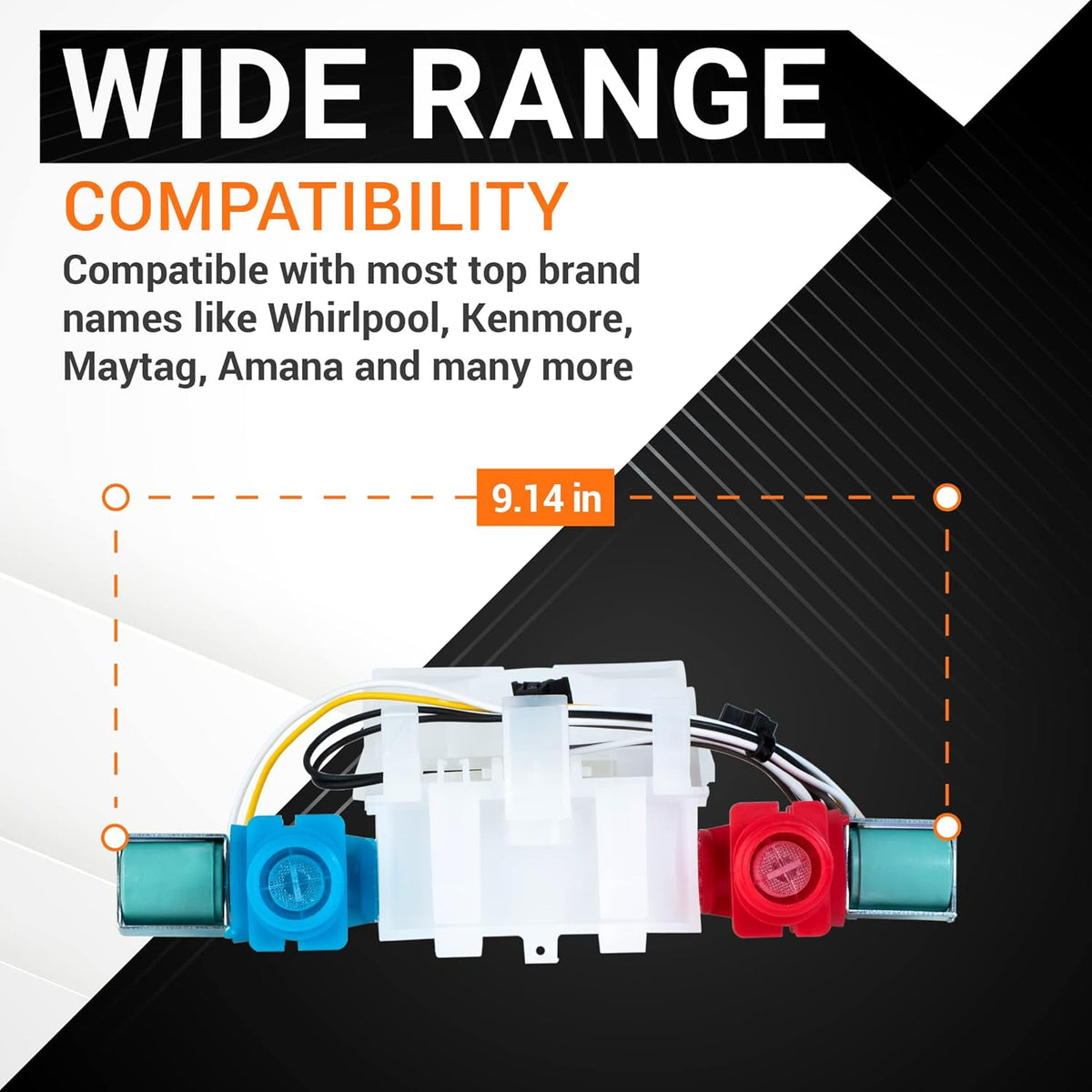

W10144820 washer water inlet valve showing 9.14-inch width measurement and compatibility for Whirlpool and Kenmore.
Graphic showing Whirlpool and Kenmore washer symptoms fixed by W10144820 water inlet valve replacement.

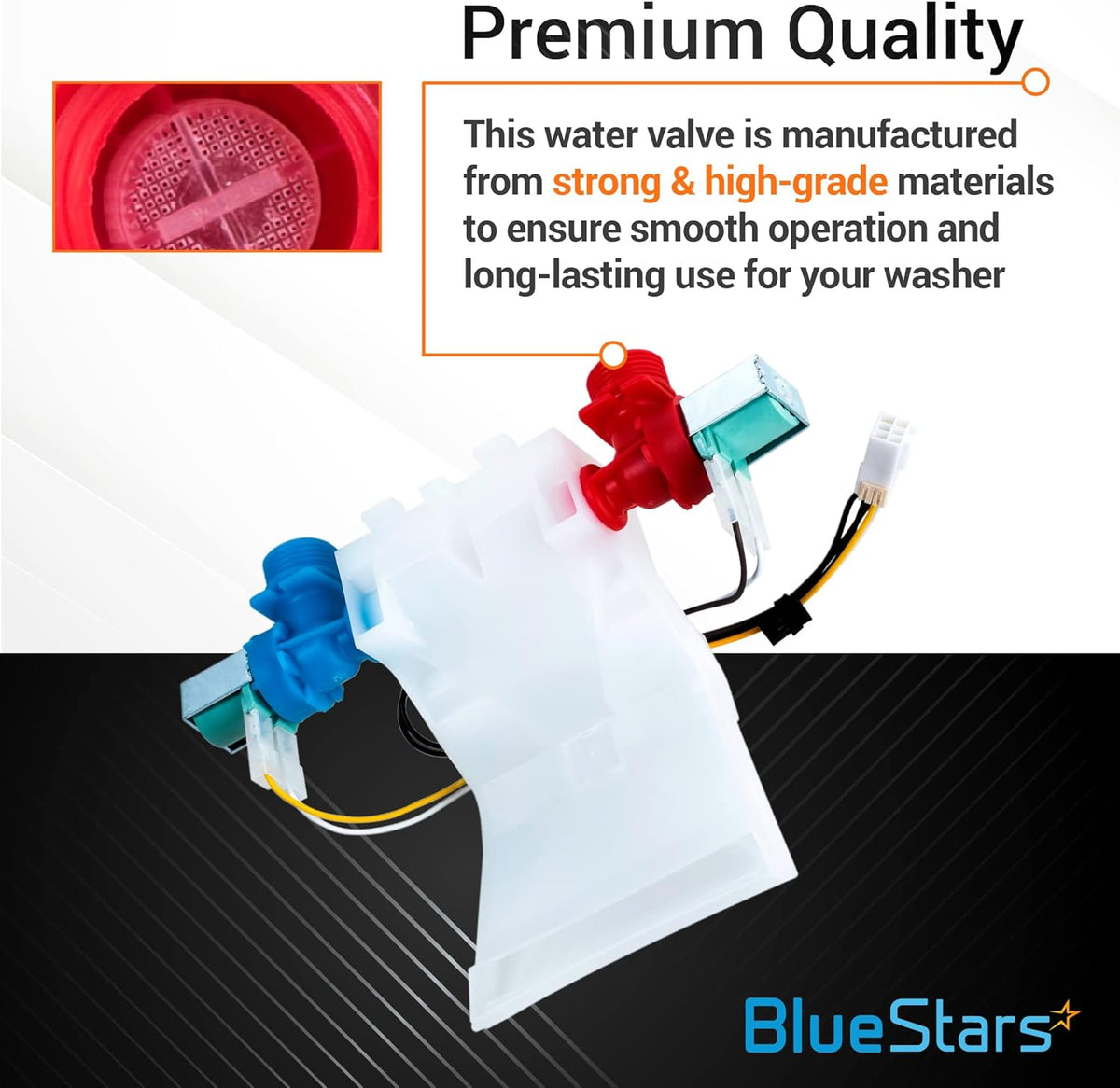

W10144820 washer water inlet valve with red and blue ports and close-up of internal mesh filter.

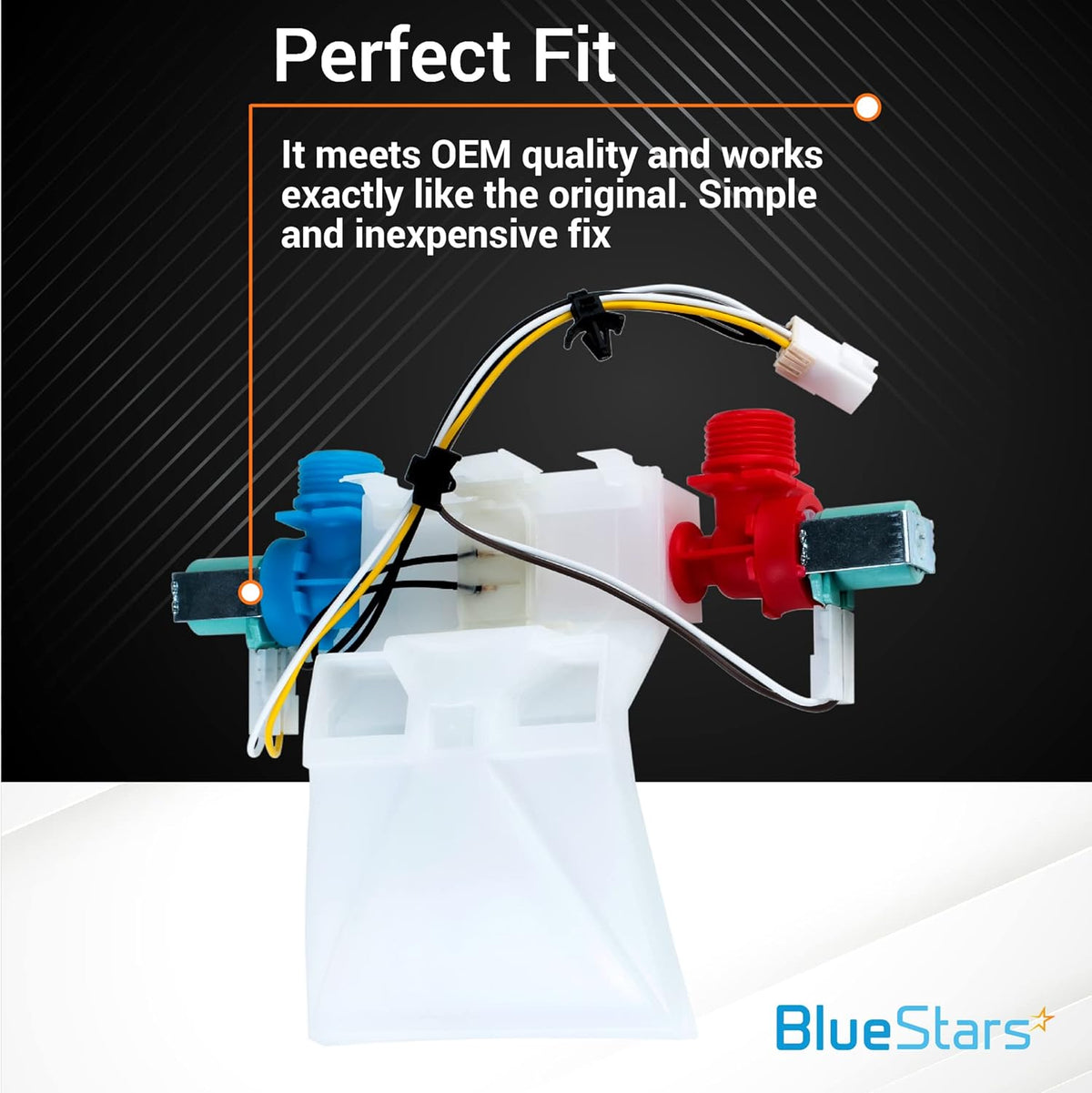

W10144820 washer water inlet valve replacement with blue and red ports and wiring harness for Whirlpool and Kenmore.
Technician repairing a Whirlpool or Kenmore washer with W10144820 water inlet valve replacement parts.

W10144820 Washer Water Inlet Valve Replacement - For Whirlpool Kenmore Washers

0.00
$45.23
Save 11% $50.66
$45.23
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

W10144820 Washer Water Inlet Valve

Key Features

  • Controls hot and cold water flow into the washing machine.
  • Integrated thermistor for precise water temperature sensing.
  • Complete assembly includes valve body and vacuum break.
  • Constructed from durable nylon material.
  • Designed for top-loading washer models.
  • Inlet Connection: Standard female hose thread for hot and cold lines.

Replaces / Cross-Reference Part Numbers

  • WPW10144820
  • AP6015761
  • PS11749042
  • W10311458
  • W10140914
  • W10140911
  • 1480998
  • WPW10144820VP
  • EAP11749042
  • PD00002258

Compatibility & Fitment

  • Fits select washing machine models from brands including Whirlpool, Kenmore, Maytag, Amana, Roper, and Admiral.
  • Verify fitment with your specific appliance model number before purchasing.

When to Replace

  • Washer does not fill with water or fills very slowly.
  • Water leaks from the rear hose connection points.
  • Washer fills with the incorrect water temperature.
  • Washer continues to fill and will not shut off.
  • No water flows during the rinse cycle.

Installation Tips

  • Disconnect the washer from its power and water supply before starting the installation.
  • Place a towel beneath the water lines to absorb any residual water.
  • Note or photograph the wire and hose connections on the old valve prior to removal.
  • Ensure inlet hose filter screens are clean and properly seated in the new valve.
  • After installation, reconnect the water supply and check for any leaks before restoring power.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Color
White / Red / Blue
Material
Plastic / Metal
Includes
Water Valve + Vacuum Break Assembly + Thermistor + 6-Wire Harness
Voltage
110/120V
Frequency
60Hz
Product Dimensions
9 x 7-1/4 x 3 inches
Item Weight
1.0 lbs

FAQs

This valve is commonly used on washers from Whirlpool, Kenmore, Maytag, Amana, Admiral, Crosley, Estate, Inglis, Roper, Magic Chef, KitchenAid, Jenn-Air, and Norge. Compatibility still depends on the exact model number, so the safest check is to match your washer model and confirm that it uses part W10144820 or one of its replacements.
This replacement crosses to W10144820, WPW10144820, W10311458, AP6015761, PS11749042, EAP11749042, 1480998, W10140914, W10140911, WPW10144820VP, 33190126, 33190127, WV4820, AP4371093, AH2347919, EA2347919, PD00002258, and PS2347919.
Typical signs include the washer filling slowly, not filling at all, only hot or only cold water entering, water continuing to drip into the tub after the machine is off, fill errors, or incorrect water temperature during cycles. On this part family, internal solenoid failure, mineral buildup, or a failed thermistor-related section can all cause fill problems.
The valve controls hot and cold water entering the washer. On this part family, the assembly commonly includes separate hot and cold valve sections, a vacuum break, and a thermistor sensor used to help monitor incoming water temperature. If the valve does not open, close, or regulate temperature correctly, the washer may not fill properly or may use the wrong water temperature.
For many top-load and front-load Whirlpool-built washers, this is usually a moderate repair that takes about 30 to 60 minutes. Typical tools include a screwdriver, pliers, and possibly a nut driver or socket. You’ll need to unplug the washer, shut off both water supplies, disconnect the fill hoses, remove the rear or top access panel depending on the model, transfer the wire connectors, and reinstall the new valve.
First confirm the house water supply is turned on and that both fill hoses are not kinked. Inspect the inlet screens for sediment or mineral blockage, and make sure the washer is actually sending power to the valve during fill. If the valve is getting power but not opening, or if it leaks through when de-energized, replacement is usually warranted. It is also smart to inspect the hose washers and replace damaged fill hoses if they are brittle or leaking.
The most common causes are hard-water scale, sand or debris clogging the inlet screens, worn internal seals that allow seepage, and failed solenoids from age or repeated cycling. In some cases, electrical issues in the harness or control board can mimic a bad valve, so basic diagnosis before installation helps avoid replacing the wrong part.
