Engine & Cabin Air Filter Combo for Toyota, Lexus
0.00
Regular price
$30.42
Regular price
Save 10%
$33.79
Sale price
$30.42
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
Engine & Cabin Air Filter Combo for Toyota, Lexus
Key Features

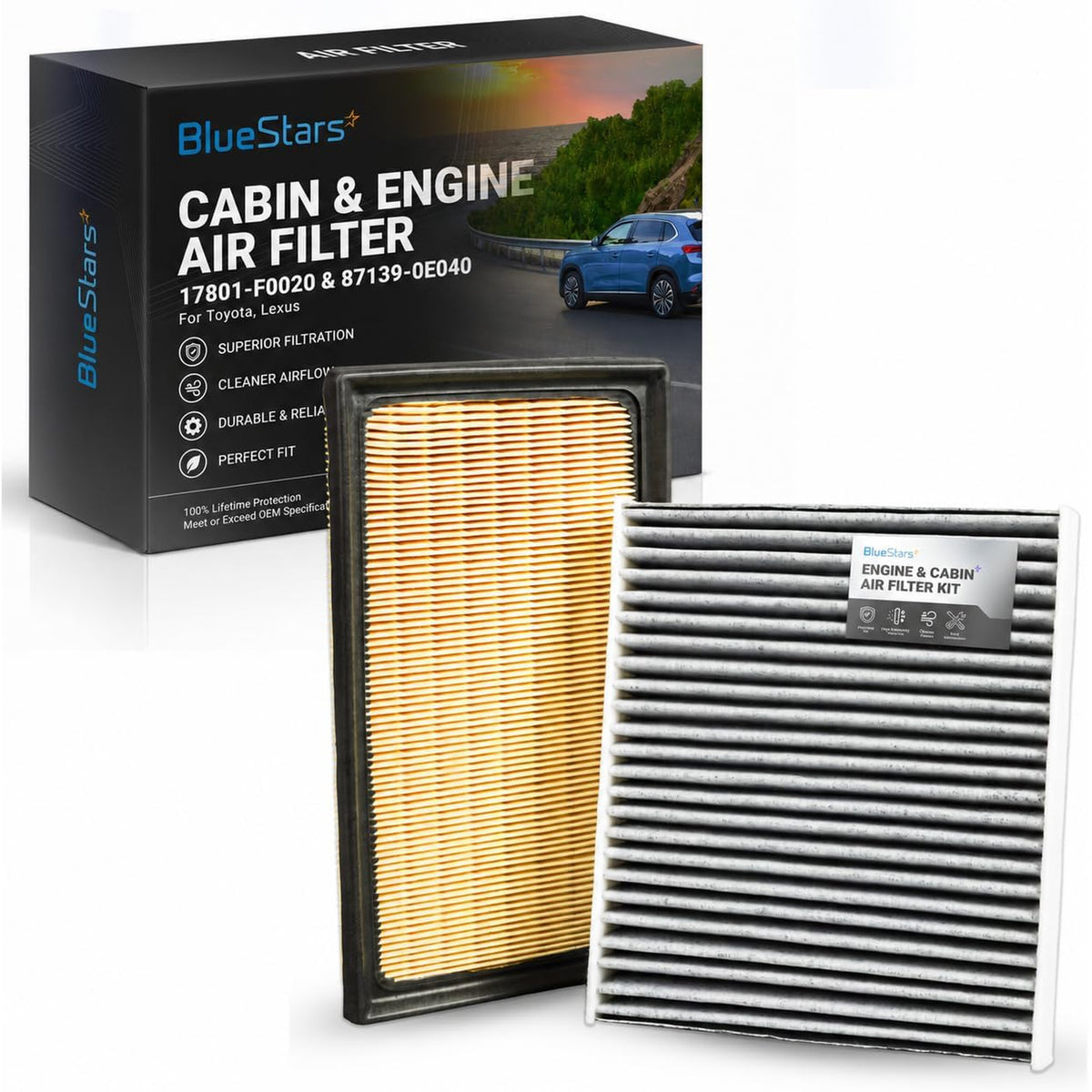

- Includes 1 engine air filter and 1 cabin air filter.

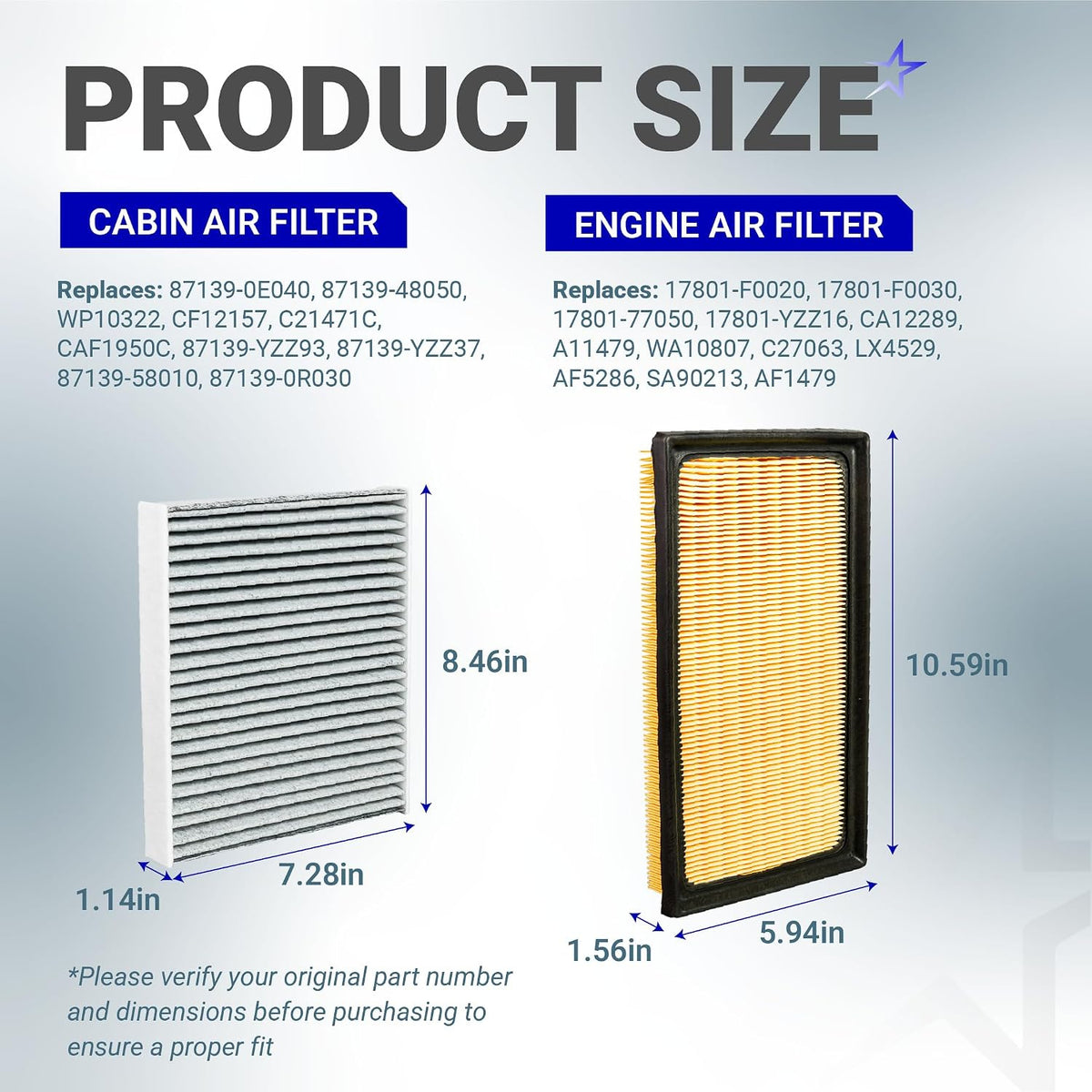

- Engine air filter dimensions: 10.59 inches long x 5.94 inches wide x 1.56 inches high.
- Cabin air filter dimensions: 8.50 inches long x 7.28 inches wide x 1.14 inches high.
- Engine filter media helps trap dust, dirt, and airborne particles before they enter the engine.
- Cabin filter uses multilayer media with activated charcoal to help reduce dust, pollen, fine particles, odors, and exhaust gases in HVAC airflow.
- Replacing clogged filters can help restore airflow and support engine and cabin air performance.
Replaces / Cross-Reference Part Numbers
- Engine air filter: 17801-F0020, 17801-F0030, 17801-77050, 17801-YZZ16, CA12289, A11479, WA10807, C27063, LX4529, AF5286, SA90213, AF1479.
- Cabin air filter: 87139-0E040, 87139-48050, WP10322, CF12157, C21471C, CAF1950C, 87139-YZZ93, 87139-YZZ37, 87139-58010, 87139-0R030.

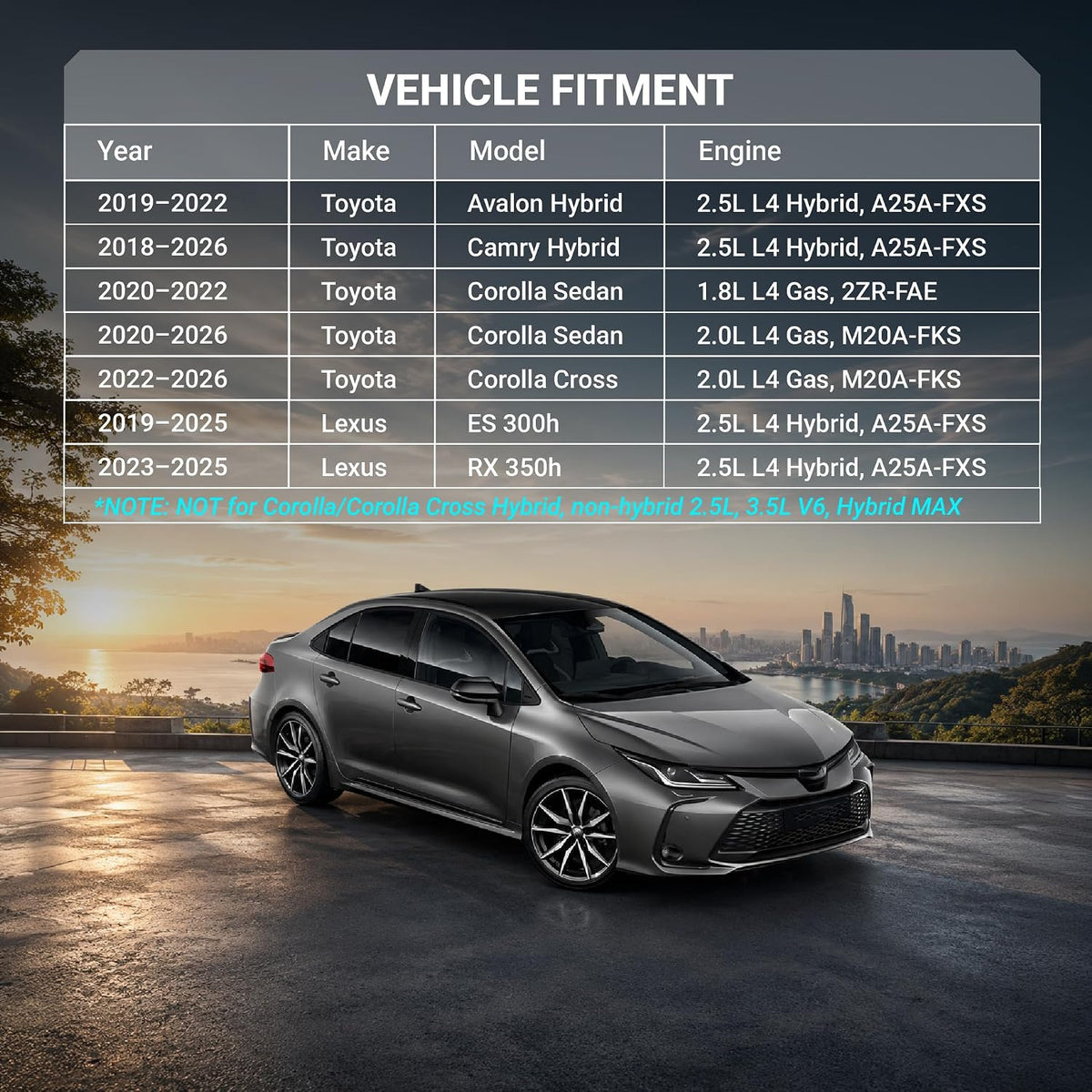

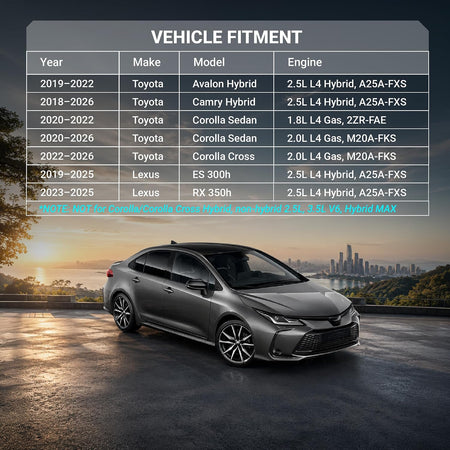

Compatibility & Fitment
- 2019–2022 Toyota Avalon Hybrid.
- 2018–2026 Toyota Camry Hybrid.
- 2020–2022 Toyota Corolla sedan with 1.8L gasoline engine.
- 2020–2026 Toyota Corolla sedan with 2.0L gasoline engine.
- 2022–2026 Toyota Corolla Cross with 2.0L gasoline engine.
- 2019–2025 Lexus ES300h.
- 2023–2025 Lexus RX350h.
- Not for Corolla or Corolla Cross Hybrid, non-hybrid 2.5L engines, 3.5L V6 engines, or Hybrid MAX applications.
- Verify the vehicle year, model, engine, and original part numbers before ordering. Fitment information is not exhaustive.
When to Replace
- Replace the engine air filter when it is visibly dirty, airflow is restricted, or engine performance and fuel economy are affected by a clogged filter.
- Replace the cabin air filter when HVAC airflow decreases, interior air becomes dusty or odorous, or the filter reaches its scheduled service interval.
- A general replacement interval is every 12 months or 12,000–15,000 miles, with more frequent service in dusty or polluted driving conditions.
Installation Tips
- Confirm both original filter part numbers and compare the old filters with the replacement filters before installation.
- Turn off the vehicle and follow the vehicle service procedure for accessing the engine air box and cabin filter housing.
- Remove loose dirt from each housing before fitting the new filter, and install the filter in the same airflow direction as the original.
- Ensure the air box and cabin filter cover are fully seated after installation to prevent air bypass.
-

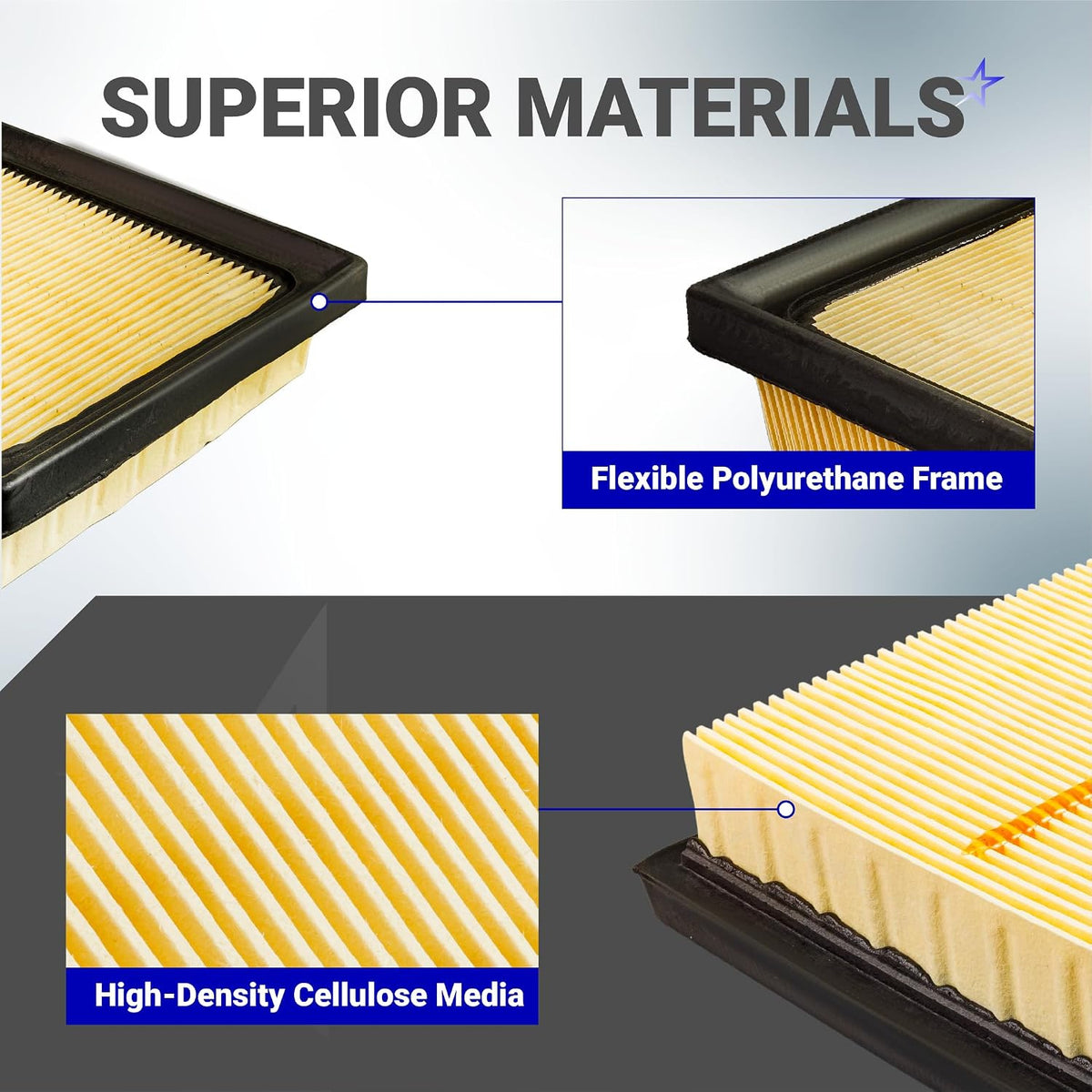

POLYURETHANE FRAME
Flexible, heat-resistant frame seals tightly to the air box - no unfiltered air bypasses the media. -
UNIFORM & FINE PLEATS
High-density cellulose, pleated evenly for low airflow resistance and a large dirt-holding capacity across the full service interval. -

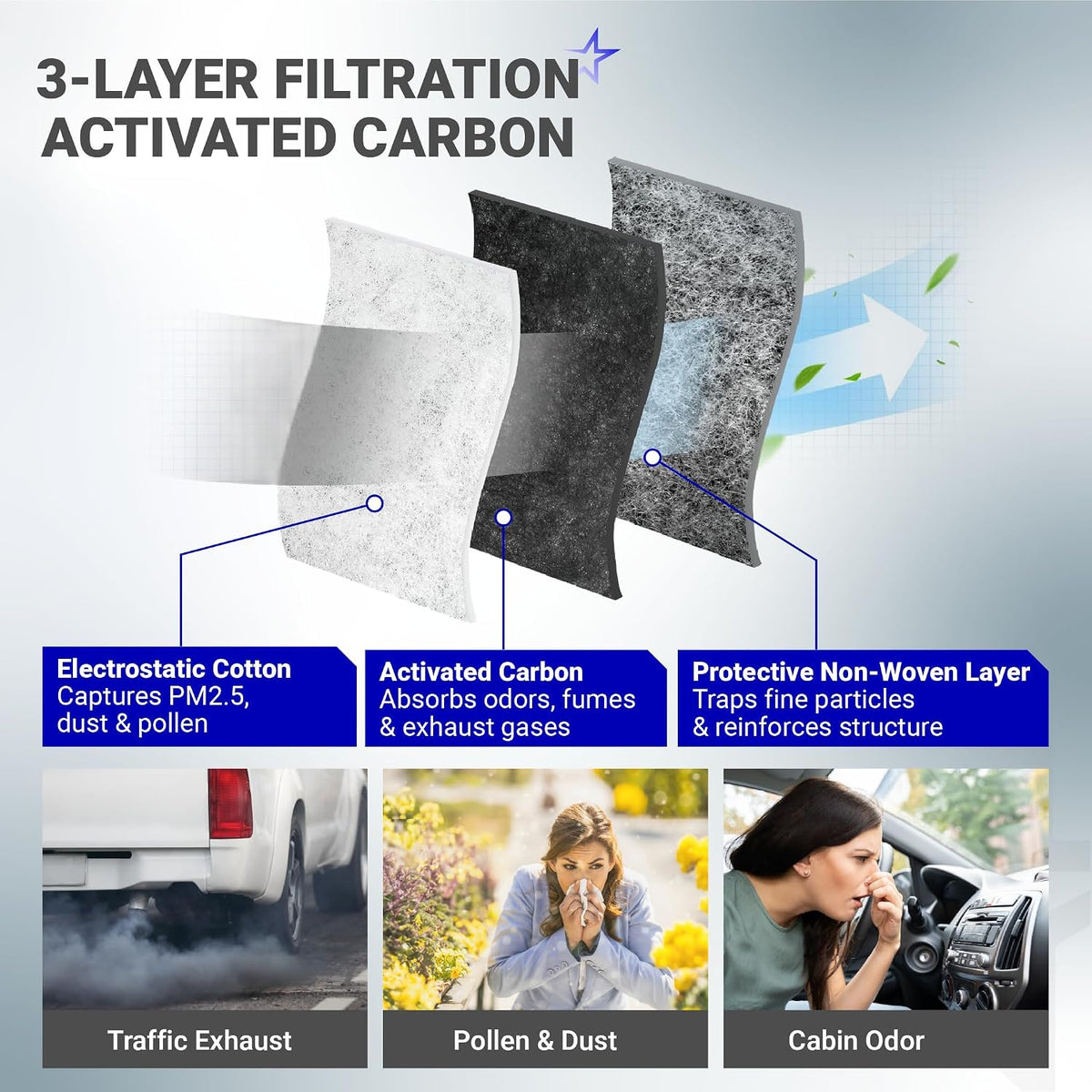

ACTIVATED CARBON MEDIA
Multi-layer media with activated carbon traps dust, pollen and fine particles while absorbing odors and exhaust gases for a fresher cabin. -
SOFT SEALING EDGE
Soft non-woven border presses flush against the housing to block air bypass.

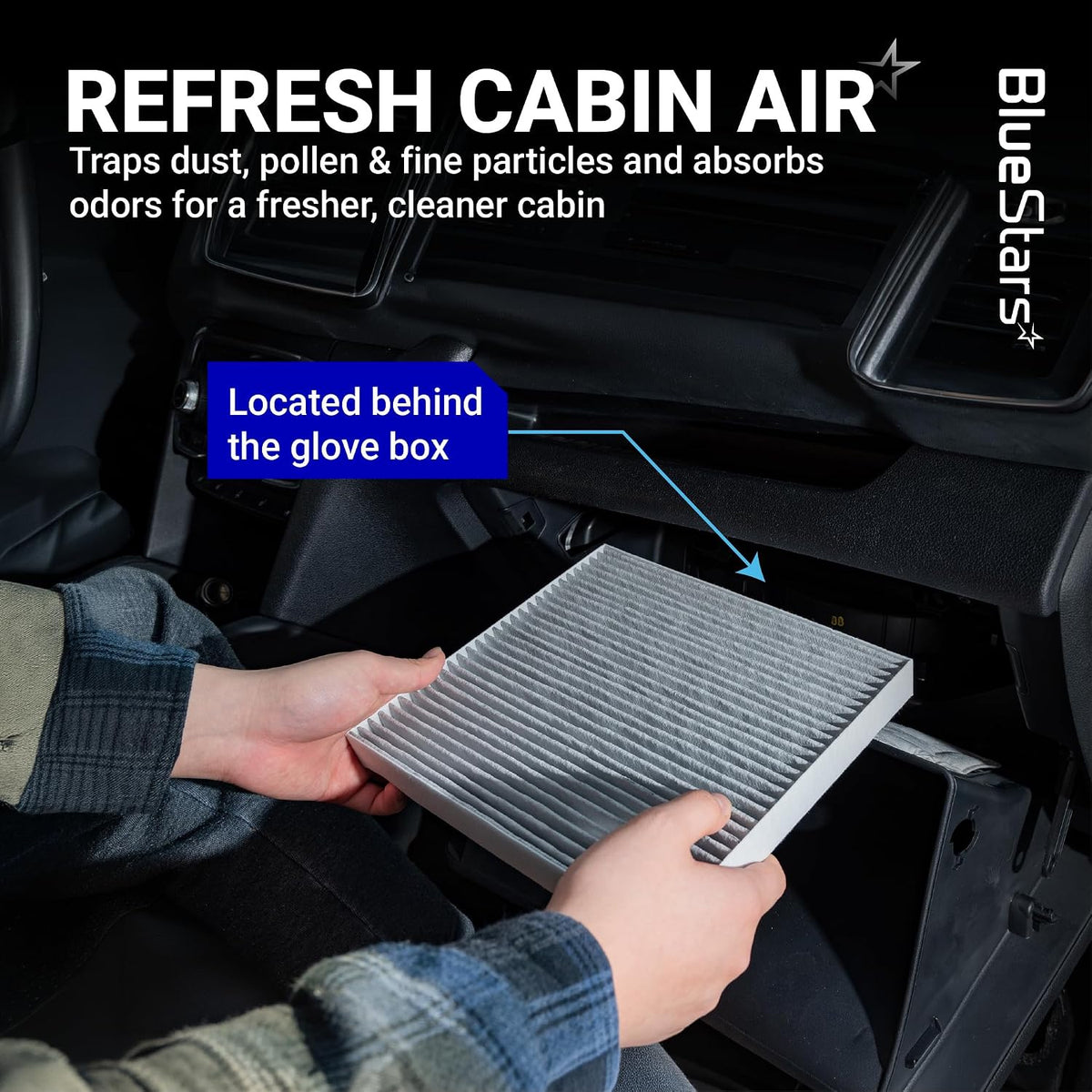

REFRESH CABIN AIR
Traps dust, pollen & fine particles and absorbs odors for a fresher, cleaner cabin

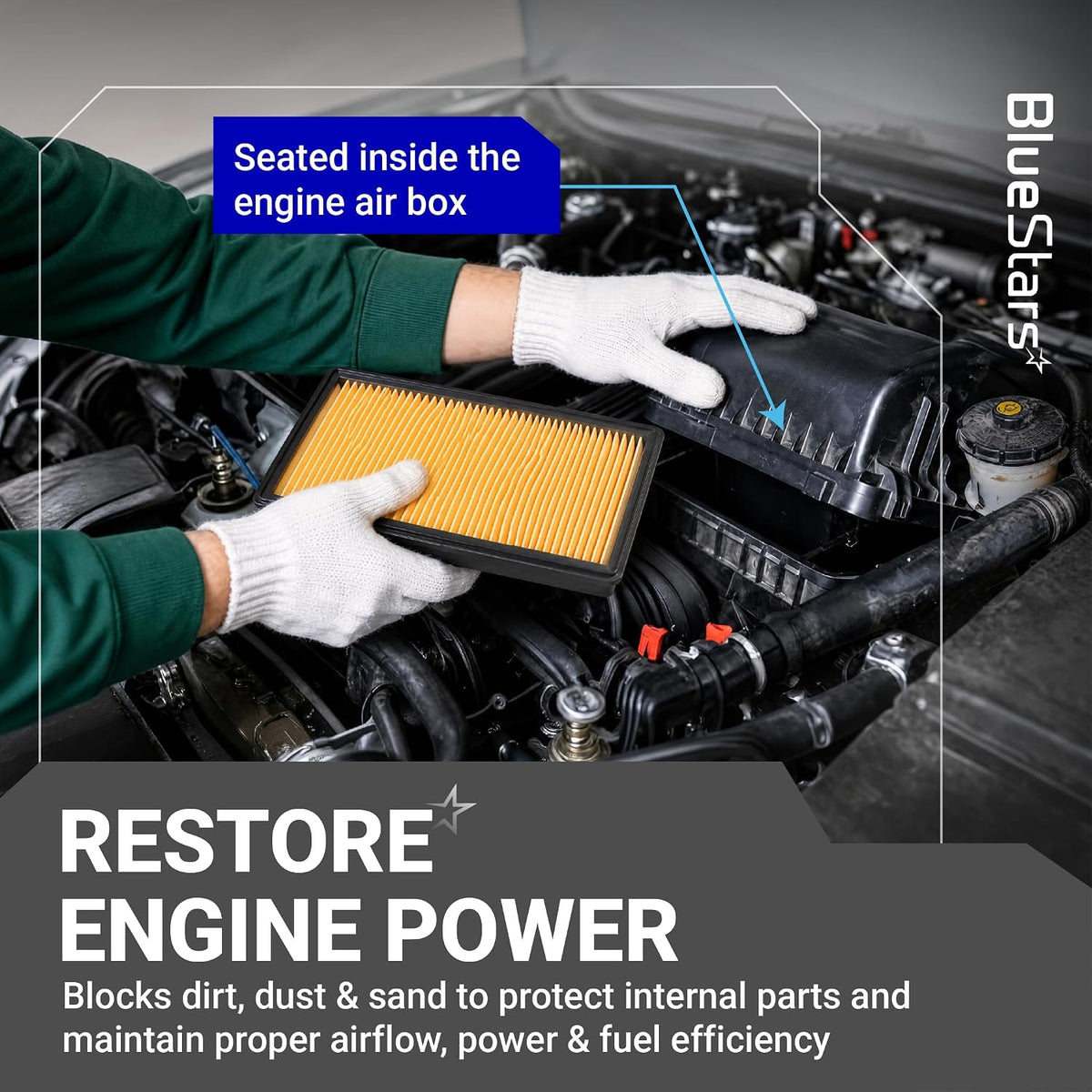

RESTORE ENGINE POWER
Blocks dirt, dust & sand to protect internal parts and maintain proper airflow, power & fuel efficiency
FRESHER AIR. MORE CONFIDENT MILES
Enjoy comfortable cabin airflow and dependable engine intake protection on every drive
