Engine & Cabin Air Filter Combo for Toyota 4Runner Lexus GX460
0.00
Regular price
$32.76
Regular price
Save 10%
$36.39
Sale price
$32.76
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

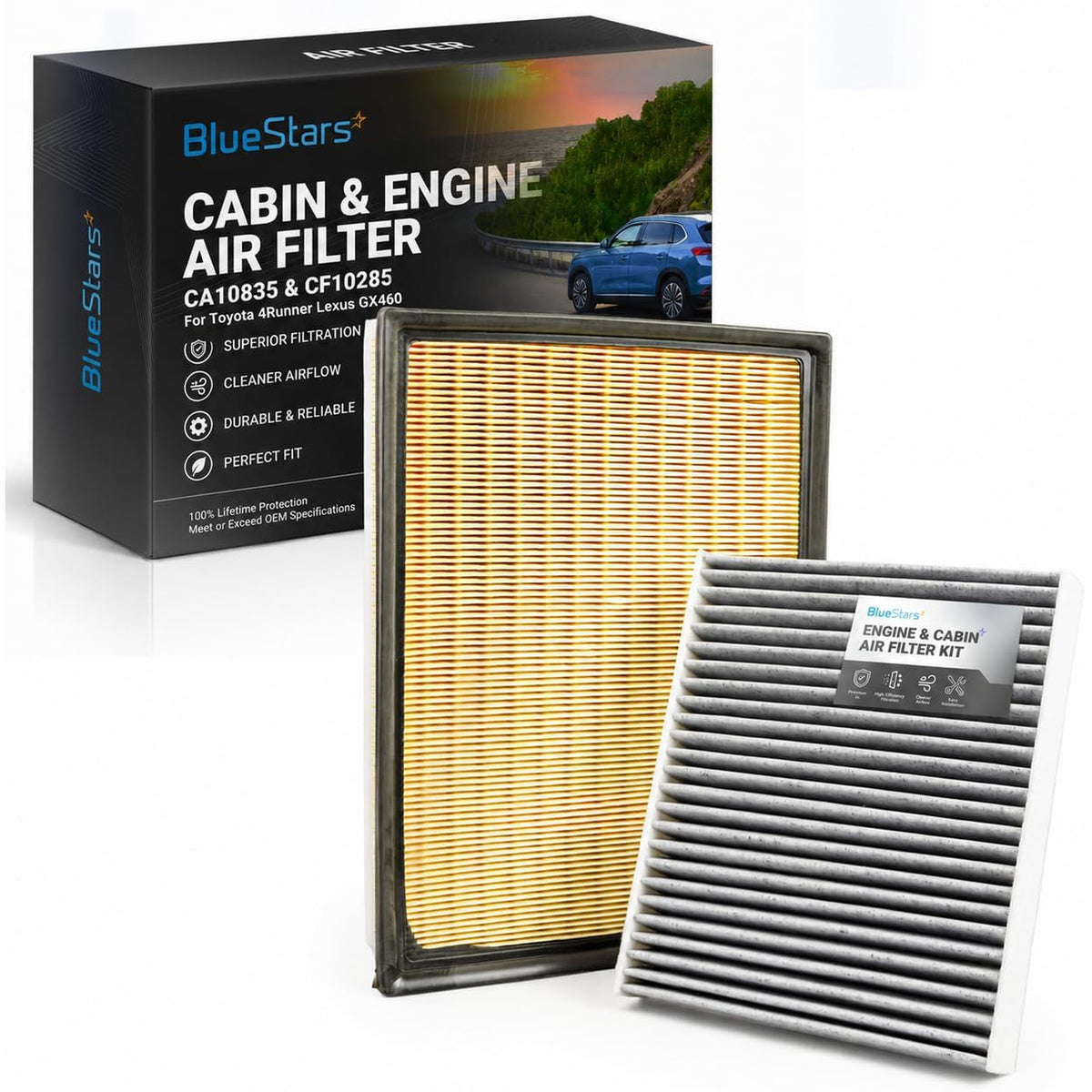

Engine & Cabin Air Filter Combo for Toyota 4Runner Lexus GX460
Key Features
- Includes one engine air filter and one cabin air filter.

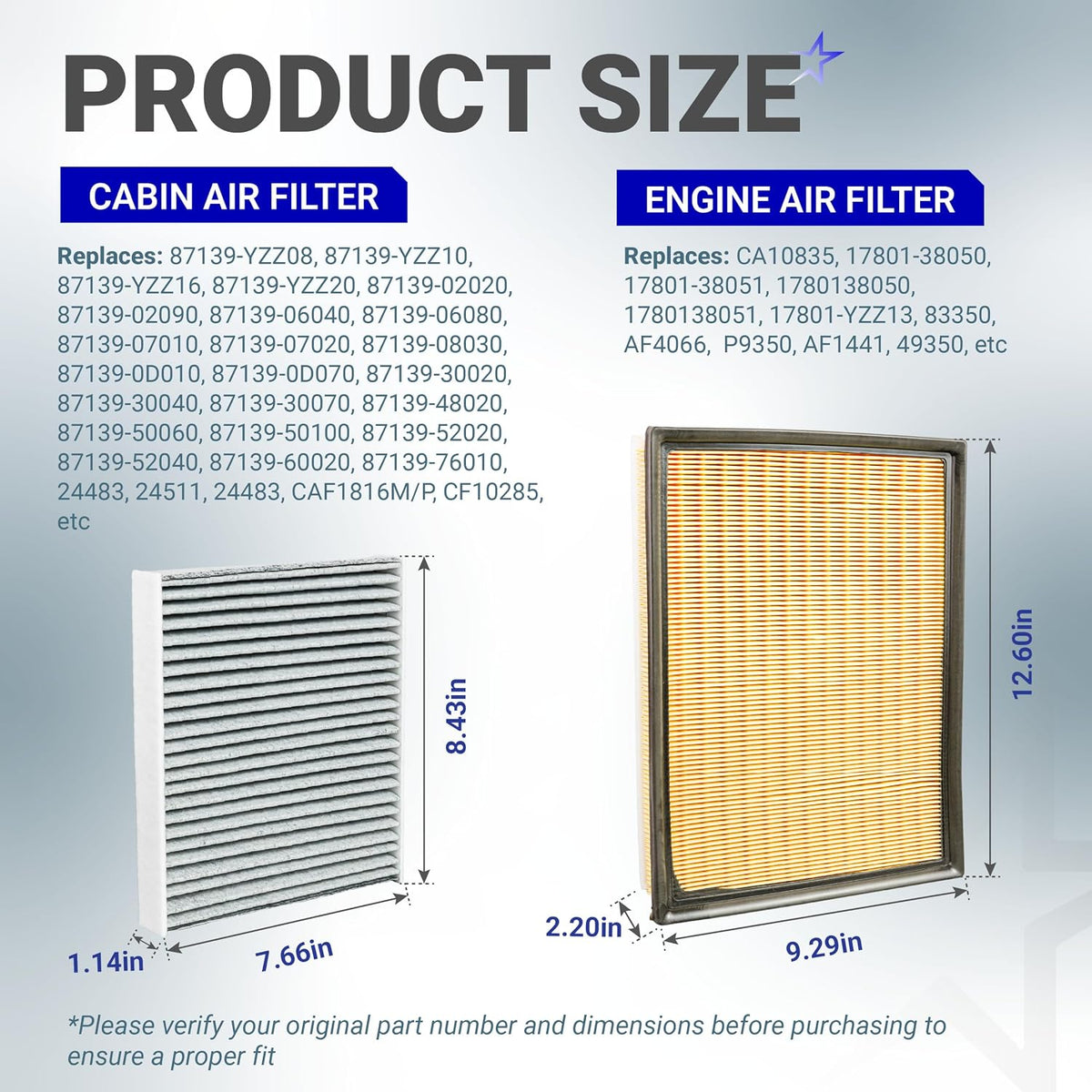

- Engine filter dimensions: 12.60 inches long x 9.29 inches wide x 2.20 inches high.
- Cabin filter dimensions: 8.43 inches long x 7.66 inches wide x 1.14 inches high.
- Rectangular filter shape.
- The engine filter uses pleated media to help trap dust, dirt, and airborne particles before they reach the engine.
- The cabin filter uses multilayer media with activated charcoal to help reduce dust, pollen, fine particles, odors, and exhaust gases in the HVAC airflow.
- Lifetime protection is included for product defects or issues.
Replaces / Cross-Reference Part Numbers
- Engine air filter: CA10835, 17801-38050, 17801-38051, 17801-YZZ13, SA10835, PA6122, A36122, AF4066, 49350.
- Cabin air filter: CF10285, 87139-YZZ08, 87139-30040, 87139-52040, 87139-07010, 87139-50100, 87139-02020, CP285, CAF1816P, 24483.

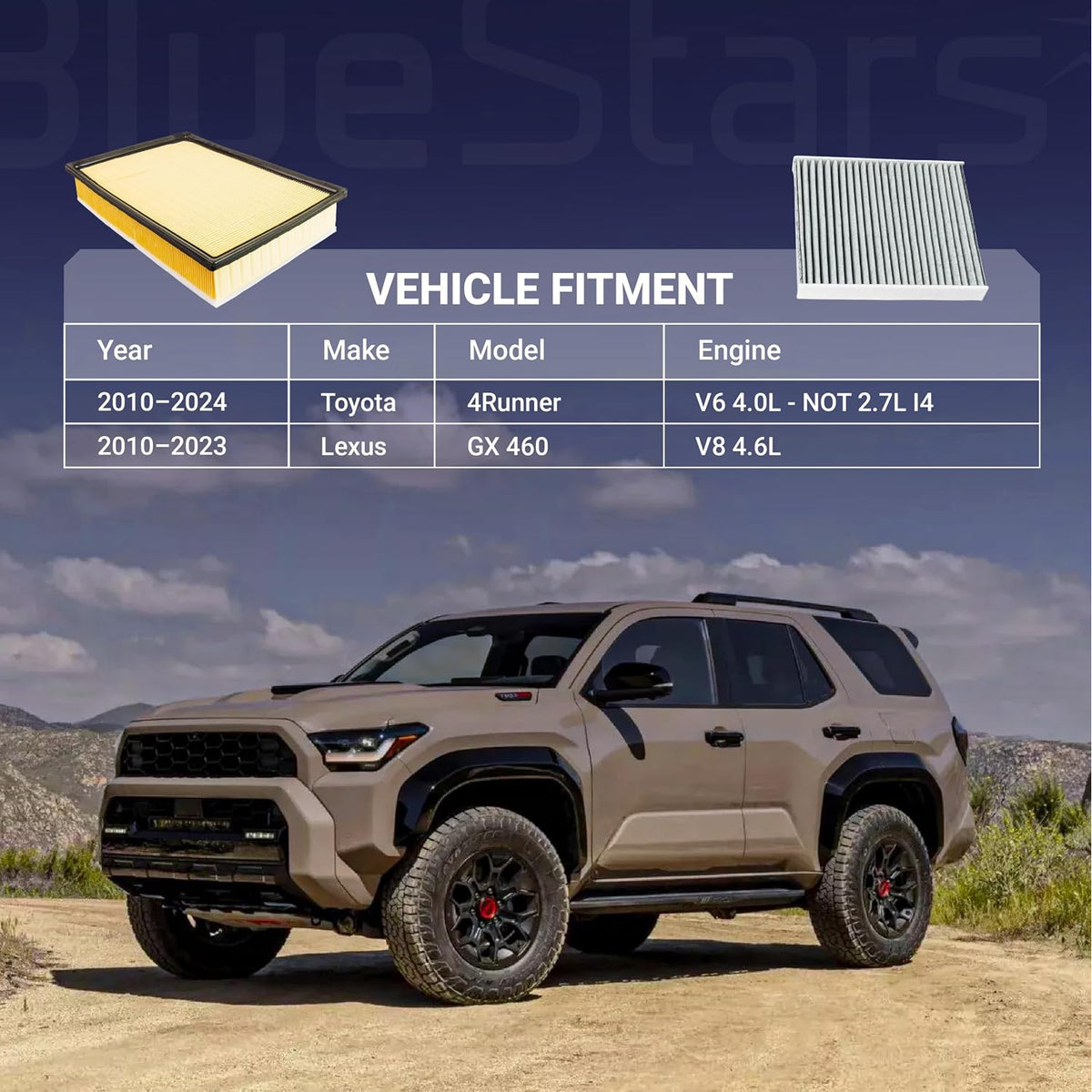

Compatibility & Fitment
- Toyota 4Runner with the 4.0L V6 engine, model years 2010–2024.
- Lexus GX460 with the 4.6L V8 engine, model years 2010–2023.
- Not compatible with the 2.7L 4-cylinder engine.
- Not compatible with the 2025 or newer Toyota 4Runner, which uses a different filter design.
- Verify the vehicle year, model, engine, filter dimensions, and original part number before ordering.
When to Replace
- Replace clogged or dirty filters when engine airflow, fuel efficiency, cabin airflow, or interior air comfort declines.
- For routine maintenance, replace both filters every 12 months or 12,000–15,000 miles.
- Earlier replacement may be appropriate after driving in dusty conditions or areas with heavy airborne debris.
Installation Tips
- Confirm the replacement filter dimensions and part numbers against the removed filters before installation.
- Replace the engine and cabin filters together to keep both air paths maintained on the same service schedule.
- Follow the vehicle service instructions for accessing the engine airbox and cabin filter housing.
- Check the filter orientation and ensure each housing closes securely after installation.
-

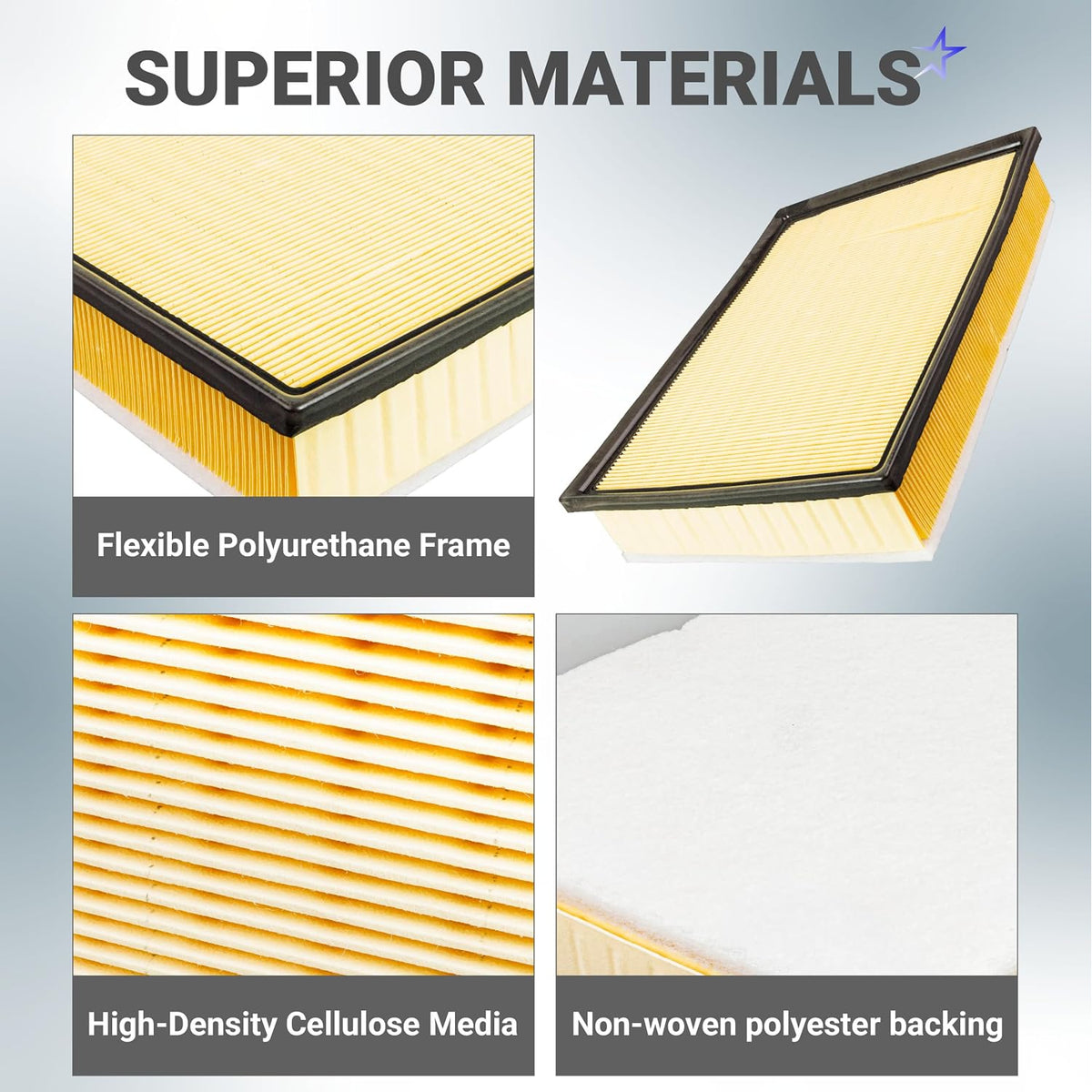

POLYURETHANE FRAME
Flexible, heat-resistant frame seals tightly to the air box - no unfiltered air bypasses the media. -
UNIFORM & FINE PLEATS
High-density cellulose, pleated evenly for low airflow resistance and a large dirt-holding capacity across the full service interval. -
NON-WOVEN BACKING LAYER
Soft nonwoven backing reinforces the filter pack and helps the pleats maintain their shape during use. -

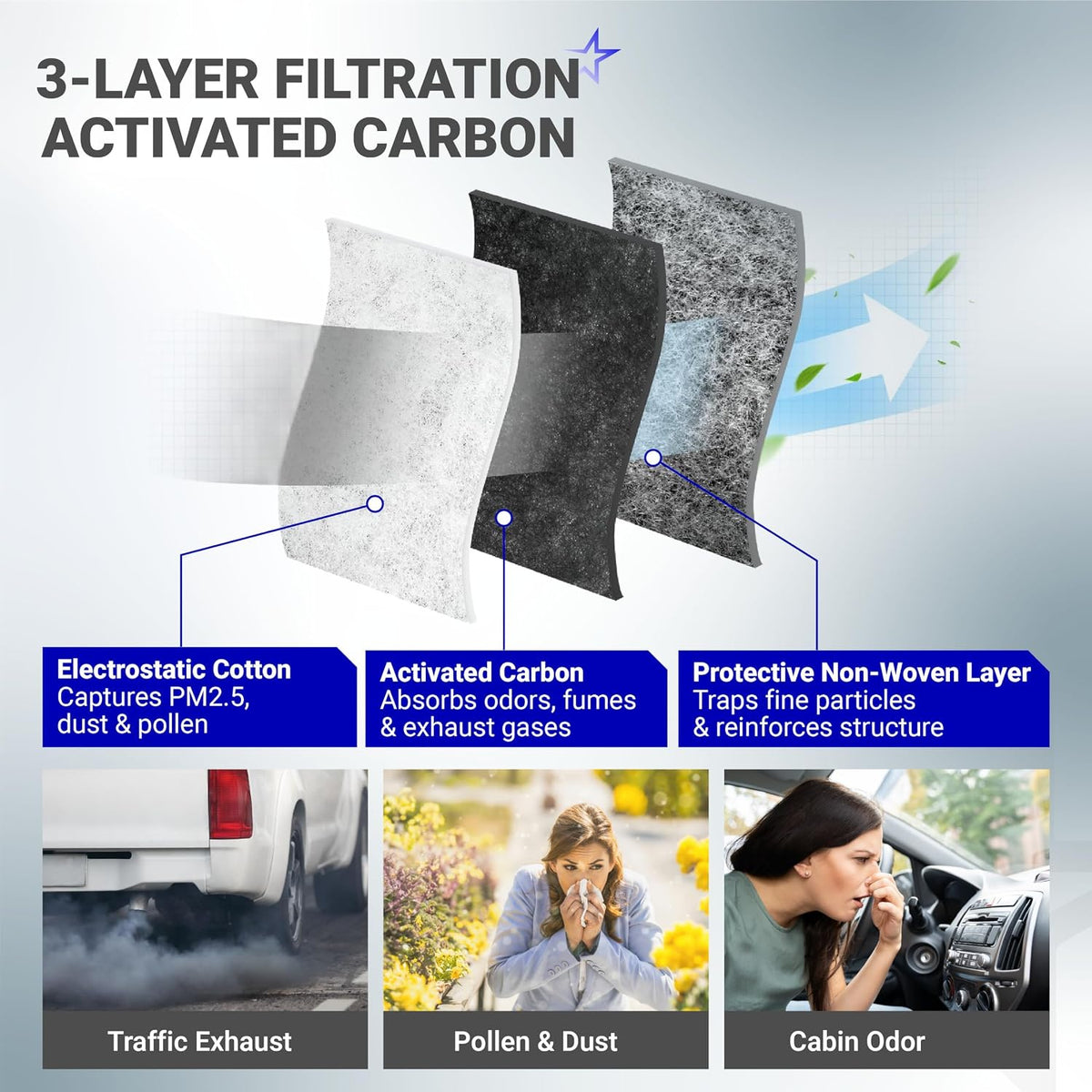

ACTIVATED CARBON MEDIA
Multi-layer media with activated carbon traps dust, pollen and fine particles while absorbing odors and exhaust gases for a fresher cabin.

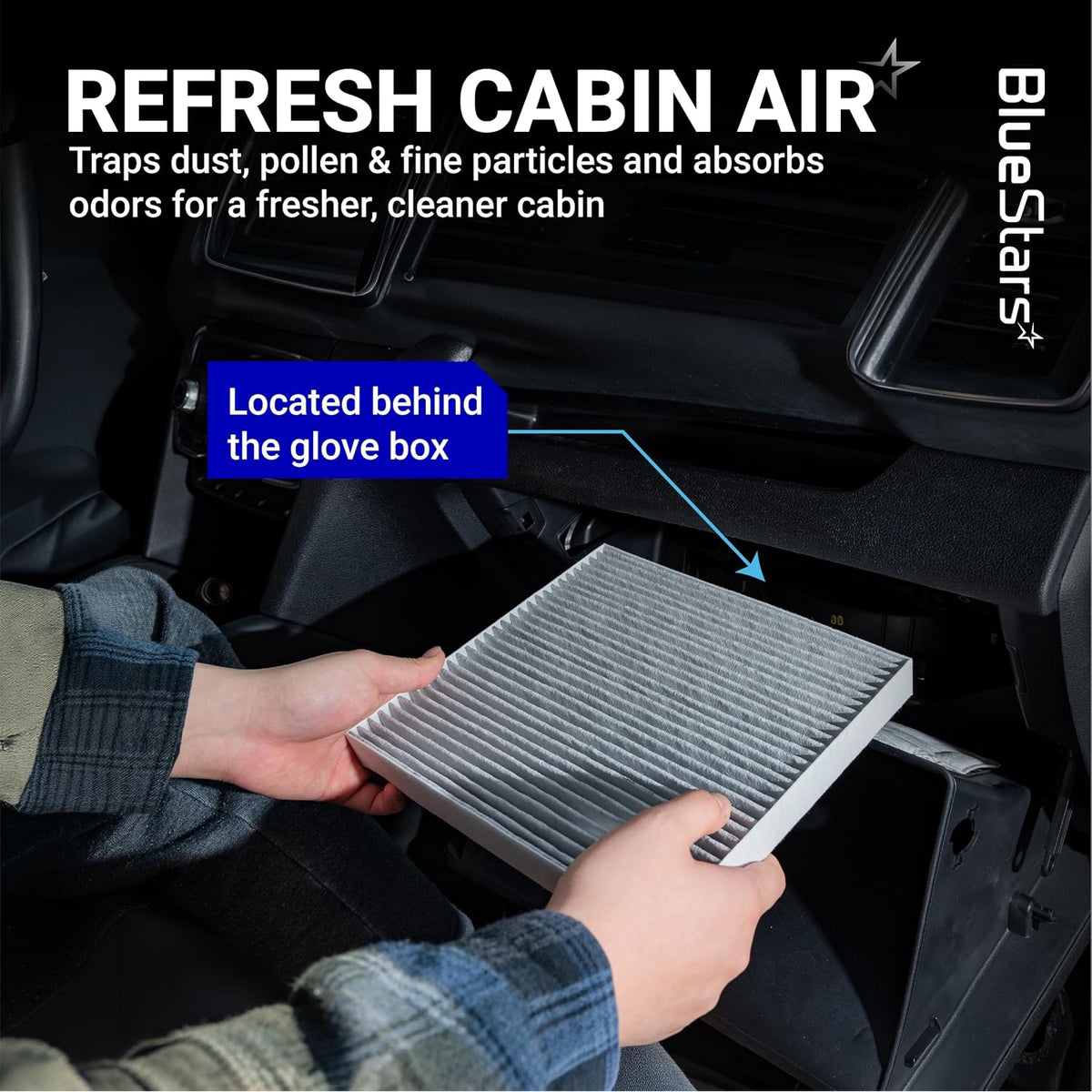

REFRESH CABIN AIR
Traps dust, pollen & fine particles and absorbs odors for a fresher, cleaner cabin

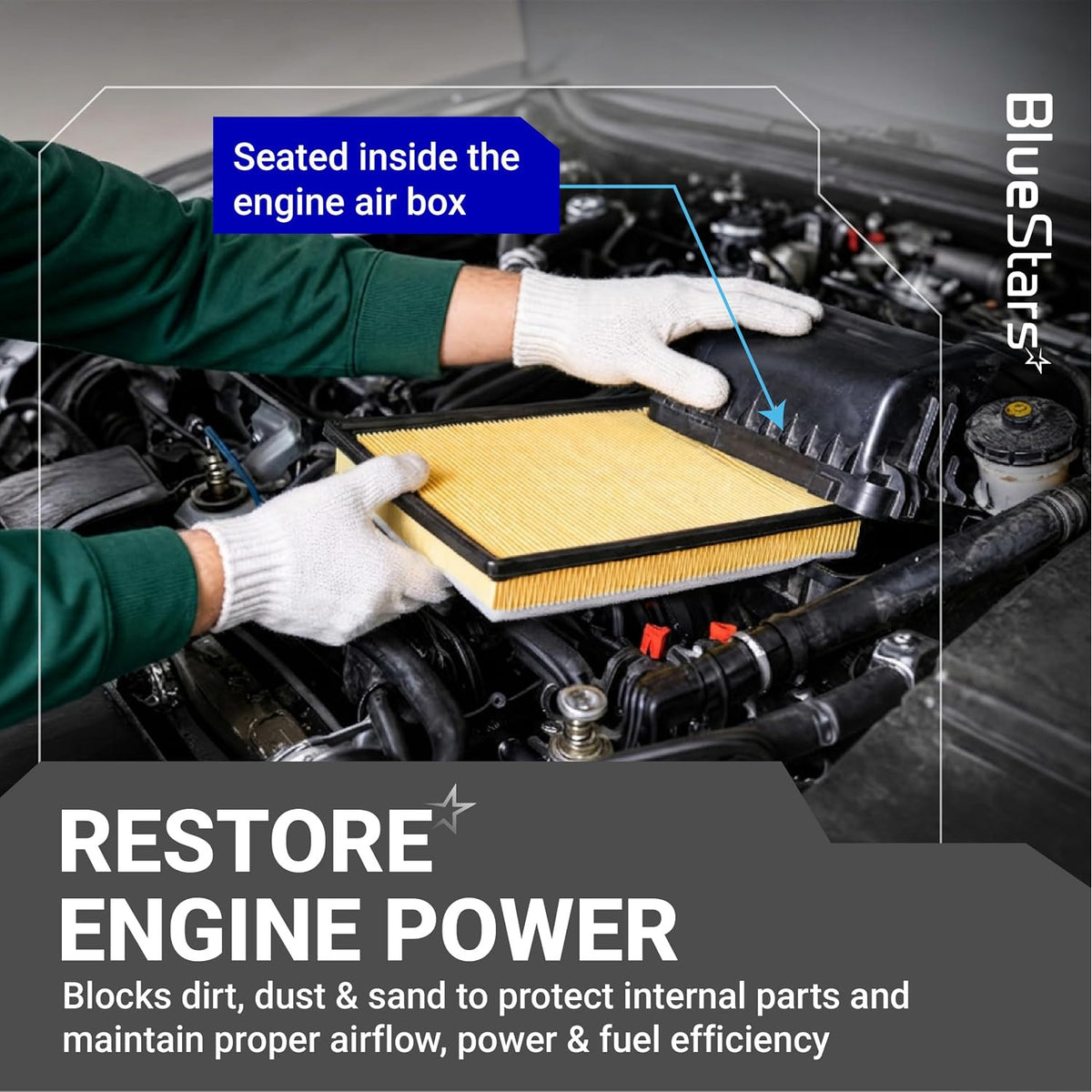

RESTORE ENGINE POWER
Blocks dirt, dust & sand to protect internal parts and maintain proper airflow, power & fuel efficiency
FRESHER AIR. MORE CONFIDENT MILES
Enjoy comfortable cabin airflow and dependable engine intake protection on every drive
