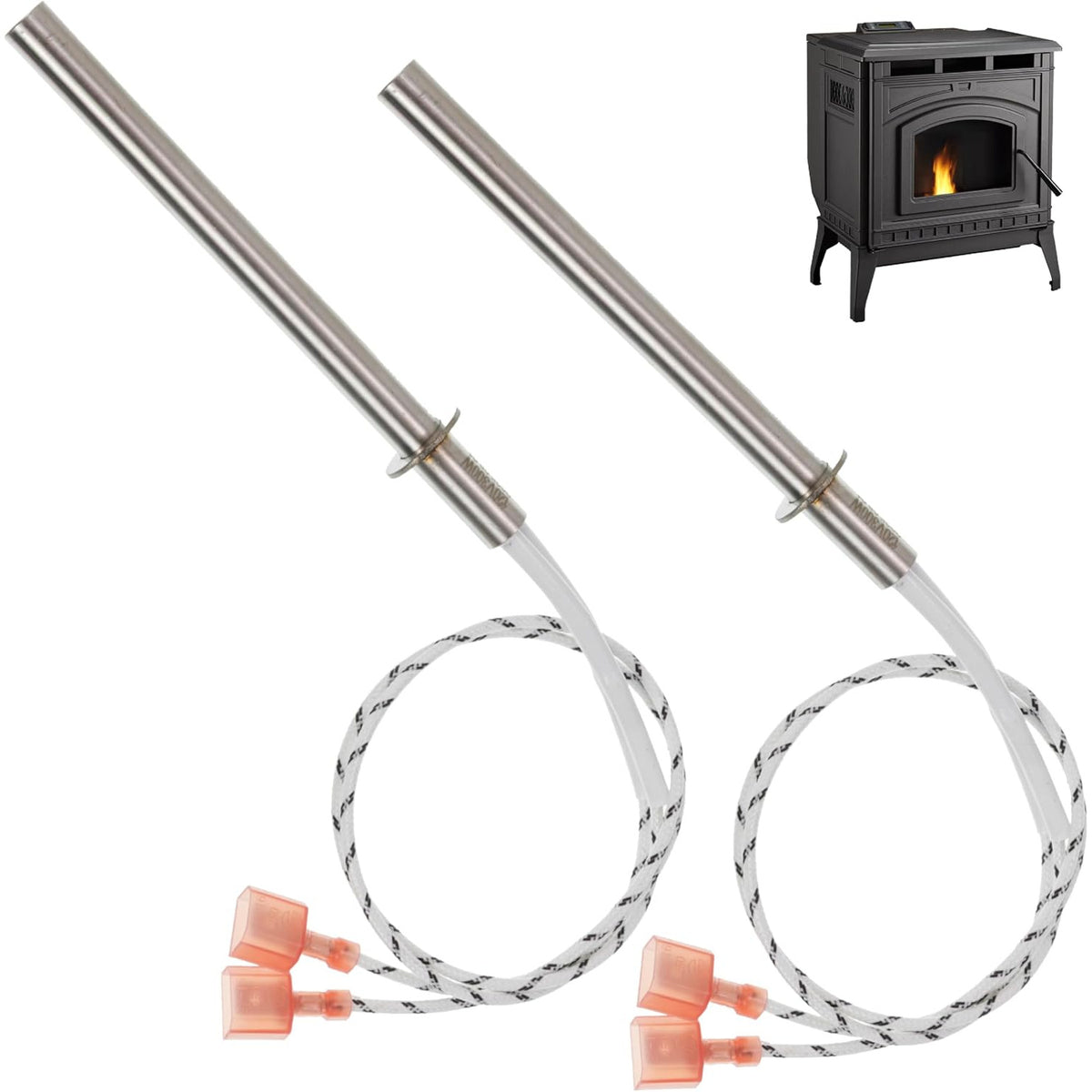

2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B

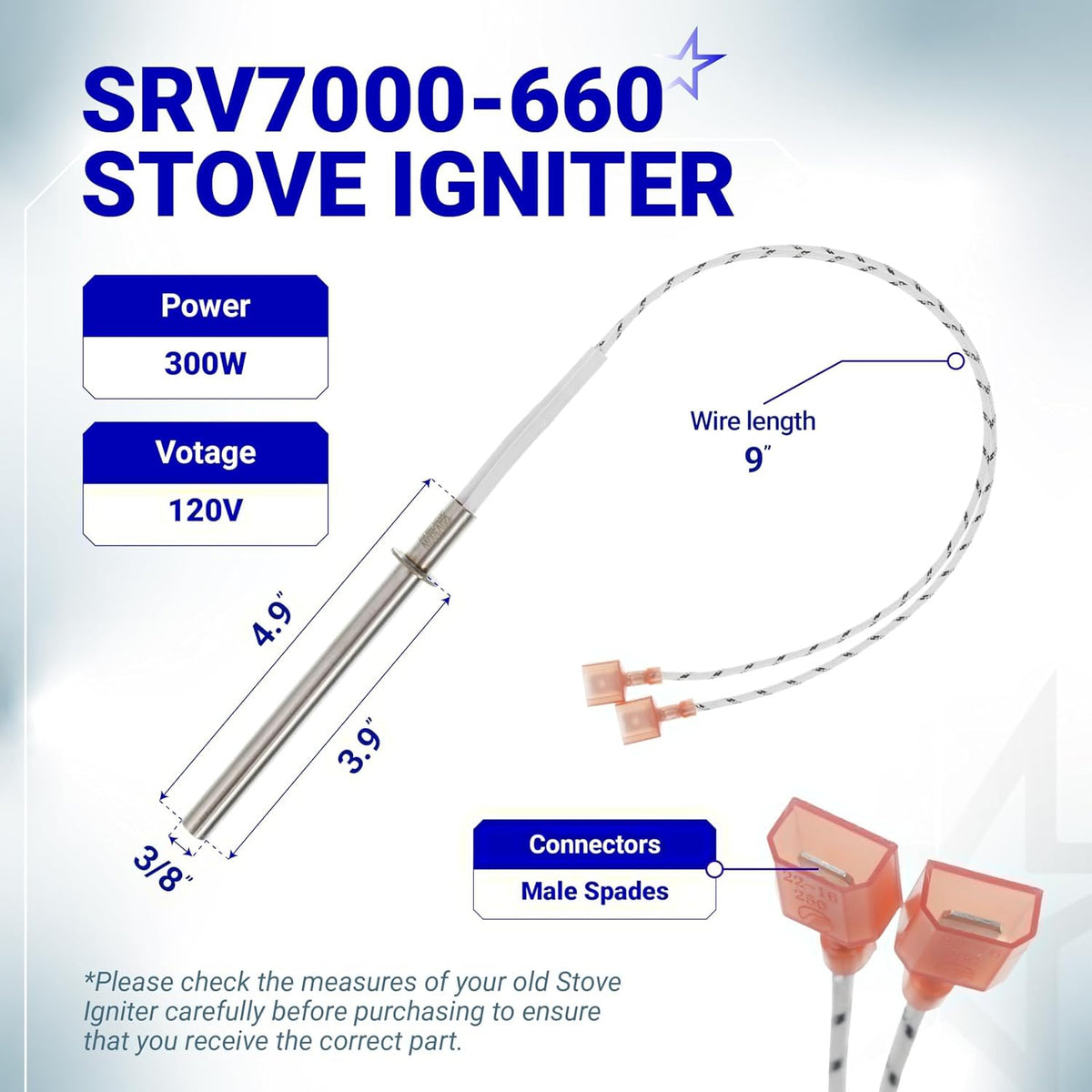

Key Features

  • Replacement pellet stove igniter with 300W power and 110/120V AC operation.
  • Cartridge total length: 4.9 inches.
  • Heating length: 3.9 inches.
  • Cartridge diameter: 3/8 inch.
  • Wire length: 9 inches with male spade terminals.
  • Fiberglass-insulated wires provide heat resistance in pellet stove environments.
  • Reinforced joints help protect the wiring during normal operation.
  • Ships as a 2-pack.

Replaces / Cross-Reference Part Numbers

  • SRV7000-660
  • SRV7000-660A

Compatibility & Fitment

Fits the following pellet stove models:

  • PelPro PP130, PP130-B, PP150, PP60, PP60-B, PP70, PPC90 Cast Iron, and TSC90 Cast Iron
  • Pleasant Hearth PH35PS, PH50CABPS, PH50PS, and PHC90
  • Quadra-Fire Outfitter I and Outfitter II

Check the specifications of the existing igniter and the stove model before ordering, including cartridge length, diameter, wire length, and terminal style.

When to Replace

  • The igniter does not glow orange during the stove's ignition cycle when the model permits a visual check.
  • The burn pot or ignition chamber does not warm as expected after the stove has run through the ignition cycle.
  • A lack of heat during ignition commonly indicates a failed or worn igniter.
  • A leaking door gasket can contribute to pellet stove igniter failure, so inspect the gasket during service and replace it when necessary.

Installation Tips

  • Unplug the stove before beginning service. If the appliance has a gas supply, turn it off before repair and follow the stove manufacturer's safety instructions.
  • Wear work gloves and allow hot components to cool before removing the old igniter.
  • Remove the existing igniter, disconnect its wire, and connect the replacement using the existing wiring and male spade terminals.
  • Install the new igniter in the original position and verify that the cartridge and heating section align correctly with the ignition chamber.
  • Restore power and test the ignition cycle according to the stove's operating instructions.
  • Lifetime protection is included for defects or issues that arise with the product.
2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 1
2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 2
  • 2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 1

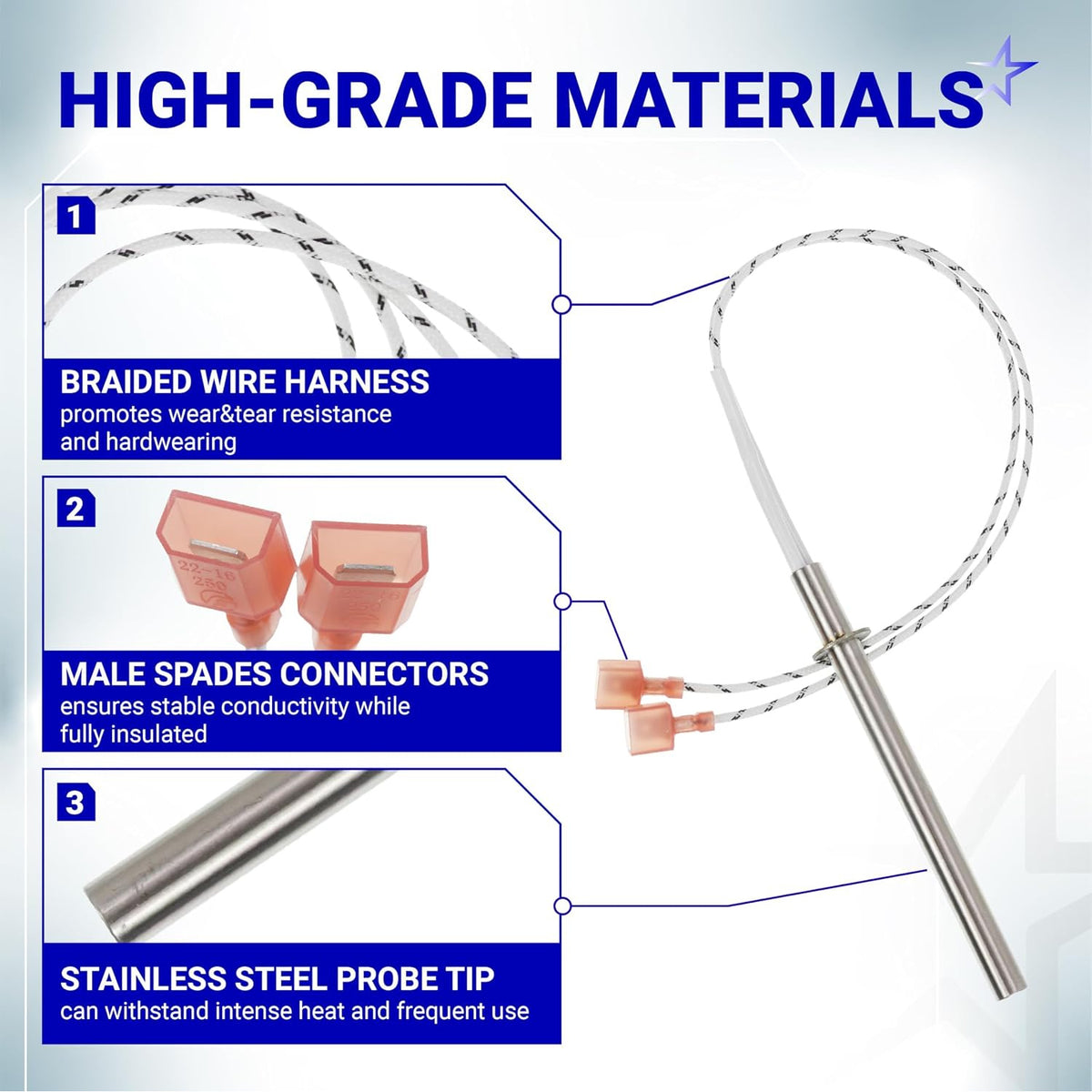

    BRAIDED WIRE HARNESS

    promotes wear&tear resistance and hardwearing
  • 2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 2

    MALE SPADES CONNECTORS

    ensures stable conductivity while fully insulated
  • 2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 3

    STAINLESS STEEL PROBE TIP

    can withstand intense heat and frequent use
  • 2-Pack SRV7000-660 Igniter Fit for Pelpro PP130, PP130-B 4

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble

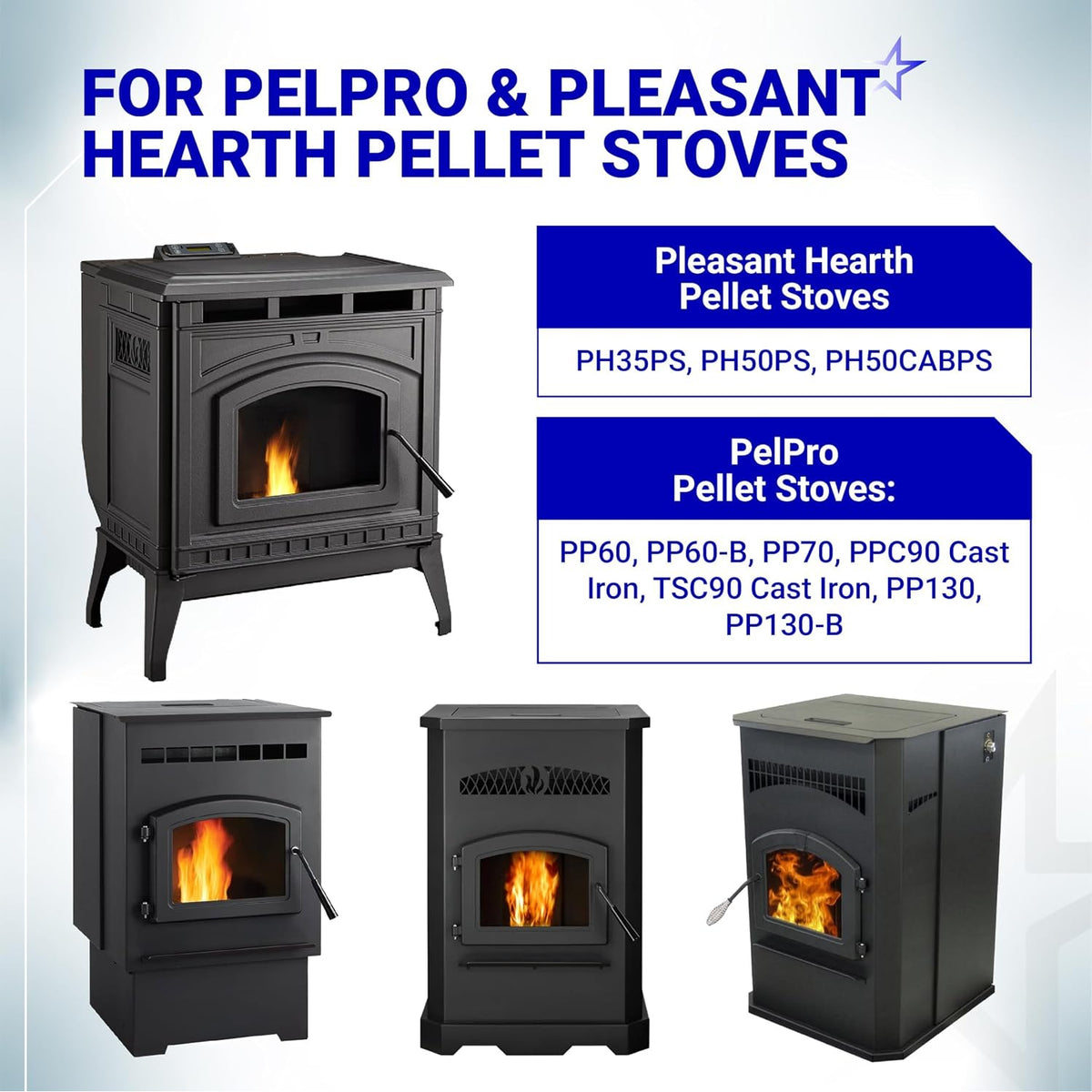

COMPATIBLE MODELS

COMPATIBLE MODELS

- PelPro Pellet Stoves: PP60, PP60-B, PP70, PPC90 Cast Iron, TSC90 Cast Iron, PP130, PP130-B
- Pleasant Hearth Pellet Stoves: PH35PS, PH50PS, PH50CABPS
(IMPORTANT NOTE: This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.)

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This igniter fits Pelpro PP130 and PP130-B pellet stoves. Confirm the model and the existing igniter connection before installation, especially if the stove has been modified or previously repaired.
The igniter is identified by SRV7000-660 and SRV7000-660A. Use the number on your original igniter or stove parts documentation to confirm the match.
Common symptoms include pellets feeding without lighting, repeated failed ignition cycles, excessive startup smoke, or an igniter that does not become hot during the ignition sequence. Ash buildup around the burn pot can also prevent a functioning igniter from lighting pellets properly.
Unplug the stove and allow it to cool completely. Clean ash from the burn pot and igniter area, inspect the wiring and connector for heat damage, and verify that the air passage is clear. A clean burn pot helps the new igniter transfer heat effectively.
The replacement is generally a straightforward repair for someone familiar with pellet stoves. Access usually requires removing the relevant panels or burn-pot hardware, disconnecting the igniter wiring, removing the retaining hardware, and installing the new igniter in the same position. Installation time varies with stove condition and access.
