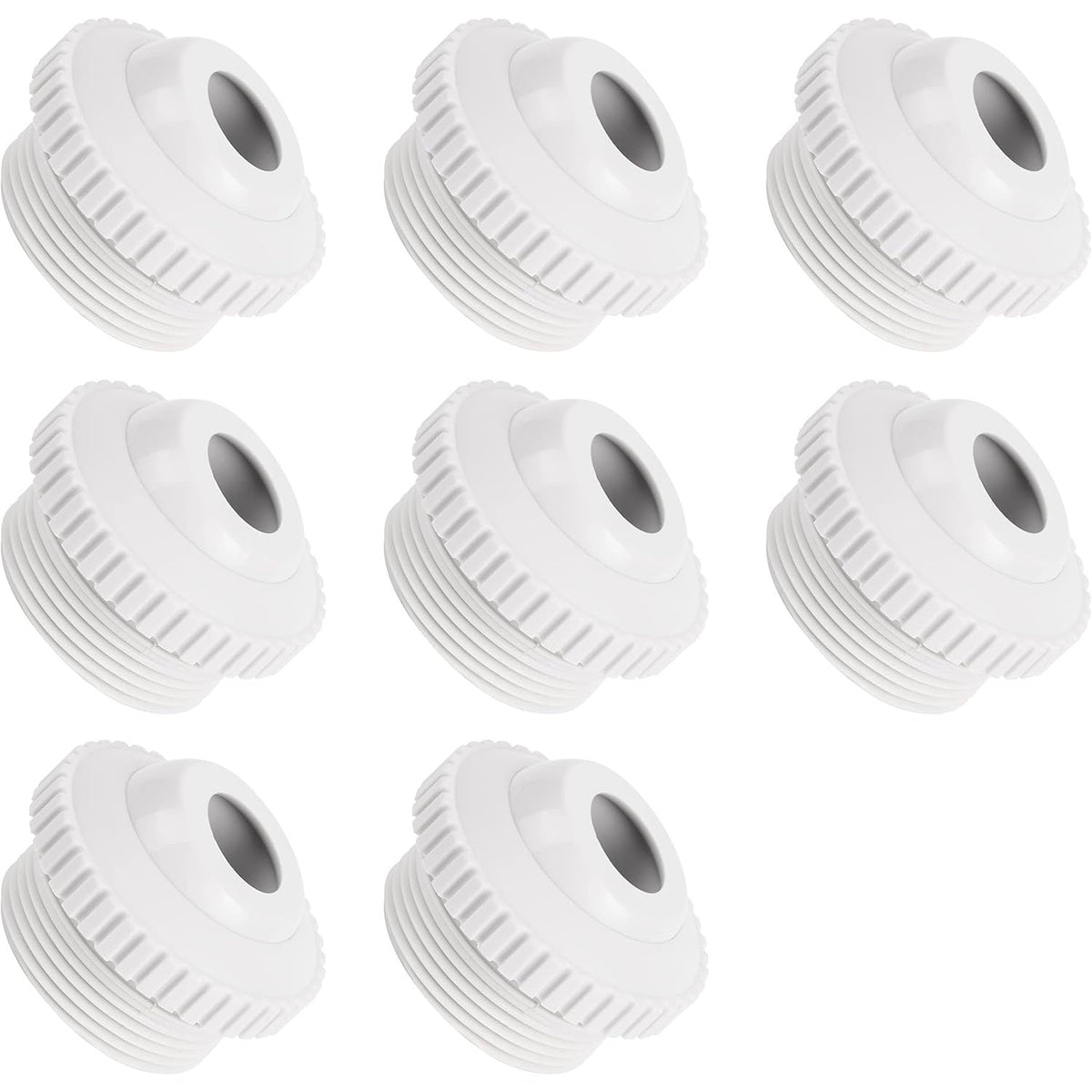

SP1419D Directional Flow Hydrostream Return Jet Fitting

SP1419D Directional Flow Hydrostream Return Jet Fitting

Key Features

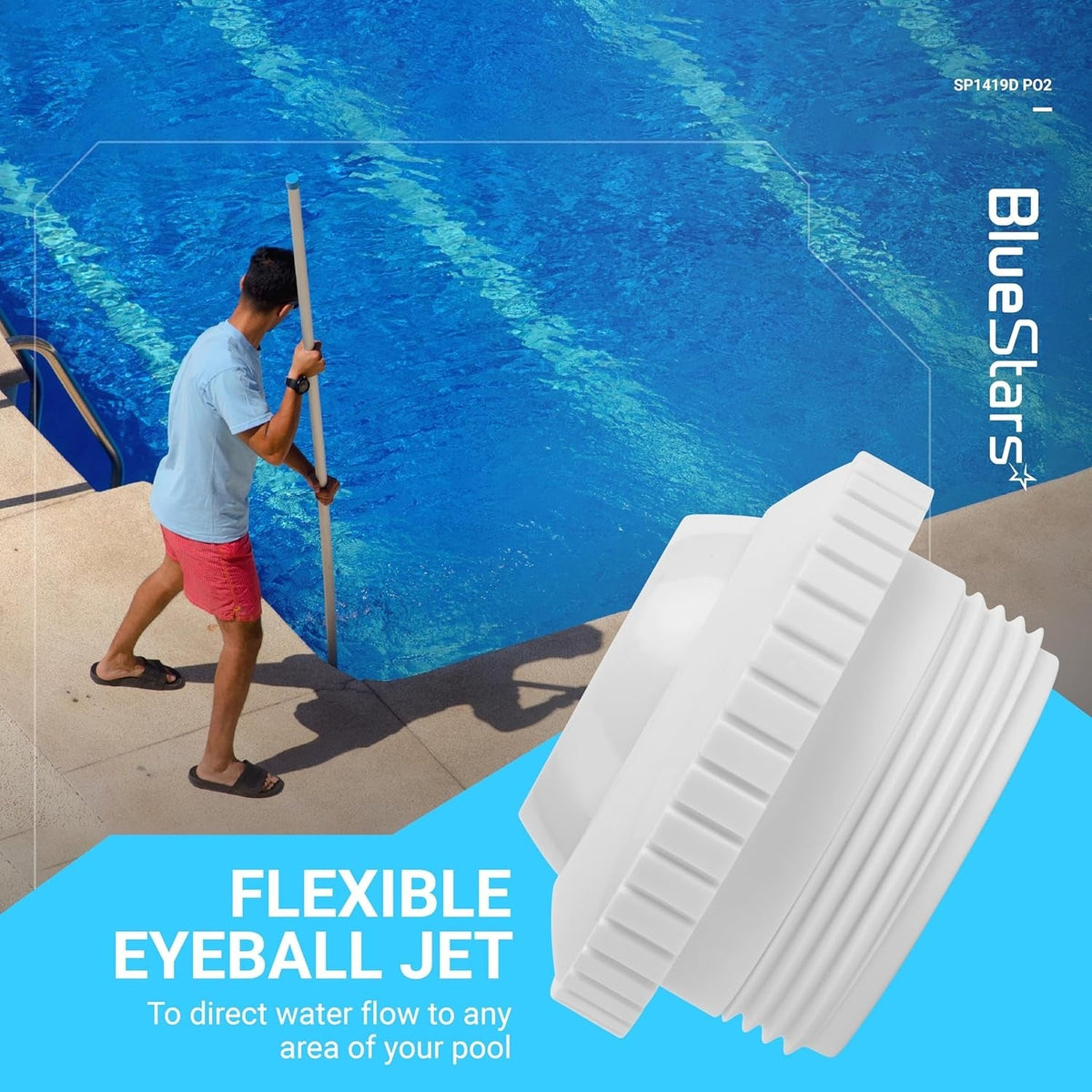

• Adjustable eyeball allows for precise control over water flow direction and velocity.

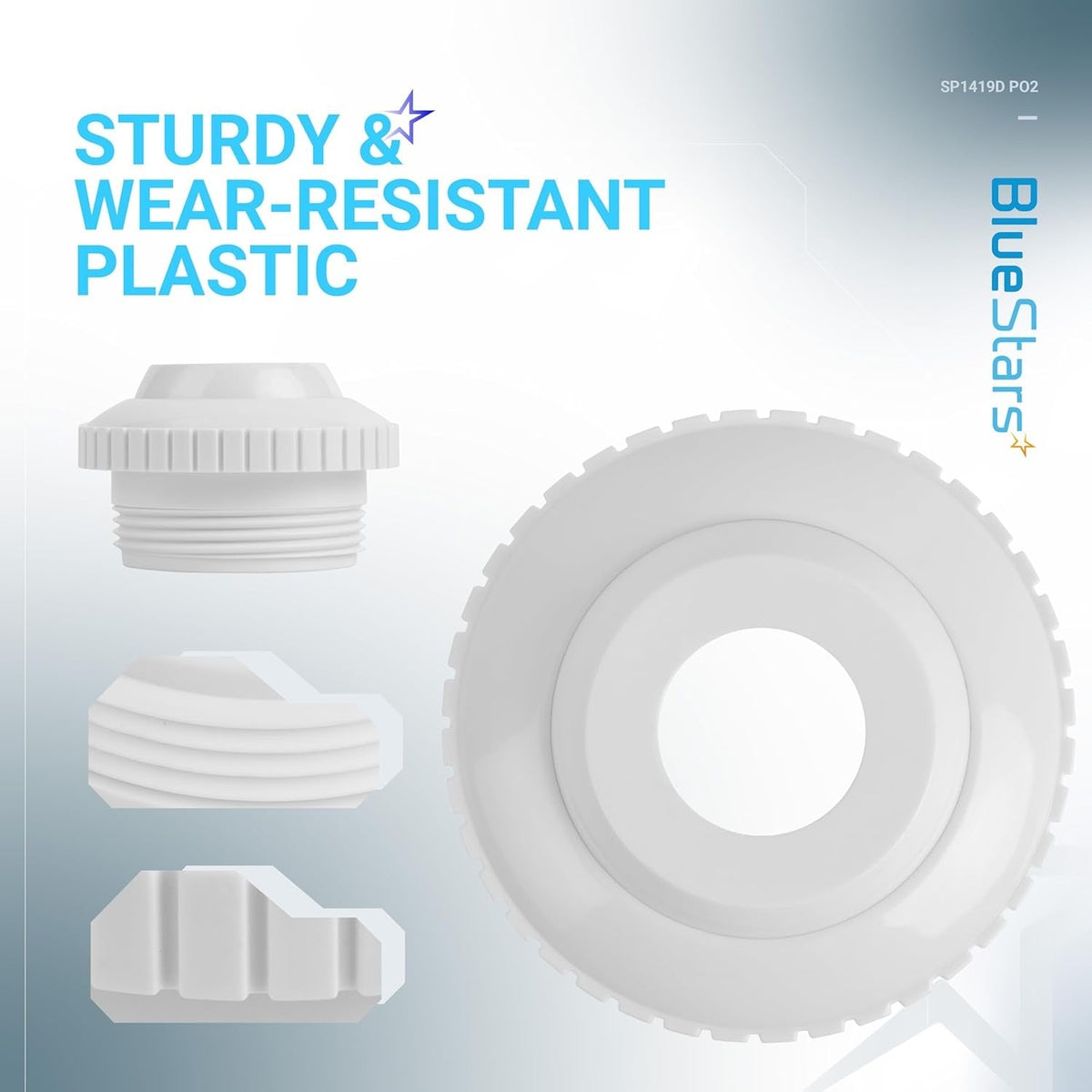

• Constructed from durable, chemical-resistant white plastic.

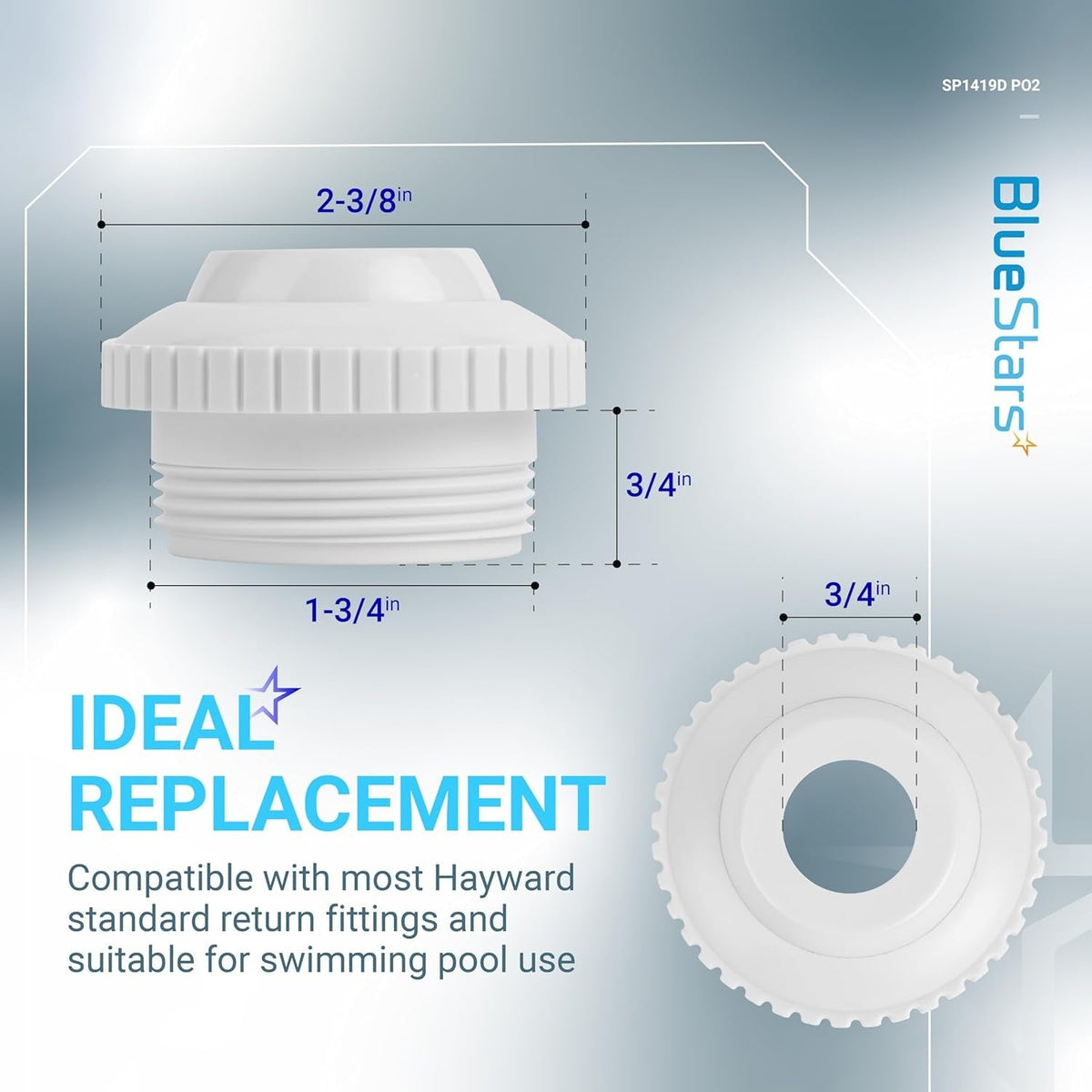

• Orifice Size: 3/4 inch opening.
• Thread Size: 1-1/2 inch Male Inlet Pipe (MIP).
• Face Diameter: 2-3/8 inches.

Replaces / Cross-Reference Part Numbers

• Hayward SP1419D

Compatibility & Fitment

• Fits standard 1-1/2 inch female threaded (FIP) wall return line fittings.
• Suitable for in-ground and above-ground concrete, fiberglass, and vinyl liner swimming pools and spas.
• Direct replacement for systems using Hayward SP1419D series inlet fittings.

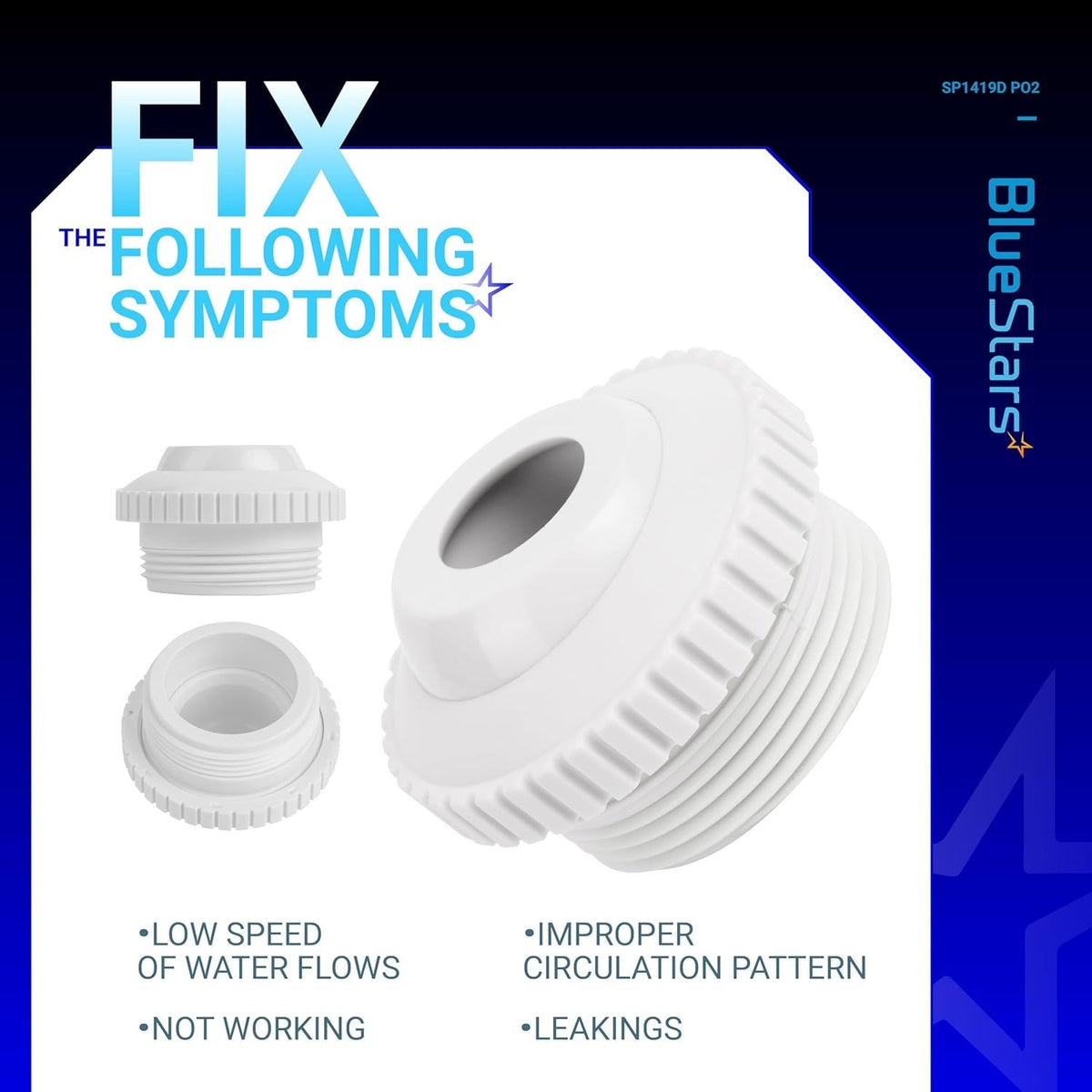

When to Replace

• Visible cracks, leaks, or damage to the fitting body or eyeball.
• Eyeball is loose, will not hold its position, or is difficult to adjust.
• Reduced or inconsistent water flow from the jet.
• Plastic has become brittle or discolored due to chemical and UV exposure.

Installation Tips

• Ensure the pool pump is turned off before starting installation.
• Unscrew the old fitting from the wall inlet. A specialized tool may be required if it is tight.
• Clean the threads on the wall fitting before installing the new jet.
• Apply thread sealant tape to the male threads of the new fitting for a leak-proof seal.
• Hand-tighten the new fitting into the wall; avoid over-tightening to prevent damage.
• Once installed, turn the pump on and adjust the eyeball to your desired direction.
