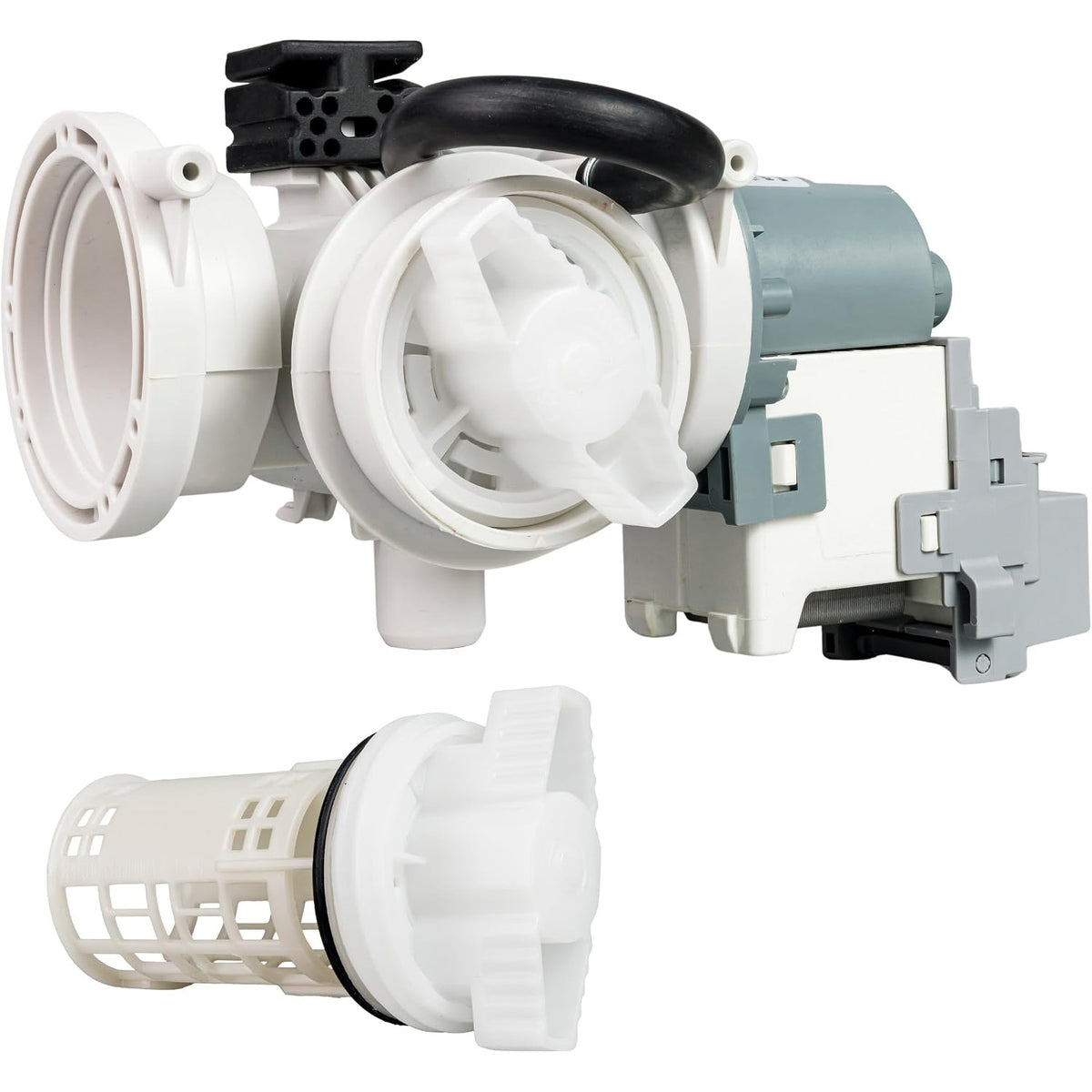

[NEW] BlueStars DC97-20621A DC97-20621C Washer Drain Pump Assembly

DC97-20621A DC97-20621C Washer Drain Pump Assembly

Key Features

• Washer drain pump assembly for select Samsung front-load washing machines.

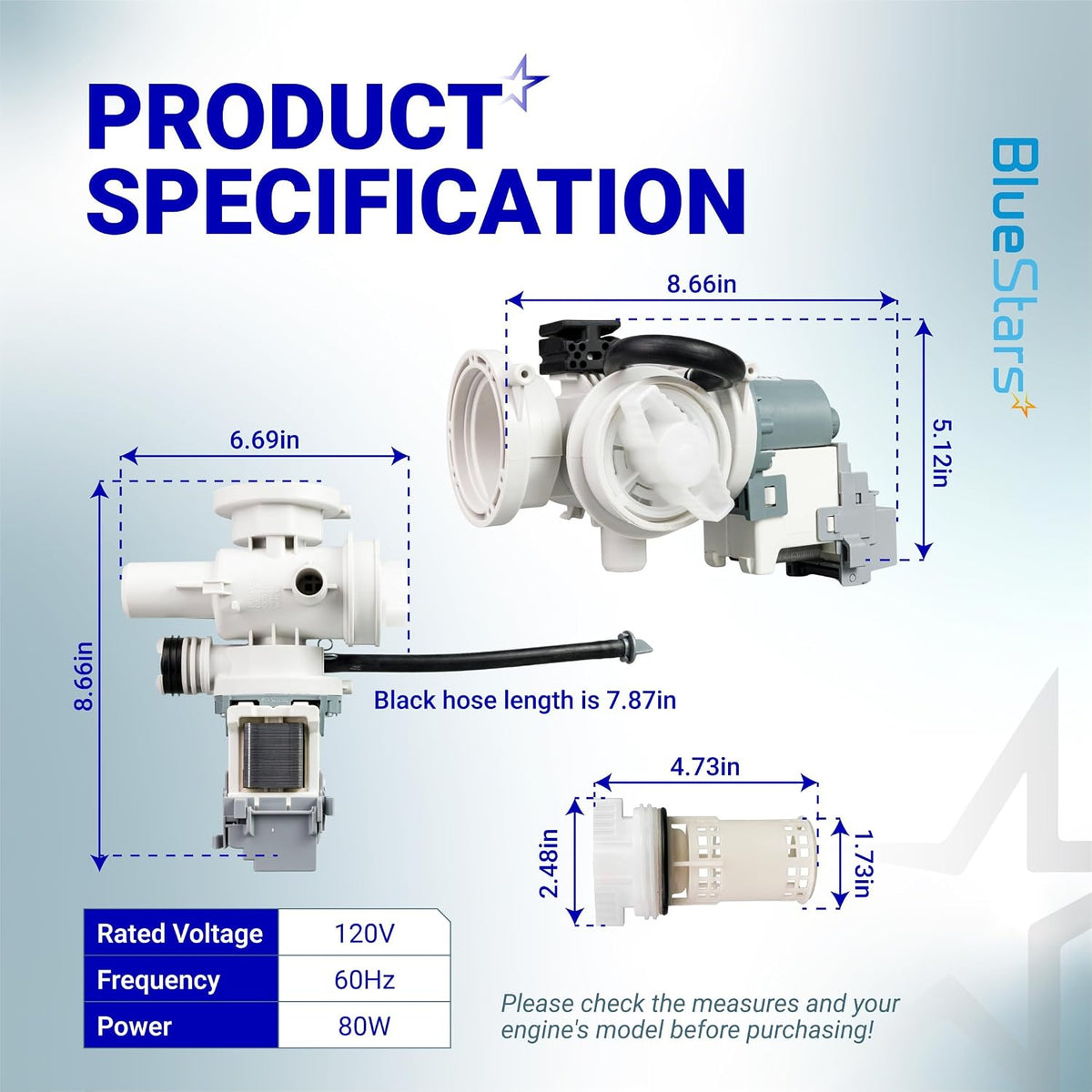

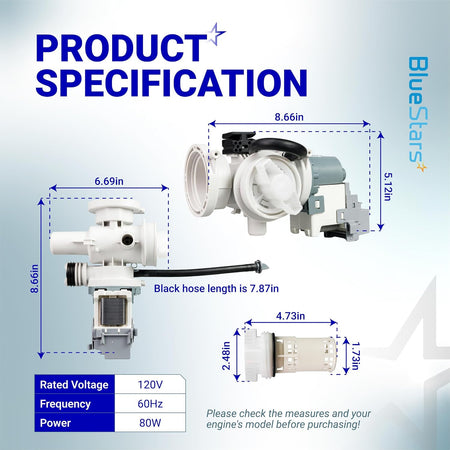

• Rated for 120V, 60Hz, and 85W operation.

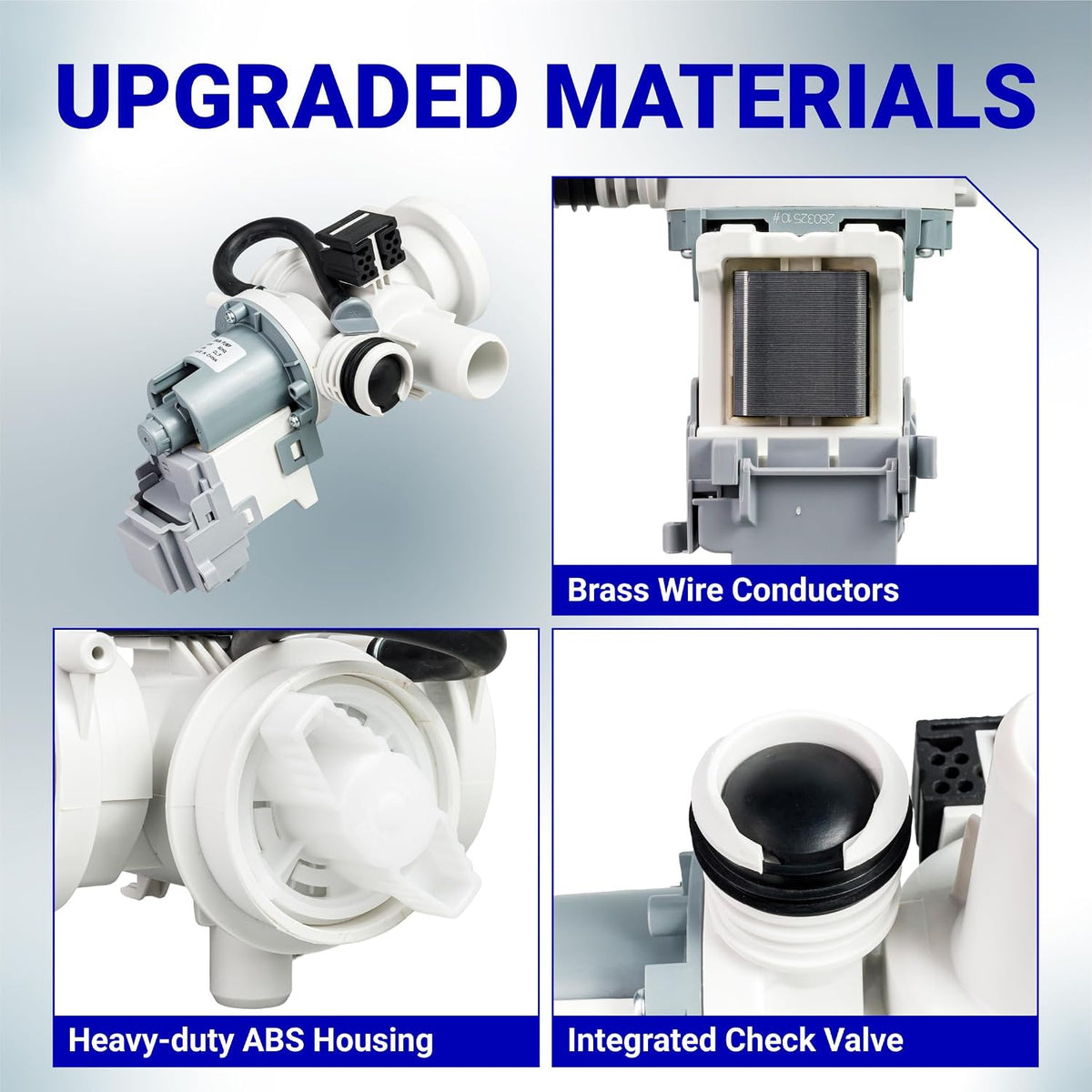

• Constructed with brass and plastic materials.
• Supports proper water removal during wash, rinse, and spin cycles.
• Helps address poor drainage, grinding noises, cracked pump housings, leaks, and clothing left wet after a cycle.

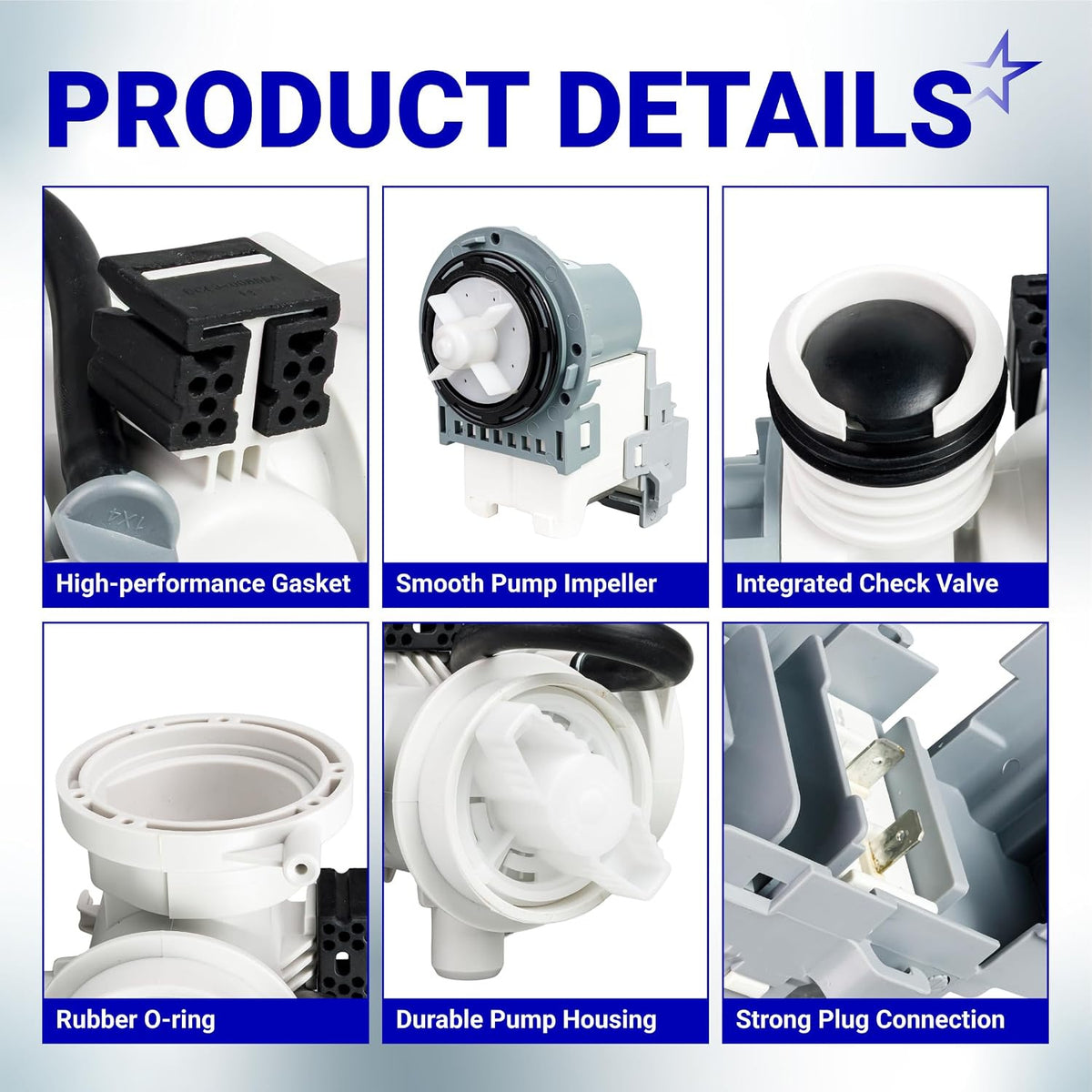

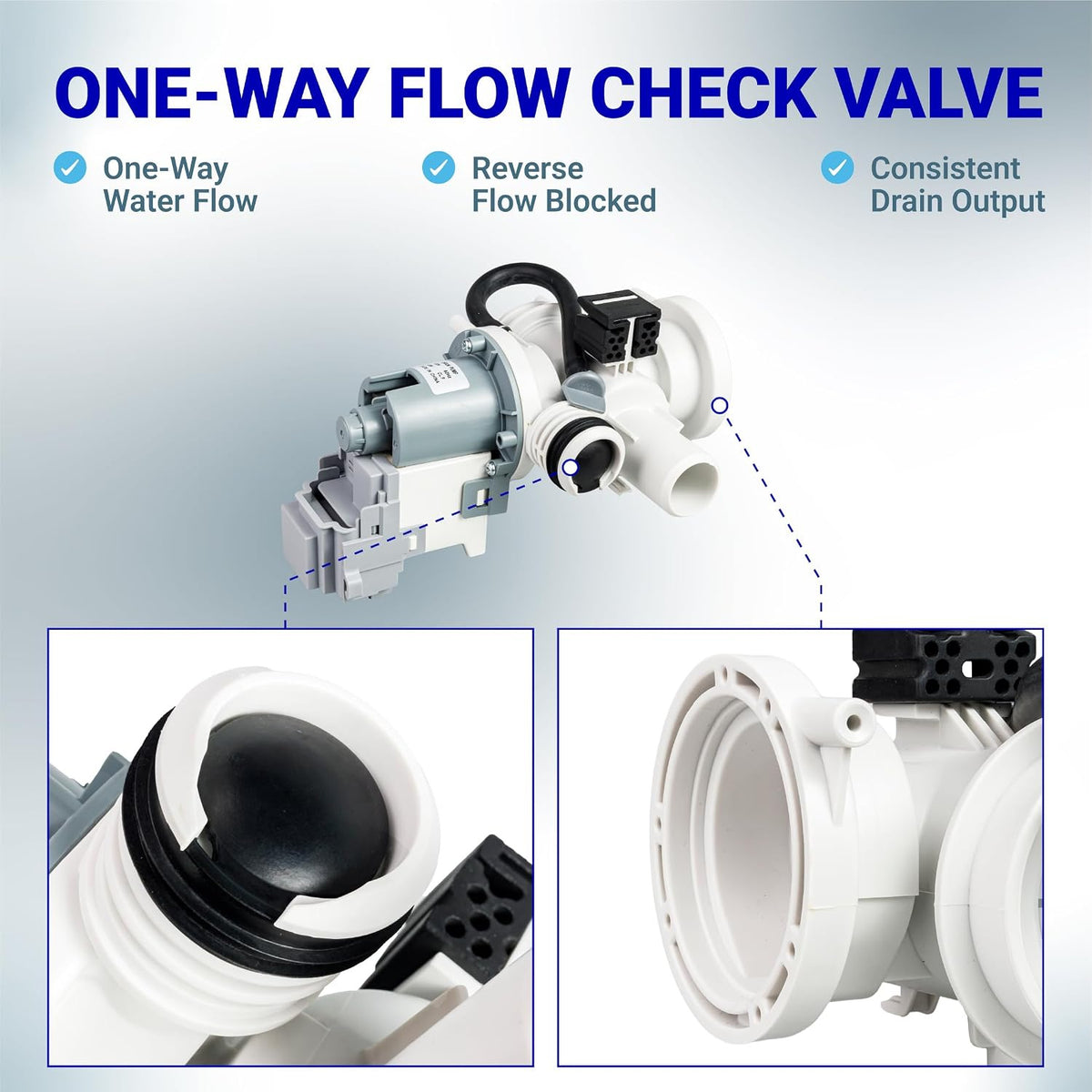

• Integrated pump construction helps prevent water from returning to the drum.
• One drain pump assembly is included.

Replaces / Cross-Reference Part Numbers

• DC97-20621A
• DC97-20621C
• DC97-17999N
• DC31-00187A
• AP6807020
• PS12592830
• EAP12592830
• 495963

Compatibility & Fitment

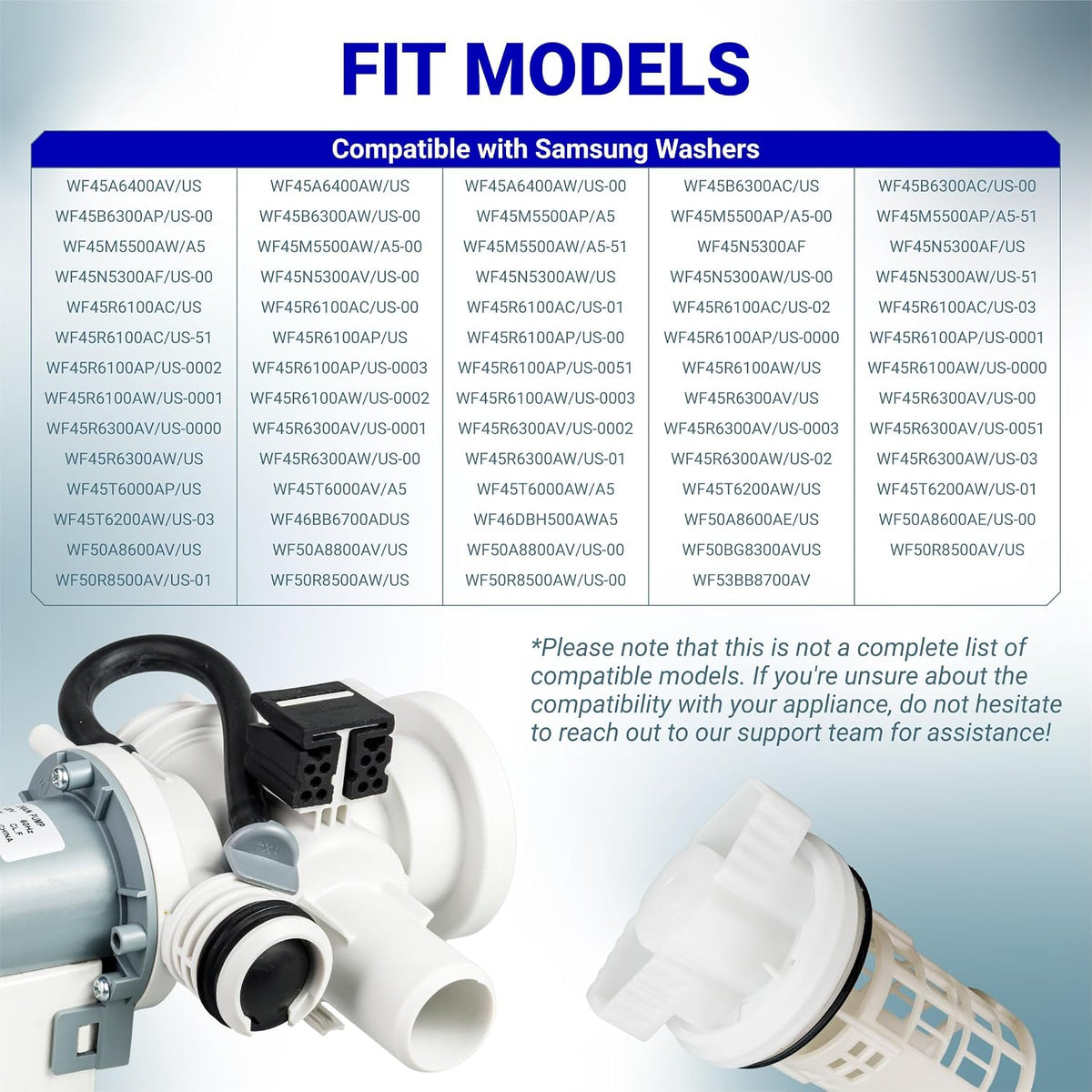

This drain pump assembly fits select Samsung front-load washing machines, including the following models:

• WF45A6400AV/US
• WF45A6400AW/US
• WF45B6300AC/US
• WF45M5500AP/A5
• WF45M5500AW/A5
• WF45N5300AF/US
• WF45N5300AW/US
• WF45R6100AC/US
• WF45R6100AP/US
• WF45R6100AW/US
• WF45R6300AV/US
• WF45R6300AW/US

Confirm the complete washer model number and existing pump part number before ordering, since fitment can vary within a model series.

When to Replace

• Replace the pump when the washer drains slowly or does not drain.
• A grinding noise during the drain portion of the cycle can indicate a worn or obstructed pump.
• A cracked or leaking pump housing requires replacement to restore water handling.
• If the washer completes a cycle with clothing left wet, inspect the drain pump, hose, and drain path.

Installation Tips

• Disconnect electrical power and the water supply before servicing the washer.
• Allow the washer to drain and keep towels or a shallow container available for residual water.
• Access the pump assembly by removing the back plate, then remove the mounting screws or fasteners.
• Transfer the drain hoses and electrical connections to the replacement assembly, keeping each connection in its original position.
• Check hose clamps and seals for secure, leak-free connections before reassembly.
• With basic household tools, installation typically takes less than 30 minutes, depending on washer access and condition.
