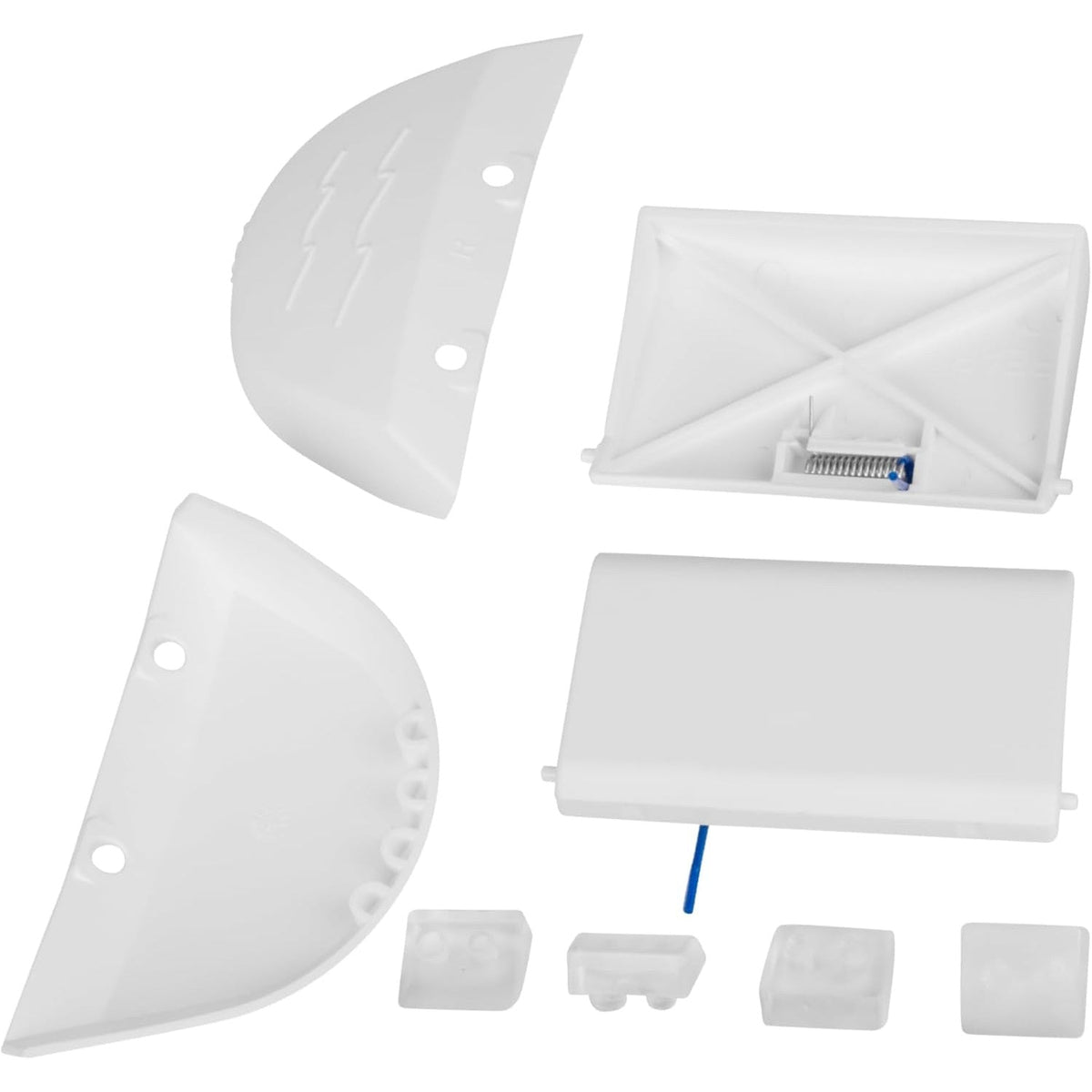

Replacement white flap kit, wing kit, and pod shoes for Hayward Navigator and Pool Vac automatic pool cleaners.
Replacement flap kit, wing kit, and pod shoes set for Hayward automatic pool cleaners.

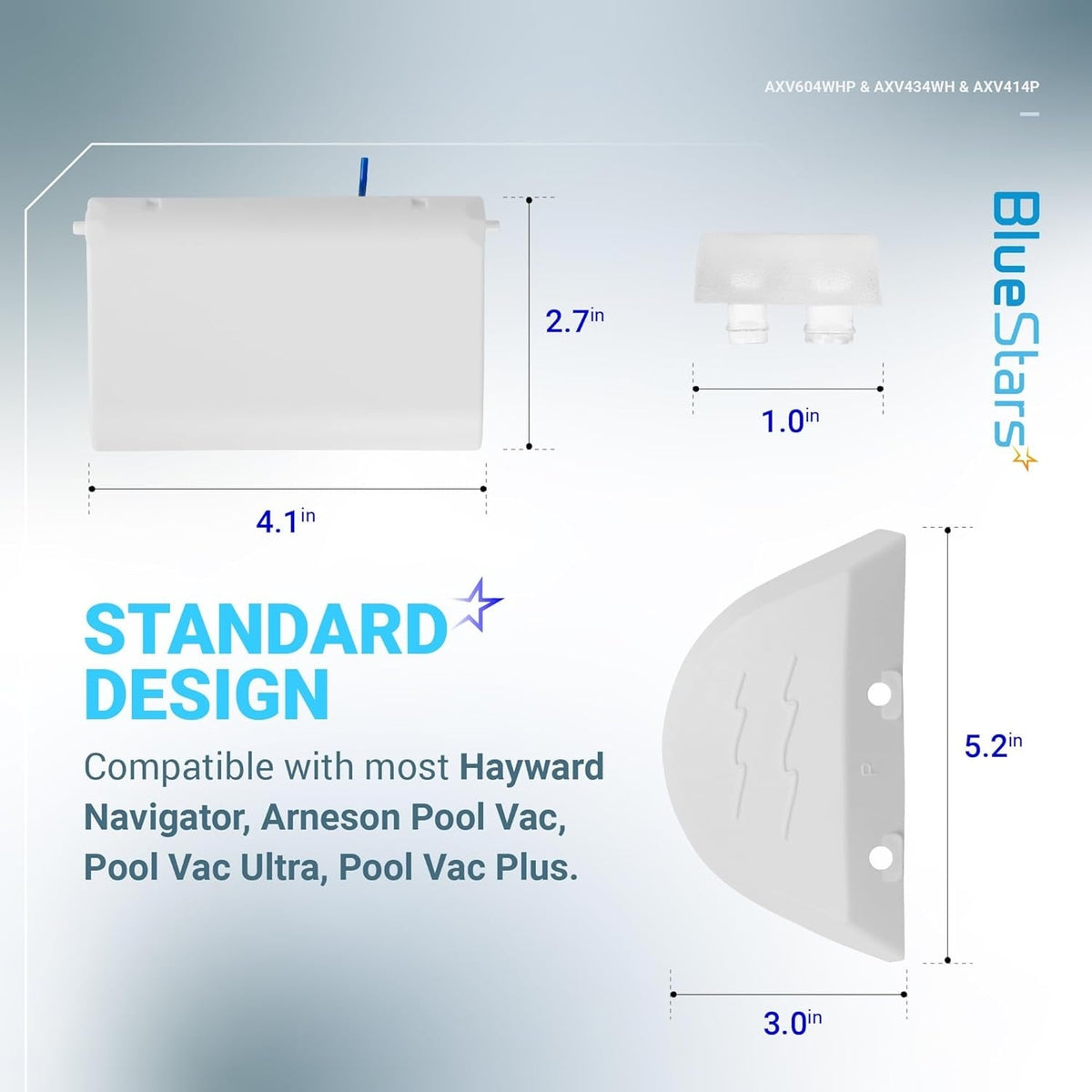

Dimensional diagram of Hayward pool cleaner flap, wing, and pod shoe replacement parts with measurements.

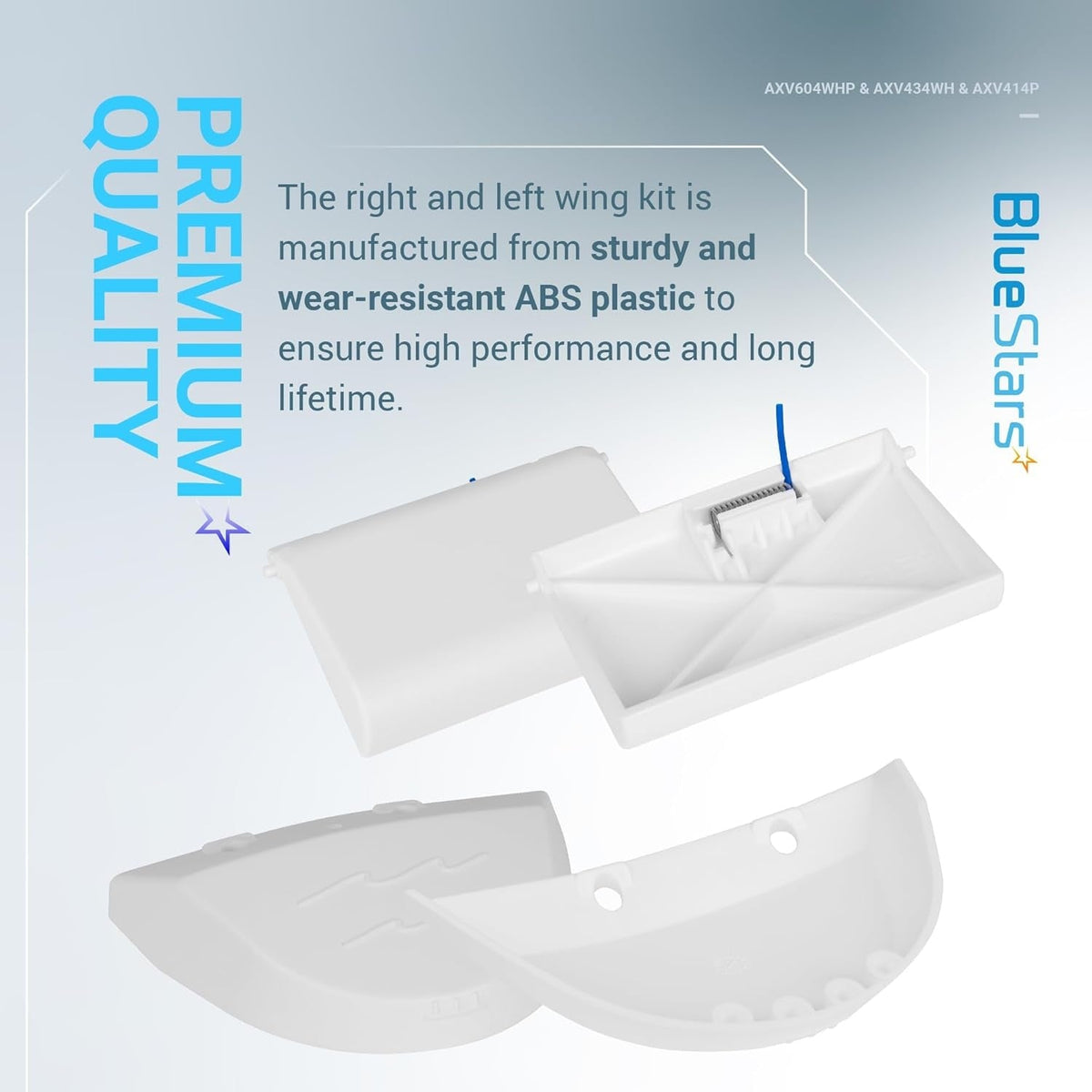

AXV604WHP wing kit replacement parts for Hayward automatic pool cleaners, showing white ABS plastic wing components.

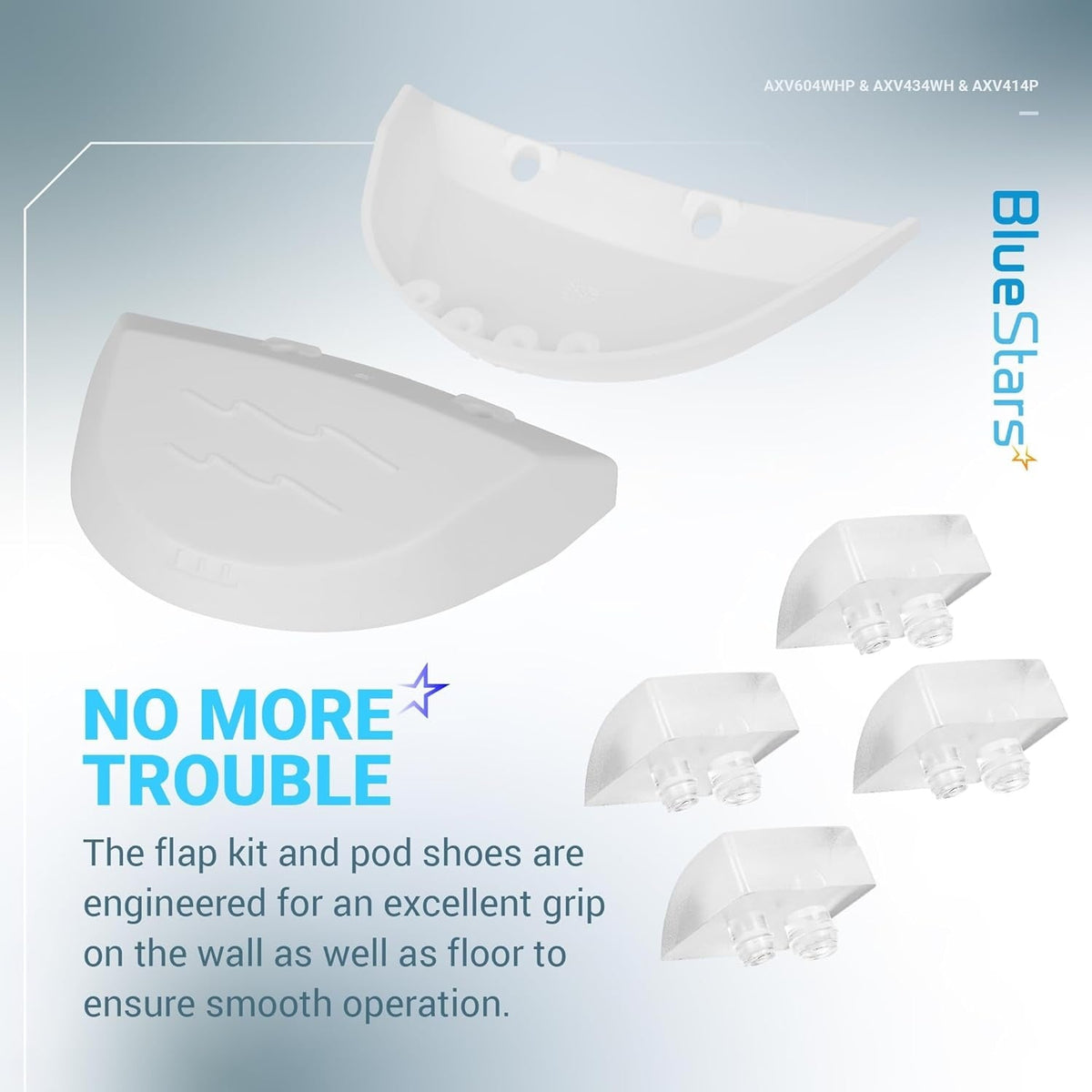

Replacement flap kit, wing kit, and pod shoes for Hayward automatic pool cleaners.

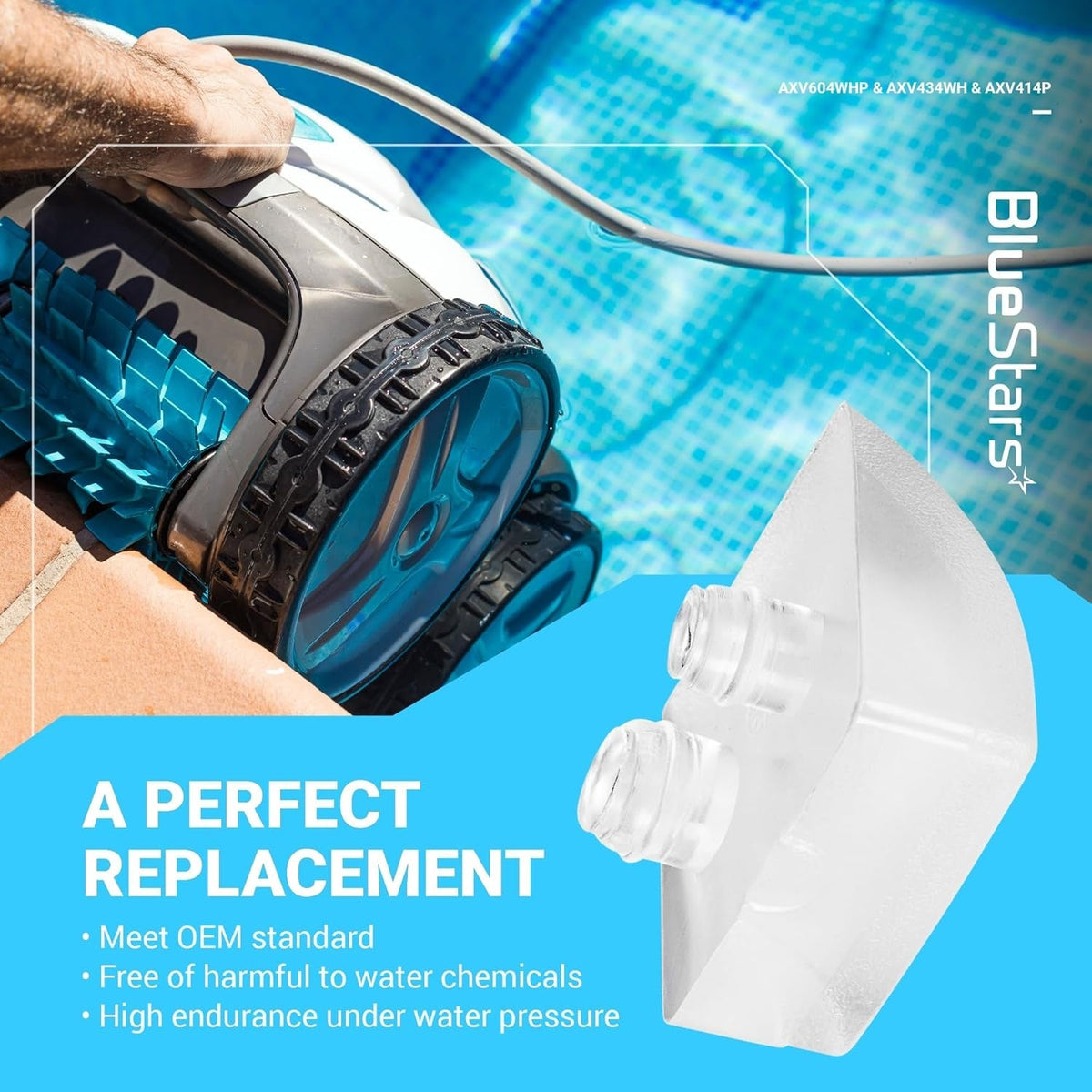

AXV414P Pod Shoes replacement part for Hayward automatic pool cleaners shown in a promotional product graphic.
White replacement flap for Hayward Navigator and Pool Vac automatic pool cleaners.
Replacement white flap kit, wing kit, and pod shoes for Hayward Navigator and Pool Vac automatic pool cleaners.
Replacement flap kit, wing kit, and pod shoes set for Hayward automatic pool cleaners.
Dimensional diagram of Hayward pool cleaner flap, wing, and pod shoe replacement parts with measurements.
AXV604WHP wing kit replacement parts for Hayward automatic pool cleaners, showing white ABS plastic wing components.
Replacement flap kit, wing kit, and pod shoes for Hayward automatic pool cleaners.
AXV414P Pod Shoes replacement part for Hayward automatic pool cleaners shown in a promotional product graphic.
White replacement flap for Hayward Navigator and Pool Vac automatic pool cleaners.
Lifetime Warranty

[Lifetime Warranty] AXV434WHP Flap Kit & AXV604WHP Wing Kit & AXV414P Pod Shoes for Hayward Automatic Pool Cleaners (Navigator, Pool Vac Plus, Ultra)

Save 13%
0.00
$20.40
$23.46
$20.40
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

Pool Cleaner AXV434WHP Flap Kit & AXV604WHP Wing Kit & AXV414P Pod Shoes

Key Features

  • Complete rebuild kit to restore cleaner performance.

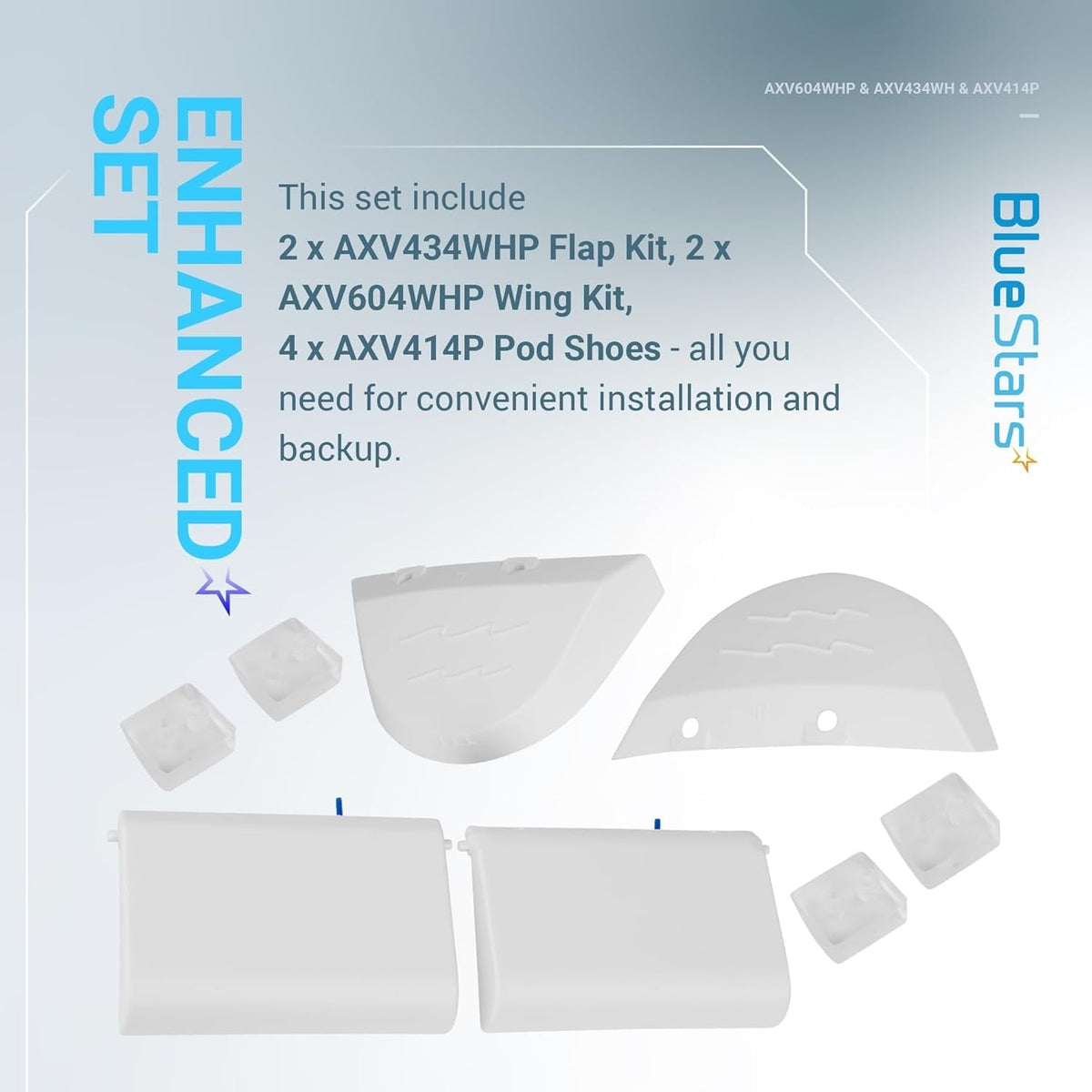

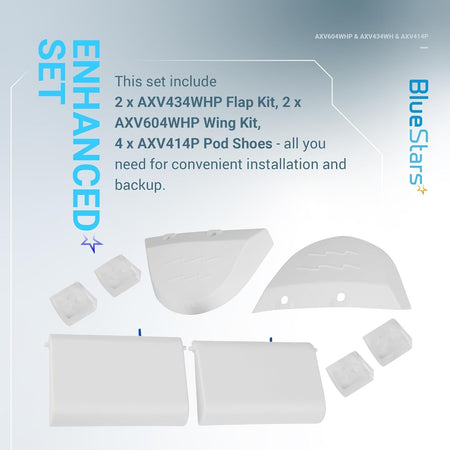

  • Includes one flap kit, one wing kit (left and right), and four pod shoes.
  • Engineered to restore traction on pool surfaces, including floors and walls.
  • Improves cleaner movement and debris collection.
  • Constructed from durable, high-quality materials for extended service life.

Replaces / Cross-Reference Part Numbers

  • Flap Kit: AXV434WHP
  • Wing Kit: AXV604WHP
  • Pod Shoes: AXV414P

Compatibility & Fitment

  • Designed for use with Hayward Navigator series automatic pool cleaners.
  • Direct replacement for the original equipment manufacturer parts.

When to Replace

  • Cleaner fails to climb walls or gets stuck frequently.
  • Visible wear, cracks, or brittleness on existing wings, flaps, or shoes.
  • Reduced cleaning efficiency or erratic movement patterns.
  • Loss of suction or poor seal against the pool surface.

Installation Tips

  • Disconnect the cleaner from the suction line before servicing.
  • Remove old components and clean the mounting areas thoroughly.
  • Press new components firmly into place until they are fully seated.
  • Reference your pool cleaner's original user manual for detailed diagrams.
Package Dimensions
7.83 x 6.18 x 2.05 inches
Item Weight
5.5 ounces
Manufacturer
AXV434WH PO2 & AXV604WHP PO2 & AXV414P PO4

FAQ

This kit is designed for Hayward automatic suction-side pool cleaners in the Navigator, Pool Vac, Pool Vac Plus, and Pool Vac Ultra family. It includes replacement parts commonly used on those cleaner platforms: flap kit AXV434WHP, wing kit AXV604WHP, and pod shoes AXV414P.
This set includes AXV434WHP, AXV604WHP, and AXV414P. A commonly referenced combo number for the wing-and-pod-shoe maintenance set is AXV414604WHP. Some listings also cross-reference pod shoes as AXV014P.
Common signs include reduced movement, poor wall or floor tracking, the cleaner getting stuck more often, weak suction efficiency, or visible wear on the pods, wings, or flaps. Worn pod shoes can affect how the cleaner glides, damaged wings can reduce steering and stability, and a tired or torn flap can hurt suction pulses and debris pickup.
The flap helps regulate water flow and suction action inside the cleaner. When the flap becomes warped, torn, stiff, or loose, the cleaner may lose its normal pulsing movement, hesitate, or clean less effectively. Replacing the flap is often a good first step when the cleaner is no longer moving as it should.
Installation is usually straightforward for most pool owners. In many cases, the wings and pod shoes can be changed by hand, while the flap may require light disassembly depending on your exact cleaner version. Basic hand tools such as a screwdriver and needle-nose pliers may help. Plan on about 15 to 30 minutes if you are replacing all parts in one service session.
Before installation, inspect the cleaner body for cracks, check the pods and drive mechanism for binding, and make sure the hose and suction line are clear. It is also smart to clean out any debris and confirm the flap area moves freely. If the old wings or pod shoes are badly worn, inspect related parts for uneven wear so the new parts are not affected by an underlying issue.
