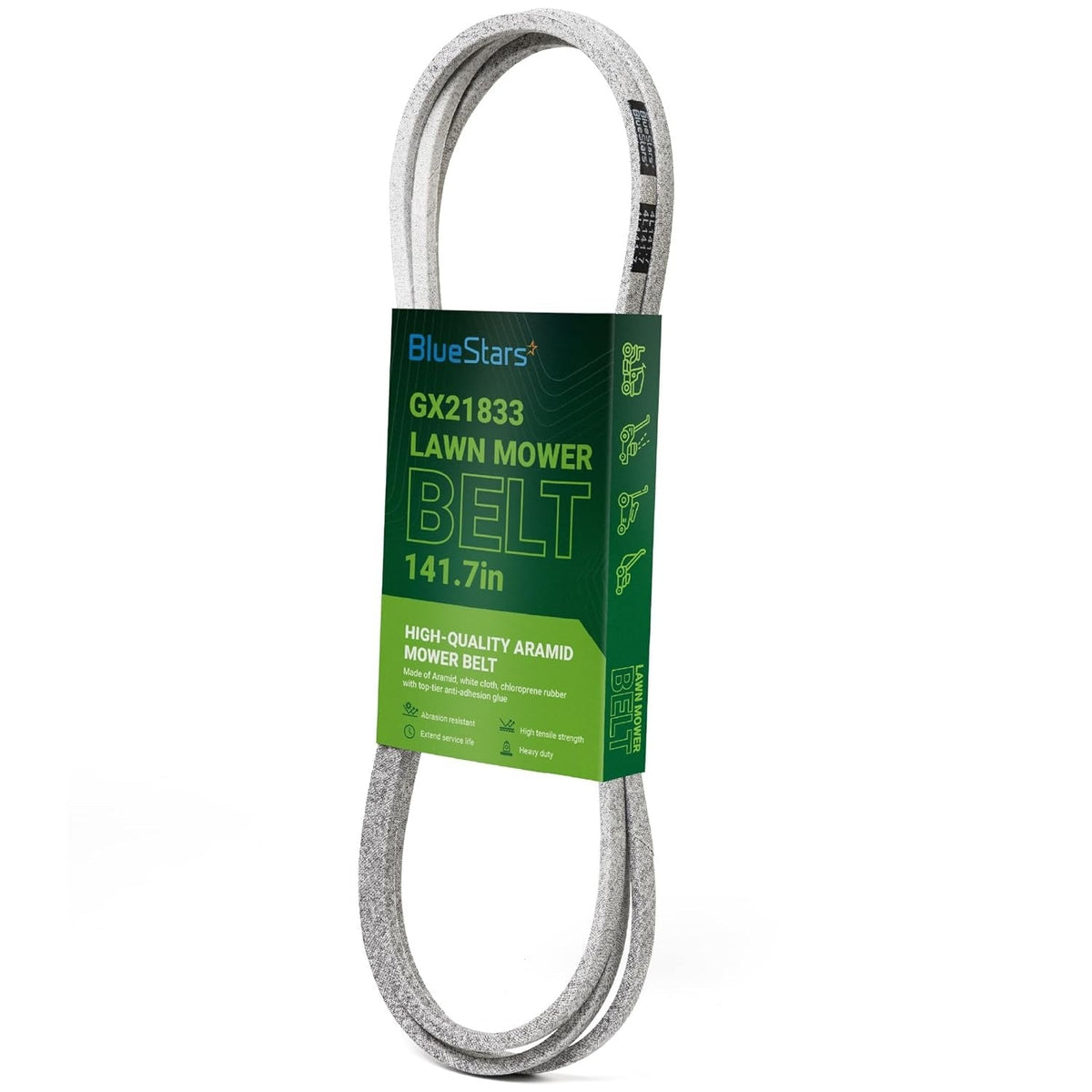

GX21833, 954-05008 Deck Belt | Fits 48" Deck John Deere L120 L130 D140 D150 & More | Aramid Cord | 141.7"
0.00
Regular price
$24.69
Regular price
Save 16%
$29.38
Sale price
$24.69
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
GX21833, 954-05008 Deck Belt | 141.7"
Key Features
- Belt Type: Deck Drive V-Belt

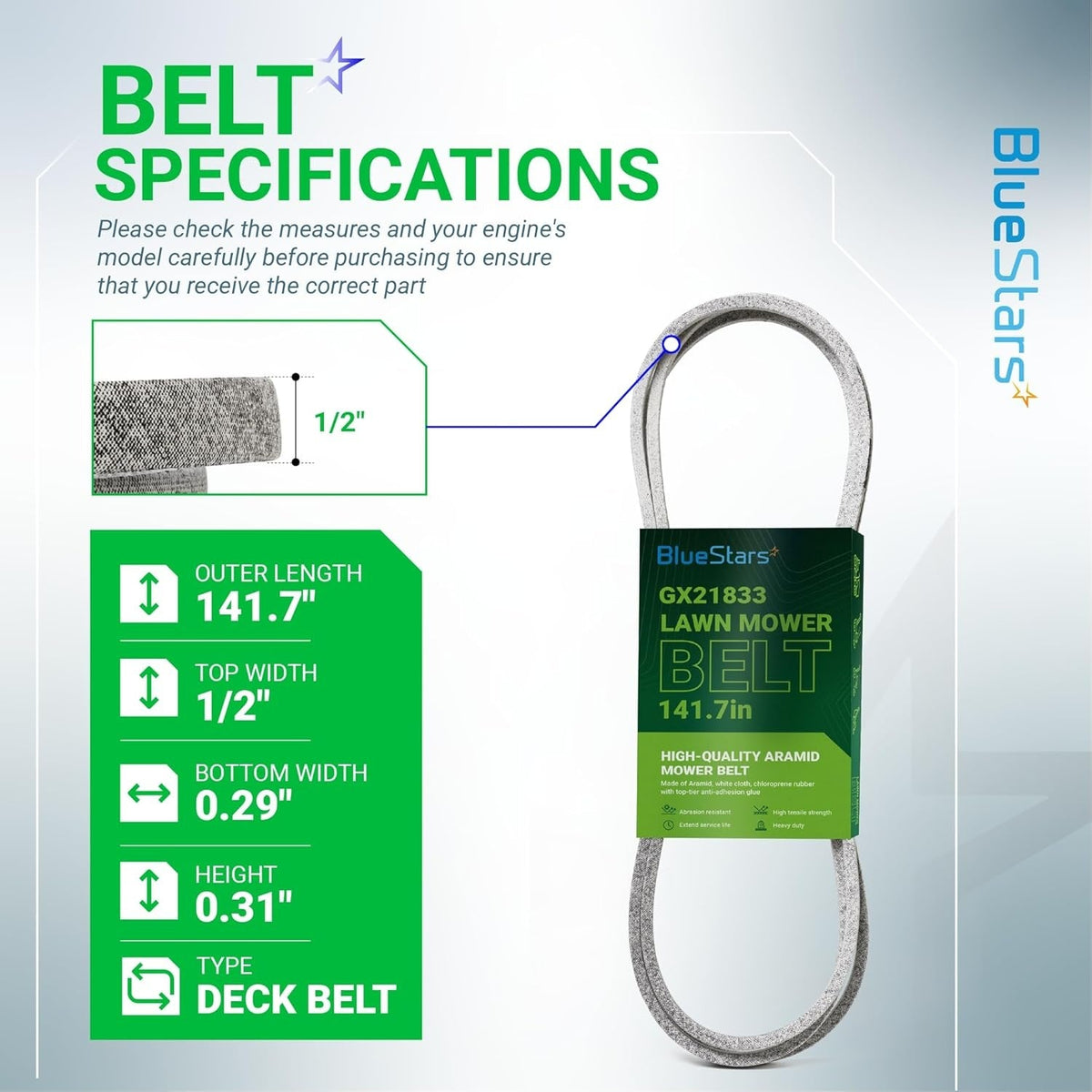

- Dimensions: 1/2 in. Width x 141.7 in. Effective Length

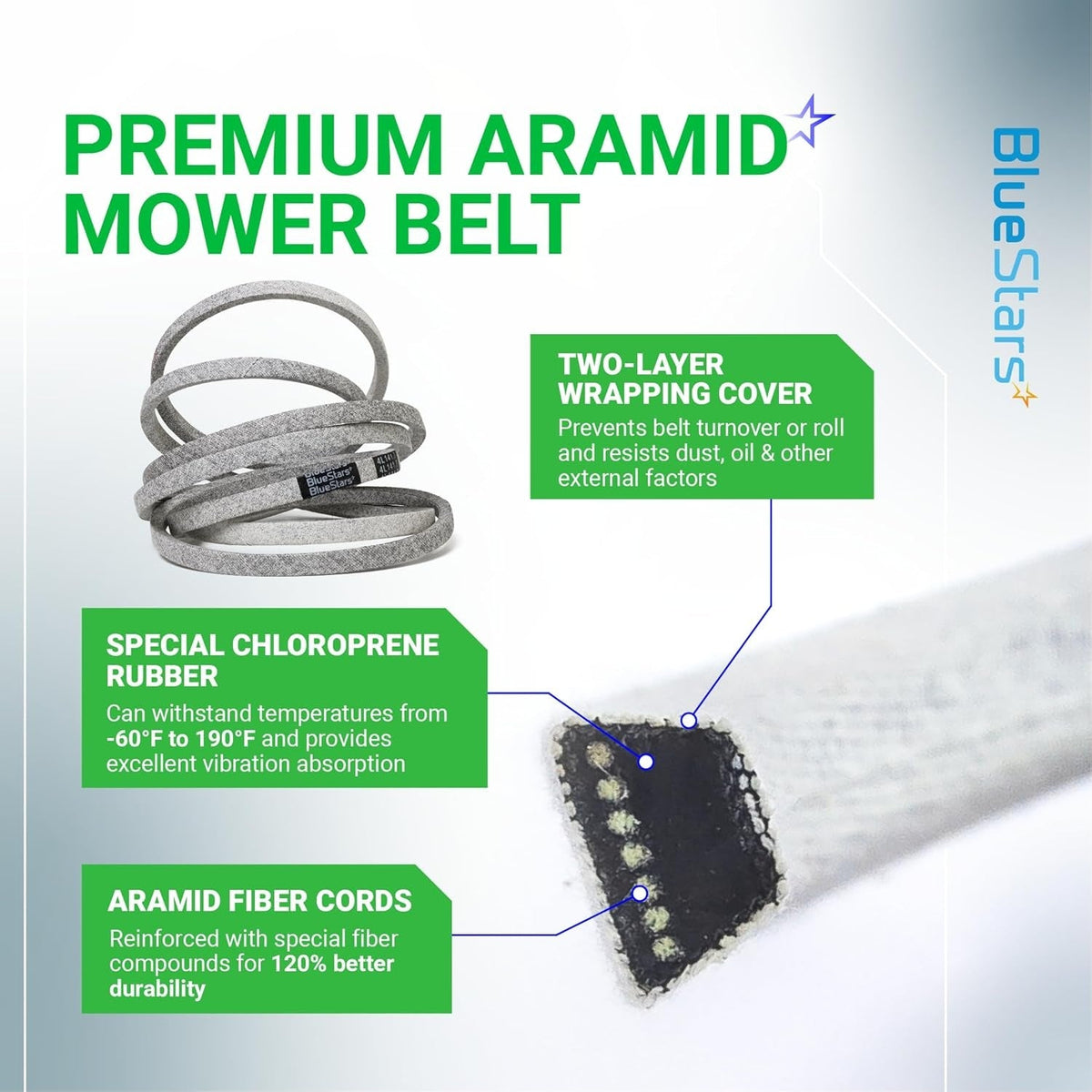

- Material: Aramid fiber-reinforced for enhanced durability and wear resistance
- Application: Connects the engine pulley to the mower deck spindles
Replaces / Cross-Reference Part Numbers
- GX21833
- GX20571
- 265-238
- 75-800
- 175-800
- B1JD92
- 12461
- 7-078277
Compatibility & Fitment
- Deck Size: Designed for 48-inch mower decks
- Fits John Deere Models: D140, D150, D160, L120, L130, LA130, LA140, LA145
- Also compatible with select Cub Cadet and MTD models requiring the specified part numbers
When to Replace
- Visible signs of cracking, fraying, or splitting
- Glazed or slick appearance on the belt surface
- Noticeable stretching or loss of tension, resulting in blade slippage
- Uneven or poor cutting performance from the mower deck
Installation Tips
- Disconnect the spark plug wire before performing any service to prevent accidental starting
- Consult your mower's owner manual for the specific belt routing diagram
- Ensure all pulleys are clean, free of debris, and spin freely
- Verify proper belt tension after installation to ensure optimal deck performance
-

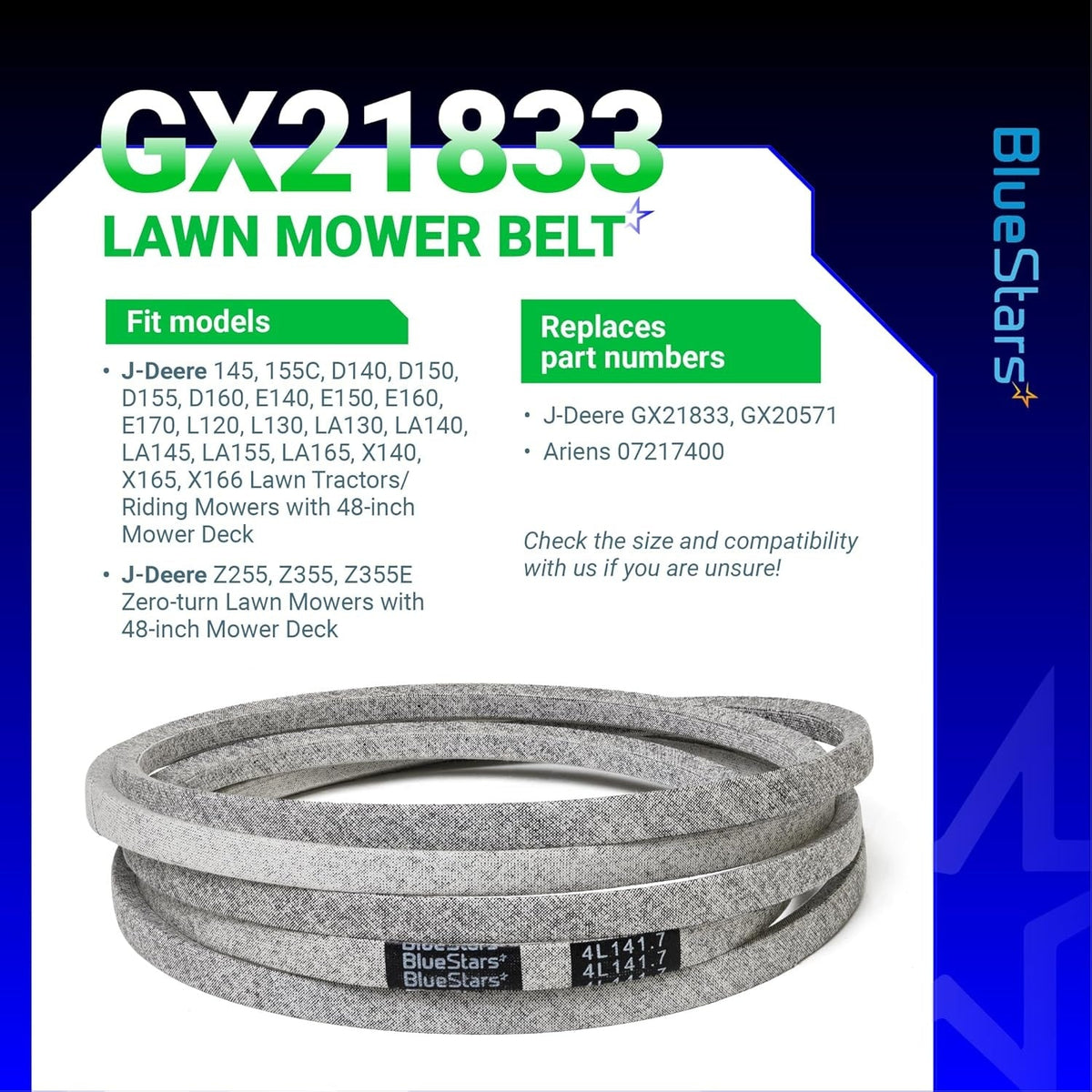

PART NUMBERS
This Deck Belt replaces part numbers: J-Deere GX21833, GX20571; Ariens 07217400 -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble -
FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove the ignition key and spark plug wire(s) to prevent starting | 2. Disengage the blades, brackets, and blade cable to remove the deck | 3. Release the drive belt from idler pulleys, belt guides, and the transaxle pulley | 4. Reinstall with our new part. Check to ensure it's properly running.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS
Enjoy the comfort that our small yet mighty parts simplify your mowing experience
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
