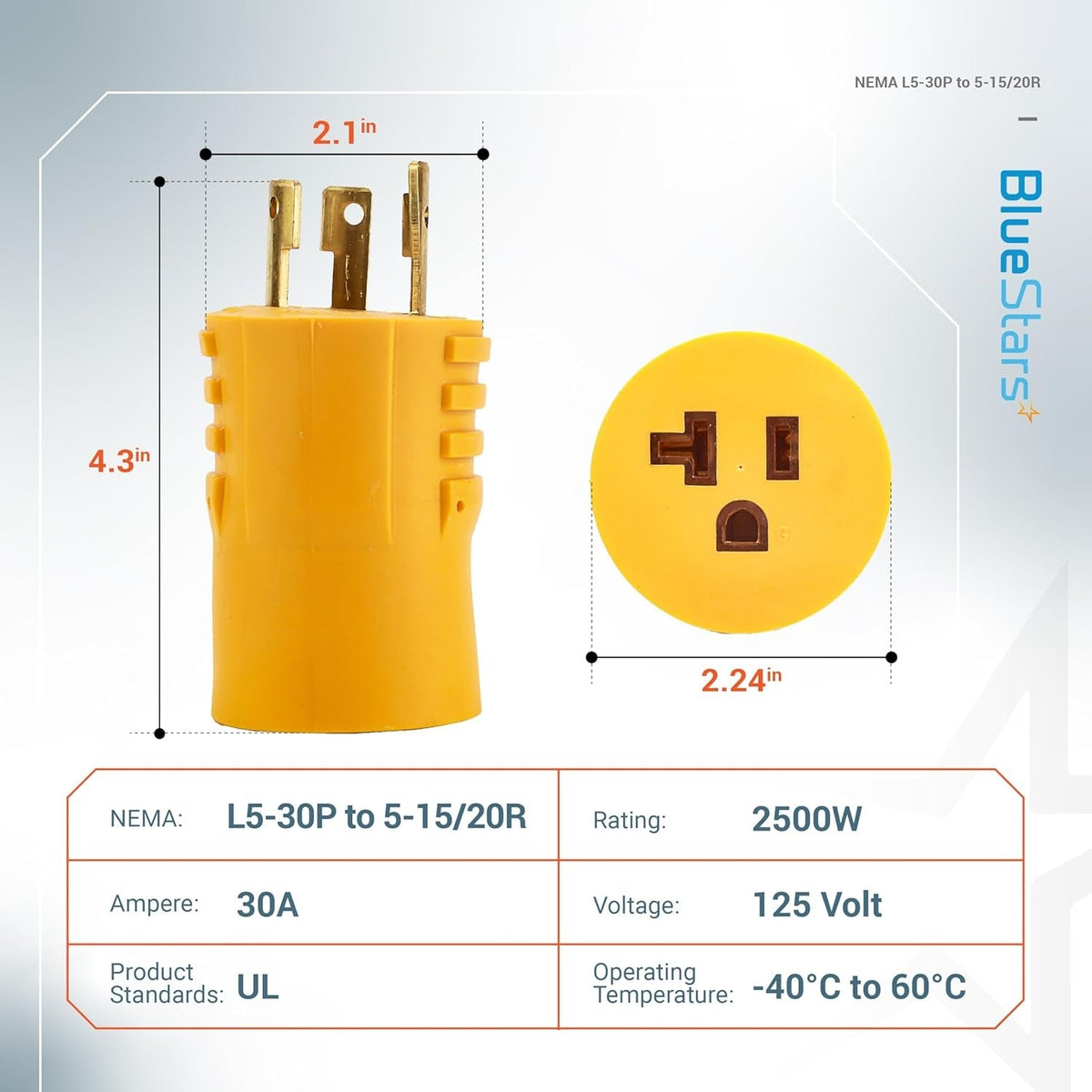

Technical diagram of L5-30P to 5-15/20R power adapter showing dimensions, specifications, and plug orientation.
L5-30P to 5-15/20R adapter showing the locking male plug and T-blade female connector details.

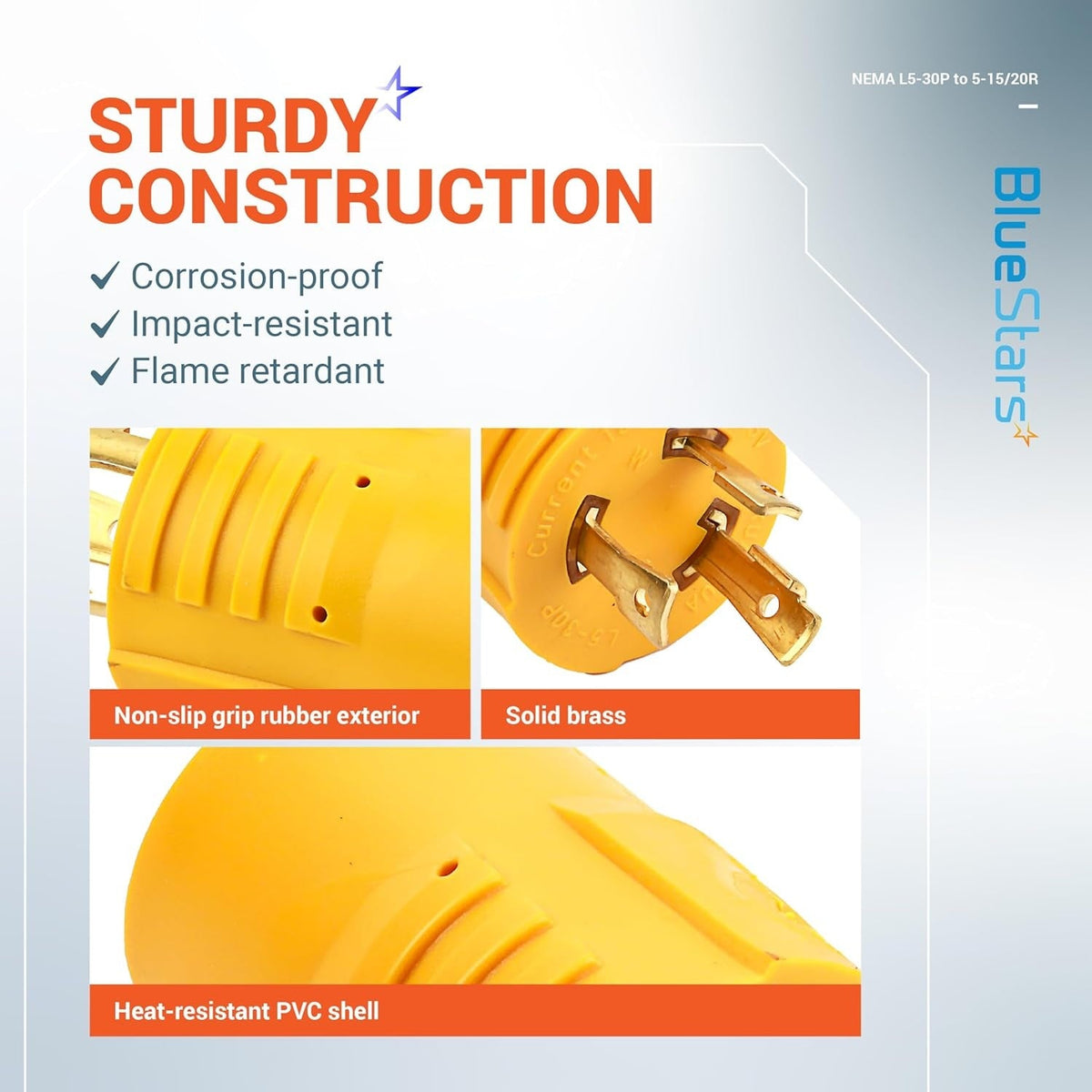

Infographic showing construction features of L5-30P to 5-15/20R adapter with non-slip grip, brass prongs, and PVC shell.

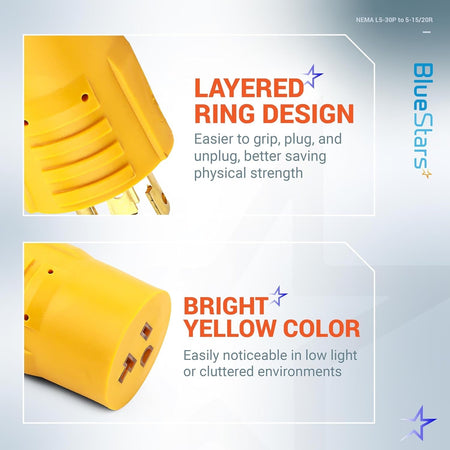

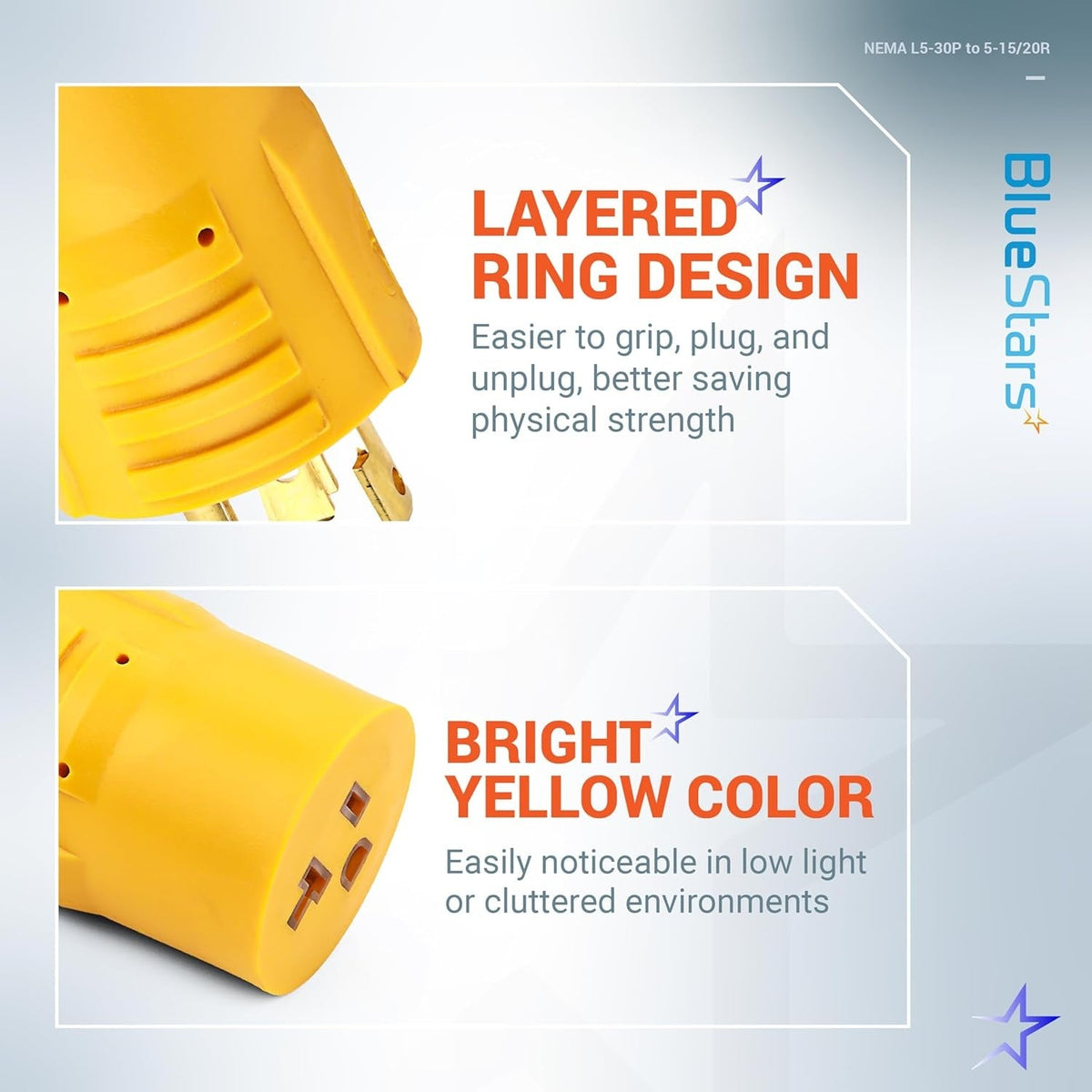

Close-up of L5-30P to 5-15/20R adapter showing layered ring grip design and bright yellow safety color.

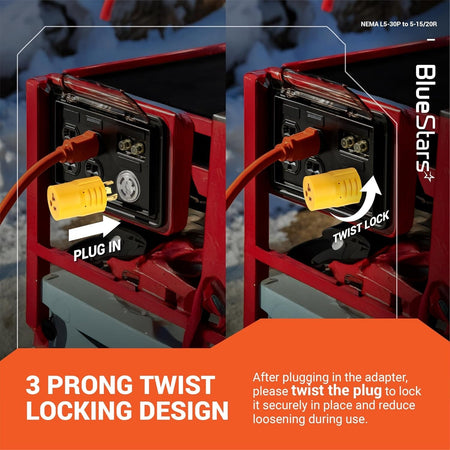

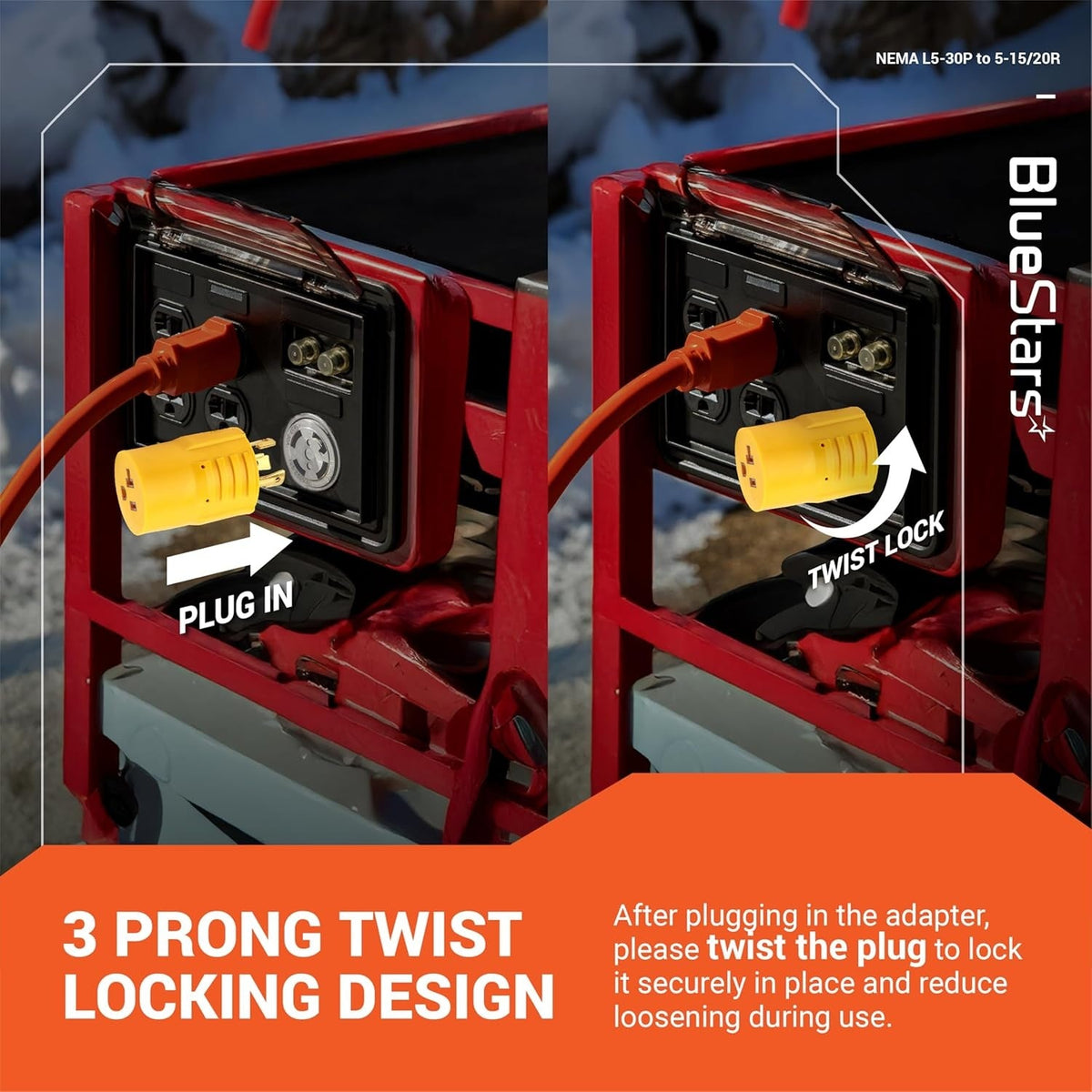

Instructional graphic showing L5-30P to 5-15/20R adapter being plugged into a generator and twist-locked for security.
Infographic showing wide application examples for NEMA L5-30P to 5-15/20R power adapter.

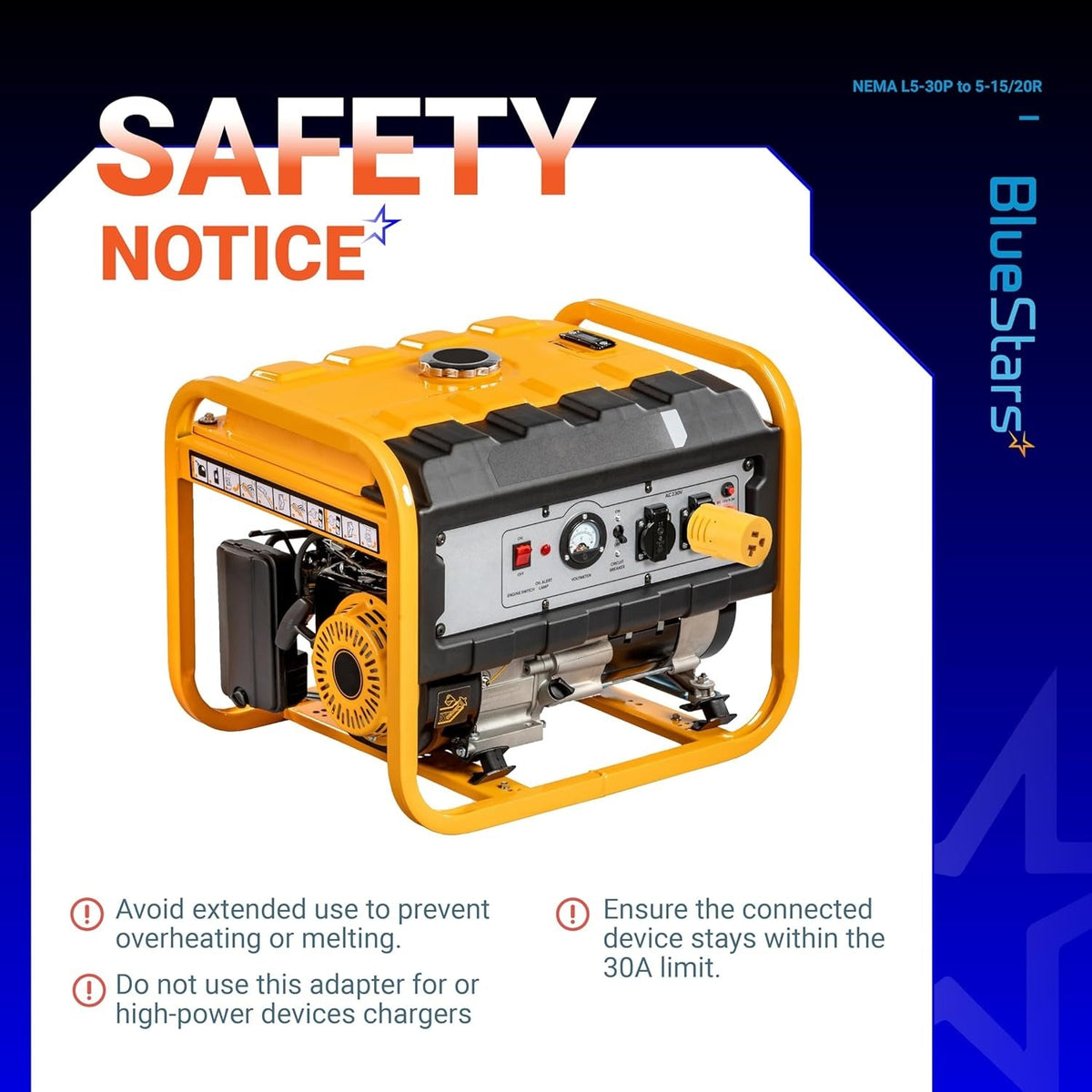

L5-30P to 5-15/20R adapter plugged into a portable generator with safety usage instructions.

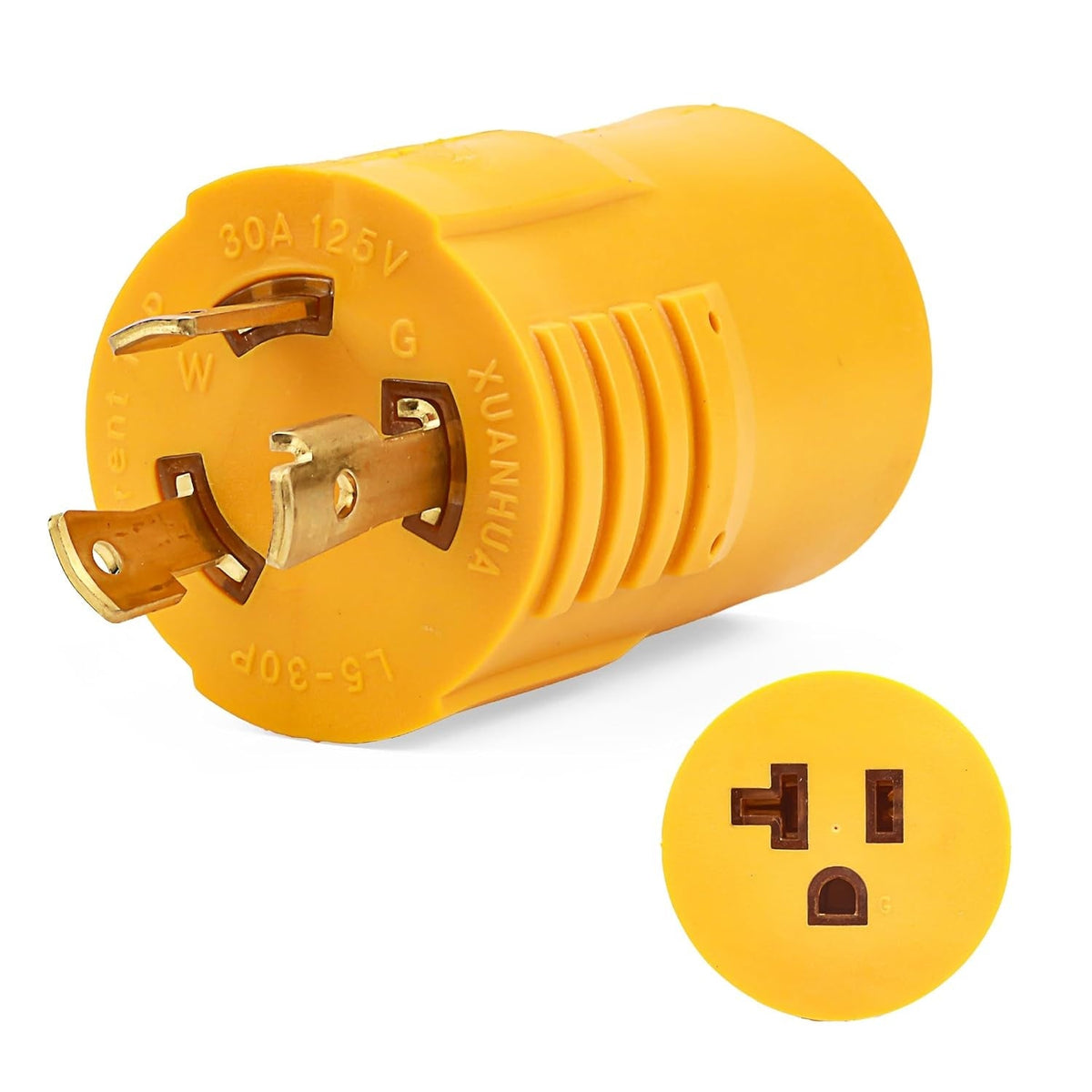

Close-up of a yellow NEMA L5-30P locking plug adapter for electrical connections.
Yellow L5-30P locking plug adapter with 5-15/20R receptacle face view.
Technical diagram of L5-30P to 5-15/20R power adapter showing dimensions, specifications, and plug orientation.
L5-30P to 5-15/20R adapter showing the locking male plug and T-blade female connector details.
Infographic showing construction features of L5-30P to 5-15/20R adapter with non-slip grip, brass prongs, and PVC shell.
Close-up of L5-30P to 5-15/20R adapter showing layered ring grip design and bright yellow safety color.
Instructional graphic showing L5-30P to 5-15/20R adapter being plugged into a generator and twist-locked for security.
Infographic showing wide application examples for NEMA L5-30P to 5-15/20R power adapter.
L5-30P to 5-15/20R adapter plugged into a portable generator with safety usage instructions.
Close-up of a yellow NEMA L5-30P locking plug adapter for electrical connections.

NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug

0.00
$25.54
Save 11% $28.60
$25.54
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

NEMA L5-30P to 5-15/20R Power Generator Adapter

Key Features

  • Male Plug: NEMA L5-30P (30A, 125V, 3-Prong Locking)
  • Female Connector: NEMA 5-15/20R (15/20A, 125V, T-Blade Combination)
  • Maximum Operating Current: 20 Amps
  • Maximum Voltage: 125 Volts
  • Internal Wiring: 12/3 AWG copper conductors
  • Jacket Material: Heavy-duty, oil and weather-resistant synthetic rubber

Replaces / Cross-Reference Part Numbers

  • This is a power configuration adapter, not a direct replacement part.
  • Functionally converts a NEMA L5-30R receptacle to accept standard household plugs.
  • Allows NEMA 5-15P and NEMA 5-20P plugs to connect to an L5-30R power source.

Compatibility & Fitment

  • Input Source: Mates with any NEMA L5-30R (30 Amp, 125V locking) receptacle.
  • Output Equipment: Accepts standard NEMA 5-15P (15A) and NEMA 5-20P (20A) plugs.
  • Common Applications: Generators, marine shore power, RV power pedestals, uninterruptible power supplies (UPS), and temporary power distribution boxes.
  • Note: The connected device must not draw more than 20 Amps.

When to Replace

  • Visible damage, cracking, or deformation of the plug or connector housing.
  • Exposed copper wiring or breeches in the outer cord jacket.
  • Discoloration or melted plastic, indicating overheating.
  • Terminals are loose, bent, or show signs of arcing.
  • Connection becomes intermittent or fails to lock securely.

Installation Tips

  • Ensure the source circuit breaker is in the OFF position before connecting or disconnecting.
  • Align the prongs, insert the male L5-30P plug fully, and twist clockwise to lock.
  • Verify the total load of the connected device(s) does not exceed the adapter's 20 Amp rating.
  • Do not overload the adapter by using it with a device that requires more than 20 Amps, even though the source outlet is rated for 30 Amps.
  • For outdoor applications, shield connections from direct contact with moisture.
NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug 1
NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug 2
NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug 3
NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug 4
NEMA L5-30P to 5-15/20R Power Generator Adapter 30A 125/250V - Twist Locking Generator 3 Prong Adapter 30A Male Plug to 15/20Amp Female Plug 5

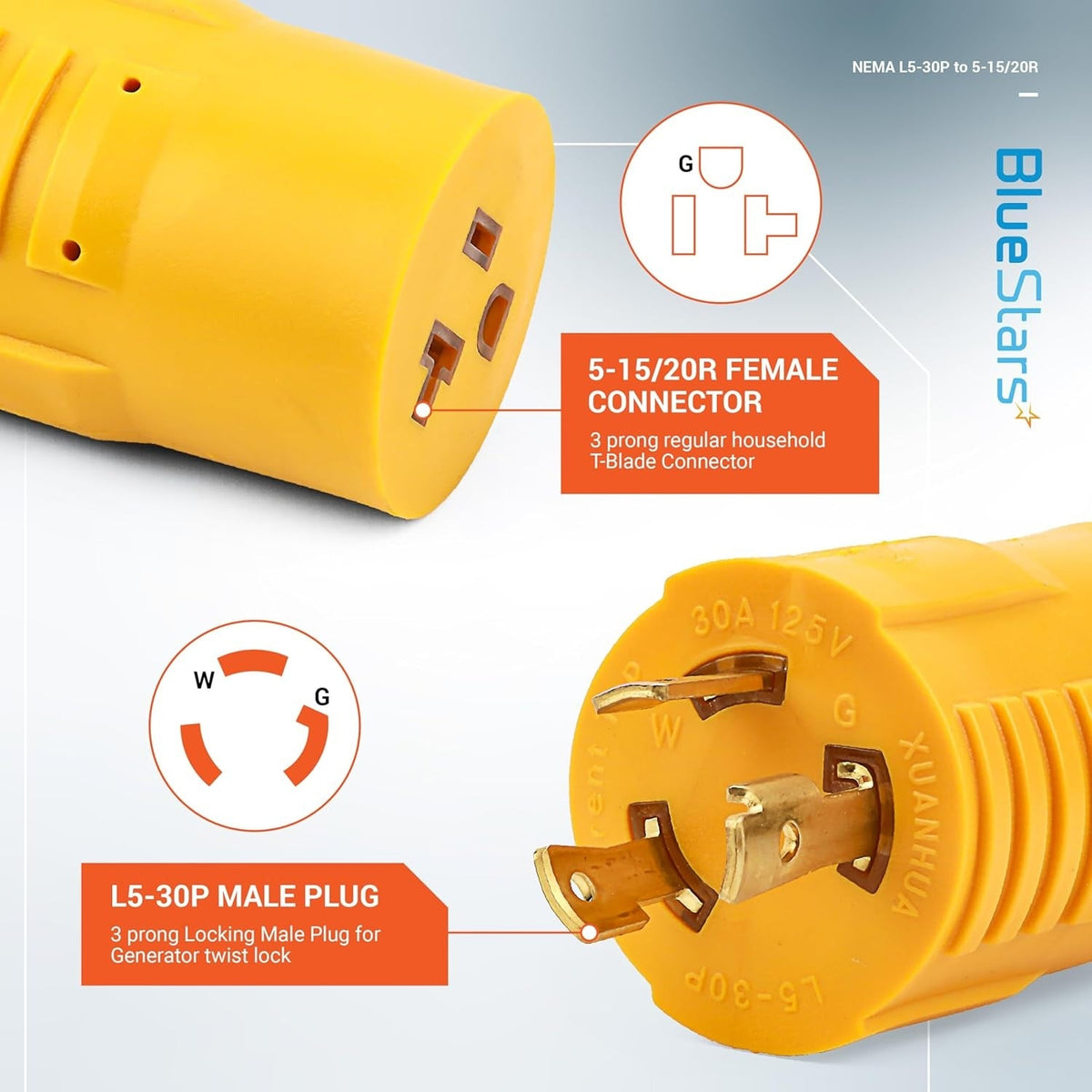

L5-30P Male Plug

L5-30P Male Plug

3 prong Locking Male Plug for Generator twist lock
5-15/20R Female Connector

5-15/20R Female Connector

3 prong regular household T-Blade Connector
HANDY CHOICES FOR HAPPY MOMENTS

HANDY CHOICES FOR HAPPY MOMENTS

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This adapter allows you to connect standard household devices (NEMA 5-15P or 5-20P plugs) to a 30-amp twist-lock power source (NEMA L5-30R). It is commonly used to power tools, lights, or small appliances from a generator or a heavy-duty power distribution box.
No. While the L5-30 plug is rated for 30 amps, the 5-15/20R receptacle is limited by the gauge of the cord and the design of the outlet itself. You should not exceed the 15 or 20-amp rating of the devices you are plugging into the adapter, regardless of the capacity of the power source.
Yes. The 5-15/20R receptacle features a T-slot design, which accepts both standard 15-amp (two parallel blades) and 20-amp (one horizontal and one vertical blade) plugs.
Ensure your generator's output is 125V. This adapter is designed for 125V circuits. Connecting this to a 240V circuit will cause immediate damage to any device plugged into the adapter and poses a significant safety hazard.
Always inspect the adapter for any signs of heat damage, loose prongs, or frayed insulation before each use. Because this adapter bridges a high-amperage source to a lower-amperage outlet, ensure the total load of your connected devices does not exceed the rating of the circuit breaker protecting the L5-30 outlet.
