6931EL3003C Dryer High Limit Thermostat, 6931EL3004B Dryer Thermostat, 6931EL3003D Dryer Thermal Fuse - For LG and Kenmore Dryers
0.00
Regular price
$14.39
Regular price
Save 11%
$16.11
Sale price
$14.39
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

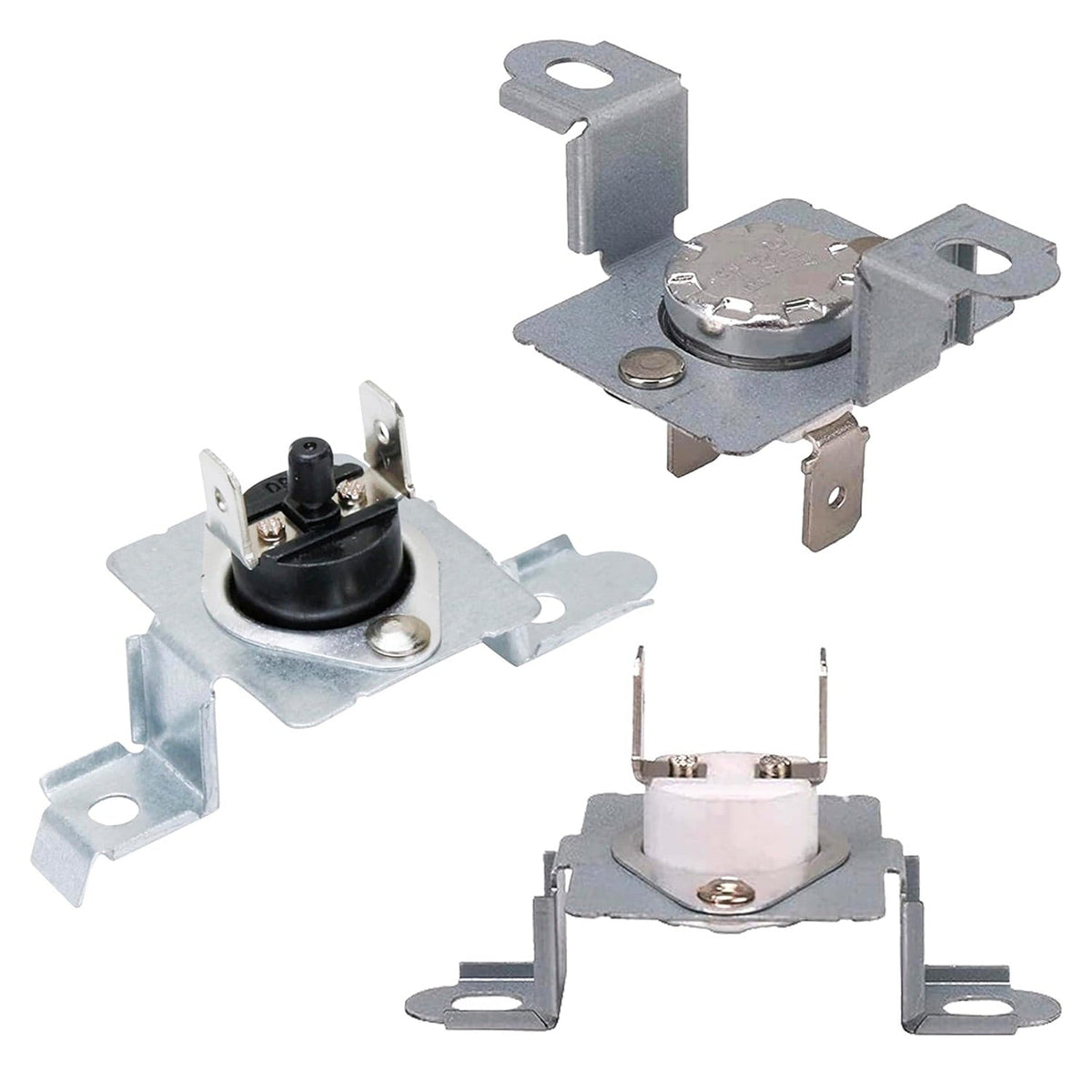

6931EL3003C Dryer High Limit Thermostat, 6931EL3004B Dryer Thermostat, 6931EL3003D Dryer Thermal Fuse Kit
Key Features
- Includes one high-limit thermostat and one thermal fuse.
- Thermostat monitors and regulates temperature inside the dryer drum.
- Thermal fuse is a single-use safety component that cuts power during an overheat event.
- Addresses common symptoms such as no heat, insufficient drying, or failure to start.
Replaces / Cross-Reference Part Numbers
- 6931EL3003C (Dryer High Limit Thermostat): AP4457603, PS3530484, 6931EL3003G, 1268365, AH3530484, EA3530484, EAP3530484, L3003, AGM30045804
- 6931EL3004B (Dryer High Limit Thermostat): AP4445168, PS3530486, 6931EL3003F, 6931EL3002B, AH3530486, EA3530486, EAP3530486, 1268367, AGM30045804
- 6931EL3003D (Dryer Thermal Fuse): AP4440975, PS3530485, 6931EL3003E, AH3530485, EA3530485, EAP3530485, PD00001818, 1268366, L3003D
Compatibility & Fitment

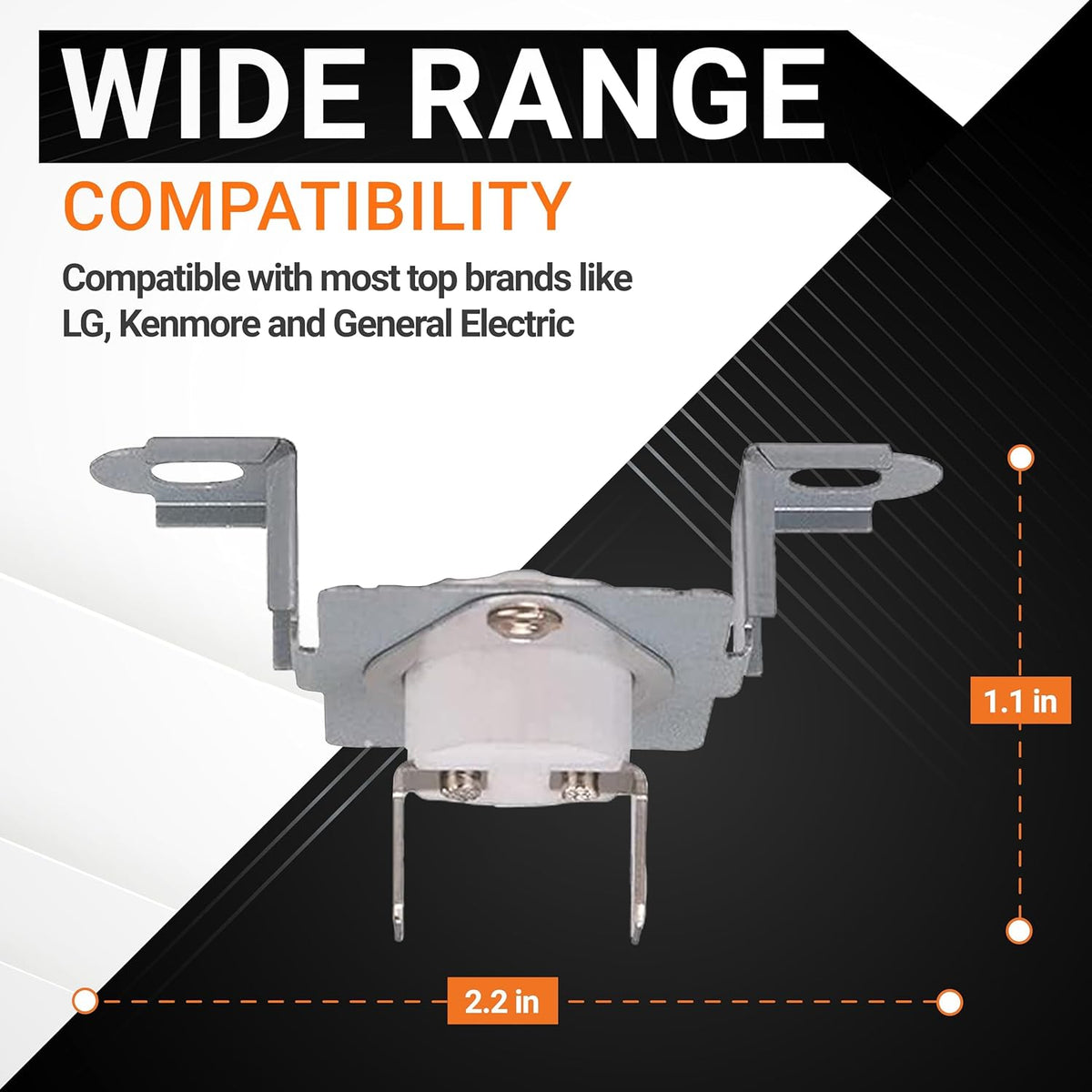

- Brands: Fits select LG and Kenmore electric dryer models.
- Select Models Include: DLE2050W, DLE5955W, DLEX2501W
- Verify your dryer's model number to ensure compatibility before ordering.
When to Replace
- Dryer fails to start.
- Dryer tumbles but does not produce heat.
- Dryer overheats or shuts off mid-cycle.
- Drying times are significantly longer than usual.
- Existing fuse or thermostat fails a continuity test.
Installation Tips
- Disconnect the dryer from its power supply before starting the repair.
- For comprehensive repair, it is recommended to replace both components at the same time.
- If the thermal fuse has failed, inspect and clear the dryer's exhaust vent of any lint buildup or obstructions to resolve the underlying cause of overheating.
-
FIX DRYER SYMPTOMS
No heat or not enough heat | Takes too long to dry | Shuts off too soon | Will Not Start -

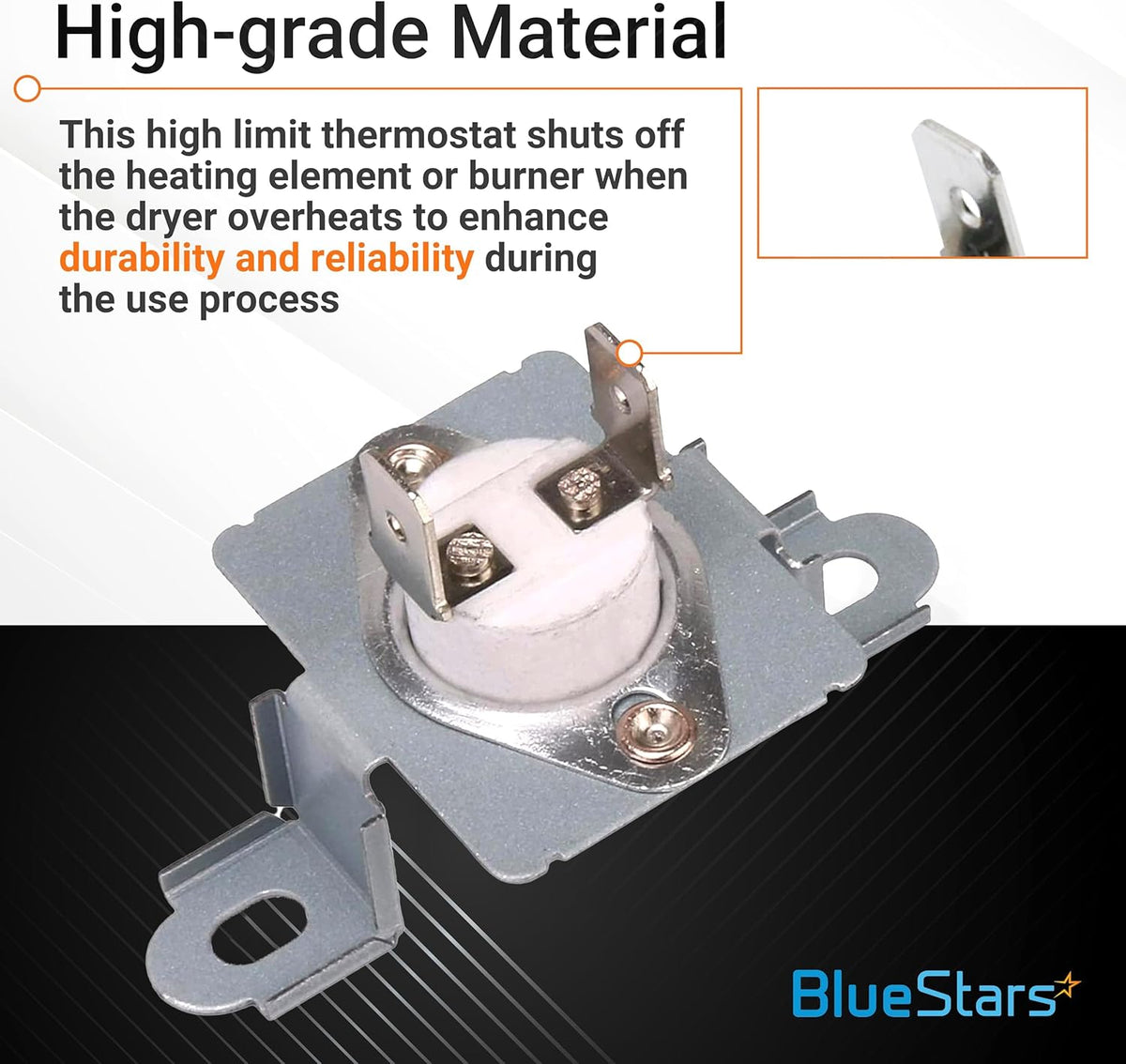

PREMIUM QUALITY
This Kit is made from durable high-quality metal that REACTS QUICKLY TO OVERHEATING, ensuring effective operation. -
SAVING SOLUTION
Great feeling when your dryer is repaired and works efficiently - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
This Kit is straightforward to attach, load, and use. Anyone with basic hand tools can do it.

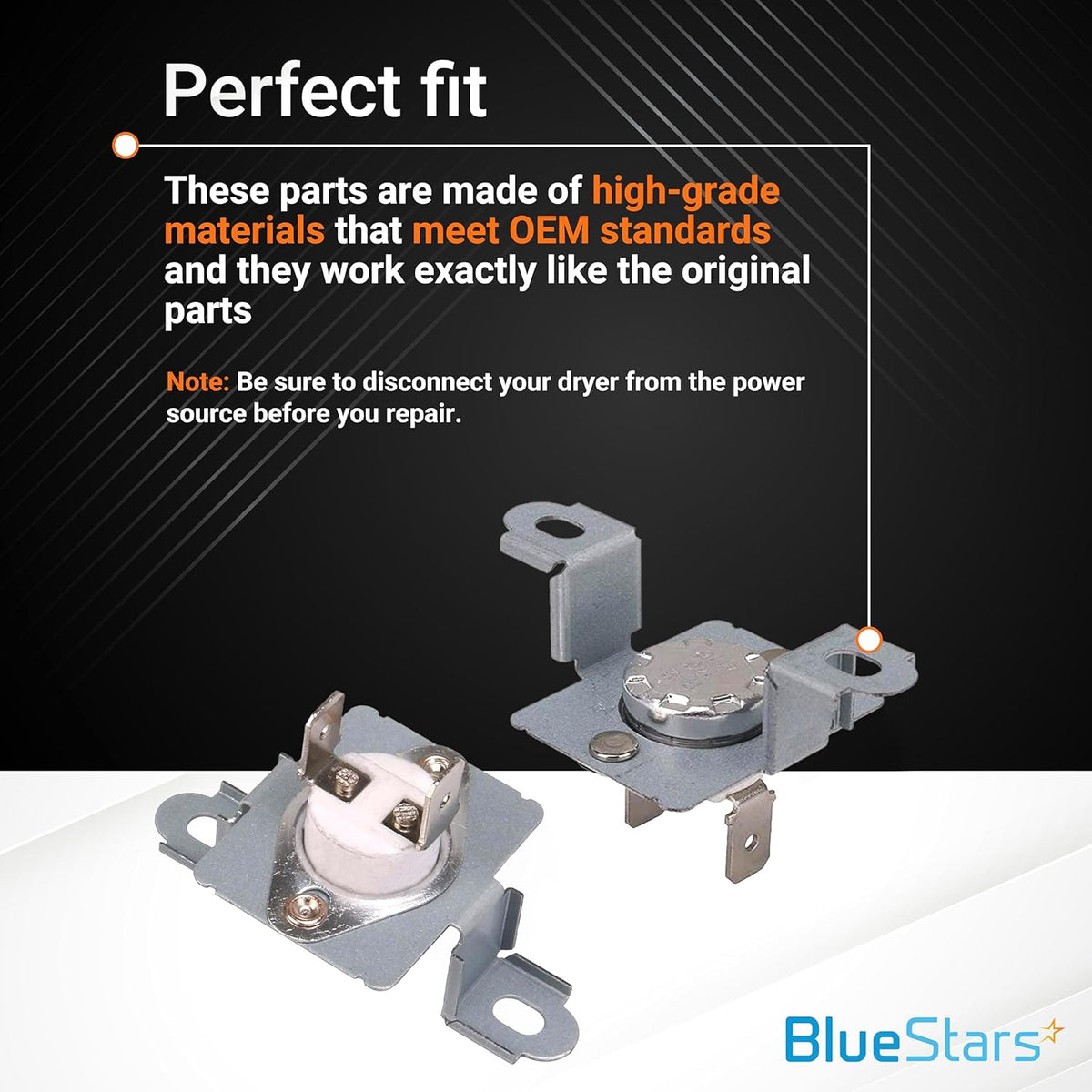

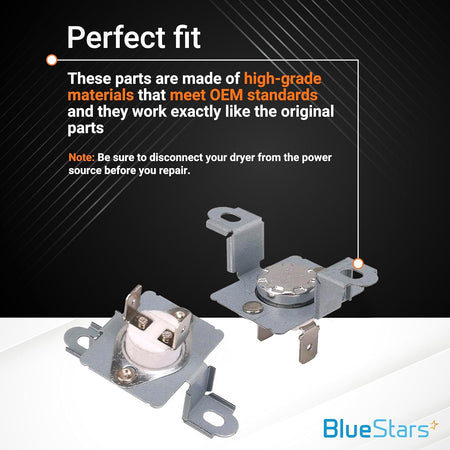

EXACT REPLACEMENT
- 6931EL3003C replaces: 1268365, 6931EL3003G, PS3530484.
- 6931EL3004B replaces: 6931EL3003F, 1268367, PS3530486.
- 6931EL3003D replaces: AP4440975, 1268366, PS3530485.
- 6931EL3004B replaces: 6931EL3003F, 1268367, PS3530486.
- 6931EL3003D replaces: AP4440975, 1268366, PS3530485.
WORK LIKE A CHARM
It has a solid & reliable design that ensures better durability & efficiency under high temperatures and heavy loading
ENJOY YOUR LIFE WITH OUR PART INSIDE!
BlueStars - #1 source of high-quality replacement parts
