[Lifetime Warranty] DP040-012 4681EA1007A Drain Pump - Compatible with Kenmore LG GE Washer Drain Pump WT1101CW WT1201CV WT4870CW WT1501CW 79631513210 - Replaces 5859EA1004F 5859EA1004P 5859EA1004G WH23X10020

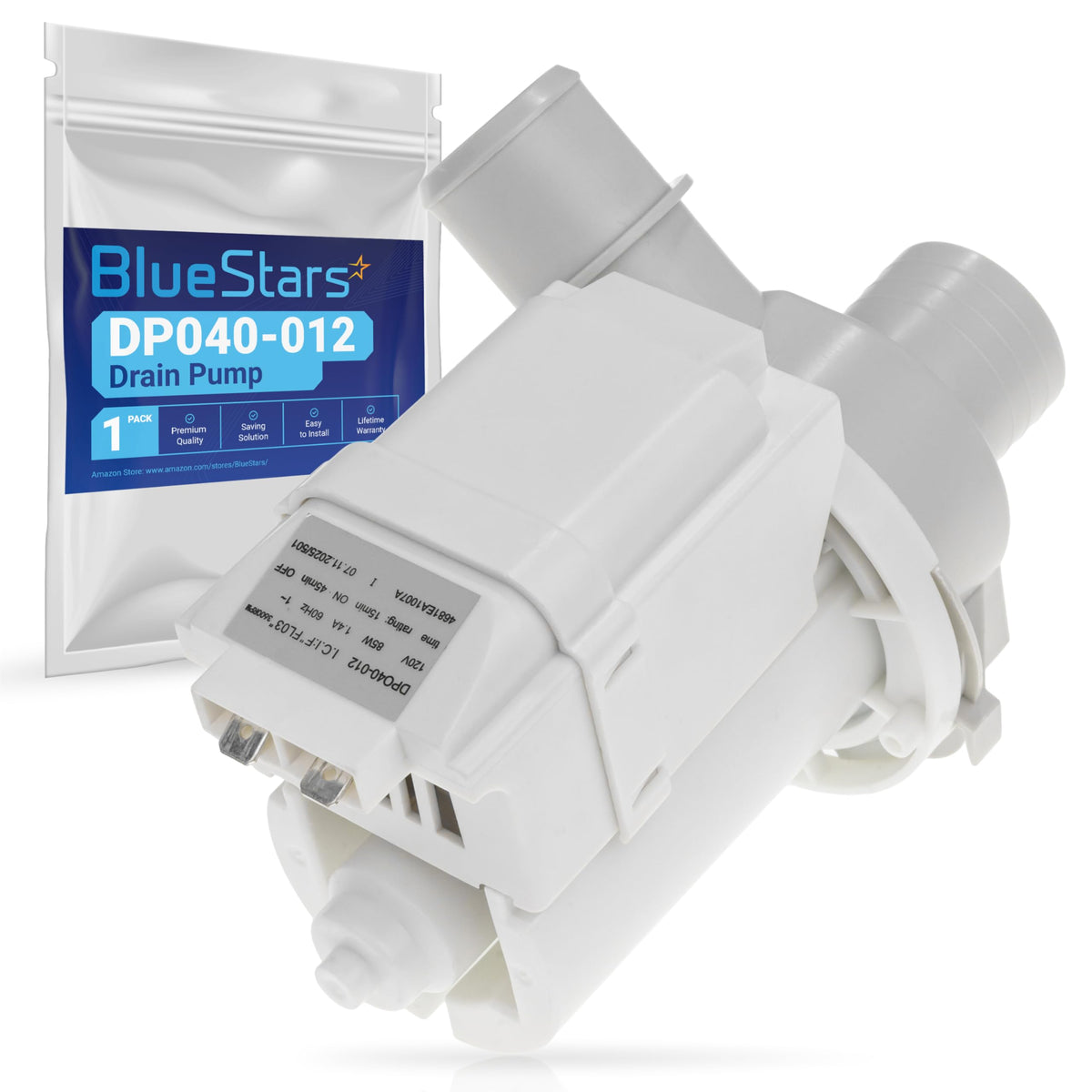

BlueStars DP040-012 washer drain pump with packaging bag.

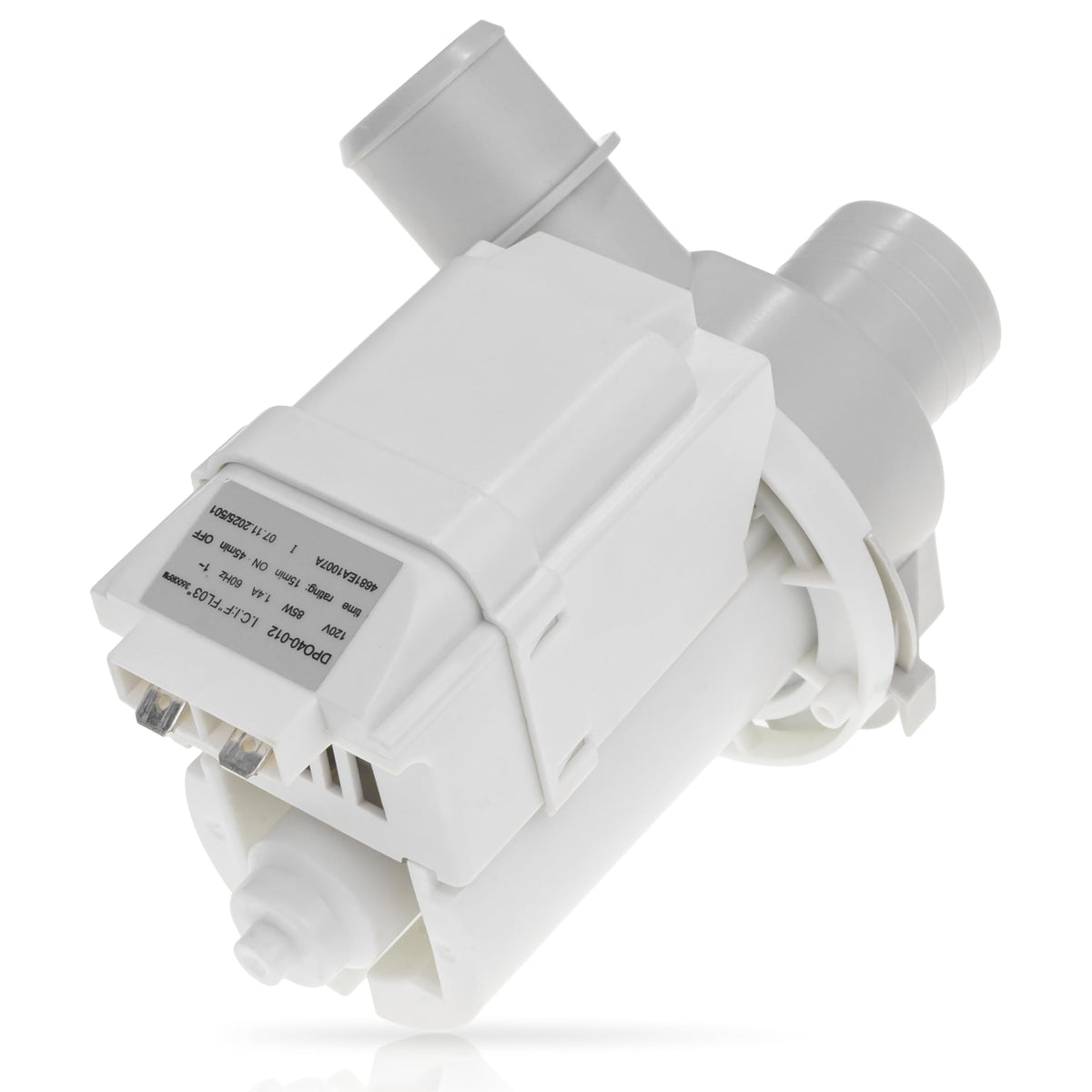

4681EA1007A replacement drain pump for LG and Kenmore washers with visible electrical terminal and motor label.

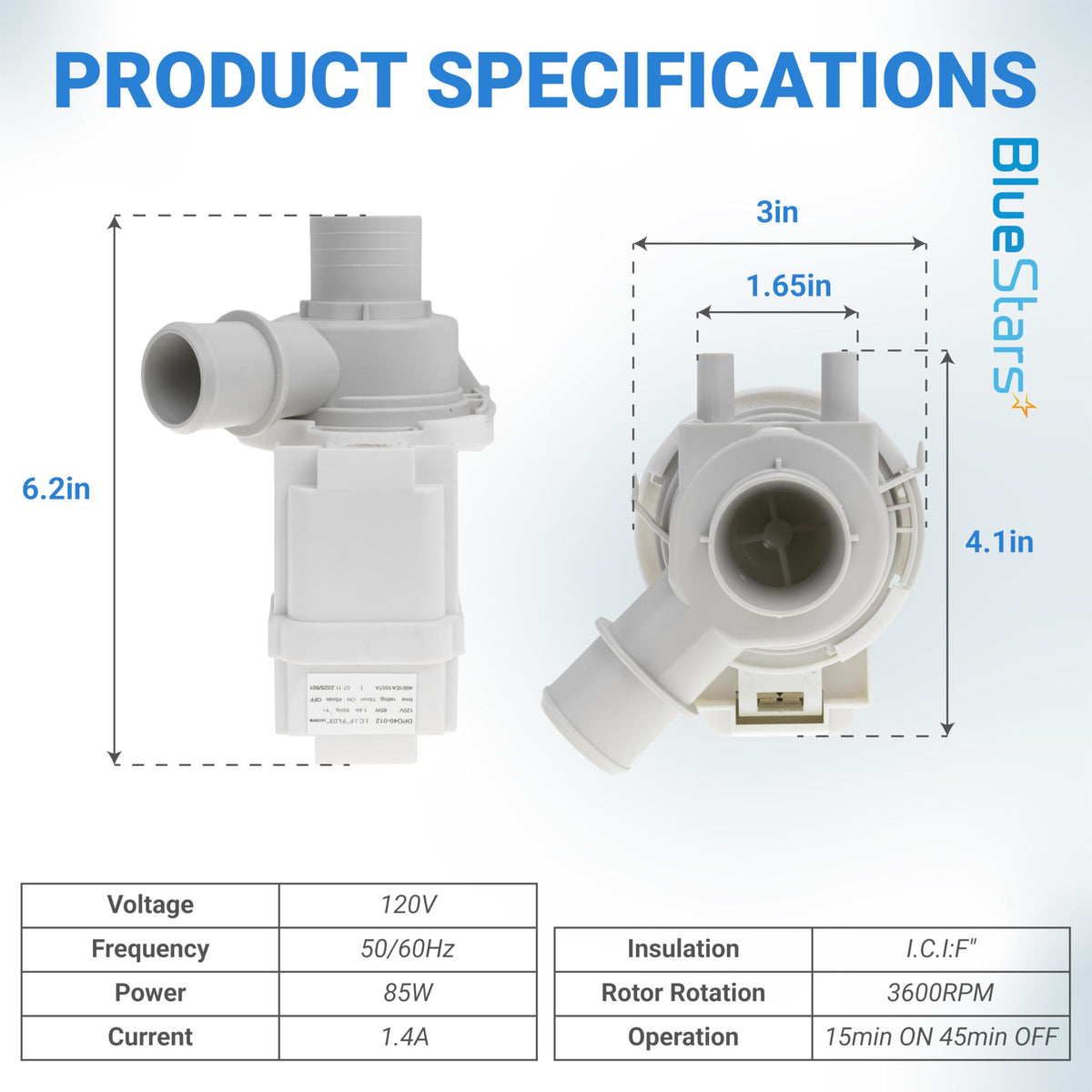

Dimensional diagram of 4681EA1007A washer drain pump showing height, width, and technical specifications.

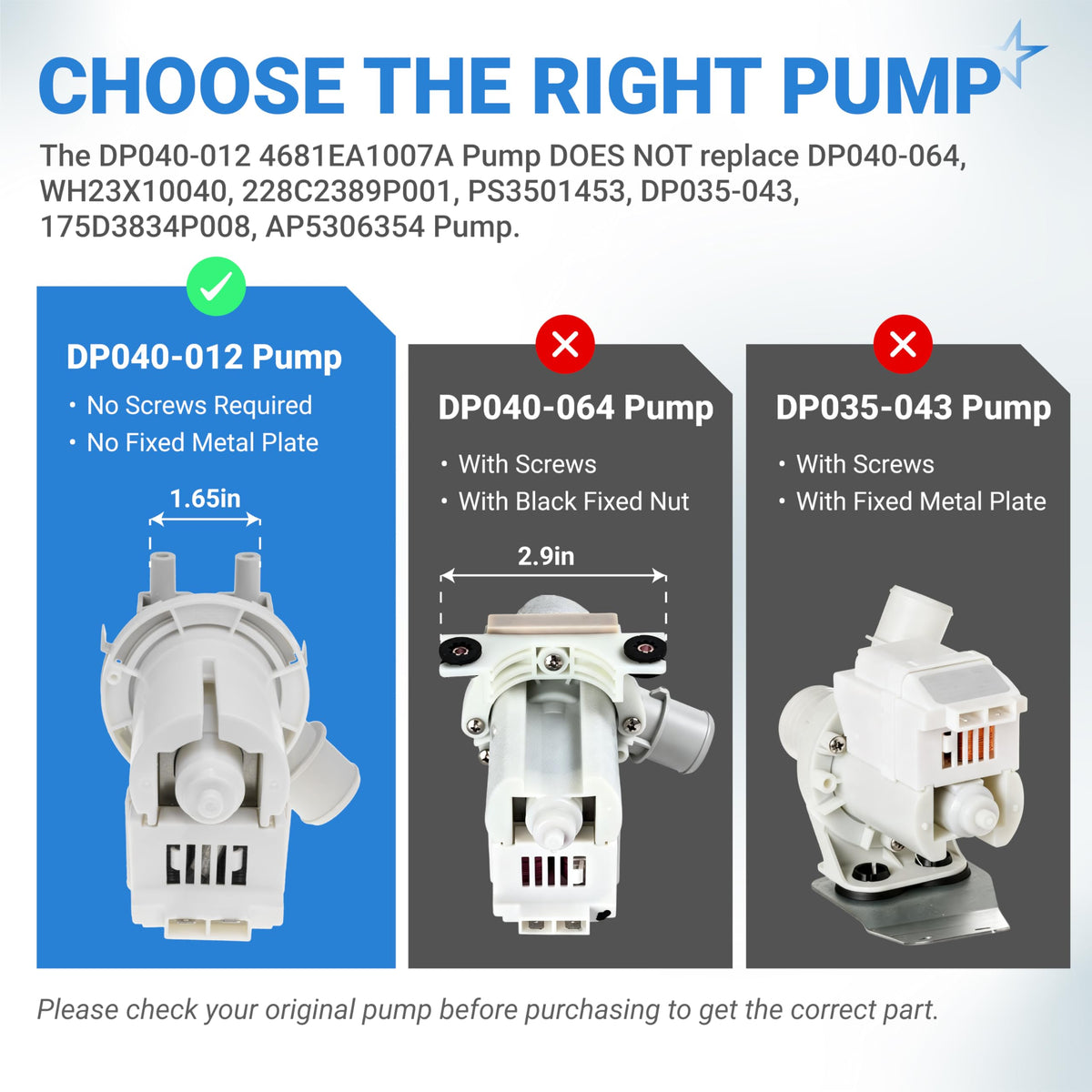

Comparison chart showing DP040-012 washer drain pump features versus incompatible pump models.

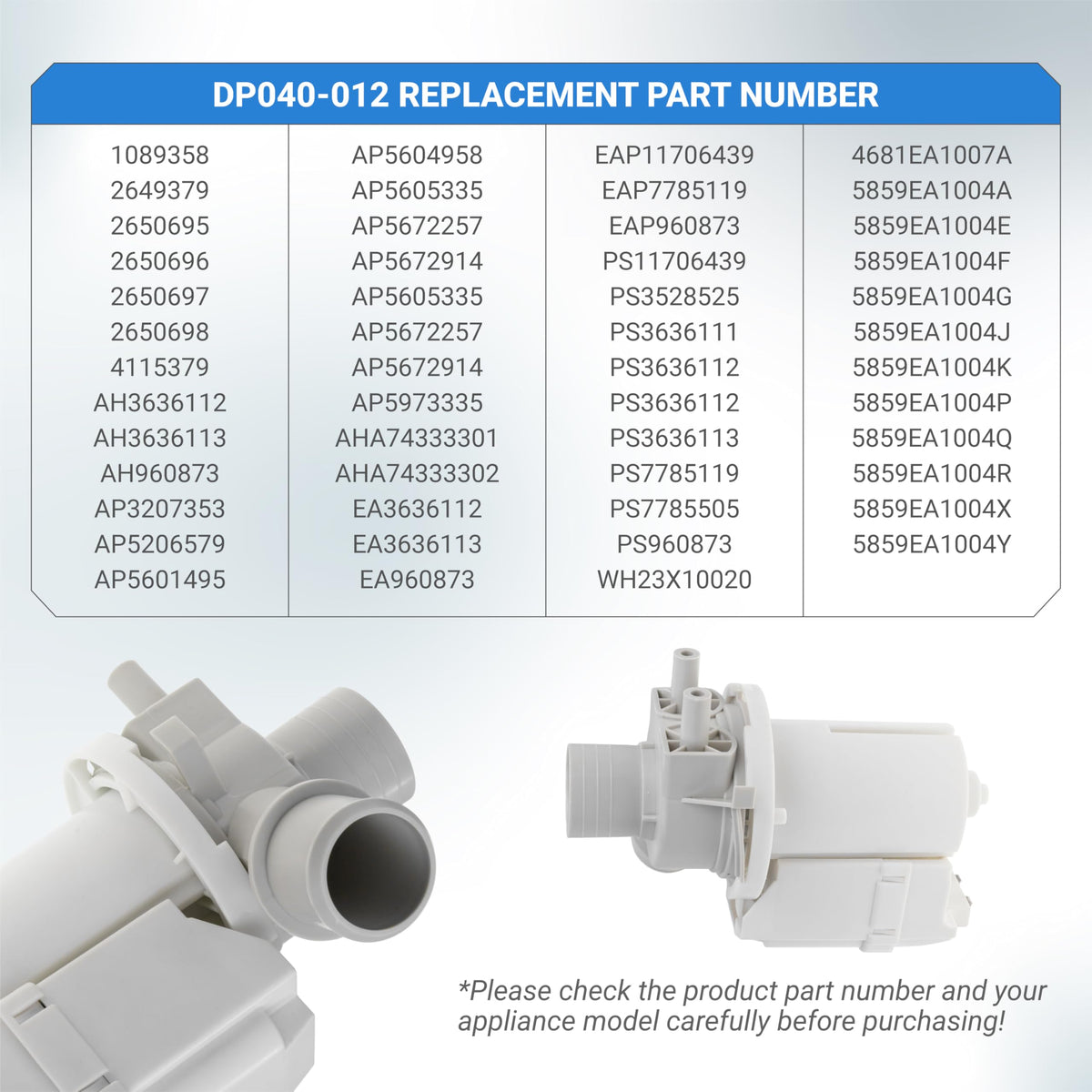

DP040-012 drain pump replacement part compatibility chart and product views for Kenmore, LG, and GE washers.
DP040-012 replacement drain pump for Kenmore and LG washers shown on a promotional lifestyle background.

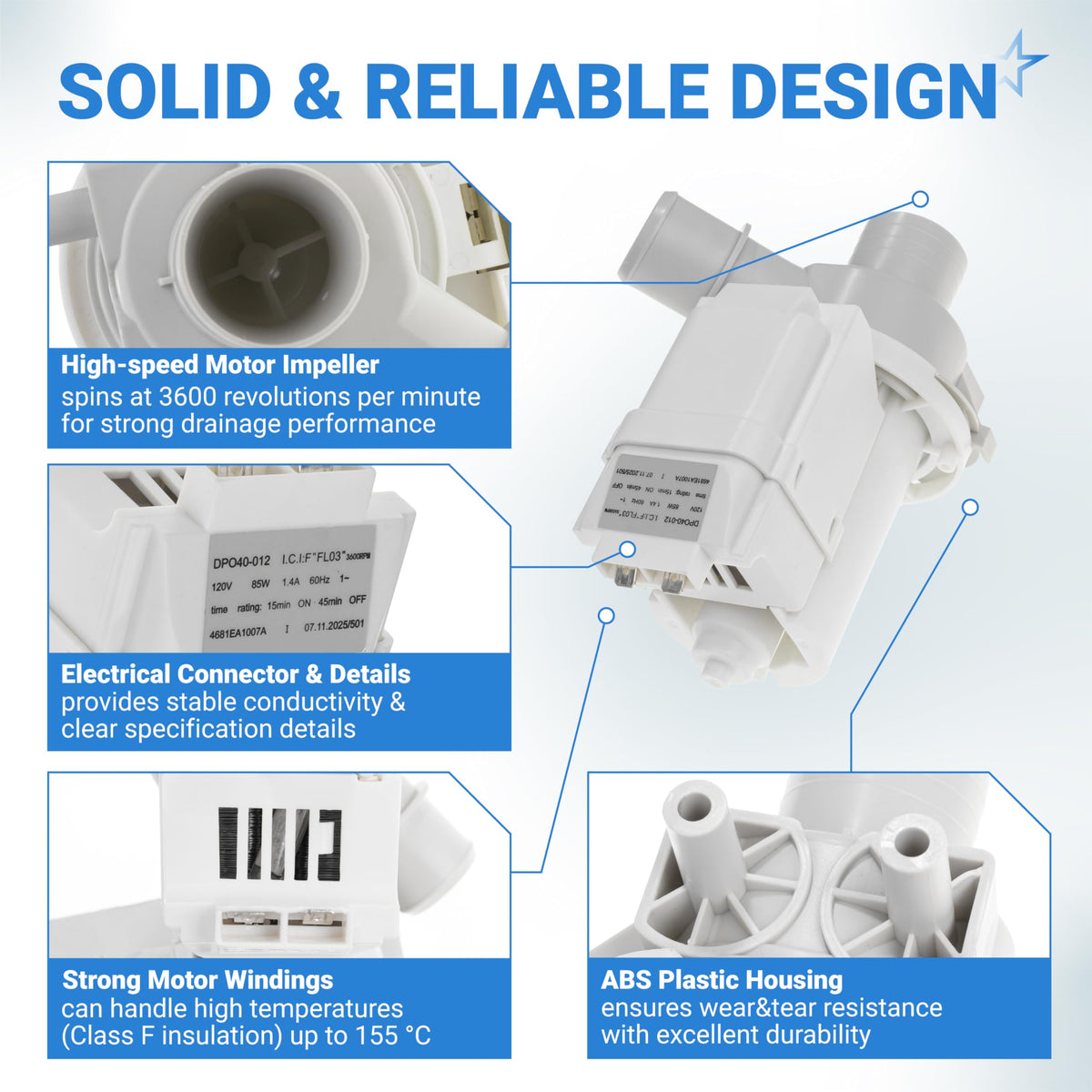

Infographic showing features of 4681EA1007A washer drain pump including impeller, electrical connector, and motor housing.
Replacement drain pump for Kenmore and LG washers with infographic showing common repair symptoms.

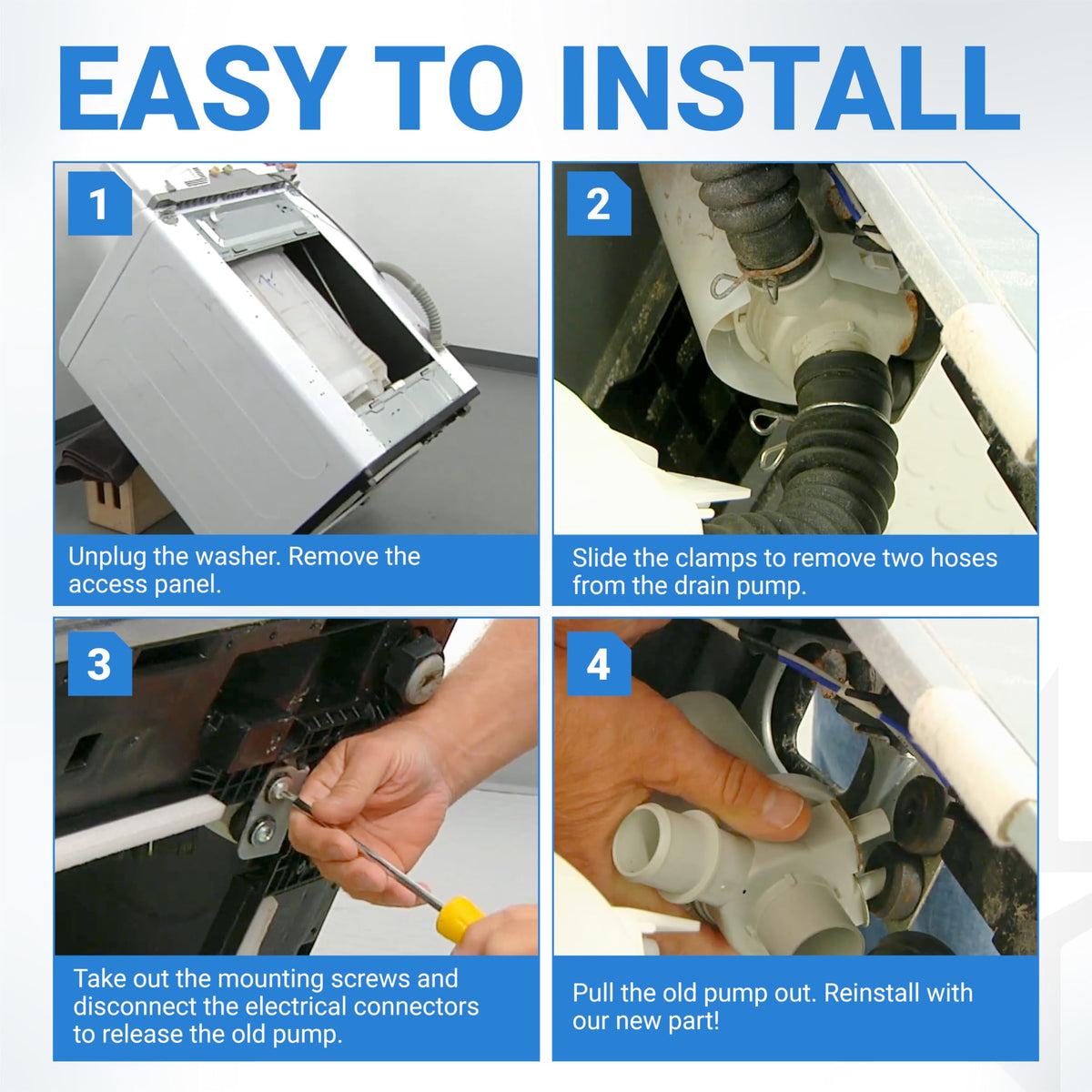

Four-step installation guide for replacing a Kenmore and LG washer drain pump with hoses and mounting screws.
BlueStars DP040-012 washer drain pump with packaging bag.
4681EA1007A replacement drain pump for LG and Kenmore washers with visible electrical terminal and motor label.
Dimensional diagram of 4681EA1007A washer drain pump showing height, width, and technical specifications.
Comparison chart showing DP040-012 washer drain pump features versus incompatible pump models.
DP040-012 drain pump replacement part compatibility chart and product views for Kenmore, LG, and GE washers.
DP040-012 replacement drain pump for Kenmore and LG washers shown on a promotional lifestyle background.
Infographic showing features of 4681EA1007A washer drain pump including impeller, electrical connector, and motor housing.
Replacement drain pump for Kenmore and LG washers with infographic showing common repair symptoms.
Four-step installation guide for replacing a Kenmore and LG washer drain pump with hoses and mounting screws.
Lifetime Warranty

[Lifetime Warranty] DP040-012 4681EA1007A Drain Pump - Compatible with Kenmore LG GE Washer Drain Pump WT1101CW WT1201CV WT4870CW WT1501CW 79631513210 - Replaces 5859EA1004F 5859EA1004P 5859EA1004G WH23X10020

Save 13%
0.00
$56.51
$64.99
$56.51
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DP040-012 4681EA1007A Drain Pump

Key Features

  • Direct-fit replacement drain pump and motor assembly.
  • Engineered to match original equipment specifications for form and function.
  • Removes water from the washer tub during the drain cycle.

Replaces / Cross-Reference Part Numbers

  • DP040-012
  • 4681EA1007A
  • 5859EA1004F
  • 5859EA1004G
  • 5859EA1004P
  • WH23X10020
  • PD00006805

Compatibility & Fitment

  • Brands: Fits select LG, Kenmore, and GE models.
  • LG Models: WT1001CW, WT1101CW, WT1201CV, WT1201CW, WT1501CW, WT4870CW, WT5001CW, WT5270CW
  • Kenmore Models: 79629278000, 79631513210

When to Replace

  • The washer does not drain or drains slowly.
  • Water remains in the drum after the cycle completes.
  • Unusual noises (humming, grinding) occur during the drain cycle.
  • The washer displays a drain-related error code.
  • Visible leaks from the pump area.

Installation Tips

  • Disconnect the washer from power and water sources before beginning repair.
  • Have towels or a shallow pan ready to catch residual water from hoses.
  • Inspect drain hoses for clogs or kinks during replacement.
  • Ensure all hose clamps are secure after installing the new pump.

FAQ

This drain pump is listed as compatible with select LG, Kenmore, and GE washers. Models specifically referenced include LG WT1101CW, WT1001CW, WT1201CV, WT1201CW, WT1501CW, WT4870CW, WT5270CW, WT7200CW, and Kenmore 79631513210. Because washer parts can vary by full model and revision, match the part number on your original pump before ordering.
This pump is associated with part numbers DP040-012 and 4681EA1007A, and it replaces 5859EA1004F, 5859EA1004P, 5859EA1004G, and WH23X10020. Additional cross-reference numbers tied to this pump include AP5672914, PS7785119, EAP7785119, and 2649379.
A bad drain pump often causes the washer to leave water in the tub, drain very slowly, stop before spin, or make a loud humming, grinding, or rattling noise during drain. In some cases the pump motor runs but cannot move water, especially if the impeller is damaged or jammed.
Before replacing the pump, unplug the washer and check for simpler causes first: a clogged drain hose, debris in the pump housing, lint or small items blocking the impeller, or a kinked discharge hose. Also inspect the wiring connector for corrosion or looseness. If the pump receives power but will not drain or is noisy, replacement is often the next step.
For someone comfortable working on appliances, this is usually a moderate repair. Typical tools include screwdrivers, pliers for hose clamps, a towel or shallow pan for residual water, and possibly a nut driver or socket depending on the washer design. Expect roughly 30 to 90 minutes, depending on how easily you can access the pump on your specific model.
Drain pumps commonly fail from coin, hairpin, fabric, or lint jams, worn impellers, or motor burnout after repeated strain. Running the washer with partial blockages can overwork the pump. In top-load washers, small items that slip past the tub can also damage the impeller or cause persistent noise during drain cycles.
