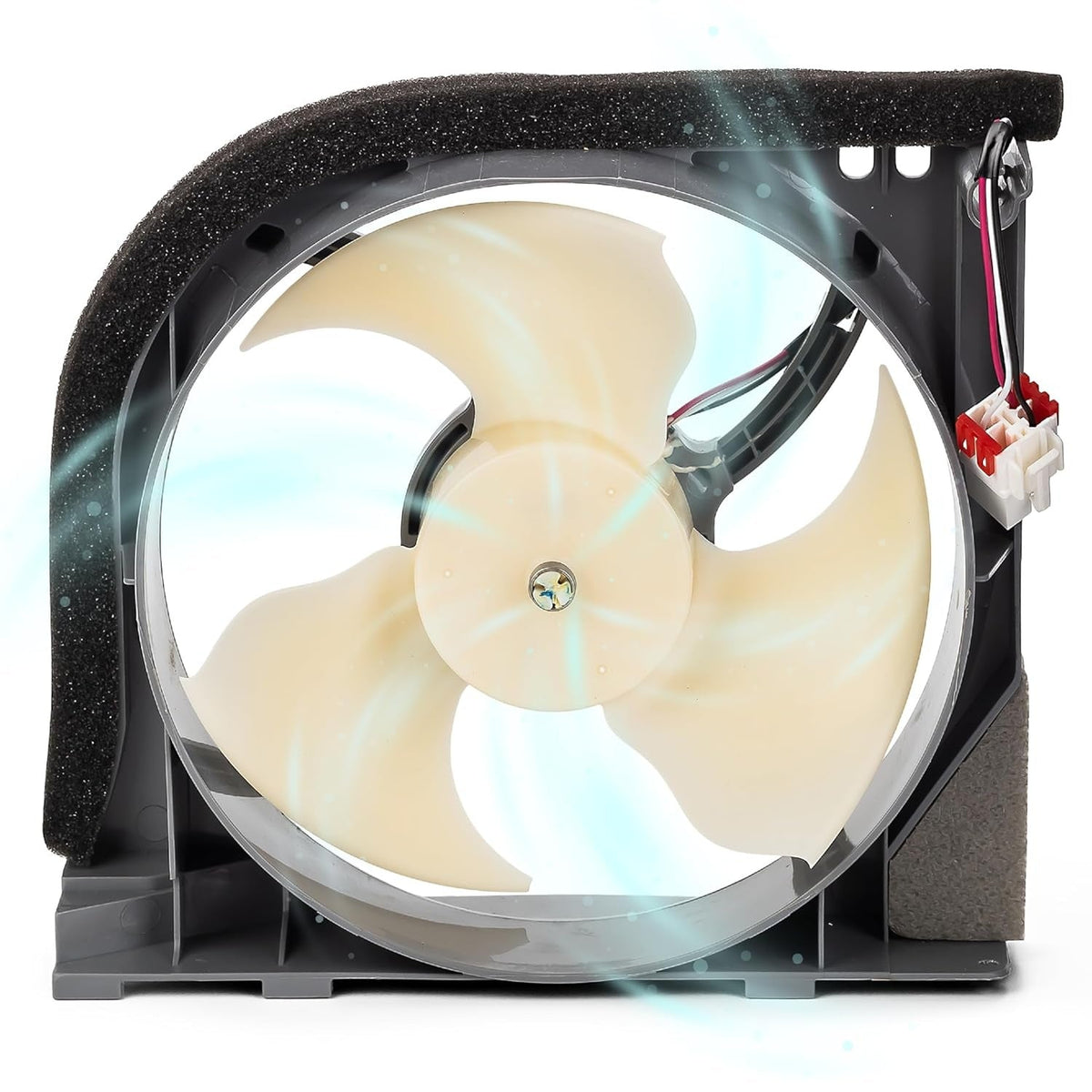

Samsung refrigerator condenser fan motor assembly with white blades and wiring harness.

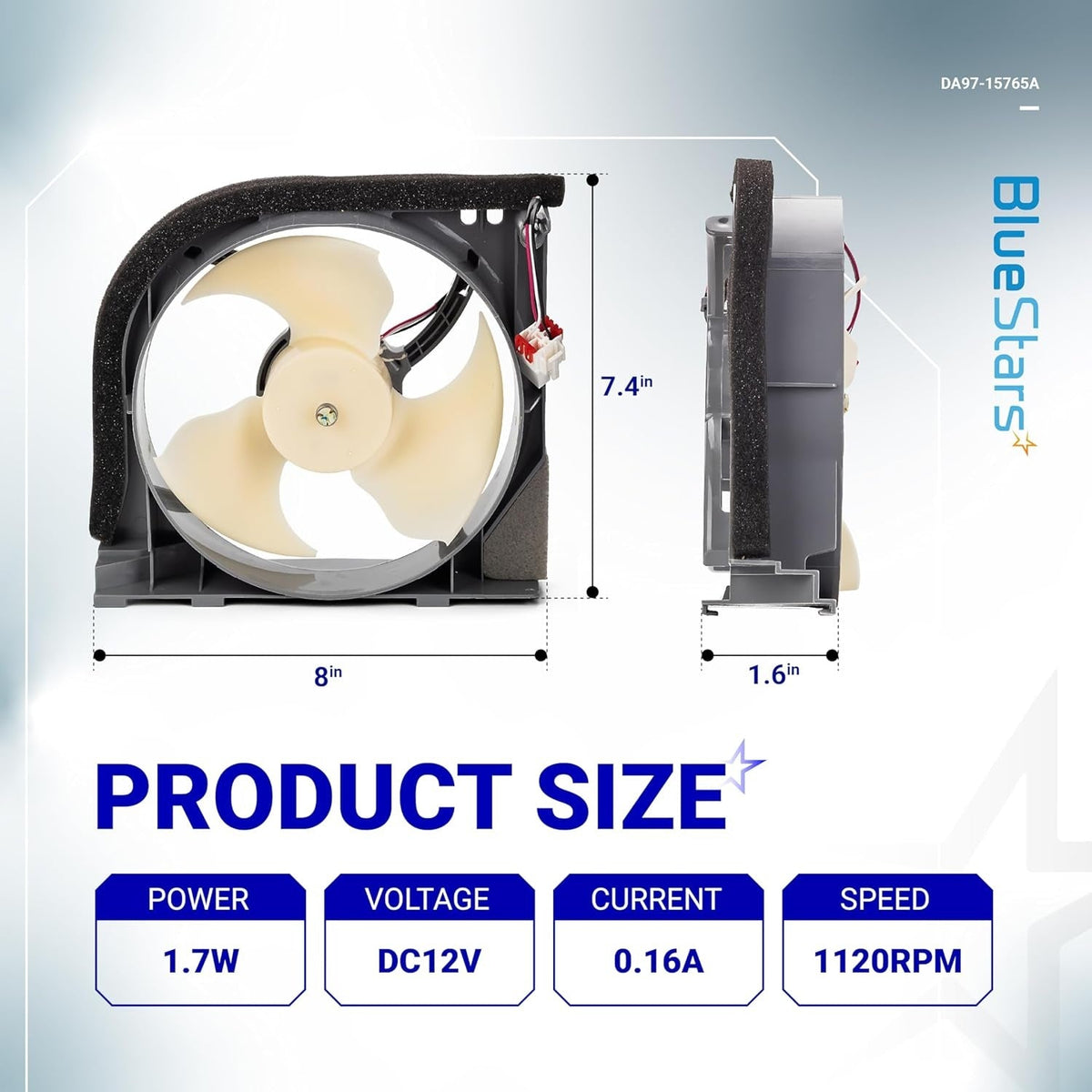

DA97-15765A Samsung refrigerator condenser fan motor showing dimensions and technical specifications.

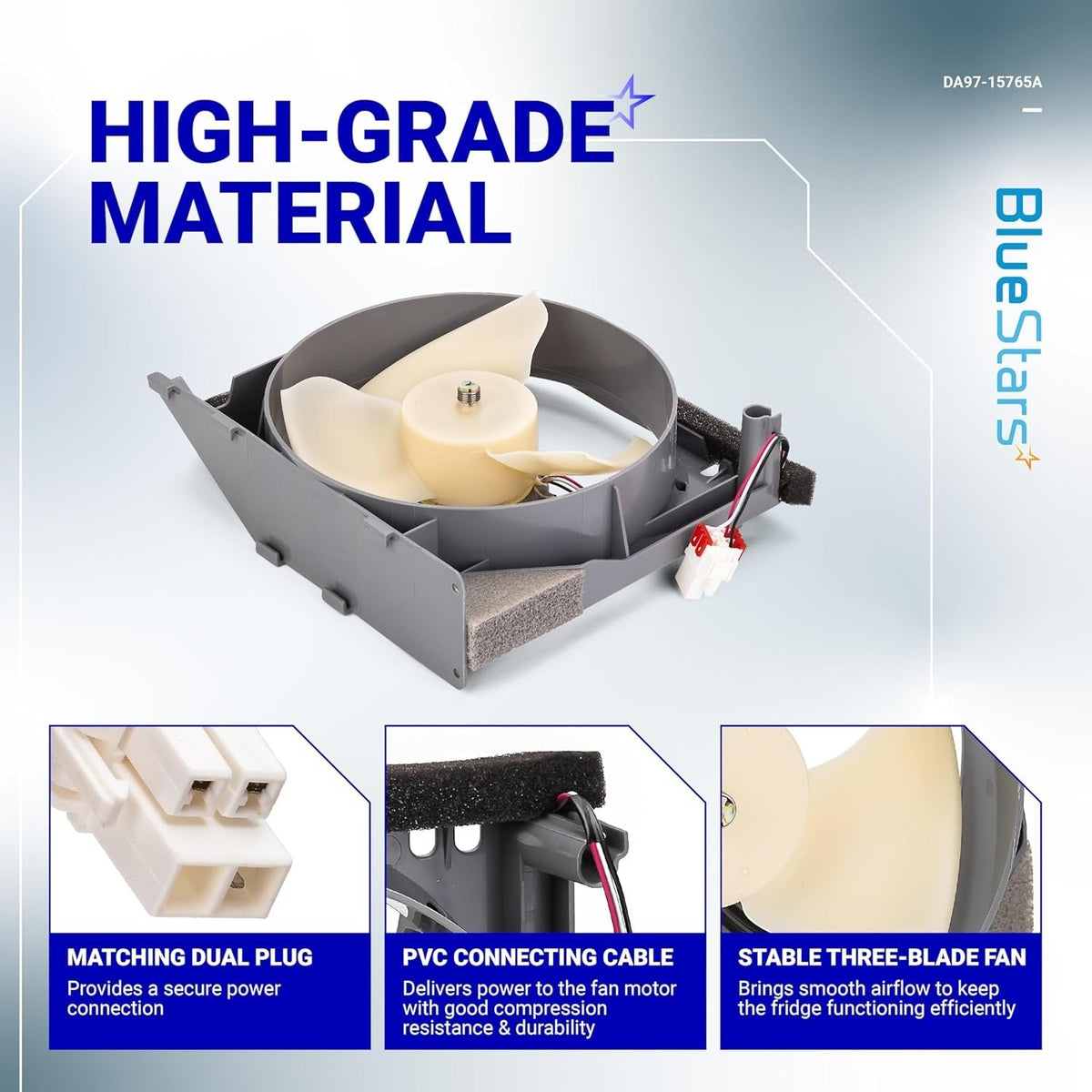

DA97-15765A Samsung refrigerator condenser fan motor assembly with three-blade fan, wiring, and plug connector.
DA97-15765A refrigerator condenser fan motor with white blades and foam insulation for Samsung refrigerators.

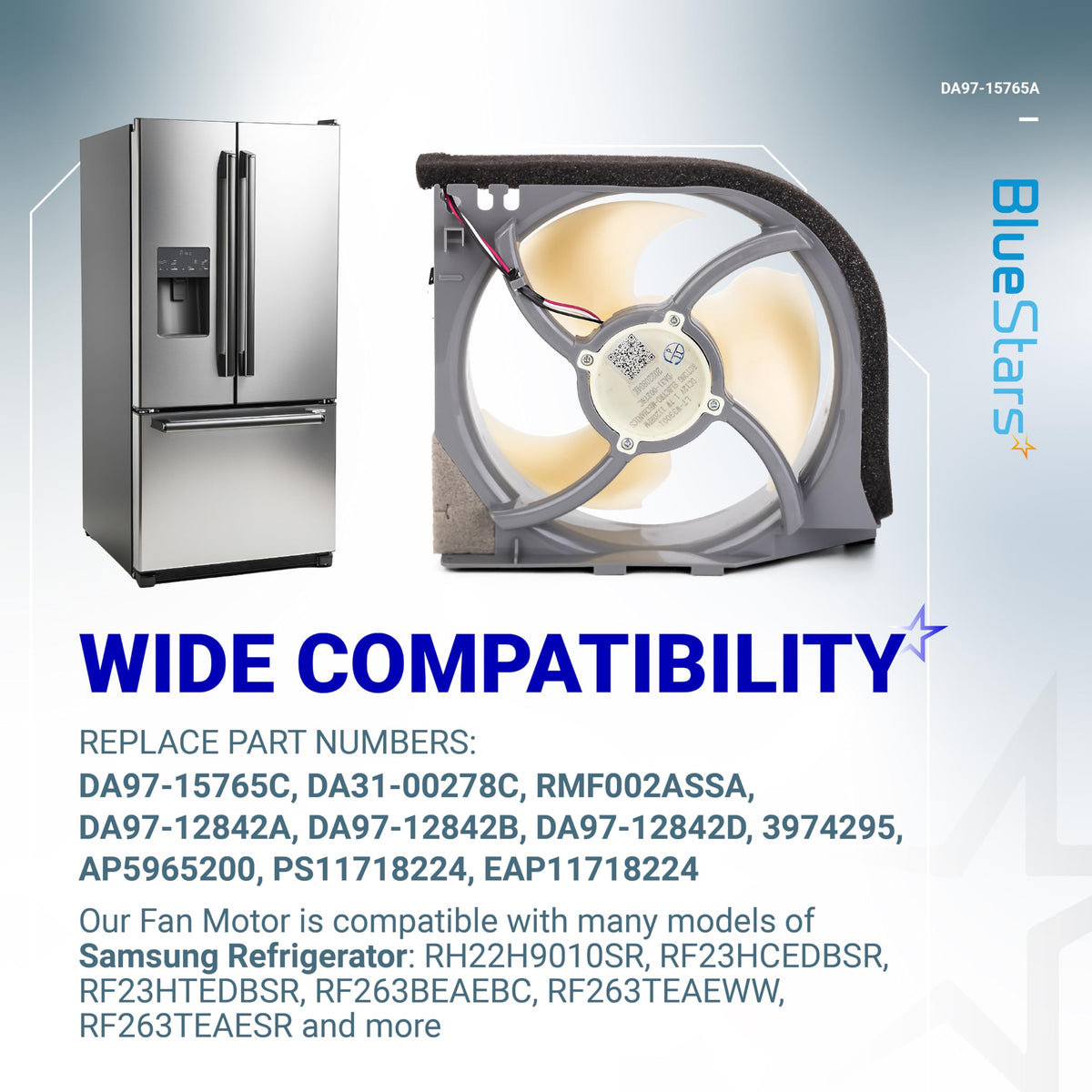

DA97-15765A refrigerator condenser fan motor with housing for Samsung refrigerators.

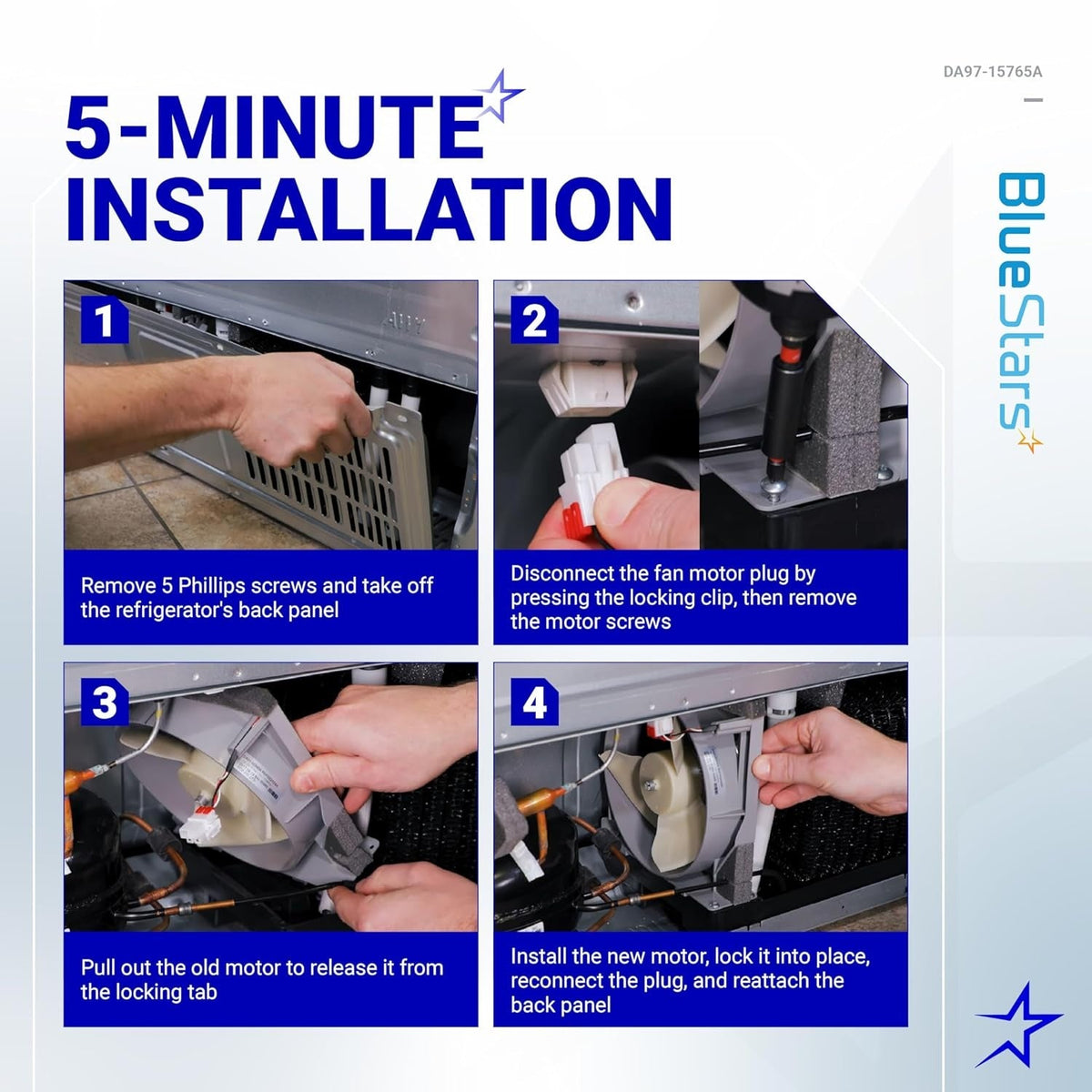

Installation guide showing 4 steps to replace a Samsung refrigerator condenser fan motor DA97-15765A.

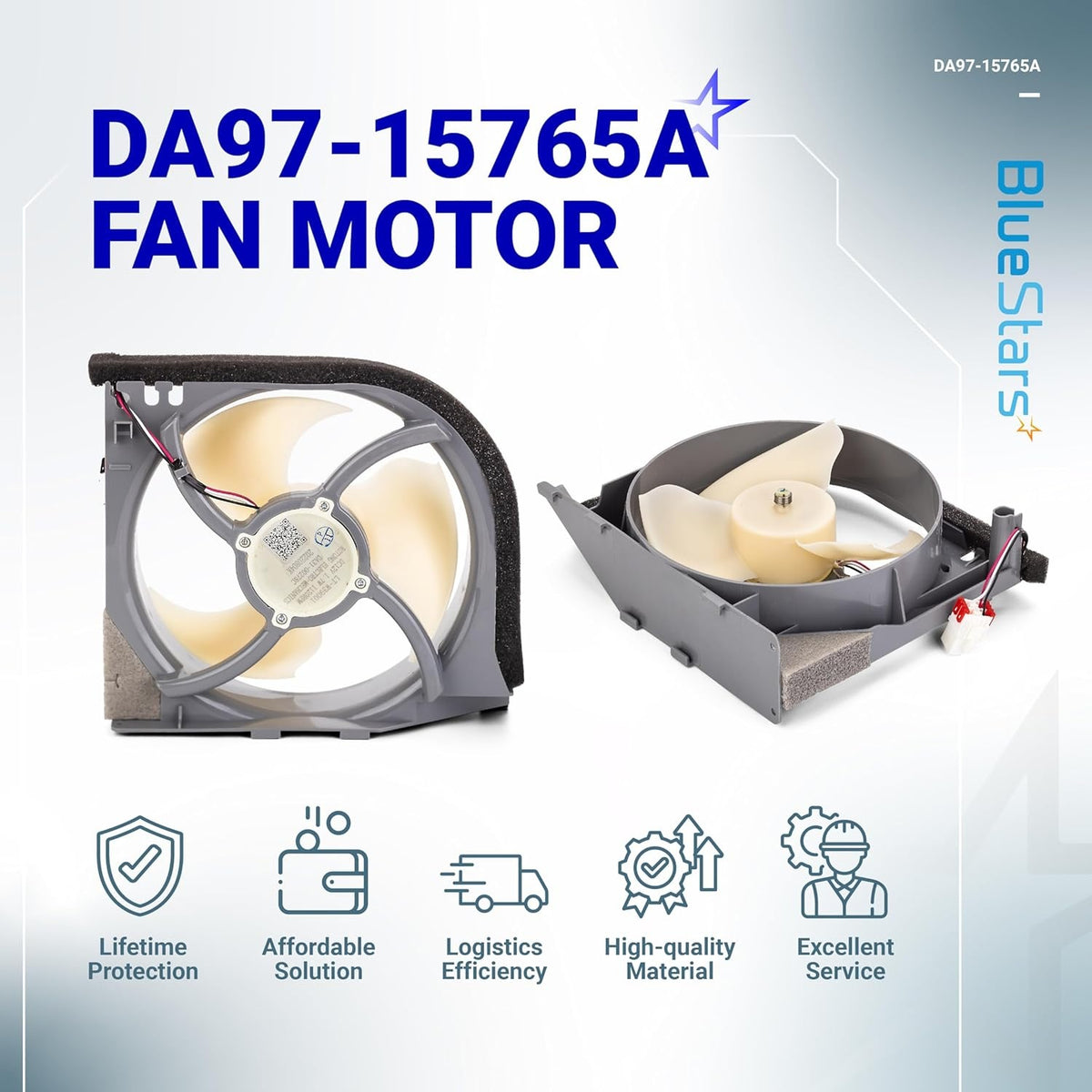

DA97-15765A refrigerator condenser fan motor assembly with housing, showing front and side views.
DA97-15765A refrigerator condenser fan motor with housing, showing front and side angles for Samsung refrigerators.
DA97-15765A refrigerator condenser fan motor for Samsung refrigerators shown in a promotional lifestyle graphic.
Samsung refrigerator condenser fan motor assembly with white blades and wiring harness.
DA97-15765A Samsung refrigerator condenser fan motor showing dimensions and technical specifications.
DA97-15765A Samsung refrigerator condenser fan motor assembly with three-blade fan, wiring, and plug connector.
DA97-15765A refrigerator condenser fan motor with white blades and foam insulation for Samsung refrigerators.
DA97-15765A refrigerator condenser fan motor with housing for Samsung refrigerators.
Installation guide showing 4 steps to replace a Samsung refrigerator condenser fan motor DA97-15765A.
DA97-15765A refrigerator condenser fan motor assembly with housing, showing front and side views.
DA97-15765A refrigerator condenser fan motor with housing, showing front and side angles for Samsung refrigerators.
DA97-15765A refrigerator condenser fan motor for Samsung refrigerators shown in a promotional lifestyle graphic.
Lifetime Warranty

[Lifetime Warranty] DA97-15765A Refrigerator Condenser Fan Motor DC12V 1.7W 0.16A 1120RPM - Exactly Replaces DA97-12842A DA97-12842D DA97-15765C RMF002ASSA - Compatible with Samsung Refrigerator

Save 13%
0.00
$38.63
$44.42
$38.63
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DA97-15765A Refrigerator Condenser Fan Motor

Key Features

  • Complete condenser fan motor assembly
  • Includes fan blade, motor, and housing
  • Voltage: 12V DC
  • Current: 0.16A
  • Speed: 1120RPM
  • Connector Type: Molex plug
  • Blade Diameter: 6-3/8 inches

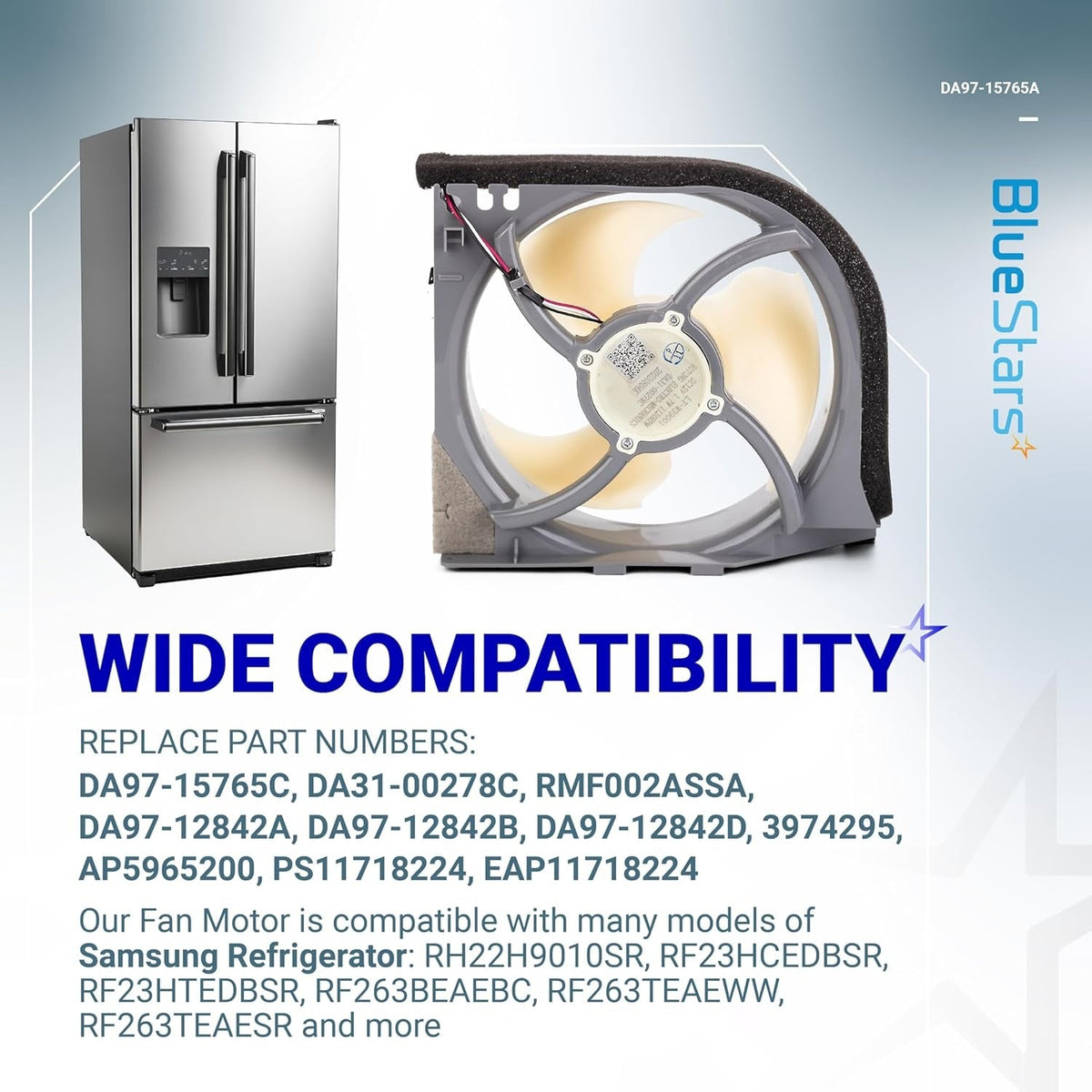

Replaces / Cross-Reference Part Numbers

  • DA97-15765C
  • DA97-15765B
  • DA97-12842A
  • DA97-12842B
  • DA97-12842D
  • DA31-00340A
  • AP6001015
  • PS11733650
  • EAP11733650
  • RMF002ASSA

Compatibility & Fitment

  • Designed for specific Samsung refrigerator models.
  • Example model fitment: RH22H9010SR.
  • Verify the part number from your original motor or appliance manual before ordering.

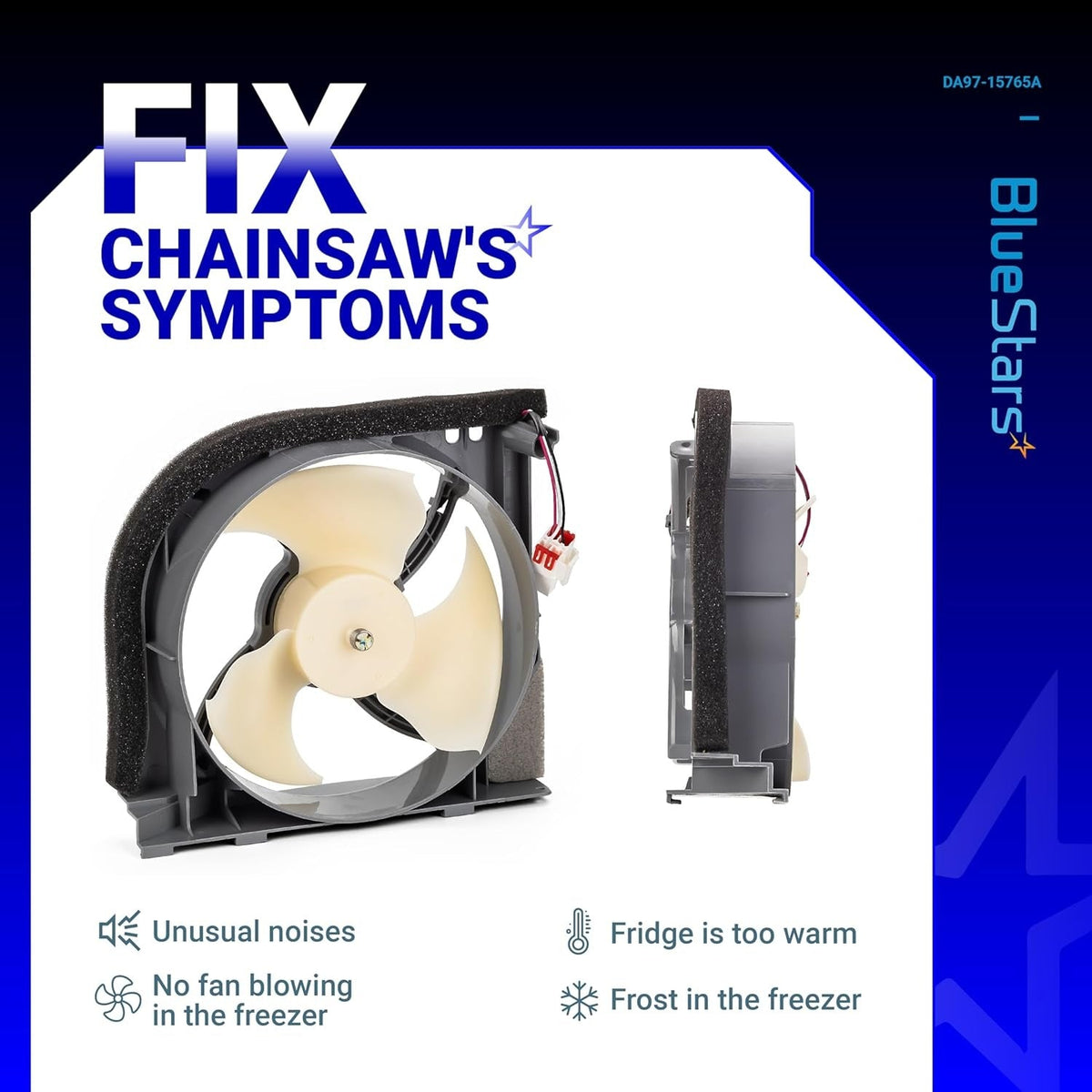

When to Replace

  • Refrigerator is not cooling properly or is too warm.
  • Loud or unusual noises (grinding, whirring) coming from the back of the unit.
  • Condenser fan blade is damaged or will not spin.
  • The refrigerator displays a related error code (e.g., 23 E, 23 C).

Installation Tips

  • Disconnect the refrigerator from its power source before beginning installation.
  • The condenser fan is typically located behind a rear access panel at the bottom of the unit.
  • Wear protective gloves to prevent injury.
  • Note the orientation and wiring of the original part before removal to simplify installation.
Brand Model Number
Replaces 3974295, AP5965200, AP6001015, DA31-00340A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765B, DA97-15765C, DA97-15765D, EAP11718224, EAP11733650, PS11718224, PS11733650, RMF002ASSA
Samsung RF22K9381SG, RF22K9381SR, RF22K9581SG, RF22K9581SR, RF22KREDBSG, RF22KREDBSR, RF22M9581SG, RF22M9581SR, RF22N9781SG, RF22N9781SR, RF22NPEDBSG, RF22NPEDBSR, RF22R7351DT, RF22R7351SG, RF22R7351SR, RF22R7551DT, RF22R7551SG, RF22R7551SR
Samsung RF23HCEDBBC, RF23HCEDBSG, RF23HCEDBSR, RF23HCEDBWW, RF23HCEDTSR, RF23HSESBSR, RF23HTEDBSR, RF23J9011SG, RF23J9011SR, RF23R6201DT, RF23R6201SG, RF23R6201SR, RF23R6201WW, RF23R6301SR
Samsung RF24FSEDBSR, RF24R7201DT, RF24R7201SG, RF24R7201SR, RF25HMEDBBC, RF25HMEDBSG, RF25HMEDBSR, RF25HMEDBWW, RF25HMIDBSG, RF25HMIDBSR
Samsung RF260BEAEBC, RF260BEAESG, RF260BEAESP, RF260BEAESR, RF260BEAEWW, RF261BEAEBC, RF261BEAESG, RF261BEAESP, RF261BEAESR, RF261BEAEWW, RF262BEAESR
Samsung RF263BEAEBC, RF263BEAESG, RF263BEAESP, RF263BEAESR, RF263BEAEWW, RF263TEAEBC, RF263TEAESG, RF263TEAESP, RF263TEAESR, RF263TEAEWW, RF265BEAESG, RF265BEAESR
Samsung RF26HFENDBC, RF26HFENDSR, RF26HFENDWW, RF26HFPNBSR, RF26J7500BC, RF26J7500SR, RF26J7500WW, RF26J7510SR
Samsung RF28HDEDBSG, RF28HDEDBSR, RF28HDEDPBC, RF28HDEDPWW, RF28HDEDTSR, RF28HFEDBBC, RF28HFEDBSG, RF28HFEDBSR, RF28HFEDBWW, RF28HFEDTBC, RF28HFEDTSR, RF28HFEDTWW, RF28HMEDBBC, RF28HMEDBSG, RF28HMEDBSR, RF28HMEDBWW
Samsung RF28JBEDBSG, RF28JBEDBSR, RF28K9070SR, RF28K9380SG, RF28K9380SR, RF28K9580SG, RF28K9580SR, RF28M9580SG, RF28M9580SR, RF28MFEDES8, RF28N9780SG, RF28N9780SR, RF28NDEDBSG, RF28NHEDBSG, RF28NHEDBSR
Samsung RF28R6201DT, RF28R6201SG, RF28R6201SR, RF28R6202WW, RF28R6221SR, RF28R6241SR, RF28R6301DT, RF28R6301SG, RF28R6301SR, RF28R7201DT, RF28R7201SG, RF28R7201SR
Samsung RF30KMEDBSG, RF30KMEDBSR, RF323TEDBBC, RF323TEDBSR, RF323TEDBWW
Samsung RH22H9010SR, RH25H5611BC, RH25H5611SR, RH25H5611WW
Samsung RS25H5111BC, RS25H5111SG, RS25H5111SR, RS25H5111WW, RS25H5121SR, RS25J500DSG, RS25J500DSR, RS25J500DWW

FAQ

This motor is a direct replacement for OEM part numbers DA97-15765A, DA97-15765C, DA97-12842A, DA97-12842B, DA97-12842D, DA31-00340A, DA31-00278C, and RMF002ASSA.
If your refrigerator is not cooling properly, the compressor is running hot, or you hear loud clicking, grinding, or squealing noises coming from the back of the unit, the condenser fan motor may be failing. Additionally, if the fan blades are obstructed or the motor does not spin when the compressor is running, it likely needs to be replaced.
Before installing a new motor, ensure the refrigerator is unplugged. Check the fan blade for any debris, ice buildup, or obstructions that might be preventing it from spinning freely. If the blade is clear but the motor still fails to operate when the refrigerator is powered, the motor itself is likely the issue.
Replacing the condenser fan motor is a moderate repair that typically takes 30 to 60 minutes. You will generally need a screwdriver (usually Phillips head) and a nut driver to remove the rear access panel and the mounting screws for the fan assembly. Always remember to disconnect the power supply before beginning any work.
These motors often fail due to dust and lint accumulation on the condenser coils, which forces the motor to work harder and run longer than intended. Over time, this leads to bearing wear or electrical failure. Regular cleaning of the condenser coils can help extend the life of your new motor.
