CBB61 4uf+4uf+2.5uf 5-Wire 250V/300V AC Ceiling Fan Capacitor
0.00
Regular price
$16.55
Regular price
Save 13%
$19.03
Sale price
$16.55
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
CBB61 4uF+4uF+2.5uF 5-Wire 250V/300V AC Ceiling Fan Capacitor
Key Features

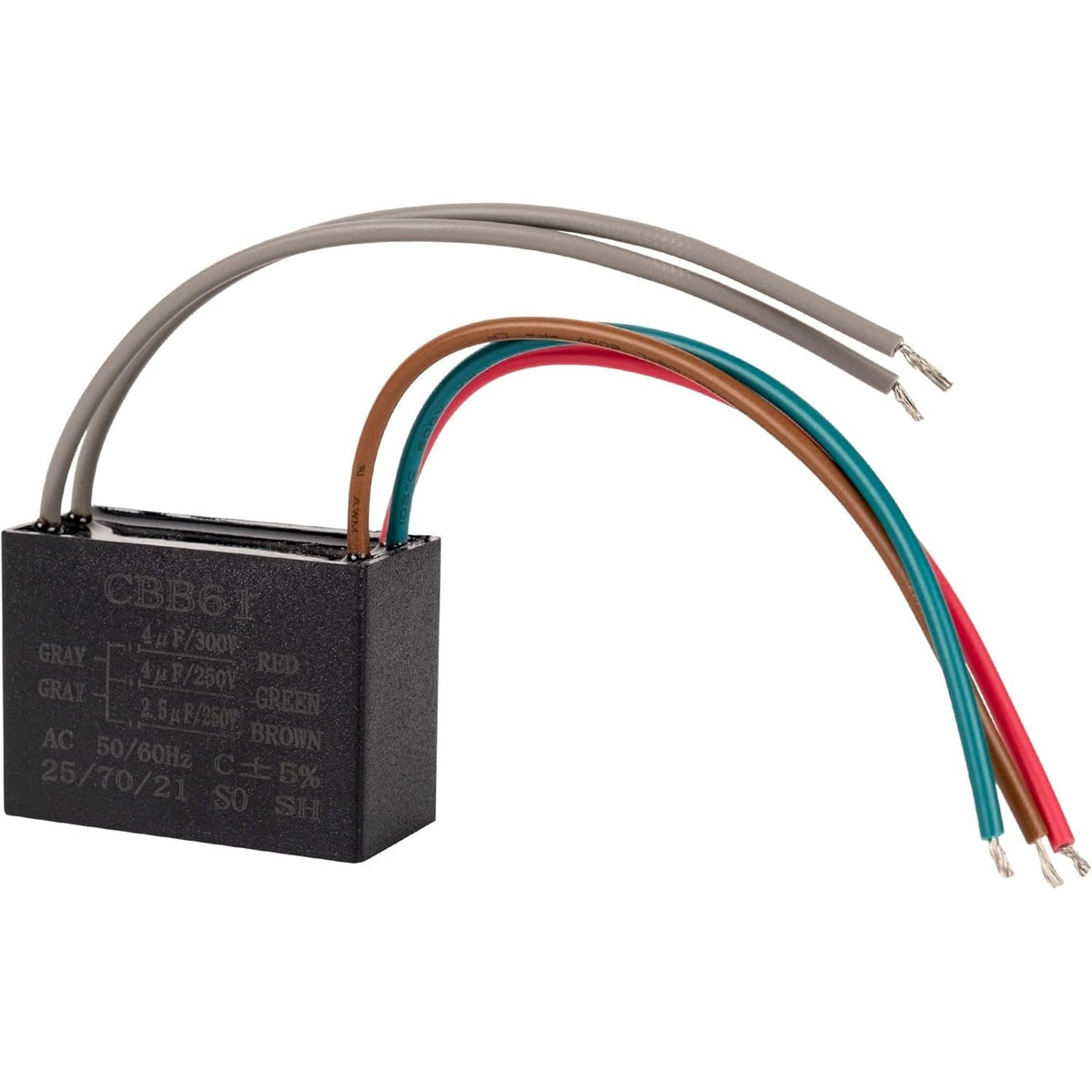

- Model: CBB61

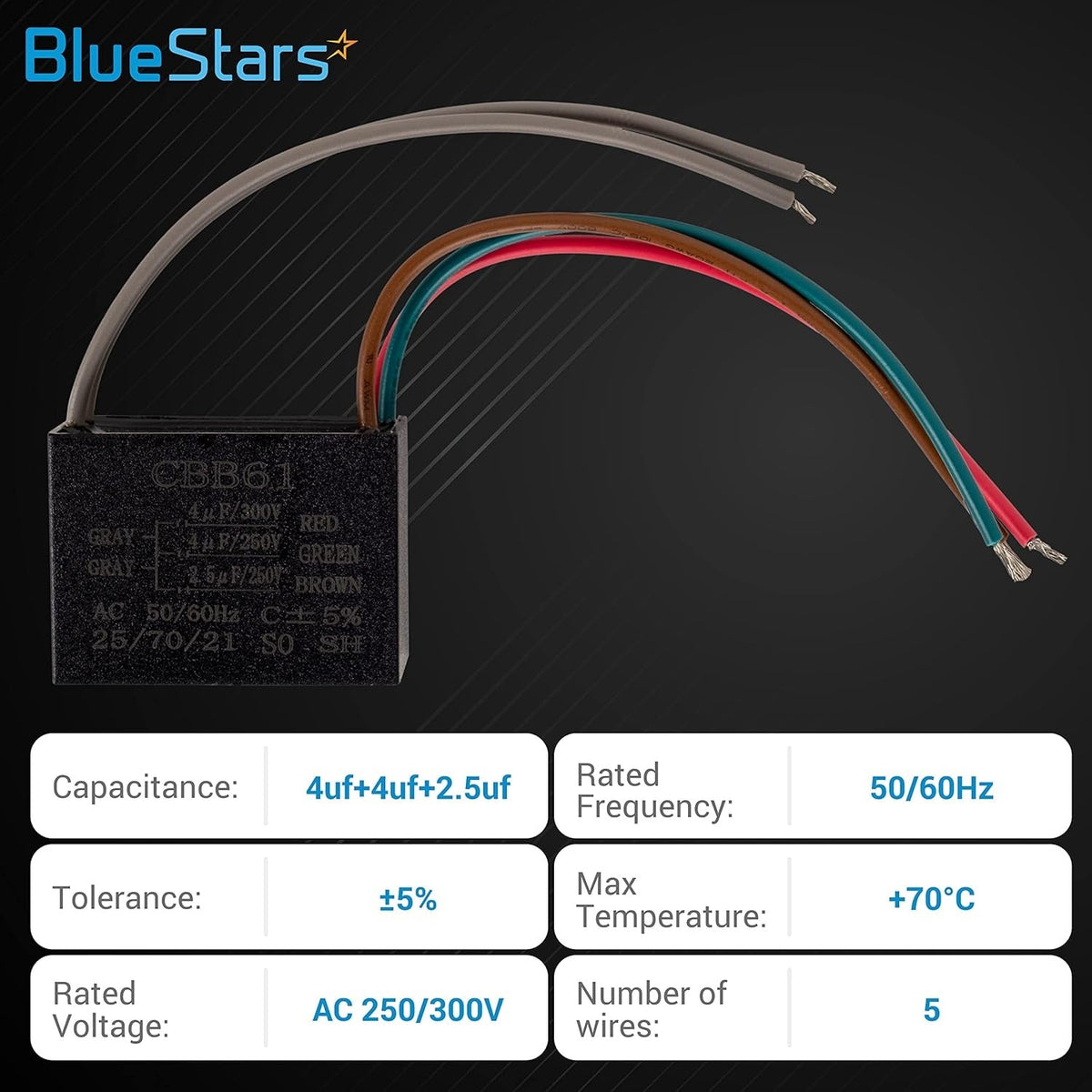

- Capacitance: 4uF + 4uF + 2.5uF
- Tolerance: ±5%
- Rated Voltage: 250V / 300V AC
- Rated Frequency: 50/60Hz
- Wiring Configuration: 5-wire
- Operating Temperature Range: -40°C to 70°C
- Dielectric Material: Metallized polypropylene film
- Body Dimensions: 50mm x 29mm x 23mm
Replaces / Cross-Reference Part Numbers
- Replaces any CBB61 capacitor with matching 4uF+4uF+2.5uF capacitance and a 250V or 300V AC voltage rating. Direct replacement is based on matching electrical specifications, not a specific part number.
Compatibility & Fitment
- Designed for starting and running single-phase motors in 50Hz/60Hz AC power systems.
- Commonly used in 3-speed ceiling fans from various manufacturers.
- Also suitable for other applications requiring these specifications, such as small motors, air movers, water pumps, and ventilators.
- Verify the microfarad (uF) values, voltage, and number of wires on your original capacitor before ordering.
When to Replace
- Ceiling fan blades turn slowly or not at all.
- Fan motor hums but does not start.
- Fan speeds do not change or work correctly.
- The original capacitor shows physical signs of failure, such as bulging, cracking, or leaking oil.
Installation Tips
- Disconnect electrical power at the source (circuit breaker or fuse box) before beginning installation.
- Photograph or draw a diagram of the original wiring configuration for reference.
- Discharge the old capacitor by carefully touching its wire leads together with an insulated screwdriver.
- Connect the new capacitor by matching the wire colors and functions to your original diagram.
- Ensure all electrical connections are secure before restoring power.
-
SUPERIOR QUALITY

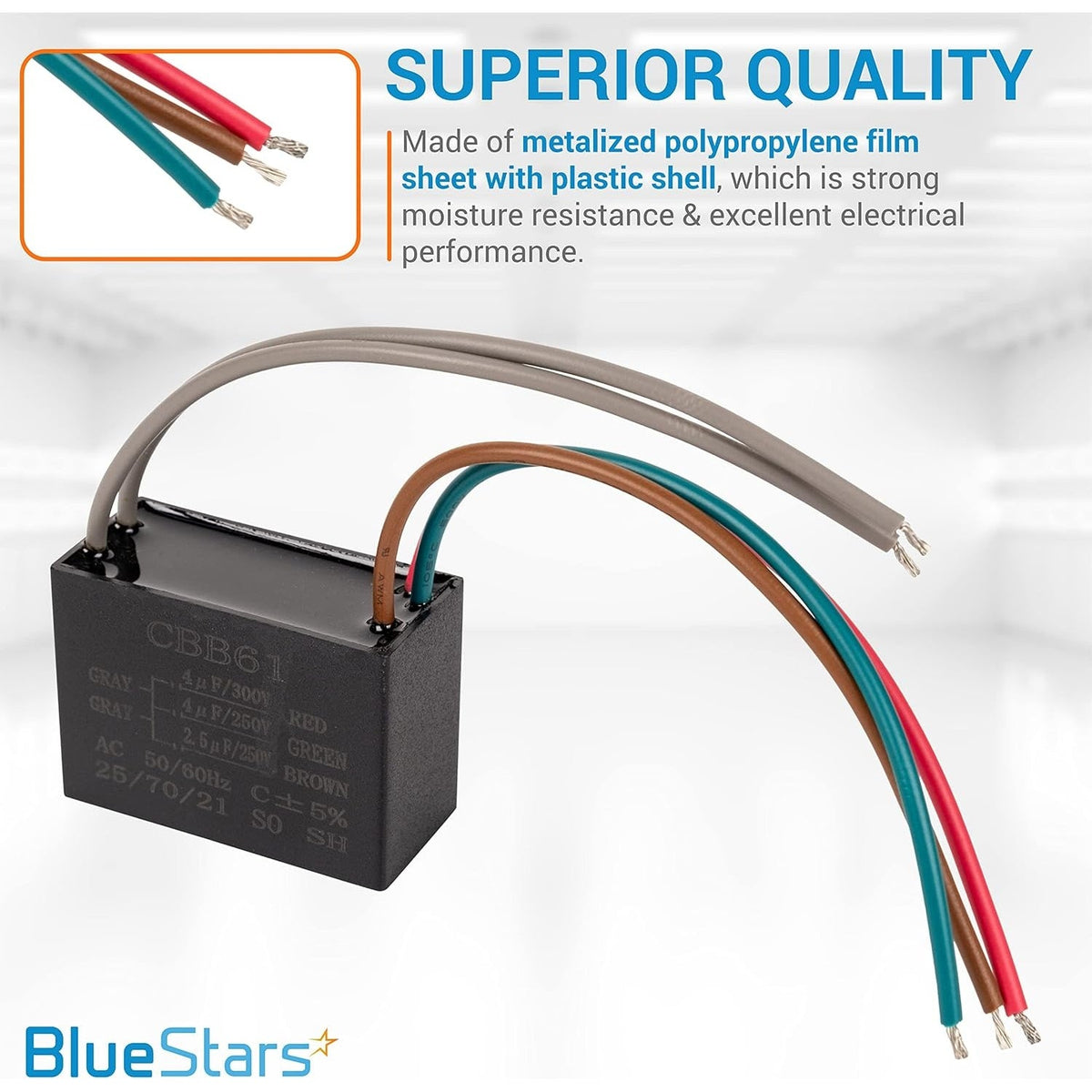

Made of metalized polypropylene film sheet with plastic shell , which has strong moisture resistance & excellent electrical performance -
BEST SOLUTION
Enjoy the great feeling when your Ceiling Fan works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
STRONG & DURABLE
Made of metalized polypropylene film sheet with plastic shell, which is durable, has strong moisture resistance & excellent electrical performance -
SIMPLE INSTALLATION
Just 15 minutes of replacing the old capacitor to make the ceiling fan run like new!
MAKE IT COOL AGAIN
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Material
Metalized Polypropylene Film / Plastic Shell
Capacitance
4uF + 4uF + 2.5uF (±5%)
Rated Voltage
250V / 300V AC
Frequency
50/60Hz
Wires
5
Max Operating Temp
+70°C
Body Dimensions (L x W x H)
50 x 20 x 30mm (~1.97 x 0.79 x 1.18 inches)
