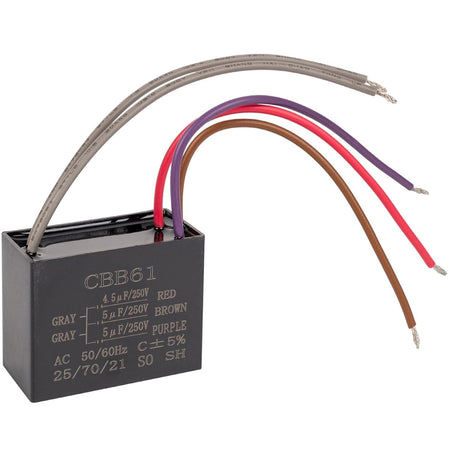

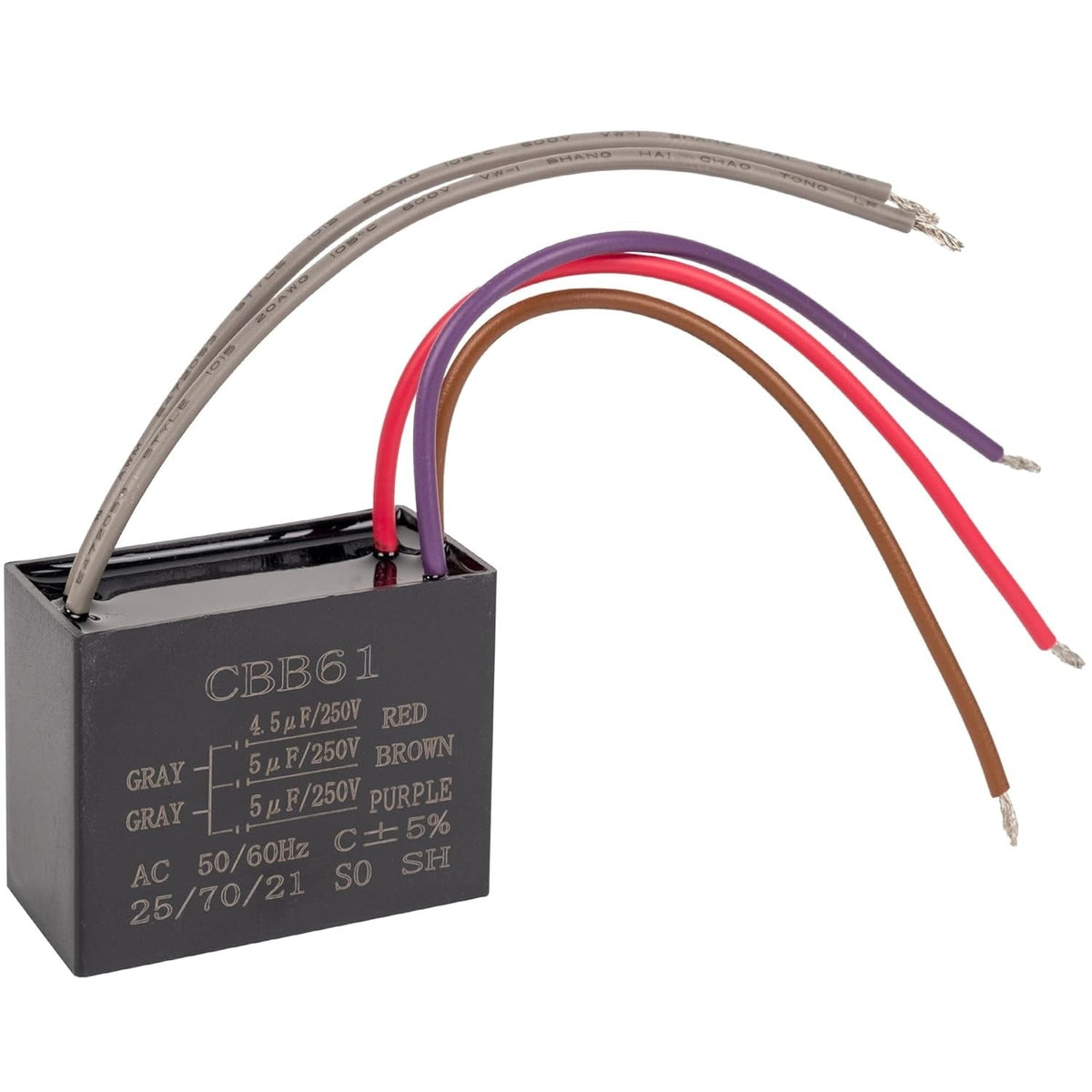

CBB61 4.5uf+5uf+5uf 5-Wire 250V AC Ceiling Fan Capacitor

CBB61 4.5uf+5uf+5uf 5-Wire 250V AC Ceiling Fan Capacitor

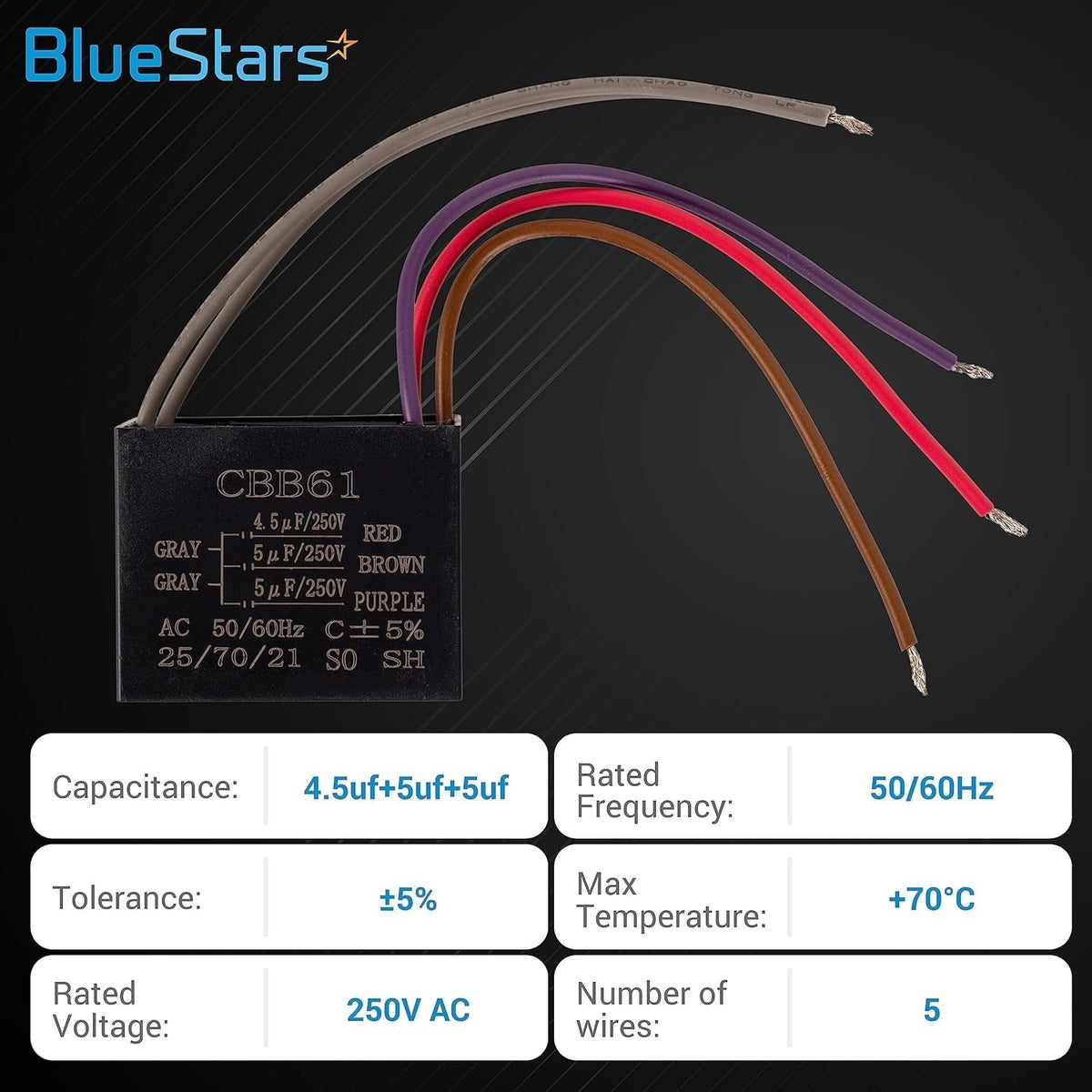

Key Features

• Model: CBB61
• Capacitance: 4.5uF, 5uF, 5uF
• Configuration: 5-wire, 3-capacitor unit
• Voltage Rating: 250V AC
• Frequency: 50/60Hz
• Capacitance Tolerance: ±5%
• Maximum Operating Temperature: 70°C

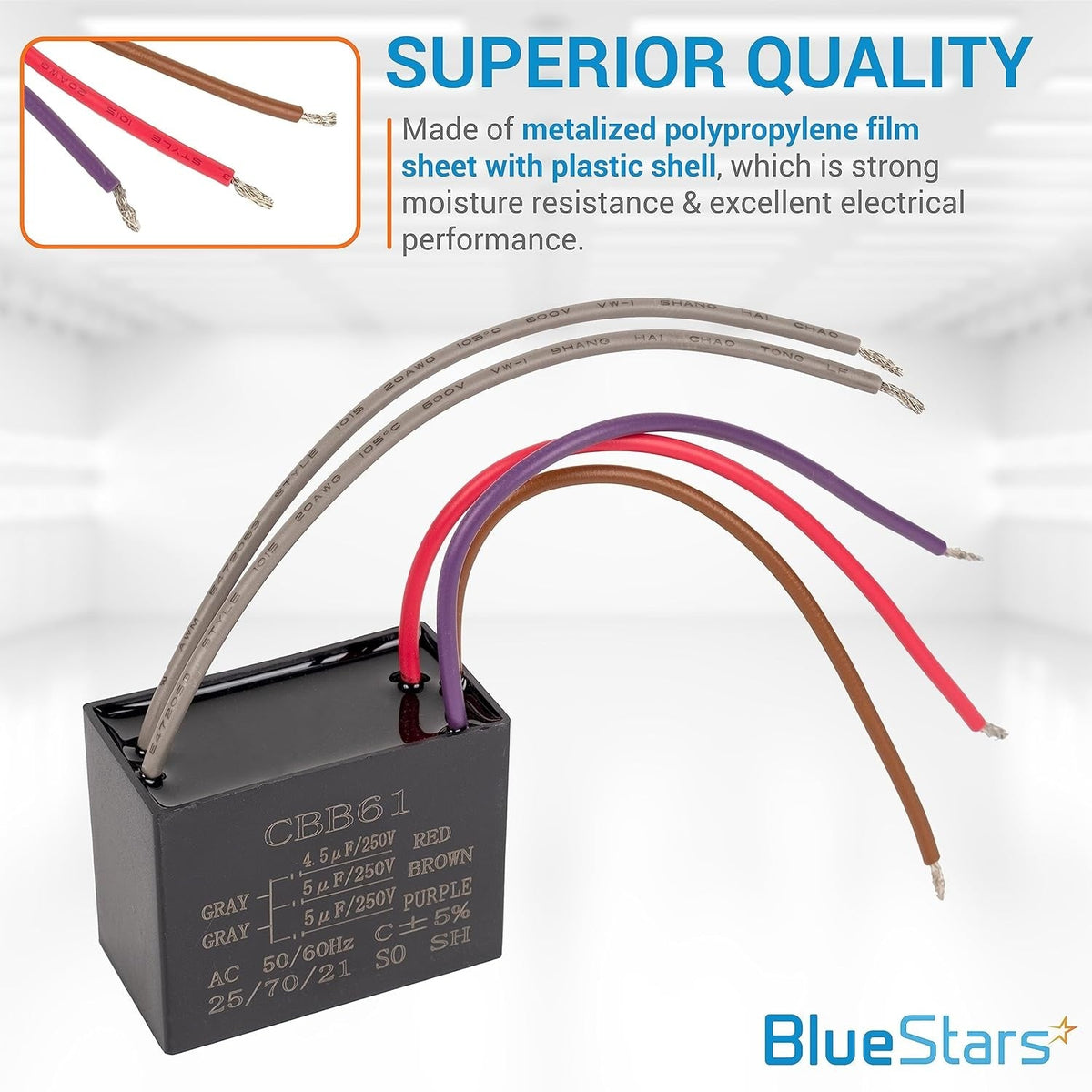

• Construction: Metallized polypropylene film capacitor in a plastic housing

Replaces / Cross-Reference Part Numbers

• Direct replacement for CBB61 capacitors with matching 4.5uF/5uF/5uF specifications.
• Can substitute for 5-wire capacitors with similar capacitance ratings; verify your fan's requirements.

Compatibility & Fitment

• Designed for single-phase motors in ceiling fans and other small motor applications.
• Fits many ceiling fans, including models from brands like Harbor Breeze, that use a 5-wire CBB61 capacitor.
• Ensure the physical dimensions and electrical specifications match your original part before ordering.

When to Replace

• Ceiling fan blades do not spin, but the motor hums.
• Fan speeds are slow or do not change correctly.
• The fan requires a manual push to start rotating.
• The original capacitor shows physical damage, such as bulging, cracking, or leaking fluid.

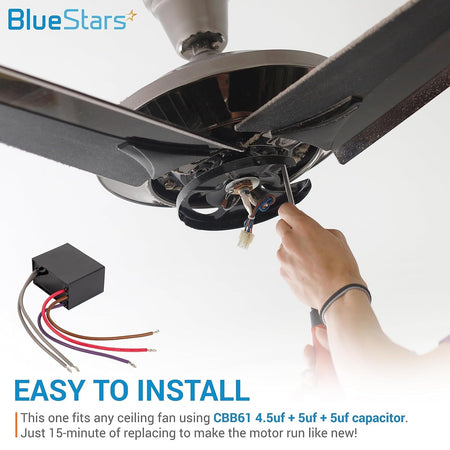

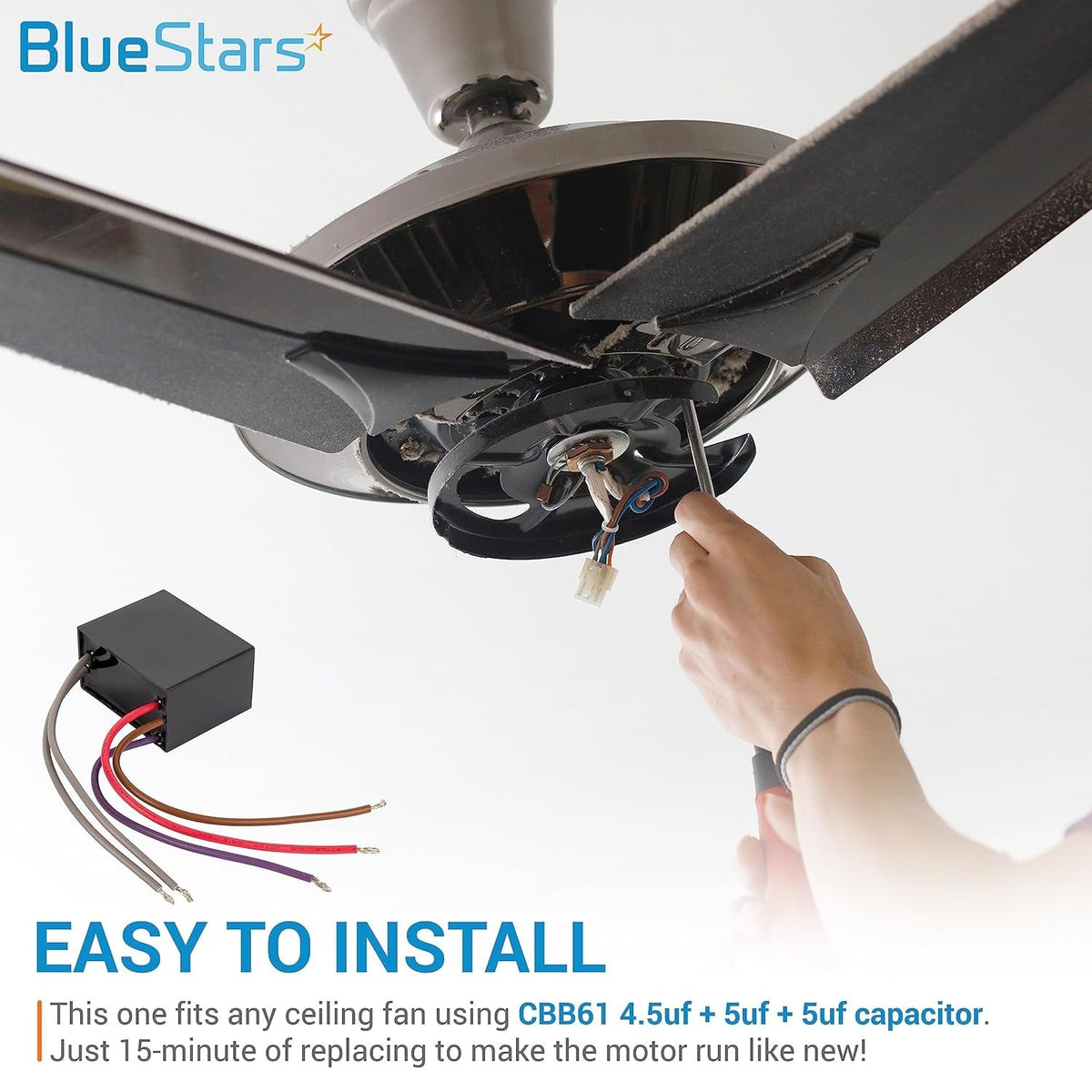

Installation Tips

• Disconnect all power to the ceiling fan at the circuit breaker or fuse box before beginning work.
• Photograph or diagram the original wiring configuration before disconnecting the old capacitor.
• Match the wires of the new capacitor to the corresponding connections of the old unit.
• Ensure all wire connections are secure before restoring power.
• It is recommended to consult a qualified electrician if you are unsure about the installation process.
