CBB61 4.5μF/4.5uF 450V 2-Wire Ceiling Fan Capacitor - 2 Pack
0.00
Regular price
$14.29
Regular price
Save 16%
$17.00
Sale price
$14.29
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

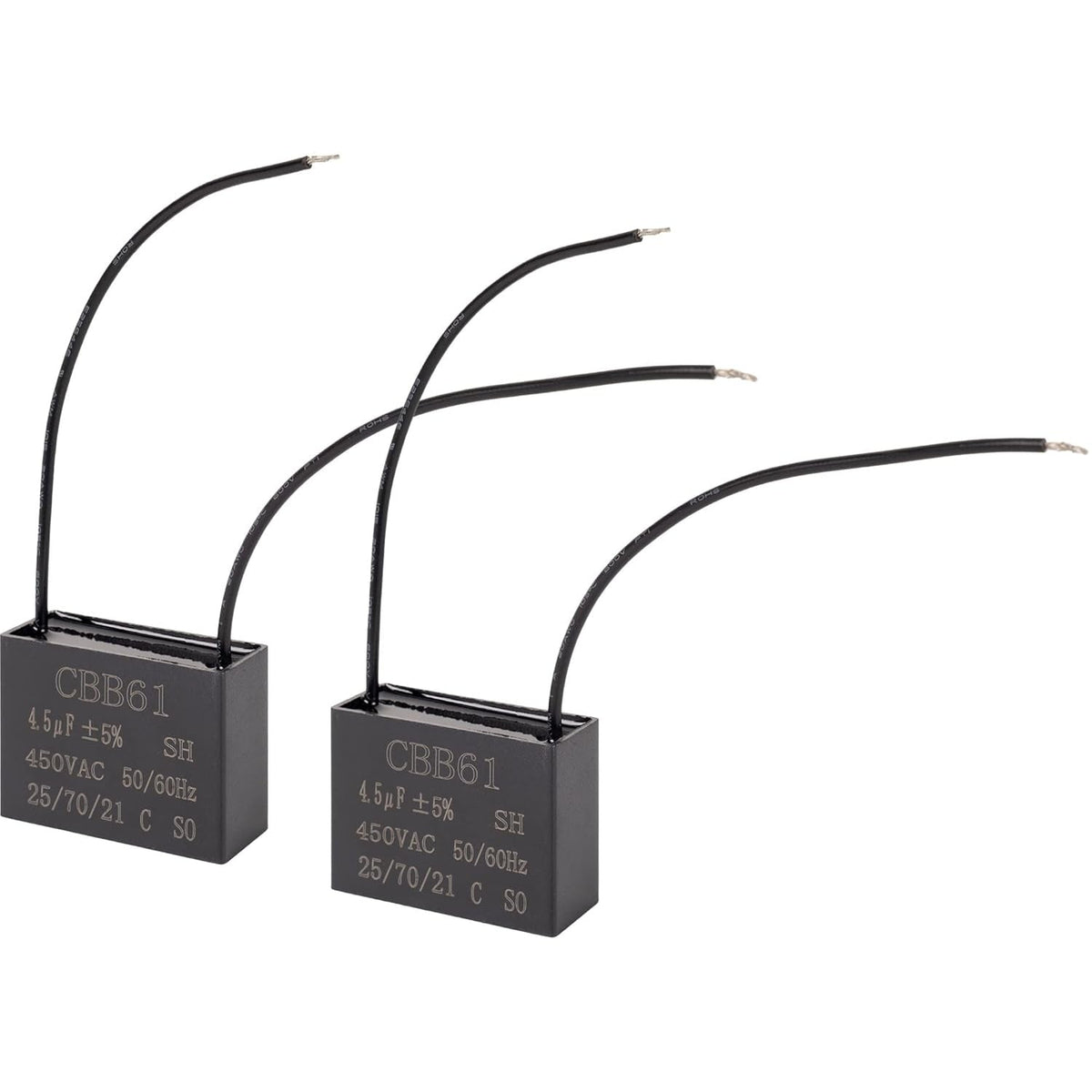

CBB61 4.5μF/4.5uF 450V 2-Wire Ceiling Fan Capacitor

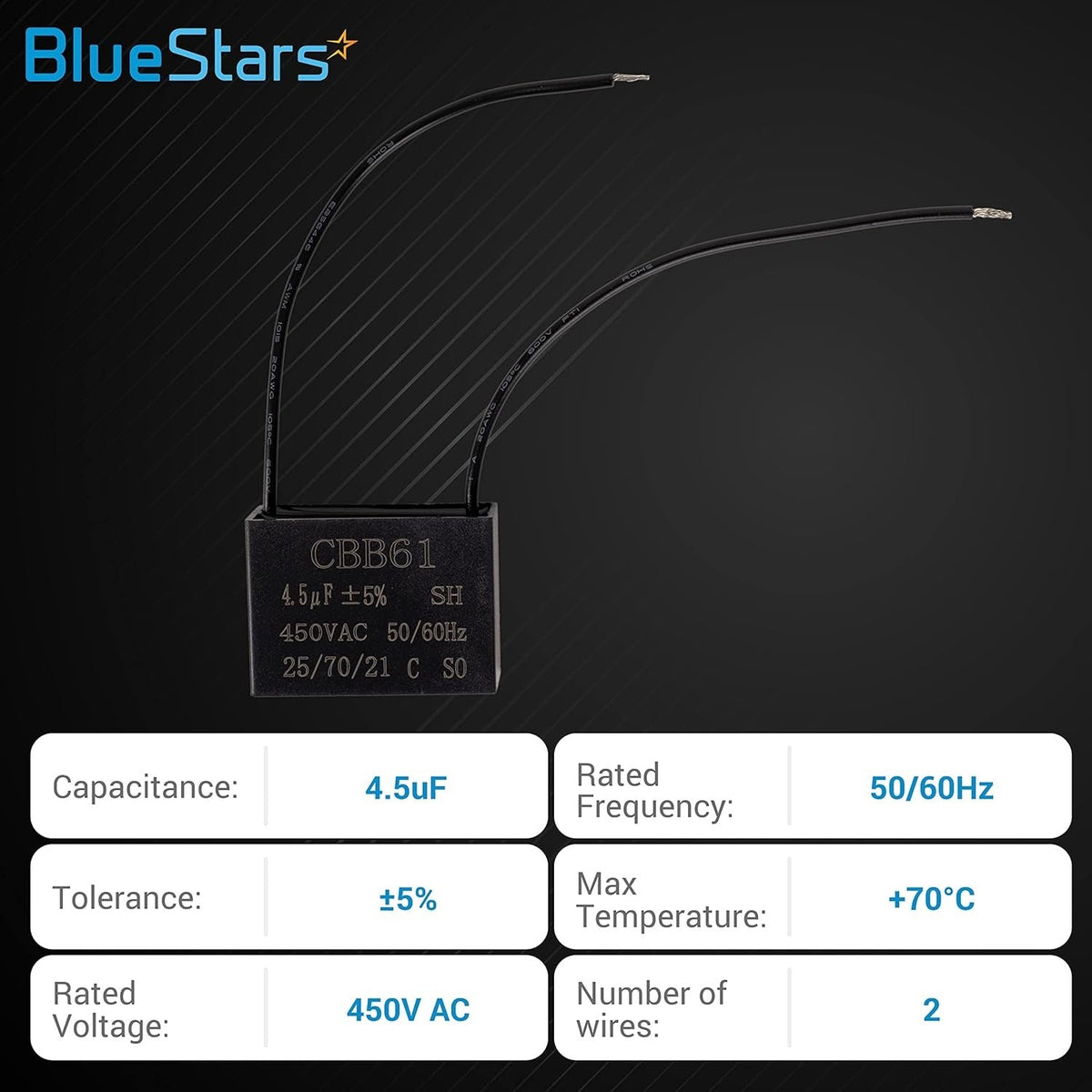

Key Features
- Model: CBB61
- Capacitance: 4.5µF
- Voltage Rating: 450V AC
- Frequency: 50/60Hz
- Connection: 2-wire
- Body Dimensions: 47mm x 29mm x 18mm
- Fixing Hole Diameter: 4.5mm
- Cable Length: 24cm
Replaces / Cross-Reference Part Numbers
- Direct replacement for any CBB61 capacitor with a 4.5µF capacitance rating.
- Can replace capacitors with a voltage rating of 450V or lower.
Compatibility & Fitment
- Designed for starting and operating single-phase motors.
- Commonly used in ceiling fans, wall fans, and stand fans.
- Suitable for other small motor applications requiring a 4.5µF capacitor.
- Verify physical dimensions to ensure proper fit within the motor housing.
When to Replace
- Fan blades rotate at a slower than normal speed.
- Fan motor hums but does not start.
- Fan requires a manual push to start rotating.
- Fan speeds are not changing or are limited to one speed.
Installation Tips
- Disconnect all power to the fan before beginning installation.
- Take a photograph of the original wiring configuration for reference.
- The capacitance value (µF) must match the original capacitor exactly.
- The voltage rating of the new capacitor can be the same or higher than the original, but not lower.
- The two wires are non-polarized and can be connected in any order.
-

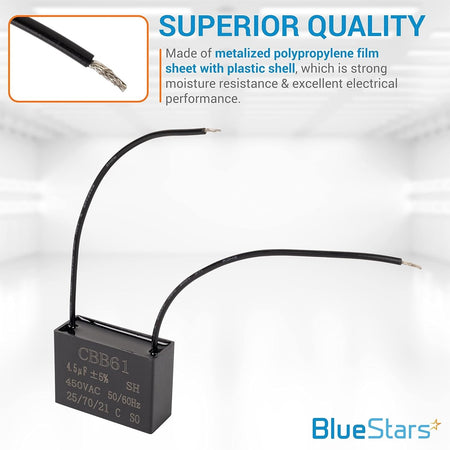

SUPERIOR QUALITY
Made of metalized polypropylene film sheet with plastic shell , which has strong moisture resistance & excellent electrical performance -
BEST SOLUTION
Enjoy the great feeling when your Ceiling Fan works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
STRONG & DURABLE
Made of metalized polypropylene film sheet with plastic shell, which is durable, has strong moisture resistance and excellent electrical performance -
SIMPLE INSTALLATION
Just 15 minutes of replacing the old capacitor to make the ceiling fan run like new!
MAKE IT COOL AGAIN
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Manufacturer
BlueStars
Part Number
CBB61 4.5uF 350V 2 Wires
Item Weight
2.68 ounces
Package Dimensions
4.76 x 3.31 x 0.94 inches
Material
Polypropylene
Shape
Rectangular
Mounting Type
Panel Mount
