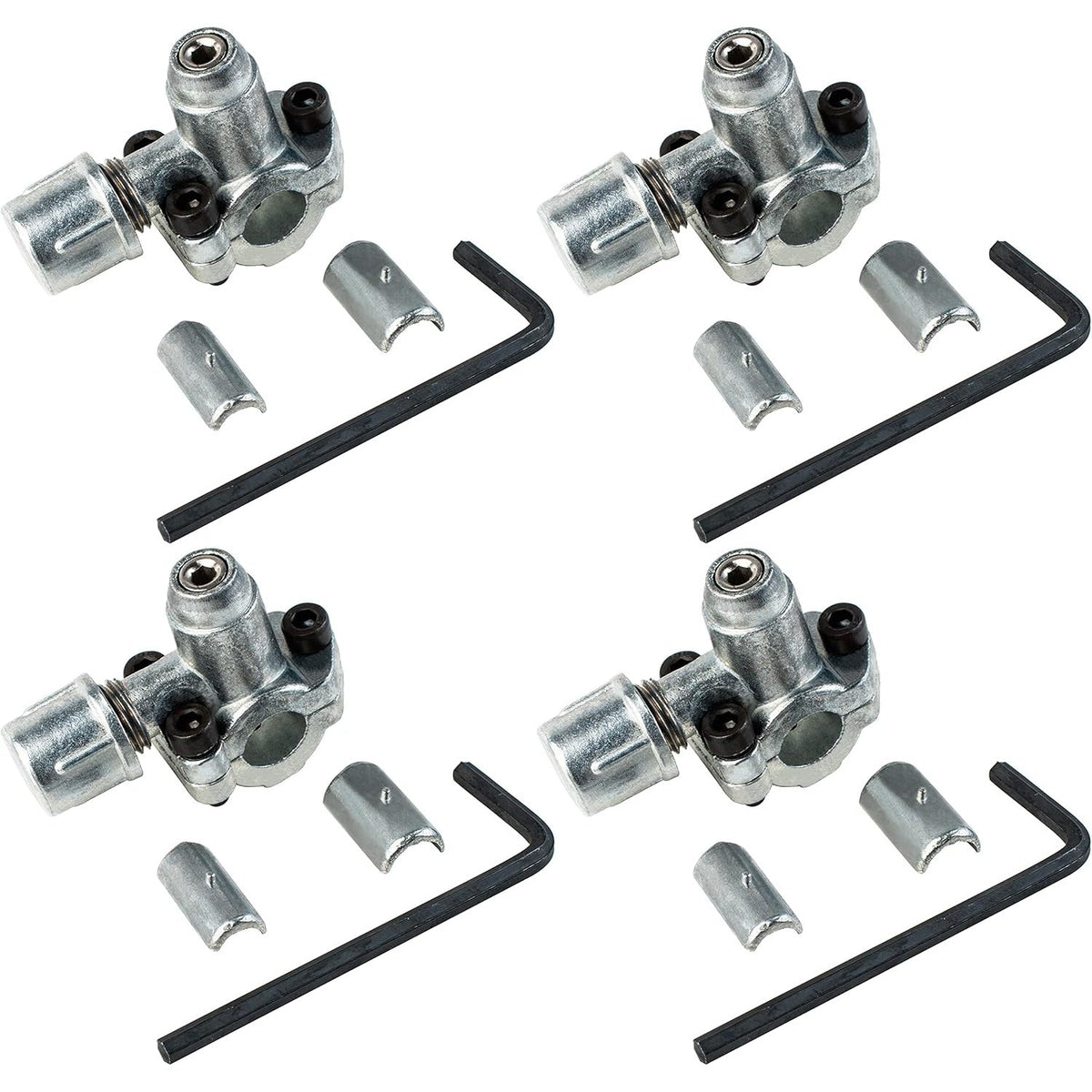

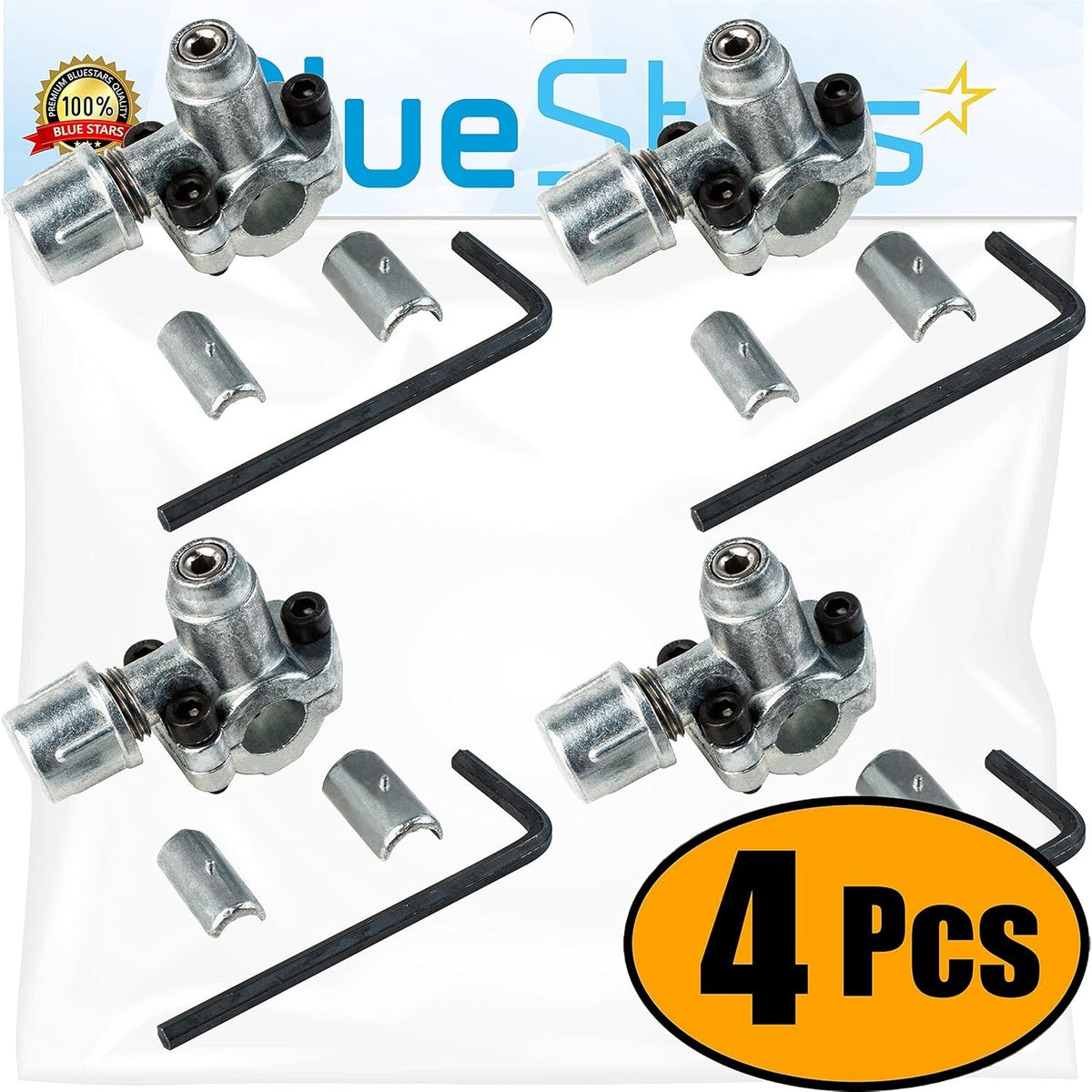

BPV-31 Bullet Piercing Valve 3 in 1 Access for Air Conditioners (1/4 5/16 3/8 Inch OD Pipes) - 4 Pack
0.00
Regular price
$19.49
Regular price
Save 16%
$23.19
Sale price
$19.49
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
BPV-31 Bullet Piercing Valve 3 in 1 Access
Key Features
- Maximum operating pressure: 500 PSI
- Pressure tested at 250°F
- Single-piece gasket design provides a large sealing area

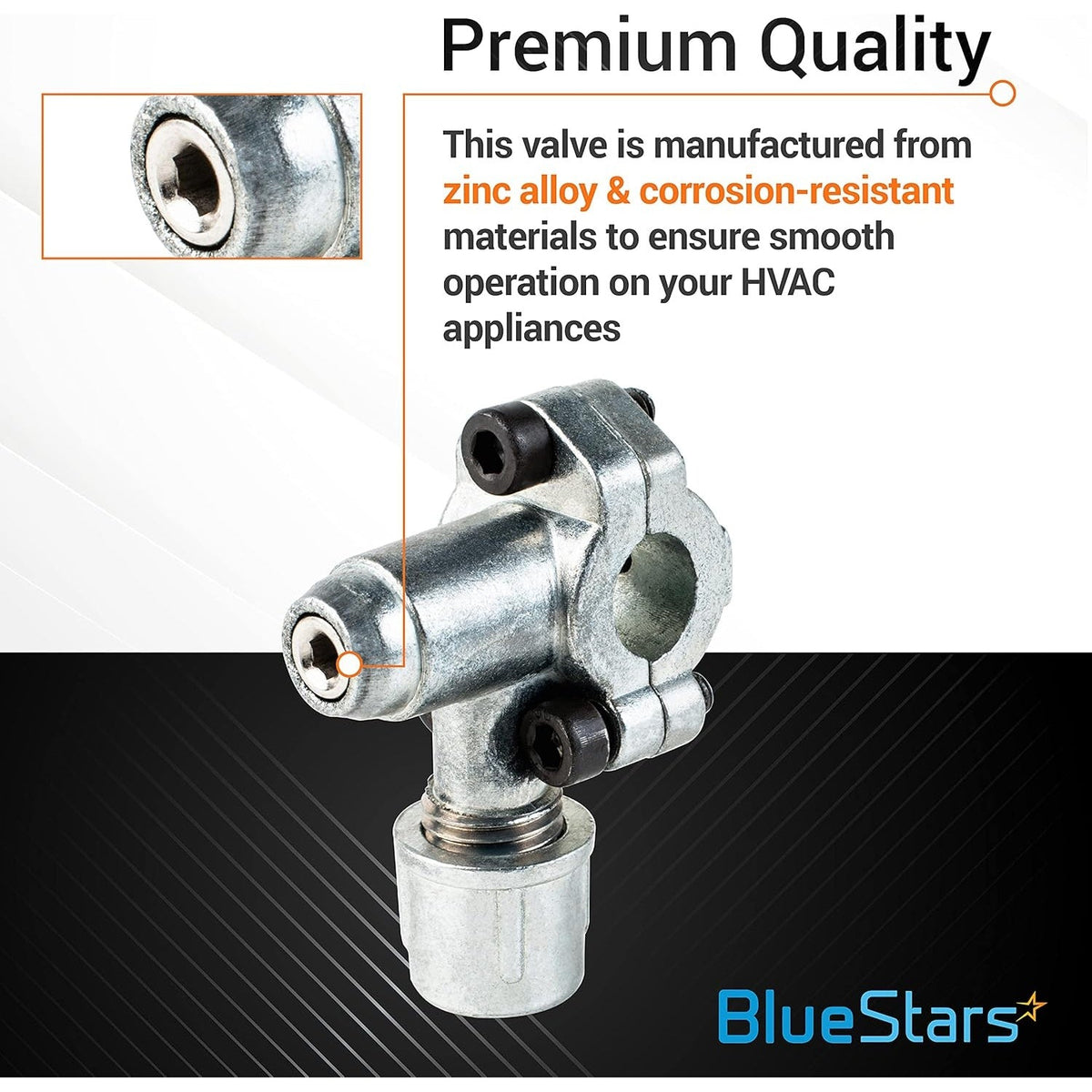

- Corrosion-resistant zinc construction
- Non-positional mounting requires no adapter valves
- Requires 2 inches of clearance for installation
- Includes hex key wrench
Replaces / Cross-Reference Part Numbers
- SUPCO: BPV-31, BPV31, TJ90BPV31
- AP4502525, BPV31D, MPV31, PCPV31
Compatibility & Fitment

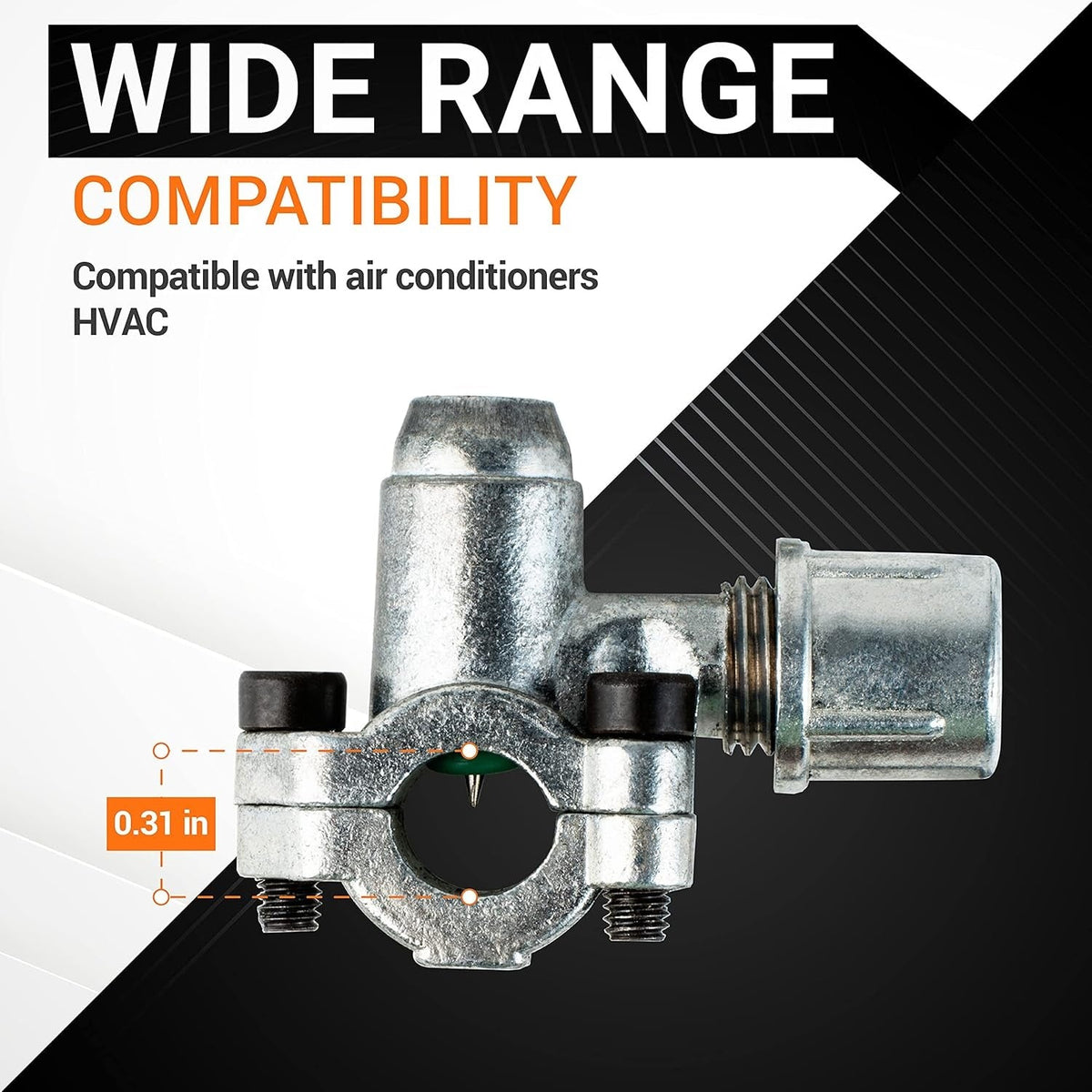

- Universal design fits three tubing sizes
- For 1/4 in, 5/16 in, and 3/8 in outside diameter (OD) tubing
- Suitable for use on the low-pressure side of R-410A systems and other common refrigerants
When to Replace
- Add a service port for system diagnostics, evacuation, or charging
- Install a gauge port on a sealed refrigeration line
- Repair a system where original service ports are damaged or inaccessible
Installation Tips
- Clean the tubing surface of all dirt, paint, and corrosion before clamping
- Ensure installation occurs on a straight, round, and undamaged section of tubing
- Use the correct sleeve insert for the specific tubing diameter
- Tighten clamp screws evenly until the piercing needle is seated
- Do not attempt to reuse or reposition the valve after the line has been pierced
