AP5315579 Gas Range Oven Igniter for Viking Range Ovens - 2 Igniters, 4 Ceramic Nuts
0.00
Regular price
$49.65
Regular price
Save 13%
$57.10
Sale price
$49.65
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
AP5315579 Gas Range Oven Igniter Replacement
Key Features

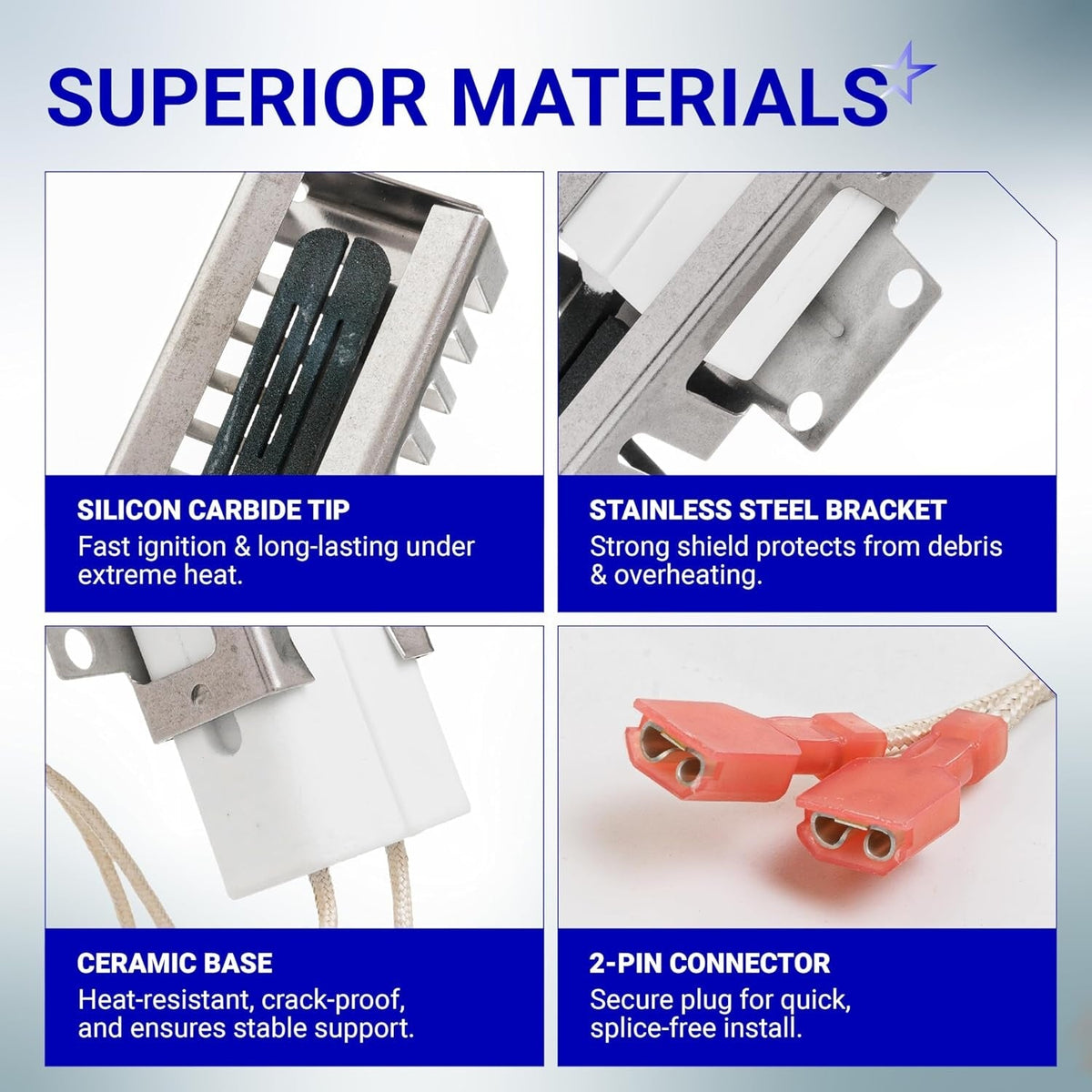

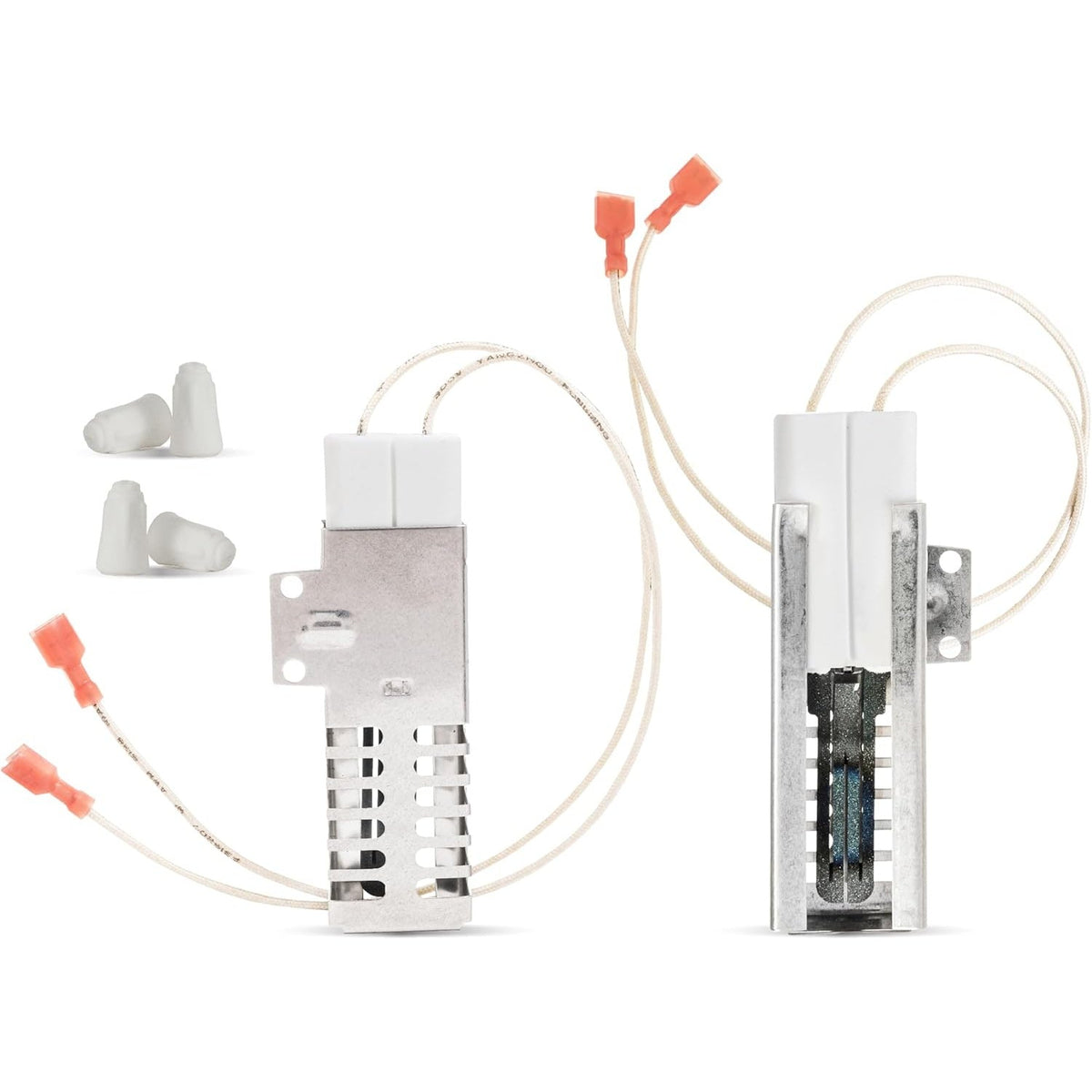

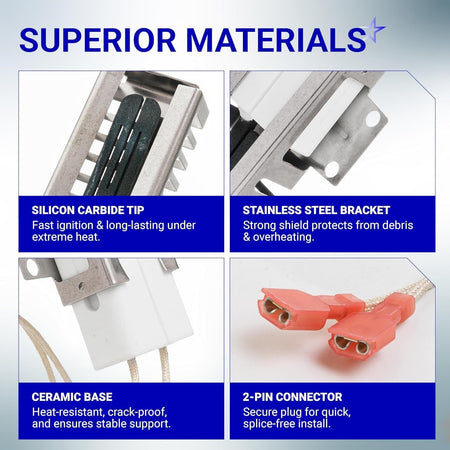

- Includes two high-output silicon carbide igniters designed for rapid and reliable gas ignition.
- Comes with four ceramic wire nuts to ensure secure, heat-resistant electrical connections.
- Engineered to provide the specific amperage required to actuate professional-grade gas valves.
- High-temperature ceramic base ensures stability and alignment within the burner assembly.
- Universal-style lead wires allow for flexible installation in various burner configurations.
Replaces / Cross-Reference Part Numbers
- AP5315579
- 065650-000
- PB040001
- 792263
- SGR4001
- PB04001
- AR04001
- 65650000
- GR40001
- EAP3424649
Compatibility & Fitment

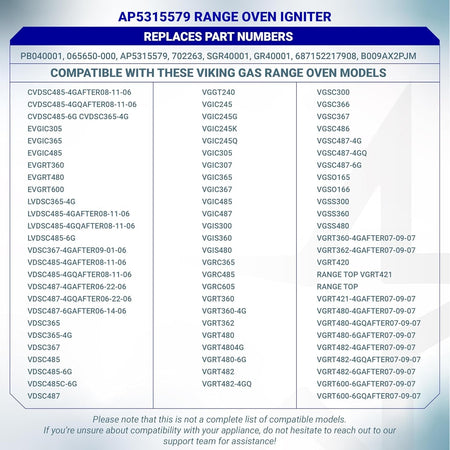

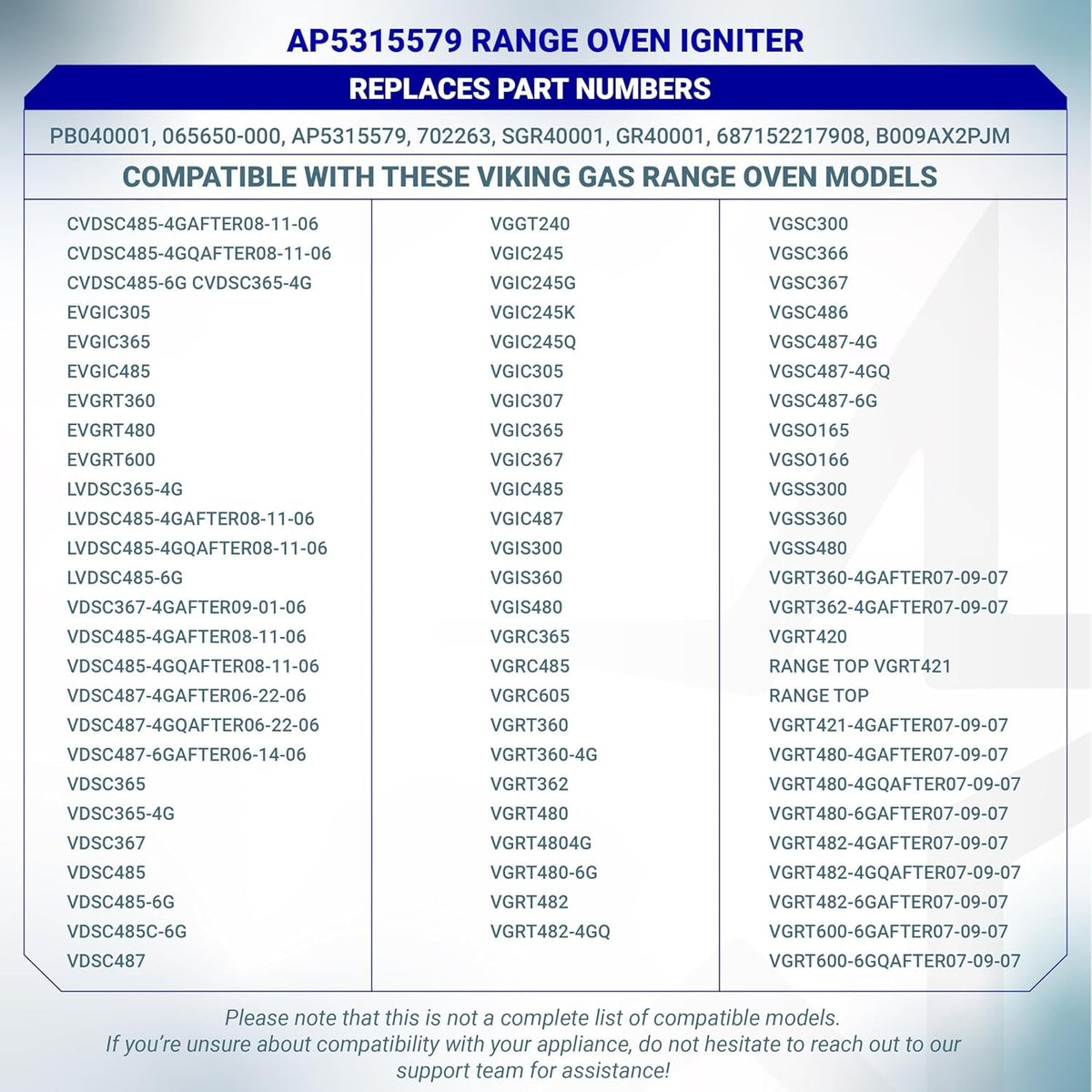

- Compatible with Viking professional-grade gas ranges and built-in ovens.
- Suitable for use in both bake and broil burner systems.
- Fits various 30-inch, 36-inch, 48-inch, and 60-inch range models.
- Designed for high-BTU burner applications requiring consistent ignition performance.
When to Replace
- Oven fails to heat or the main burner does not ignite after several minutes.
- Igniter glows but does not reach the required temperature to open the gas safety valve.
- Visible cracks, localized pitting, or physical breakage on the silicon carbide heating element.
- Gas odor is present without ignition during the start-up cycle.
- Multimeter testing indicates an open circuit (no continuity) through the igniter leads.
Installation Tips
- Disconnect the power supply and shut off the gas valve before performing any service.
- Handle the new igniters by the ceramic base only; avoid touching the black heating element to prevent premature failure from skin oils.
- If the original connector does not match, use the included ceramic wire nuts to splice the new igniter leads to the existing oven wiring.
- Ensure all wire connections are tucked away from direct contact with the burner flame or sharp metal edges.
- Verify the igniter is positioned so that the heating element is directly in the path of the gas flow from the burner ports.
-
1. TURN OFF POWER & GAS
Open the range's lower panel or broiler drawer. Locate the old igniter, disconnect the wires, and unscrew it from its mounting bracket. -
2. REMOVE OLD IGNITER
For your safety, unplug the range and completely shut off the gas valve before starting installation. -
3. INSTALL NEW IGNITER
Secure the new igniter in place using screws. Connect wires with ceramic wire nuts or high-temp connectors to ensure safety and proper function. -
4. RESTORE & TEST
Plug the oven back in and reopen the gas line. Turn on the oven to test – the igniter should glow and ignite the burner within a few seconds.
CERAMIC NUT CONNECTORS
1. Cut off the old connector | 2. Strip the insulation from the end of the wire | 3. Link the original plug | 4. Tighten the ceramic wire cap
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
