NEW BlueStars AGM30045804 Dryer Thermistor & Thermostat Kit For LG Kenmore
0.00
Regular price
$14.04
Regular price
Save 10%
$15.59
Sale price
$14.04
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
NEW BlueStars AGM30045804 Dryer Thermistor & Thermostat Kit For LG Kenmore
Key Features

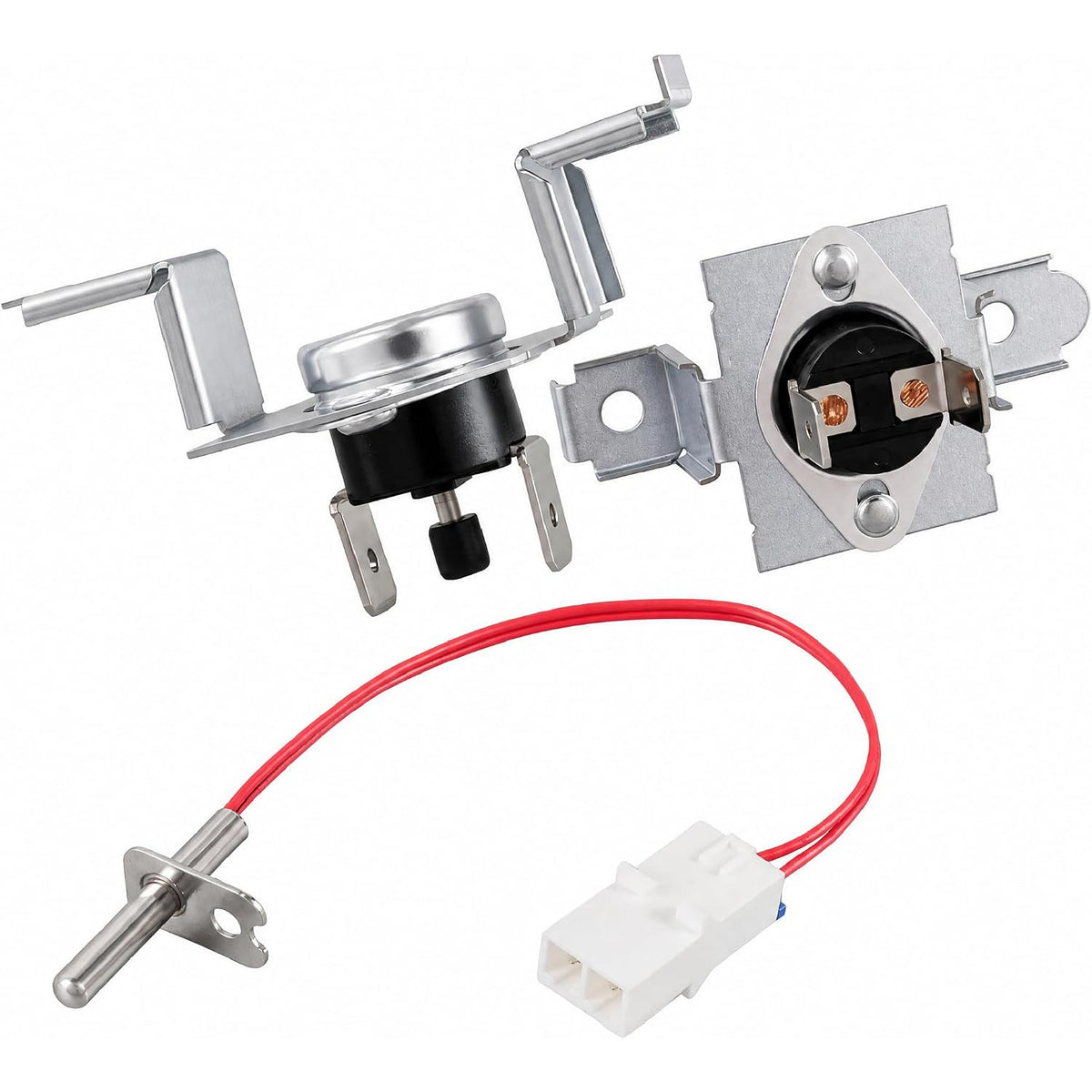

- Package quantity: 1 kit.
- Includes one 6323EL2001B thermistor assembly with wiring harness.
- Includes one 6931EL3003C high-limit thermostat.
- Includes one 6931EL3004B thermostat.

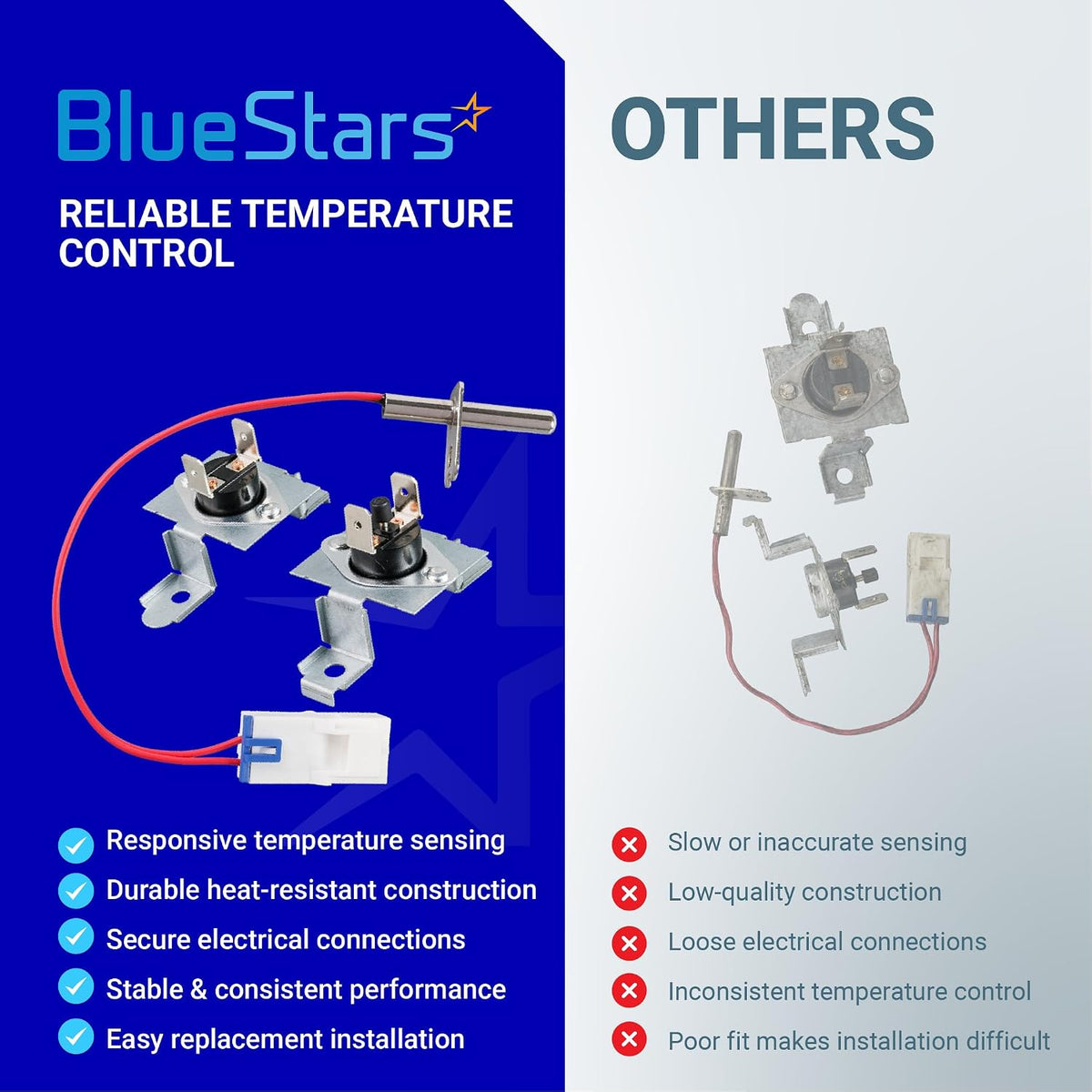

- The thermistor senses dryer temperature while the thermostats help regulate heat and limit excessive temperature buildup.

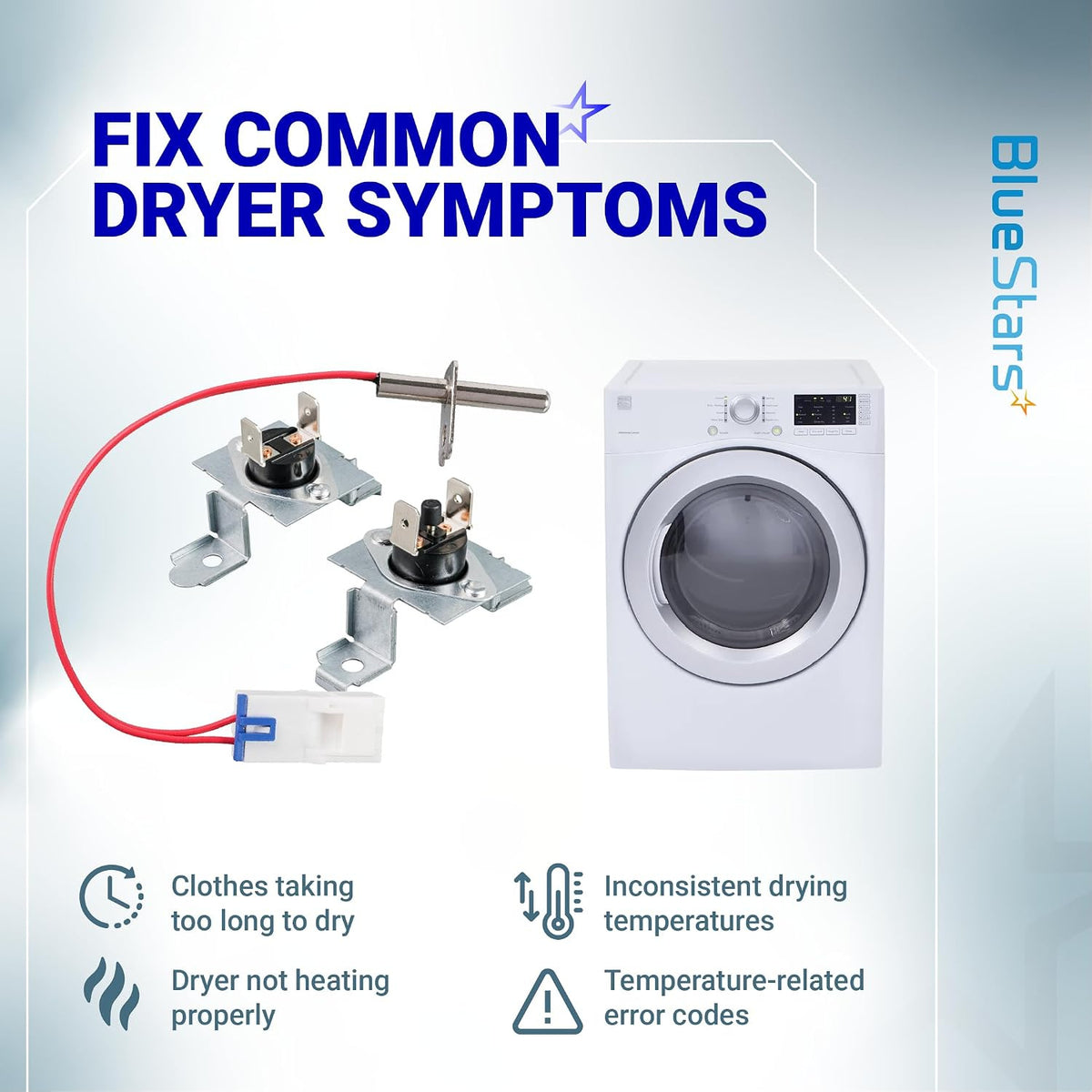

- Designed to help address overheating, insufficient heat, inconsistent heating, unusually long drying times, short drying cycles, and premature shutdown.

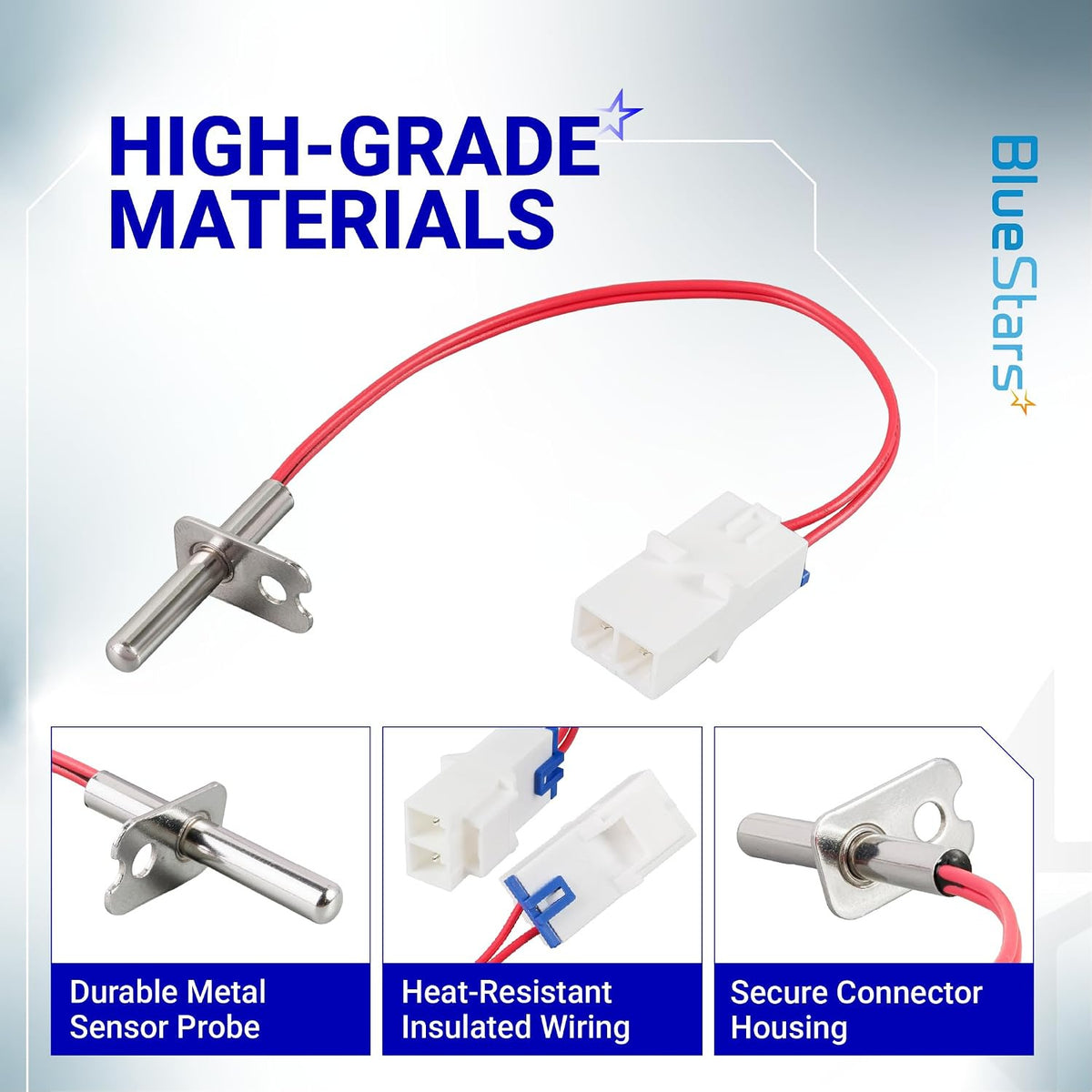

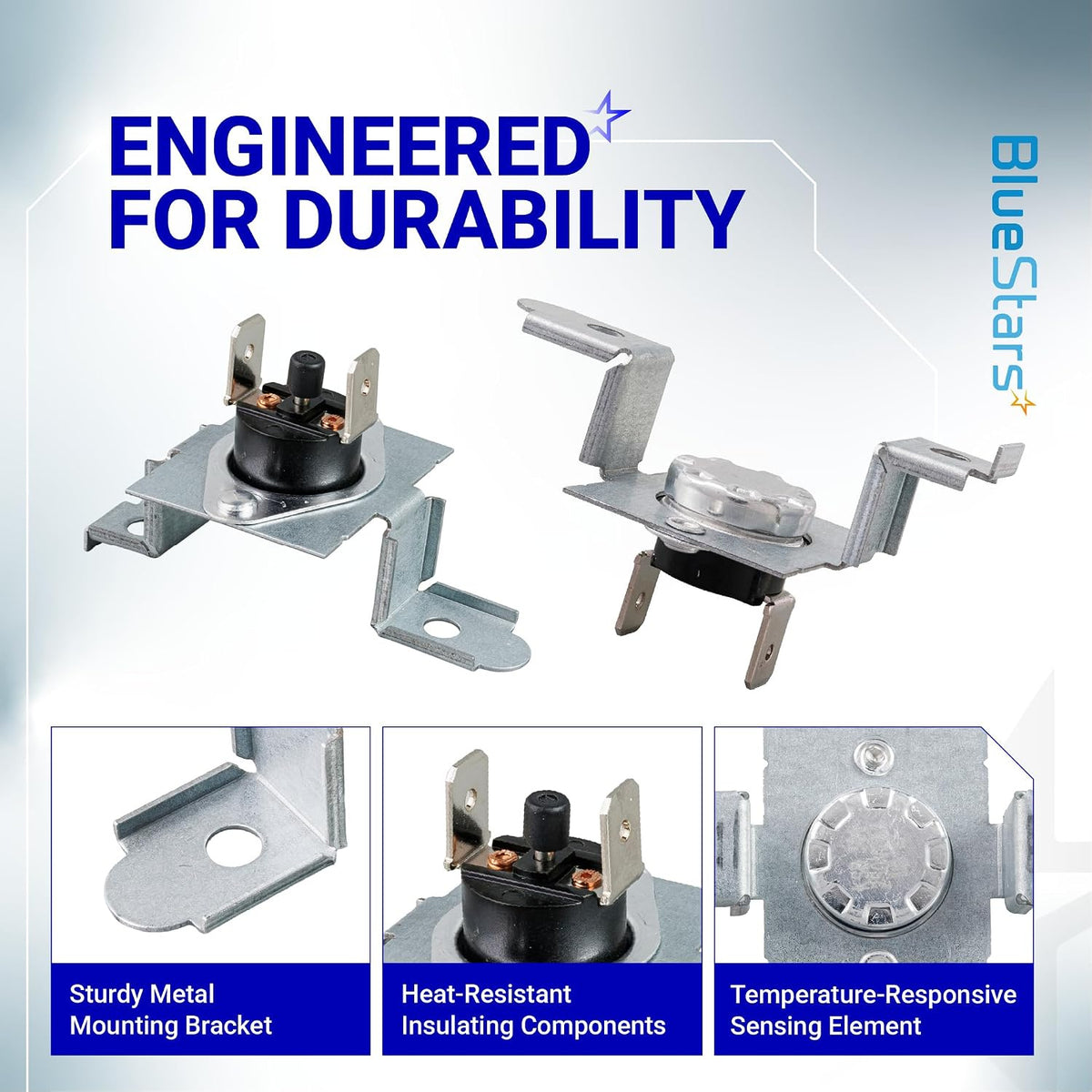

- Components are made with heat-resistant and corrosion-resistant materials for repeated heating cycles.
- Color: As pictured.
- Lifetime protection covers defects or issues according to the product protection terms.

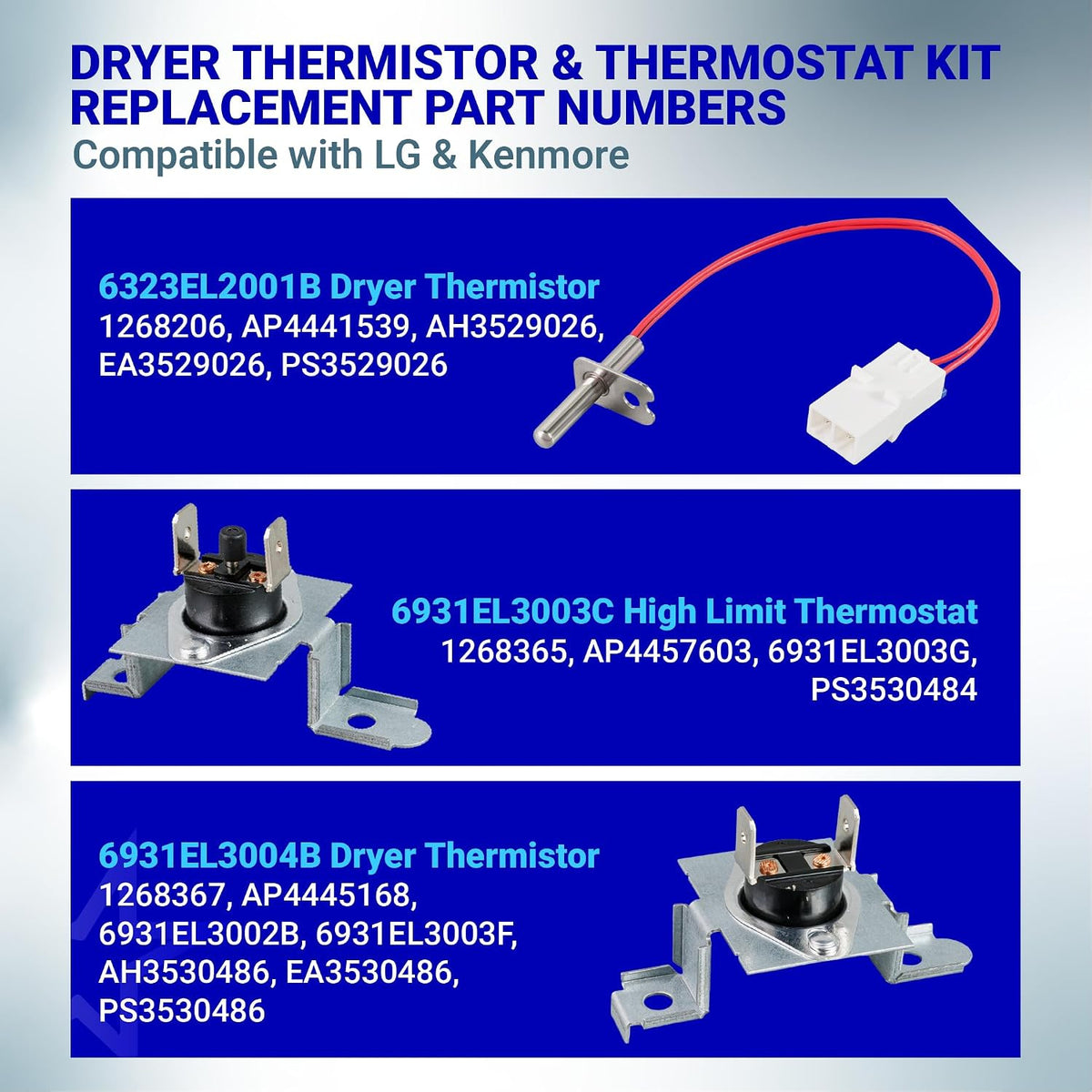

Replaces / Cross-Reference Part Numbers
- Kit part number: AGM30045804.
- 6323EL2001B thermistor cross-references: 1268206, AP4441539, EAP3529026, PS3529026, 6323EL2001H.
- 6931EL3003C high-limit thermostat cross-references: 1268365, AP4457603, 6931EL3003G, PS1631335, EAP1631335.
- 6931EL3004B thermostat cross-references: 1268367, AP4445168, 6931EL3002B, 6931EL3003F, EA3530486, PS3530486.

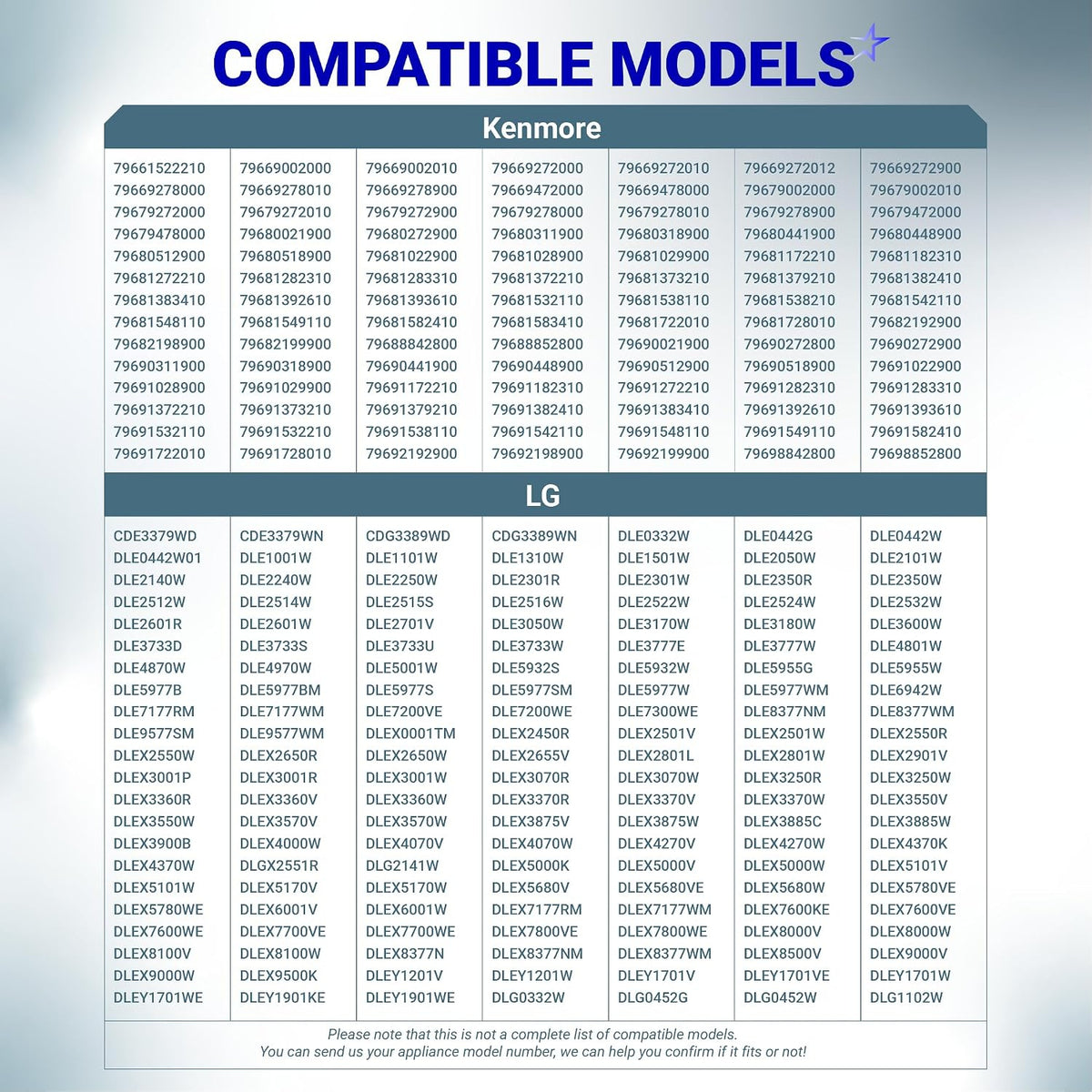

Compatibility & Fitment
Fits select LG and Kenmore dryers, including the following model numbers:
- Kenmore: 79661522210, 79669002000, 79669002010, 79669272000, 79669272010, 79669272012, 79669272900, 79669278000, 79669278010, 79669278900, 79669472000, 79669478000, 79679002000, 79679002010.
- LG: DLE7177RM, DLE7177WM, DLE7200VE, DLE7200WE, DLG0332W, DLG0452G, DLG0452, DLG1102W, DLG1320W, DLG1502W, DLG2051W, DLG2102W, DLG2141W, DLG2241W, DLG2251W, DLG2302R, DLG2302W, DLG2351R, DLG2351W, DLG2511W, DLG2522W, DLG2524W.

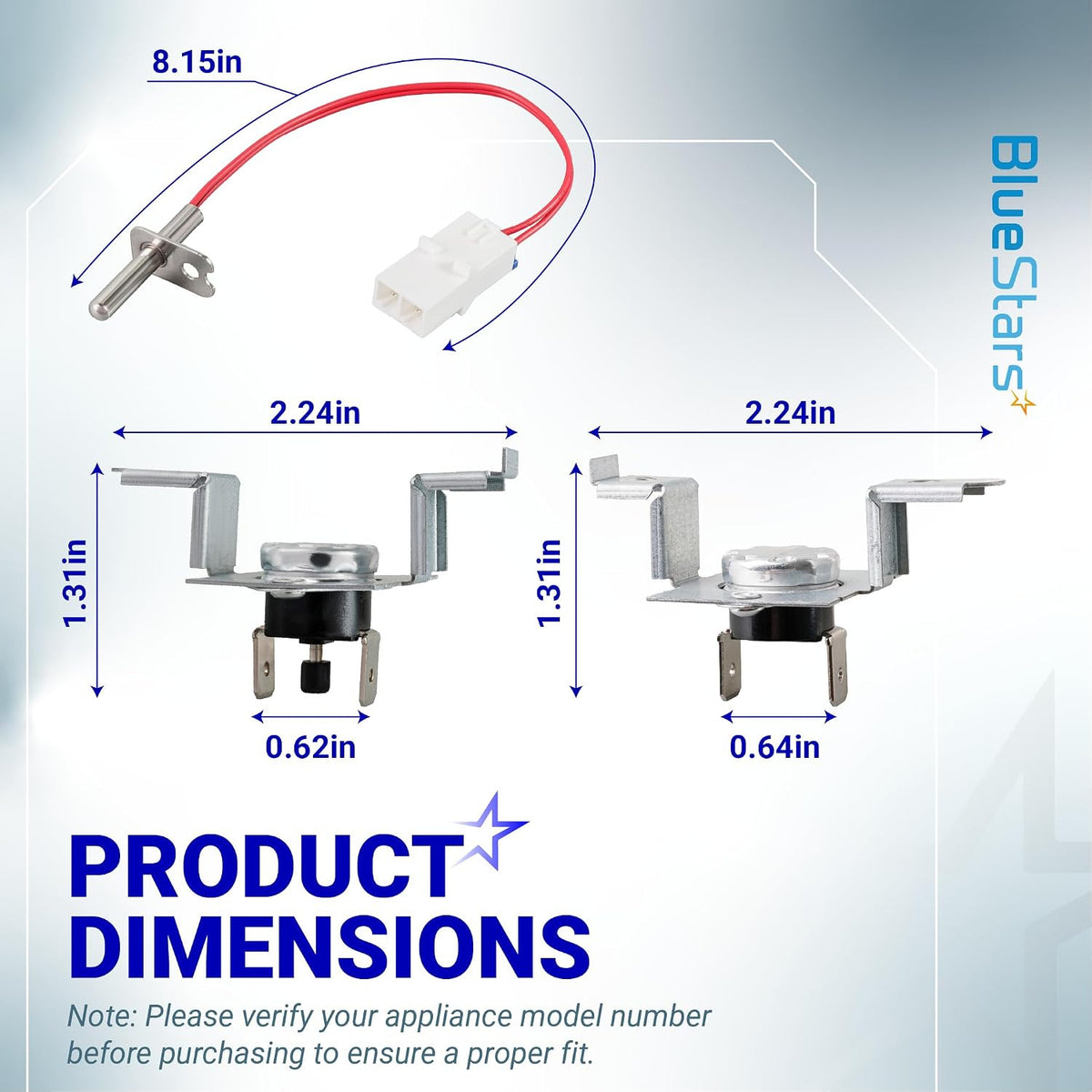

Confirm the model number, dimensions, and part number on the original components before ordering.
When to Replace
Replace the thermistor or thermostat when the dryer overheats, produces insufficient or inconsistent heat, runs for unusually long periods, stops during a cycle, or shuts down prematurely. A failed temperature-sensing or temperature-limiting component can prevent the dryer from maintaining the correct heat level.

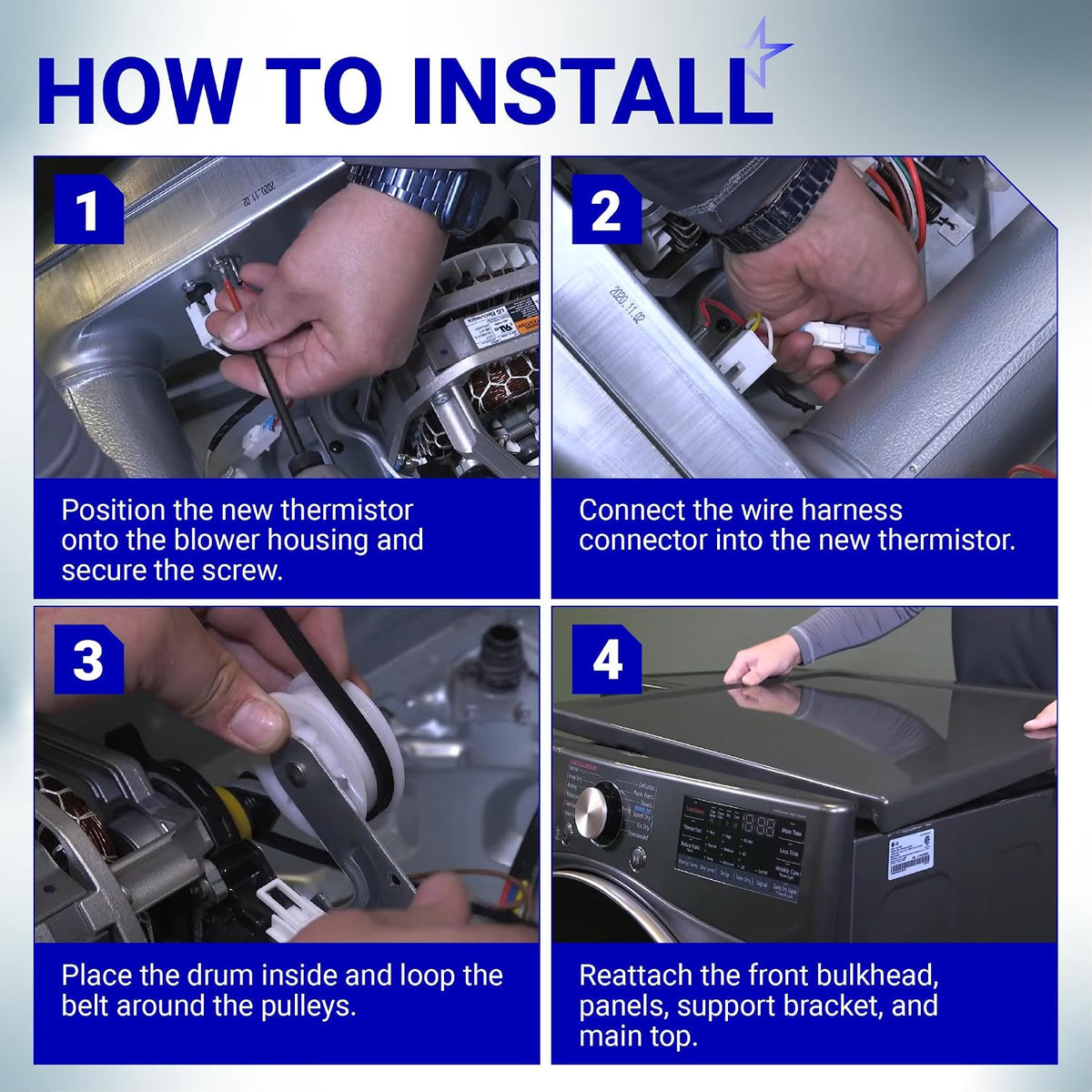

Installation Tips
- Disconnect the dryer from electrical power before servicing it.
- Compare the replacement components with the original parts, including the part numbers and physical size, before installation.
- Install the thermistor assembly with its wiring harness connected securely and position each thermostat in its original mounting location.
- Inspect connectors and wiring for heat damage or looseness while the dryer is open.
- Reassemble the dryer fully before restoring power and testing the heating cycle.
