951-12690 LT4200 Oil Filter for MTD 751-12690 420cc Troy Bilt
0.00
Regular price
$21.06
Regular price
Save 10%
$23.39
Sale price
$21.06
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
951-12690 LT4200 Oil Filter for MTD 751-12690 420cc Troy-Bilt
Key Features
- Replacement oil filter for compatible lawn mower engines.

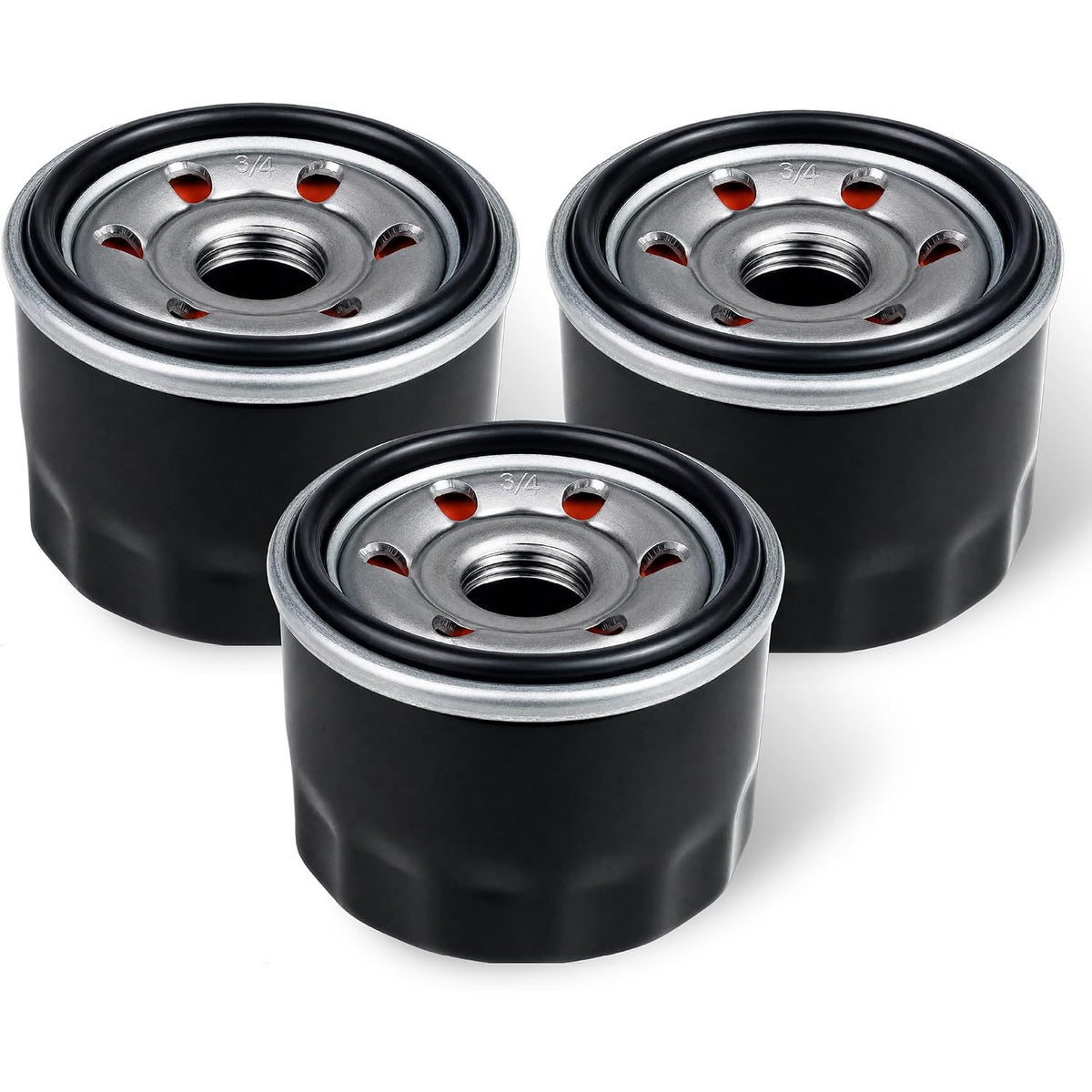

- Ships as 3 pieces.

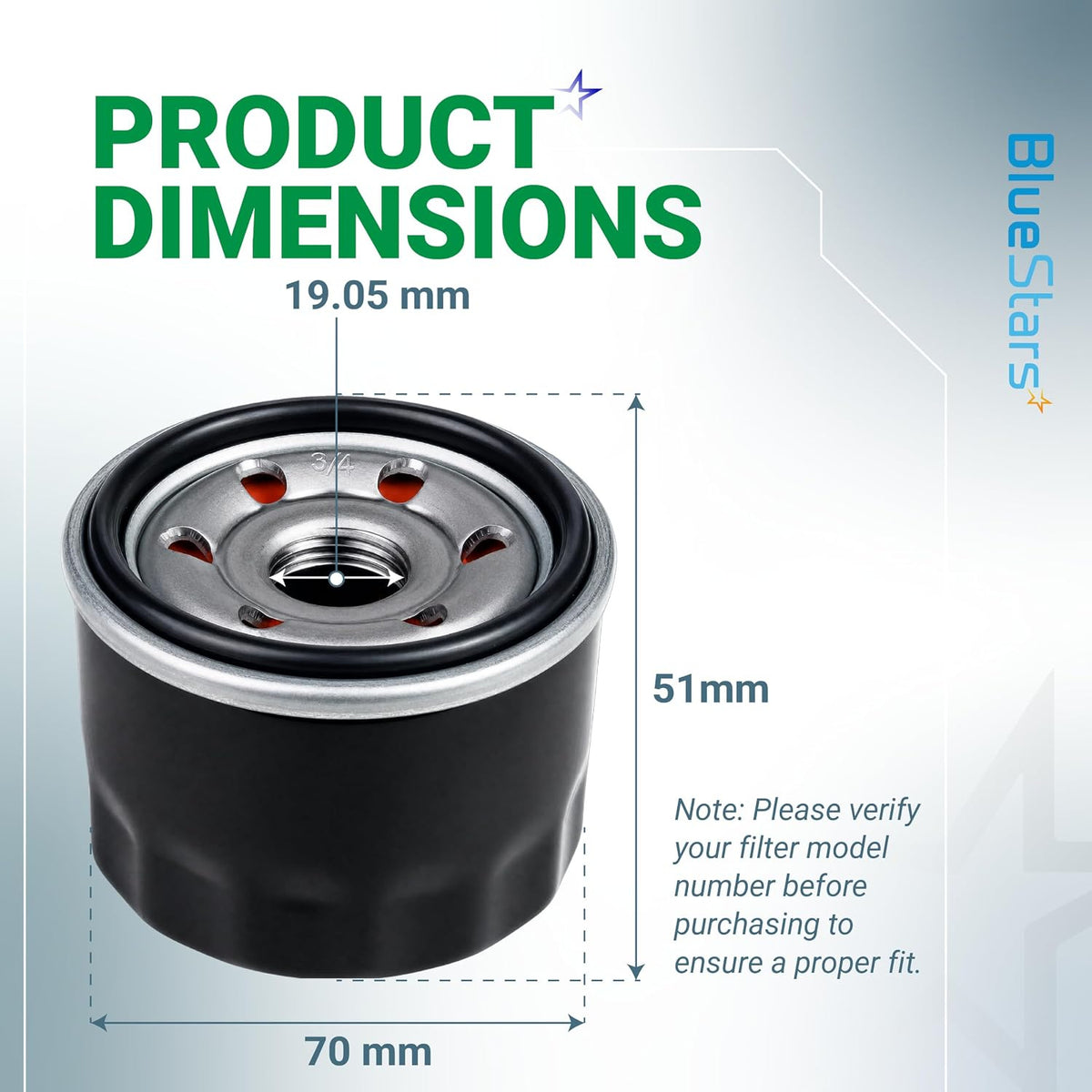

- Outside diameter: 2-5/8 inches, approximately 2.63 inches.
- Height: 2-1/8 inches.
- Thread size: 3/4-16.

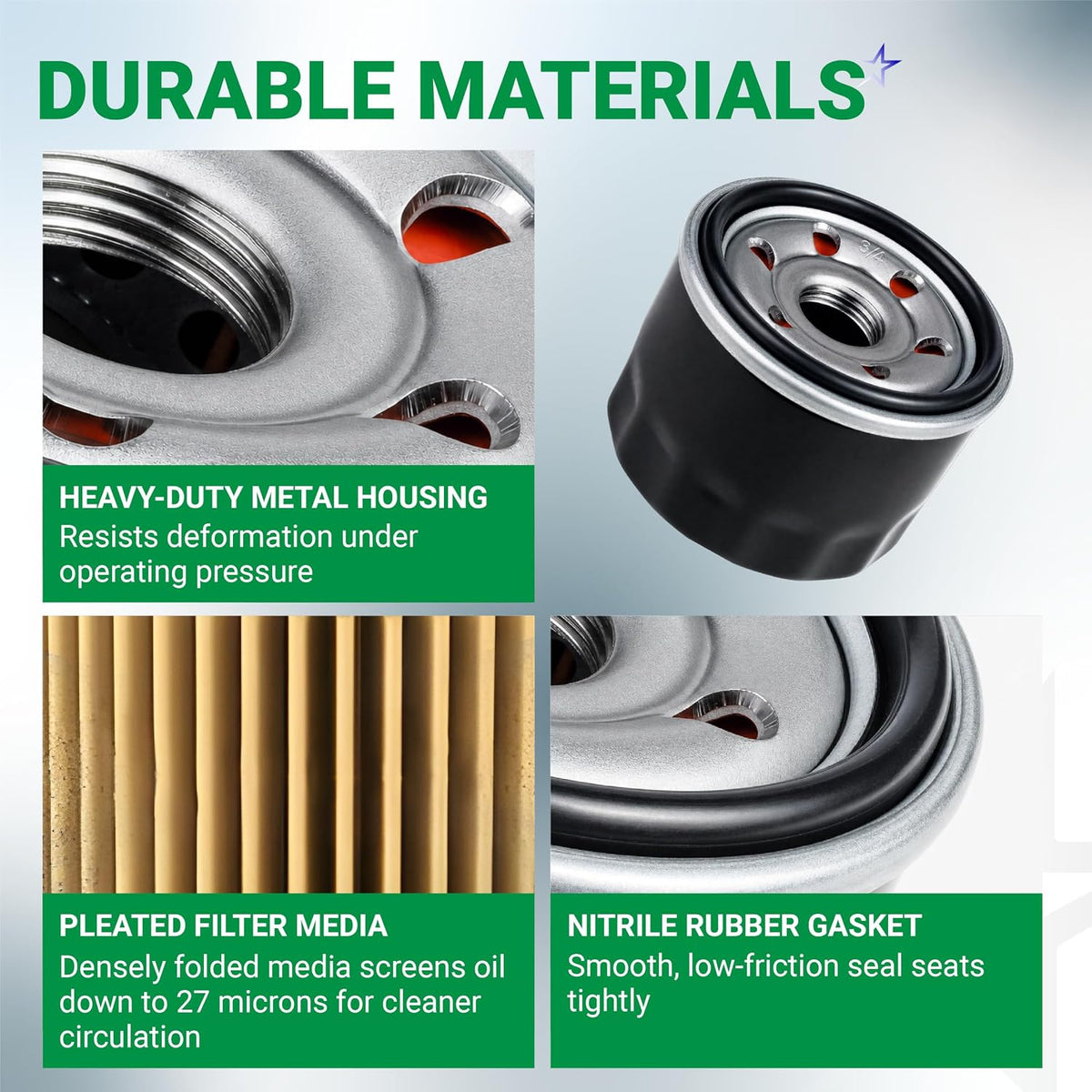

- Designed to filter engine oil and help reduce contamination and restricted oil flow.

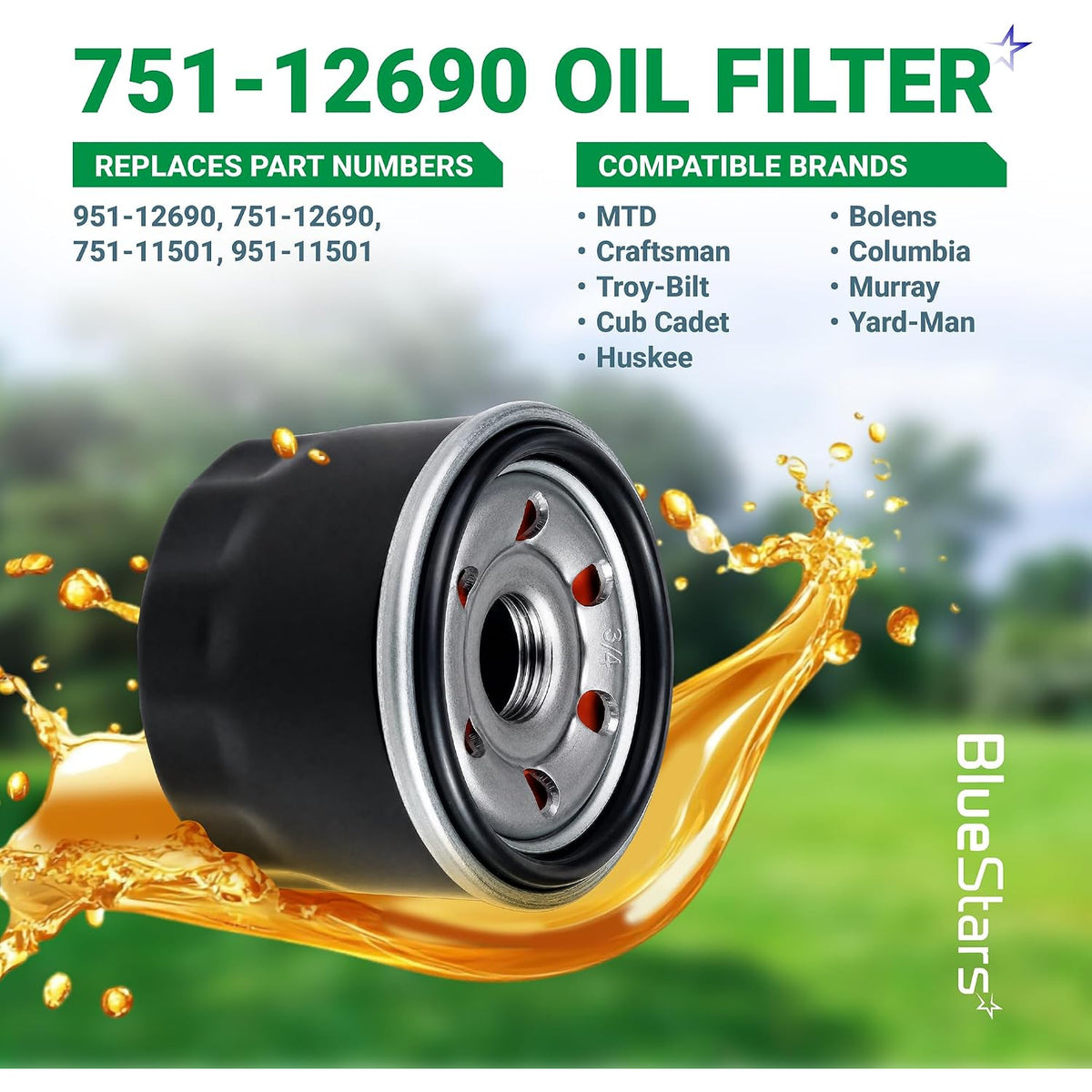

Replaces / Cross-Reference Part Numbers
- 951-12690
- 751-12690
- 751-11501
- 951-11501
Compatibility & Fitment
Fits selected MTD engines and lawn mower models, including the following engine models:
- MTD 4P90HU, 4P90HUA, 4P90HUB, 4P90HUC, 4P90HUD, 4P90JHA, 4P90JU, 4P90JUA, 4P90JUB, 4P90JUC, 4P90JUE, 4P90JUF, 4P90MU, 4P90MUA, 4P90MUB, 4P90MUC, 4P90MUD, 4Q78HU, 4X90HU, 4X90HUA, 7T84JU, 7T84JUA, 7T84MU, 7T84MUA, 7T90HU, 7T90JU, 8P92ZU, 8P92ZUA, 8Q78HUA, 8Q78XUA, 8X90KU, 8X90ZU, 8X90ZUA, 9X90HU, 9X90HUA, and AX90HU.
- MTD Powermore engines rated 382cc, 420cc, 439cc, 452cc, 547cc, and 679cc.

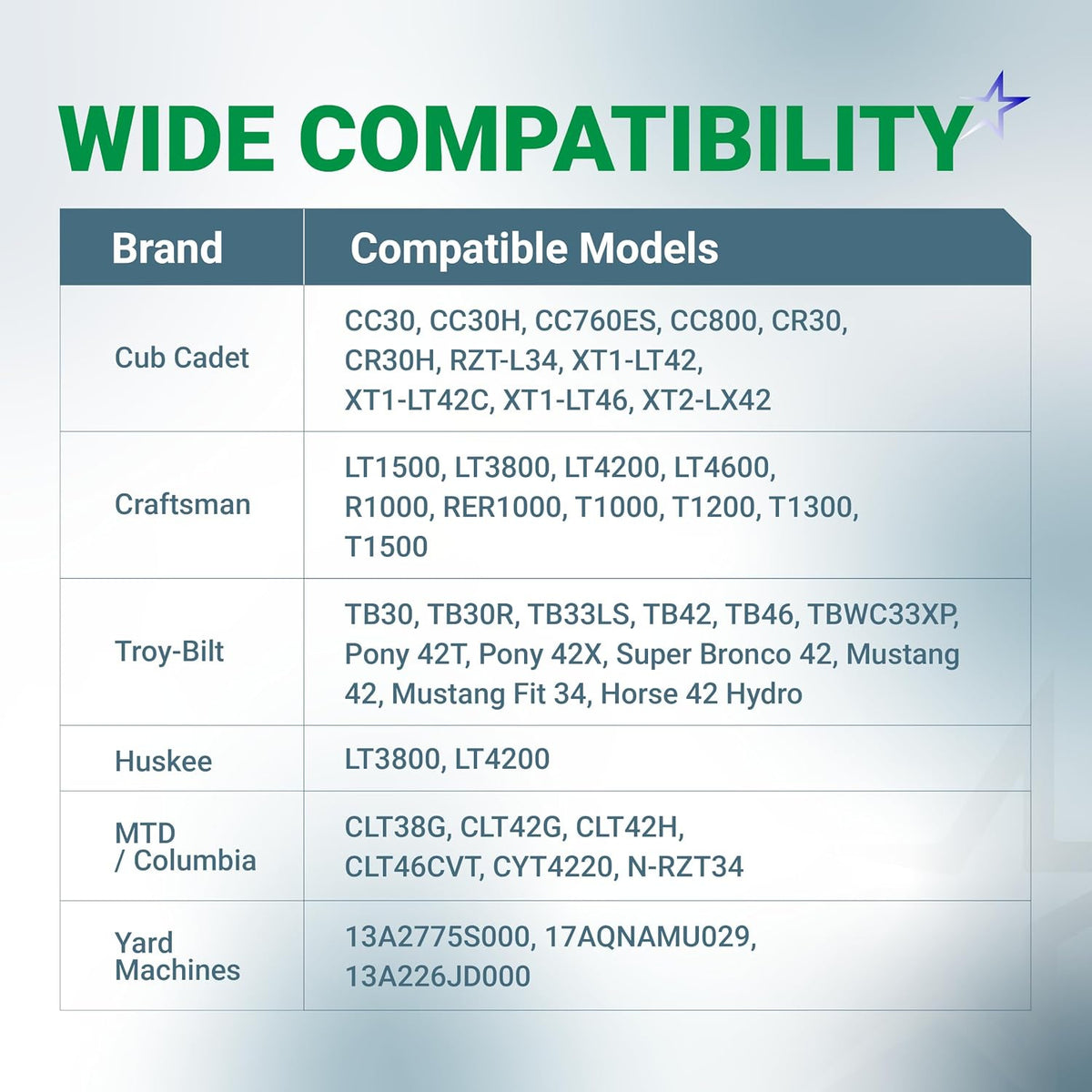

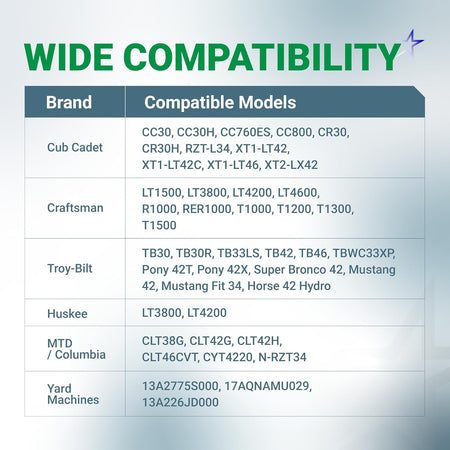

Compatible equipment includes:
- Huskee LT3800, LT4200, and LT 4200.
- Craftsman LT1500, R1000, RER1000, T1000, and T1200.
- Troy-Bilt LS27, LS33, TB30, TB30R, TB33LS, TB42, and TBWC33XP.
- MTD CR30, CLT38G, CLT42G, CLT42H, and CLT46CVT.
Verify the engine model, filter dimensions, and thread before ordering, since equipment fitment can vary by production configuration.
When to Replace
Replace the oil filter at the interval specified for the engine or when servicing the engine oil. A clogged or worn filter may contribute to dark, gritty oil, restricted oil flow, seepage around the filter base, or accelerated internal engine wear.
Installation Tips
- Confirm the replacement filter dimensions, 3/4-16 thread, and engine model before installation.
- Drain the engine oil and remove the old filter using an appropriate oil-filter tool if it is tight.
- Check that the old sealing gasket is removed from the mounting surface.
- Apply a light coating of clean engine oil to the new gasket, install the filter, and tighten it according to the engine manufacturer’s service instructions.
- Refill the engine with the specified oil, run it briefly, and inspect the filter seal for leaks.

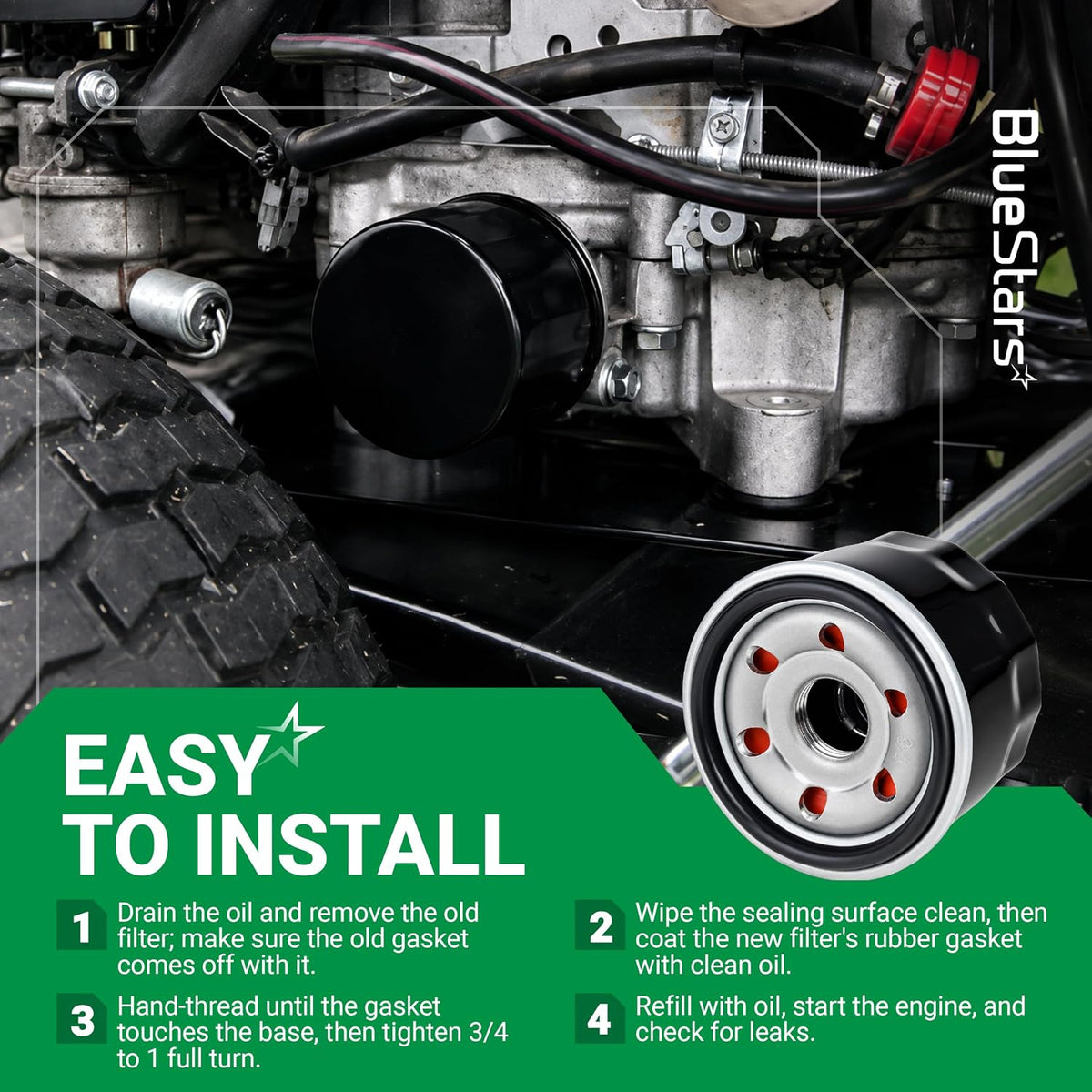

EASY TO INSTALL
1. Drain the oil and remove the old filter; make sure the old gasket comes off with it.
2. Wipe the sealing surface clean, then coat the new filter's rubber gasket with clean oil.
3. Hand-thread until the gasket touches the base, then tighten 3/4 to 1 full turn.
4. Refill with oil, start the engine, and check for leaks.
2. Wipe the sealing surface clean, then coat the new filter's rubber gasket with clean oil.
3. Hand-thread until the gasket touches the base, then tighten 3/4 to 1 full turn.
4. Refill with oil, start the engine, and check for leaks.
