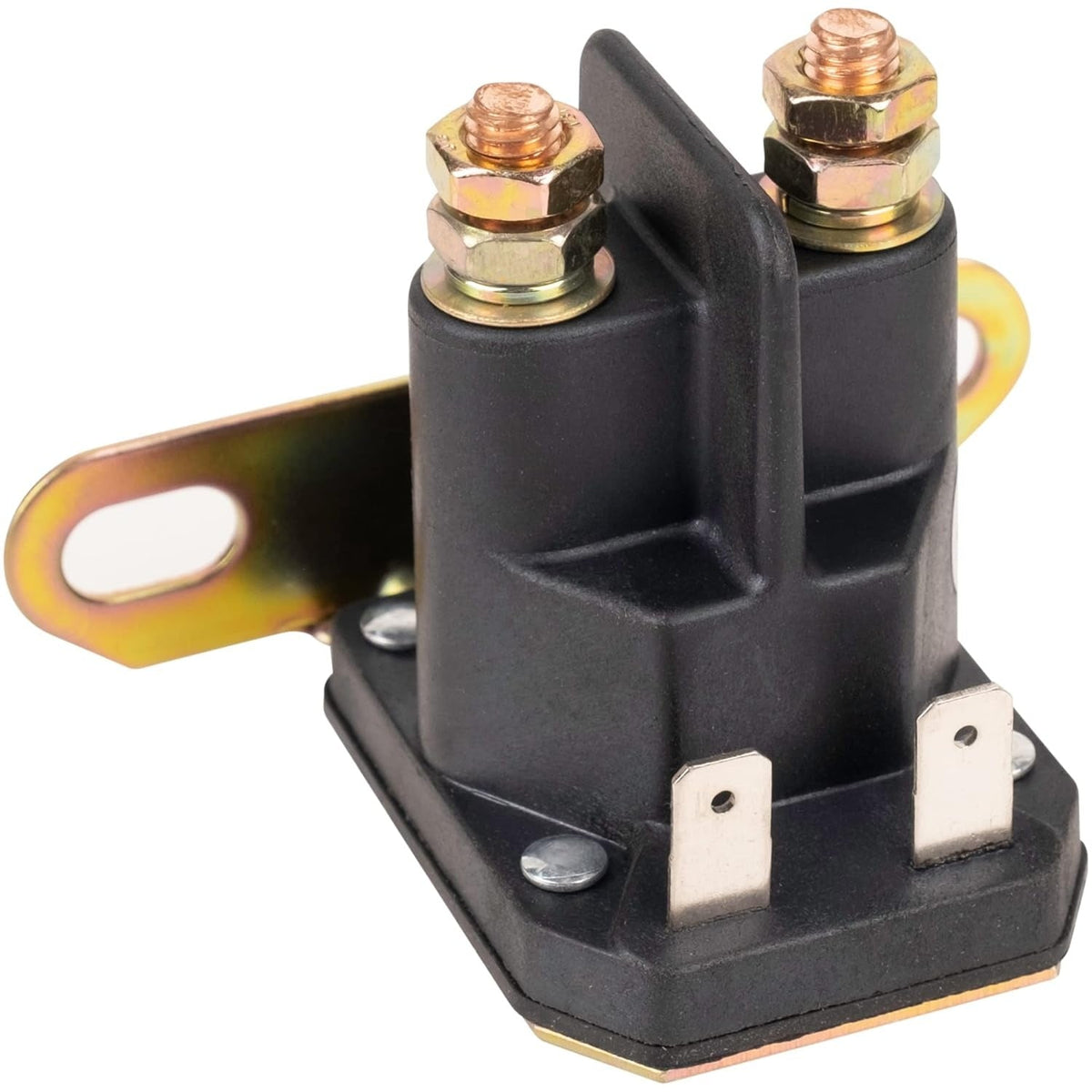

12V starter solenoid relay for John Deere and MTD lawn tractors with dual copper terminals and mounting bracket.

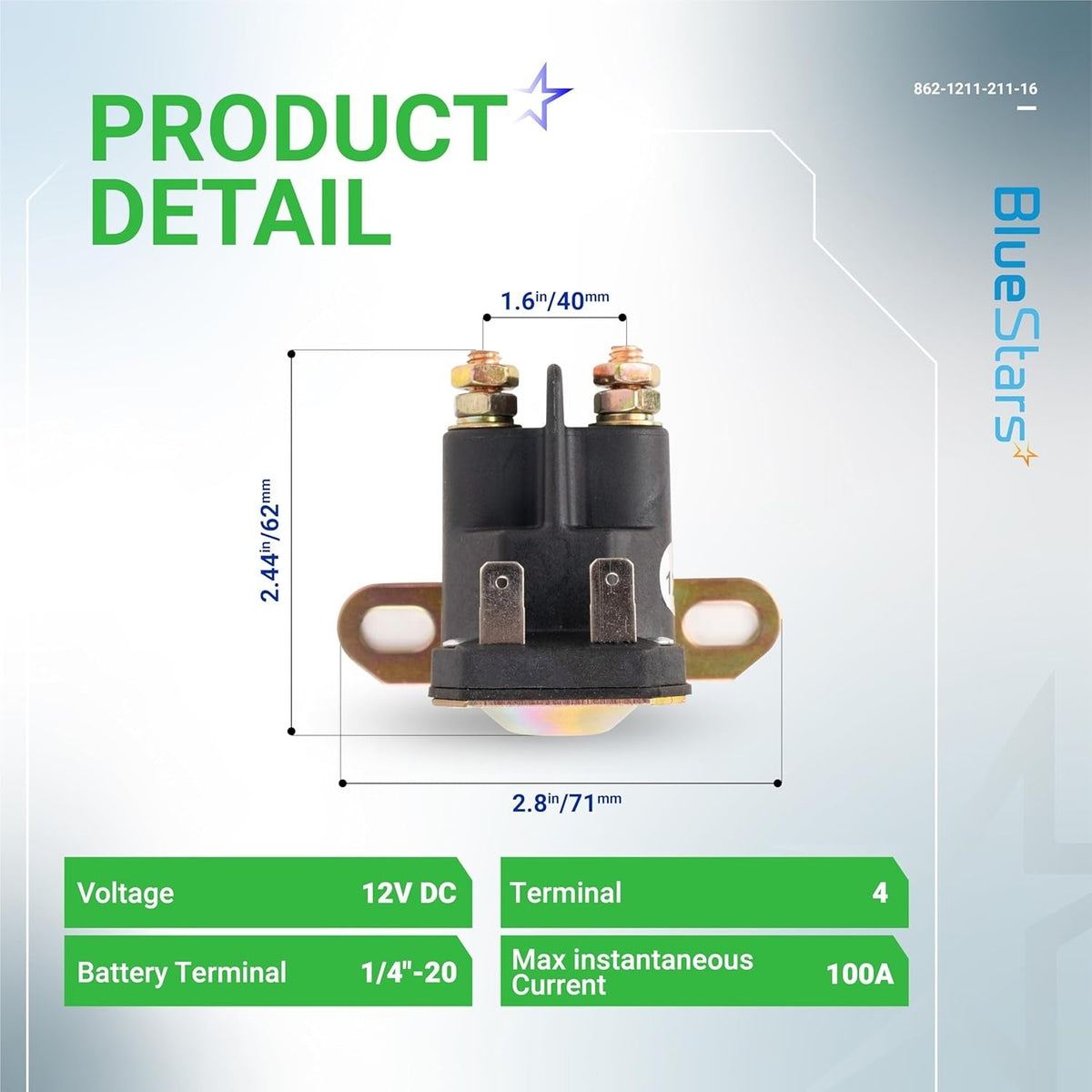

Dimensional diagram of 12V starter solenoid relay for John Deere and MTD lawn tractors showing technical specifications.
12V starter solenoid relay for John Deere and MTD lawn tractors, shown in a promotional lifestyle graphic.

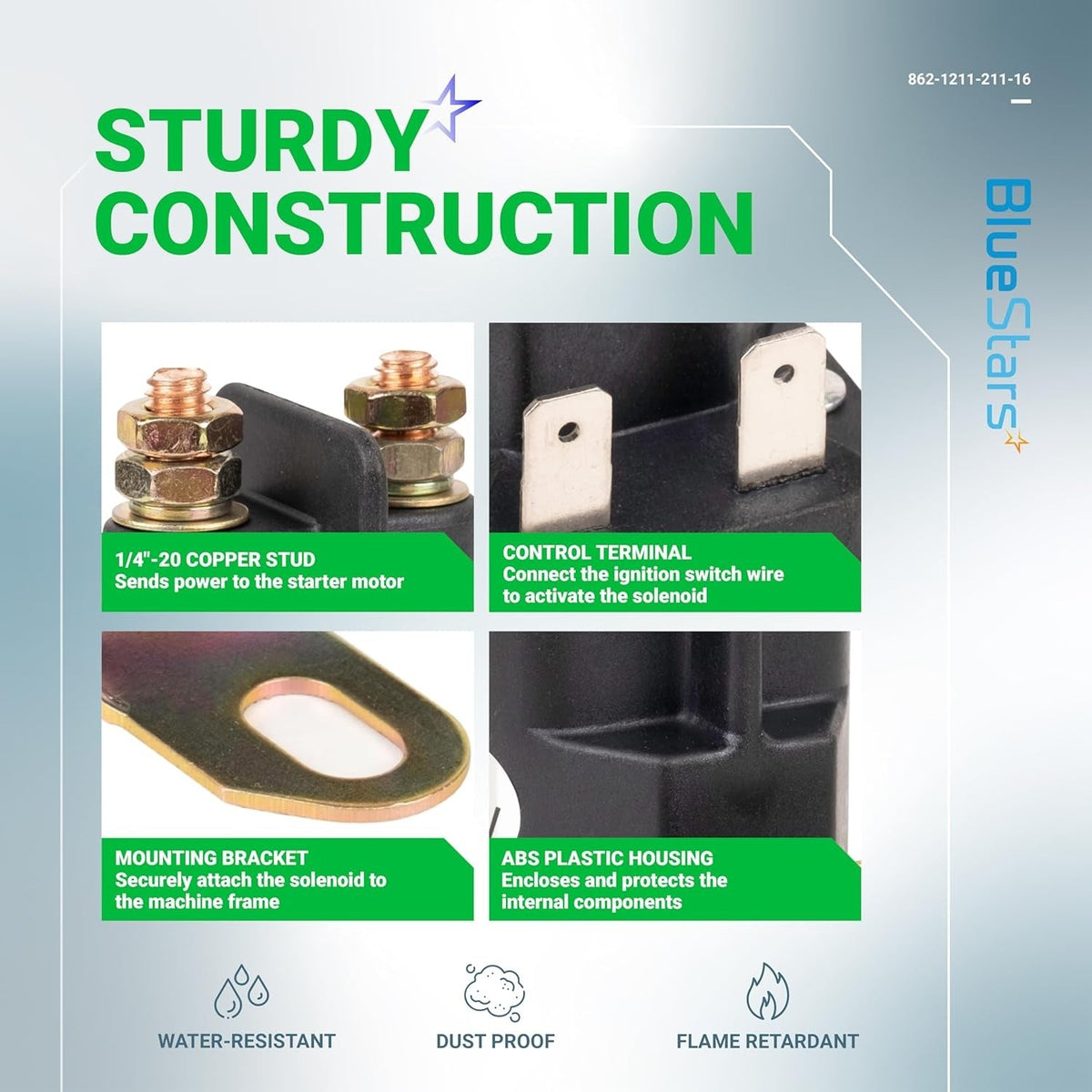

Infographic showing construction features of 862-1211-211-16 starter solenoid relay for lawn tractors.

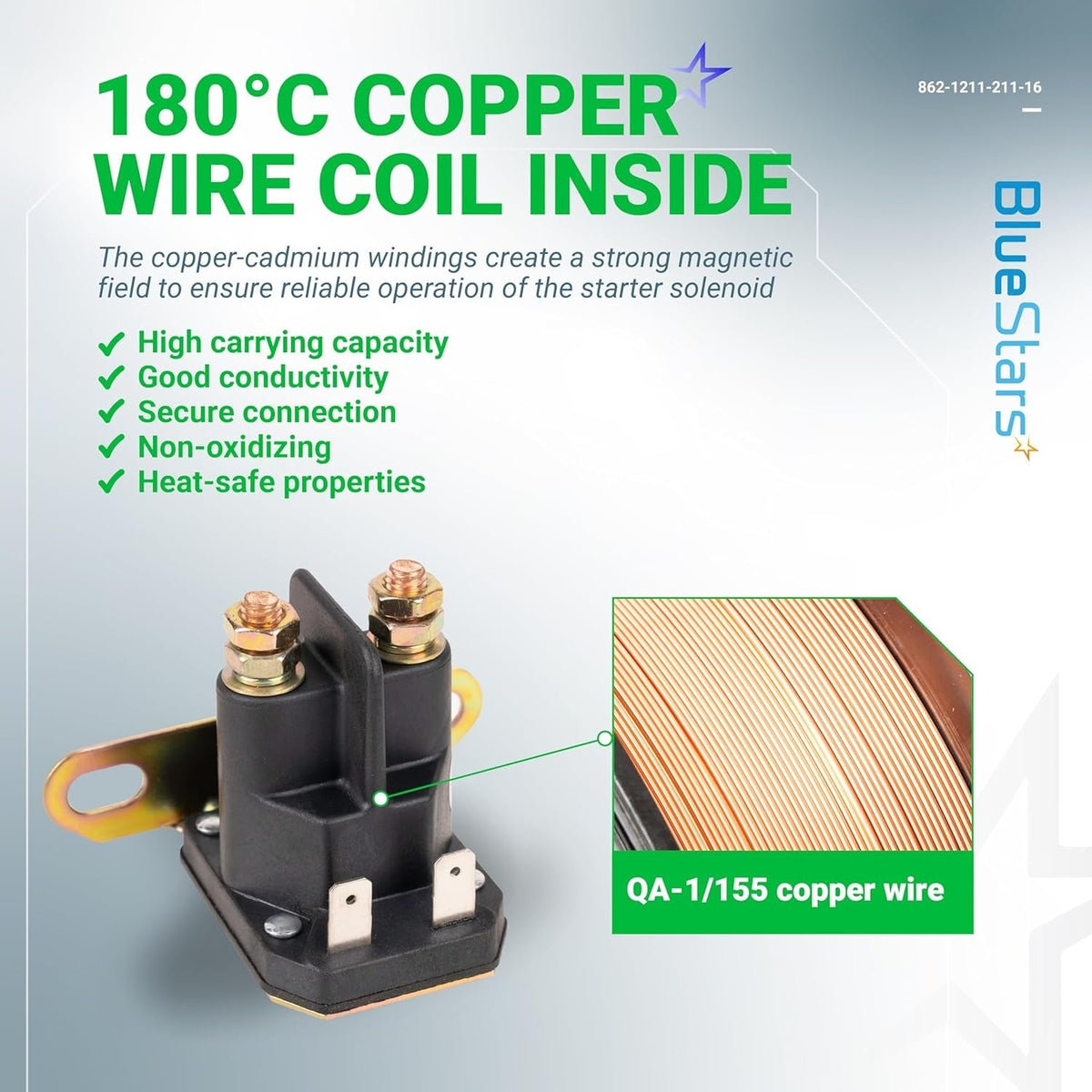

Starter solenoid relay 862-1211-211-16 showing internal 180°C copper wire coil construction and features.
12V starter solenoid relay for John Deere, MTD, and Cub Cadet lawn tractors with mounting bracket and mower graphic.

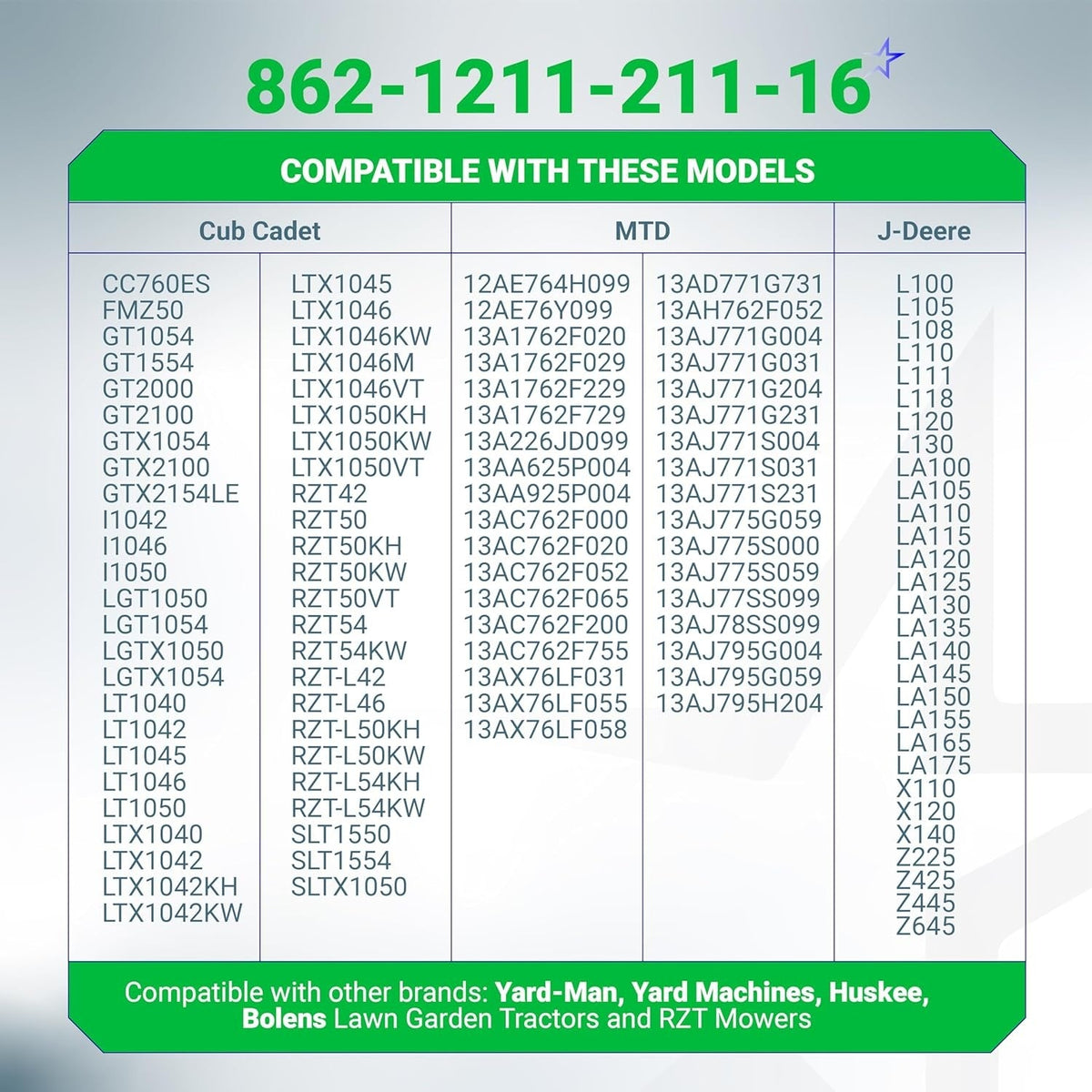

Compatibility chart for 862-1211-211-16 starter solenoid relay listing Cub Cadet, MTD, and John Deere mower models.

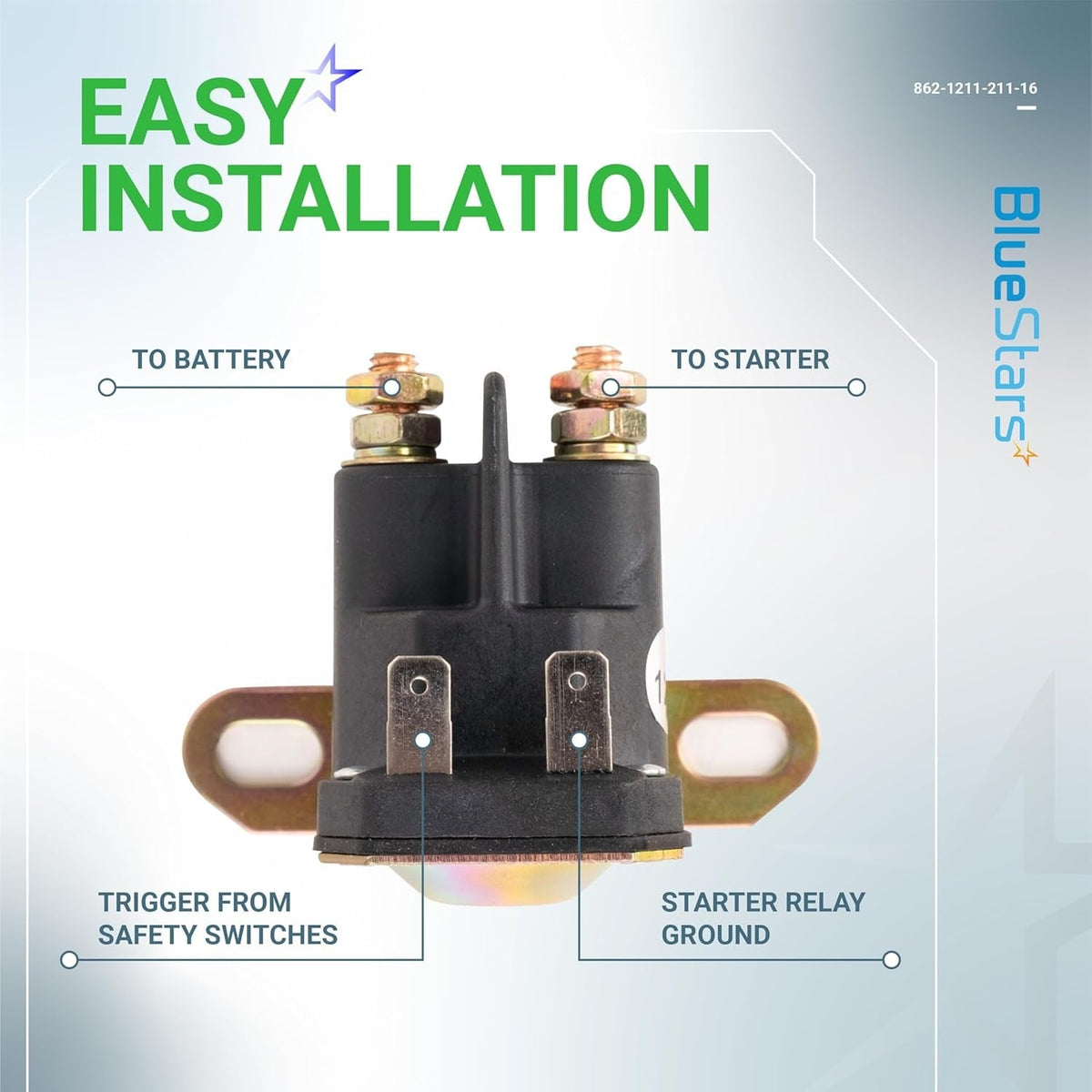

Diagram of 12V starter solenoid relay showing battery, starter, switch, and ground terminal connections.
12V starter solenoid relay for John Deere and MTD lawn tractors, featuring a metal mounting bracket and terminal posts.
12V starter solenoid relay for John Deere and MTD lawn tractors with dual copper terminals and mounting bracket.
Dimensional diagram of 12V starter solenoid relay for John Deere and MTD lawn tractors showing technical specifications.
12V starter solenoid relay for John Deere and MTD lawn tractors, shown in a promotional lifestyle graphic.
Infographic showing construction features of 862-1211-211-16 starter solenoid relay for lawn tractors.
Starter solenoid relay 862-1211-211-16 showing internal 180°C copper wire coil construction and features.
12V starter solenoid relay for John Deere, MTD, and Cub Cadet lawn tractors with mounting bracket and mower graphic.
Compatibility chart for 862-1211-211-16 starter solenoid relay listing Cub Cadet, MTD, and John Deere mower models.
Diagram of 12V starter solenoid relay showing battery, starter, switch, and ground terminal connections.
12V starter solenoid relay for John Deere and MTD lawn tractors, featuring a metal mounting bracket and terminal posts.

862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439

0.00
$15.59
Save 16% $18.55
$15.59
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

862-1211-211-16 / AM138068 Starter Solenoid Relay 12V

Key Features

  • Operating Voltage: 12V DC
  • Terminal Configuration: 4-post design
  • Function: Relays high current from the battery to the starter motor
  • Construction: Direct-fit replacement for original equipment specifications

Replaces / Cross-Reference Part Numbers

  • Trombetta: 862-1211-211-16
  • John Deere: AM138068
  • MTD / Cub Cadet: 725-04439

Compatibility & Fitment

  • Fits various lawn tractors and mowers from MTD, Cub Cadet, and John Deere.
  • John Deere Models Include: LA100, LA105, LA110, LA115, LA120, LA125
  • Confirm fitment by cross-referencing your original part number.

When to Replace

  • Engine makes a single click sound but does not crank or turn over.
  • No sound or action when the ignition key is turned.
  • Intermittent starting problems.
  • Starter motor continues to run after the engine has started.

Installation Tips

  • Disconnect the negative battery cable before starting the installation.
  • Take a photo or label the wires before disconnecting the old solenoid.
  • Ensure the solenoid mounting bracket has a clean, solid ground connection to the frame.
  • Clean wire terminals and ensure all nuts are tightened securely to prevent poor connections.
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 1
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 2
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 3
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 4
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 5
862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 6
  • 862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 1

    WIDE COMPATIBILITY

    This solenoid is compatible with Cub Cadet, MTD, Yard-Man Yard Machines Huskee Bolens Lawn Garden Tractors and RZT Mowers
  • 862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 2

    DURABLE MATERIAL

    This part is made of high streng steel and ABS Plastic housing which is flexibility and flame-retardant, enhancing durability
  • 862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 3

    SAVING SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble
  • 862-1211-211-16 AM138068 Starter Solenoid Relay (12V) - Fits Trombetta John Deere MTD Cub Cadet Lawn Tractor 725-04439 4

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility
Enjoy your fresh garden with the support of our replacement part!

Enjoy your fresh garden with the support of our replacement part!

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This solenoid serves as a direct replacement for OEM part numbers AM138068, GY22476, 725-04439, 725-04439A, 725-04439B, 862-1211-211-16, and 435-151.
This part is compatible with a wide range of riding lawn mowers and tractors from John Deere, Cub Cadet, MTD, and Troy-Bilt. Specific compatible models include the John Deere L-series (L100, L105, L108, L110, L111, L118, L120, L130), LA-series (LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150), D-series (D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170), and X-series (X110, X120, X140, G110).
If you turn the ignition key and hear a single 'click' but the engine does not crank, or if you hear a rapid 'chattering' sound, the solenoid is likely failing to engage the starter motor. Other signs include the starter motor continuing to run after the key is released or the engine failing to respond entirely despite having a fully charged battery.
Installation is straightforward and typically takes 15 to 30 minutes. You will generally need a basic socket set and a screwdriver. Before beginning, always disconnect the negative battery cable to prevent accidental shorting. Take a photo of the existing wiring configuration before removing the old solenoid to ensure the new one is connected exactly the same way.
Yes. If the solenoid is not the issue, check your battery voltage, the condition of the battery cables for corrosion, and the safety interlock switches (such as the seat, brake, or blade engagement switches). If you are replacing the solenoid due to a failure, it is also a good time to inspect the ignition switch for signs of heat damage or wear.
This is a 12V intermittent-duty solenoid featuring a durable plastic housing and 1/4-20 stud terminals. It is designed to be dust and liquid-resistant, making it suitable for the high-vibration environment of lawn and garden equipment.
