[Lifetime Warranty] 8540024 Washer Drain Pump Replacement - Compatible with Whirlpool Kenmore Maytag Washing Machines - Replaces W10117829 PS11757304 W10130913

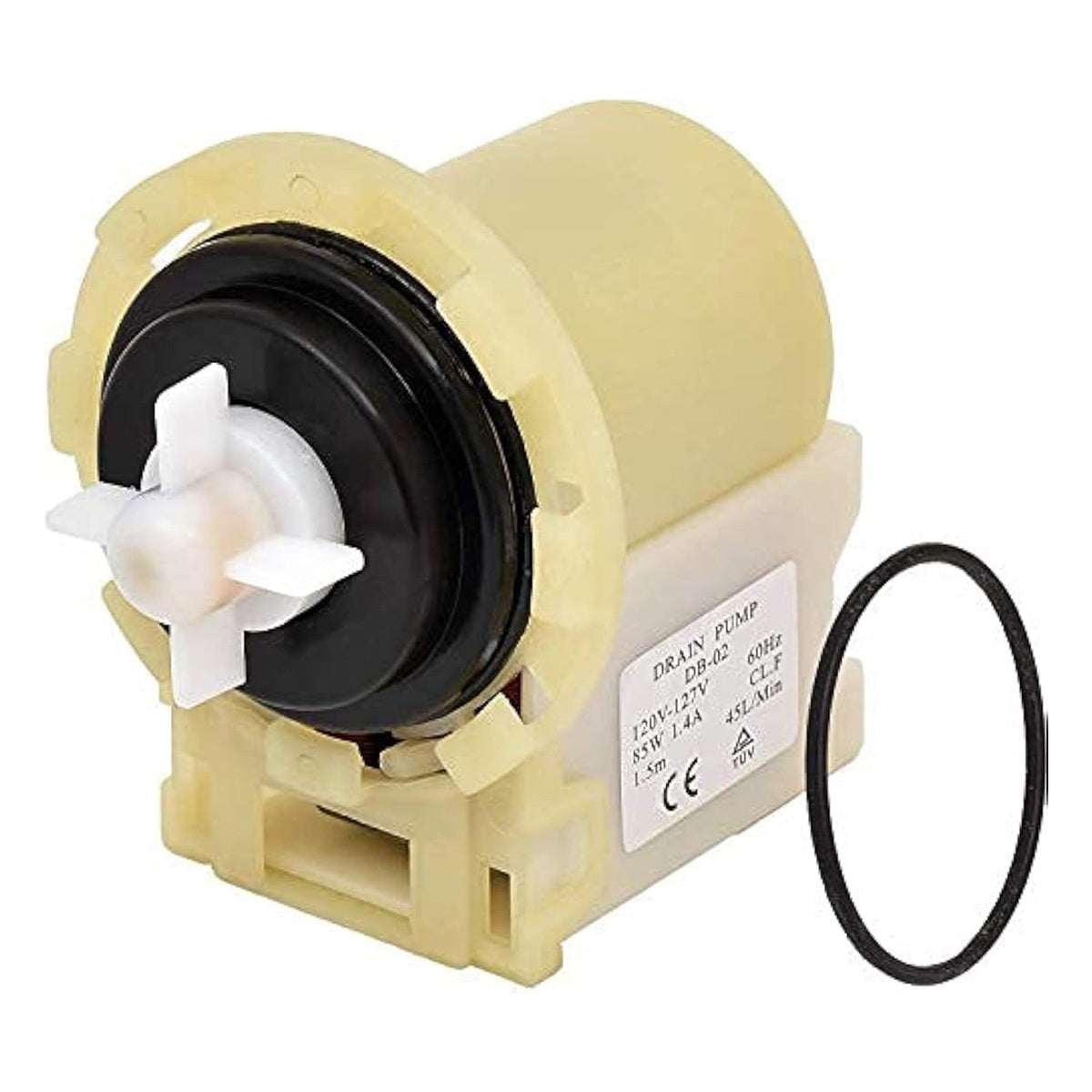

8540024 Washer Drain Pump Replacement

Key Features

• Direct replacement drain pump assembly designed to actively expel water from the washer tub during the drain and spin cycles.

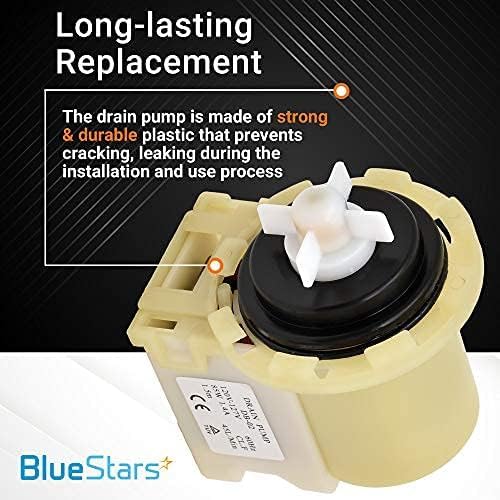

• Constructed from heavy-duty ABS plastic to withstand prolonged exposure to hot water, detergents, and physical debris.
• Standard electrical configuration running at 120V / 60Hz to match exact original equipment motor output and flow rates.

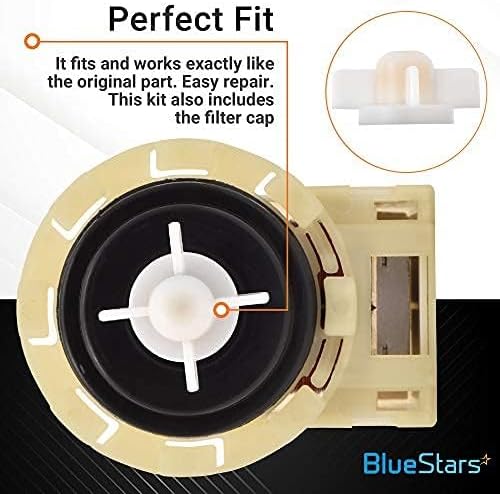

• Features integrated mounting brackets and standard hose inlet/outlet ports for a secure, leak-free connection.

Replaces / Cross-Reference Part Numbers

• WPW10730972
• AP6023956
• PS11757304
• W10730972
• W10130913
• W10117829
• 8540025
• 8540028
• 4281917
• WPW10730972VP

Compatibility & Fitment

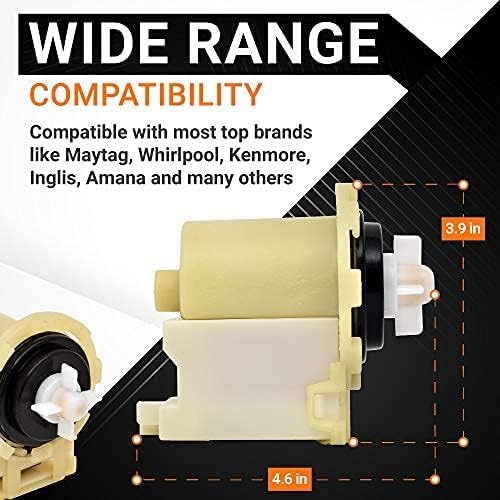

• Compatible with major brands including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, and Admiral front-load and top-load washers.
• Fits specific Whirlpool models including: CET8000AQ0, CET8000AQ1, CET8000XQ0, and CGT8000AQ0.
• Fits specific Kenmore models including: 11046462500, 11046472501, 11047512600, 11047701800, and 11047711800.

When to Replace

• The washer fails to empty, leaving standing water inside the drum at the end of the wash cycle.
• The machine advances to the drain phase but does not transition into the final spin cycle.
• A loud grinding, humming, or squealing noise is audible coming from the bottom of the washer during the drain cycle.
• Water is visibly leaking from the base of the machine, originating from a crack in the pump housing.

Installation Tips

• Disconnect the washing machine from the electrical outlet and shut off the water supply before starting the repair.
• Access the pump by removing the bottom front access panel (for front loaders) or tipping the machine back (for top loaders).
• Place a shallow pan and towels underneath the existing pump to catch residual water before disconnecting the hoses.
• Use pliers to squeeze and slide the spring clamps back to remove the inlet and outlet hoses.
• Disconnect the wire harness, unscrew the mounting bolts securing the old pump to the chassis, and install the new unit in reverse order.
