[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829
0.00
Regular price
$14.39
Regular price
Save 11%
$16.11
Sale price
$14.39
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

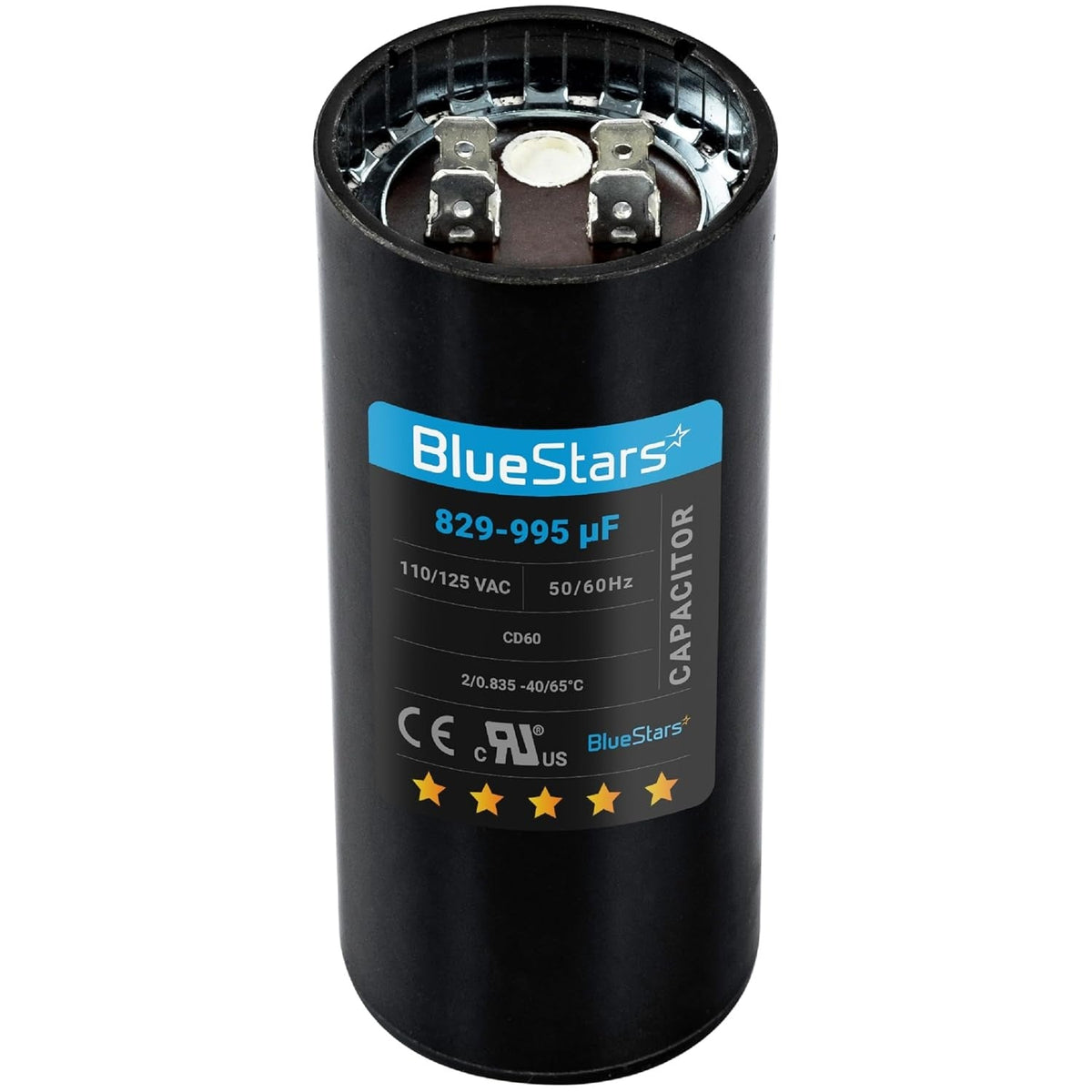

829-995 uF/MFD 110-125 VAC ±20% Round Motor Start Capacitor

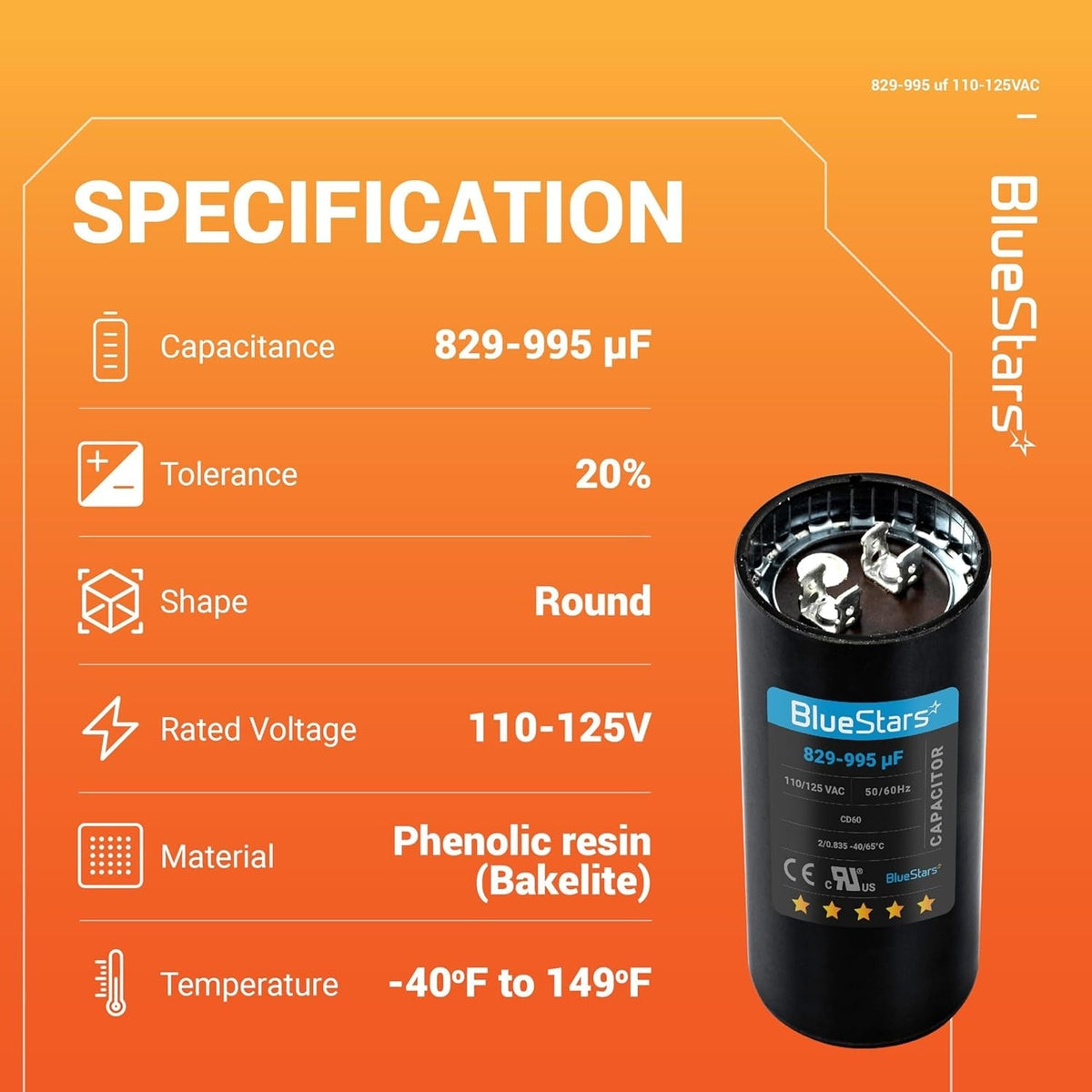

Key Features
- Capacitance: 829-995 Microfarad
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Tolerance: ±20%
- Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Terminals: 1/4 inch quick connect
- Case Material: Moisture and oil-resistant plastic
- Duty Cycle: 20 starts per hour, 3-second duration per start

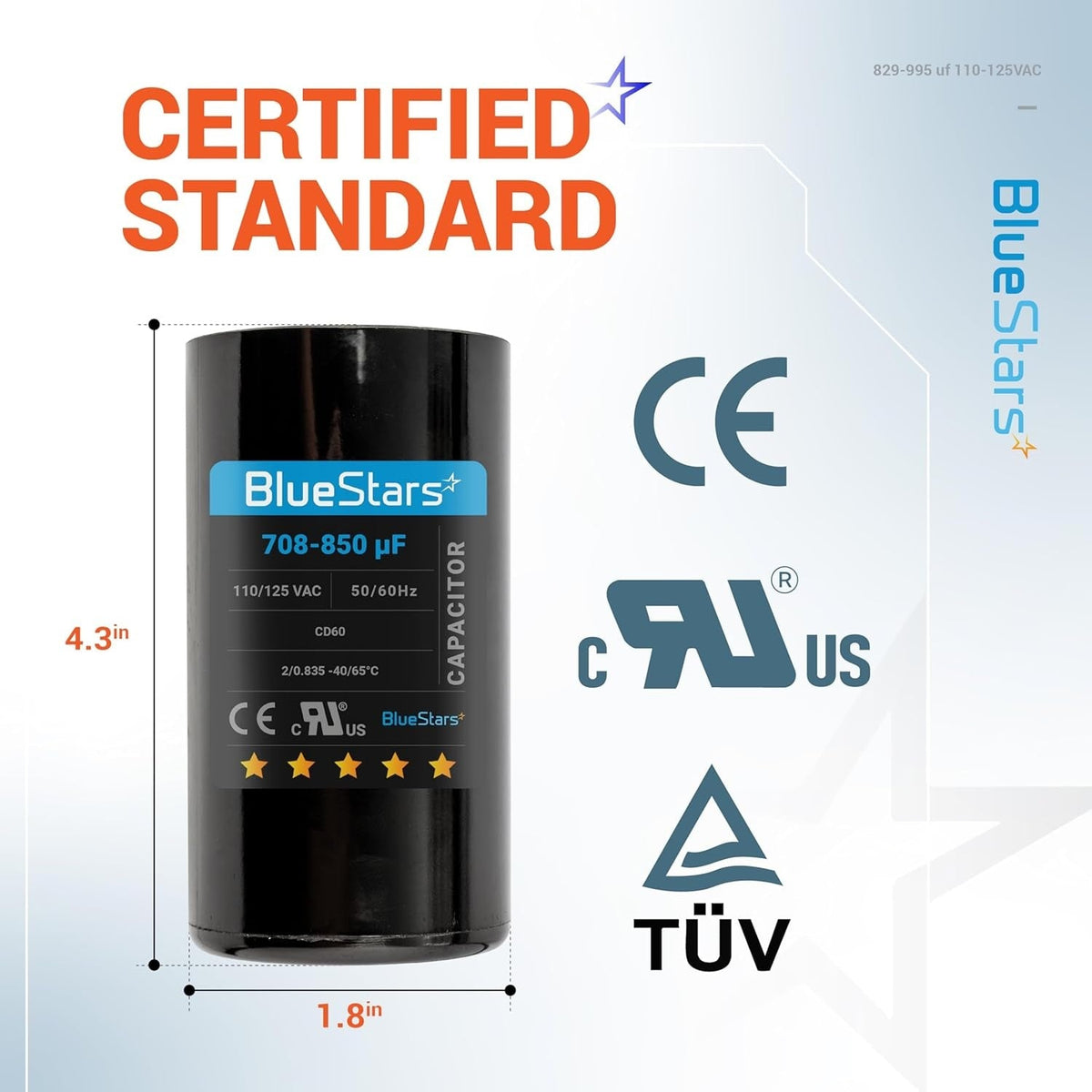

- Certifications: UL Recognized
Replaces / Cross-Reference Part Numbers
- 6FLL8
- BC-829
- CAP-829-110
- CAP829125
- CD60
- E-829
- PMJ829
Compatibility & Fitment
- Universal design for single-phase AC electric motors requiring a start capacitor.

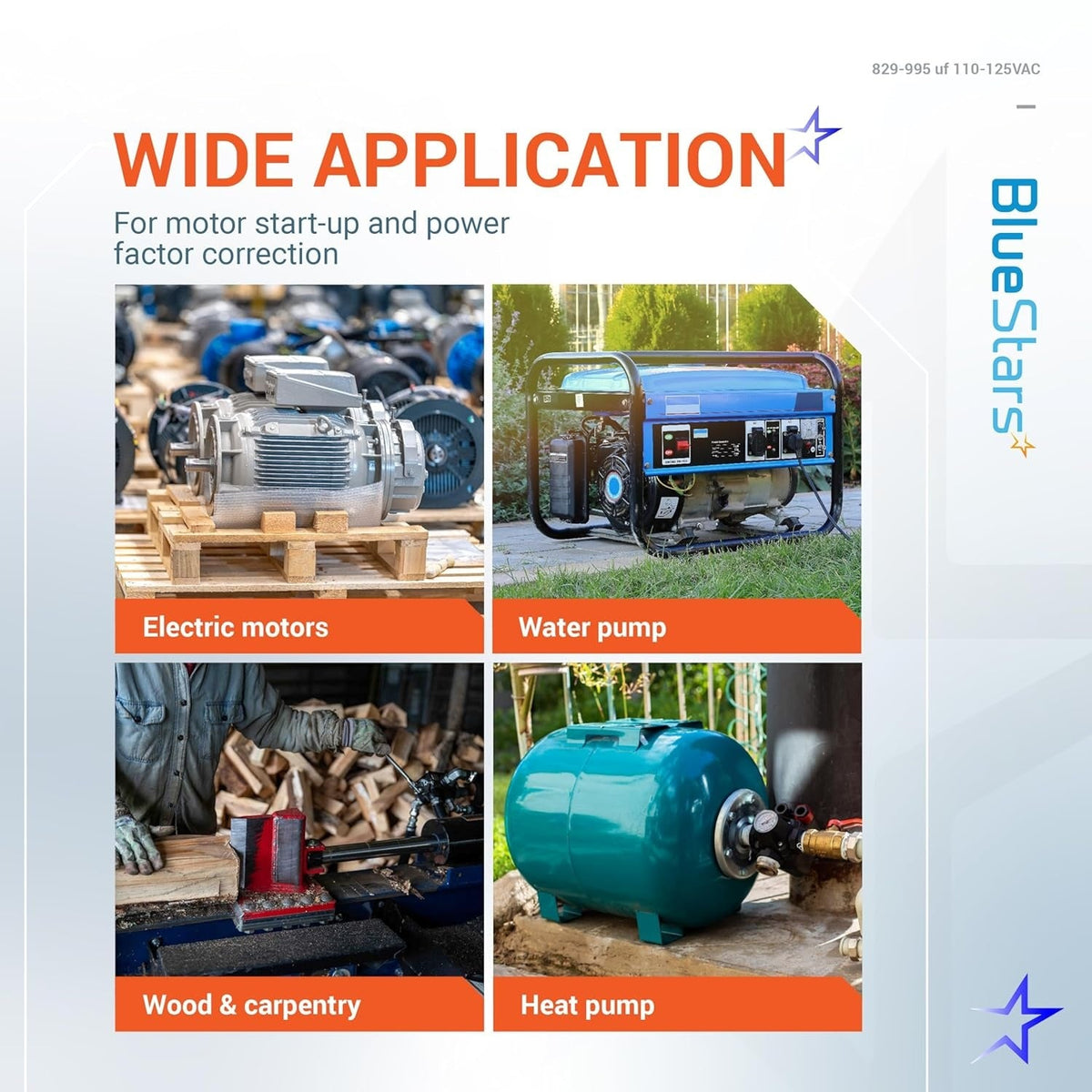

- Common applications include HVAC units, air compressors, well pumps, and various fan motors.

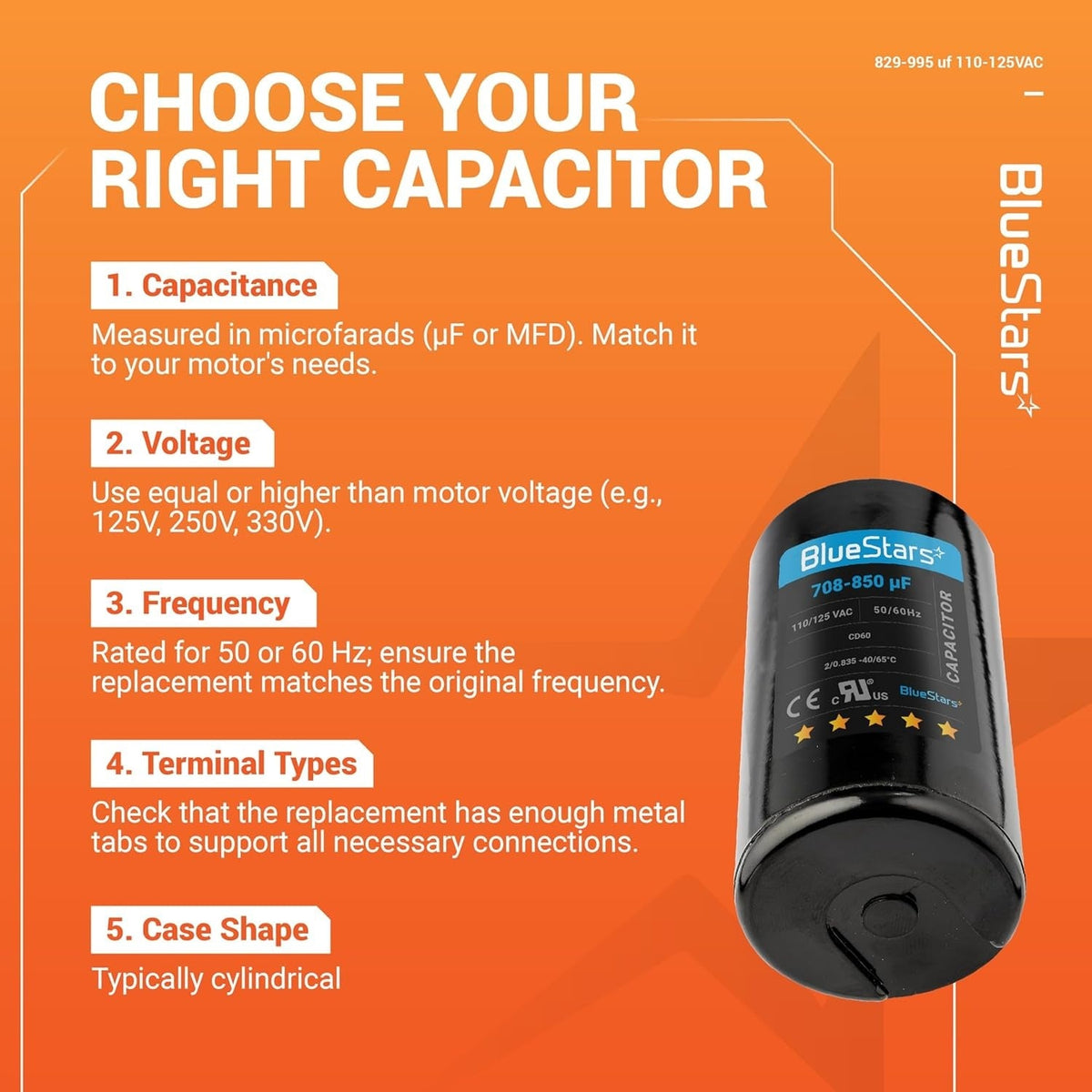

- Verify compatibility by matching the capacitance (µF/MFD) and voltage (VAC) ratings of the original capacitor.

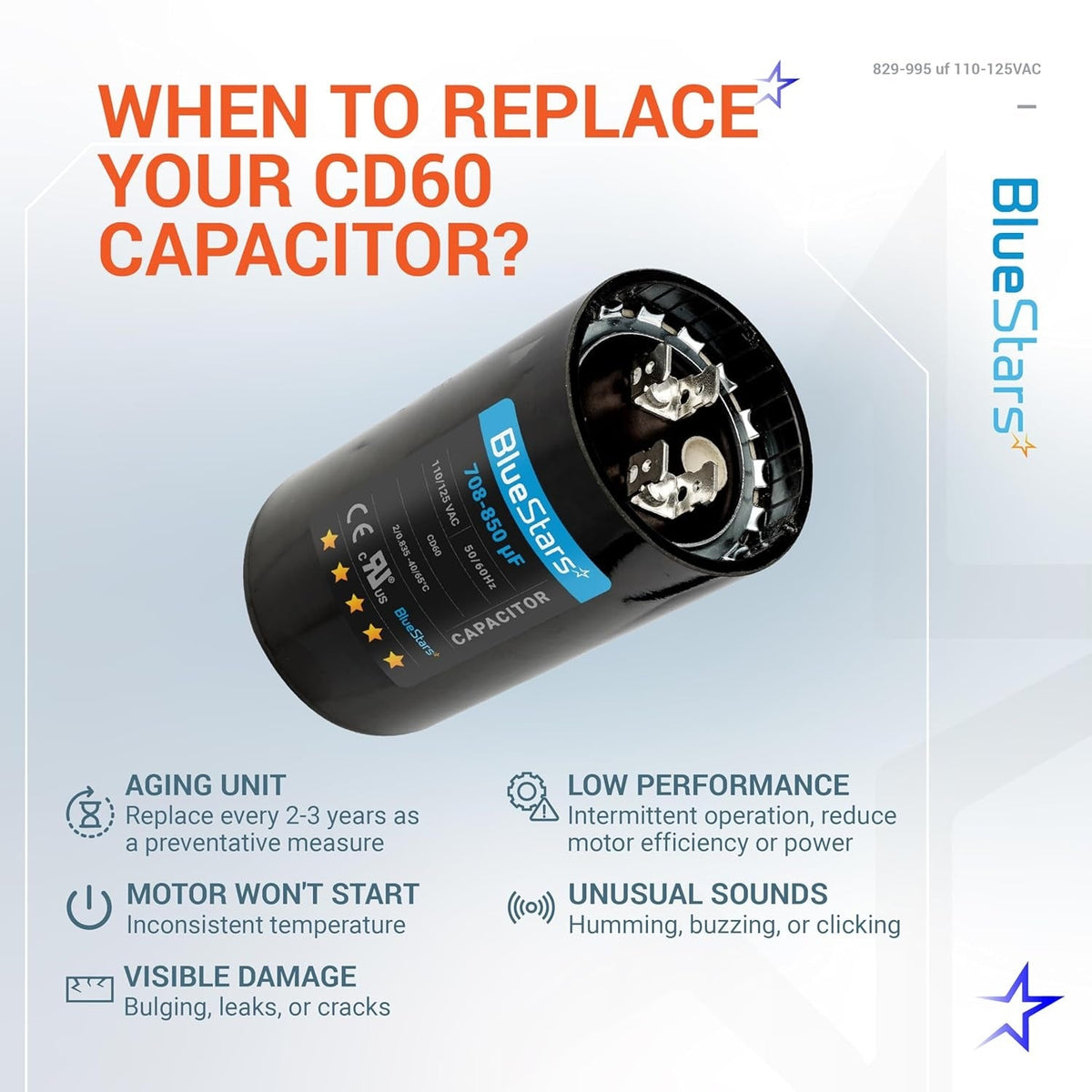

When to Replace
- Motor hums but fails to start.
- Slow or delayed motor startup.
- Circuit breaker trips when the motor attempts to start.
- Capacitor case is visibly bulged, cracked, or leaking fluid.
- Capacitance measurement is outside the component's rated tolerance.

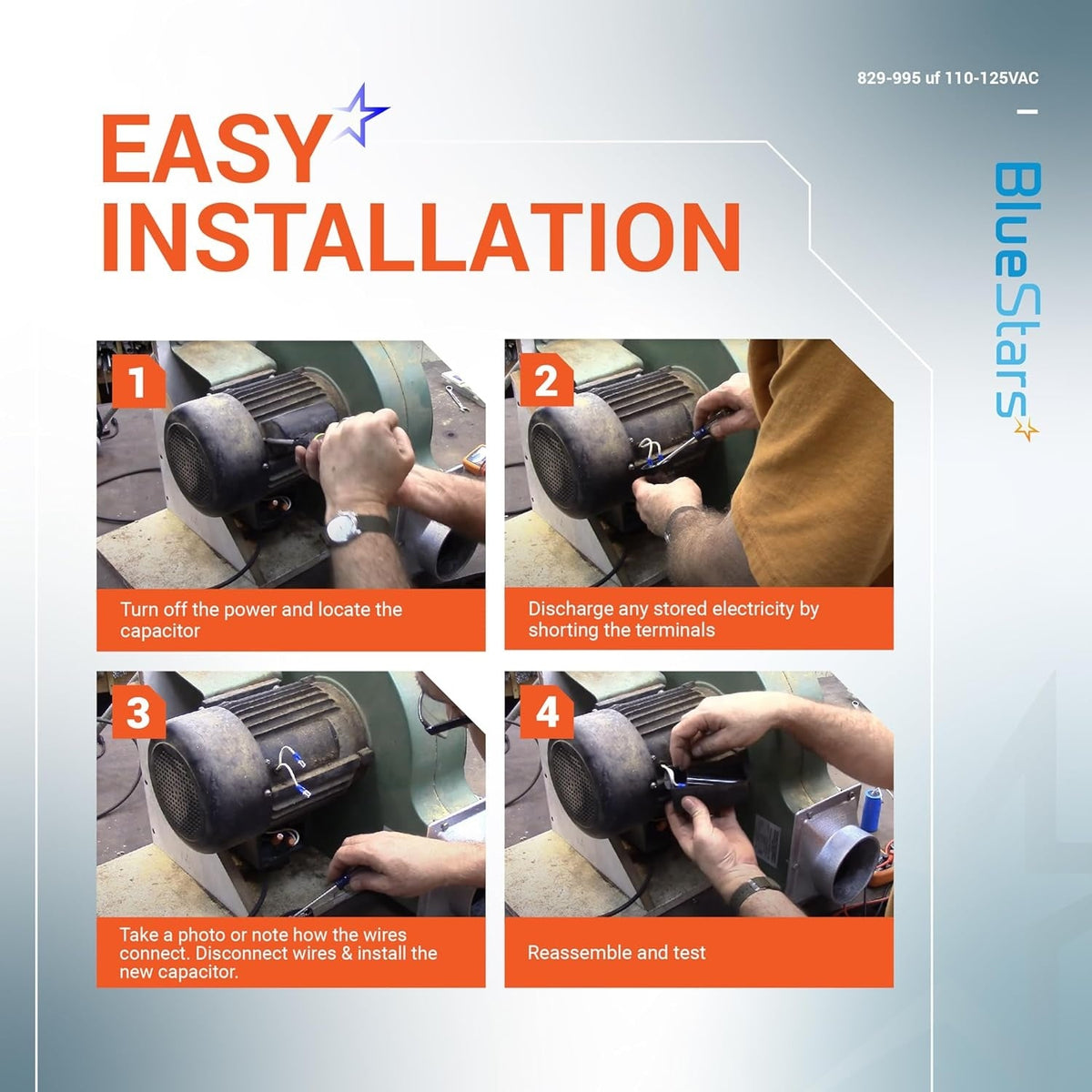

Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the old capacitor before handling to prevent electric shock.
- This is a non-polarized capacitor; wires can be connected to either terminal.
- Ensure the new capacitor's voltage rating is equal to or greater than the original.
- Ensure the new capacitor's microfarad (µF/MFD) rating is within ±10% of the original for optimal performance.
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 1](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_8.jpg?v=1786351176)
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 2](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_7.jpg?v=1786351176)
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 3](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_6.jpg?v=1786351176)
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 4](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_5.jpg?v=1786351176)
-
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 1](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_1.jpg?v=1786351176)
Perfect fit
Universal fit with any brands with the same ratings -
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 2](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_2.jpg?v=1786351176)

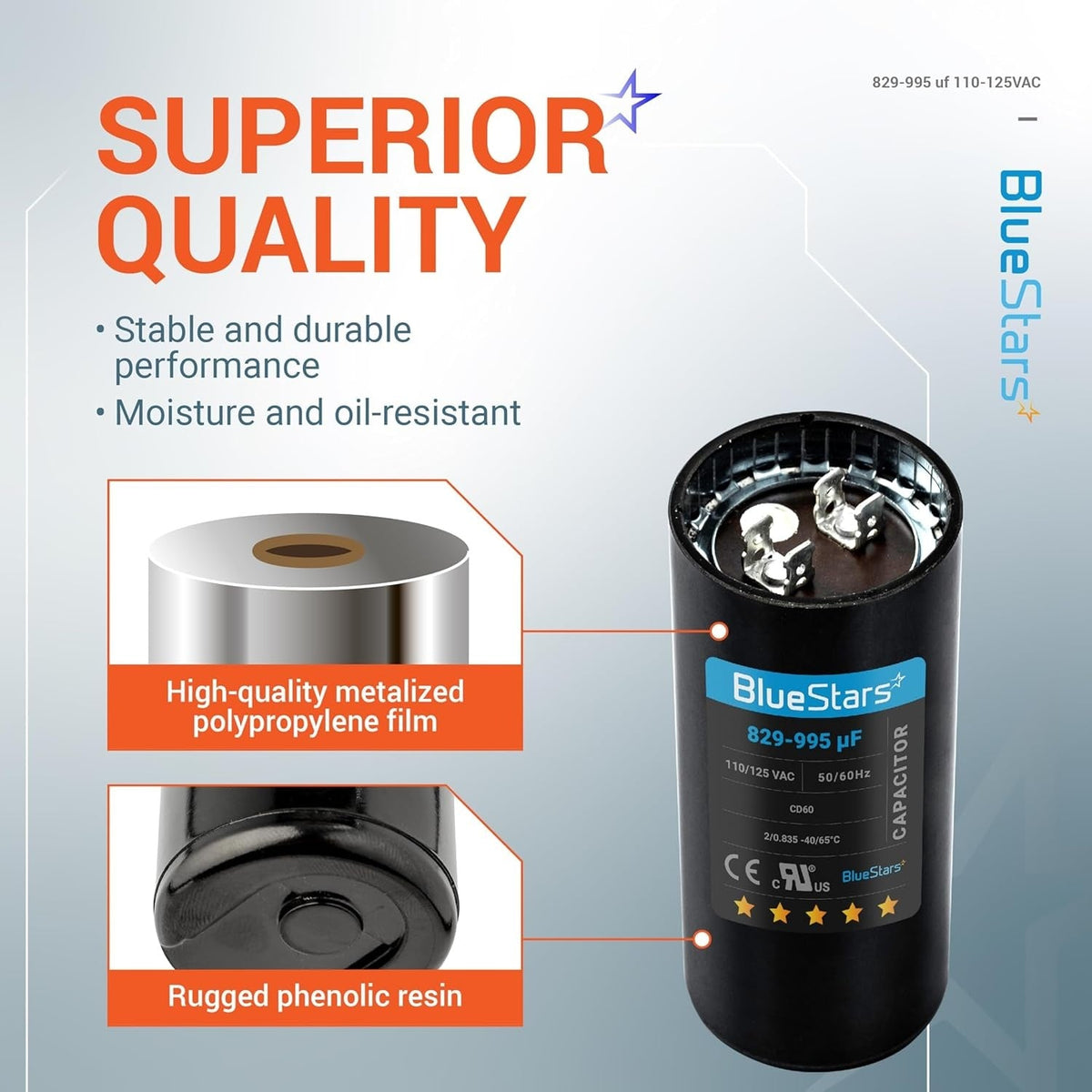

Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 3](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_3.jpg?v=1786351176)
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
![[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829 4](https://cdn.shopify.com/s/files/1/2576/7548/files/AZ00664013_aplus_4.jpg?v=1786351176)
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
