[Lifetime Warranty] 8194001 Dishwasher Door Balance Link Kit - Compatible with Kenmore Whirlpool KitchenAid Dishwashers - Replaces 1059756 8270018 AP3775412 PS972325

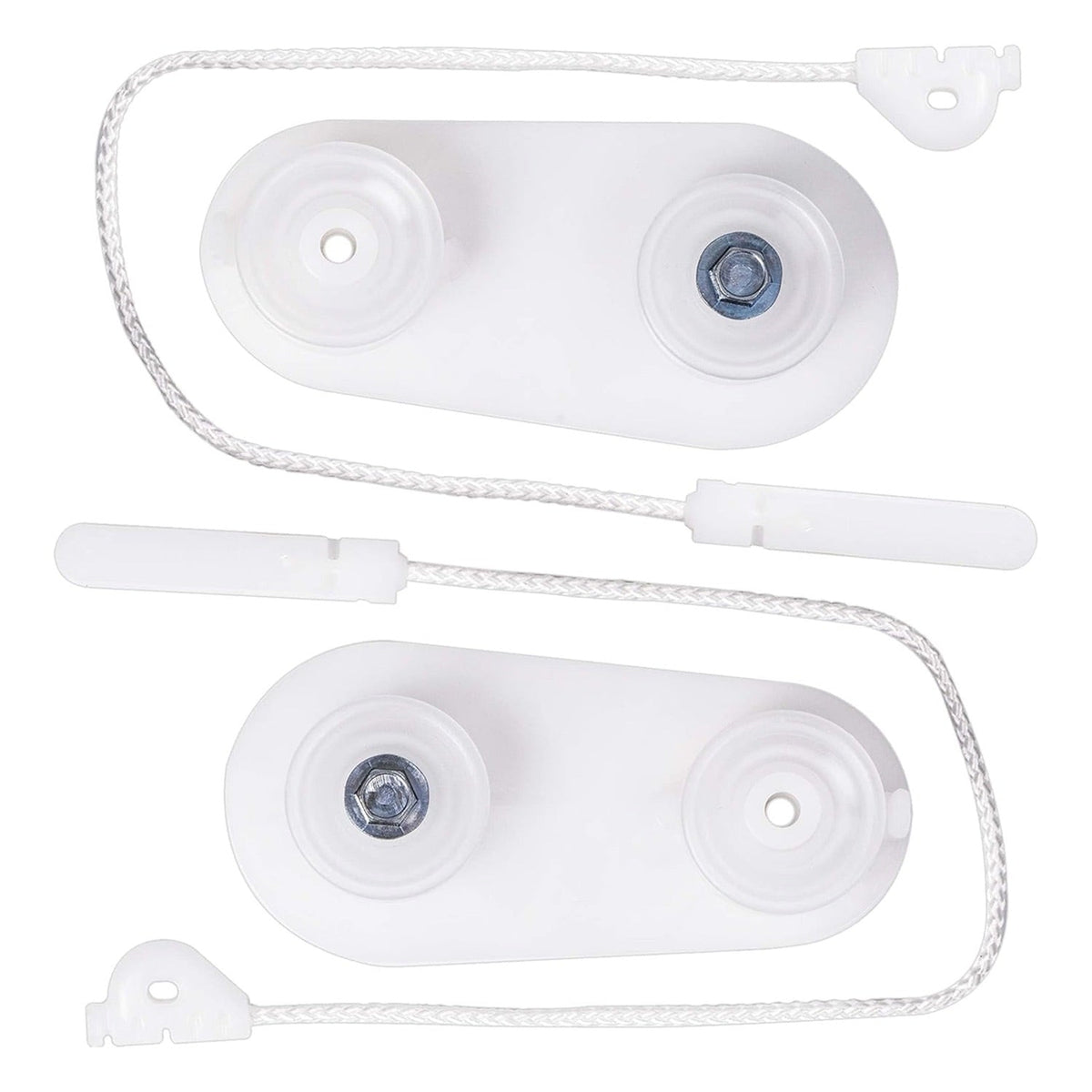

8194001 / 8194001VP Dishwasher Door Balance Link & Cable Kit

Key Features

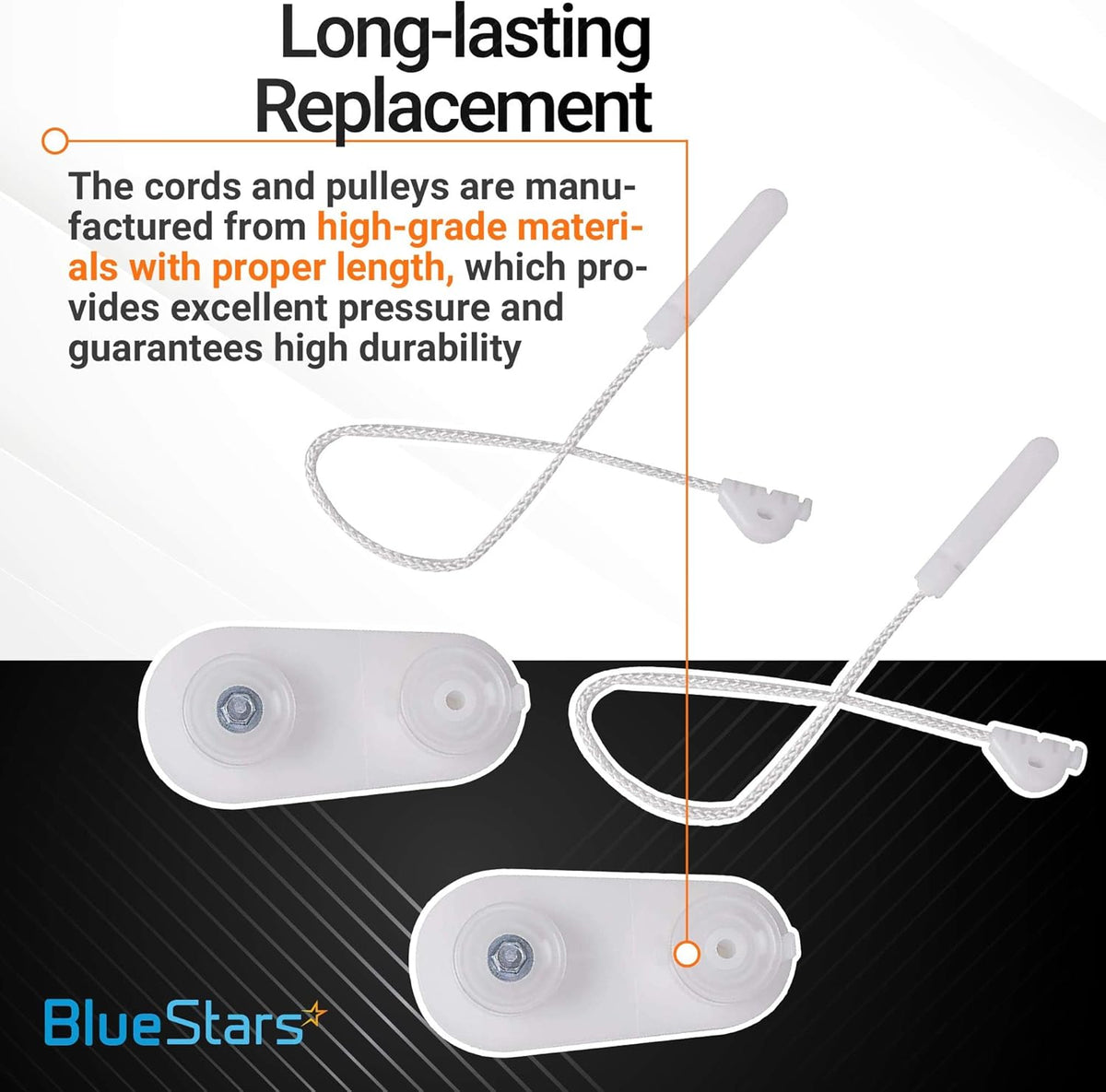

• High-Tensile Braided Core: Engineered with a reinforced braided cable designed to withstand the constant tension and repetitive cycling of heavy dishwasher doors without stretching or snapping.

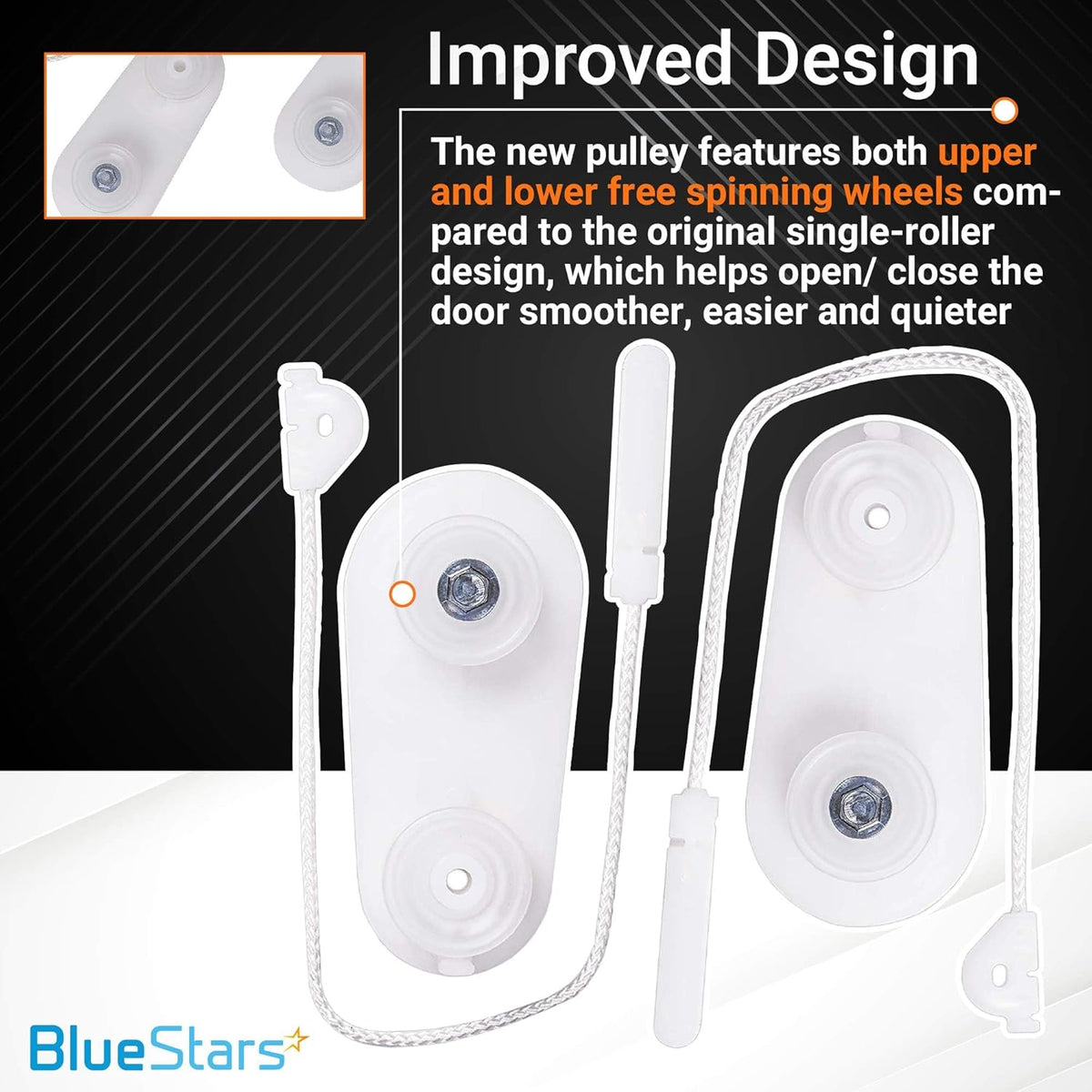

• Precision-Molded Polymer Ends: Features upgraded plastic mounting terminals that snap securely into the dishwasher door hinge and spring, providing a stable, low-friction connection for the balance system.
• Enhanced Door Safety: Specifically designed to counteract the weight of the dishwasher door, preventing it from "crashing" to the floor when unlatched and protecting the hinges from over-extension damage.
• Smooth-Glide Performance: The cable's surface is optimized to slide effortlessly over the frame's friction pads, ensuring a quiet, consistent, and "feather-light" feel when opening or closing the door.
• Complete 2-Piece Restoration: This kit provides both the left and right side cables, allowing for a simultaneous replacement to ensure perfectly balanced door tension across the entire cabinet.

Replaces / Cross-Reference Part Numbers

• Primary Part: 8194001, 8194001VP.
• Legacy Cross-Reference: 8270018.
• Industry Standards: AP3775412, PS972325.

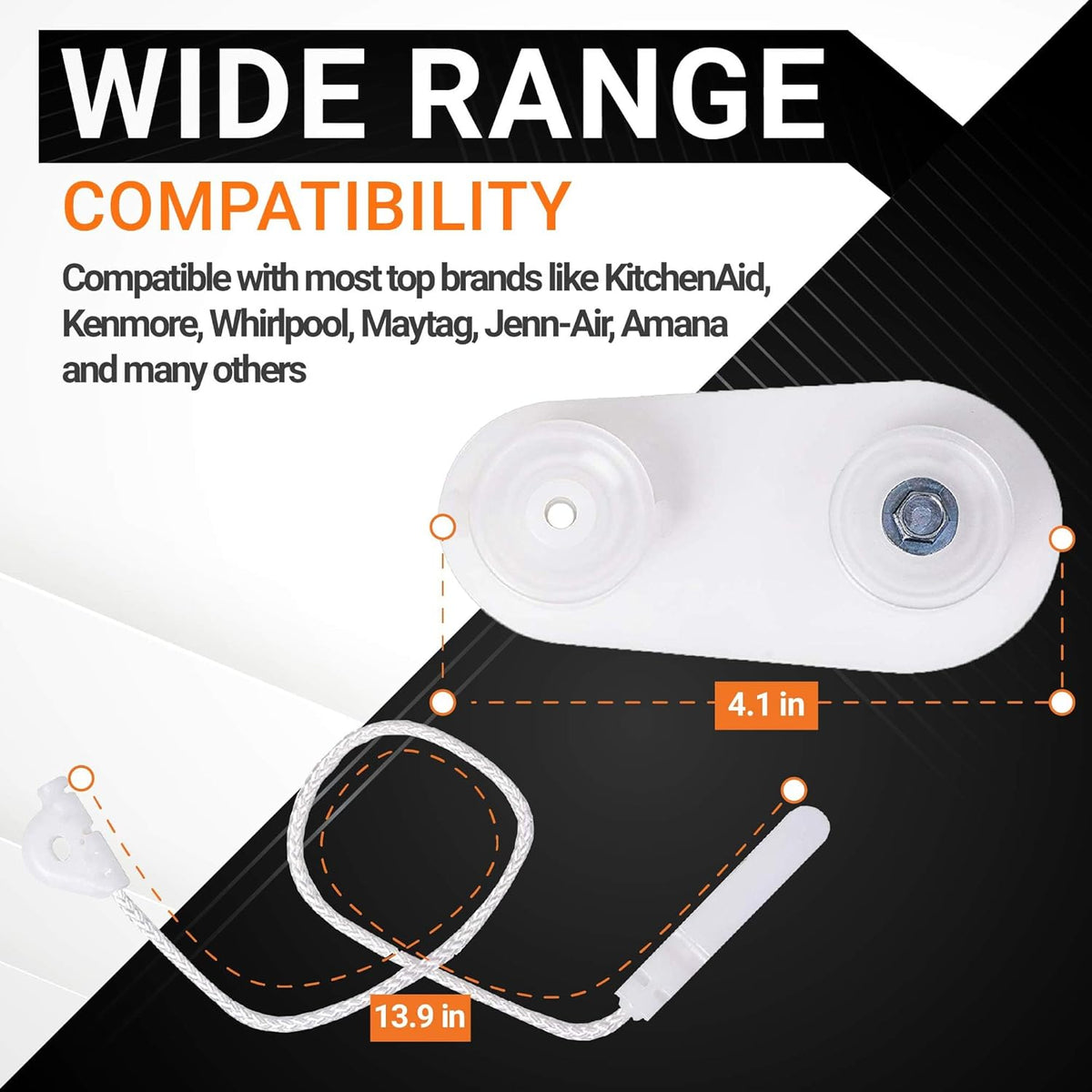

Compatibility & Fitment

This balance link kit is the standard replacement for most Whirlpool-manufactured tall-tub dishwashers. Key compatible brands include:

• Whirlpool & Maytag: Fits hundreds of WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ).
• Kenmore (665 Series): Compatible with dozens of 665-prefix "Elite" and standard dishwashers (e.g., 665.13263K311, 665.1573291).
• KitchenAid & Jenn-Air: Fits various KDTM, KDTE, and JDT series units (e.g., KDTE104ESS, KUDC10FXSS).
• Amana, Roper, & Estate: Direct fit for ADB and DU series models utilizing the 8194001 cable style.
• Note: These cables are located on the **lower sides of the dishwasher tub**, connecting the door hinges to the heavy-duty balance springs at the rear.

When to Replace

• Door Falling Open: The door lacks any resistance and drops heavily to the floor when unlatched, usually because one or both cables have snapped.
• Loud Snapping Noise: A sudden "bang" or "pop" heard while opening the door, indicating a cable or a plastic mounting end has failed under tension.
• Visible Fraying: Upon inspection, the braided cable looks shredded or has loose strands, which will eventually lead to a complete break.
• Uneven Door Movement: The door feels "crooked" or pulls to one side during opening, suggesting one cable is stretched or a plastic end is cracked.
• Squeaking or Grinding: The plastic ends have worn down or the cable is rubbing against the metal frame because the friction pads are missing.

Installation Tips

• Safety First: You MUST unplug the dishwasher or turn off the circuit breaker. This repair requires pulling the dishwasher 6-10 inches out from the cabinet to access the side frame and springs.
• Tape the Door: Before pulling the unit out, use painter's tape to secure the dishwasher door shut. If a cable is broken, the door may swing open unexpectedly when the unit is moved.
• Replace Both Sides: Even if only one cable is broken, always replace both. The remaining old cable has been under the same stress and will likely fail shortly after the first.
• Check the Friction Pads: While the dishwasher is pulled out, inspect your **8268961 Friction Sleeves**. If the plastic pads on the frame are worn or missing, they will quickly shred your new cables.
• Spring Tension: Be careful when attaching the cable to the spring. Use pliers if necessary, but ensure the plastic hook is fully seated in the spring loop before releasing the tension.
