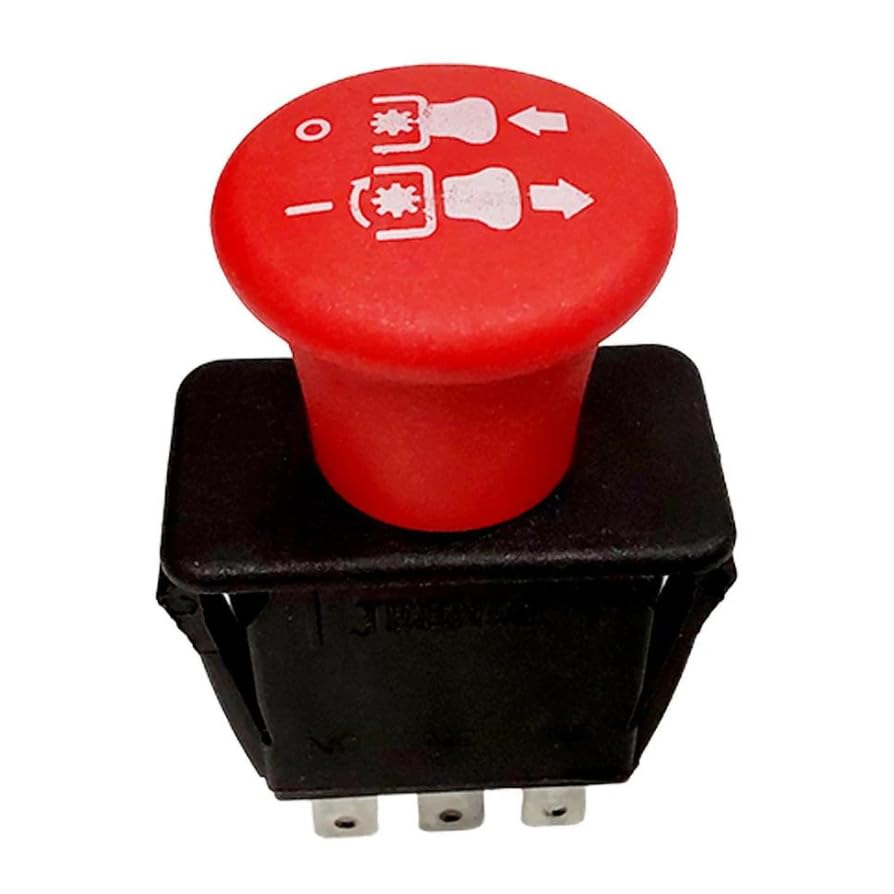

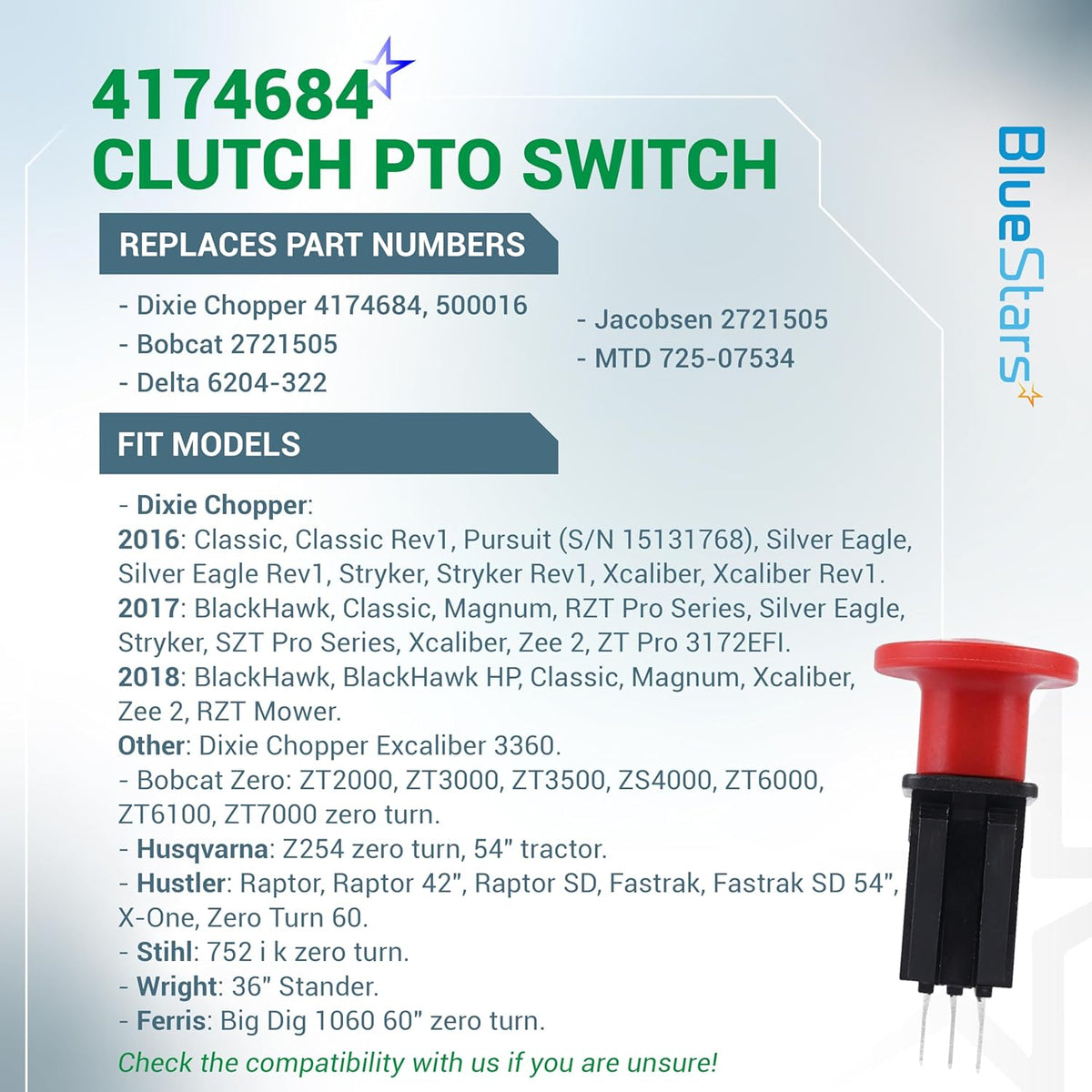

4174684 500016 Clutch PTO Switch (8 Terminal 10A) - Fits Dixie Chopper Delta Hustler Lawn Mowers Classic RZT Pro
0.00
Regular price
$15.59
Regular price
Save 11%
$17.46
Sale price
$15.59
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
4174684 / 500016 PTO Clutch Switch (8 Terminals 10 Amps)

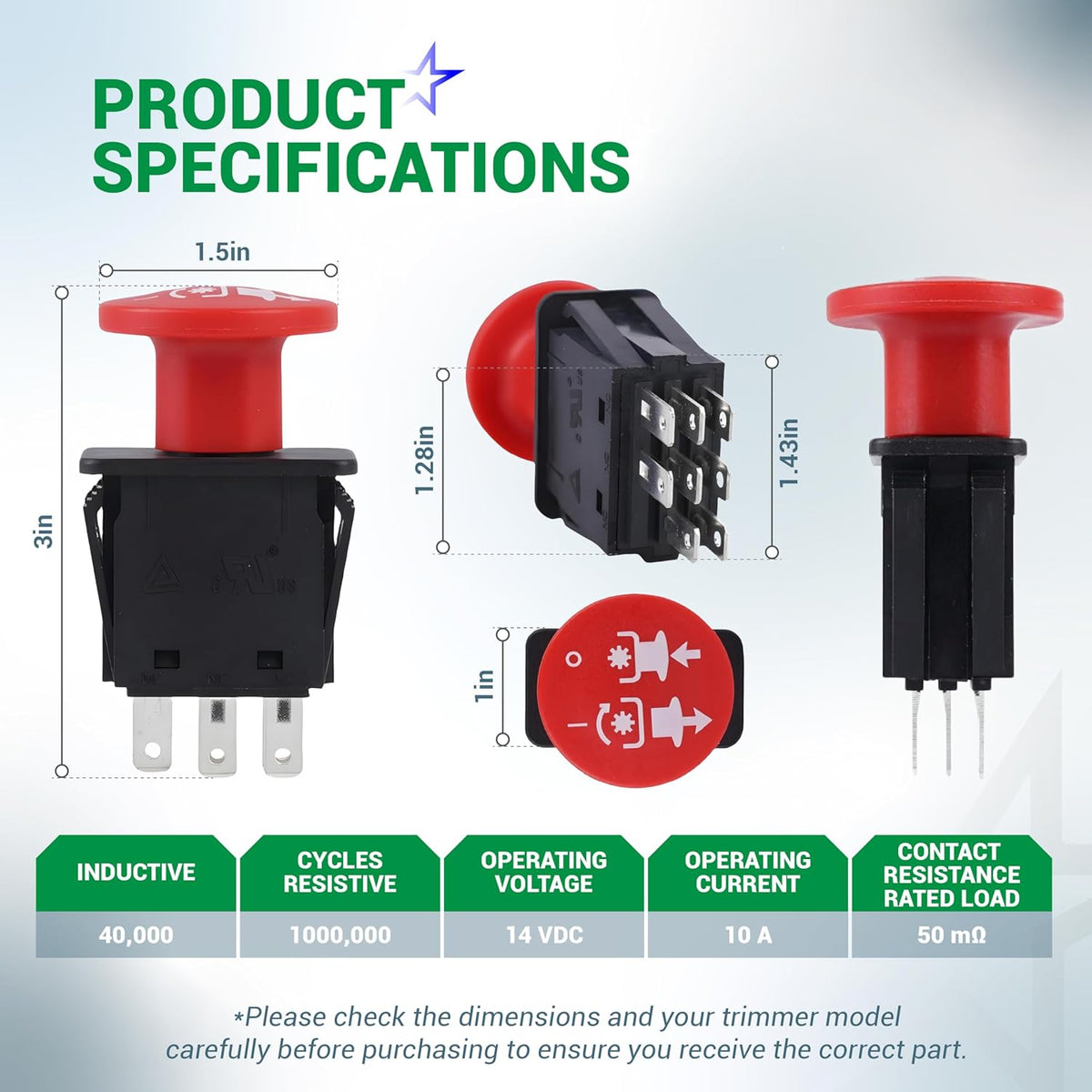

Key Features

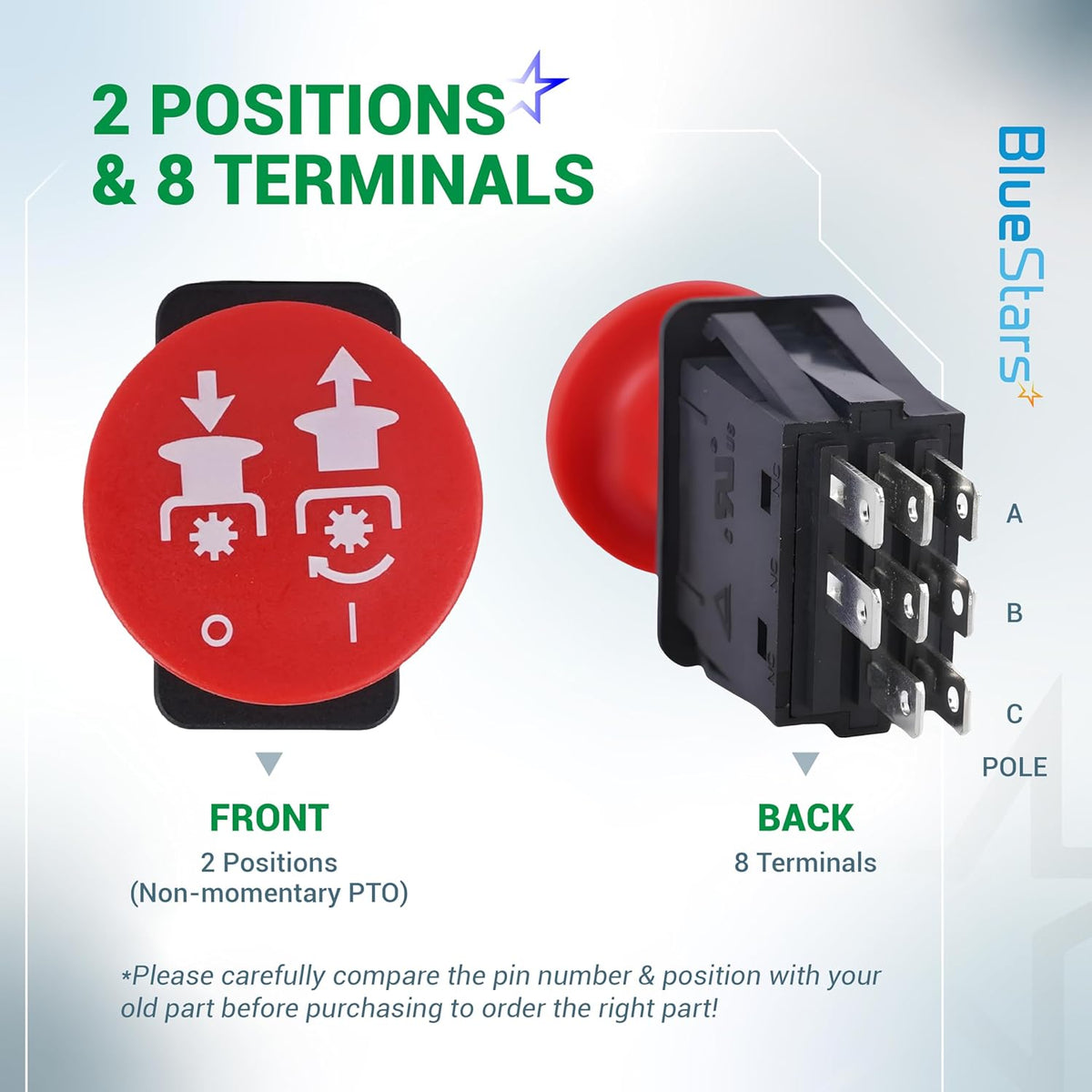

- Two-position switch design
- Eight-terminal configuration

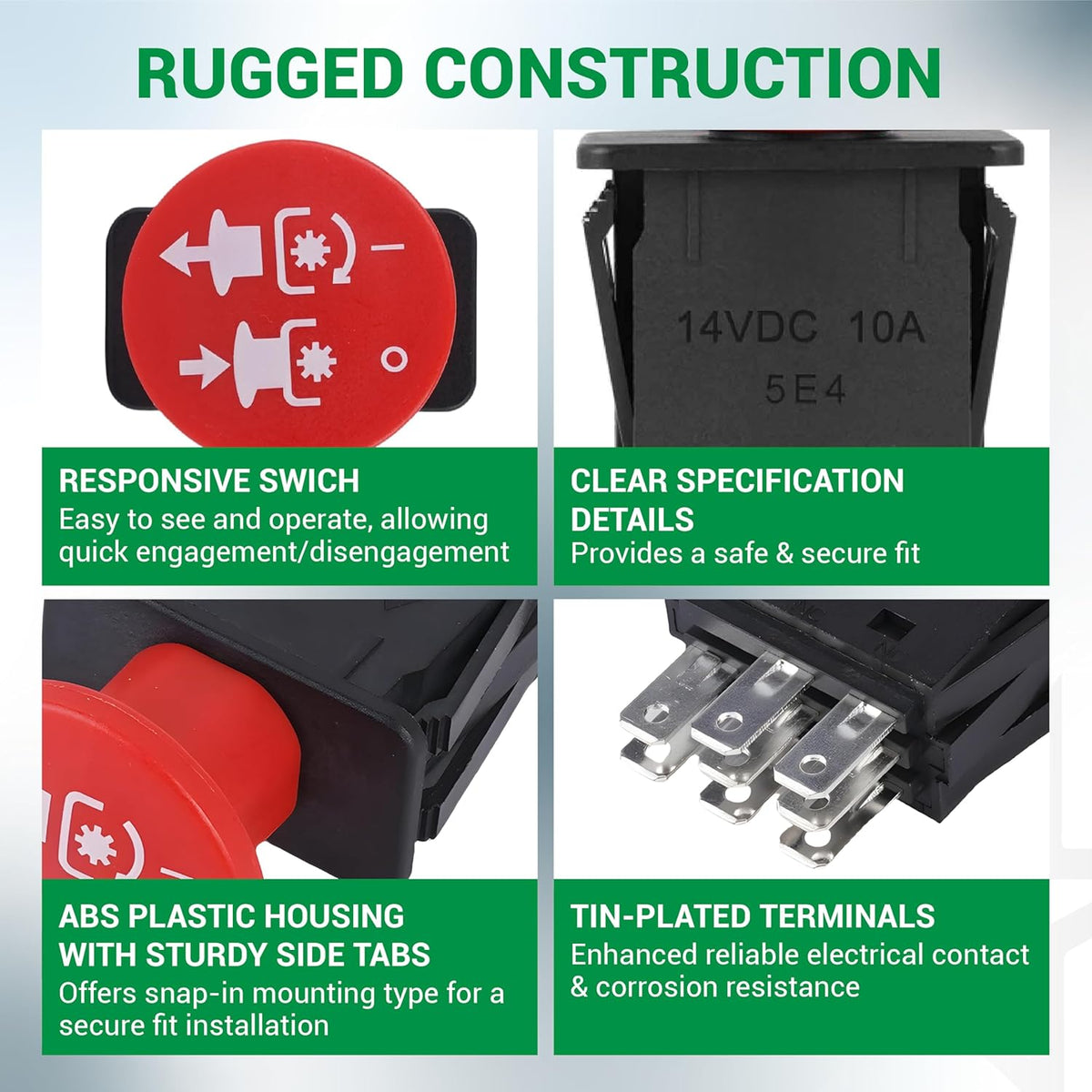

- Rated for 14VDC at 10 Amps
- Snap-mount design for secure installation
- Red knob finish
Replaces / Cross-Reference Part Numbers
- 4174684
- 500016
- 430-528
- 2721505
- 6204-322
- 725-07534
- 110-9657A
Compatibility & Fitment
- Compatible with Dixie Chopper models including Classic, RZT, Pro Series, SZT, and Zee 2
- Suitable for various lawn mowers utilizing Delta Series 6204/6201 switches
- Compatible with select units from Hustler, Husqvarna, Craftsman, Cub Cadet, Exmark, Ferris, and Bobcat
When to Replace
- Engine fails to engage the cutting deck
- Intermittent blade operation during use
- Switch knob feels loose, stuck, or unresponsive
- Visible damage to the housing or electrical terminals
- Visible electrical burns or melting at the terminal connection points

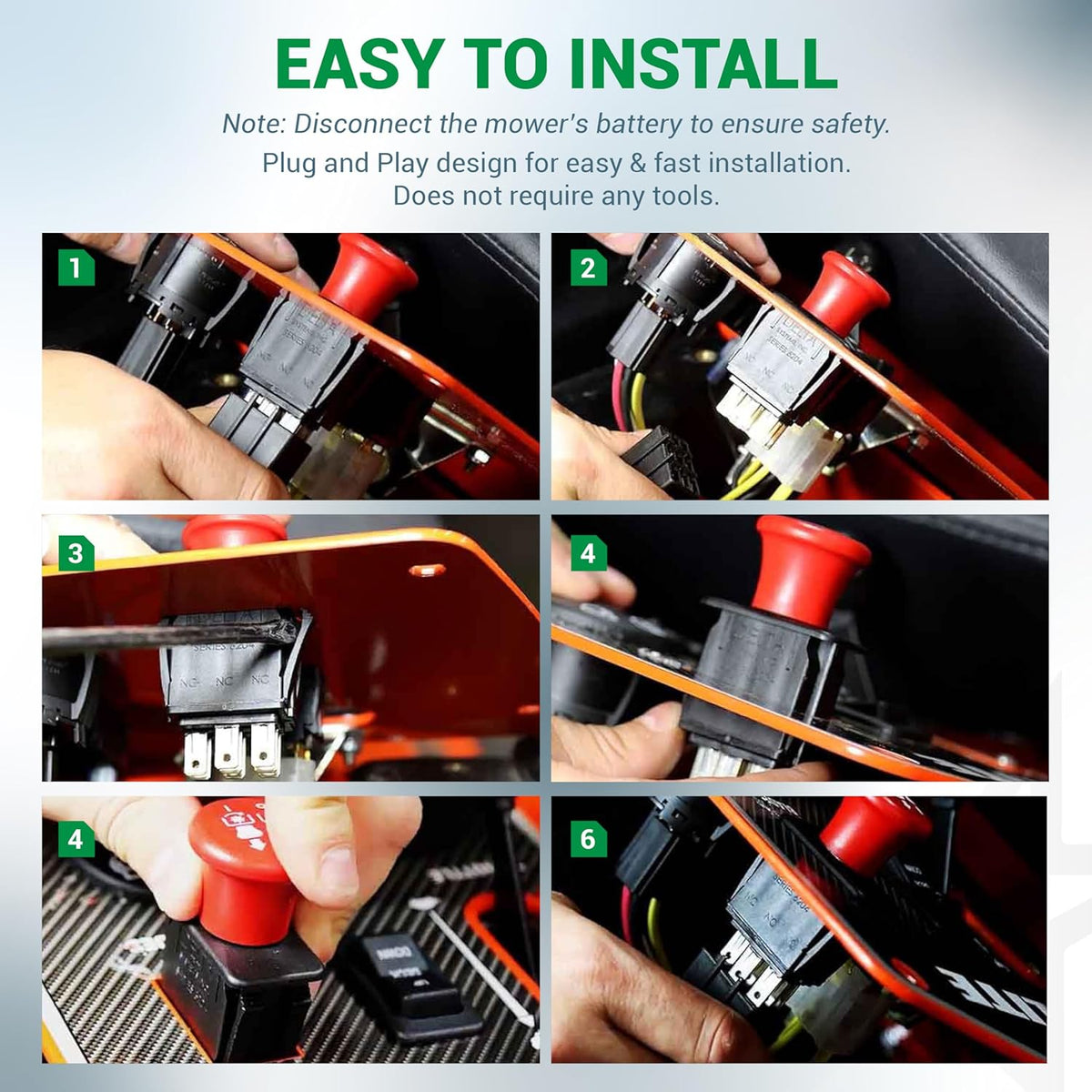

Installation Tips
- Disconnect the negative battery cable before performing any electrical work
- Take a photograph of the current wire harness orientation before removing the old switch to ensure correct reconnection
- Ensure the snap-mount tabs are fully seated in the mounting hole to prevent vibration-induced movement
- Verify that the wire harness connector is free of debris or corrosion before attaching it to the new switch
- Test the blade engagement function at low engine RPM immediately after installation
