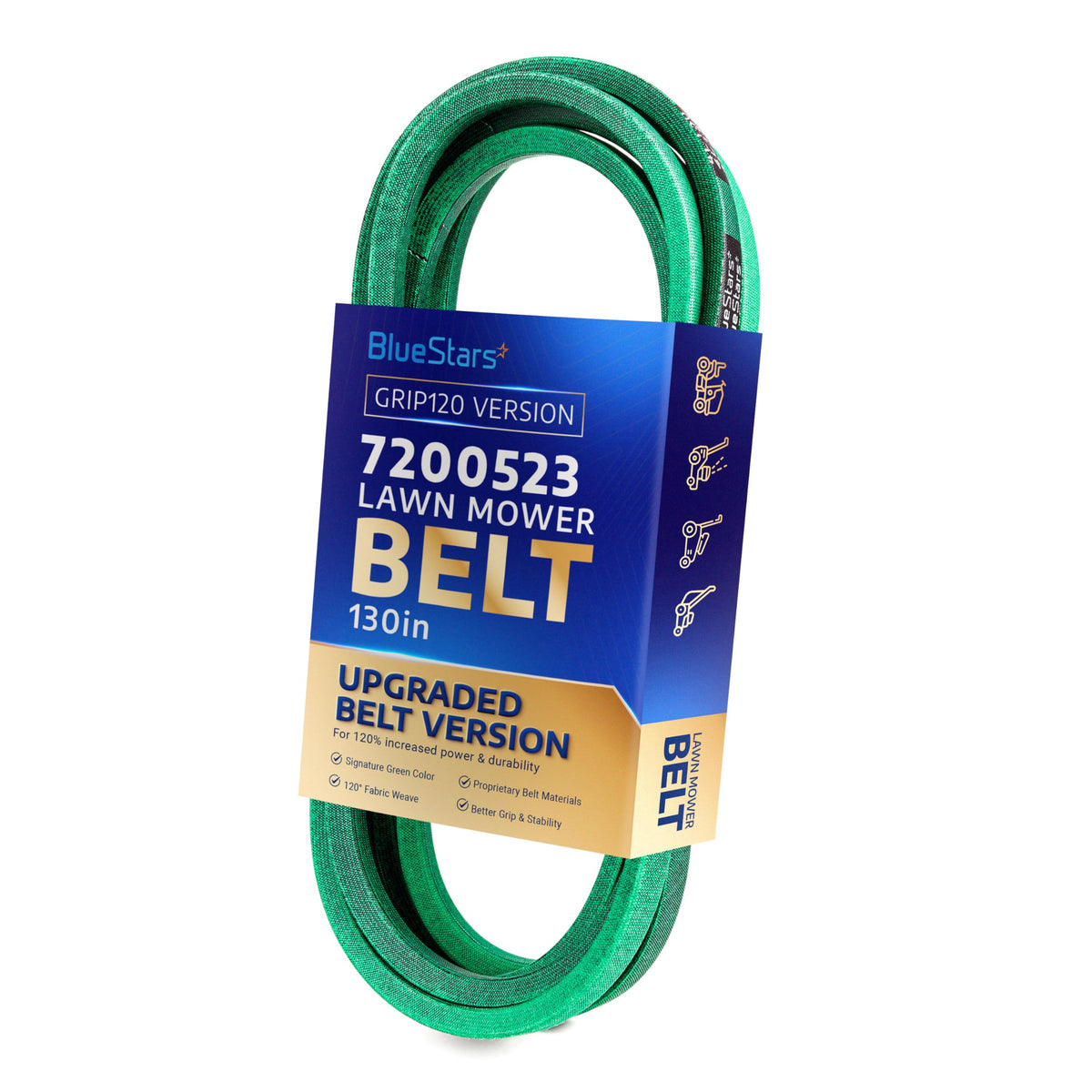

[Grip120] 7200523 Deck Belt for 42" Ariens 07200523 Ikon-X Ikon XD XL, 42" Gravely ZT42 ZTX42 ZTXL42 Lawn Mower - Replaces 93-3884 - 130" x 1/2"
0.00
Regular price
$25.19
Regular price
Save 11%
$28.21
Sale price
$25.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy

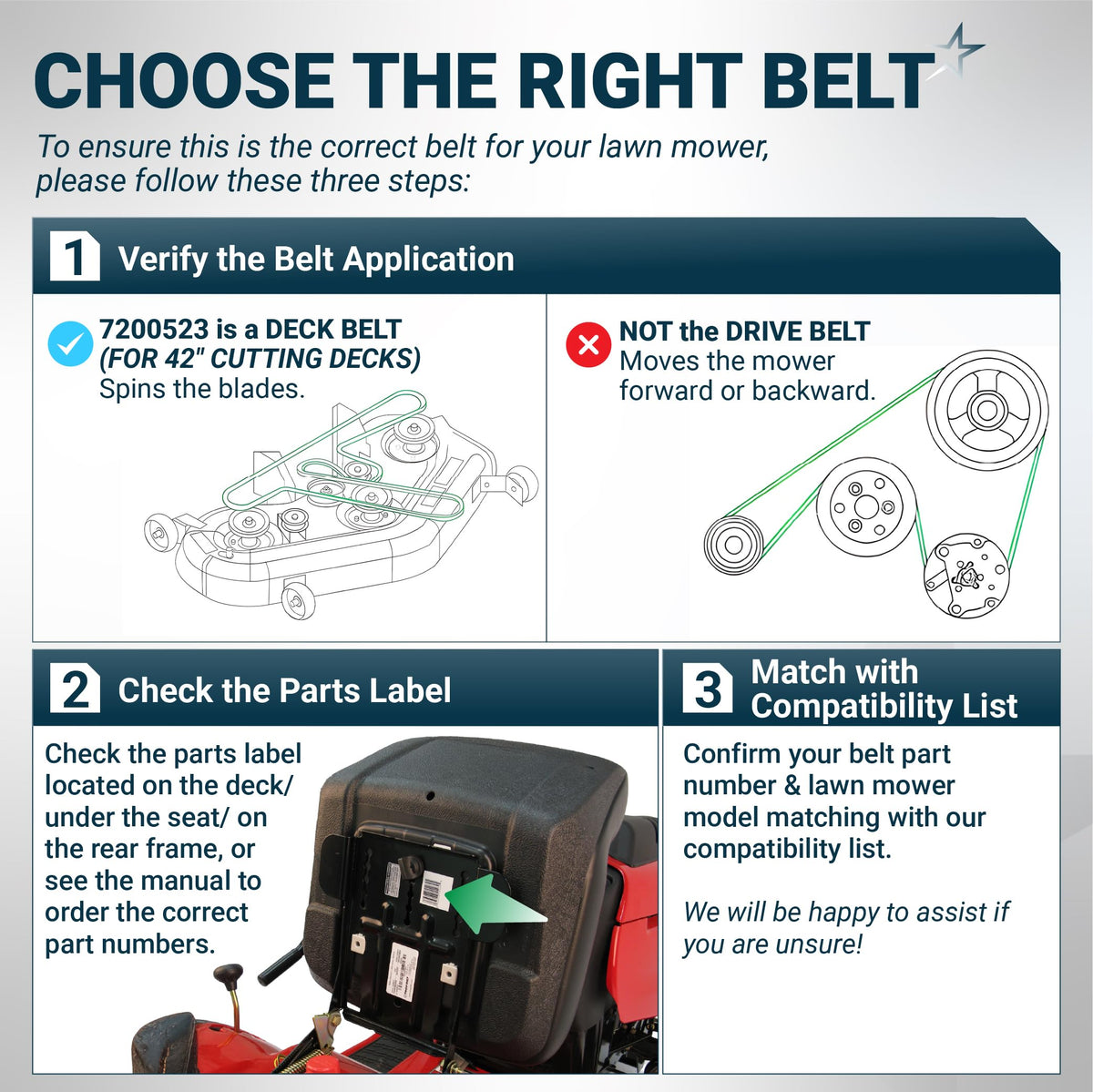

CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
7200523 Deck Belt (130" x 1/2")
Key Features

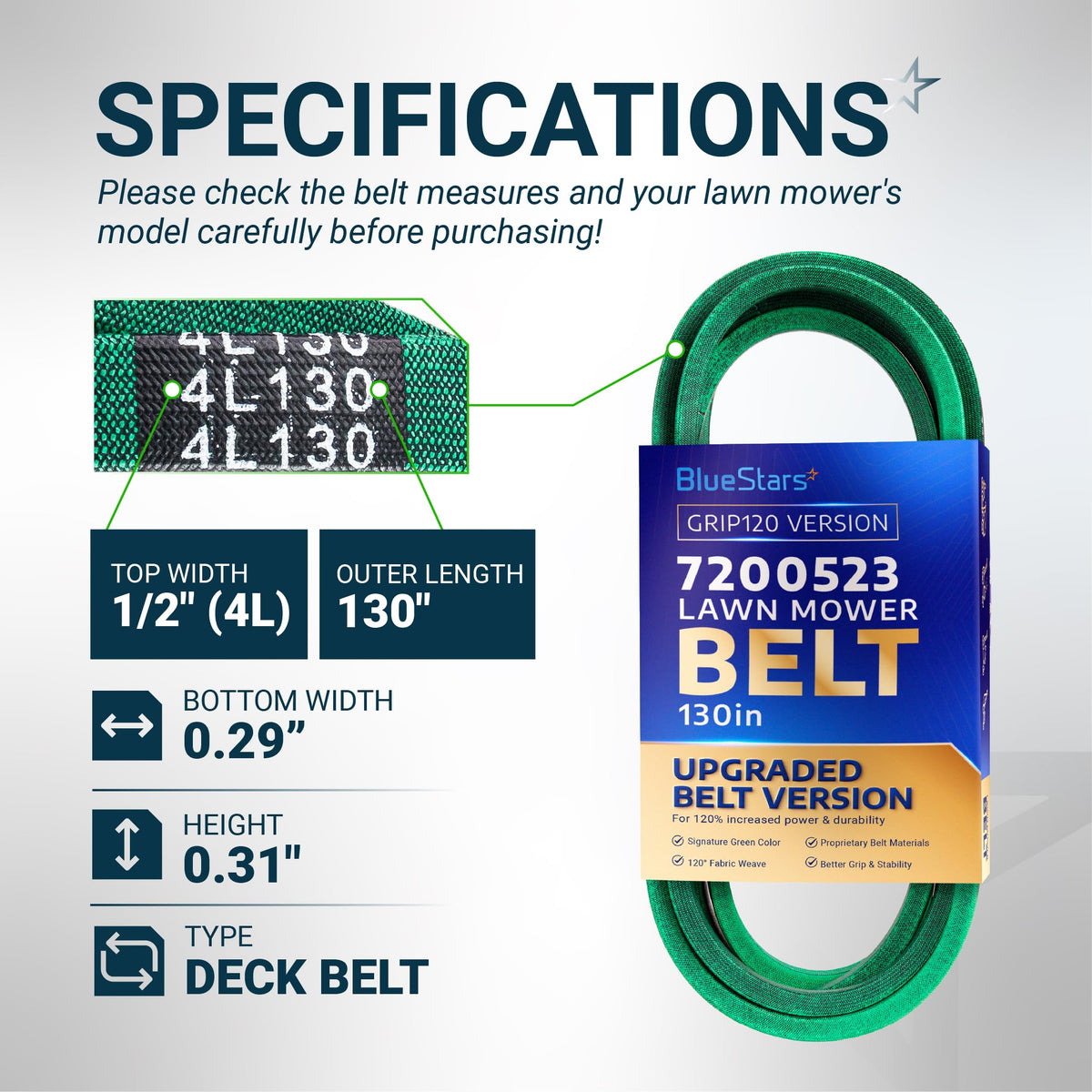

- Dimensions: 1/2" width x 130" effective length.

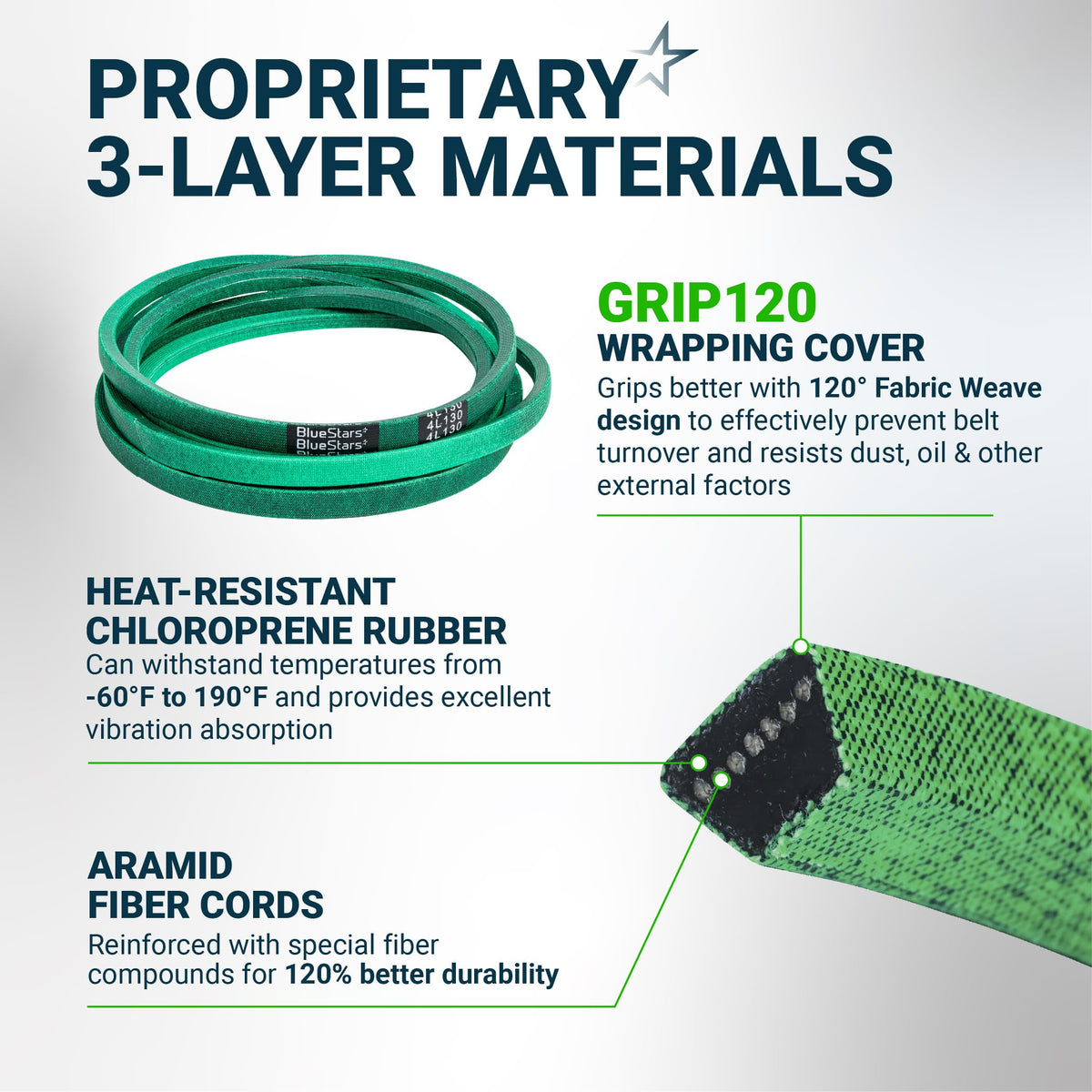

- Constructed with high-strength synthetic cord reinforcement for enhanced durability under high-torque conditions.
- Oil and heat-resistant outer cover to minimize friction and wear.
- Designed to maintain consistent tension and prevent slippage during mower deck engagement.

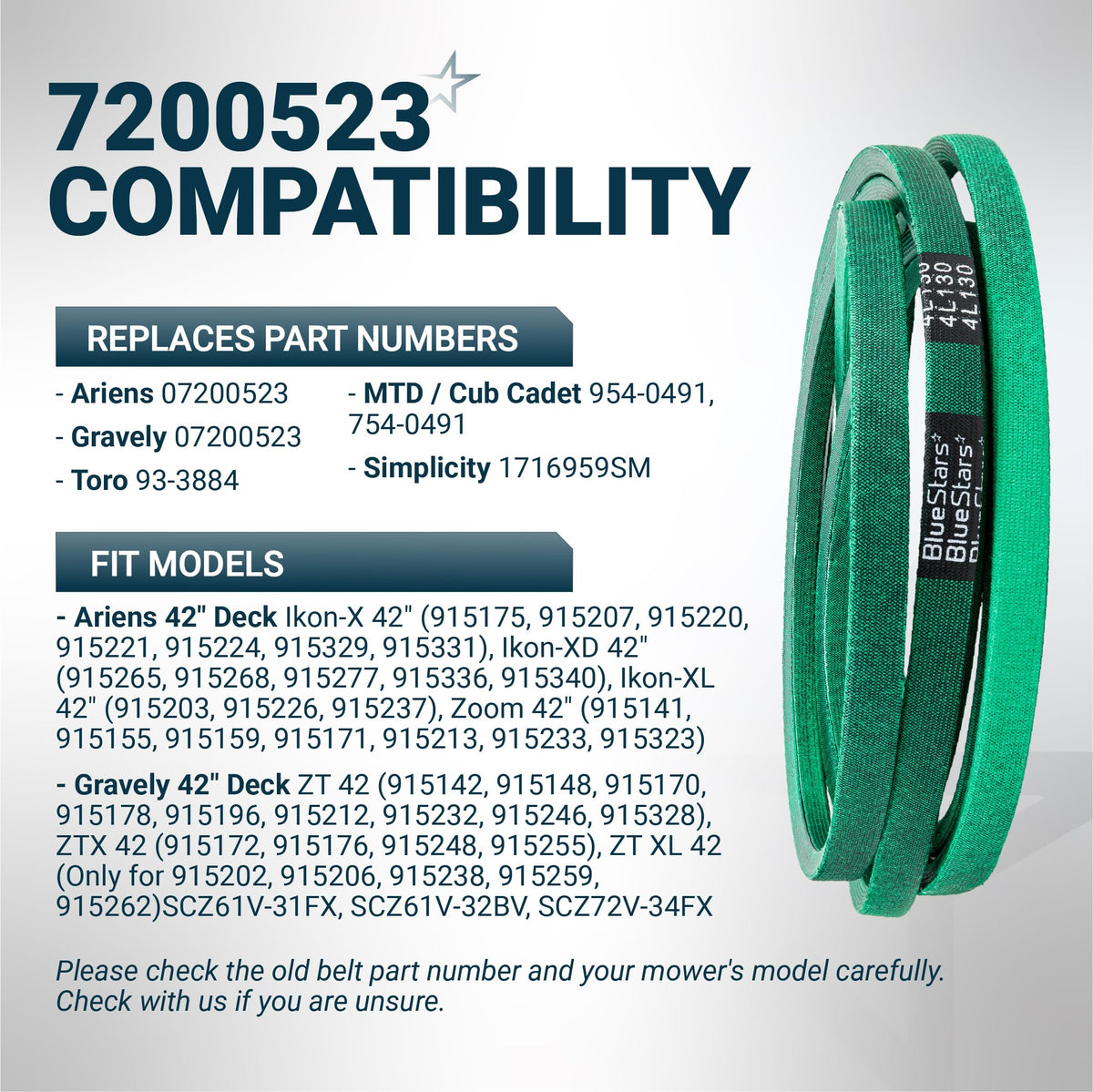

Replaces / Cross-Reference Part Numbers
- Ariens: 07200523, 7200523
- Gravely: 07200523, 7200523
- Toro: 93-3884
Compatibility & Fitment
- Ariens: Ikon-X 42", Ikon XD 42", Ikon XL 42"
- Gravely: ZT42, ZTX42, ZTXL42
When to Replace
- Visible signs of fraying, cracking, or splitting along the belt edges.
- Noticeable stretching that prevents the deck from engaging properly or causes excessive vibration.
- Glazed or hardened underside, which leads to slippage and burning odors.
- Missing chunks of rubber or damaged cord fibers.
Installation Tips
- Ensure the engine is off and the ignition key is removed before beginning service.
- Engage the parking brake to prevent mower movement during installation.
- Consult your owner's manual to follow the correct belt routing path through the idler pulleys and deck spindles.
- Relieve tension on the spring-loaded idler pulley to facilitate removal of the old belt and placement of the new one.
- Verify that the belt is properly seated in the grooves of all pulleys before re-engaging the mower deck.
