708-850 uF MFD 110-125 VAC 50/60 Hz Round Start Capacitor - Universal Fits Air Conditioner, Electric Motors
0.00
Regular price
$16.19
Regular price
Save 11%
$18.13
Sale price
$16.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

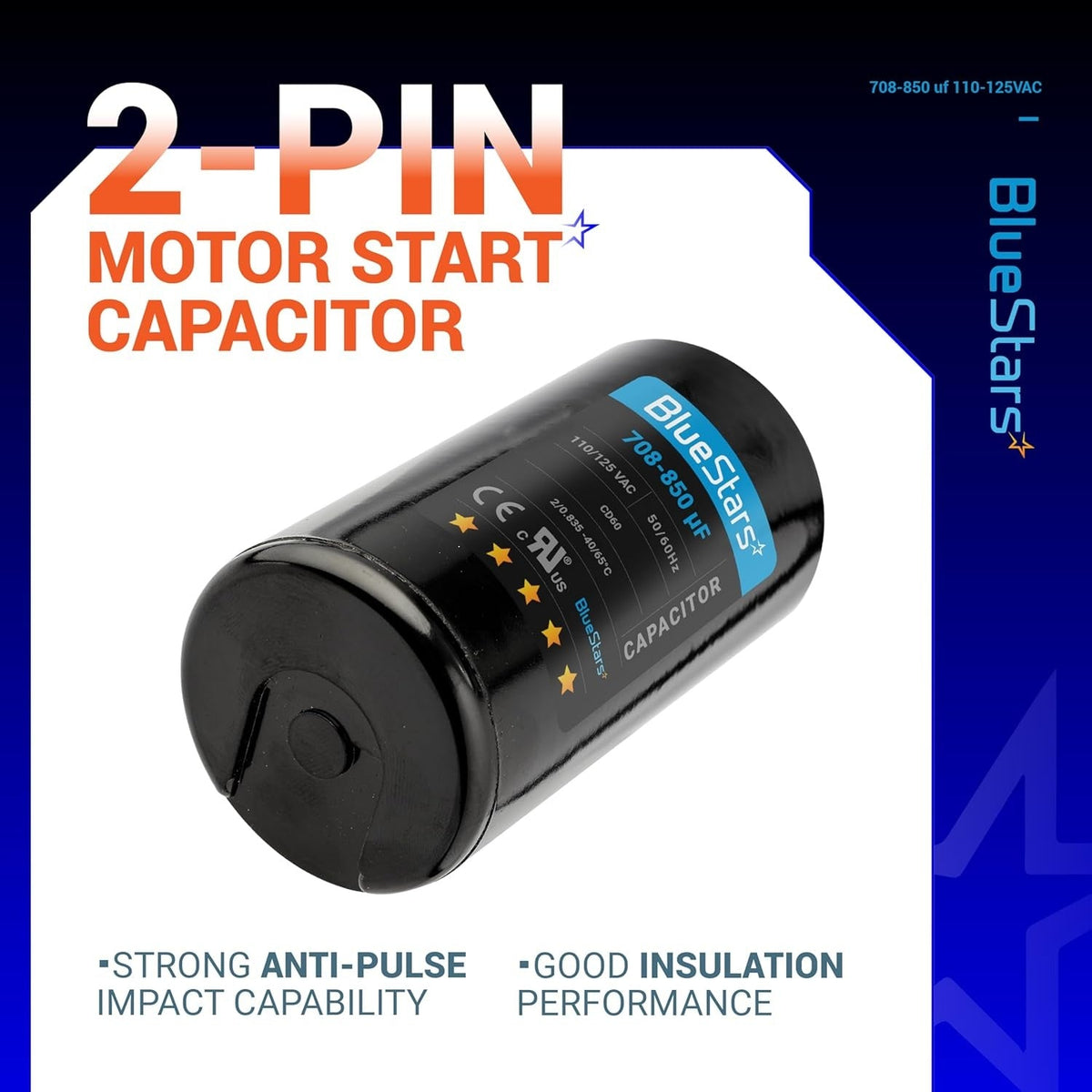

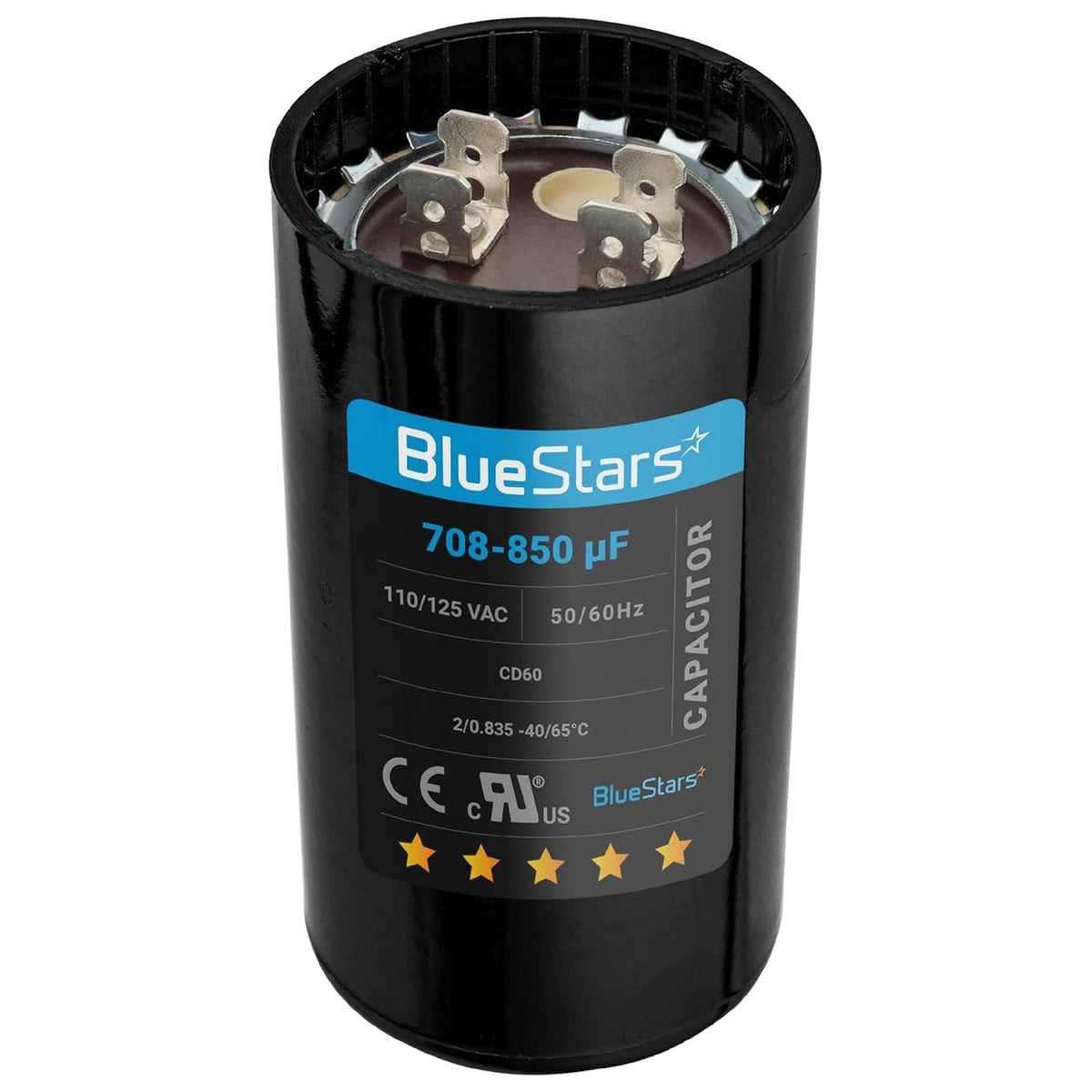

708-850 uF/MFD 110-125 VAC Round Start Capacitor

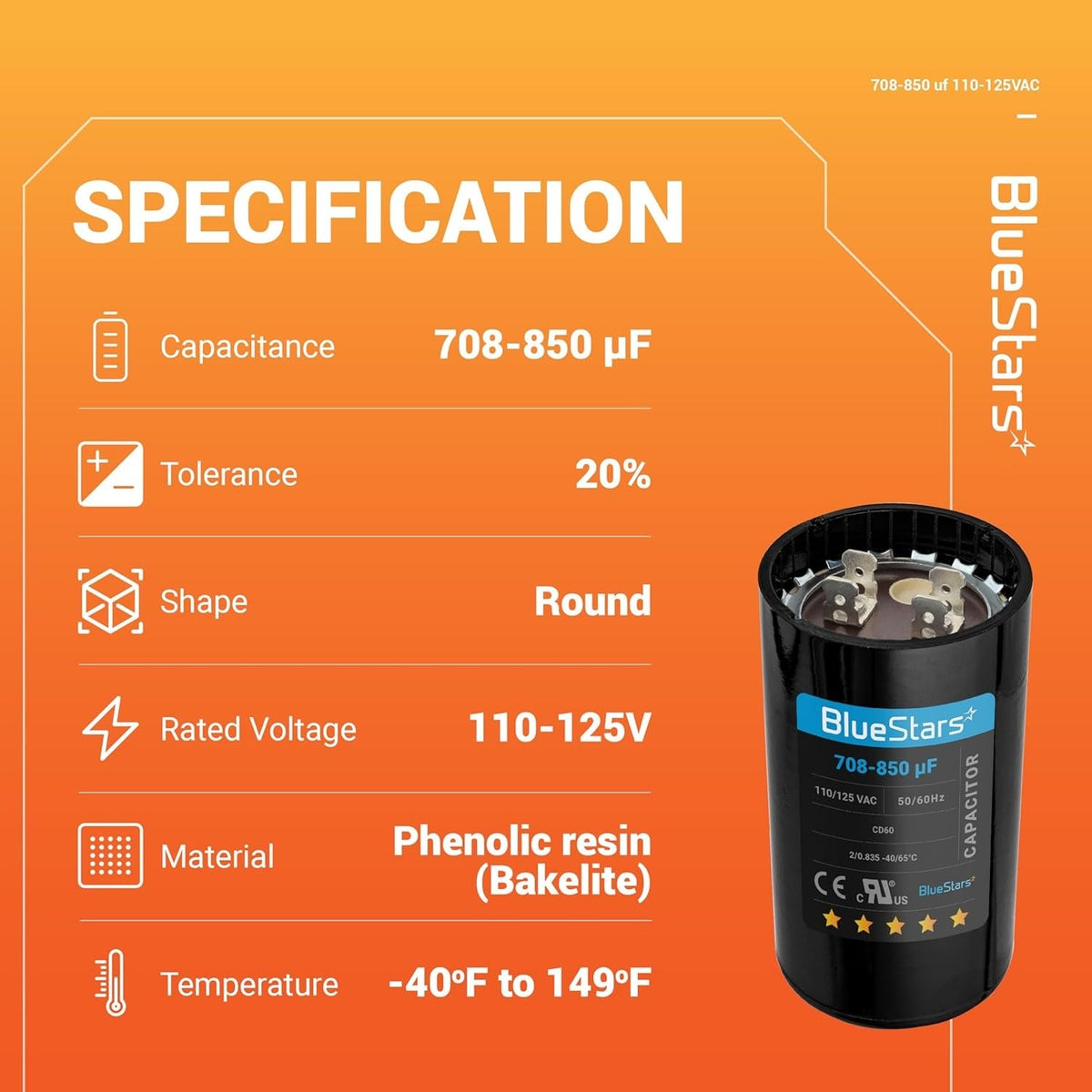

Key Features
- Capacitance: 708-850 microfarads (uF/MFD)
- Voltage Rating: 110-125 Volts AC (VAC)
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Terminals: 1/4 inch male quick-disconnect
- Case Material: Plastic, moisture and oil resistant
- Shape: Round

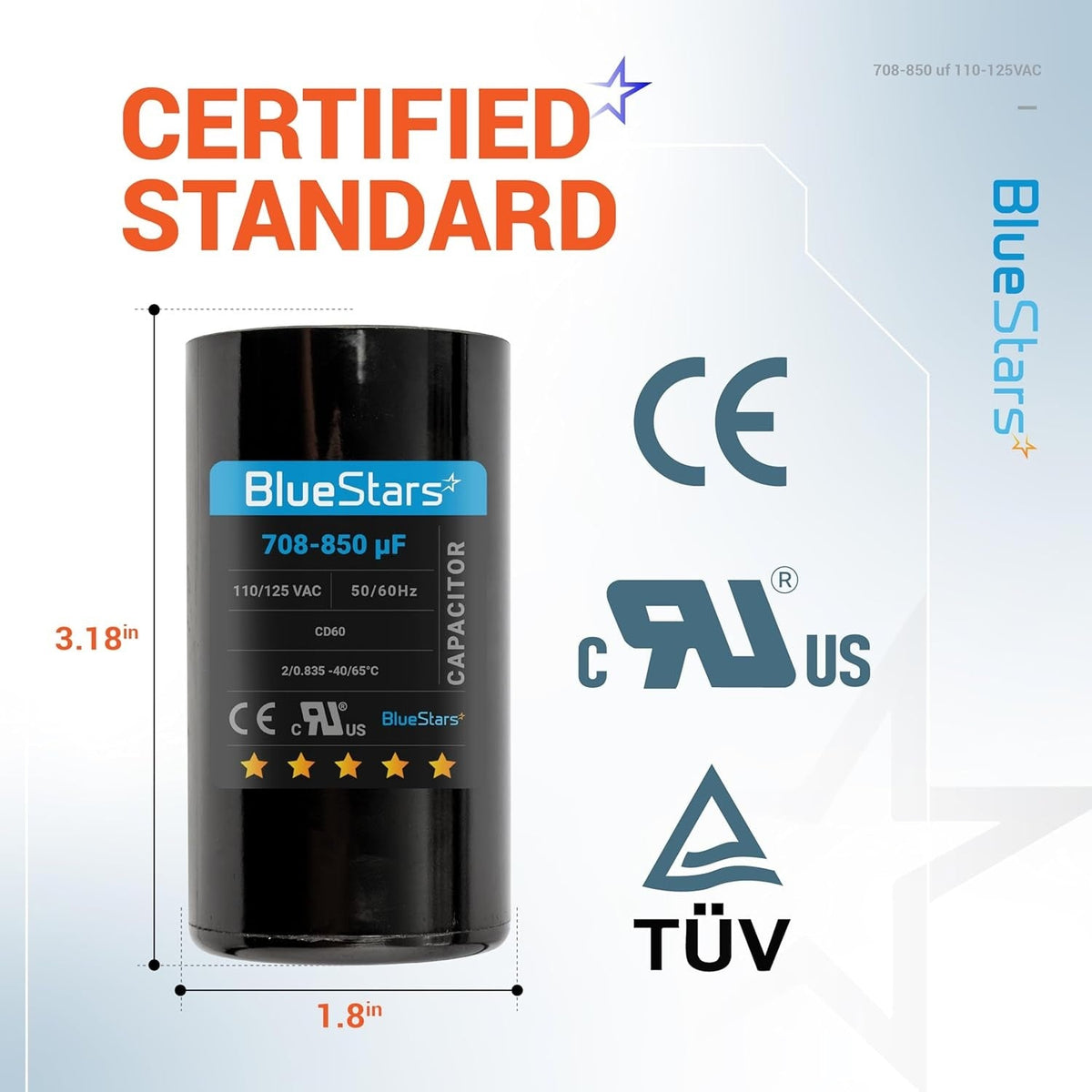

- Dimensions: 1-13/16 inch Diameter x 4-3/8 inch Height
- Safety Standard: UL 810 Recognized
Replaces / Cross-Reference Part Numbers
- Direct replacement for any start capacitor with the same capacitance and voltage ratings.
- Replaces parts in the 708-850 uF/MFD range rated for 110 VAC, 115 VAC, or 125 VAC.
Compatibility & Fitment
- Designed for intermittent duty in single-phase AC motor starting circuits.
- Provides temporary starting torque for electric motors found in appliances and equipment such as air conditioners, heat pumps, refrigeration units, well pumps, and pool pumps.
- Fitment is determined by matching the original capacitor's uF/MFD rating, VAC rating, and physical dimensions. The voltage rating of the replacement capacitor must be equal to or greater than the original.

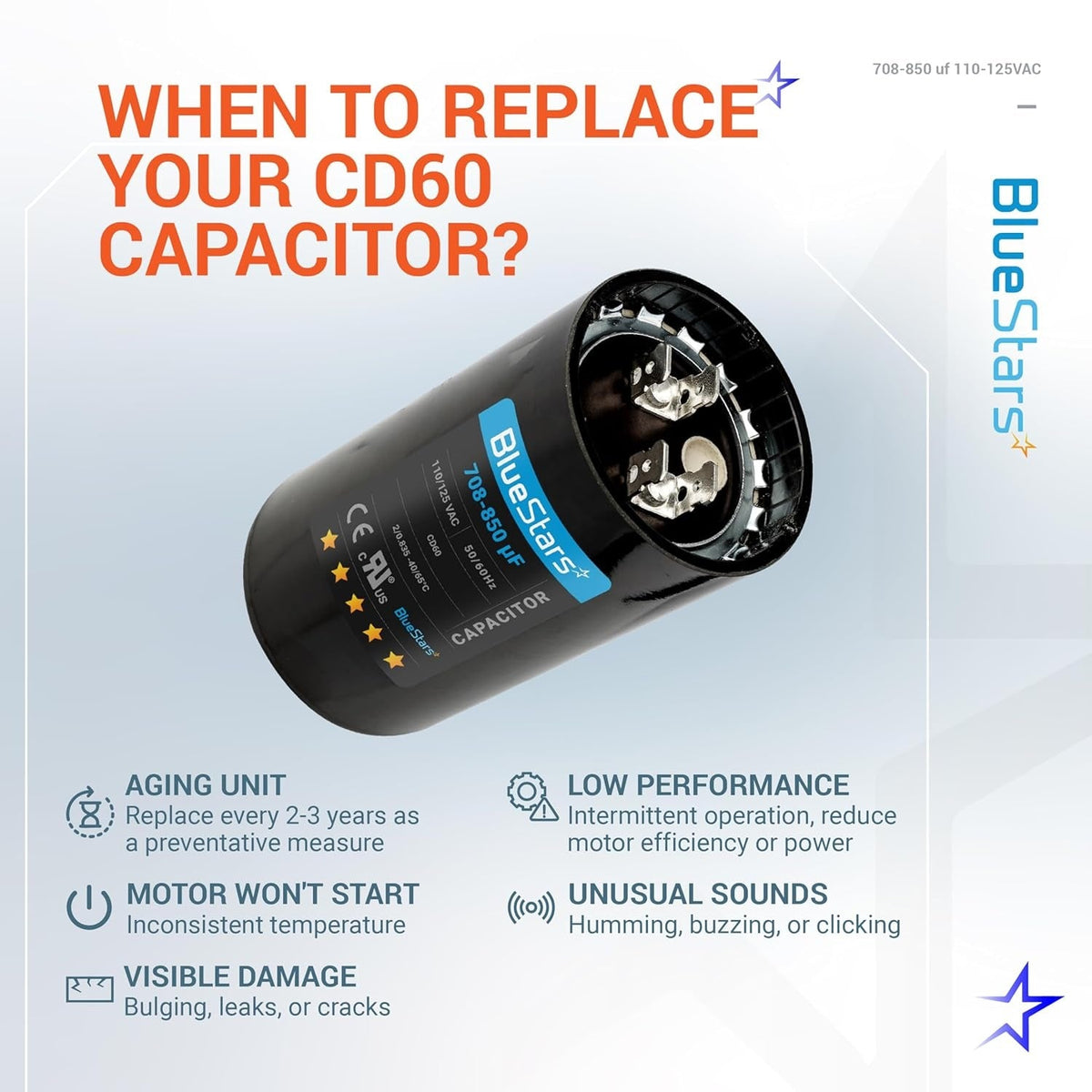

When to Replace
- Motor hums but fails to start.
- Motor starts slowly or requires manual assistance to start.
- Circuit breaker trips when the motor attempts to start.
- Visible damage to the existing capacitor, such as bulging, cracking, or leaking fluid.

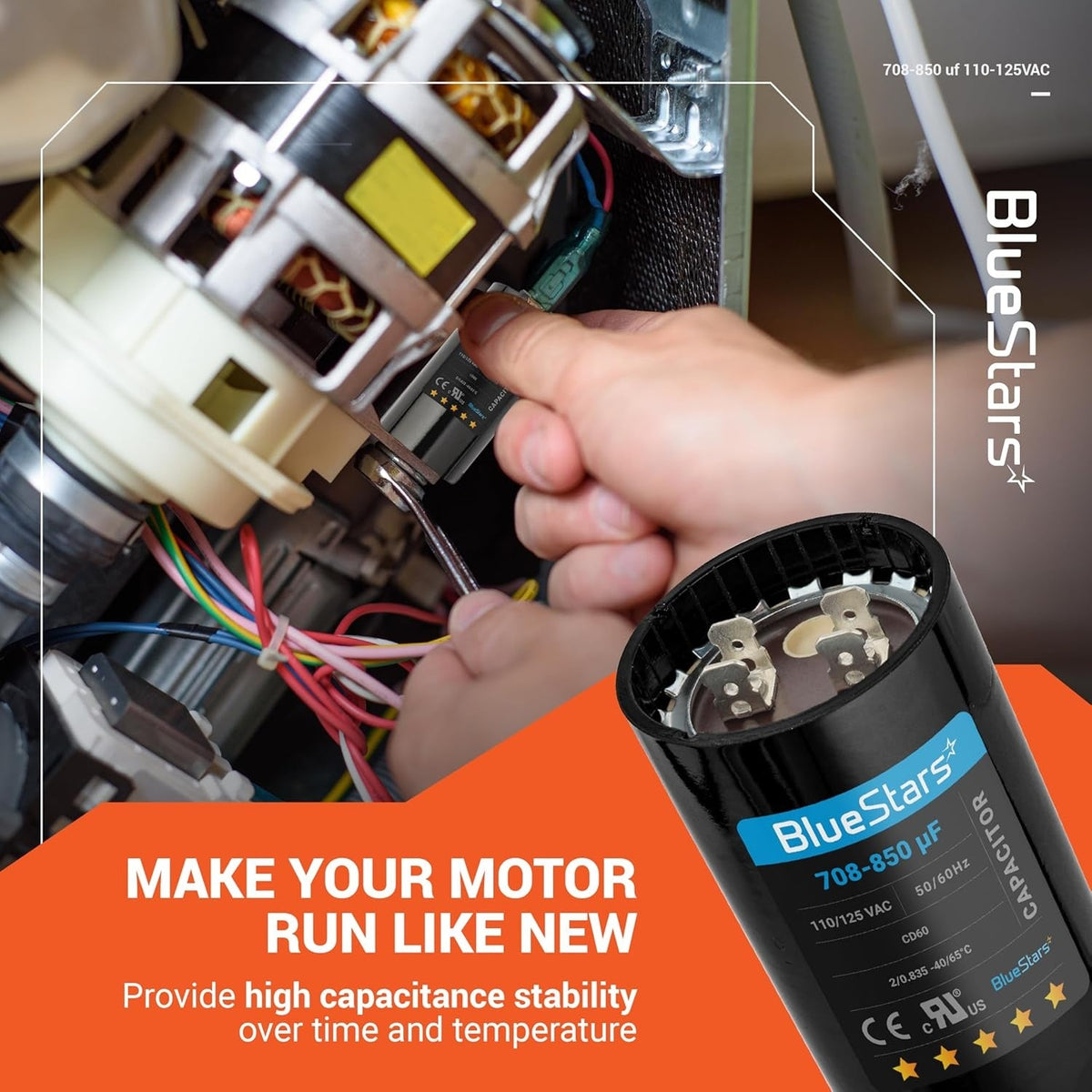

Installation Tips
- Disconnect all electrical power to the equipment before beginning service.
- Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated screwdriver.
- Verify the capacitance (uF/MFD) and voltage (VAC) of the new capacitor match the specifications of the part being replaced.
- Note the wire placement on the old capacitor terminals before disconnecting.
- Ensure a secure mechanical and electrical connection.
-
Perfect fit
Universal fit with any brands with the same ratings -
Premium quality

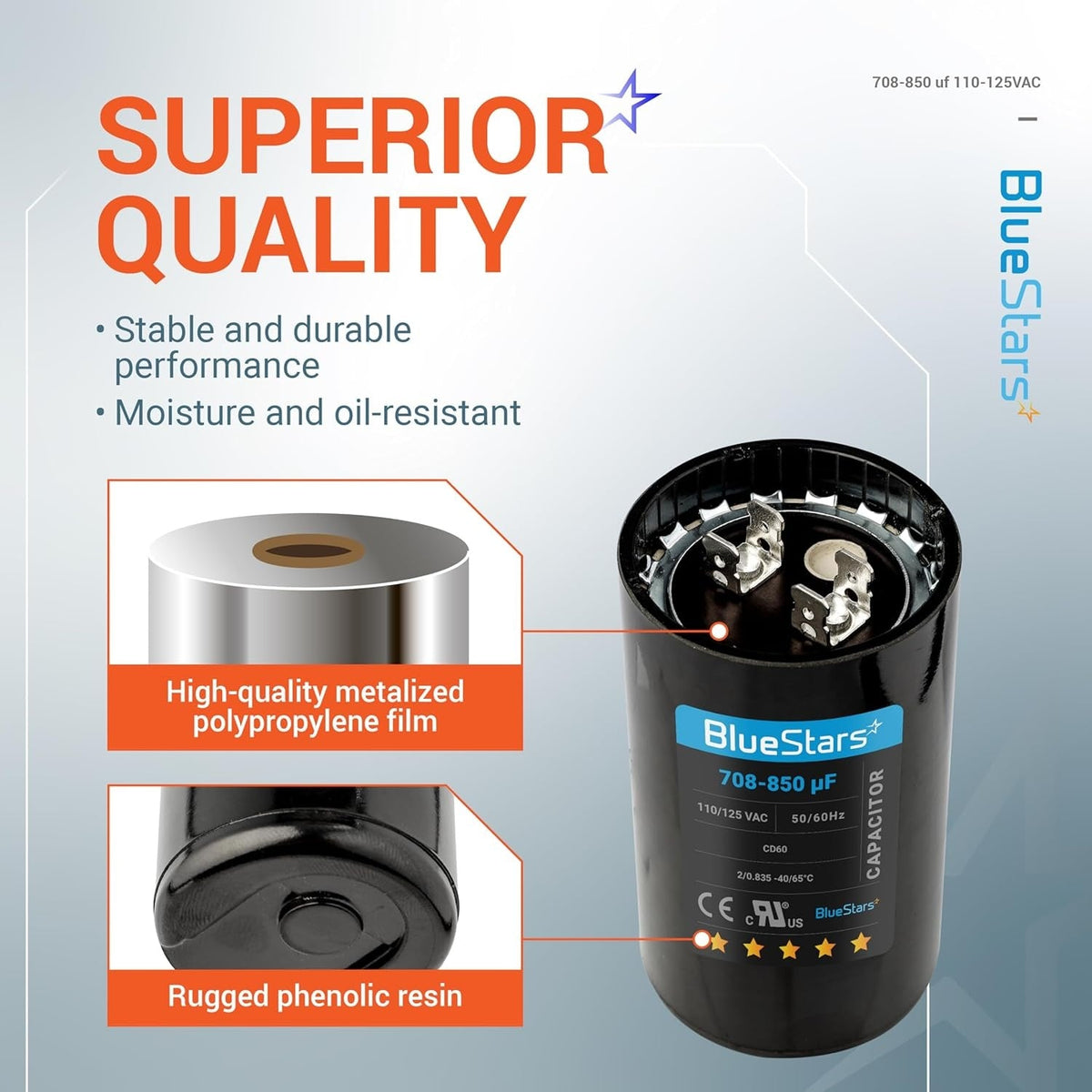

This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
