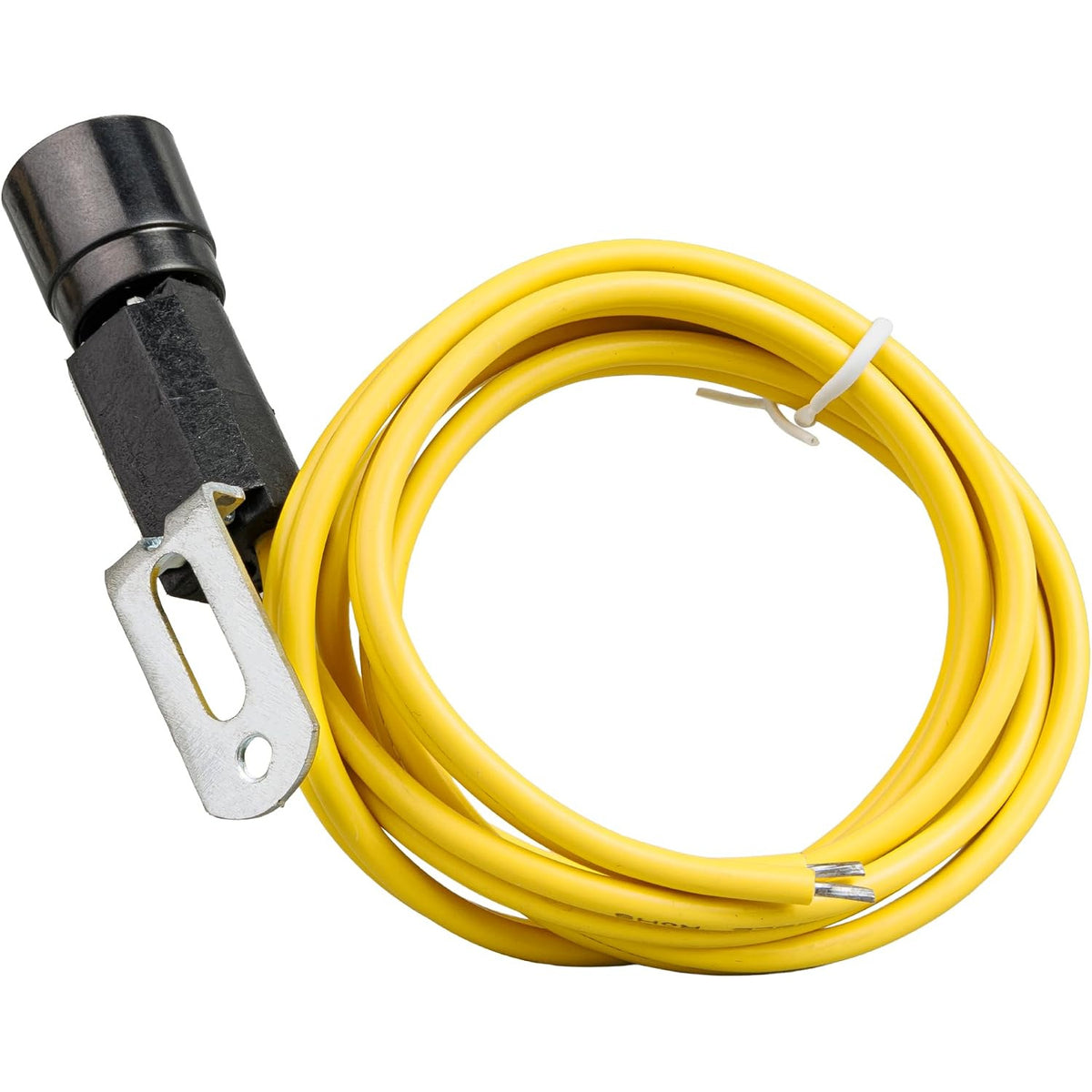

7006U 7135U Cad Cell Flame Sensor - Fits Beckett Oil Burners
0.00
Regular price
$26.91
Regular price
Save 10%
$29.89
Sale price
$26.91
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
7006U 7135U Cad Cell Flame Sensor - Fits Beckett Oil Burners
Key Features

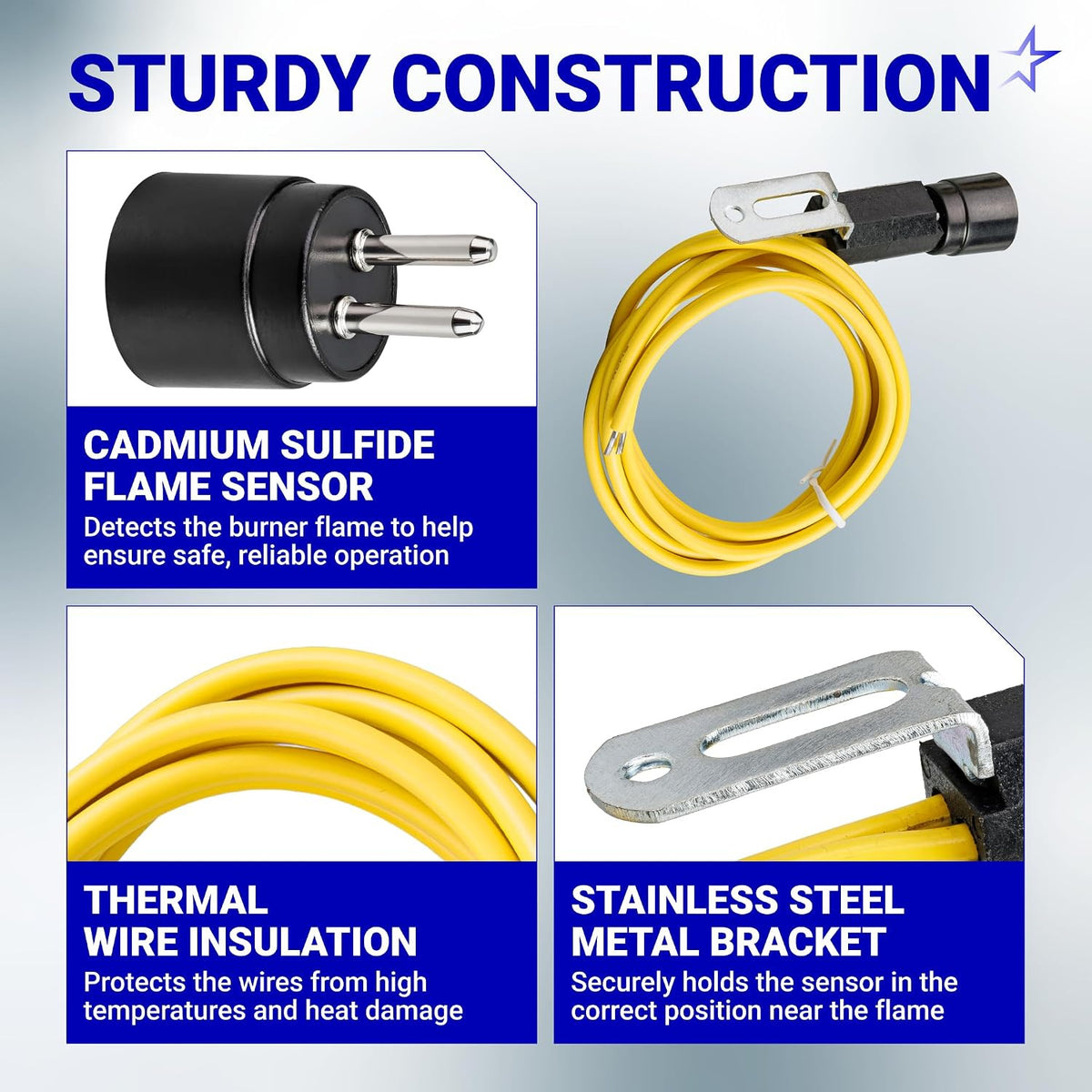

- Cadmium sulfide photocell senses combustion-chamber light and signals the primary control when ignition occurs and the flame remains established.

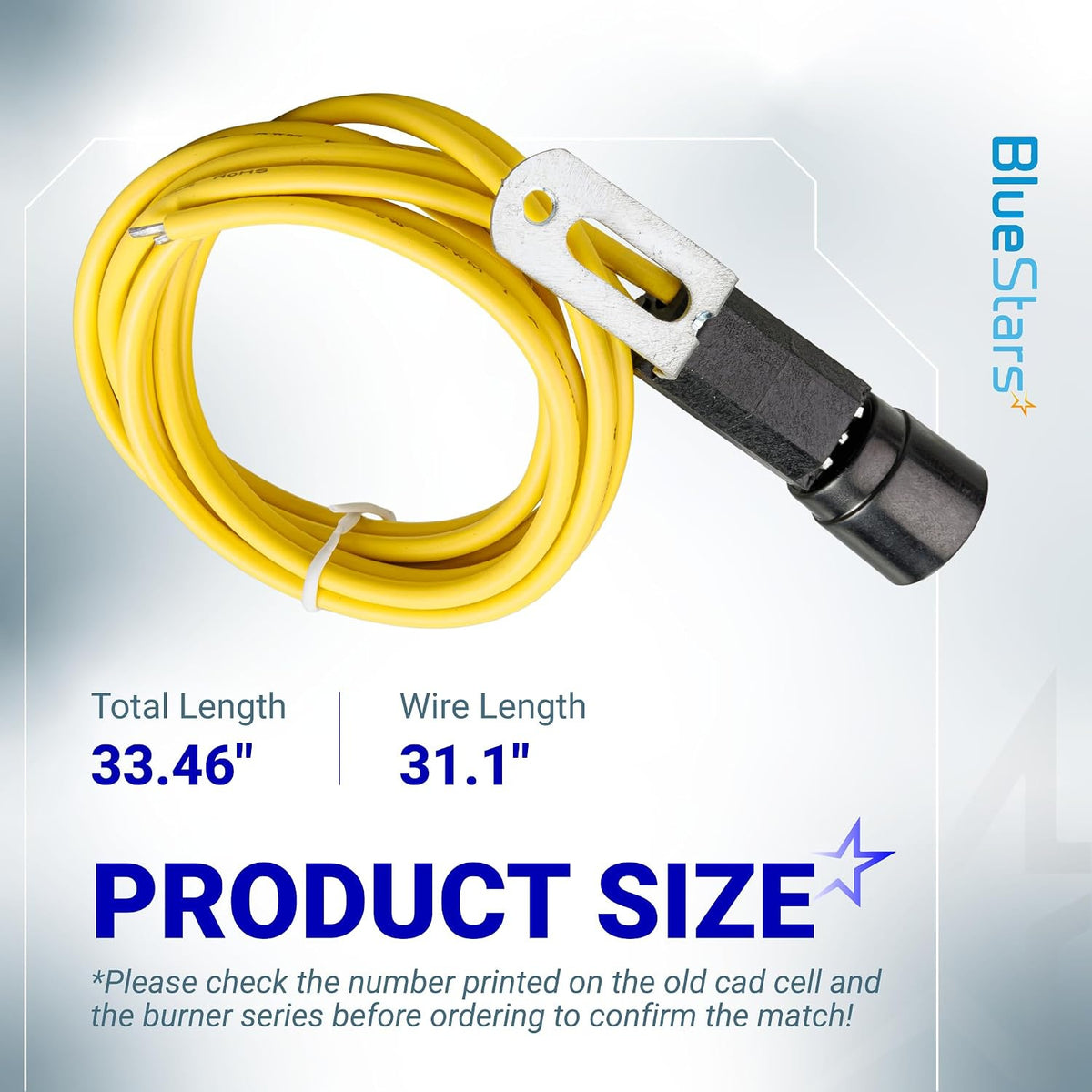

- 30.315-inch (77 cm) lead length supports routing around the burner housing.
- Copper enclosure maintains its shape near the combustion chamber.
- Operating resistance is 300 to 1,000 ohms while the burner runs, with 1,600 ohms maximum.
- Bench reading is 0 ohms under light and infinite resistance in full darkness.
- High-temperature wire insulation helps guard against current leakage and short circuits. The flexible leads are cadmium-free and soldered for a steady signal path.
Replaces / Cross-Reference Part Numbers
- 7006U
- 7135U
- C554A1687
- C554A1688
- 120320
- 124607
- 130367
- OC-10
- C-554A
- Item model number: 5445421
Compatibility & Fitment
Fits Beckett oil burner series A, AF, AFG, NX, SR, SF, and RW. This flame sensor is intended for wiring into a cad cell primary control designed for a standard two-lead photocell. Check the number on the existing cad cell and the burner series before ordering.
When to Replace
- The burner fires but drops out after approximately 10 to 30 seconds.
- The system repeatedly enters safety lockout or requires manual resets.
- The cad cell lens appears tan, smoky, or brown.
- Resistance readings do not reach 0 ohms under light or infinite resistance in full darkness during a bench check.
Installation Tips
- Turn off power at the burner service switch and circuit breaker before handling wiring.
- Pull the old cad cell eye from the holder slot.
- Release the old lead wires from the primary control terminals.
- Seat the replacement cad cell in the holder. Bend the bracket slightly only if a tighter fit is needed.
- Connect the new leads to the primary control terminals.
- Before firing the burner, use a multimeter to confirm a 0-ohm reading under light.
The part includes lifetime protection for defects or other product issues.
-
PRECISE FIT
Compatible with Beckett burner models A, AF, AFG, NX, SR, SF, and RW. -

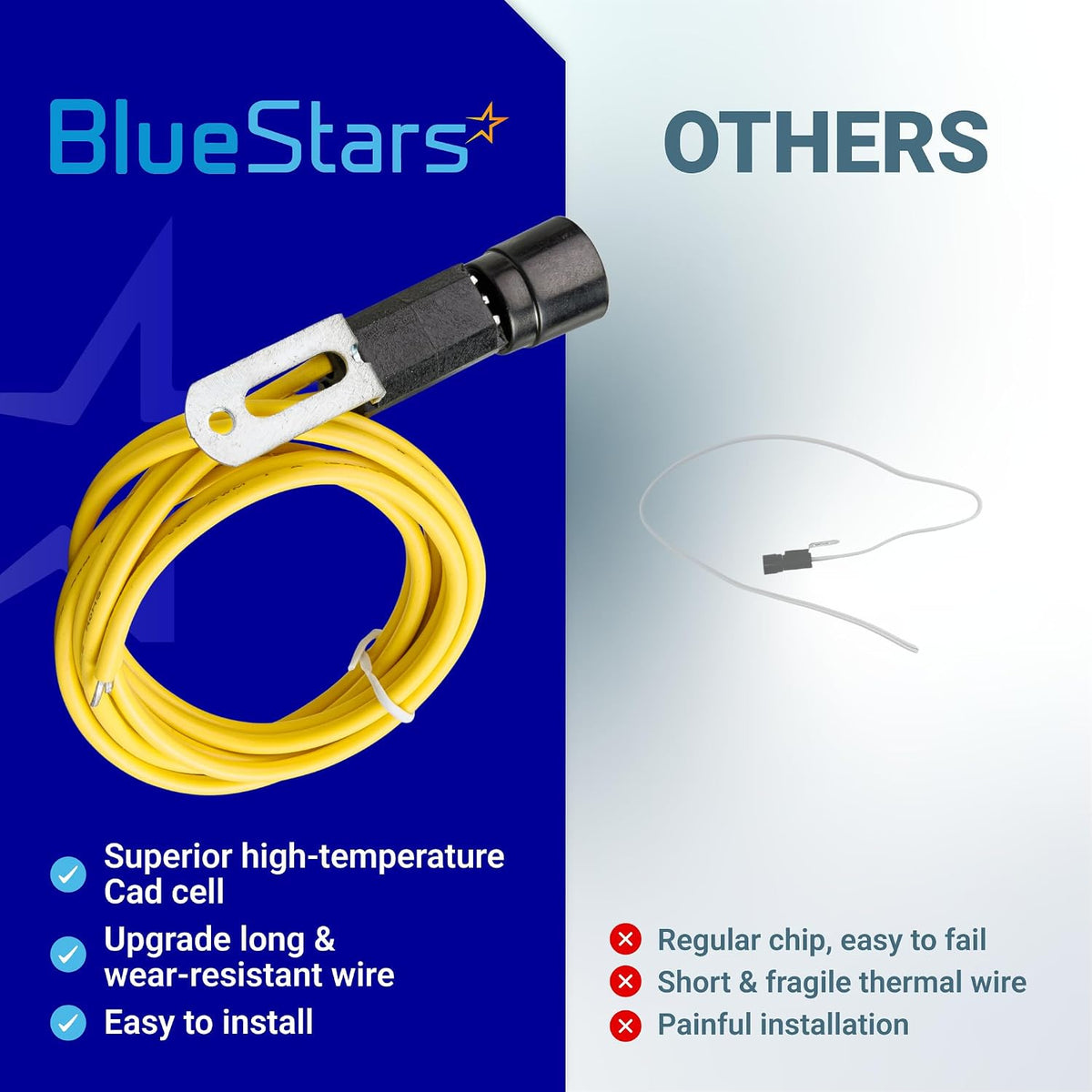

SUPERIOR QUALITY
The cadmium sulfide flame sensor detects the burner flame for safe, reliable operation. -
SAVING SOLUTION
Restore your heater's function and enjoy DIY solutions with affordable replacement parts from BlueStars. -

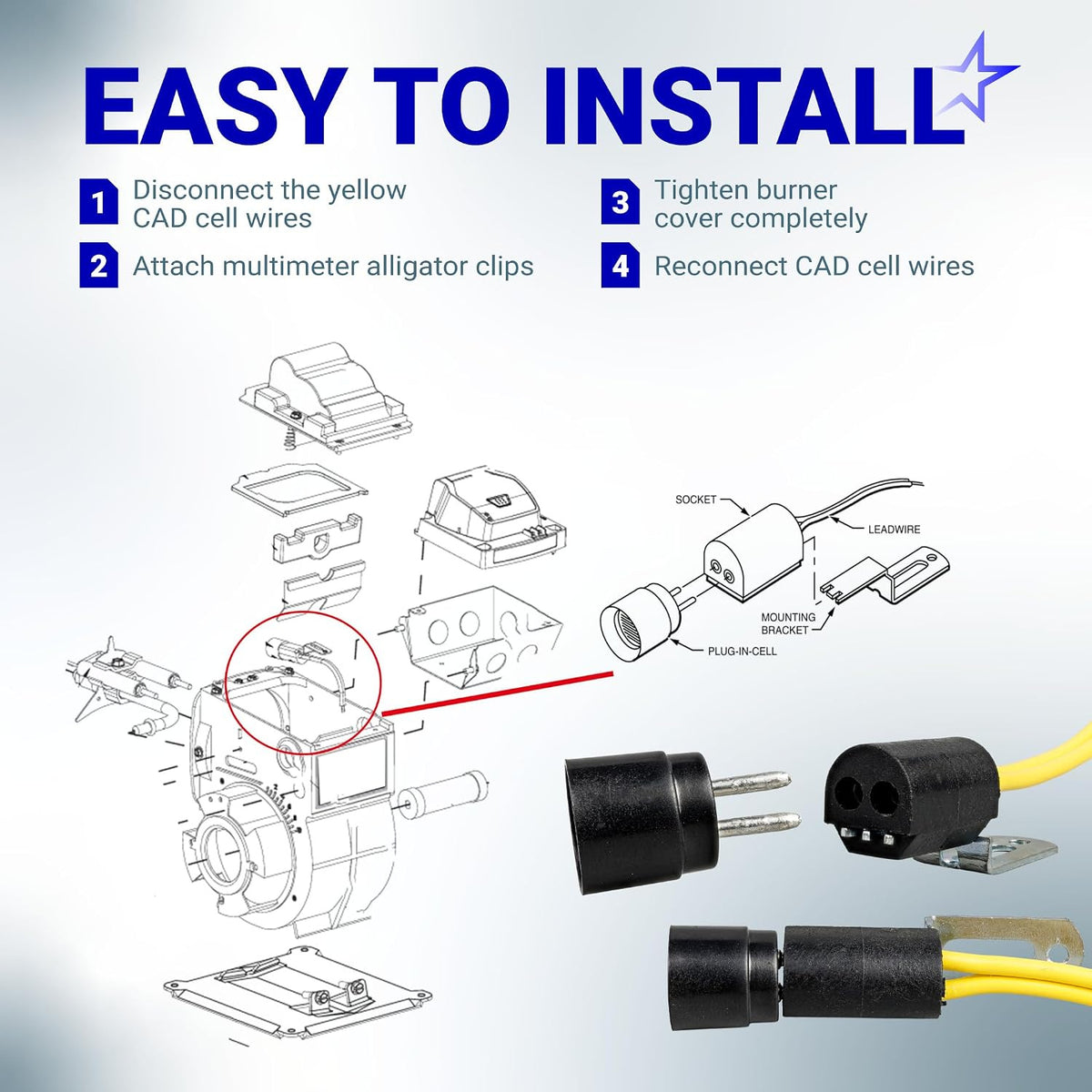

EASY TO INSTALL
Disconnect the yellow CAD cell wires | Attach multimeter alligator clips | Tighten burner cover completely | Reconnect CAD cell wires
HOW TO INSTALL
1. Disconnect yellow CAD cell wires from the F and F primary control terminals.
2. Attach multimeter alligator clips directly to the CAD cell wires for testing.
3. Tighten burner cover completely to ensure absolutely no light enters the chamber
4. Reconnect CAD cell wires to F terminals once normal operating resistance is verified
2. Attach multimeter alligator clips directly to the CAD cell wires for testing.
3. Tighten burner cover completely to ensure absolutely no light enters the chamber
4. Reconnect CAD cell wires to F terminals once normal operating resistance is verified
