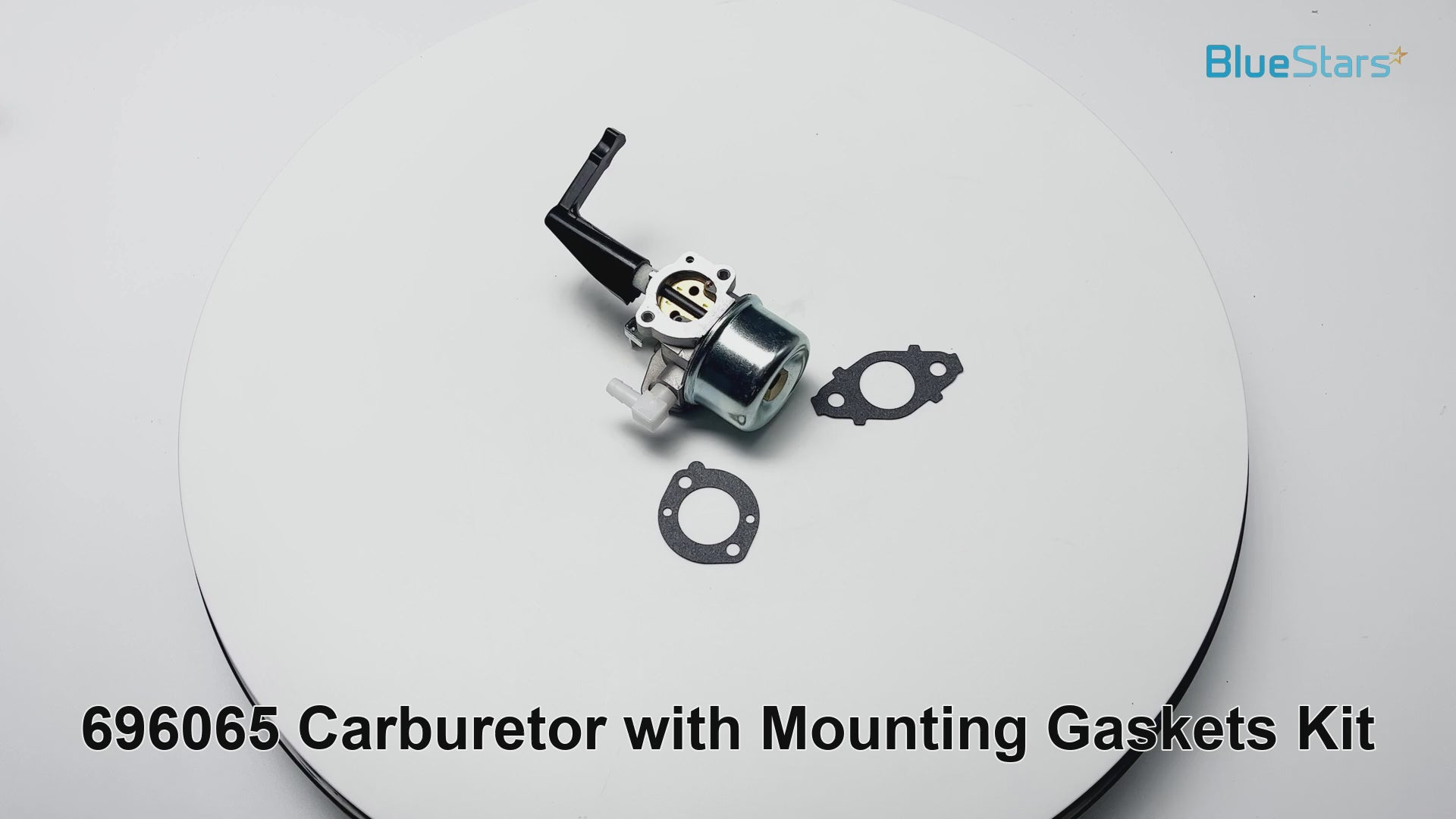

696065 carburetor kit including one carburetor and two mounting gaskets for small engines.

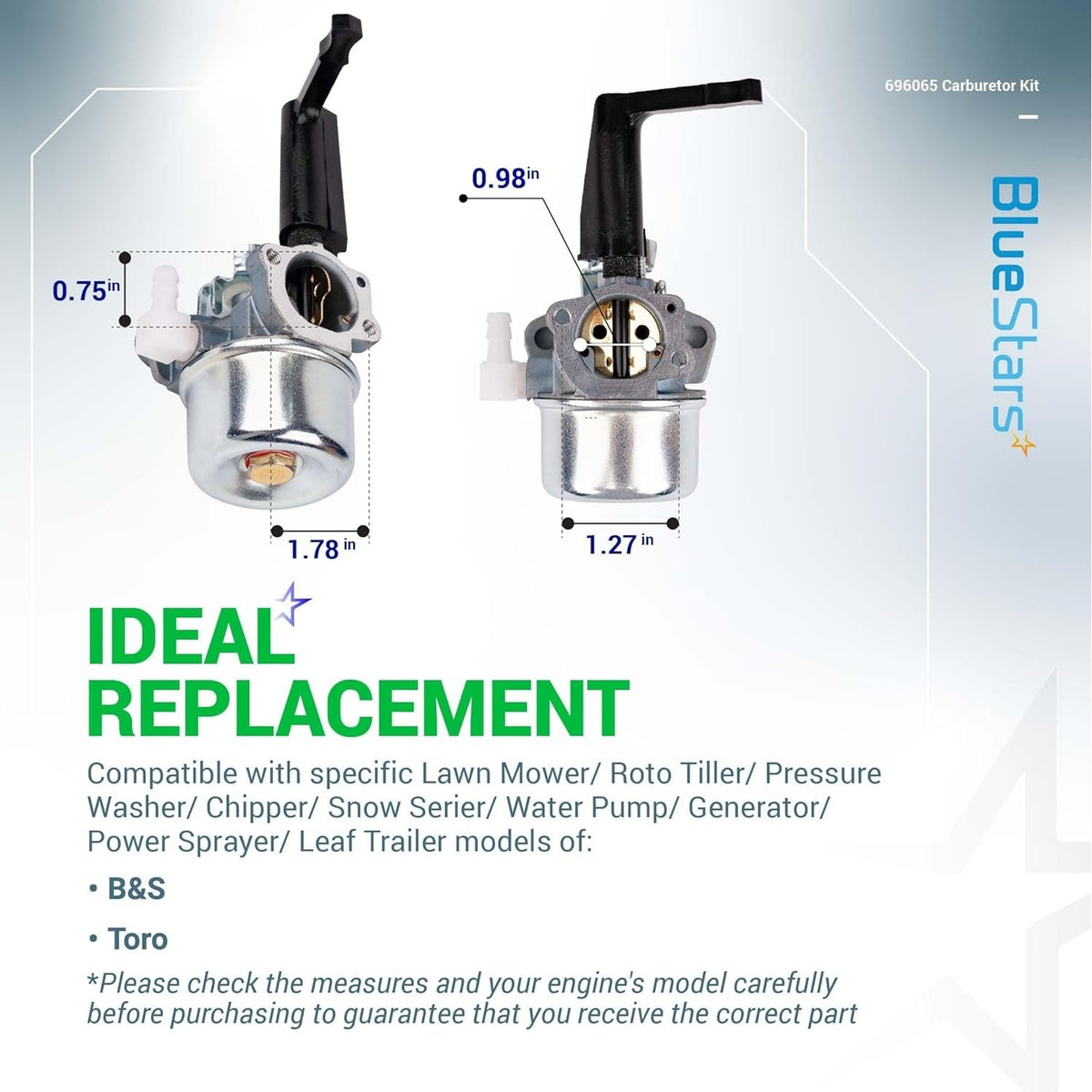

696065 697422 carburetor replacement with dimension labels for tiller and generator engines.
Informational chart listing fitment models and part numbers for 696065 697422 carburetor kit.

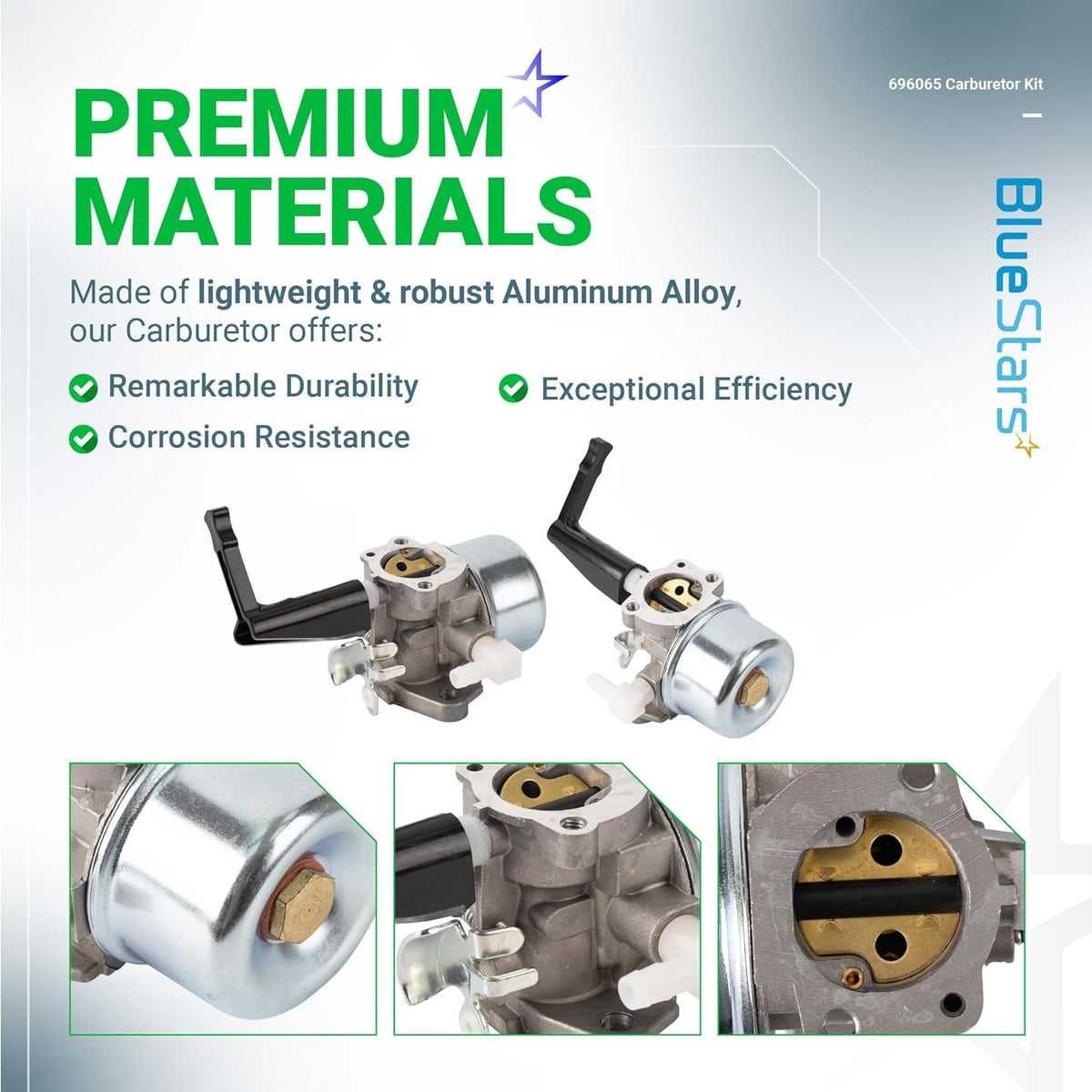

Infographic showing aluminum alloy 696065 697422 carburetor features and close-up details for tiller and engine repair.
Two 696065 697422 replacement carburetors for tiller and generator engines shown from different angles.
Mechanic holding a 696065 carburetor with installation instructions for tiller and generator engines.
696065 carburetor replacement part shown with application examples for generators, snow blowers, and small engines.
Replacement carburetor with two mounting gaskets for 5HP to 6HP tiller and generator engines.
696065 carburetor kit including one carburetor and two mounting gaskets for small engines.
696065 697422 carburetor replacement with dimension labels for tiller and generator engines.
Informational chart listing fitment models and part numbers for 696065 697422 carburetor kit.
Infographic showing aluminum alloy 696065 697422 carburetor features and close-up details for tiller and engine repair.
Two 696065 697422 replacement carburetors for tiller and generator engines shown from different angles.
Mechanic holding a 696065 carburetor with installation instructions for tiller and generator engines.
696065 carburetor replacement part shown with application examples for generators, snow blowers, and small engines.
Lifetime Warranty

[Lifetime Warranty] 696065 697422 Carburetor with Mounting Gaskets Kit - Compatible with 110402 110412 215369 5HP 5.5HP 6HP Tiller Engine Carb Rototiller Generator Intek Motor Water Pump Carb

Save 13%
0.00
$15.70
$18.06
$15.70
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

696065 / 697422 Carburetor with Mounting Gaskets Kit

Key Features

  • Direct replacement carburetor assembly for small engines.
  • Regulates the air and fuel mixture for proper engine combustion.
  • Engineered to meet original manufacturer specifications for fit and performance.

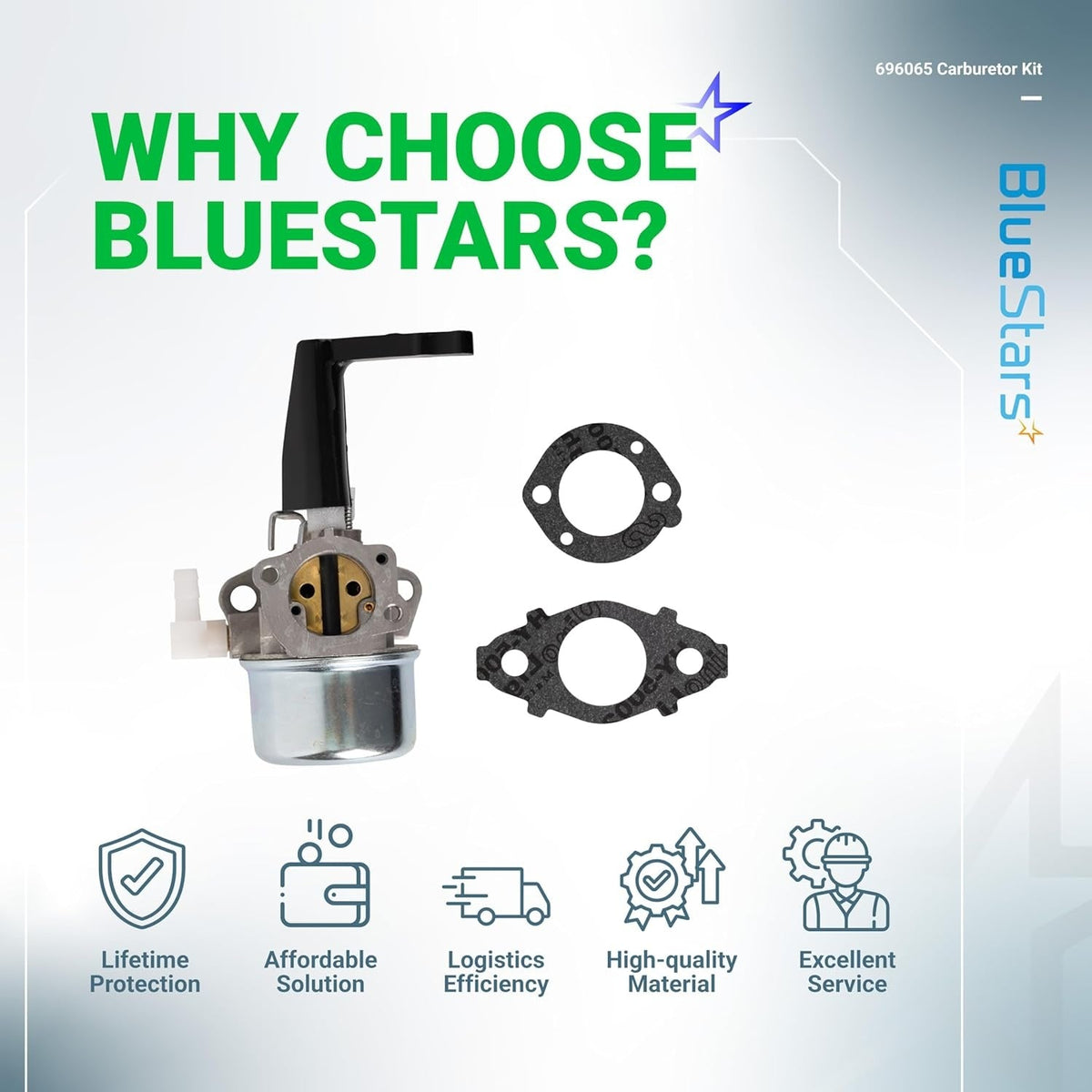

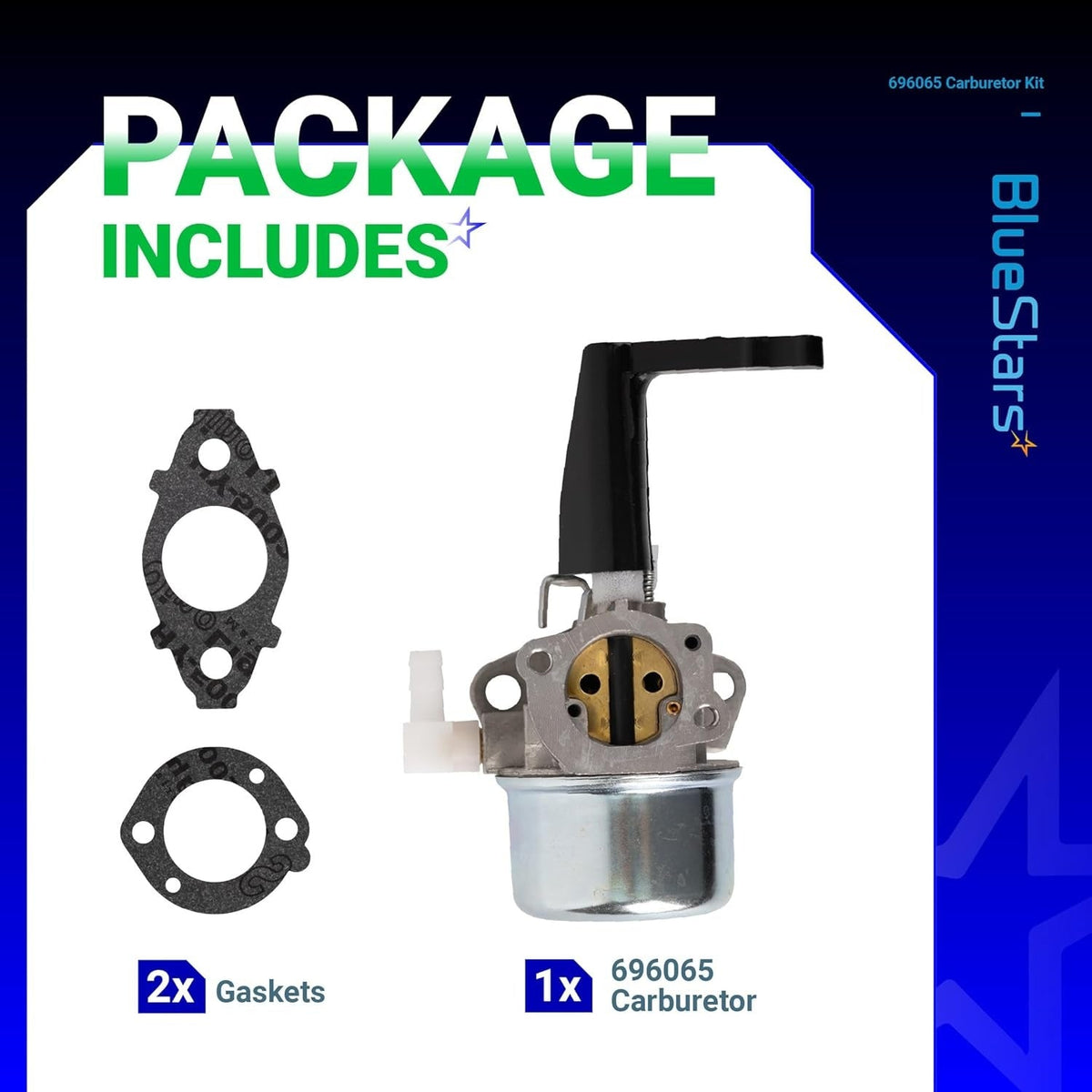

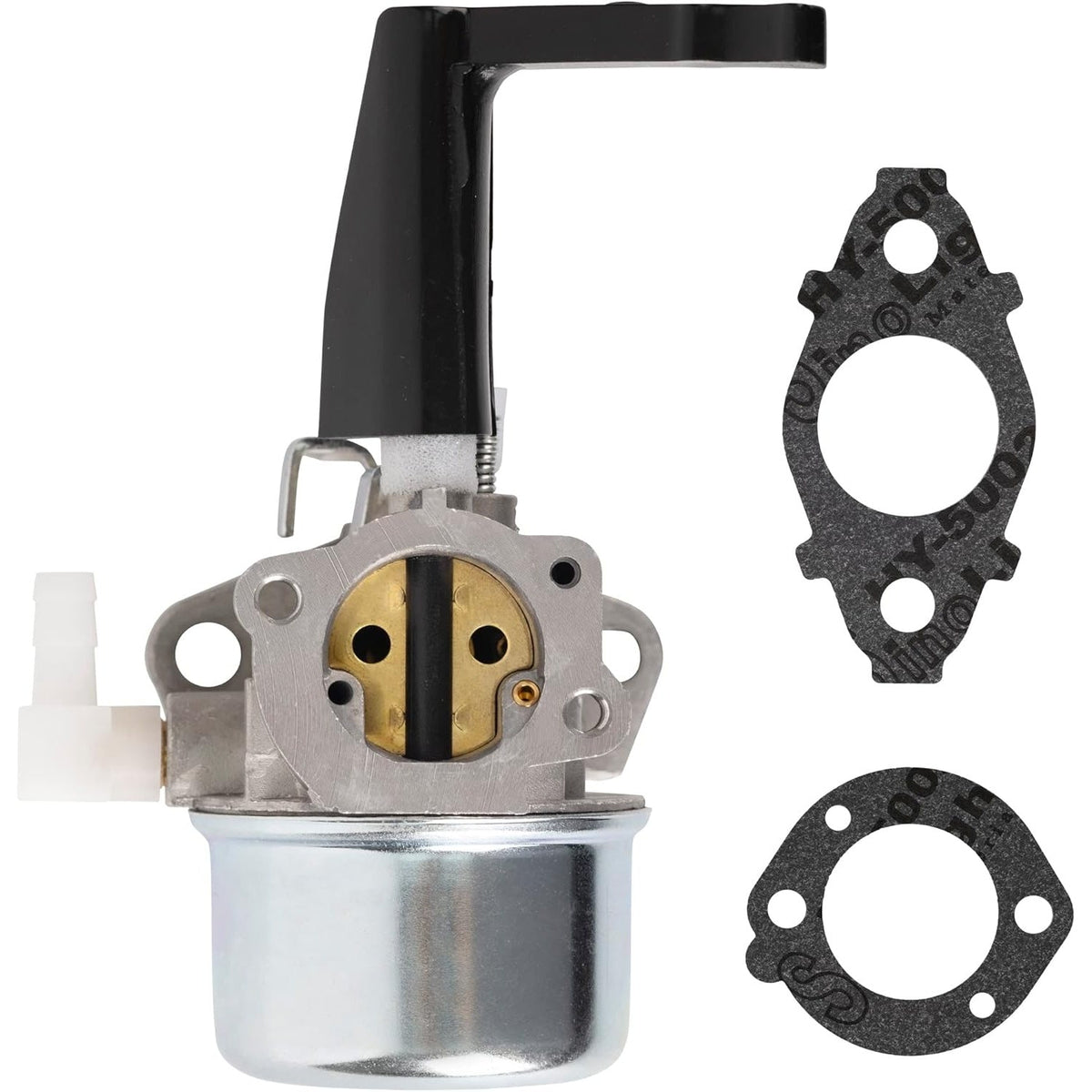

  • Includes one carburetor and two mounting gaskets for a complete installation.

Replaces / Cross-Reference Part Numbers

  • Briggs & Stratton: 696065, 697422, 691859, 694882

Compatibility & Fitment

  • Fits select Briggs & Stratton engines rated at 5HP, 5.5HP, 6HP, 6.5HP, and 7HP.
  • Commonly used on tiller engines.
  • Specific Engine Models Include: 110402, 110412
  • Confirmed Fit for Models: 110402-0206-E1, 110412-0211-E1

When to Replace

  • Engine will not start or is difficult to start.
  • Engine stalls, idles roughly, or surges.
  • Visible fuel leaking from the carburetor body.
  • Excessive black smoke from the exhaust.
  • Poor fuel economy or loss of power during operation.

Installation Tips

  • Disconnect the spark plug wire before beginning work.
  • Shut off the fuel supply valve and drain any remaining fuel.
  • Take a clear photo of the governor and throttle linkages before disassembly for reference.
  • Always use the new gaskets included in the kit to ensure a proper seal.
  • After installation, check all fuel line connections for leaks before starting the engine.
Product image 1
Product image 2
Product image 3
Product image 1
Product image 2
Product image 1
Product image 2
  • COMPATIBLE MODELS

    COMPATIBLE MODELS

    Specific Lawn Mower/ Roto Tiller/ Pressure Washer/ Chipper/ Snow Serier/ Water Pump/ Generator/ Power Sprayer/ Leaf Trailer models of B&S & Toro
  • PART NUMBERS

    PART NUMBERS

    Replaces part numbers: #110402-0206-E1, 110412-0211-E1

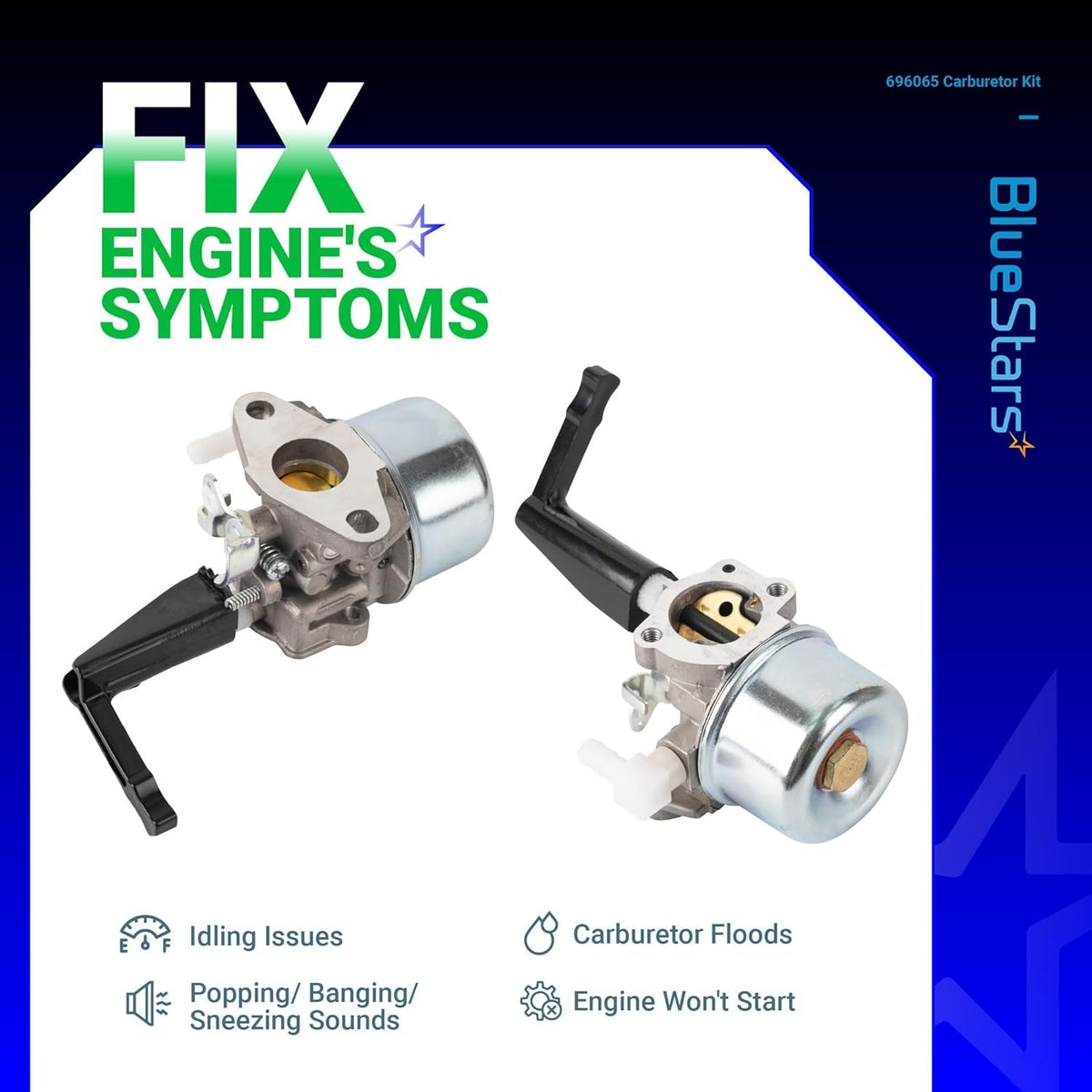

  • FIX ENGINE'S SYMPTOMS

    FIX ENGINE'S SYMPTOMS

    Popping/ banging/ sneezing sounds | Engine won't start | Idling issues | Excessive exhaust | Carburetor floods
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility
Easy To Install

Easy To Install

1. Turn off the fuel valve. Drain the fuel tank; 2. Remove the air filter cover, air filter, and air filter housing; 3. Disconnect the fuel lines. Remove the linkage from the carburetor; 4. Discard your old carburetor. Reinstall with our new part!

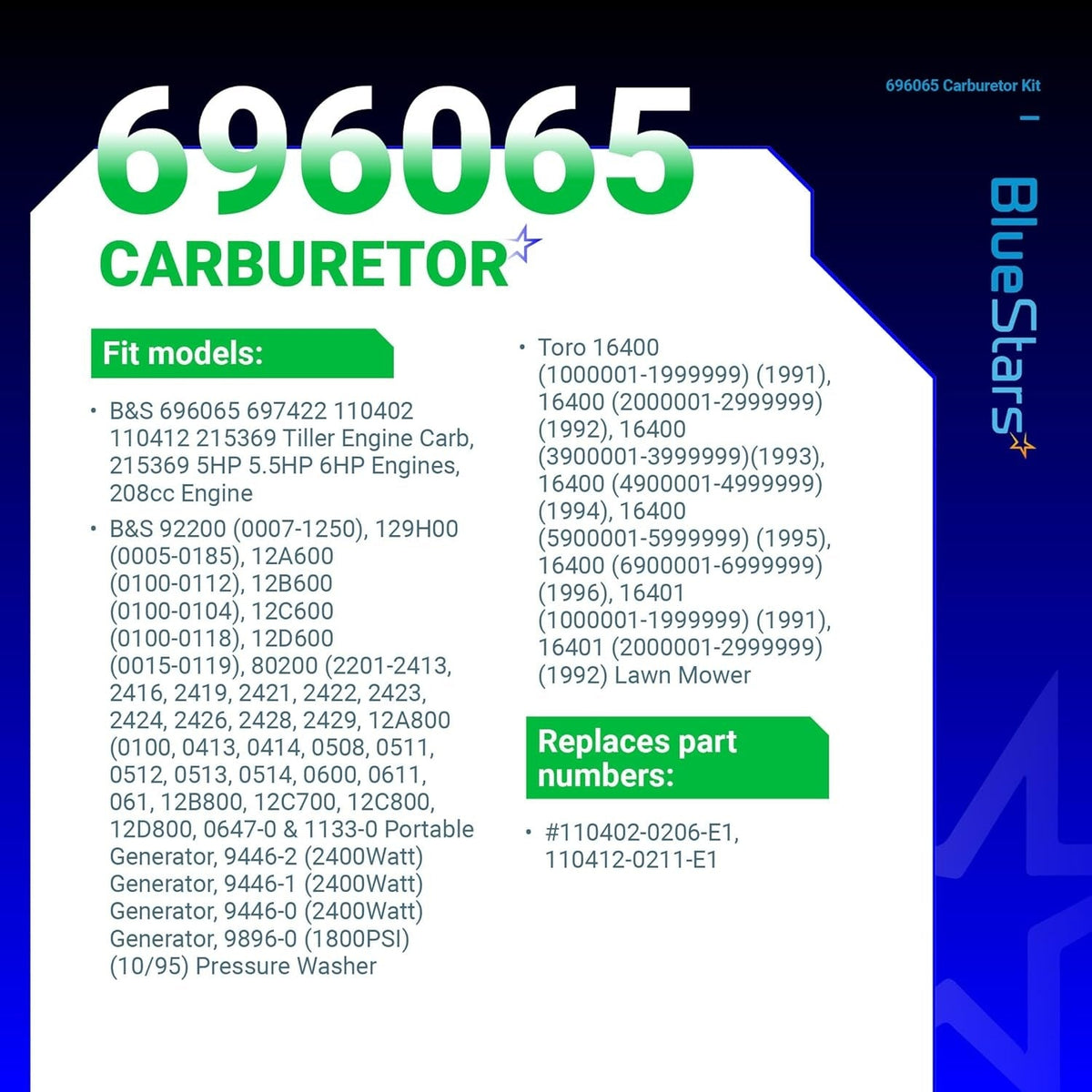

Brand Model Number
Briggs & Stratton 696065 697422 110402 110412 215369 Tiller Engine Carb, 215369 5HP 5.5HP 6HP Engines, 208cc Engine
Toro 16400 (1000001-1999999) (1991), 16400 (2000001-2999999) (1992), 16400 (3900001-3999999)(1993), 16400 (4900001-4999999) (1994), 16400 (5900001-5999999) (1995), 16400 (6900001-6999999) (1996), 16401 (1000001-1999999) (1991), 16401 (2000001-2999999) (1992) Lawn Mower
Briggs & Stratton 92200 (0007-1250), 129H00 (0005-0185), 12A600 (0100-0112), 12B600 (0100-0104), 12C600 (0100-0118), 12D600 (0015-0119), 80200 (2201-2413, 2416, 2419, 2421, 2422, 2423, 2424, 2426, 2428, 2429, 12A800 (0100, 0413, 0414, 0508, 0511, 0512, 0513, 0514, 0600, 0611, 061, 12B800, 12C700, 12C800, 12D800
Briggs & Stratton 0647-0 & 1133-0 Portable Generator, 9446-2 (2400Watt) Generator, 9446-1 (2400Watt) Generator, 9446-0 (2400Watt) Generator, 9896-0 (1800PSI) (10/95) Pressure Washer
Note This is not an exhaustive list. You can send us your engine model and we will help you!

FAQ

This carburetor is designed for Briggs & Stratton engine models 110402, 110412, 110432, and 215369. It is commonly used on 5HP, 5.5HP, 6HP, 6.5HP, and 7HP engines found in tillers, rototillers, generators, and water pumps.
This unit replaces OEM part numbers 696065 and 697422. It also cross-references with 691859 and 694882.
Common signs include the engine surging or hunting at idle, difficulty starting, stalling under load, or fuel leaking from the carburetor body. These issues are often caused by internal clogs from old fuel or damaged internal diaphragms that cannot be repaired through simple cleaning.
Before installation, ensure your fuel tank is clean and free of debris. It is highly recommended to drain any old fuel from the system and replace the fuel line and fuel filter, as contaminated fuel is the primary cause of premature carburetor failure.
Installation is straightforward and typically takes 30 to 45 minutes. You will generally need a basic socket set, a screwdriver, and pliers to remove the air cleaner assembly and fuel lines. The kit includes the necessary mounting gaskets to ensure a proper seal against the engine block.
The most common cause of failure is the use of ethanol-blended gasoline. Ethanol attracts moisture, which leads to corrosion and the buildup of gummy deposits inside the small passages of the carburetor when the equipment sits unused for extended periods.
