6931EL3003D & 6931EL3001B Dryer Thermostat Kit for LG Kenmore - Replaces 1268366
0.00
Regular price
$7.76
Regular price
Save 11%
$8.70
Sale price
$7.76
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
6931EL3003D & 6931EL3004B Dryer Thermal Fuse Kit
Key Features
- Kit includes two components: 1 x 6931EL3003D high-limit thermal fuse and 1 x 6931EL3004B thermostat assembly.
- The thermal fuse shuts off the heating element or burner when the dryer overheats, acting as a safety device.
- Fuse 6931EL3003D is rated at 140 degrees Celsius.
- Features a flush-mounted design with two 1/4-inch male terminals.
Replaces / Cross-Reference Part Numbers
- 6931EL3003D - Dryer Thermal Fuse: AP4440975, PS3530485, 6931EL3003E, AH3530485, EA3530485, EAP3530485, PD00001818, 1268366, L3003D
- 6931EL3001B - Dryer Hi-Limit Thermostat: AP5072172, PS3530482, 6931EL3001F, AH3530482, EA3530482, EAP3530482, PD00023316, 1377779, AP4440977
Compatibility & Fitment
- Designed for direct replacement on select dryer models.
- Compatible with specific LG and Kenmore brand dryers.
- Verify compatibility by checking your appliance's original part numbers.
When to Replace
- Dryer drum tumbles but produces no heat.
- Dryer takes too long to dry clothes.
- Dryer overheats and shuts down prematurely.
- Existing thermal fuse shows no continuity when tested with a multimeter.
Installation Tips
- Disconnect the dryer from the power supply before beginning any repair.
- The thermal fuse is a single-use safety component and cannot be reset.
- Before replacing a blown fuse, inspect and clean the dryer's venting system to resolve the root cause of overheating.
6931EL3003D Dryer Thermal Fuse

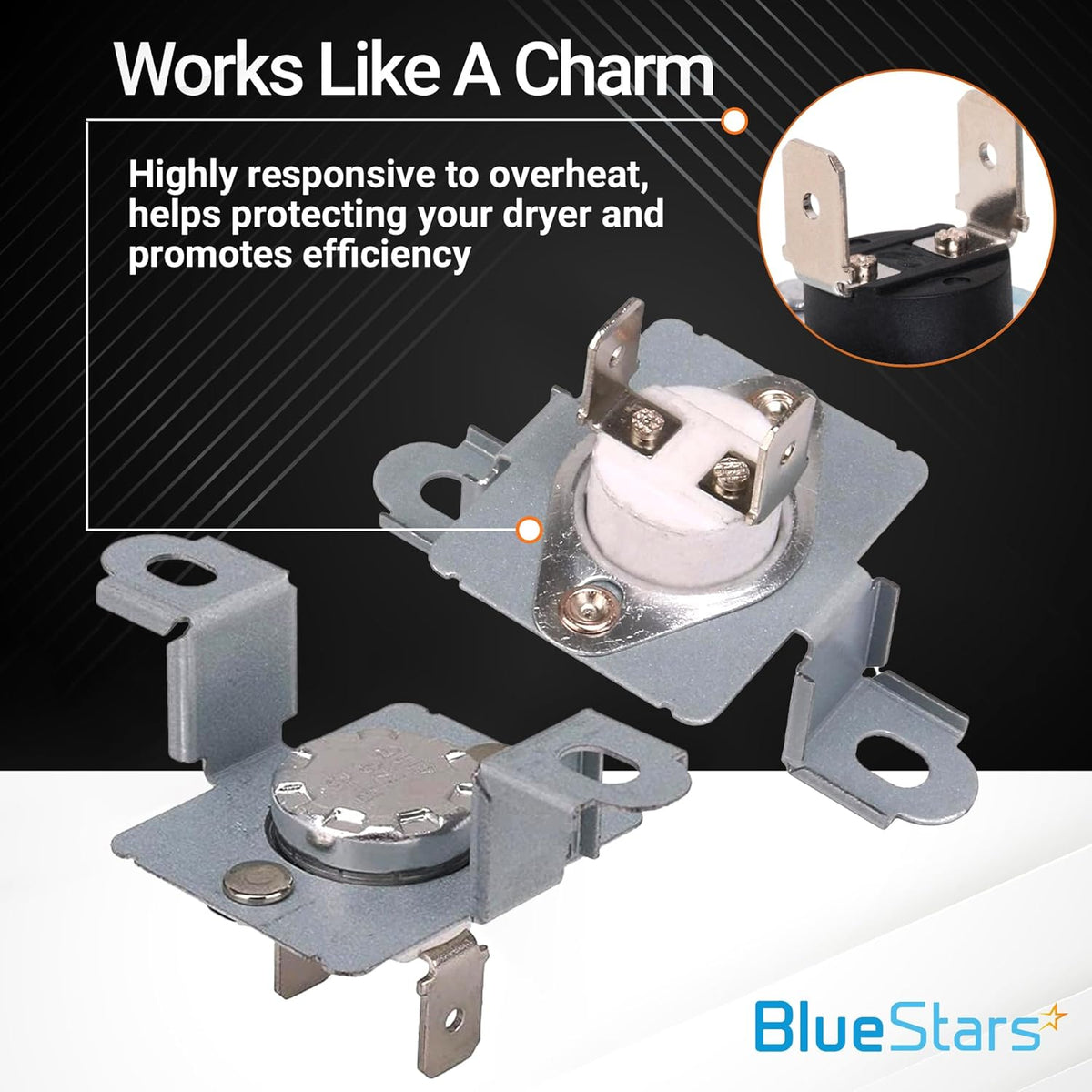

This thermal fuse functions as a high-limit safety device. It cuts power to the dryer’s heating element if the unit overheats. Once the fuse blows, it cannot be reset and must be replaced. A common cause of fuse failure is a restricted or blocked exhaust vent, which traps hot air and causes the fuse to open, stopping current flow to the gas valve or heating element. Replaces part numbers: PS3530485, AP4440975, 1268366, AH3530485, EA3530485.
6931EL3004B Dryer Thermostat Assembly

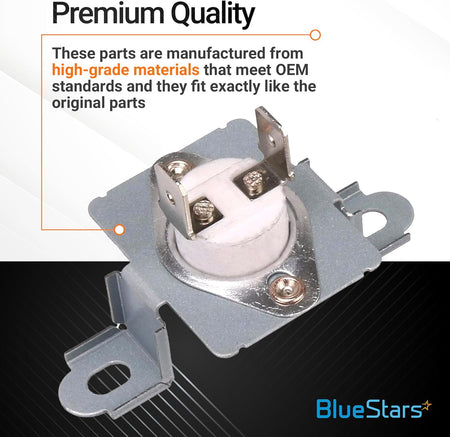

This thermostat is manufactured from high-grade materials that meet OEM standards. It fits and works exactly like the original part. Replaces part numbers: 6931EL3003F, PS3530486, 1268367, AH3530486, EA3530486.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…

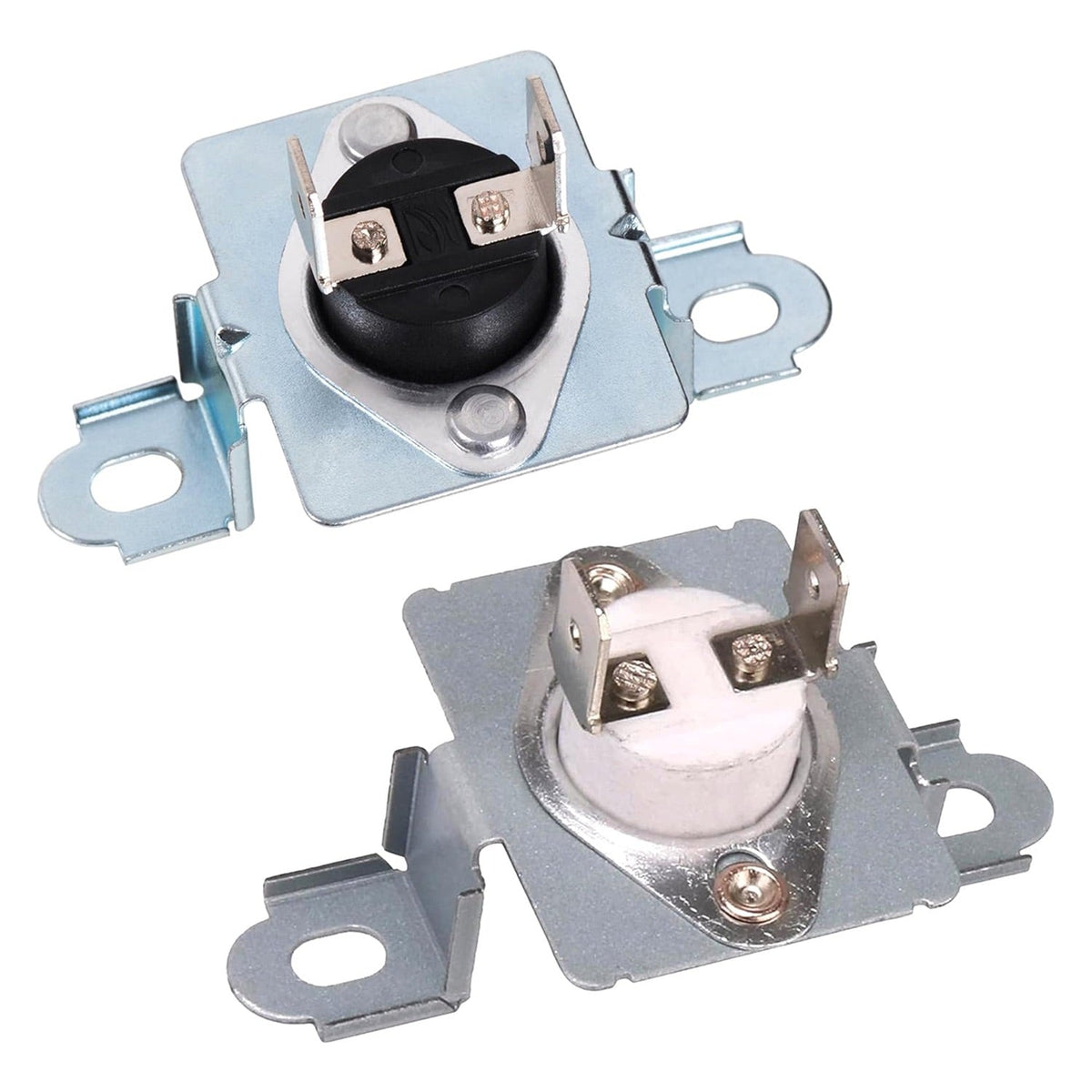

Kit Includes
1× 6931EL3003D Thermal Fuse + 1× 6931EL3001B Hi-Limit Thermostat
6931EL3003D (Thermal Fuse)
Material
Porcelain / Metal

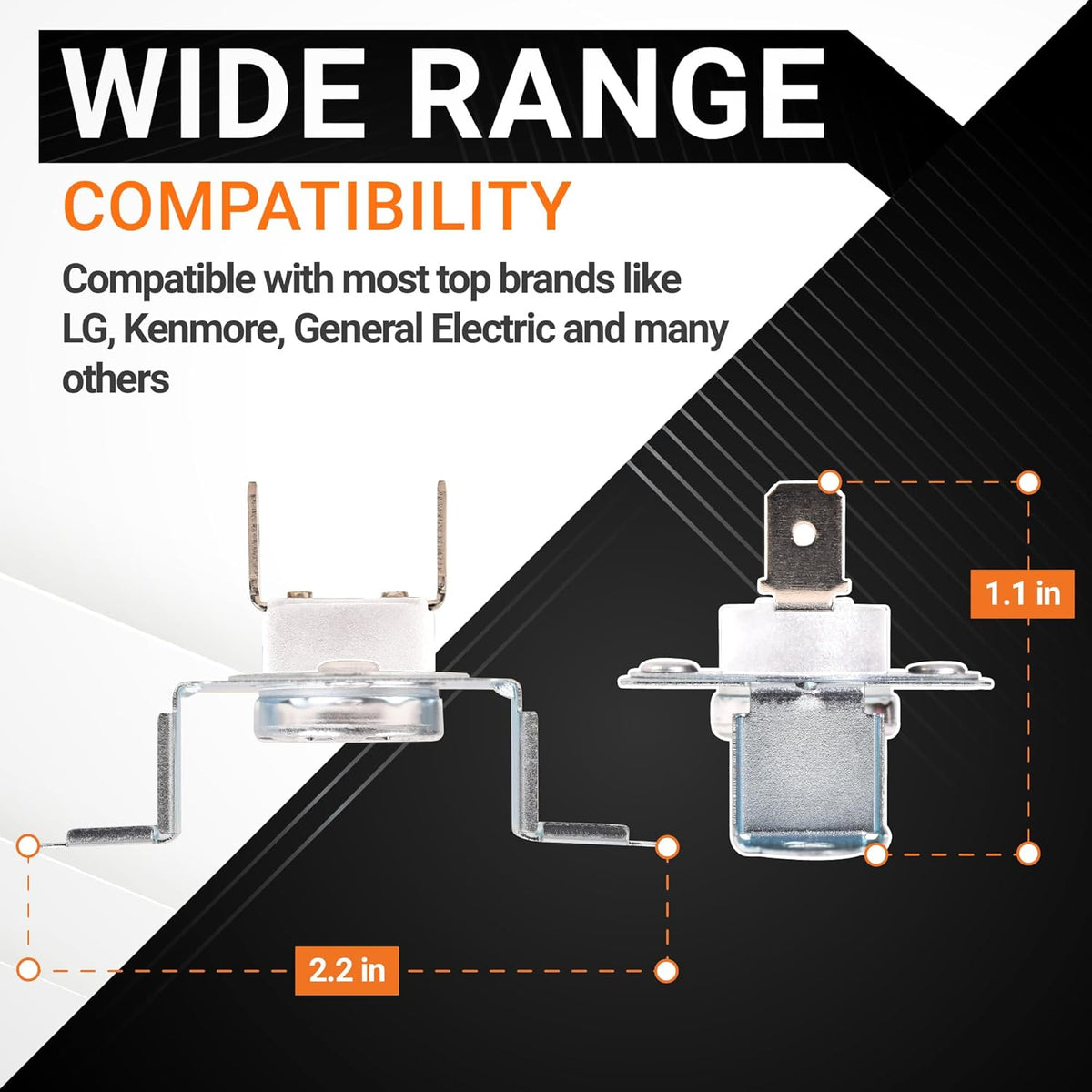

Product Dimensions
1-1/4 x 1-1/8 x 2-1/4 inches
Trip Temperature
Opens at 257°F / Closes at 221°F (±9°F)
6931EL3001B (Hi-Limit Thermostat)
Material
Metal / Plastic
Voltage
250V, 25A
Product Dimensions
2 x 1-3/4 x 1-1/4 inches
