5FT Propane 2-Way Y Splitter Adapter Hose - 1lb to 20lb Converter with Shut Off Valve
0.00
Regular price
$50.07
Regular price
Save 11%
$56.08
Sale price
$50.07
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

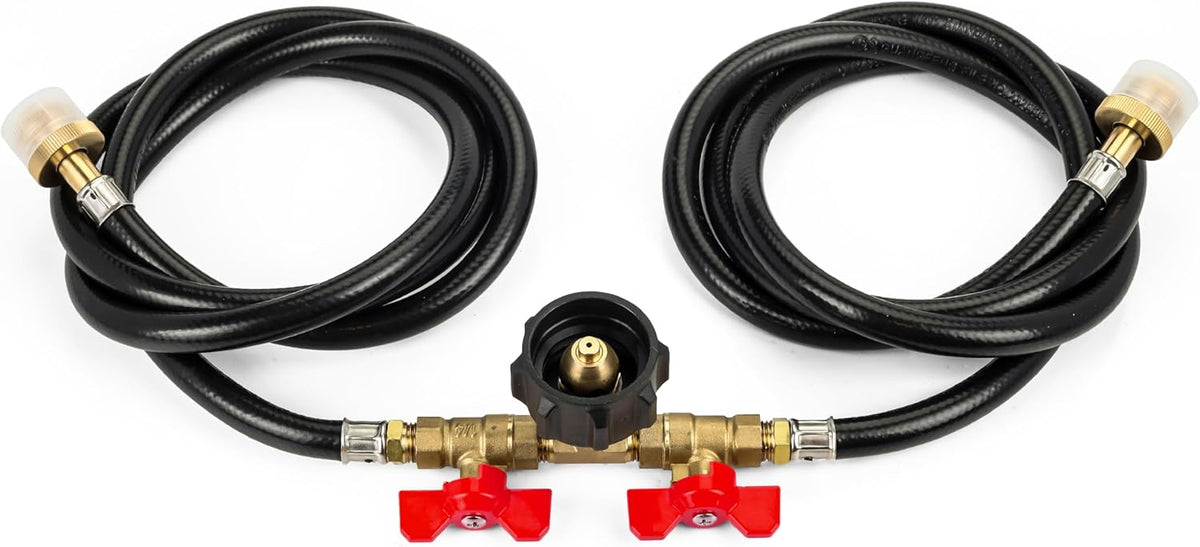

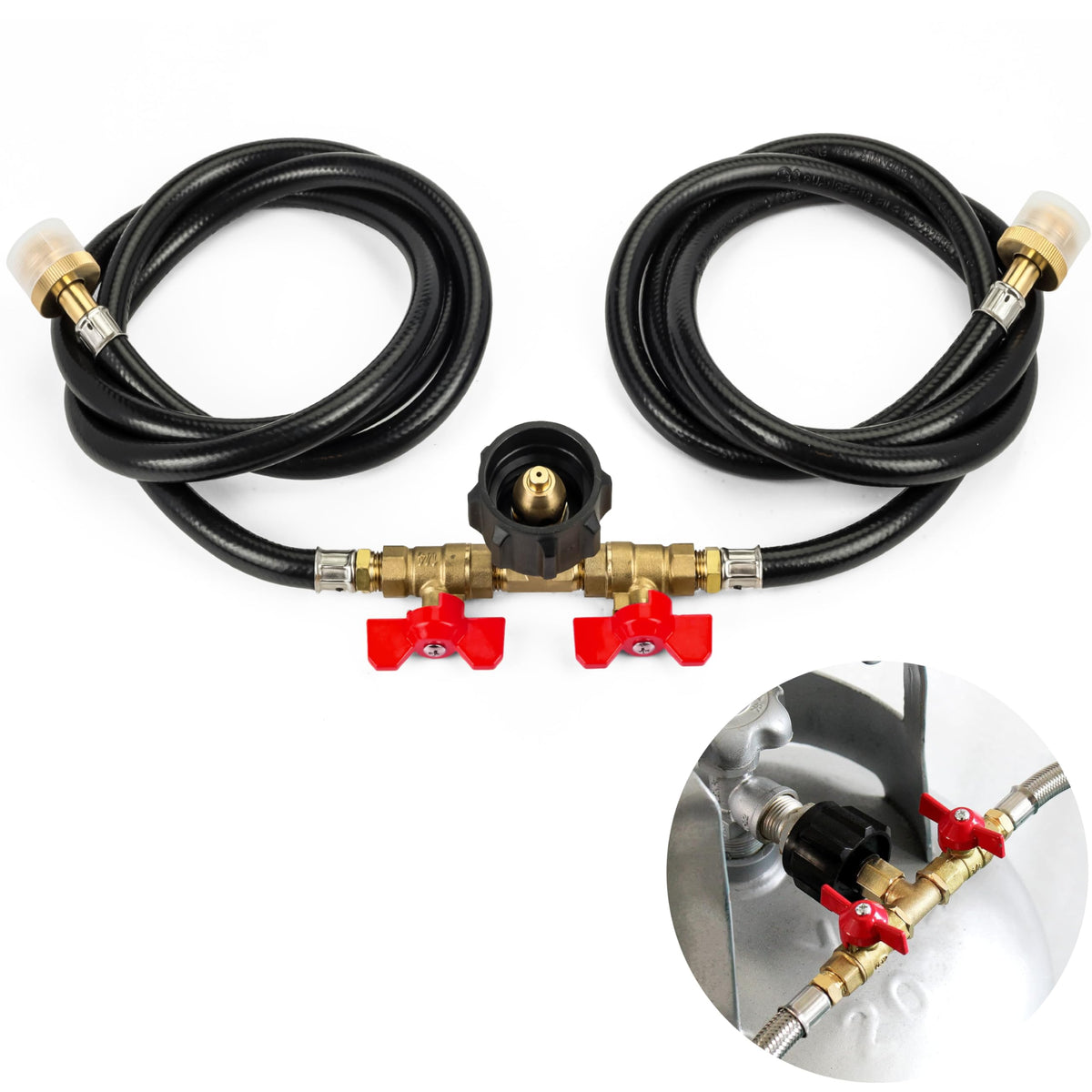

5-Foot Propane 2-Way Y Splitter Adapter Hose - 1 lb to 20 lb Converter with Shut-Off Valves

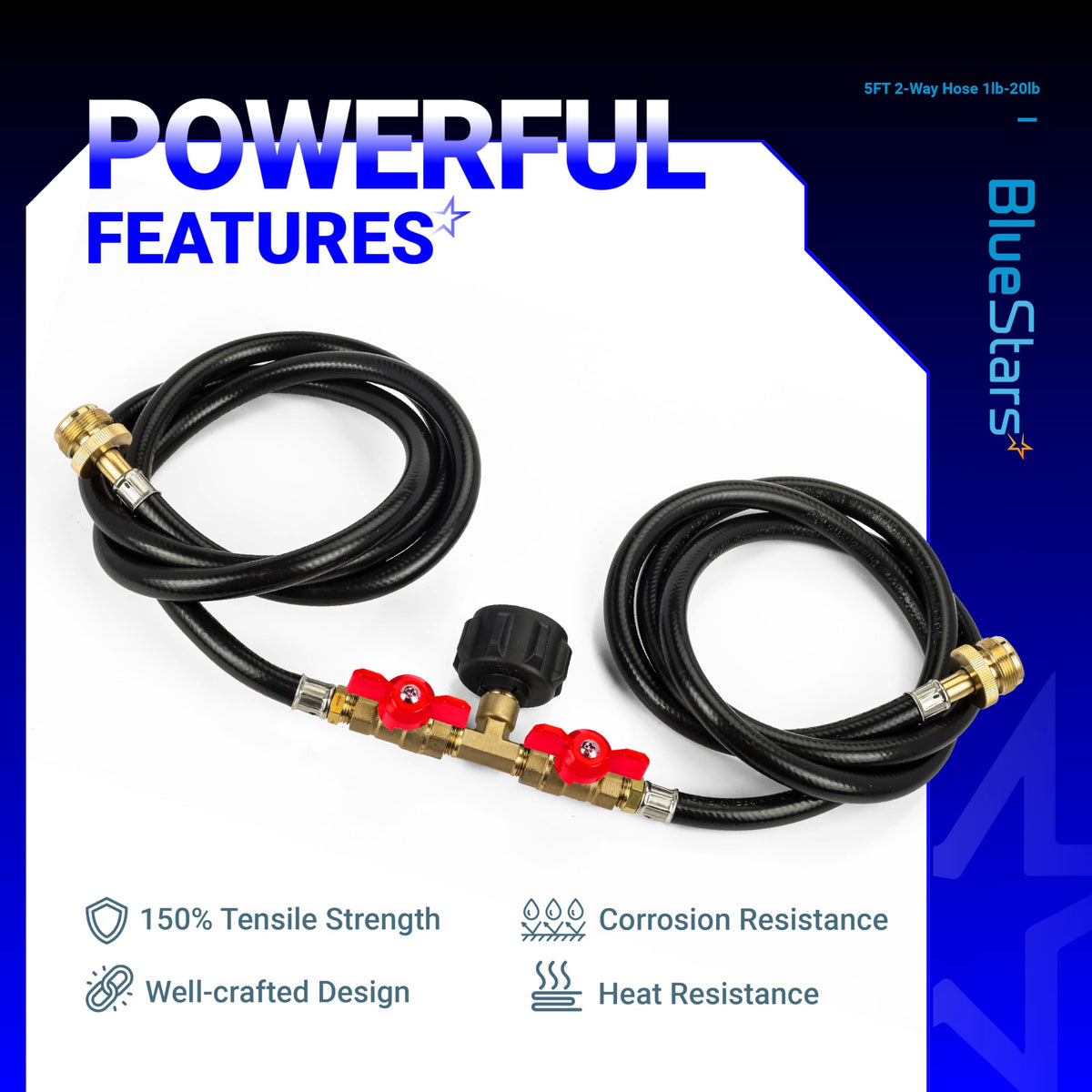

Key Features

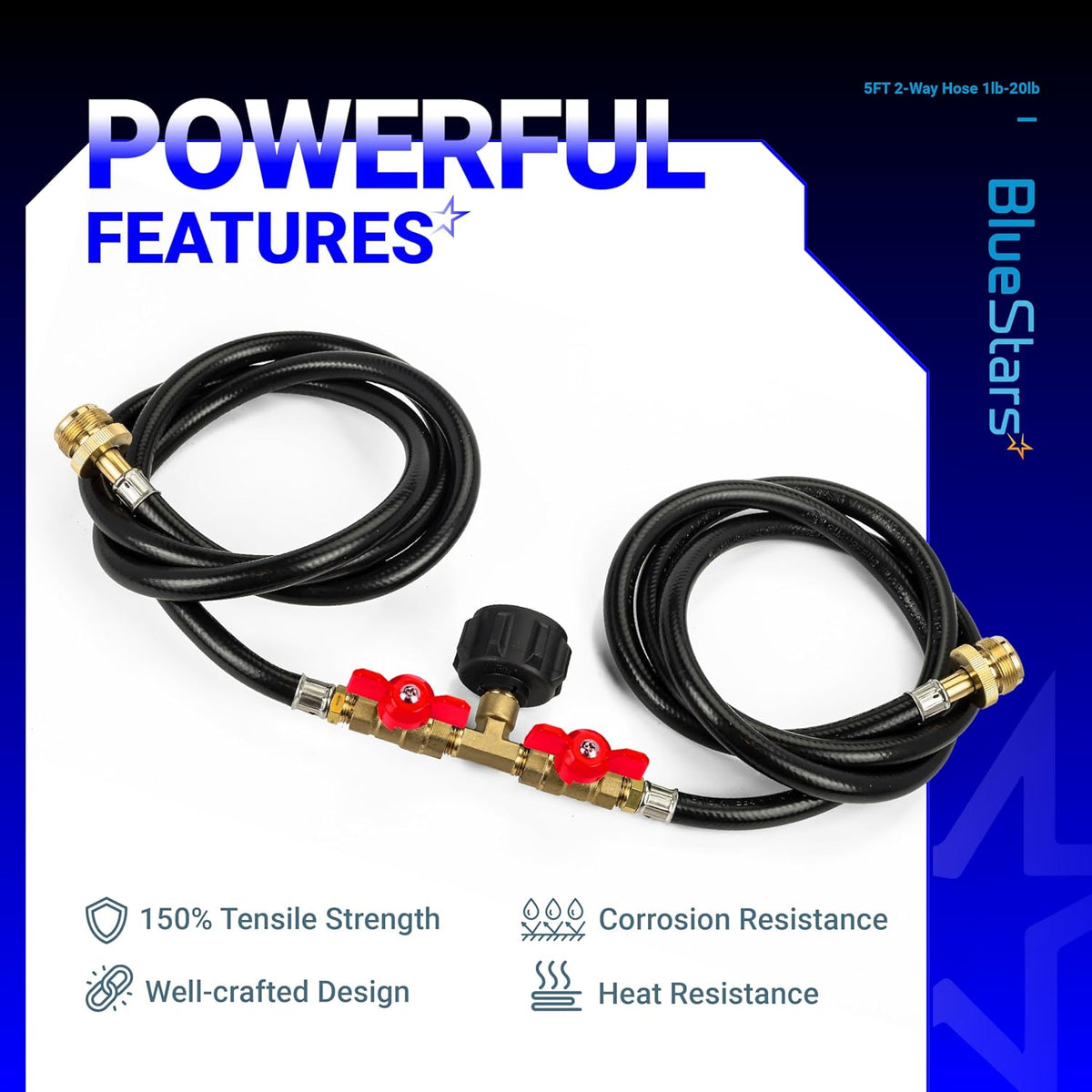

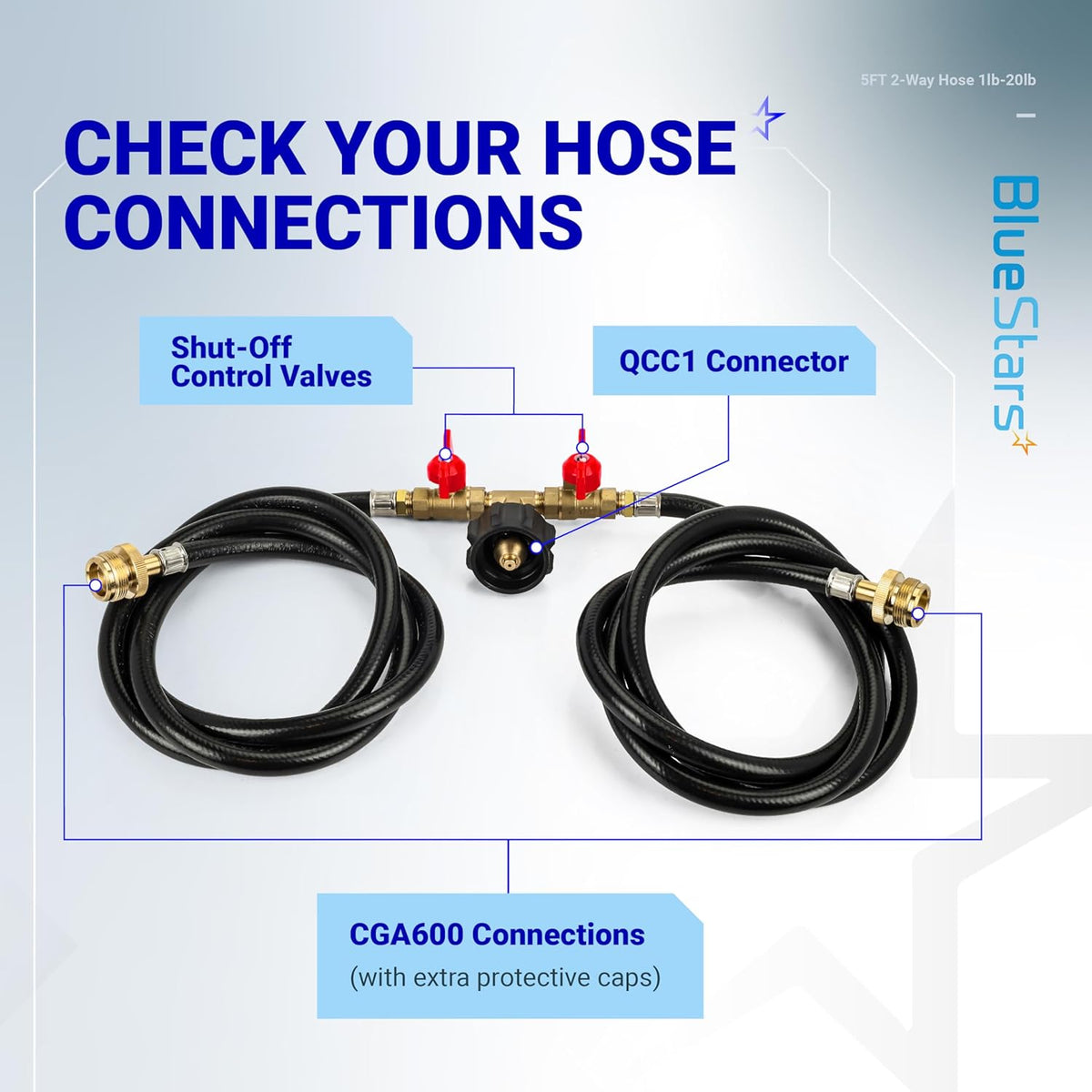

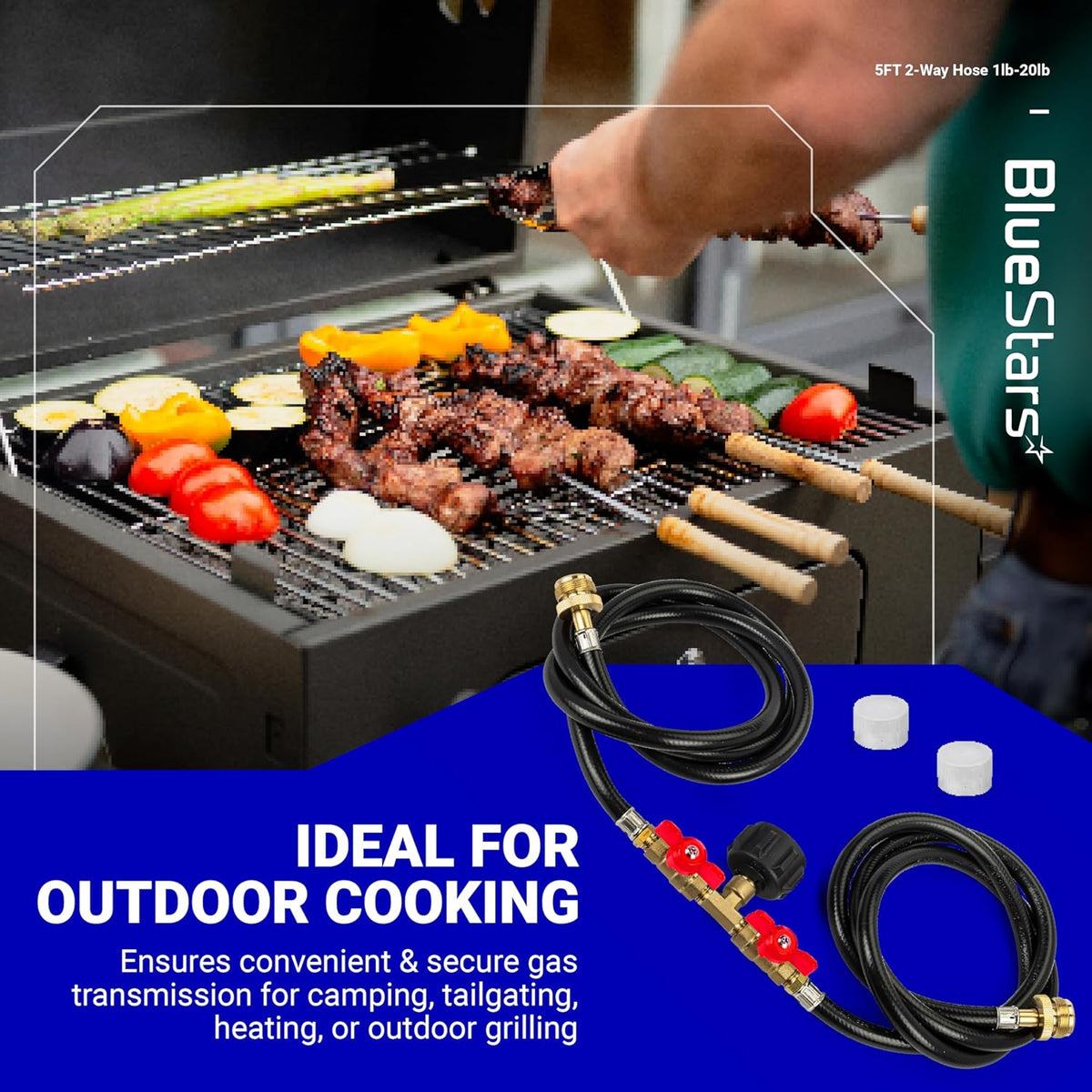

- Y-splitter design: one QCC1 / Type 1 inlet feeds two CGA600 male outlets run two 1 lb appliances simultaneously from a single 5–40 lb bulk tank

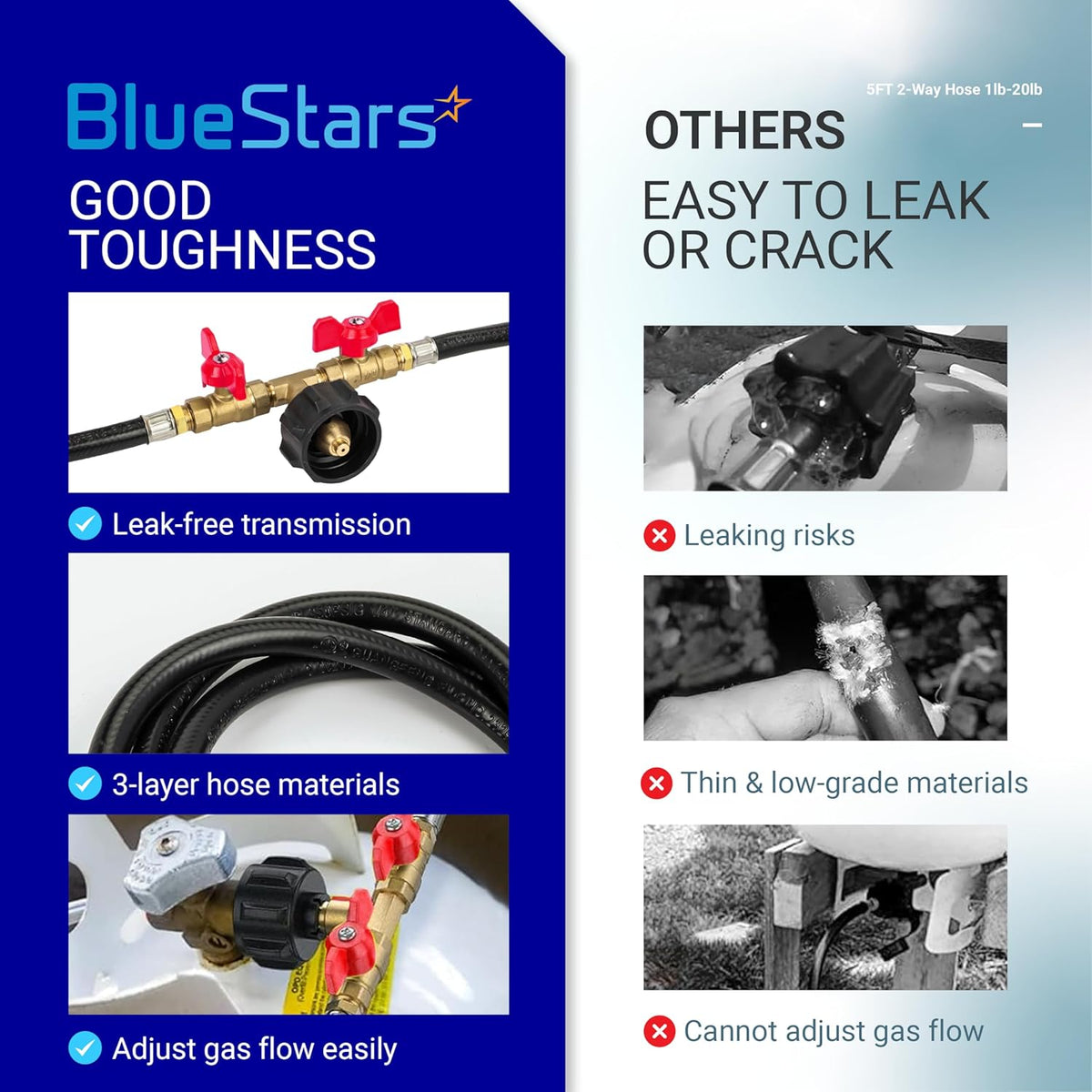

- Individual inline shut-off valve on each outlet branch for independent flow control without touching the main tank valve
- 350 PSI rated working pressure; overflow protection device built into the QCC1 inlet fitting
- 5-foot hose length provides safe working distance between tank and appliances

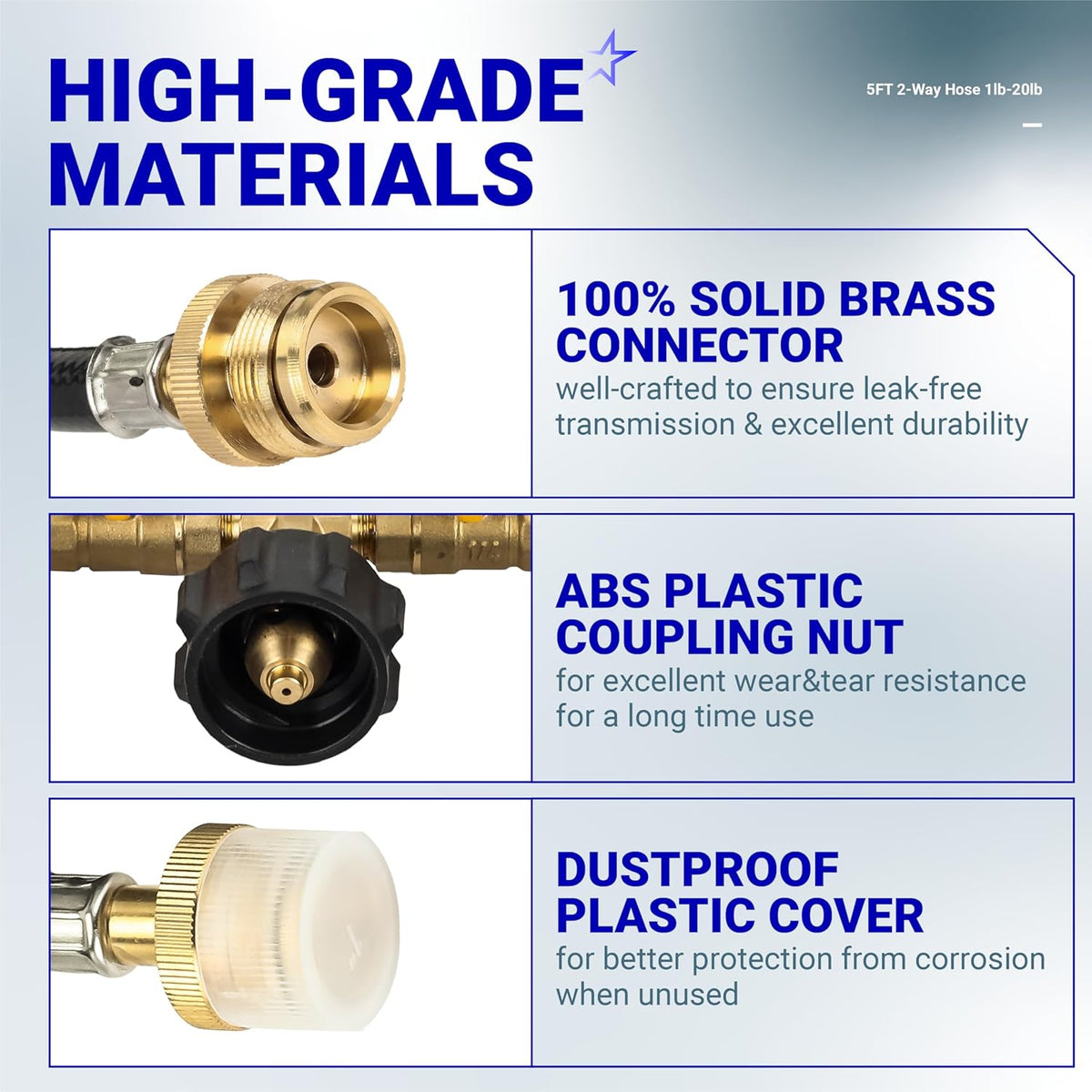

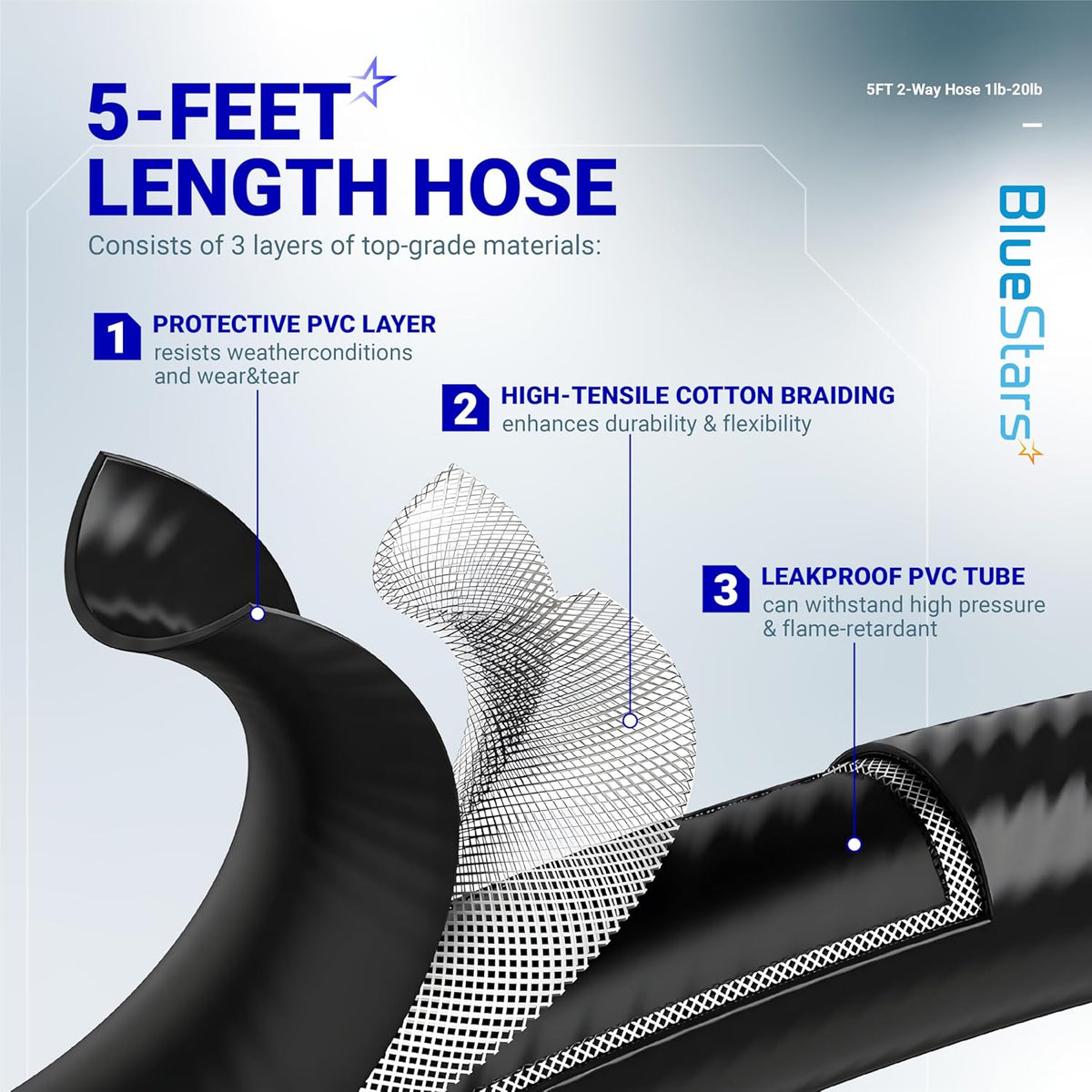

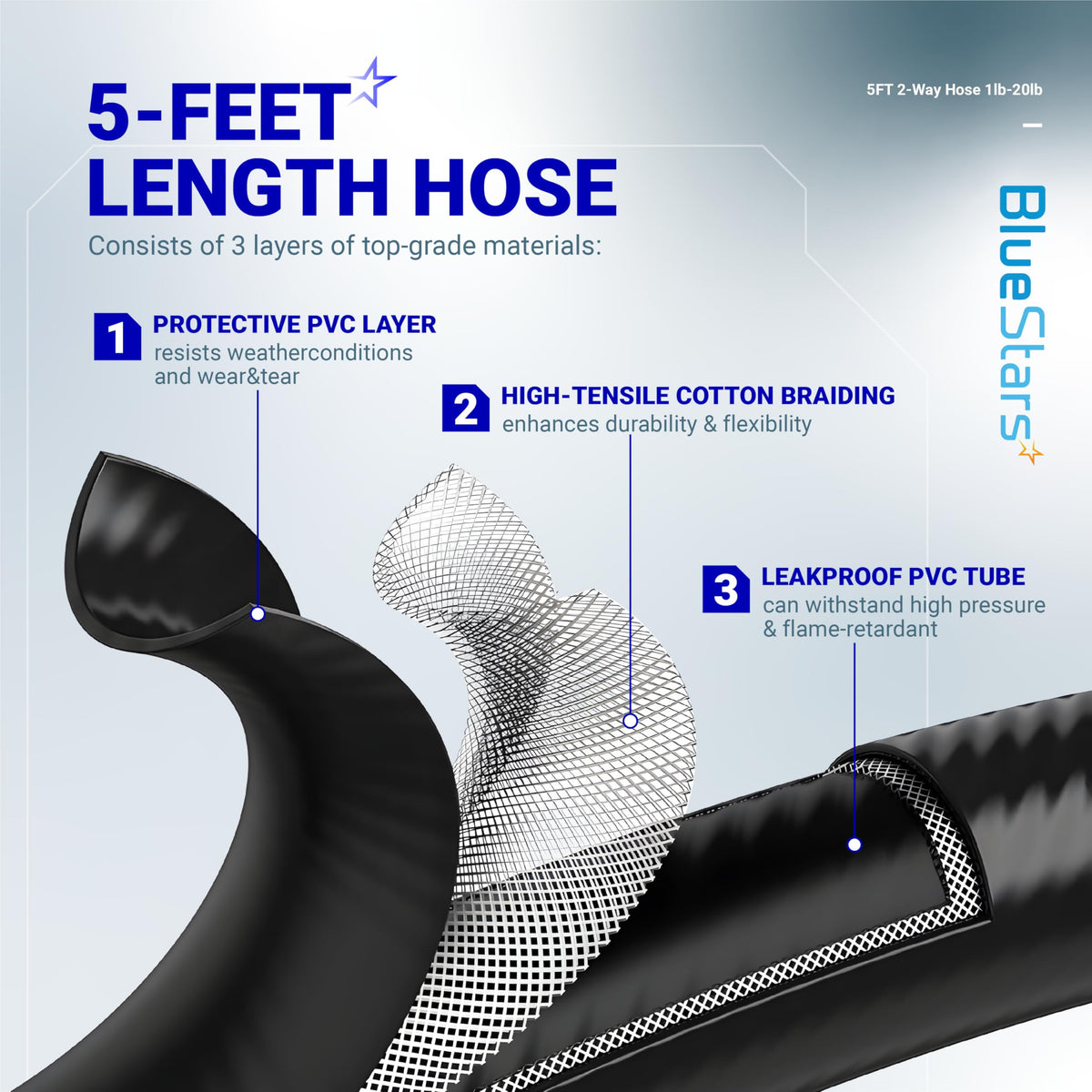

- All-brass fittings - QCC1 connector, valve bodies, and CGA600 connectors; stainless steel braided hose over rubber inner core
- Two CGA600 protective cap covers included; no tools required for connection
Specifications
- Hose length: 5 ft (60 in)
- Rated pressure: 350 PSI
- Inlet: 1x QCC1 / Type 1 (5–40 lb propane tanks)
- Outlets: 2x CGA600 male (1" x 20 UNEF standard 1 lb appliance regulator thread)
- Fittings: solid brass; Hose: stainless steel braided rubber
- Includes: hose assembly, 2x CGA600 protective caps
Compatibility & Fitment
- Source tank: any 5–40 lb propane cylinder with a QCC1 / Type 1 valve

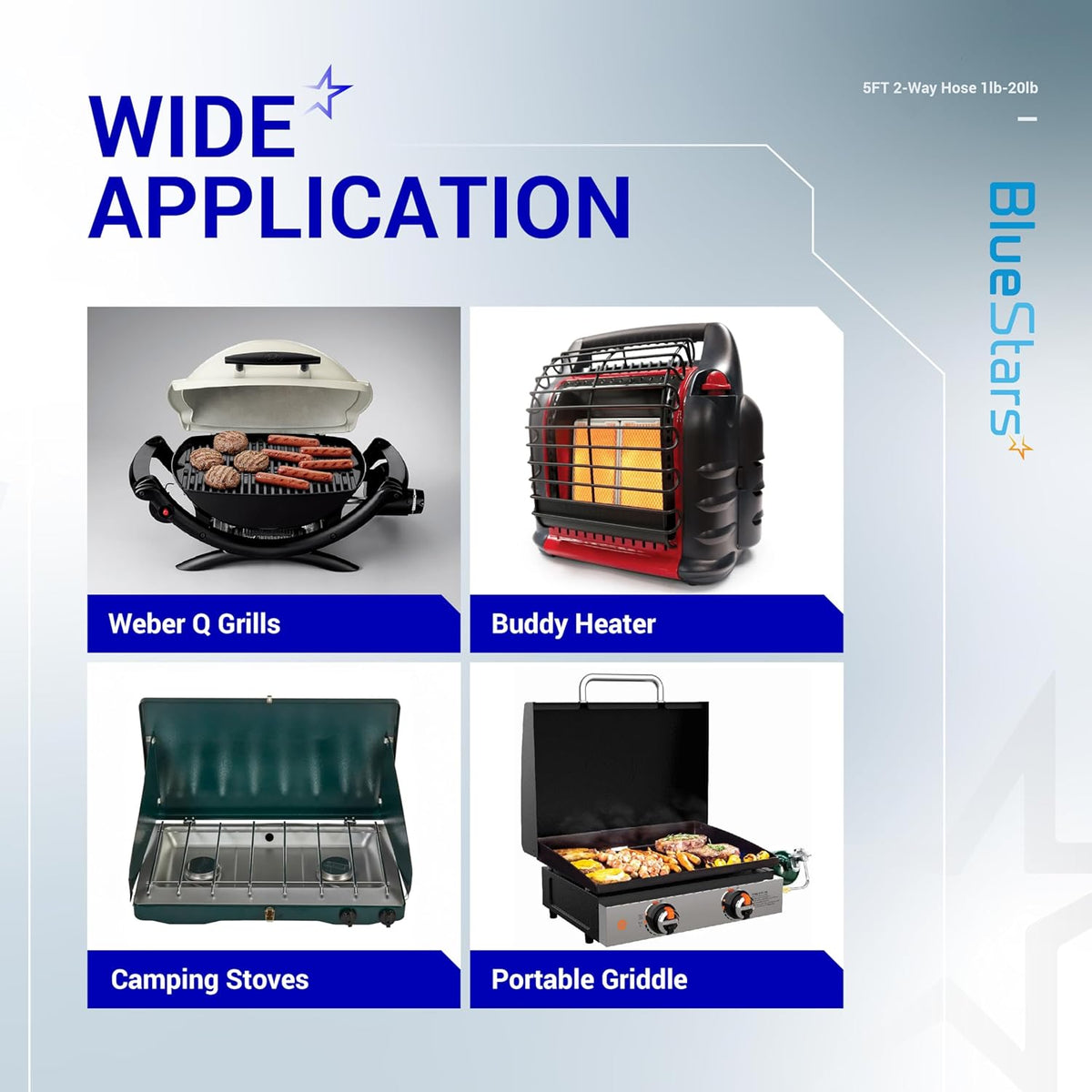

- Appliance side: portable propane devices with a built-in 1 lb CGA600 regulator inlet, camp stoves, tabletop grills, portable heaters (Mr. Heater MH9B, MH18B), Weber Q grills, Coleman stoves, Blackstone 17" and 22" griddles
- Not compatible with appliances using a QCC1 or POL low-pressure regulator inlet. This hose delivers unregulated tank pressure and requires appliances with their own integral 1 lb regulator
- Confirm your appliance accepts a CGA600 male connector before purchasing
When to Replace
- Visible hose kinking, cracking, or braid fraying
- Gas odor at any connection point after full tightening
- Either shut-off valve no longer seats fully closed
- Stripped or damaged threads on QCC1 or CGA600 connectors
- Bubble formation on hose body during soapy water leak test
Installation Tips
- Close both outlet valves and the tank valve before connecting
- Hand-tighten QCC1 onto tank valve, O-ring sealed, no PTFE tape needed; hand-tighten CGA600 connectors into appliance regulator inlets
- Leak test all joints with soapy water before opening either outlet valve; do not proceed if bubbles appear
- Open the main tank valve a few seconds before opening outlet valves to activate the QCC1 overflow protection device
- At shutdown: close both outlet valves first, then close the main tank valve to relieve hose pressure
- Outdoor or well-ventilated use only; store with protective caps installed
