580BTS Air Filter Fuel Line Kit for Redmax EBZ8500 EBZ7500 EB7000
0.00
Regular price
$17.55
Regular price
Save 10%
$19.49
Sale price
$17.55
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
580BTS Air Filter Fuel Line Kit for RedMax EBZ8500 EBZ7500 EB7000
Key Features

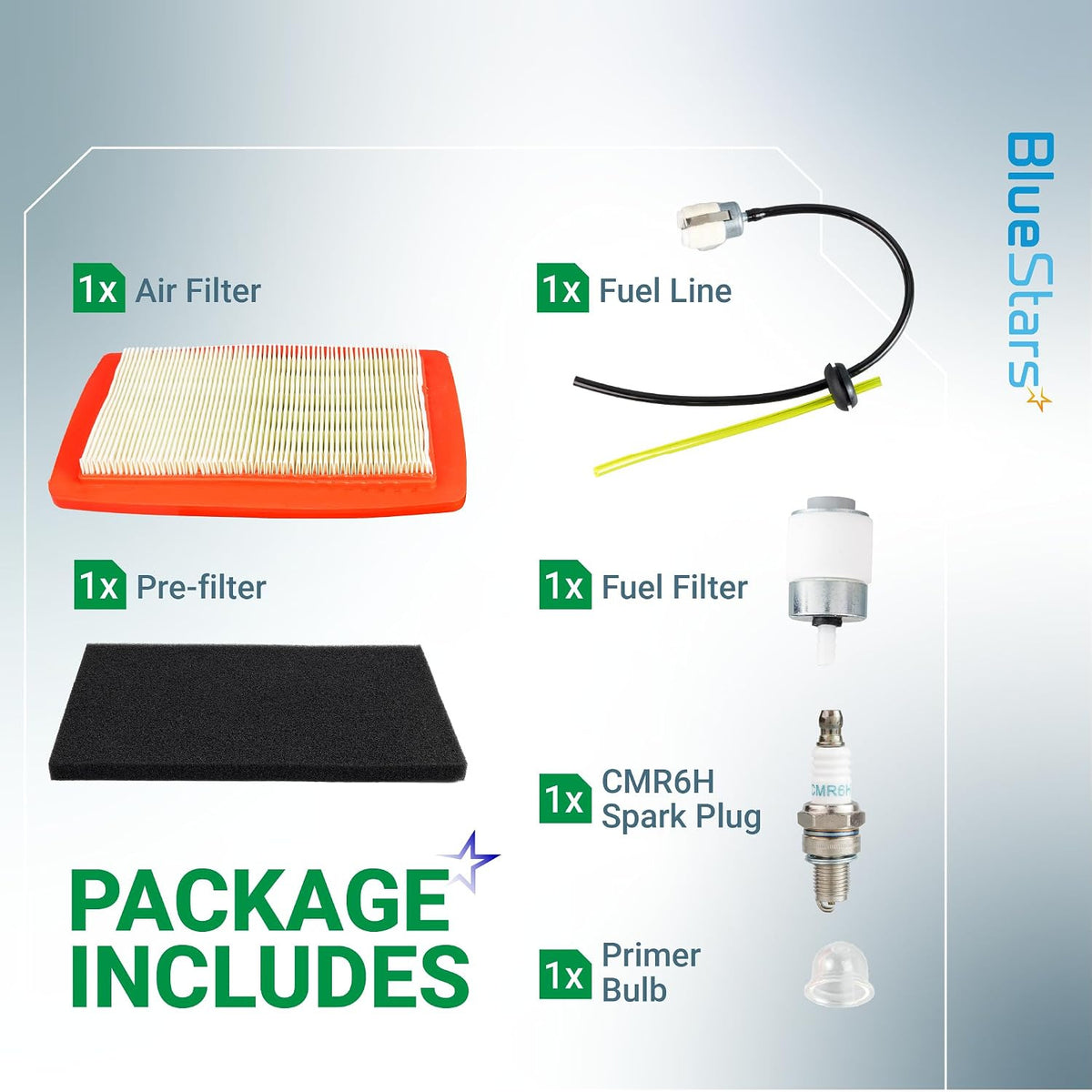

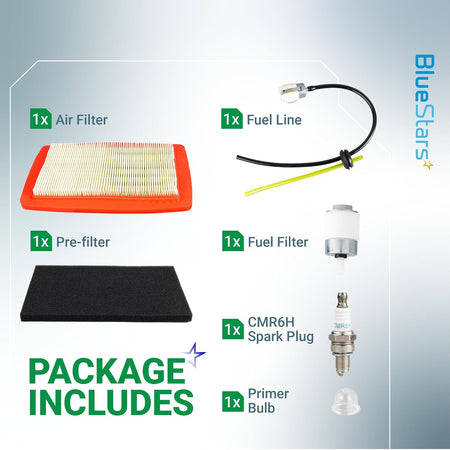

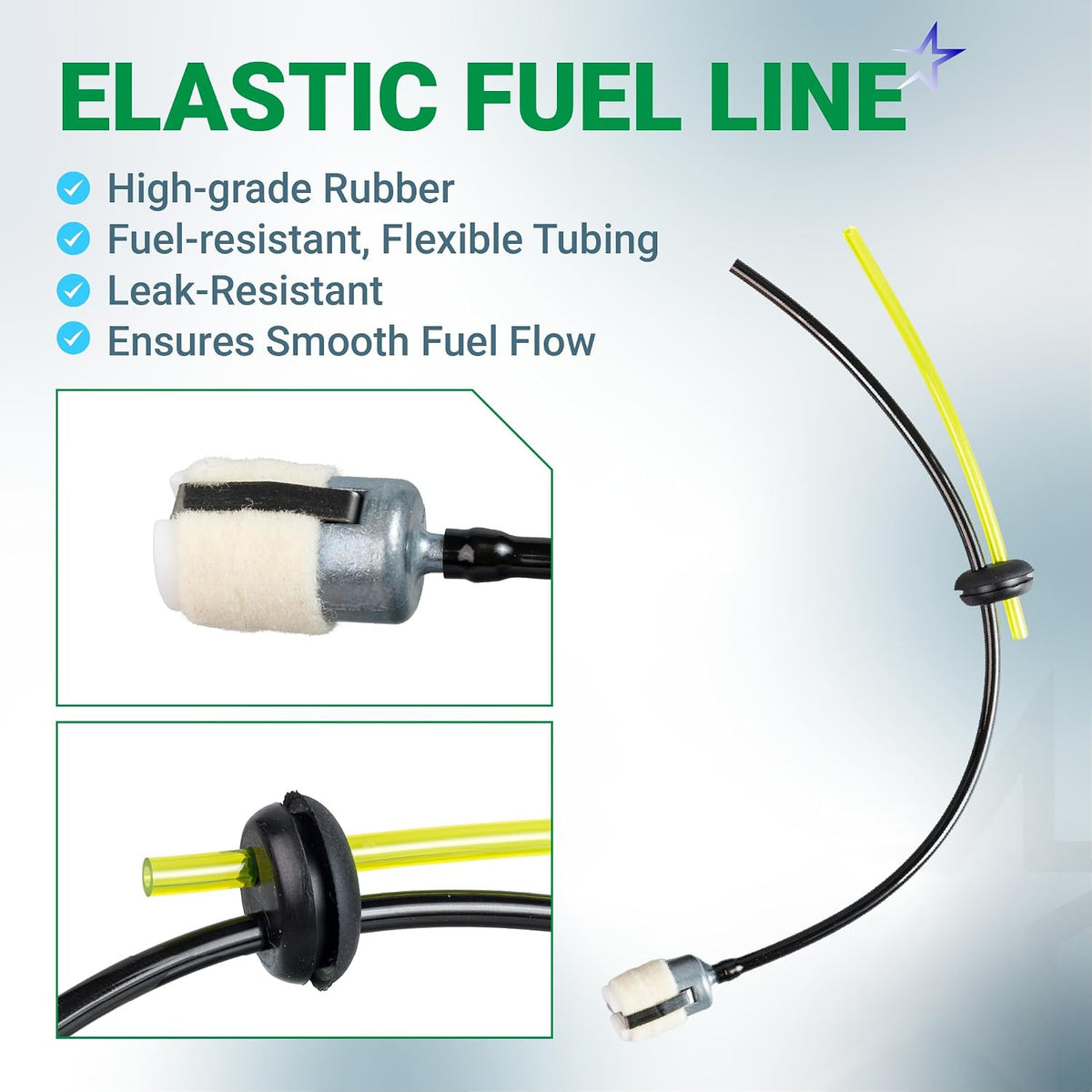

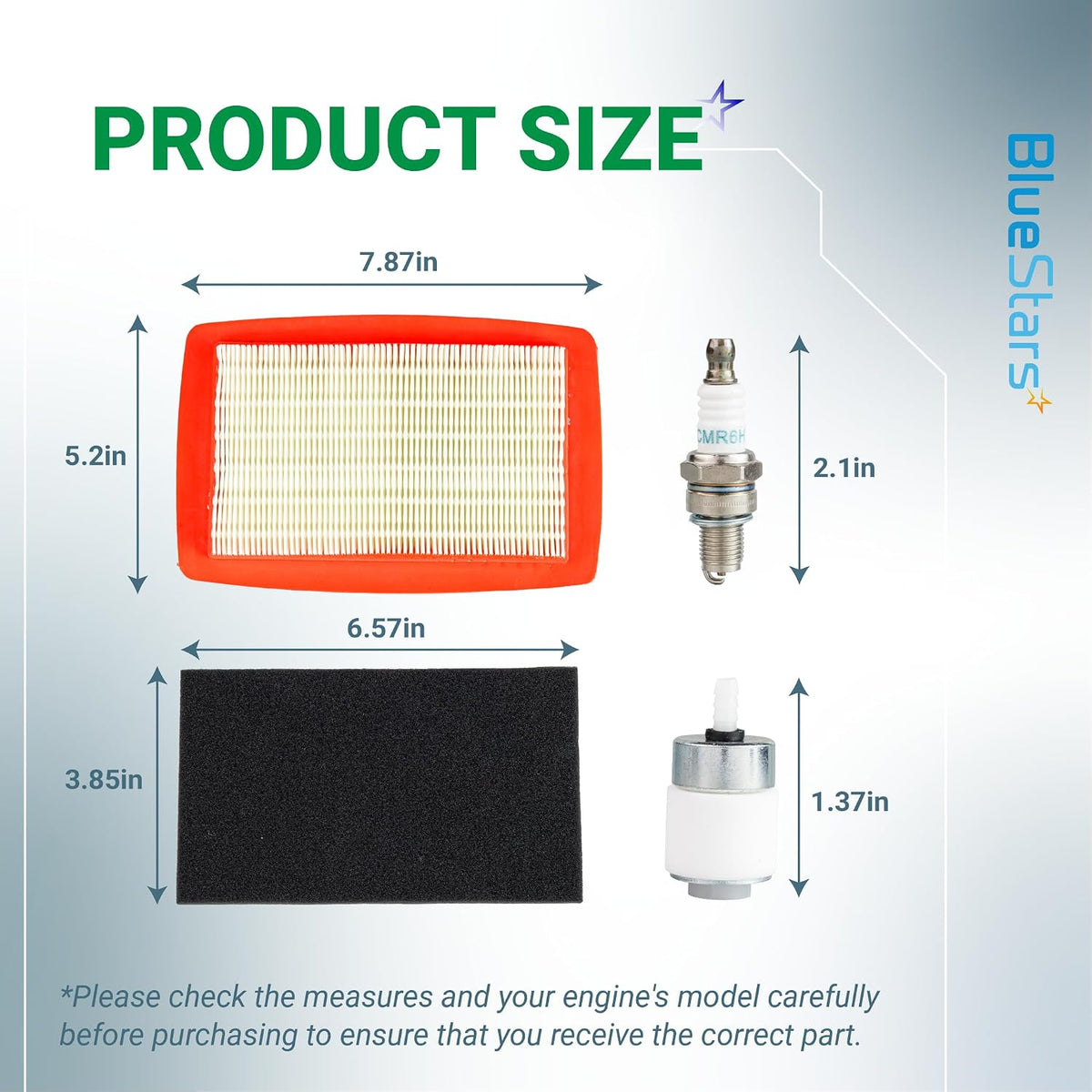

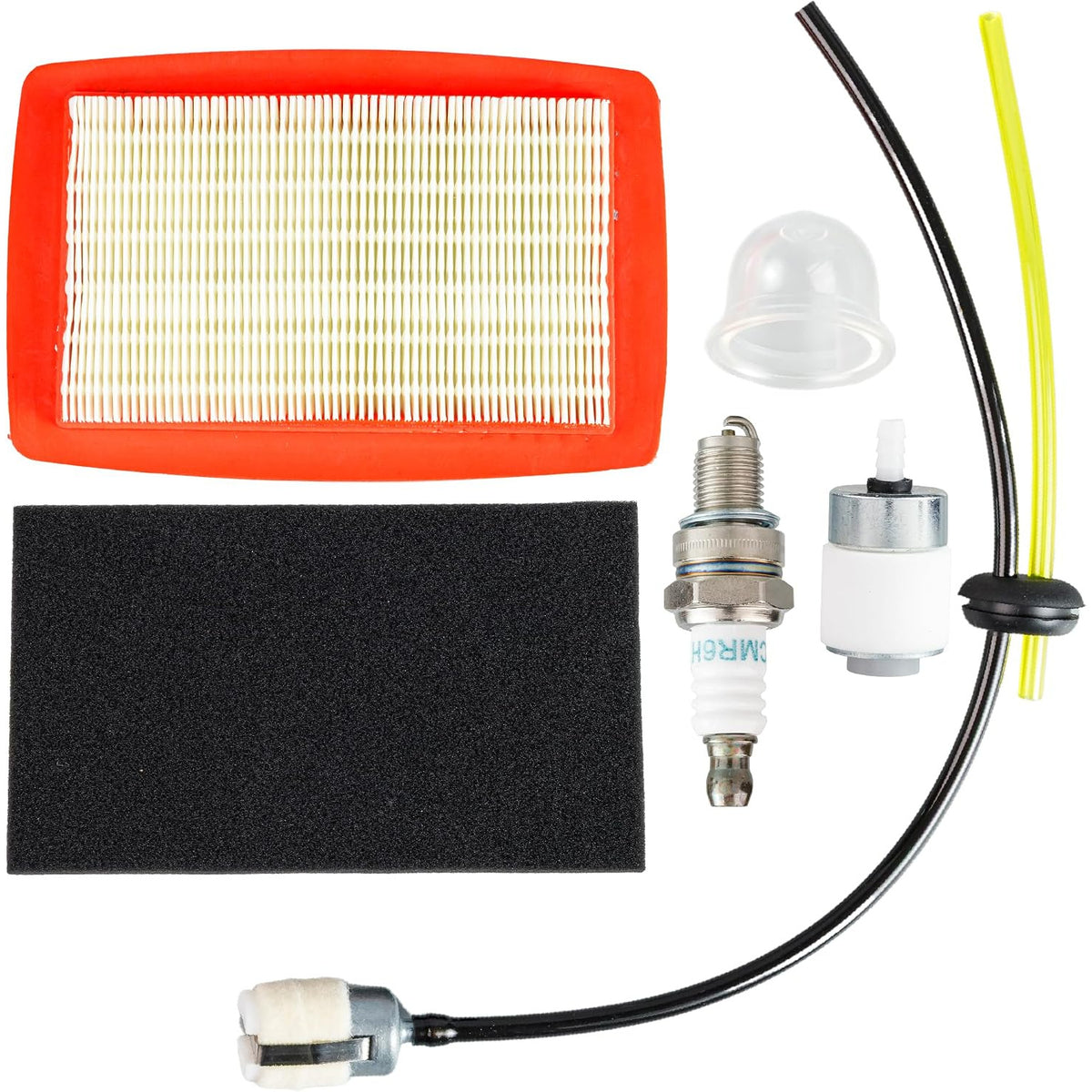

- Complete maintenance kit with 1 air filter, 1 pre-filter, 1 CMR6H spark plug, 1 fuel line, 1 fuel filter, and 1 primer bulb.
- Designed for backpack and leaf blower service applications.
- Refreshes the intake and fuel-delivery components when restricted airflow or deteriorated fuel-system parts affect operation.
- Unit count: 1 kit.
Replaces / Cross-Reference Part Numbers
- RedMax: T401282310, T401282311, T401282320, T401282321
- Husqvarna: 512652001, 544271501, 512654101, 544271601
- Stens: 102-602
Compatibility & Fitment
Fits selected RedMax and Husqvarna backpack and leaf blower models. Confirm the engine model and existing part number before ordering.
- RedMax EBZ7001, EBZ7001RH, EBZ7100, EBZ7100RH, EBZ7150, EBZ7150RH, EBZ7500, EBZ7500RH, EBZ8001, EBZ8001RH, EBZ8050, EBZ8050RH, EBZ8500, and EBZ8500RH
- Husqvarna 570BFS, 580BFS, 570BTS, 580BTS, 170BF, 370BFS, 380BFS, 380BTS, 180BF, 170BT, and 180BT
- Additional listed applications include Husqvarna EB8000, EBZ7100, and EBZ7150 leaf blowers.

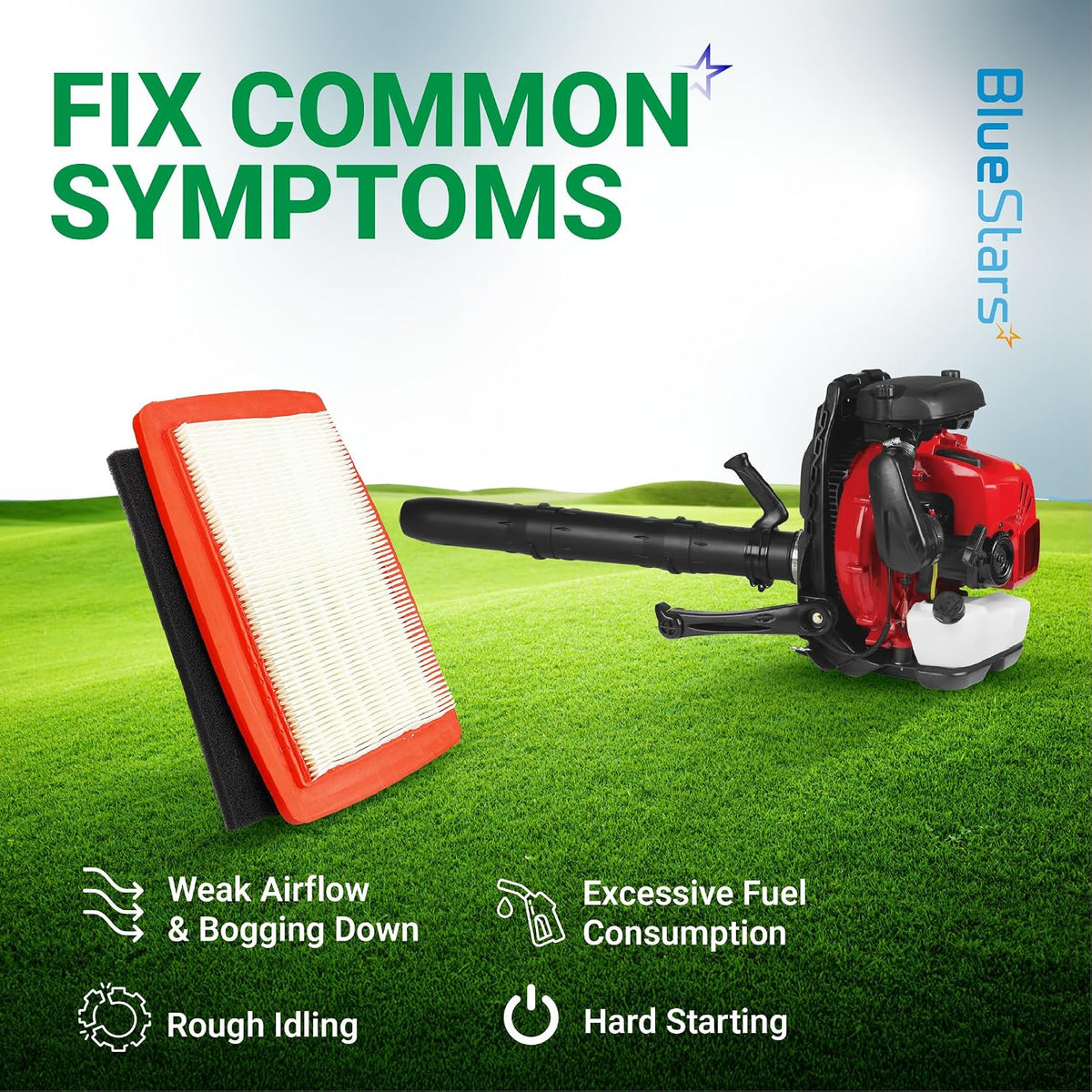

When to Replace
- Replace a dirty or restricted air filter when the blower has weak power, bogs down, or runs poorly under load.
- Replace the pre-filter when it is clogged, damaged, or no longer protects the main filter from debris.
- Replace fuel lines, the fuel filter, or the primer bulb when the blower is hard to start, has rough operation, or shows signs of aged or cracked fuel-system components.
- A worn spark plug can contribute to hard starting, misfiring, and unstable engine operation.

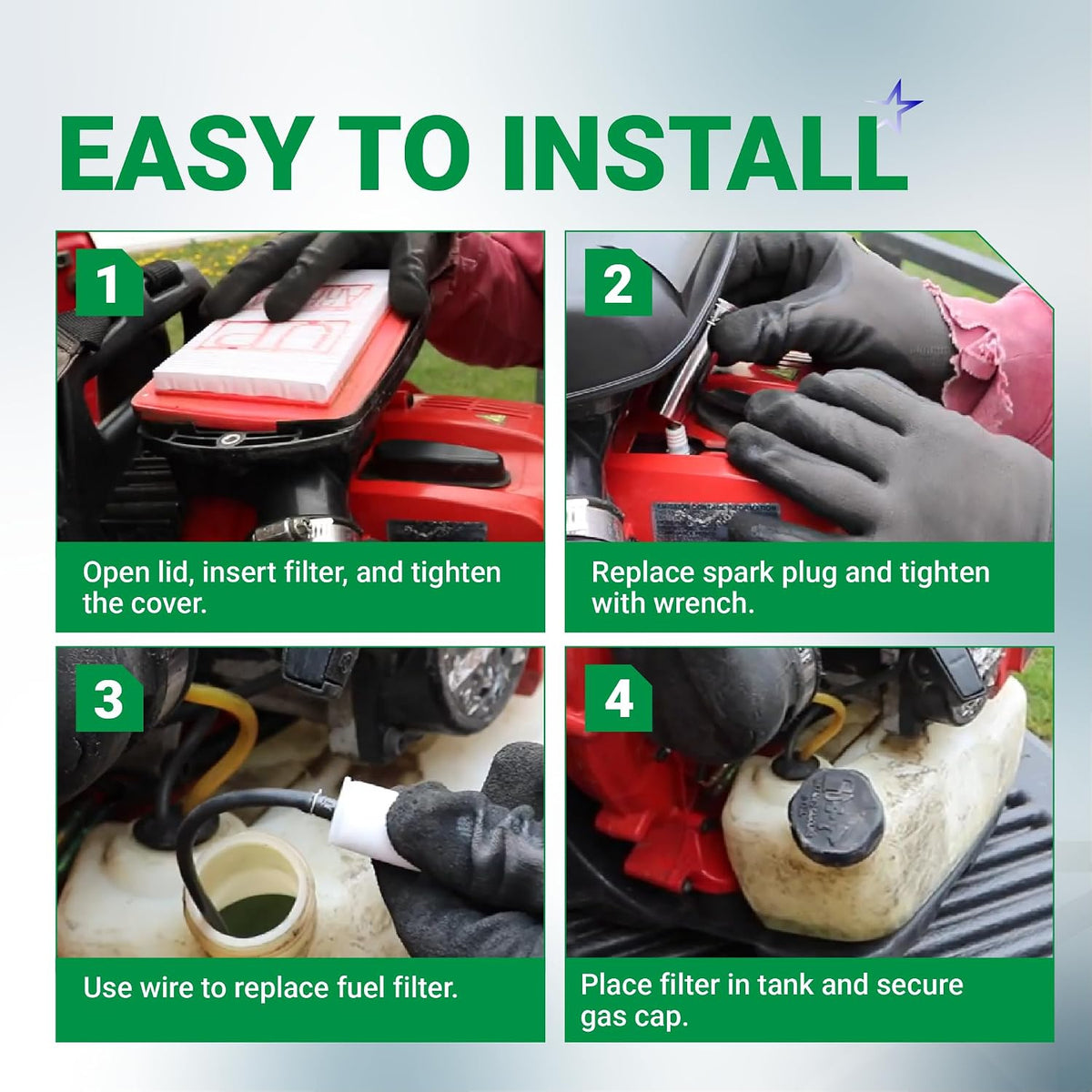

Installation Tips
- Confirm the blower model and cross-reference number before installation.
- Work with the engine cool and disconnect the spark plug lead before servicing.
- Clean debris from around the air-filter housing before opening it so contamination does not enter the intake.
- Route the replacement fuel line as the original line was installed, keeping it clear of sharp edges, hot surfaces, and moving parts.
- Install the supplied CMR6H spark plug using the equipment manufacturer's specified gap and tightening procedure.
- Prime the fuel system and check all connections for leaks before operating the blower.
-

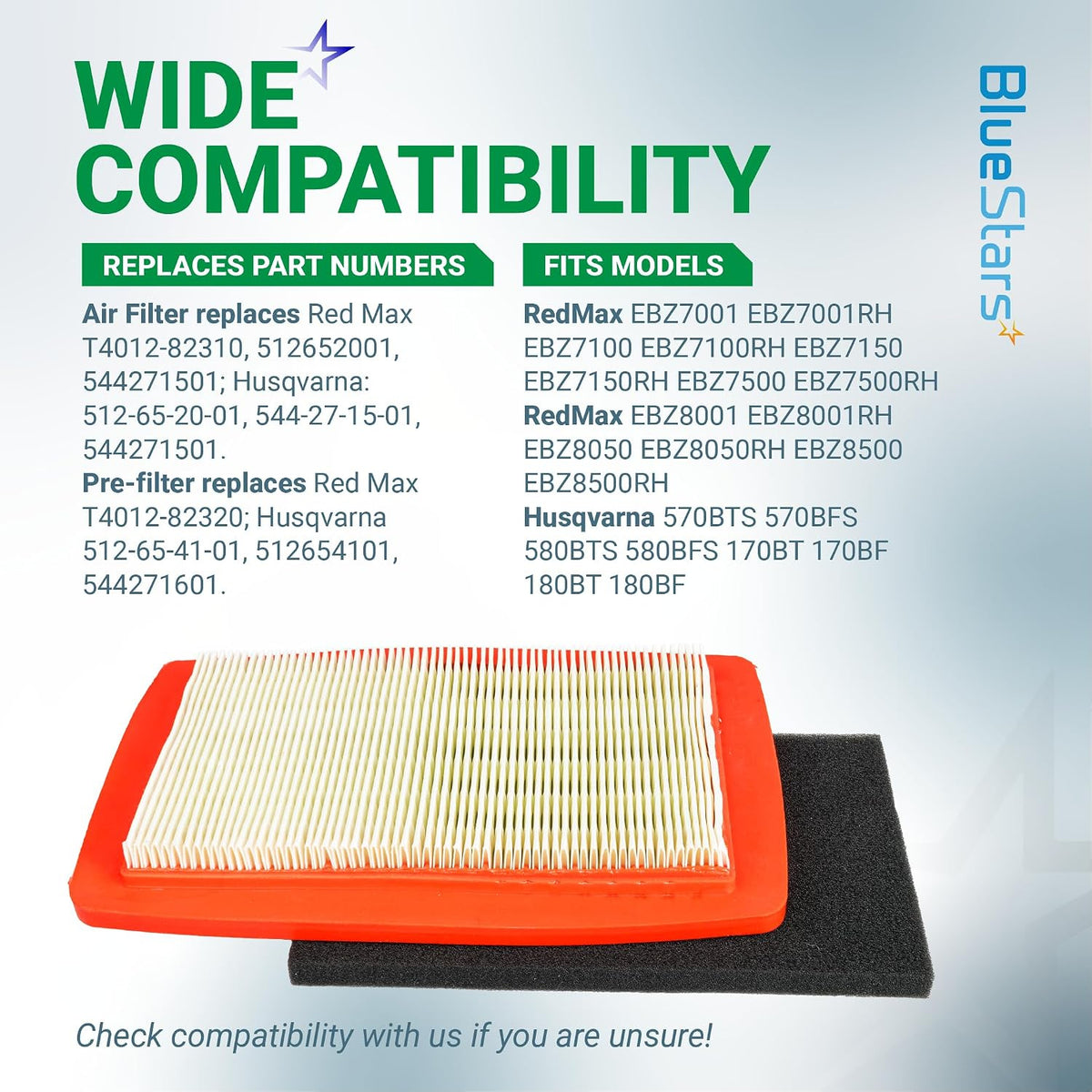

WIDE COMPATIBILITY
Designed for Redmax EB7000 EB8000 Series, Husqvarna 570BTS 580BFS Backpack Blowers -

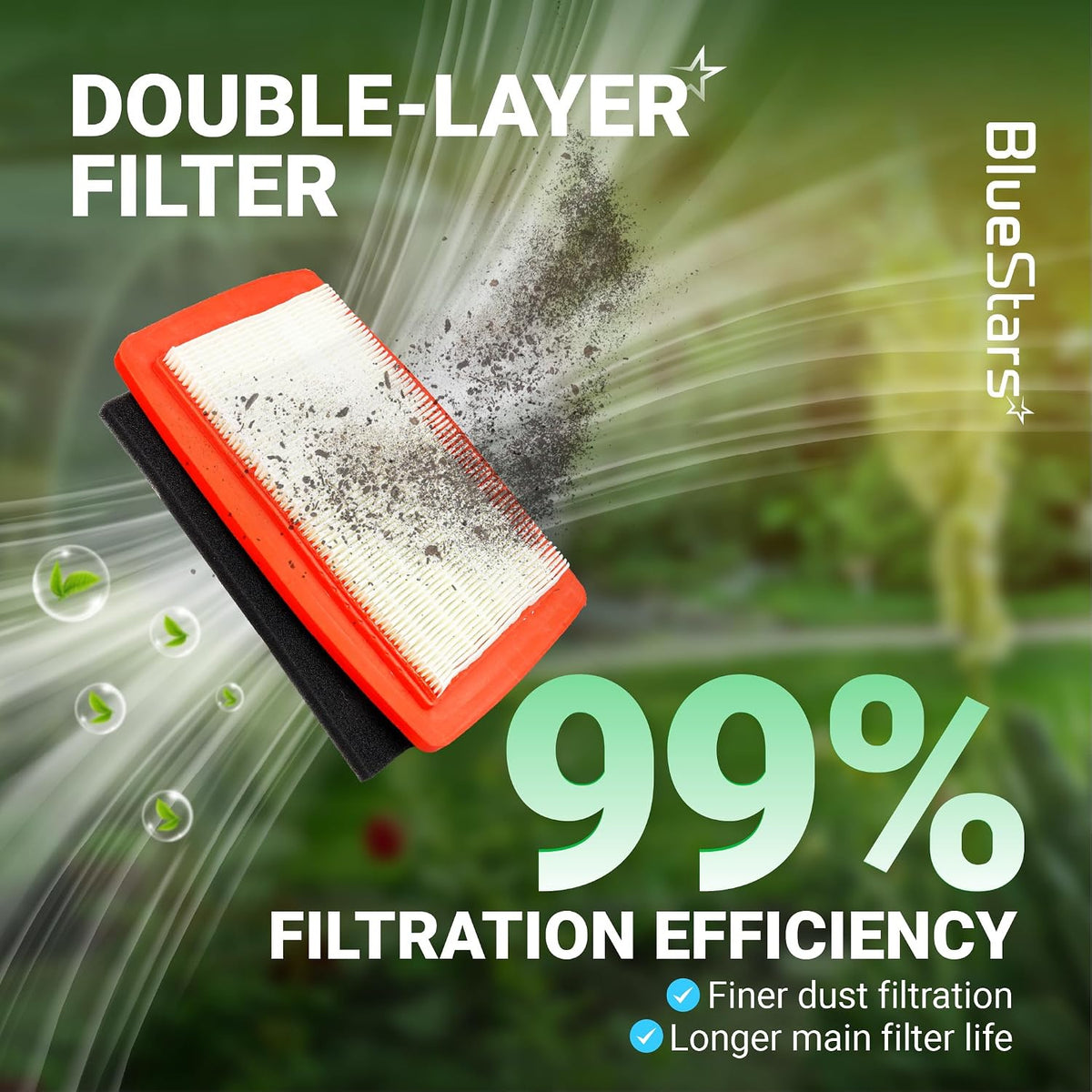

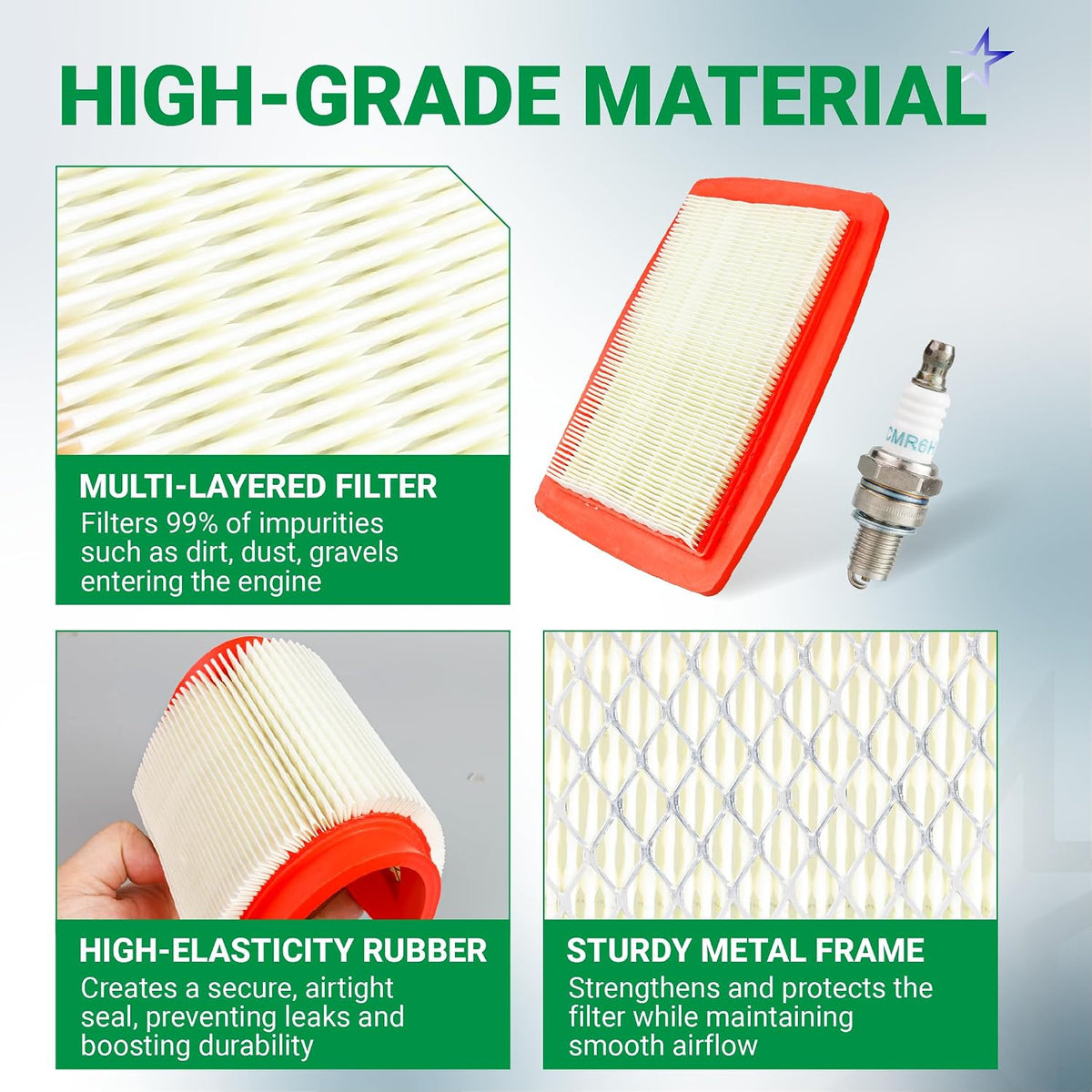

SUPERIOR MATERIALS
Crafted from high-grade materials for lasting, peak blower performance -
SAVING SOLUTION
Restore your backpack blower's function and enjoy DIY solutions with affordable garden parts from BlueStars -
SIMPLE INSTALLATION
This EBZ7500 backpack blower tune-up kit installs quickly, saving repair time
DESIGNED FOR REDMAX & HUSQVARNA BLOWERS
- RedMax EBZ7001 EBZ7001RH EBZ7100 EBZ7100RH EBZ7150 EBZ7150RH EBZ7500 EBZ7500RH
- RedMax EBZ8001 EBZ8001RH EBZ8050 EBZ8050RH EBZ8500 EBZ8500RH
- Husqvarna 570BTS 570BFS 580BTS 580BFS 170BT 170BF 180BT 180BF
- RedMax EBZ8001 EBZ8001RH EBZ8050 EBZ8050RH EBZ8500 EBZ8500RH
- Husqvarna 570BTS 570BFS 580BTS 580BFS 170BT 170BF 180BT 180BF
